Discovery 2. Manual - part 467





ENGINE MANAGEMENT SYSTEM - TD5

DESCRIPTION AND OPERATION 18-1-11

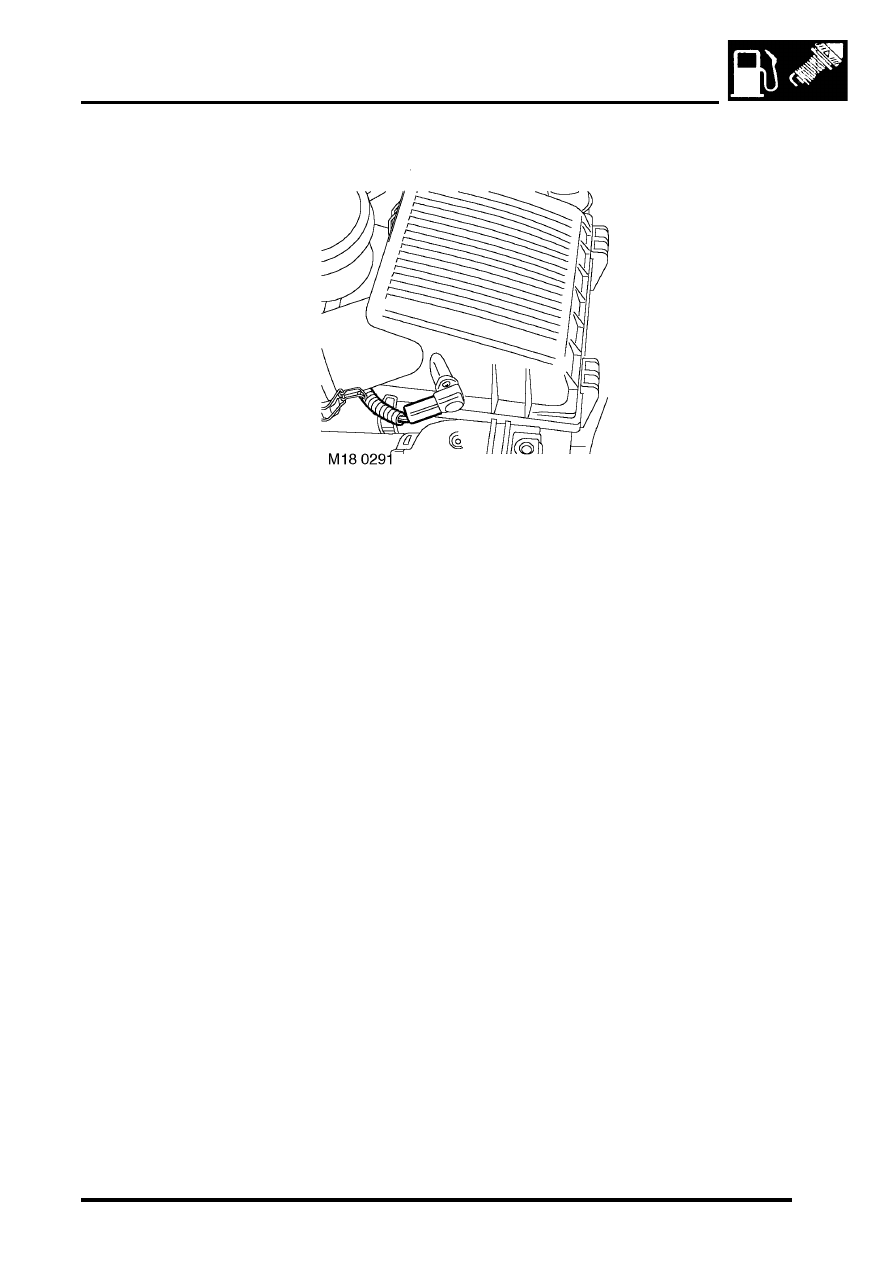

Ambient Air Temperature and Pressure (AAP) sensor

The AAP sensor is located in the top of the air filter housing. It provides voltage signals relative to both ambient air
pressure and temperature to the ECM. The AAP sensor produces a voltage between 0 and 5 volts proportional to the
pressure level of the air in the air filter housing. A reading of 0 volts indicates low pressure and a reading of 5 volts
indicates high pressure. The ECM uses the signal from the AAP sensor for the following functions:

l

To maintain manifold boost pressure.

l

To reduce exhaust smoke emissions while driving at high altitude.

l

Control of the EGR system.

The sensor also supplies a voltage between 0v and 5v proportional to ambient temperature. The ECM uses this signal
for the following functions:

l

Exhaust gas over temperature protection.

l

Turbocharger overspeed protection.

Input/Output
Connector C0158 pin 8 of the ECM supplies the AAP sensor with a 5 volt power supply. The pressure output from the
AAP sensor is measured at pin 10 of the ECM connector C0158, the temperature output from the AAP sensor is
measured at pin 31. The earth path is via pin 30 of ECM connector C0158.

The AAP sensor can fail the following ways or supply incorrect signal:

l

Sensor open circuit.

l

Short circuit to vehicle supply.

l

Short circuit to vehicle earth.

l

Contaminated sensor element.

l

Damaged sensor element.

l

Resistance in wiring harness.

In the event of an AAP sensor signal failure any of the following symptoms may be observed:

l

Altitude compensation inoperative (engine will produce black smoke).

l

Active boost control inoperative.

l

Turbocharger boost pressure limited to 1 bar (14.5 lbf.in

2

).

l

EGR altitude compensation inoperative.

The MIL will not illuminate in an AAP sensor failure, and the ECM will use a fixed default value from its memory.

ENGINE MANAGEMENT SYSTEM - TD5

18-1-12 DESCRIPTION AND OPERATION

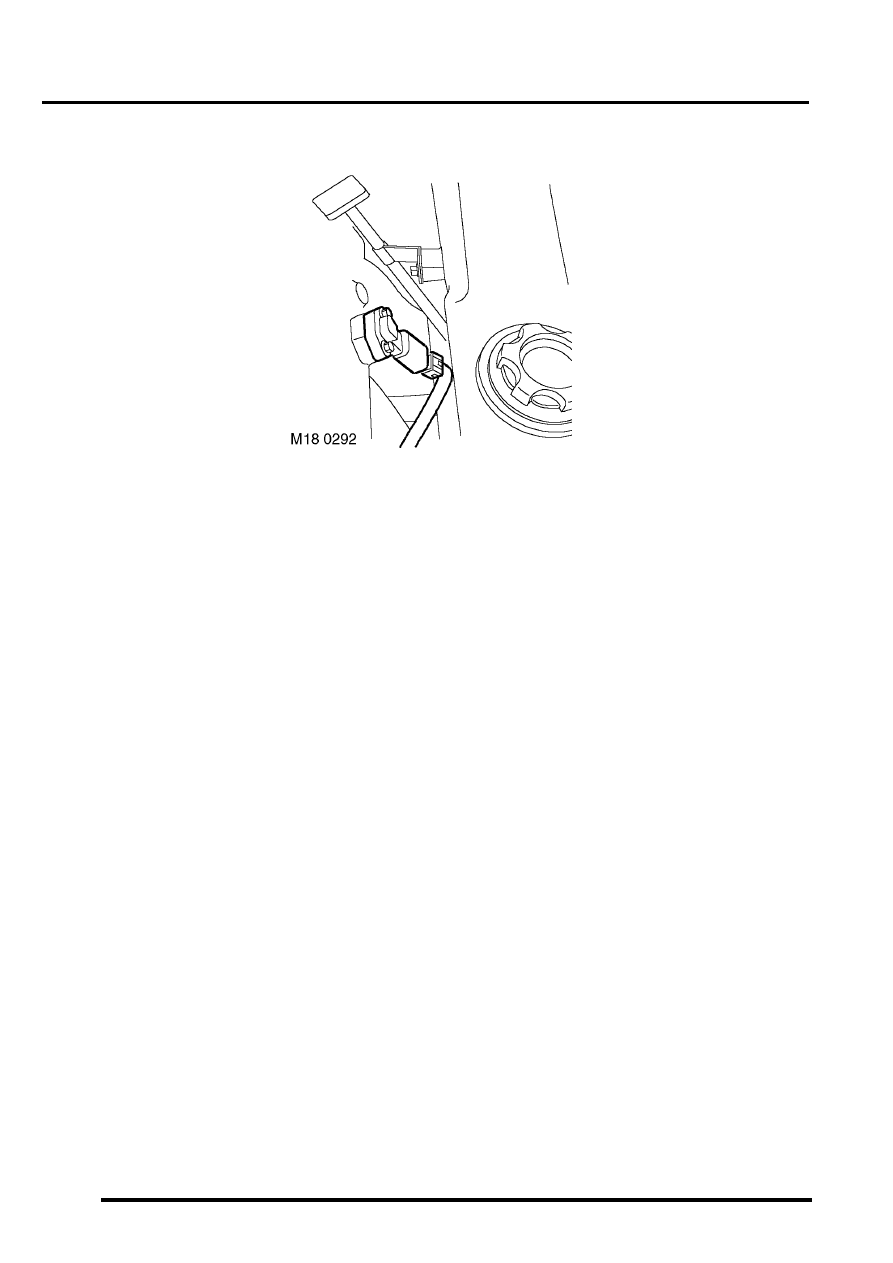

Manifold Absolute Pressure (MAP)/Inlet Air Temperature (IAT) sensor

The MAP/IAT sensors are combined in one unit located in the inlet manifold. It provides pressure and temperature
information about the air in the inlet manifold to the ECM. The ECM compares the voltage signal to stored values and
compensates fuel delivery as necessary. The ECM uses the signal from the MAP/IAT sensor for the following
functions:

l

To calculate the delivered fuel limits.

l

To calculate the air mass in the cylinder.

l

To calculate the air speed density.

l

To calculate air temperature.

The MAP sensor works on the piezo crystal principal. Piezo crystals are pressure sensitive and will oscillate in
accordance to changes in air pressure. The MAP sensor produces a voltage between 0 and 5 volts proportional to
the pressure level of the air in the inlet manifold. A reading of 0 volts indicates a low pressure and a reading of 5 volts
indicates a high pressure.

The IAT portion of the sensor works as a Negative Temperature Co-efficient (NTC) sensor.  As air temperature rises,
the resistance in the sensor decreases. As temperature decreases the resistance in the sensor increases. The ECM
compares the voltage signal to stored values and compensates fuel delivery as necessary.

Input/Output
The ECM provides the MAP/IAT sensor with a 5 volt supply. There are 2 output signals from the sensor, one from the
MAP and one from the IAT. Input to the MAP/IAT comes from pin 8 of the ECM connector C0158. Output from the
MAP is measured at pin 6 of the ECM connector C0158. IAT output signal measured at pin 34 of the ECM connector
C0158. The earth path is via pin 17 of ECM connector C0658. The MAP/IAT sensors share the same common earth.

ENGINE MANAGEMENT SYSTEM - TD5

DESCRIPTION AND OPERATION 18-1-13

IAT sensor temperature to resistance table.

The MAP/IAT sensor can fail the following ways or supply incorrect signal:

l

Sensor open circuit.

l

Short circuit to vehicle supply.

l

Short circuit to vehicle earth.

l

Contaminated sensor element.

l

Damaged sensor element.

l

Resistance in wiring harness.

In the event of a MAP/IAT sensor signal failure any of the following symptoms may be observed:

l

If the MAP sensor fails manifold pressure is set to a predetermined default value and the engine performance
will be reduced.

l

If the IAT fails the ECM will set air temperature to a fixed value. The MIL will not illuminate in a MAP/IAT sensor
failure and the ECM will use a fixed default value from its memory.

Temperature

°

C

Temperature

°

F

Resistance, ohms

(nominal)

-10 14

9397

0 32

5896

10 50

3792

20 68

2500

30 86

1707

40 104

1175

50 122

834.0

60

140

595.5

70

158

435.7

ENGINE MANAGEMENT SYSTEM - TD5

18-1-14 DESCRIPTION AND OPERATION

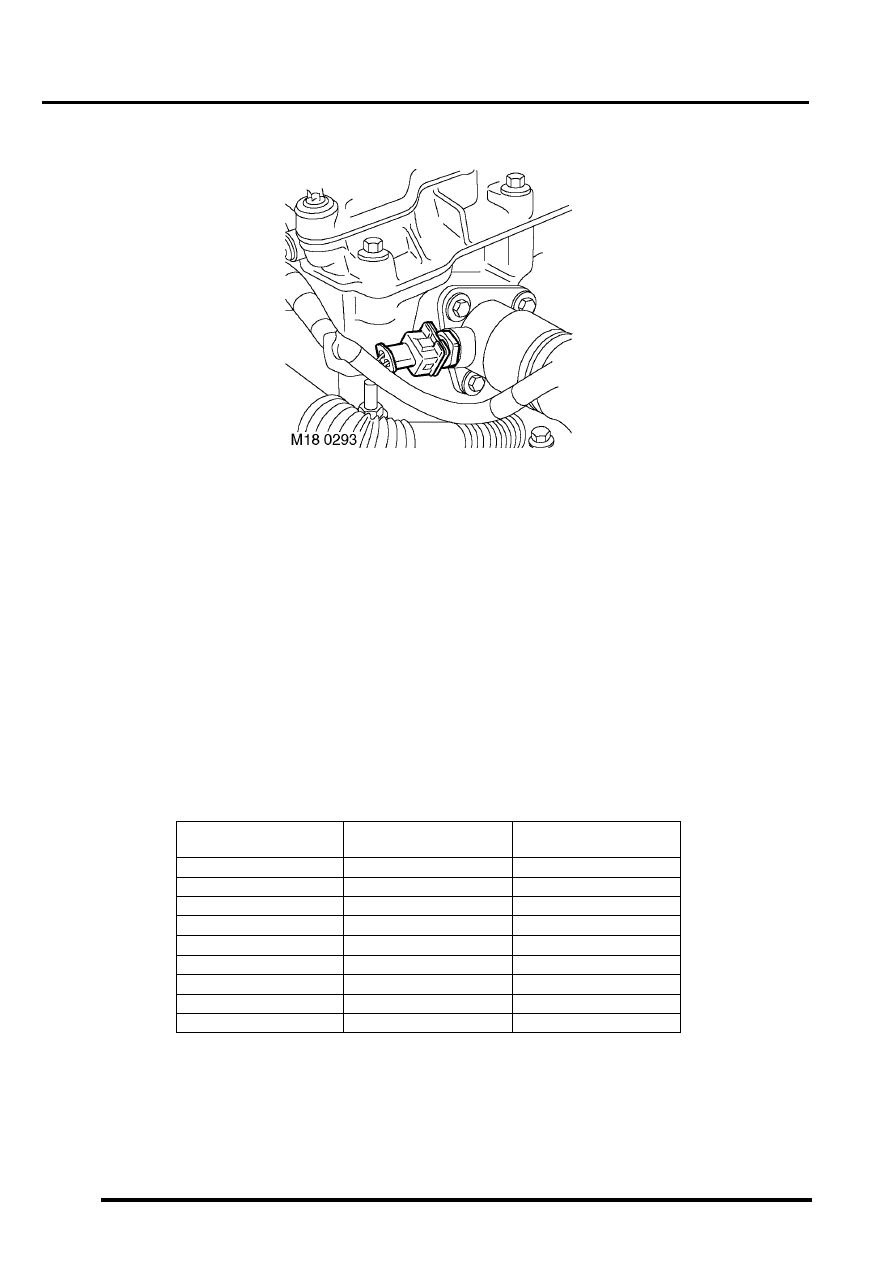

Engine Coolant Temperature (ECT) sensor

The ECT sensor is located in the coolant outlet elbow on the top of the engine. It provides the ECM with engine coolant
temperature information. The ECM uses this ECT information for the following functions:

l

Fuelling calculations.

l

Temperature gauge.

l

To limit engine operation if coolant temperature is too high.

l

Cooling fan operation.

l

Glow plug operating time.

The ECT works as an NTC sensor. As temperature rises, the resistance in the sensor decreases, as temperature
decreases, the resistance in the sensor increases. The ECM compares the voltage signal to stored values and
compensates fuel delivery to ensure optimum driveability at all times.

Input/Output
The inputs and outputs for the ECT are earth and signal out.

The ECT signal is measured at pin 7 of the ECM connector C0158. The earth path is via pin 18 of ECM connector
C0158.

ECT sensor temperature to resistance table.

Temperature,

°

C

Temperature,

°

F

Resistance, ohms

nominal)

-10

14

9397

0

32

5896

10

50

3792

30

86

1707

50

122

834.0

70

158

435.7

90

194

243.2

110

230

144.2

130

266

89.3
