Discovery 2. Manual - part 405

ENGINE - TD5

DESCRIPTION AND OPERATION 12-1-17

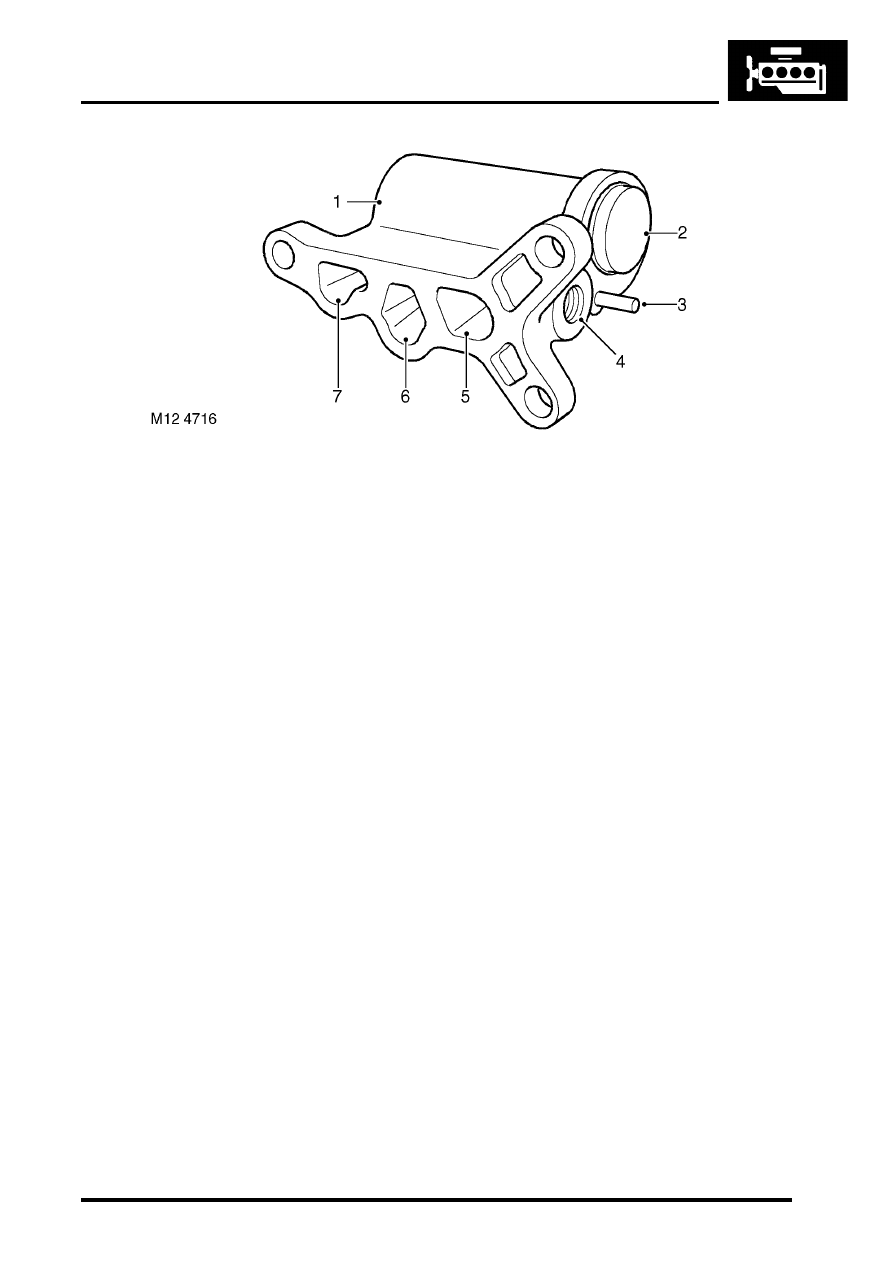

1 Full-flow filter housing
2 Thermostat
3 Roll-pin
4 Port – feed line to turbocharger
5 Outlet port from full-flow filter (> 74

°

 C)

6 Inlet port to full-flow filter
7 Outlet port from full-flow filter (< 74

°

 C)

The main filter is a conventional full-flow cartridge-type filter containing a paper element able to trap particles greater
than 15 micron (0.015 mm) in diameter.

The cartridge is screwed to an adaptor casting by way of a hollow brass threaded insert which connects the filter outlet
port to the adaptor casting. A sealing ring seals the union between the oil filter cartridge and the adaptor casting.

ENGINE - TD5

12-1-18 DESCRIPTION AND OPERATION

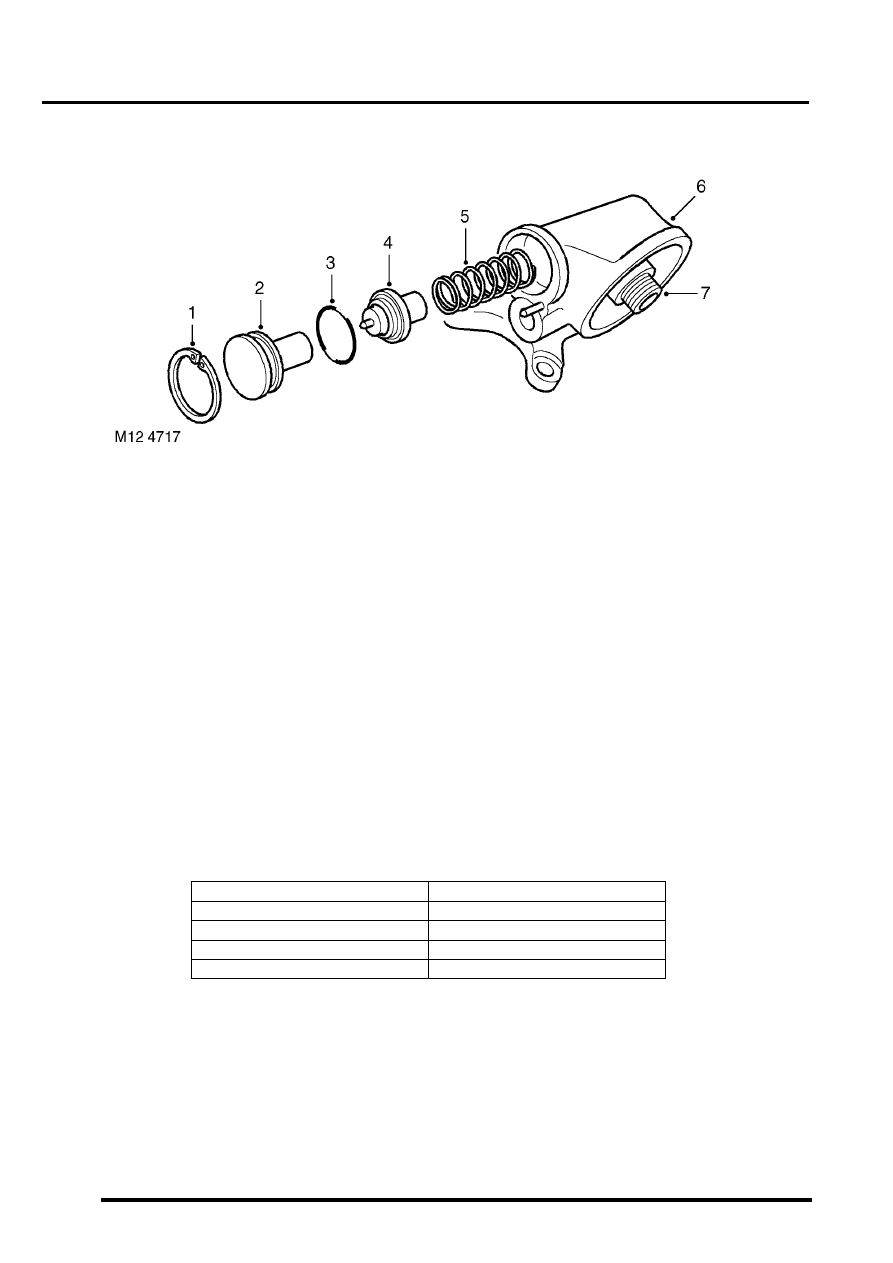

Oil filter housing thermostat

1 Circlip
2 Thermostat end cap
3 Oil seal
4 Thermostatic valve
5 Return spring
6 Oil filter housing
7 Threaded insert

The oil filter housing contains a thermostatically controlled valve to control the direction and proportion of oil flow
through the oil cooler matrix. When the oil temperature is cool, the centre spindle of the thermostatic element is
compressed. In this condition the valve completely seals the passage to the turbocharger feed tapping and flow is
directed through the oil filter adaptor housing, passing from the outlet of the full-flow filter to the cylinder block via the
rear oil return gallery in the oil cooler housing. A proportion of the oil flow from the right hand filter outlet port is passed
through  to the oil cooler matrix to supply the turbocharger oil feed line.

When the oil temperature rises, the heated wax in the thermostat causes the thermostat centre spindle to rise and
push against the housing end cap, compressing the valve spring further and so opening the valve. In this condition
oil flow from the outlet side of the full-flow filter is allowed to pass directly to the turbocharger oil feed line and reverses
the flow through the oil cooler matrix, which now delivers a proportion of cooled oil flow to the cylinder block via the
outlet port at the right hand side of the oil cooler housing.

The following table indicates approximate values for thermostat plunger travel against temperature:

The filter canister contains a by-pass valve which opens when the engine is cold or if the filter becomes blocked. The
by-pass valve opens when a pressure drop of greater than 1.6 kg/cm

2

 (157 kPa, 23 psi) is experienced.

Thermostat plunger travel mm (in.)

Oil temperature

°

C

0 (0)

< 74

°

C

5 (0.20)

80

°

C

12 (0.47)

90

°

C

16 (0.63)

130

°

C

ENGINE - TD5

DESCRIPTION AND OPERATION 12-1-19

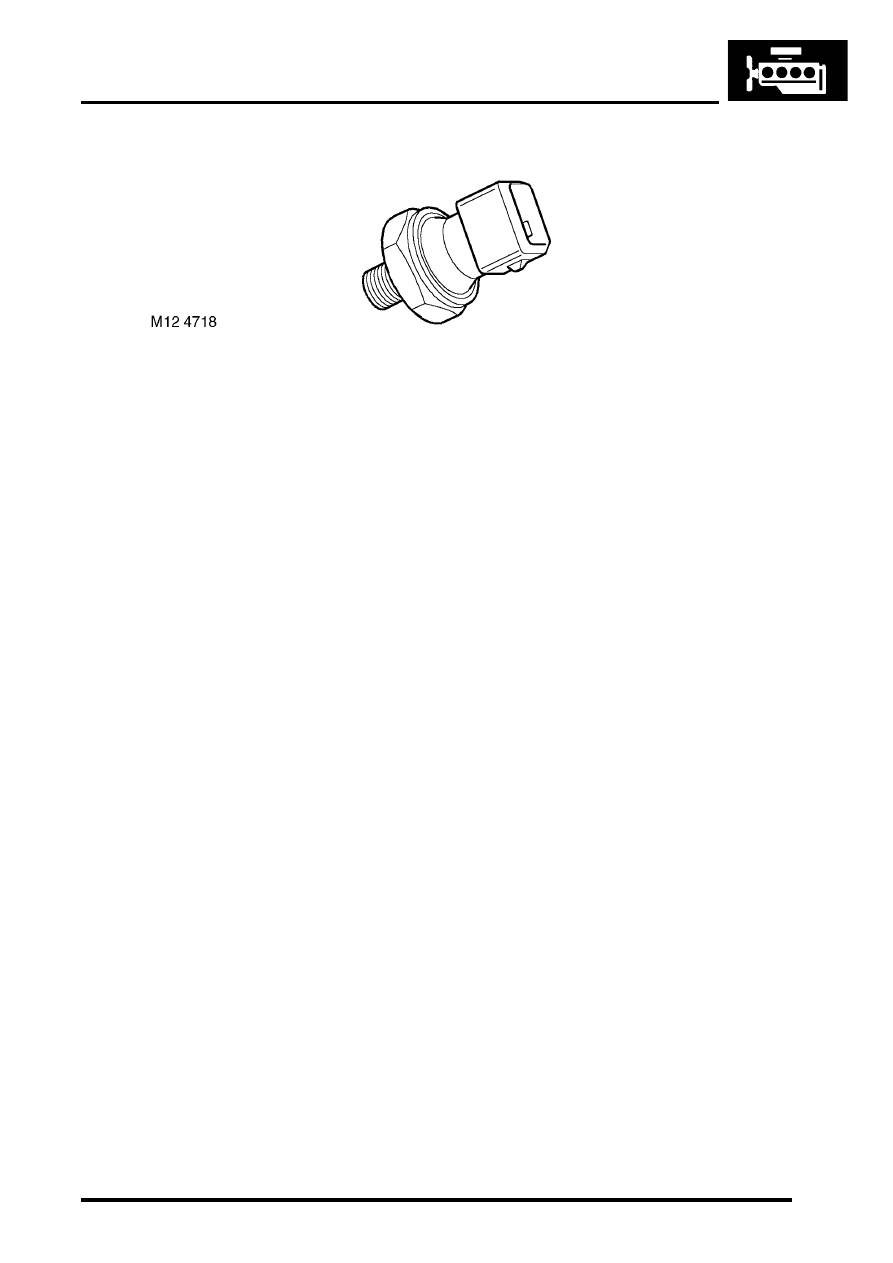

Oil Pressure switch

The oil pressure switch is located in a port on the outlet side of the oil cooler housing. It detects when a safe operating
pressure has been reached during engine starting and initiates the illumination of a warning light in the instrument
pack if the pressure drops below a given value.

Crankshaft, sump and oil pump components
The crankshaft, sump and oil pump components are described below:

Sump
The sump is a wet-type, of aluminium construction and is sealed to the engine block by means of a rubber gasket and
twenty fixing bolts. The four bolts at the gearbox end of the sump are longer than the other sixteen bolts.

The sump gasket incorporates compression limiters (integrated metal sleeves) at the bolt holes, which are included
to prevent distortion of the gasket when the sump to cylinder block bolts are being tightened.

The oil drain plug is fitted at the bottom of the oil sump reservoir. An oil return drain pipe is also attached to the oil
sump which returns oil from the centrifugal filter.

Stiffener Plate
The stiffener plate assembly provides lower engine block rigidity and utilises dowels to align it to the bottom of the
cylinder block.  A rotary oil pump is integral with the stiffener plate and an oil pick-up and strainer assembly is fitted
to the underside of the stiffener plate. The stiffener and oil pump assembly is secured to the cylinder block by 22 bolts.

ENGINE - TD5

12-1-20 DESCRIPTION AND OPERATION

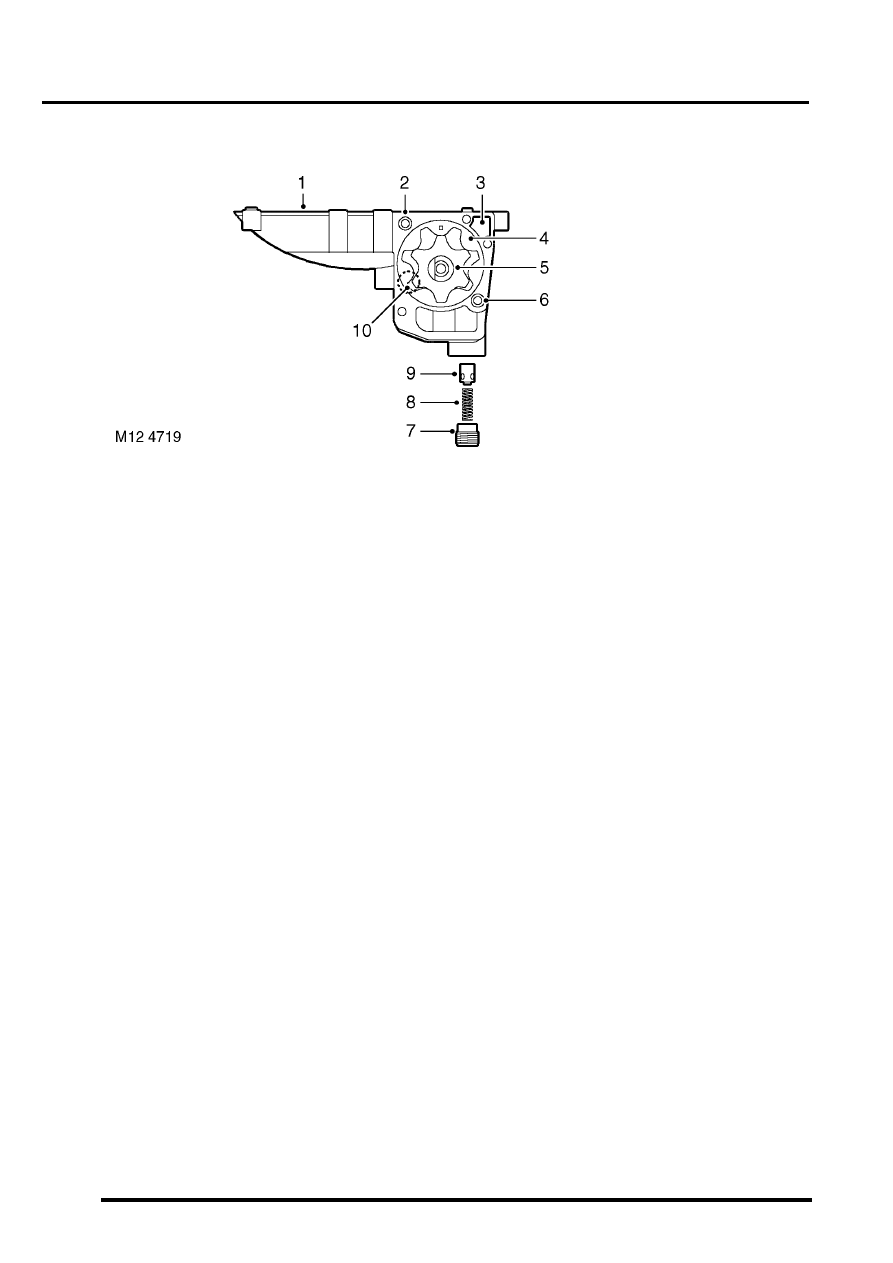

Oil pump

1 Stiffener plate
2 Ring dowel
3 Outlet port
4 Outer rotor
5 Inner rotor

6 Spring dowel
7 Oil pressure relief valve cap
8 Oil pressure relief valve spring
9 Oil pressure relief valve plunger

10 Inlet port

The eccentric rotor oil pump is integrated with the stiffener plate and contains no serviceable parts except for the
pressure relief valve spring. The oil pump drive sprocket is attached to the front of the stiffener plate and is driven
through a chain and sprocket system.

A pressure relief valve is included at the outlet side of the oil pump to restrict oil pressure at high engine speeds by
recirculating oil through the relief valve back around the pump to the inlet. The relief valve and spring is a plunger type.
When oil pressure is great enough to lift the plunger, oil is allowed to escape past the plunger to relieve pressure and
prevent further rise.

Oil is delivered to the pump from the pick-up through a channel in the stiffener plate. The outlet side of the oil pump
delivers pressurised oil flow to the engine block main oil delivery gallery through a port in the stiffener plate.

Piston lubrication jets
Piston lubrication jets are fitted to the cylinder block to provide lubrication to the cylinder walls, and to the piston
underskirt for cooling the pistons and lubricating the gudgeon pins. The input port to each lubrication jet mates with a
port provided in each mounting position tapped at the underside of the cylinder block from the main oil delivery gallery.
When oil pressure is sufficient to supply flow through the jets, oil is squirted to the inside of the cylinder walls to provide
piston to wall lubrication and cooling and to the underside of the piston skirt at the bottom of the piston stroke (gallery
cooled piston). The squirt jets also provide splash feed lubrication supply to the small end bearings of the connecting
rods.

Each lubrication jet is fixed to a mounting position on the underside of the engine block by a single Torx screw.

Chain lubrication jet
A chain lubrication jet is located on the front face of the cylinder block, behind the front engine timing chain cover. The
inlet port to the lubrication jet mates with an oil supply port from the cylinder block main oil delivery gallery. The
lubrication jet is fixed to the front of the engine block by a single screw. Additional chain lubrication is provided by oil
supply through a small aperture tapped from the cylinder head oil delivery gallery.
