AIR CONDITIONING

REPAIRS

82-31

Fan - condenser

$% 82.15.01

Remove

1. Remove front grille.



 +

 EXTERIOR FITTINGS, REPAIRS,

Grille - front - up to 03MY.

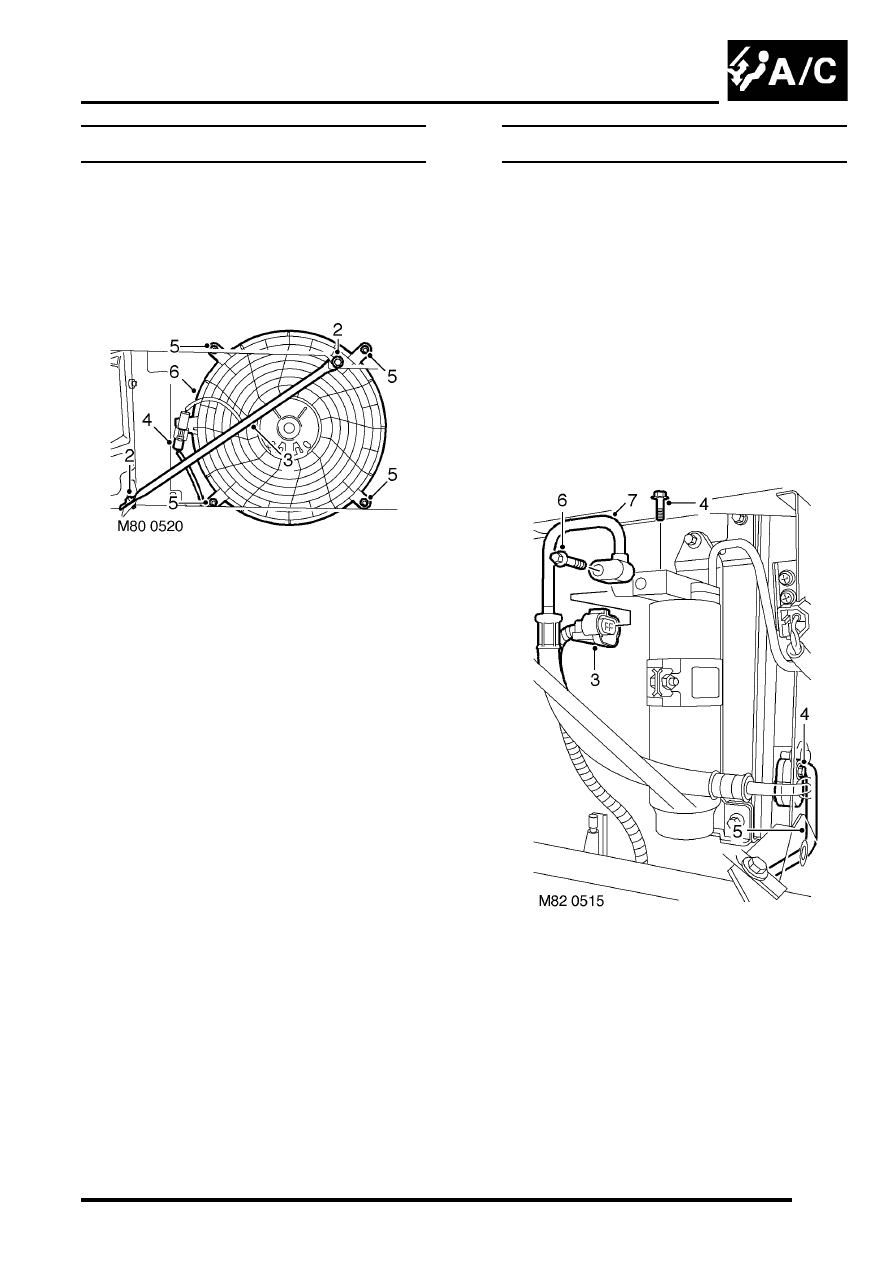

2. Remove 2 bolts securing bonnet platform   RH

support stay.

3. Remove support stay.
4. Disconnect multiplug from condenser  cooling

fan motor.

5. Remove 4 screws securing cooling fan  cowl to

mounting bracket.

6. Remove cooling fan assembly and collect

spacing washers.

Refit

1. Fit condenser fan.
2. Fit spacing washers between fan cowl  and

mounting bracket and secure with screws.

3. Connect multiplug to motor.
4. Fit bonnet platform support stay and  secure

with bolts.

5. Fit front grille.



 +

 EXTERIOR FITTINGS, REPAIRS,

Grille - front - up to 03MY.

Condenser

$% 82.15.07

Remove

1. Recover refrigerant from A/C system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery,
recycling and recharging.

2. Remove radiator.

l



 +

 COOLING SYSTEM - Td5,

REPAIRS, Radiator.

l



 +

 COOLING SYSTEM - V8,

REPAIRS, Radiator.

3. Disconnect multiplug from dual pressure

switch.

4. Remove bolt securing evaporator pipe to

condenser.

5. Disconnect evaporator pipe from condenser

and discard 'O' ring.

6. Remove bolt securing evaporator pipe to

receiver drier.

7. Disconnect evaporator pipe from receiver drier

and discard 'O' ring.

CAUTION: Always fit plugs to open
connections to prevent contamination.

AIR CONDITIONING

82-32

REPAIRS

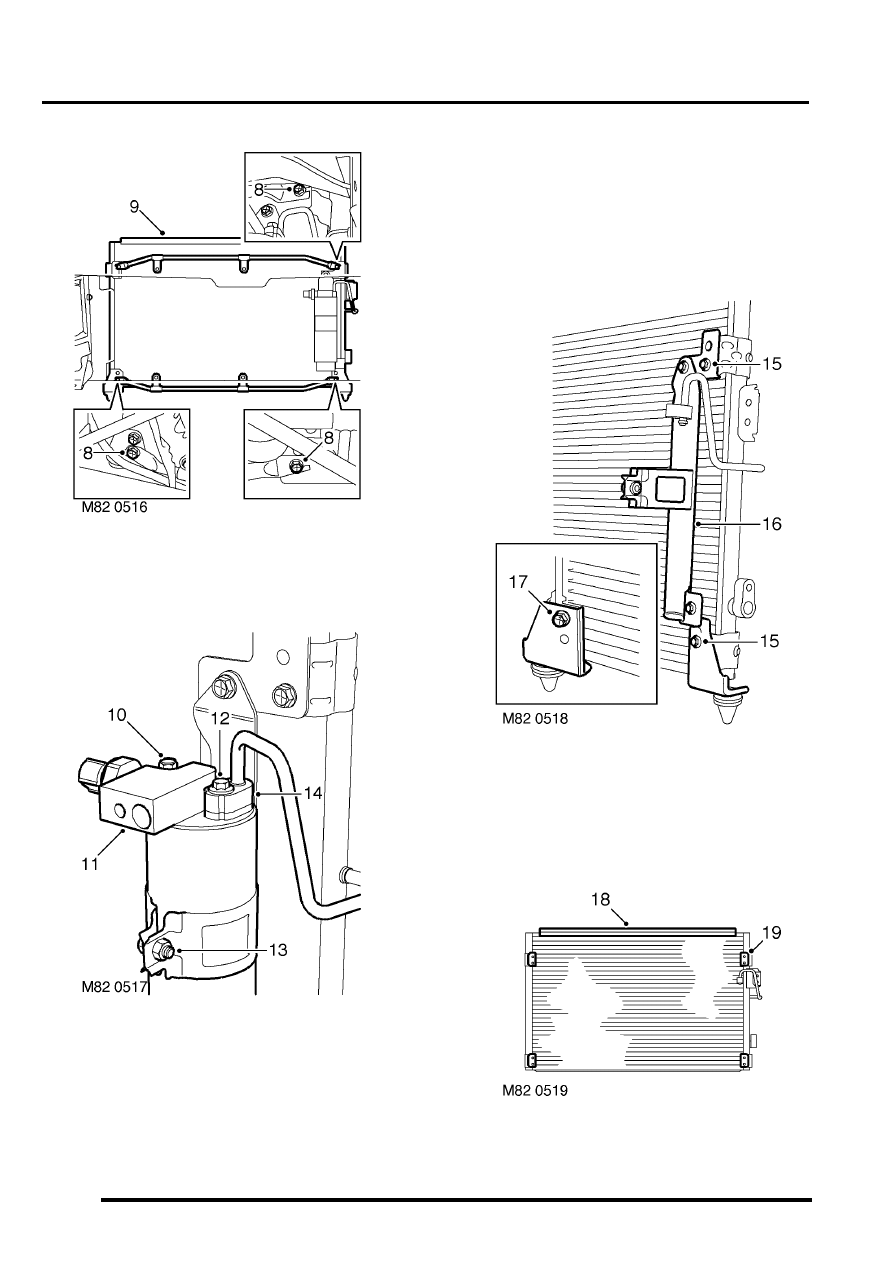

8. Remove 3 remaining bolts securing cooling fan

support rails to condenser.

9. Remove condenser.

10. Remove bolt securing adaptor block to receiver

drier.

11. Remove adaptor block from receiver drier and

discard 'O' ring.

CAUTION: Always fit plugs to open
connections to prevent contamination.

12. Remove bolt securing condenser pipe to

receiver drier.

13. Remove clamp bolt receiver drier to bracket

and remove drier from bracket.

14. Remove and discard 'O' ring from condenser

pipe.

CAUTION: Always fit plugs to open
connections to prevent contamination.

15. Remove 2 remaining bolts securing  receiver

drier brackets and condenser LH  mounting
bracket to condenser.

16. Remove mounting bracket assembly.
17. Remove remaining bolt securing condenser RH

mounting and remove mounting.

18. Remove sealing strip from outer upper seam of

condenser.

19. Remove captive nut plates from condenser.

AIR CONDITIONING

REPAIRS

82-33

Refit

1. Fit captive nut plates to new condenser.
2. Fit seal to condenser.
3. Fit RH mounting bracket to condenser and

secure with bolt.

4. Fit receiver drier bracket assembly and secure

with bolts.

5. Ensure condenser pipe and new receiver drier

connections are clean.

6. Lubricate new 'O' ring with refrigerant oil and fit

to condenser pipe.

7. Fit receiver drier to bracket and condenser

pipe. Tighten bolt securing  condenser pipe to 5
Nm (3.7 lbf.ft). Fit clamping bolt securing
receiver drier to bracket and tighten to 5 Nm
(3.7 lbf.ft).

8. Ensure adaptor block and receiver drier

connections are clean.

9. Lubricate new 'O' ring with refrigerant oil and fit

to adaptor block.

10. Fit adaptor block to receiver drier and tighten

bolt to 5 Nm. (3.7 lbf.ft).

11. Fit condenser assembly.
12. Fit cooling fan to condenser and fit bolts to

secure support rails to condenser  brackets.

13. Ensure connections of condenser,  receiver

drier and evaporator pipes are clean.

14. Lubricate new 'O' ring seals with refrigerant oil

and fit one seal to each  evaporator pipe.

15. Connect evaporator pipes and tighten bolts to 5

Nm (3.7 lbf.ft).

16. Connect multiplug to dual pressure switch.
17. Fit radiator.

l



 +

 COOLING SYSTEM - Td5,

REPAIRS, Radiator.

l



 +

 COOLING SYSTEM - V8,

REPAIRS, Radiator.

18. Recharge A/C system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery,
recycling and recharging.

Receiver drier and dual pressure switch

$% 82.17.03

Remove

1. Recover refrigerant from air  conditioning

system.


 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery,
recycling and recharging.

2. Remove front grille.



 +

 EXTERIOR FITTINGS, REPAIRS,

Grille - front - up to 03MY.

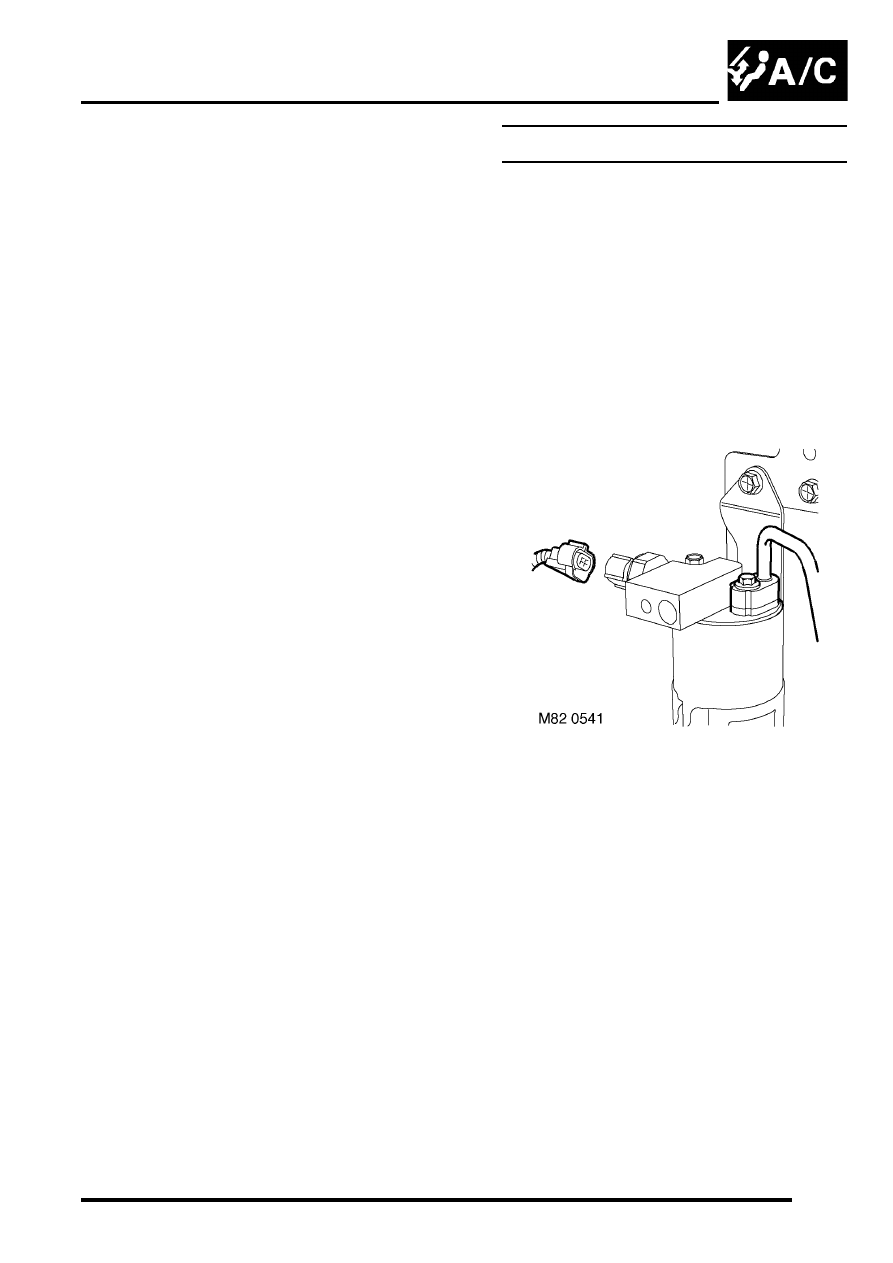

3. Disconnect multiplug from dual pressure

switch.

4. Remove bolt securing condenser pipe to

receiver drier.

5. Disconnect condenser pipe from receiver  drier.

CAUTION: Always fit plugs to open
connections to prevent contamination.

AIR CONDITIONING

82-34

REPAIRS

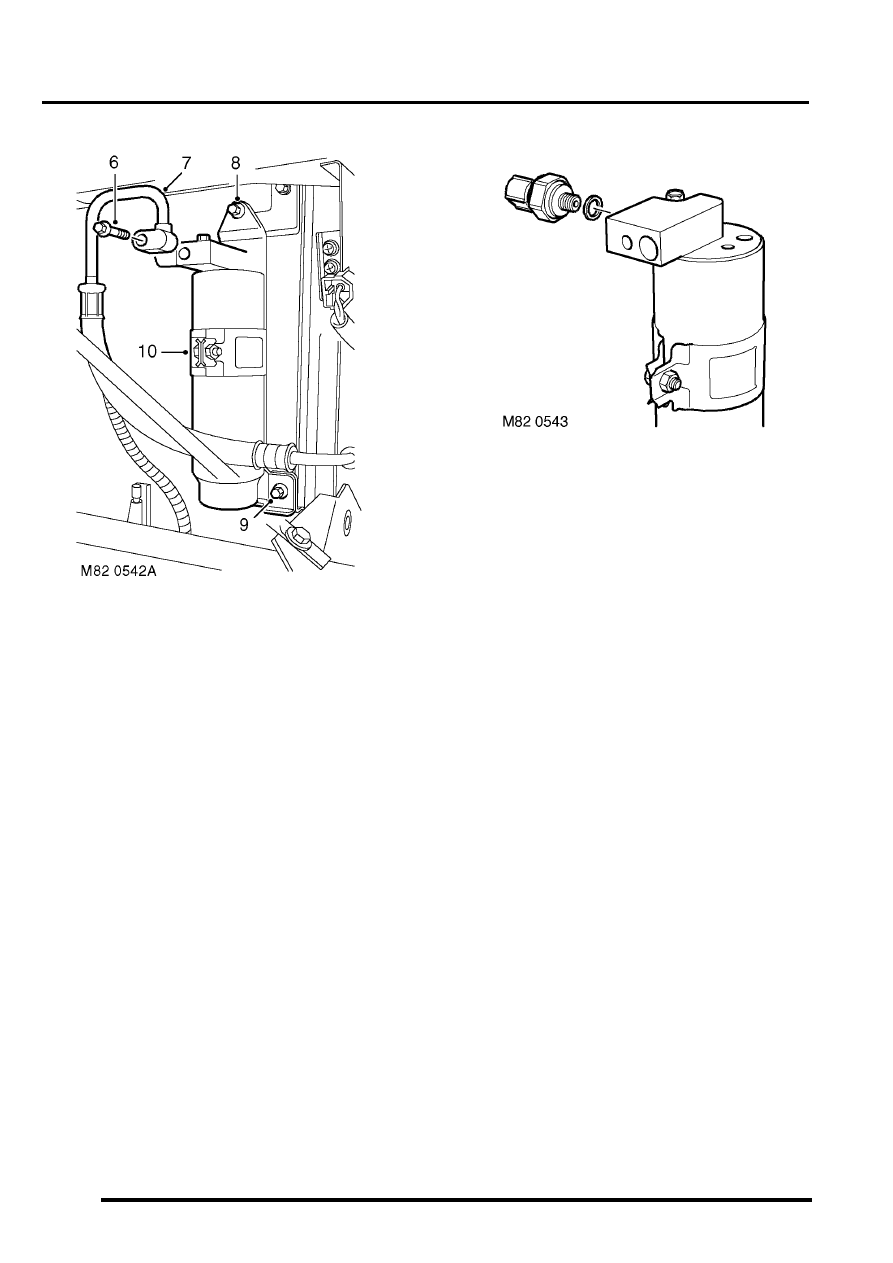

6. Remove bolt securing evaporator pipe to

receiver drier.

7. Disconnect evaporator pipe from receiver

drier.

CAUTION: Always fit plugs to open
connections to prevent contamination.

8. Remove bolt securing top of receiver drier

mounting bracket to condenser.

9. Remove bolt securing bottom of receiver drier

mounting bracket to condenser.

10. Remove receiver drier assembly.

11. Loosen mounting bracket clamping bolt.
12. Remove receiver drier from mounting bracket.
13. Remove dual pressure switch from receiver

drier

Refit

1. Fit  dual pressure switch to receiver drier and

tighten to 10 Nm (7 lbf.ft).

2. Fit receiver drier to mounting bracket and

tighten clamping bolt.

3. Fit receiver drier assembly to condenser.
4. Fit bolts securing receiver drier mounting

bracket to condenser  and tighten to 5 Nm (3.7
lbf.ft).

5. Remove caps from air conditioning pipes and

receiver drier.

6. Remove old 'O' rings from pipes.
7. Fit new 'O' rings to pipes and lubricate with

refrigerant oil.

8. Connect air conditioning pipes to  receiver

drier.

9. Fit bolts securing  air conditioning pipes to

receiver drier and tighten to  5 Nm (3.7 lbf.ft).

10. Connect multiplug to dual pressure switch.
11. Fit front grille.



 +

 EXTERIOR FITTINGS, REPAIRS,

Grille - front - up to 03MY.

12. Recharge air conditioning system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery,
recycling and recharging.
