Discovery 2. Manual - part 241





SCREENS

REPAIRS

76-4-3

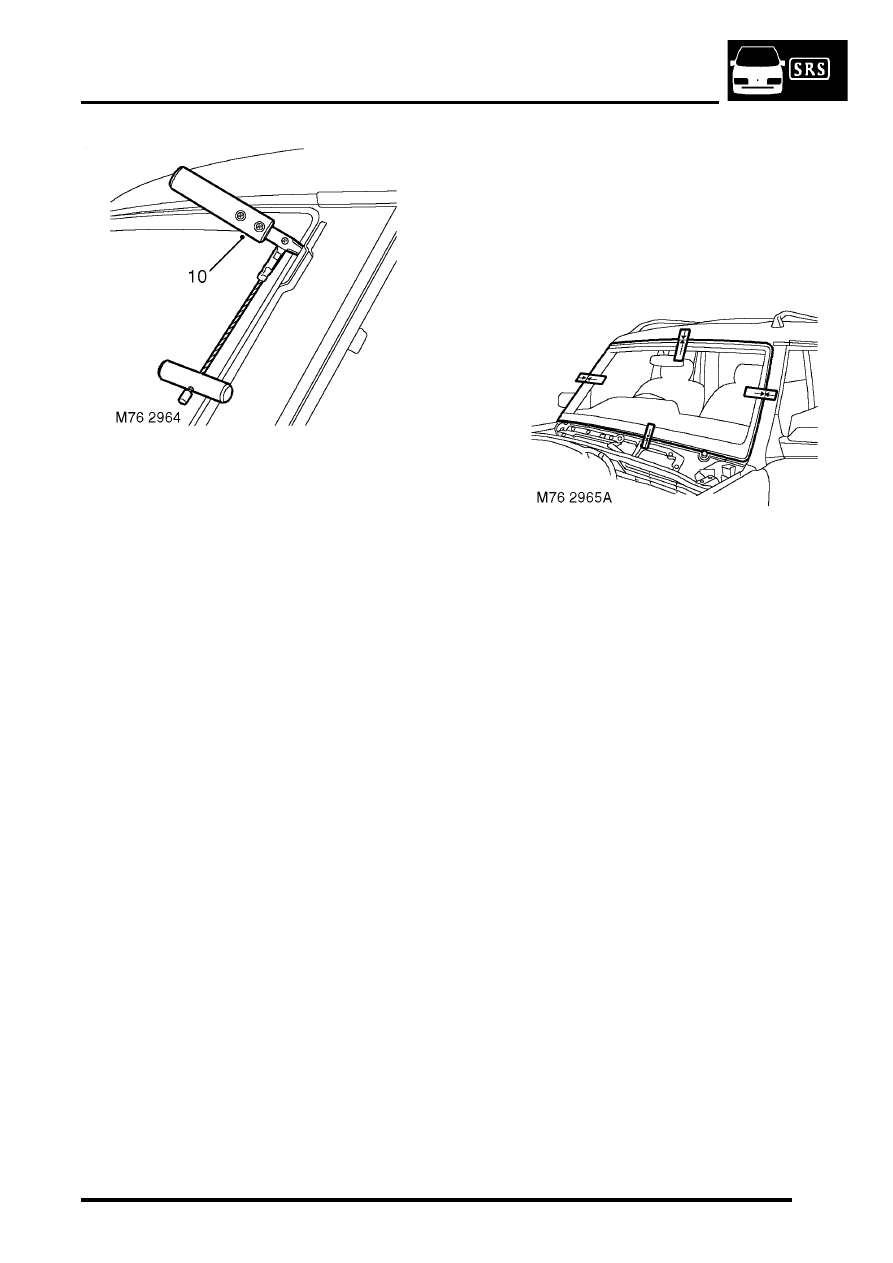

10. From outside of vehicle, use a Kent knife and

carefully cut through sealant securing sides of
screen to body.

11. Using suitable cutting wire, with assistance if

required, carefully cut through sealant securing
top of screen to body and any remaining
sealant at sides.

CAUTION: Hold the cutting wire as close to
the glass as possible to prevent damage to
the body and surrounding trim.

12. Cut through sealant securing lower edge of

screen to body with glazing knife.

13. Attach suction cups and use assistance to

remove glass from body.

CAUTION: Lay glass on felt covered
supports and be careful not to damage the
obscuration band. Do not stand on edge as
this can cause chips which subsequently
develop into cracks.

14. Collect screen support block.

Refit

1. Carefully remove sealant from body to leave a

smooth surface.

2. Use a vacuum cleaner to clear away any waste.
3. Original glass: Carefully cut back old sealer to

obtain a smooth surface without damaging
obscuration band on glass. Fit new top finisher
to screen.

4. Fit screen support block to body.
5. With assistance, locate screen to body.
6. Apply masking tape to establish reference

marks as an alignment aid.

7. With assistance, remove screen and place

aside.

8. Clean body and sealant face on screen with

solvent.

CAUTION: Do not touch cleaned or primed
surfaces with fingers.

9. Apply etch primer to any bare metal on frame.

10. Apply screen primer to sealant face on screen

and allow to cure.

11. Apply primer over etch primer on body.
12. Apply activator over old sealant on body.
13. Allow activator to cure.
14. Fit pre-cut nozzle to sealer cartridge,  remove

lid, shake out crystals and fit cartridge to
applicator gun. If necessary modify the nozzle
to achieve required bead section.

SCREENS

76-4-4

REPAIRS

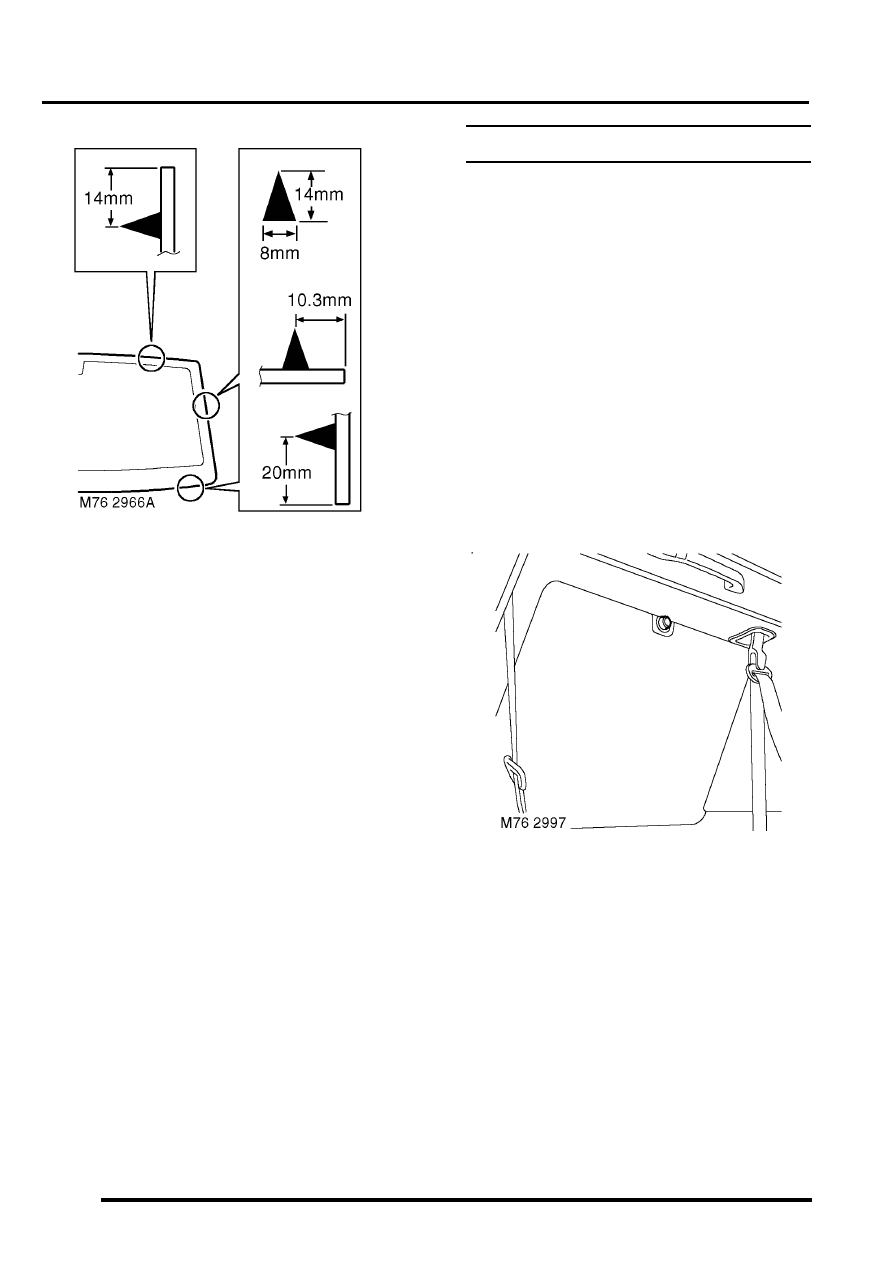

15. Apply a continuous bead of sealant to sealant

face on screen as shown.

16. With assistance, lift screen into place and align

to screen supports and tape. Ensure top
finisher is located into correct position. Lightly
press glass to fully seat sealer.

CAUTION: Do not apply heavy pressure to
the sides of the windscreen. Lightly press
windscreen from centre outwards until
edges are to required gap. Pushing sides
into position can bend windscreen and lead
to cracking in service.

17. Remove protective covers and tape.
18. Test sealer for leaks, apply additional sealer if

necessary. If water is used, allow sealer to dry
before testing. Spray water around glass and
check for leaks. Mark any  area that leaks. Dry
glass and sealer then apply additional sealer.

19. Fit interior mirror to slug.
20. If applicable, connect screen heater multiplugs.
21. Fit air intake plenum.



 +

 HEATING AND VENTILATION,

REPAIRS, Plenum Air Intake.

CAUTION: A curing time of 6 hours is
desirable. During this time leave a window
open to ventilate the vehicle interior. If the
vehicle must be used before the curing time
has elapsed, do not drive at speed or slam
the doors with the windows closed.

CAUTION: Vehicles fitted with a passenger
airbag should not be driven for 24 hours.

Glass - body side - rear

$% 76.81.18

Introduction
The following equipment is required:

l

Cutting wire and handles.

l

Kent cutting knife.

l

Glazing knife.

l

Windscreen repair kit.

l

Sealant applicator gun.

l

Suction cups.

l

A felt covered table or stand to support glass.

WARNING: Wear protective gloves when
handling glass, solvents and primers.

WARNING: Wear suitable eye protection when
removing and refitting glass.

Remove

1. If fitted, disconnect coaxial cable from terminal

on glass.

2. Fit protection to exterior body work adjacent to

glass.

3. Cover body panels adjacent to glass.
4. Fit protection to internal trim adjacent to glass.
5. Cover interior of vehicle with protective sheet.

SCREENS

REPAIRS

76-4-5

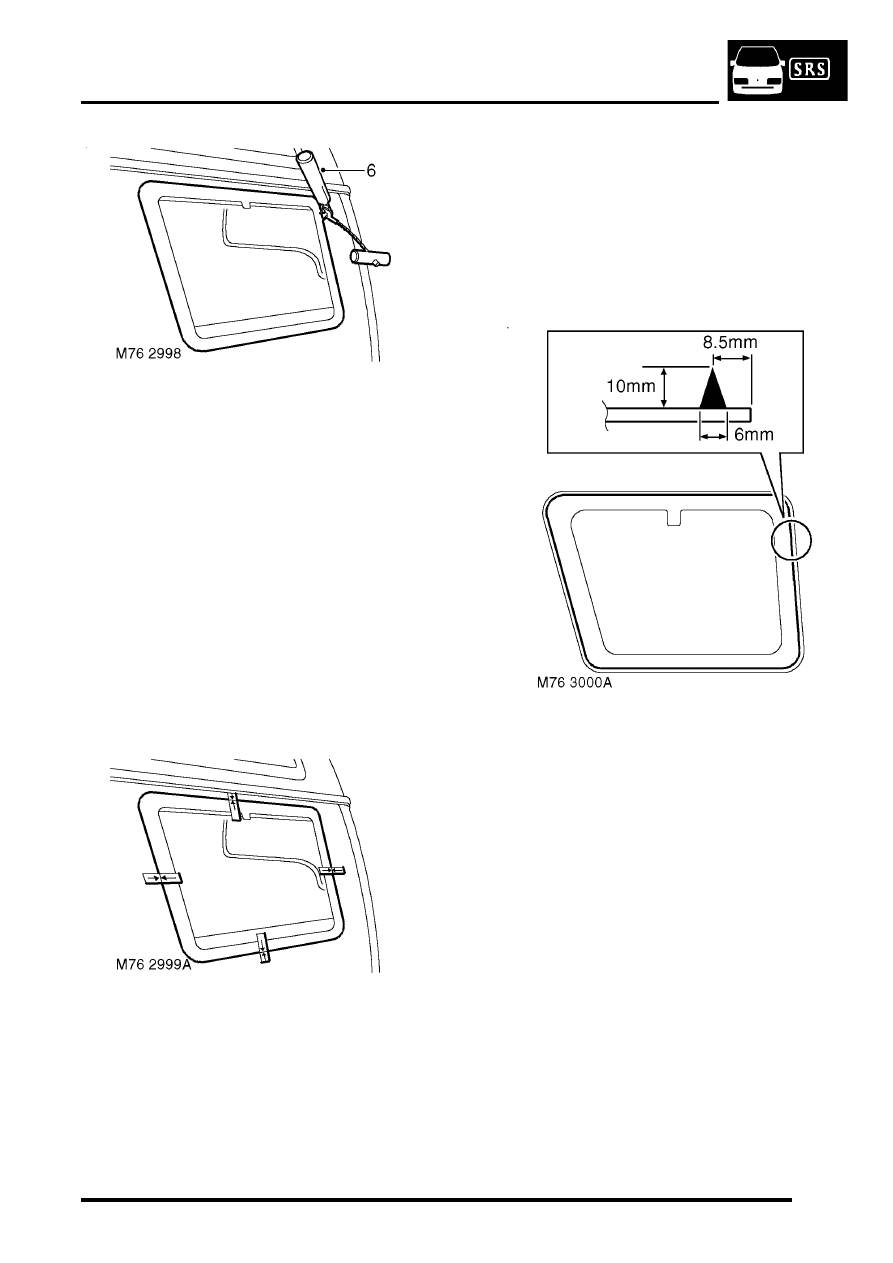

6. From outside of vehicle, use a Kent knife and

carefully cut through sealant  to release glass
from body. Any remaining sealant not
accessible with Kent knife can be severed
using cutting wire or knife.

CAUTION: Hold the cutting wire as close to
the glass as possible to prevent damage to
the body and surrounding trim.

7. Remove glass.

CAUTION: Lay glass on felt covered
supports and be careful not to damage the
obscuration band. Do not stand on edge as
this can cause chips which subsequently
develop into cracks.

Refit

1. Carefully remove sealant from body to leave a

smooth surface.

2. With assistance, fit glass without sealant to

body and apply masking tape to establish
reference marks as an alignment aid.

3. Remove glass and place aside.
4. Clean body and sealant face on glass with

solvent.

CAUTION: Do not touch cleaned or primed
surfaces with fingers.

5. Apply etch primer to any bare metal on body.
6. Apply glass primer to sealant face on glass and

allow to cure.

7. Apply primer over etch primer on body.
8. Apply activator over old sealant on body.
9. Allow activator to cure.

10. Fit pre-cut nozzle to sealant cartridge,  remove

lid, shake out crystals, and fit cartridge to
applicator gun. If necessary modify the nozzle
to achieve required bead section.

11. Apply a continuous bead of sealant to sealant

face on glass as shown.

12. Position glass to body and align to reference

tape.

13. Lightly press glass to ensure correct  profile.
14. Secure glass with tape until sealer has cured.
15. Remove protective covers and tape.
16. If applicable, connect coaxial cable to terminal

on glass

17. Test sealer for leaks, apply additional sealer if

necessary. If water is used, allow sealer to dry
before testing. Spray water around glass and
check for leaks. Mark any area that leaks. Dry
glass and sealer then apply additional sealer.

CAUTION: A curing time of 6 hours is
desirable. During this time leave a window
open to ventilate the vehicle interior. If the
vehicle must be used before the curing time
has elapsed, do not drive at speed or slam
the doors with the windows closed.

SCREENS

76-4-6

REPAIRS

Glass - alpine light

$% 76.81.52

Introduction
The following equipment is required:

l

Cutting wire and handles.

l

Kent cutting knife.

l

Glazing knife.

l

Windscreen repair kit.

l

Sealant applicator gun.

l

Suction cups.

l

A felt covered table or stand to support glass.

WARNING: Wear protective gloves when
handling glass, solvents and primers.

WARNING: Wear suitable eye protection when
removing and refitting glass.

Remove

1. Fit protection to exterior body work adjacent to

glass.

2. Fit cover over adjacent body work.
3. Fit protection to internal trim adjacent to glass.
4. Cover interior of vehicle with protective sheet.

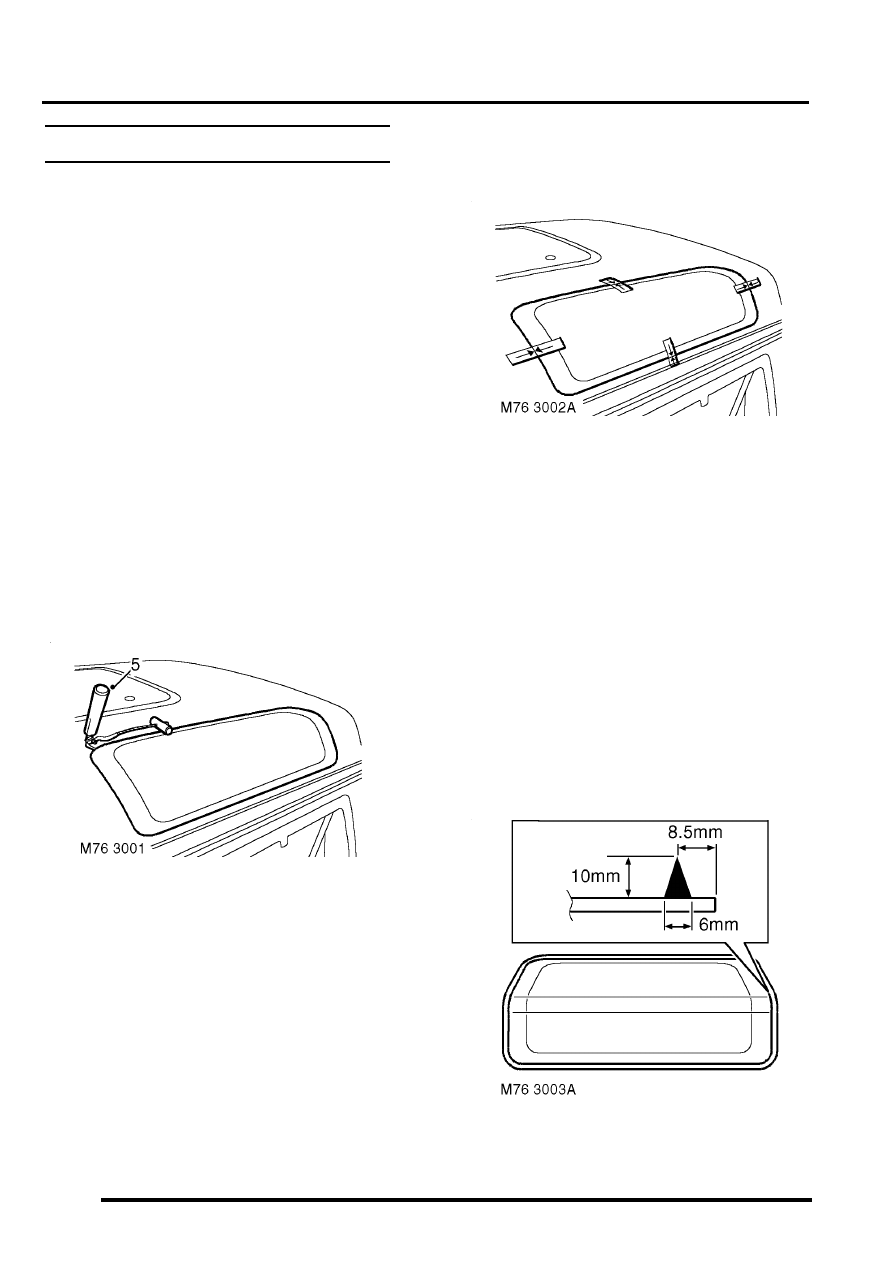

5. From outside of vehicle, use a Kent knife and

carefully cut through sealant to release glass
from body. Any remaining sealant not
accessible with Kent knife can be severed
using cutting wire or knife.

CAUTION: Hold the cutting wire as close to
the glass as possible to prevent damage to
the body and surrounding trim.

6. Remove glass.

CAUTION: Lay glass on felt covered
supports and be careful not to damage the
obscuration band. Do not stand on edge as
this can cause chips which subsequently
develop into cracks.

Refit

1. Carefully remove sealant from body to leave a

smooth surface.

2. With assistance, fit glass without sealant to

body and apply masking tape to establish
reference marks as an alignment aid.

3. Remove glass and place aside.
4. Clean body and sealant face on glass with

solvent.

CAUTION: Do not touch cleaned or primed
surfaces with fingers.

5. Apply etch primer to any bare metal on body.
6. Apply glass primer to sealant face on glass and

allow to cure.

7. Apply primer over etch primer on body.
8. Apply activator over old sealant on body.
9. Allow activator to cure.

10. Fit pre-cut nozzle to sealant cartridge,  remove

lid, shake out crystals, and fit cartridge to
applicator gun. If necessary modify the nozzle
to achieve required bead section.

11. Apply a continuous bead of sealant to sealant

face on glass as shown.
