STEERING

ADJUSTMENTS

57-19

5. Adjust drag link so that taper joint is centralised

in drop arm, then tighten drag link clamp bolts:
Tighten M8 bolts to 22 Nm (16 lbf.ft) and M10
bolts to 33 Nm (24 lbf.ft).

6. Connect drag link to drop arm and tighten nut to

80 Nm (59 lbf.ft).

7. Remove steering box centralising bolt.
8. Remove stand(s) and lower vehicle.
9. Road test the vehicle and check that the

steering wheel is centralised. If steering wheel
is not centralised, proceed as follows.

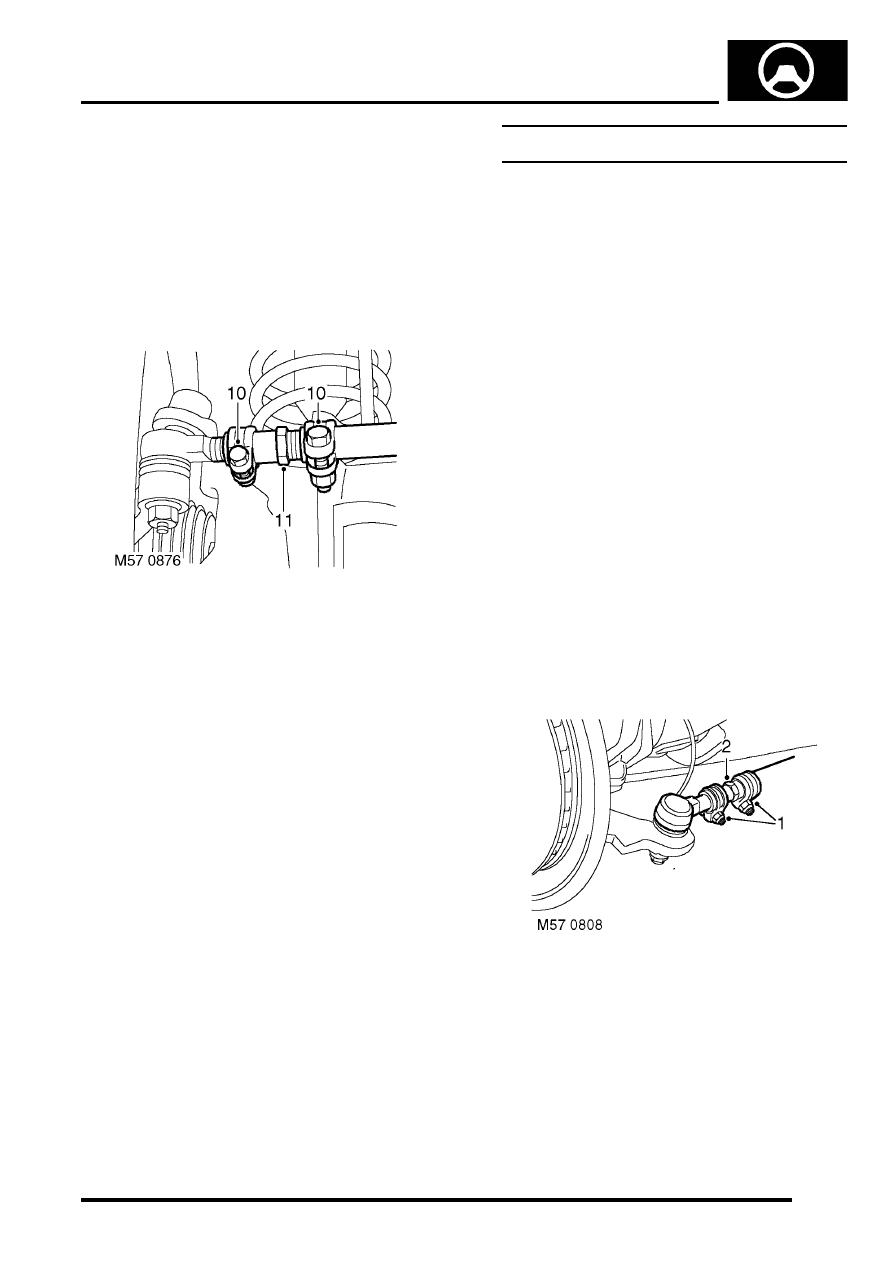

10. Slacken drag link adjuster clamp bolts.
11. Without disconnecting drag link from drop arm,

adjust the length of the drag link to bring the
steering wheel to the central position.

CAUTION: Repositioning the steering wheel
on its splines cannot correct small (less
than 5

°

) errors in steering wheel alignment.

Always rectify small errors in alignment by
adjusting the drag link as detailed above,
ensuring that steering box centralisation is
maintained.

12. Tighten drag link clamp bolts: Tighten M8 bolts

to 22 Nm (16 lbf.ft) and M10 bolts to 33 Nm (24
lbf.ft)

Wheel alignment - front

$% 57.65.01

The following is the only wheel alignment equipment
which has been approved.

l

Beissbarth ML 4600 wheel alignment computer
(6 sensor).

l

Beissbarth ML 4600-8 wheel alignment
computer (8 sensor).

l

Beissbarth ML 4000 wheel alignment computer
(8 sensor wireless).

l

Hunter S411-14.

Check

1. Ensure tyre pressures are correct and vehicle

is at kerbside weight.

2. Roll vehicle backwards and forwards to relieve

stresses in steering and suspension.

3. Ensure road wheels are positioned straight

ahead.

4. Ensure that wheel alignment equipment is

properly calibrated.

5. Following the equipment manufacturer's

instructions, measure the front wheel
alignment. Compare with the figures given in
General Data


 +

 GENERAL DATA, Steering.

Adjust

1. Loosen track rod and adjuster clamp bolts.
2. Rotate adjuster to obtain correct alignment.



 +

 GENERAL DATA, Steering.

3. Tighten  track rod and adjuster clamp bolts:

Tighten M8 bolts to 22 Nm (16 lbf.ft) and M10
bolts to 33 Nm (24 lbf.ft).

4. Recheck front wheel alignment.

STEERING

57-20

ADJUSTMENTS

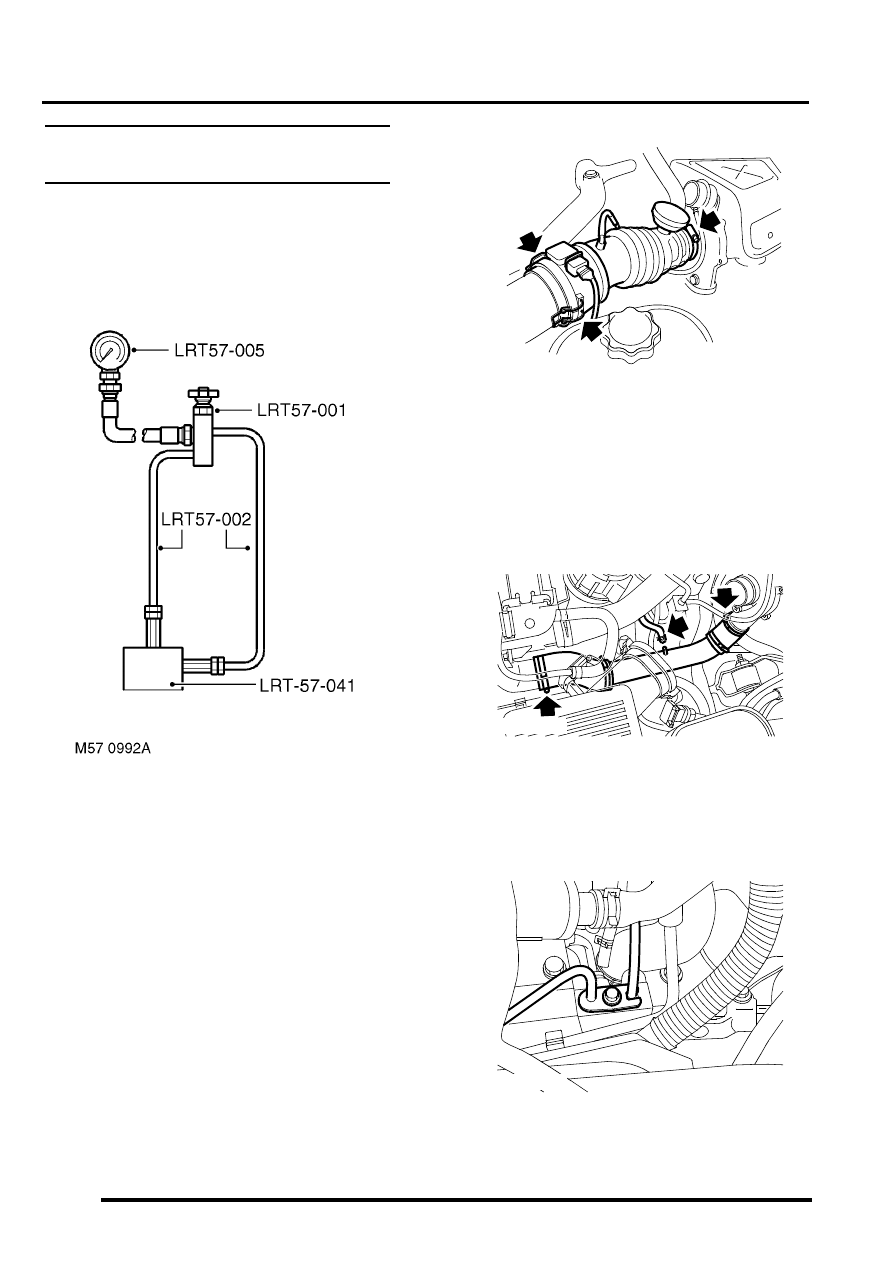

Power steering pressure check - diesel
models

$% 57.90.10.01

Check

1. Fit gauge and hose LRT- 57-005  to valve

assembly  LRT- 57-001 and tighten union.

2. Fit 2 hoses LRT-57-002  to valve assembly

LRT- 57-001  and tighten unions

3. Fit adaptor and hose set LRT-57-041  to  LRT-

57-002.

4. Disconnect battery earth lead.
5. Remove engine acoustic cover.
6. LHD only:  Remove underbelly panel



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

7. LHD only:  Disconnect MAF sensor multiplug,

release clips from air cleaner and move intake
hose aside. Discard seal.

8. Position container to collect PAS fluid spillage,

and syphon fluid from PAS reservoir.

9. LHD only: Release PAS reservoir from

mounting move aside, for access to
turbocharger intercooler pipe.

10. Remove vacuum hose from turbocharger

intercooler pipe.

11. LHD only:  Release clips and disconnect

turbocharger intercooler pipe from
turbocharger and intercooler.

12. Clean steering box pipe housing.

M57 0902

M57 0903

M57 0904

STEERING

ADJUSTMENTS

57-21

13. Remove bolt from steering box pipe retaining

clip. Leaving the PAS reservoir oil pipe in place,
release pipe retaining clip and PAS cooler pipe
from steering box, discard the seal.

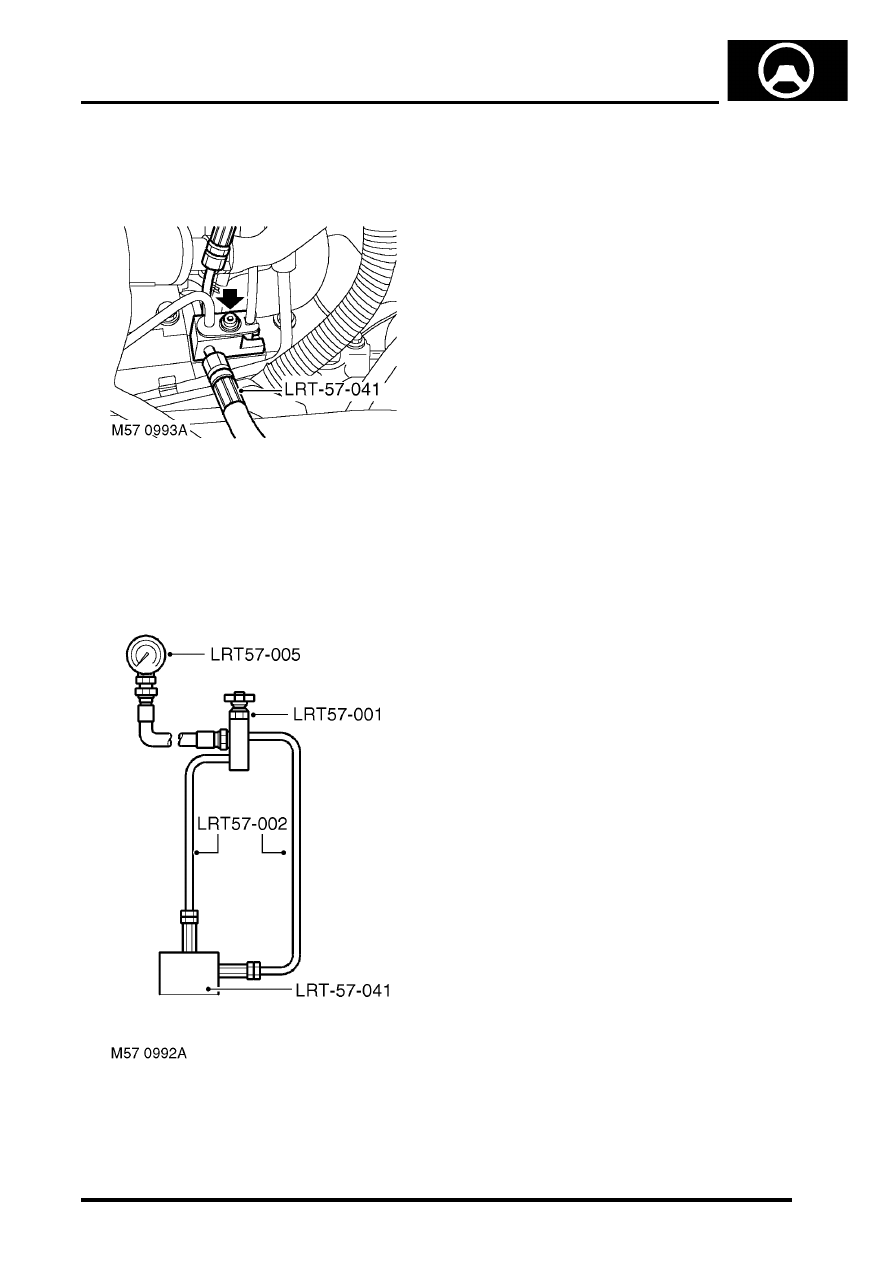

14. Fit tool LRT-57-041 to steering box housing.
15. Fit seal to PAS oil cooler pipe.
16. Fit PAS cooler pipe to LRT-57-041 align the

retaining clip to pipes and tighten bolt to 24 Nm
(18 lbf.ft).

17. Connect test hoses LRT-57-002  to LRT-57-

041  and tighten unions. Ensure all pipes and
fittings are clear of engine rotating parts.

18. Hang pressure gauge in a safe position under

bonnet.

19. LHD only:  Fit turbocharger intercooler feed

pipe and vacuum connection and fit PAS
reservoir to mounting bracket. Fit air intake
hose to turbocharger and air cleaner and
connect multiplug to MAF sensor. The above
parts must be refitted in order to run the
engine.

20. Fill PAS reservoir, connect battery earth lead.

Start engine and allow air to bleed from PAS
system, by turning steering from lock to lock.
Stop engine and check PAS fluid level.

21. Ensure steering system is free from leaks and

maintain maximum fluid level during test.

22. Open the test valve on LRT-57-001  and start

the engine.

23. With the engine at idle and normal running

temperature, slowly turn the steering wheel and
hold on lock.

24. Note reading on pressure gauge.
25. Repeat pressure check on opposite lock, again

noting the reading on the pressure gauge.

26. The test pressure should be between 21 and 62

bar, (300 to 900 lbf/in

2

.  Pressure will rise to 62

bar (900 lbf/in

2

)  when held on full lock.

27. With the engine at idle, centralise the steering

wheel. Pressure should read 7 bar (100 lbf/in

2

or below.

28. Pressure outside the above tolerance indicates

a fault.

29. To determine if fault is in steering pump or

steering rack, close the valve on LRT-57-001
for a maximum of five seconds. Pump damage
may occur if test valve is closed for longer
periods.

30. If the gauge does not register between  75 and

103 bar, (1500 lbf/in

2

) (maximum pump

pressure), the pump is faulty.

31. If maximum pump pressure is obtained,

suspect the steering box.

32. On completion, stop engine, disconnect battery

earth lead and syphon fluid from PAS reservoir.

33. LHD only:  Disconnect multiplug from MAF

sensor, remove air intake hose clips and move
hose aside.

34. LHD only:  Release PAS reservoir from

mounting, for access to turbocharger
intercooler pipe.Remove vacuum hose from
turbocharger intercooler pipe.Release clips and
disconnect intercooler  pipe from turbocharger.

35. Remove test equipment from tool LRT-57-041.
36. Remove bolt and clip from steering box.
37. Release PAS cooler pipe from tool LRT-57-041

and discard seal. leaving PAS reservoir oil pipe
in place, release  tool LRT-57-041 from
steering box and discard seal.

STEERING

57-22

ADJUSTMENTS

38. Fit new seal, connect PAS cooler pipe and

tighten union nut to 24 Nm (18 lbf ft).

39. LHD only:  Fit turbocharger intercooler feed

pipe and vacuum connection. Fit new seal to air
cleaner. Connect air intake hose and secure
clips. Connect multiplug to MAF sensor.

40. Clean chassis and surrounding area.
41. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

42. Remove adaptor and hose set from tool LRT-

57-041.

43. Check PAS fluid level.
44. Connect battery earth lead.

Power steering pressure check - V8 LHD
models

$% 57.90.10.01

Check

1. Disconnect battery earth lead.
2. Syphon PAS fluid from reservoir.

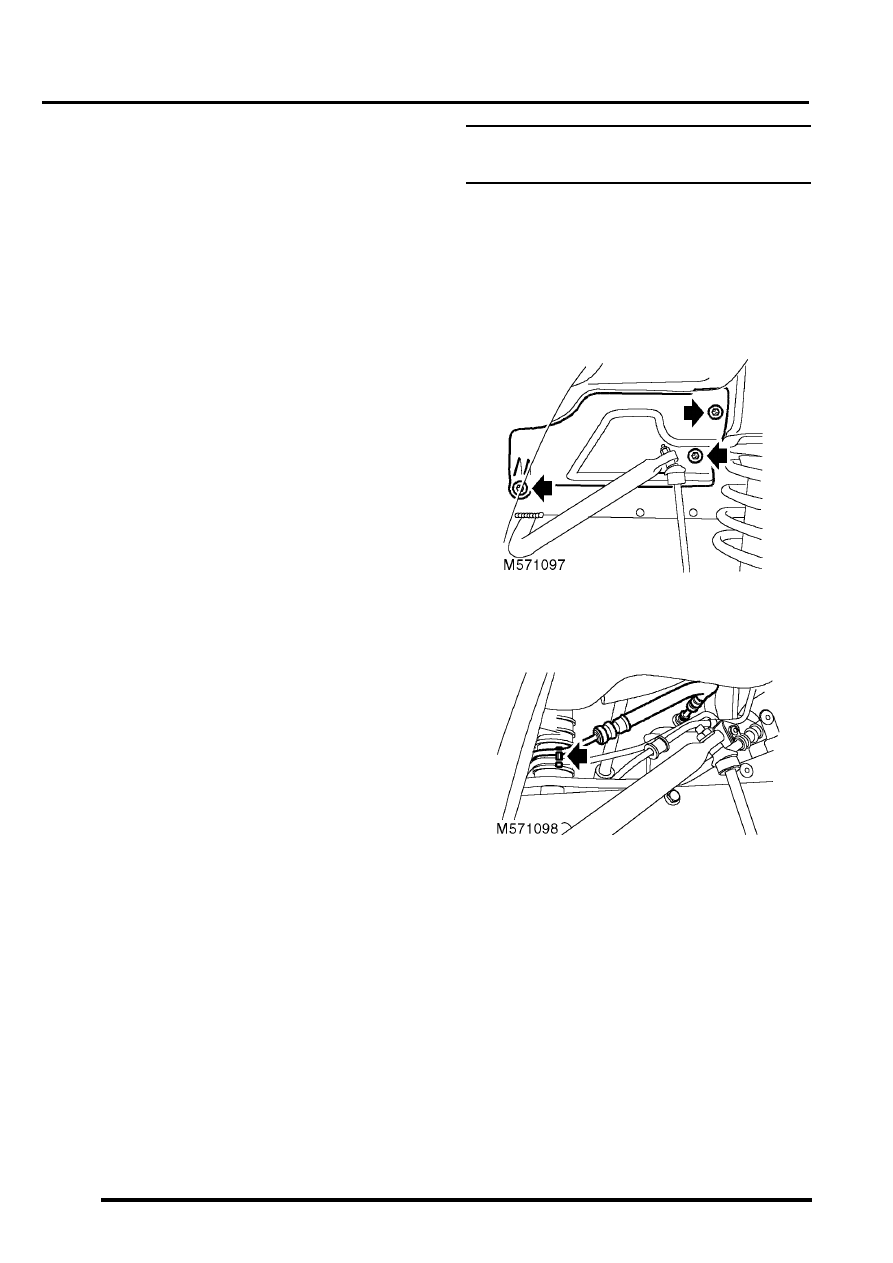

3. Raise front of vehicle and support on stands.
4. Turn steering on LH lock.

5. Remove 3 screws securing LH splash shield

and remove shield.

6. Release clip securing PAS pipes.
7. Position absorbent cloth to catch spillage.
8. Position container to collect PAS fluid spillage.
