MANUAL GEARBOX - R380

REPAIRS

37-13

12. Remove 8 nuts securing front propeller  shaft to

transfer gearbox and differential.

13. Remove propeller shaft.
14. Repeat above operation for rear  propeller

shaft.

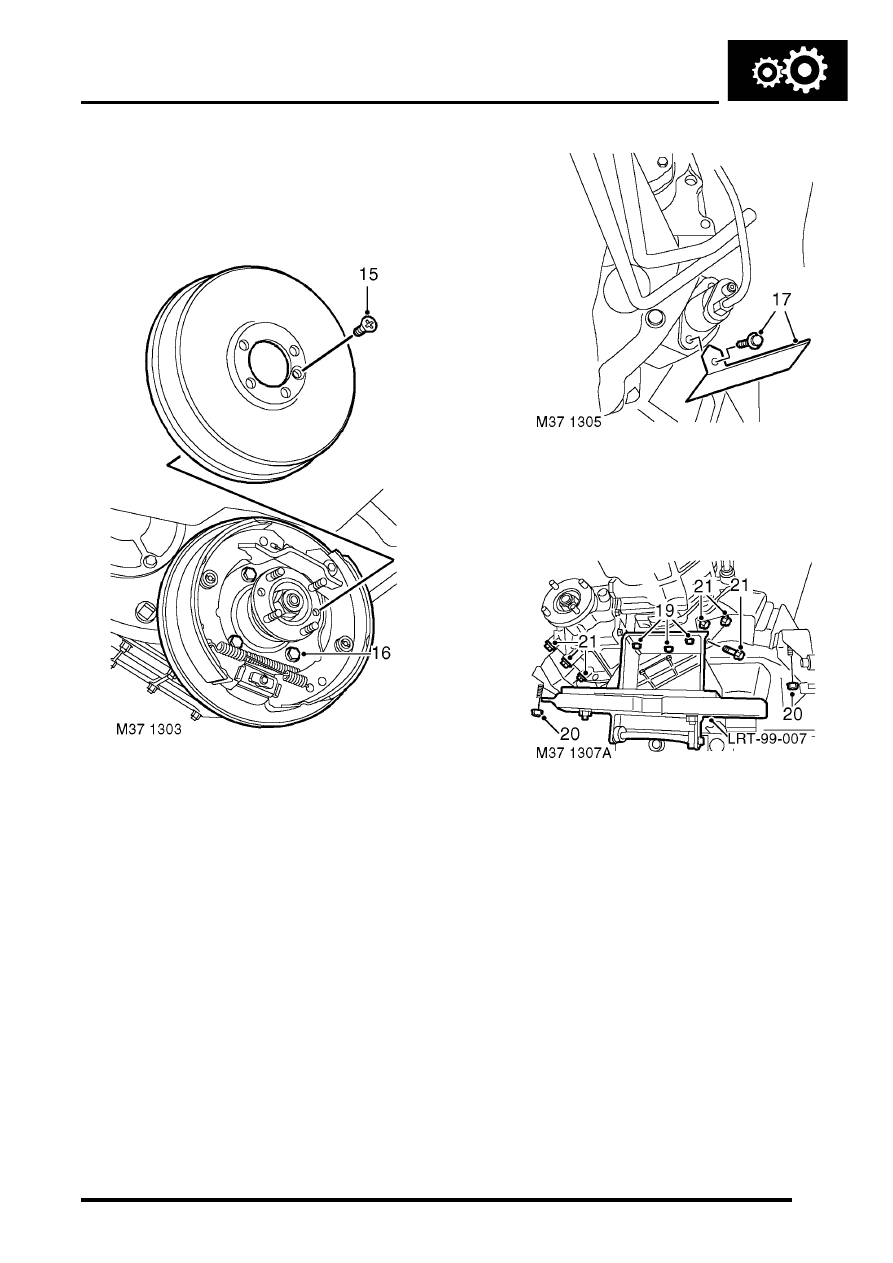

15. Remove handbrake drum retaining screw and

remove handbrake drum.

16. Remove 4 bolts from handbrake back plate,

release back plate and tie aside.

17. Remove 2 bolts securing clutch slave  cylinder,

collect heat shield, release slave  cylinder and
position aside.

18. Fit support plate LRT-99-007   to gearbox jack.
19. Position gearbox jack and support plate  to

gearbox and secure with 3 bolts.

20. Support the weight of gearbox, remove  nuts

securing gearbox mountings to body.

21. Remove 8 bolts securing mountings to

gearbox, raise gearbox and remove both
mountings.

MANUAL GEARBOX - R380

37-14

REPAIRS

22. Lower gearbox sufficiently to access top  of

gearbox.

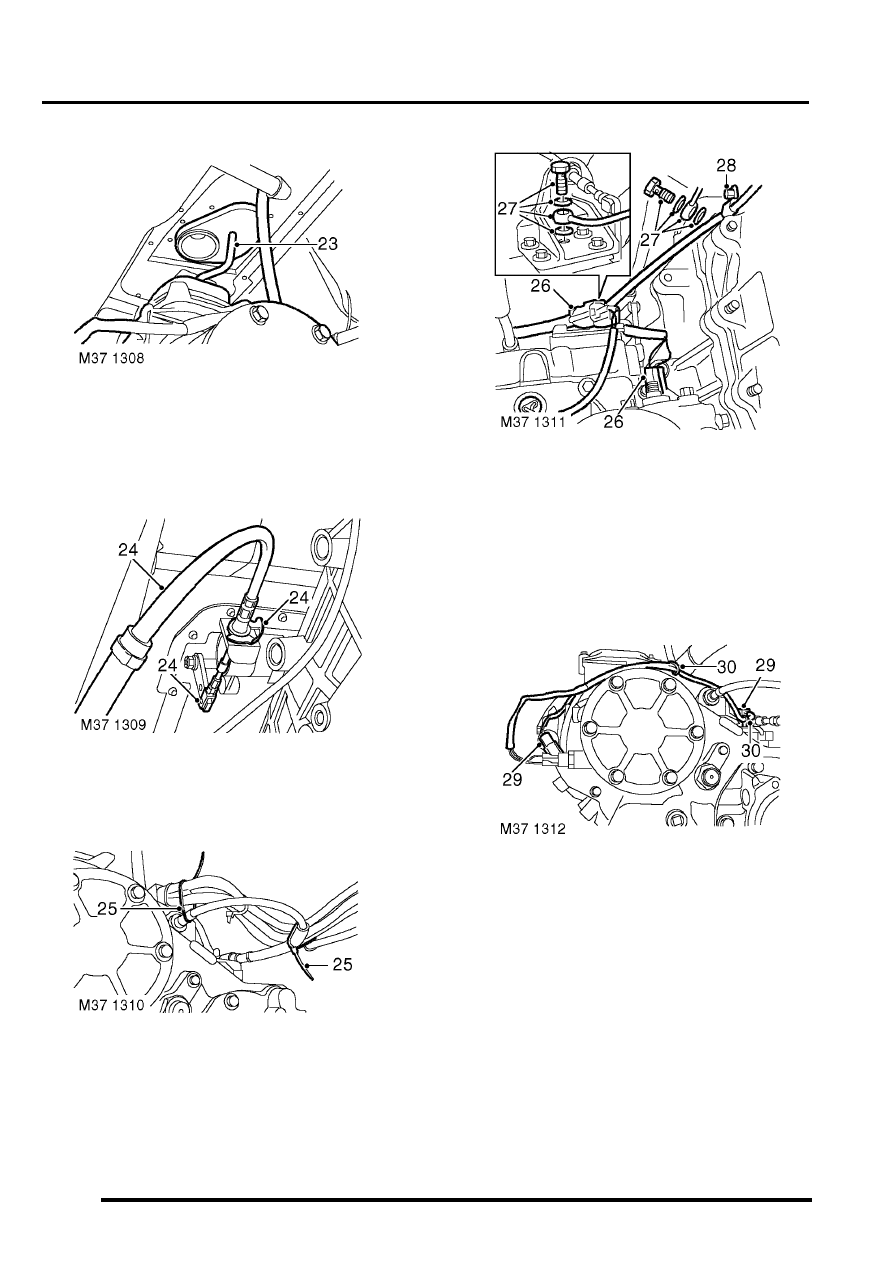

23. Ensure gear lever is released from  grommet

and no wires or pipes are trapped  when
gearbox is lowered.

24. Remove clevis pin and 'C' washer  securing low

ratio selector cable to lever  and release cable
from lever housing.

25. Remove 2 cable ties securing cable to  fuel

pipes.

26. Disconnect 2 Lucars from oil temperature

sensor and disconnect reverse lamp switch
multiplug.

27. Remove banjo bolts securing breather  pipes

and discard sealing washers.

28. Remove bolt securing breather pipe 'P'  clip and

release breather pipes.

29. If fitted: Disconnect 2 Lucars from differential

lock switch, release and  disconnect transfer
box neutral sensor multiplug.

30. If fitted: Release harness from 2 retaining

clips.

31. Position container to catch oil spillage

MANUAL GEARBOX - R380

REPAIRS

37-15

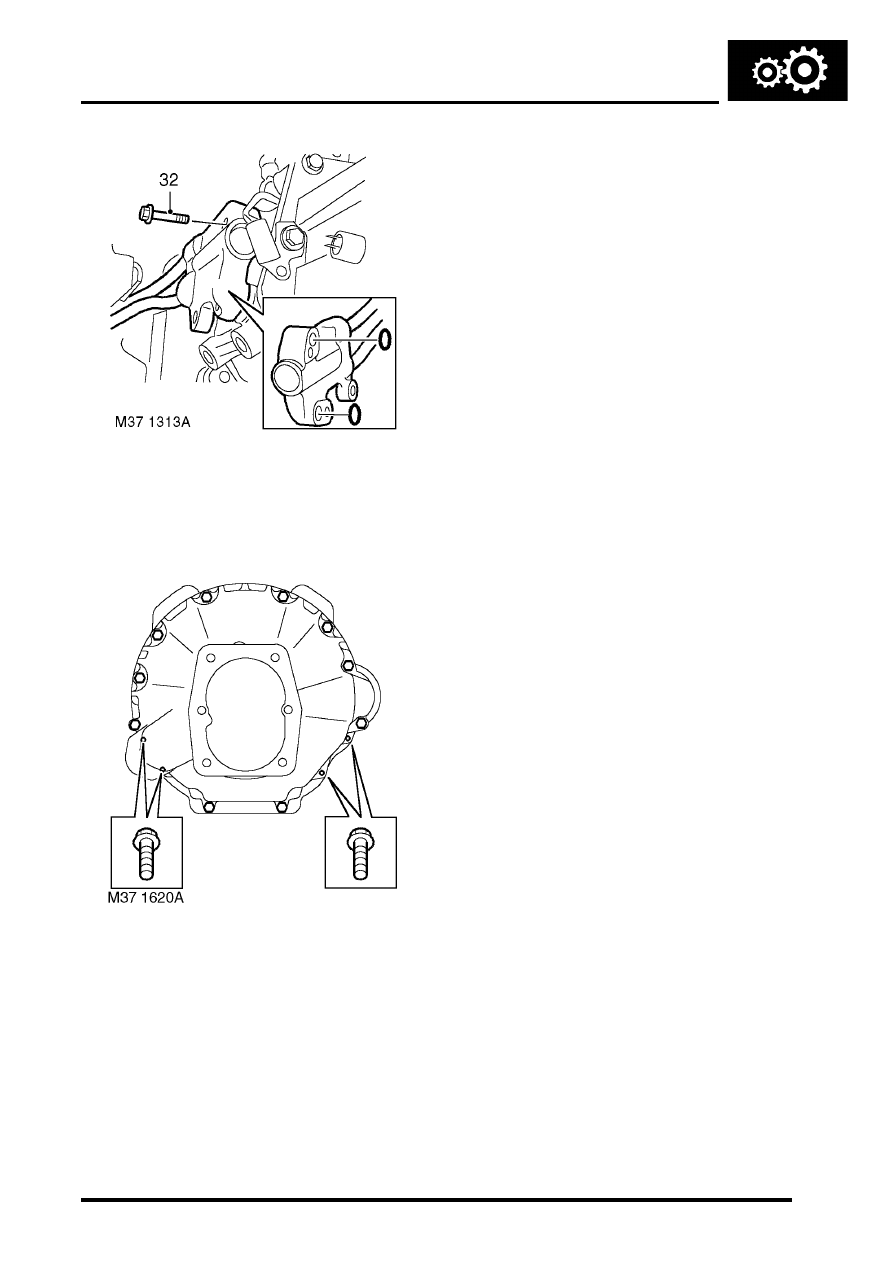

32. Remove 3 bolts securing oil cooling pipe

housing to gearbox, release housing and
discard 'O' rings.

33. Using a second jack support the weight of the

engine.

34. Remove 14 bolts securing gearbox to  engine.
35. With assistance, remove gearbox from  engine.

Refit

1. Clean gearbox to engine mating faces,   dowels

and dowel holes.

2. Raise gear gearbox on jack and align  to clutch

and engine.

3. Fit bolts securing gearbox to  engine and

tighten to 45 Nm (33 lbf.ft).

4. Lubricate and fit new 'O' rings to oil  cooling

pipe housing.

5. Position coolant pipe housing, fit bolts and

tighten to 25 Nm (18 lbf.ft).

6. If fitted: Secure harness in retaining clips,

connect Lucars to differential lock warning
switch and multiplug to neutral  sensor.

7. Position breather pipes and secure 'P'  clip with

bolt.

8. Using new sealing washers fit  breather  pipe

banjo bolts and tighten to 15 Nm  (11 lbf.ft).

9. Connect oil temperature sensor Lucars  and

reverse lamp switch multiplug.

10. Position low ratio selector cable to  housing and

secure with 'C' washer and  clevis pin.

11. Secure cable to fuel pipes with new  cable ties.
12. Raise gearbox, ensuring gear change  lever is

located in grommet.

13. Fit  gearbox mountings and tighten  bolts to 85

Nm (63 lbf.ft).

14. Fit nuts to mountings and tighten  to 48 Nm (37

lbf.ft).

15. Remove 3 bolts securing support plate to

gearbox.

16. Position clutch slave cylinder and heat shield,

fit bolts and tighten to 25 Nm (18 lbf.ft).

17. Clean handbrake back plate and mating face.
18. Position handbrake back plate, fit bolts and

tighten to 75 Nm (46 lbf.ft).

19. Clean handbrake drum.
20. Fit handbrake drum and tighten retaining

screw.

21. Clean propeller shafts and mating faces.
22. Position propeller shafts, align  to marks and

tighten bolts to 47 Nm  (35 lbf.ft).

23. Clean exhaust silencer and tail pipe  mating

faces.

24. Position silencer and secure on  mountings,

using a new gasket align to tail  pipe, fit nuts
and tighten to 25 Nm  (18 lbf.ft).

25. Position rear cross member, fit  bolts and

tighten to 25 Nm (18 lbf.ft).

26. Refill gearbox with oil.



 +

 MAINTENANCE, PROCEDURES,

Manual gearbox.

27. Refill transfer gearbox oil.



 +

 MAINTENANCE, PROCEDURES,

Transfer box.

28. Fit front exhaust pipe.



 +

 MANIFOLDS AND EXHAUST

SYSTEMS - V8, REPAIRS, Front pipe.

29. Fit  gear lever extension, fit clamp bolt  and

tighten to 25 Nm (18 lbf.ft).

30. Fit gear lever trim and gear change  knob.
31. Connect battery earth lead.
32.  Fit battery cover and cooling fan cover and

secure fixings.

MANUAL GEARBOX - R380

37-16

REPAIRS

Gearbox - Diesel

$% 37.20.02.99

Remove

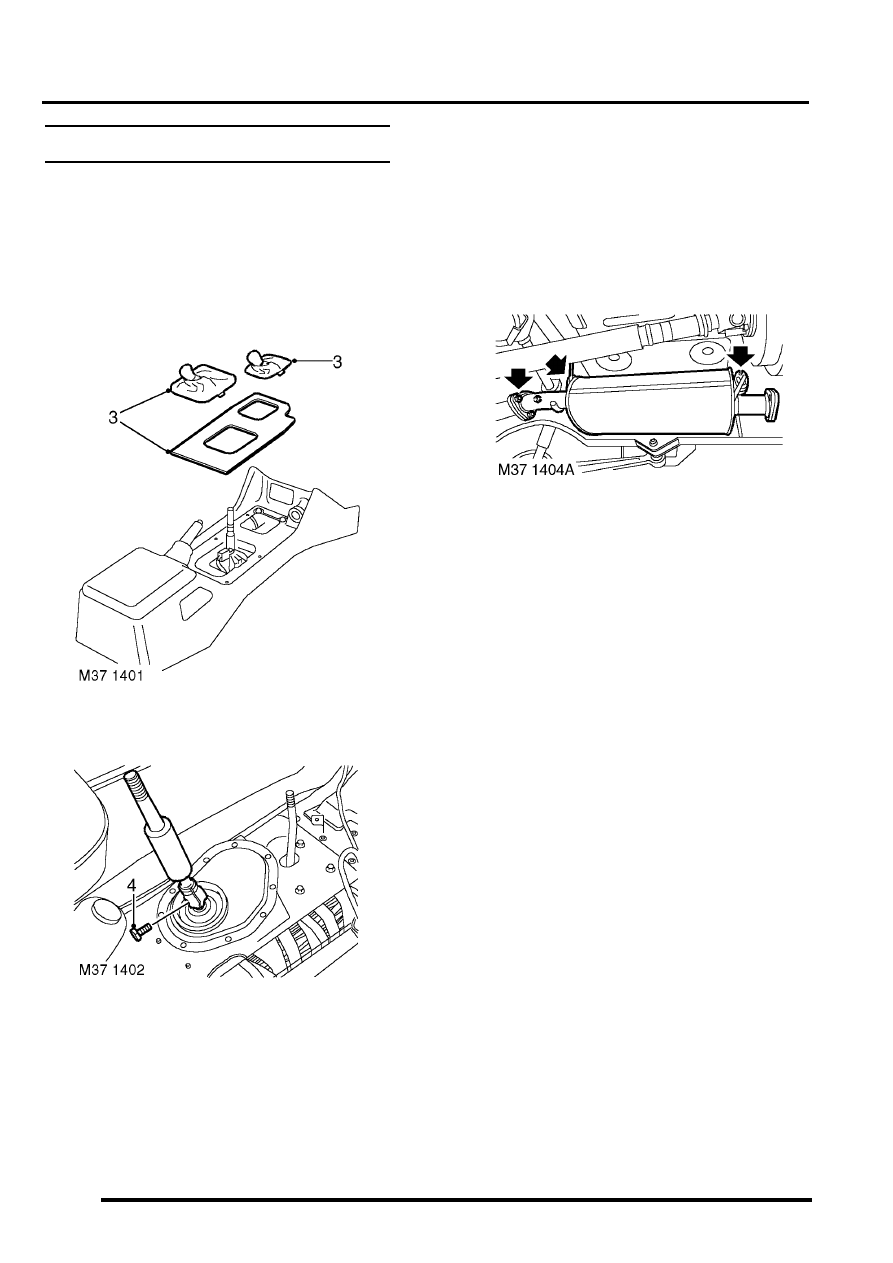

1. Release turn buckles and remove battery cover

and cooling fan cowl.

2. Disconnect battery earth lead.

3. Remove gear lever knob and gear lever trim.

4. Remove clamp bolt and remove gear lever

extension.

5. Apply a little lubricant to gear lever to aid

removal through grommet.

6. Remove exhaust front pipe.



 +

 MANIFOLDS AND EXHAUST

SYSTEMS - Td5, REPAIRS, Pipe - front.

7. Remove starter motor.



 +

 CHARGING AND STARTING,

REPAIRS, Starter motor - diesel.

8. Drain gearbox oil.



 +

 MAINTENANCE, PROCEDURES,

Manual gearbox.

9. Drain transfer gearbox oil.



 +

 MAINTENANCE, PROCEDURES,

Transfer box.

10. Remove 3 nuts securing intermediate silencer

to tail pipe.

11. Release silencer from mounting rubbers,

remove silencer and discard gasket.

12. Remove front propeller shaft.



 +

 PROPELLER SHAFTS, REPAIRS,

Propeller shaft - front.

13. Remove rear propeller shaft.



 +

 PROPELLER SHAFTS, REPAIRS,

Propeller shaft - rear.
