Discovery 2. Manual - part 34





ENGINE - V8

DESCRIPTION AND OPERATION

12-2-9

Oil is drawn from the sump through a strainer and into  the oil pump via the oil pick-up pipe. Pressurised oil from  the
pump passes through the oil cooler (if fitted) mounted in front of the radiator and returns to the full flow oil filter
element. Oil from the filter passes into the main oil gallery and through  internal drillings to the crankshaft where it is
directed to each main bearing and to the big-end bearings via numbers 1, 3 and 5 main bearings. An internal drilling
in the cylinder block directs oil to the camshaft where it passes through further internal drillings to the hydraulic
tappets, camshaft bearing journals and rocker shafts. Lubrication to the pistons, small ends and cylinder bores is by
oil grooves machined in the connecting rods and by splash.

Oil pressure switch
The oil pressure warning light switch registers low oil  pressure in the main oil gallery on the outflow side of the filter.
Whilst the engine is running and oil pressure is correct, the switch is open. When the ignition is switched on or if oil
pressure drops below the pressure setting of the switch, the switch closes and the low oil pressure warning lamp
located in the instrument pack will illuminate.

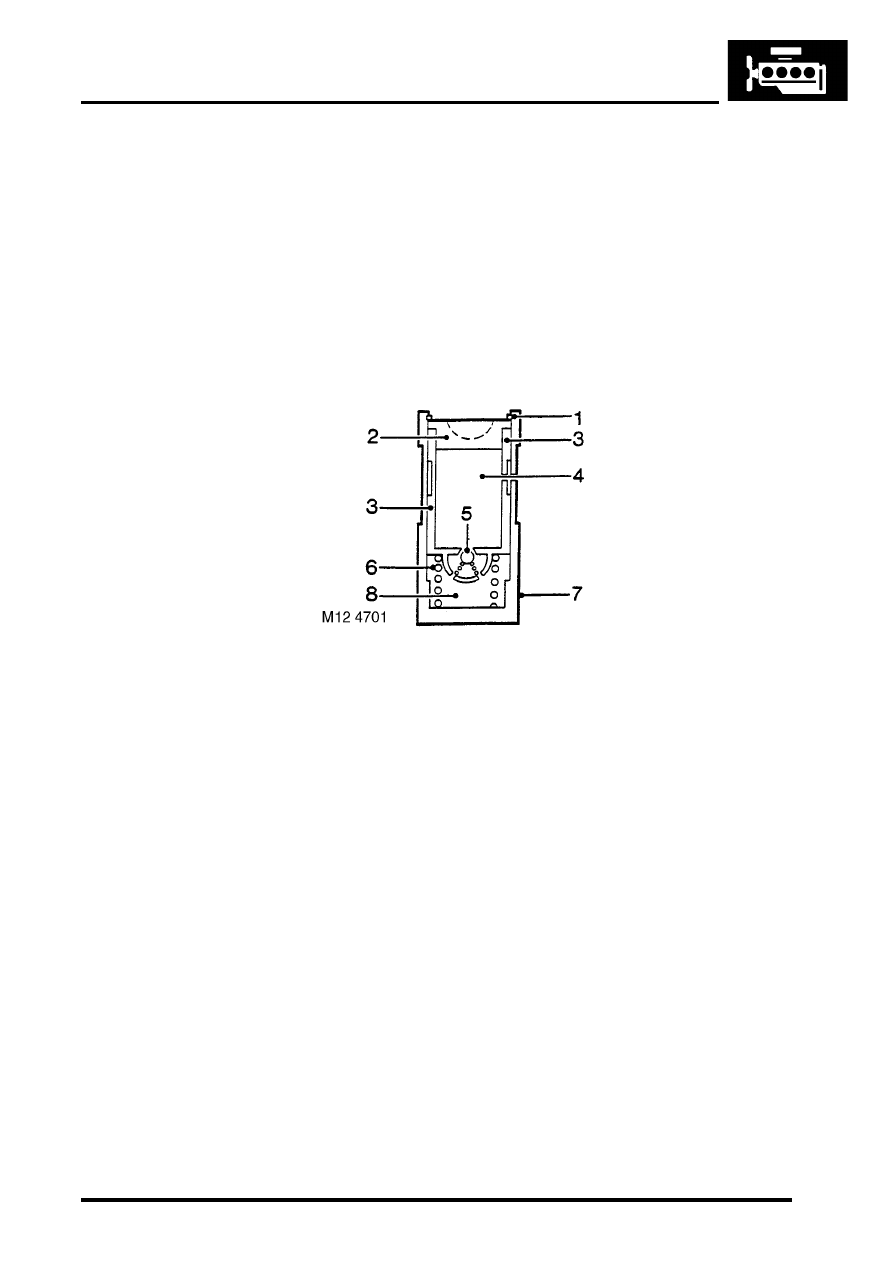

Hydraulic tappets

Clip
Pushrod seat
Inner sleeve
Upper chamber

Non-return ball valve
Spring
Outer sleeve
Lower chamber

The hydraulic tappet provides maintenance free, quiet operation of the  valves. This is achieved by utilizing engine oil
pressure to eliminate the  clearance between the rocker arms and valve stems. When the valve is closed,  engine oil
pressure present in the upper chamber, passes through the non-return  ball valve and into the lower chamber.  When
the cam  begins to lift the outer sleeve,  the resistance of the valve spring, felt through the push rod and seat,  causes
the tappet inner sleeve to move downwards inside the outer sleeve.  This downwards movement closes the non-return
ball valve and increases  the pressure in the lower chamber sufficiently to ensure that the valve  is fully opened by the
push rod.   As the tappet moves off the peak of the cam, the non-return ball valve  opens thereby allowing the pressure
in both chambers to equalize. This  ensures that the valve will be fully closed when the tappet is on the  back of the
cam.

Crankcase ventilation
A positive crankcase ventilation system is used to vent crankcase gases to the air induction system. Gases are drawn
from the left hand rocker cover to a tapping  in the throttle body. An oil separator is incorporated in the hose connection
stub pipe in the right hand rocker cover, gases from this connection are drawn to a tapping in the inlet manifold.


 +

 EMISSION CONTROL - V8, DESCRIPTION AND OPERATION, Crankcase Emission Control System.

ENGINE - V8

ADJUSTMENTS 12-2-11

ADJUSTMENTS

Engine oil pressure check

$% 12.90.09.01

Check

1. Remove oil pressure switch.



 +

 ENGINE - V8, REPAIRS, Switch - oil

pressure.

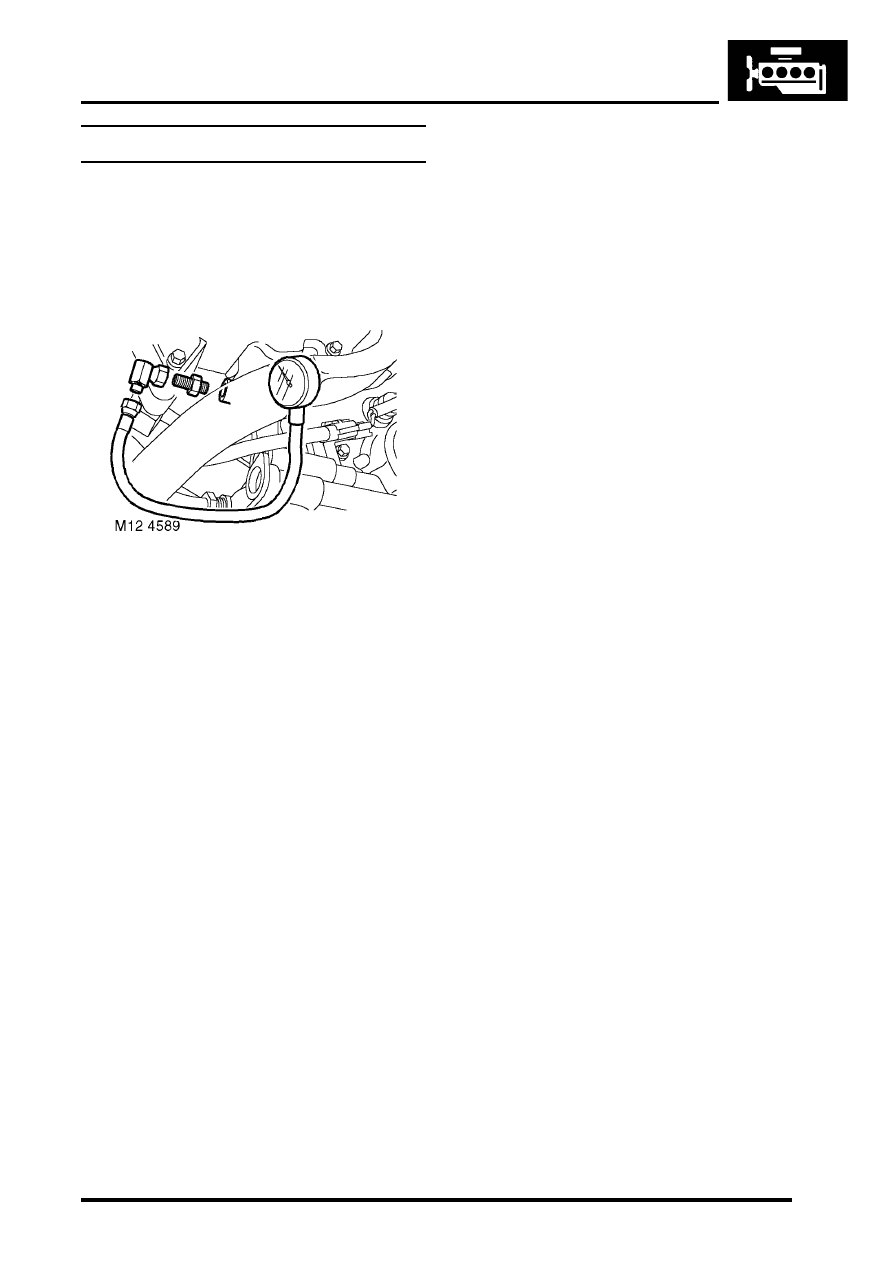

2. Connect pressure check kit LRT-12-052C

adaptor and  gauge to oil pressure switch
position on timing gear cover.

3. Check and if necessary top up engine  oil.
4. Run engine at idle speed and check  that oil

pressure is within limits given.


 +

 GENERAL DATA, Engine - V8.

5. Switch off ignition.
6. Remove pressure check kit LRT-12-052C.
7. Clean oil spillage.
8. Fit oil pressure switch.



 +

 ENGINE - V8, REPAIRS, Switch - oil

pressure.

Adjust

1. If engine oil pressure is below figures given,

check condition  of oil pump and/or main and
big end bearings.
