Discovery (1995+): Body Repair Manual - part 25





76

CHASSIS AND BODY

38

REPAIR

SUNROOF ASSEMBLY - ELECTRICAL, FRONT
AND REAR

Service repair no - 76.82.59

Remove

Refer to sunroof components illustration J5483

1. Ensure sunroof is in normally closed position.
2. Disconnect battery negative lead.
3. Remove headlining.

See this section.

4. Disconnect electric motor wiring plug.

See this

section.

5. Remove screws and detach electric motor from

clamping frame.

6. Disconnect drain tubes from each side of

clamping frame.

7. Remove 13 fixings and remove clamping frame

from upper frame.

8. Remove upper frame assembly.

Refit

9. Position upper frame assembly into roof

aperture.

10. Locate clamping frame and reconnect drain

tubes.

11. Loosely fit screws, centralise upper frame and

clamping frame assemblies and then tighten
screws.

12. Reverse removal procedure.

CHASSIS AND BODY

39

REPAIR

SUNROOF ELECTRIC MOTORS

Service repair no - 76.82.84/85

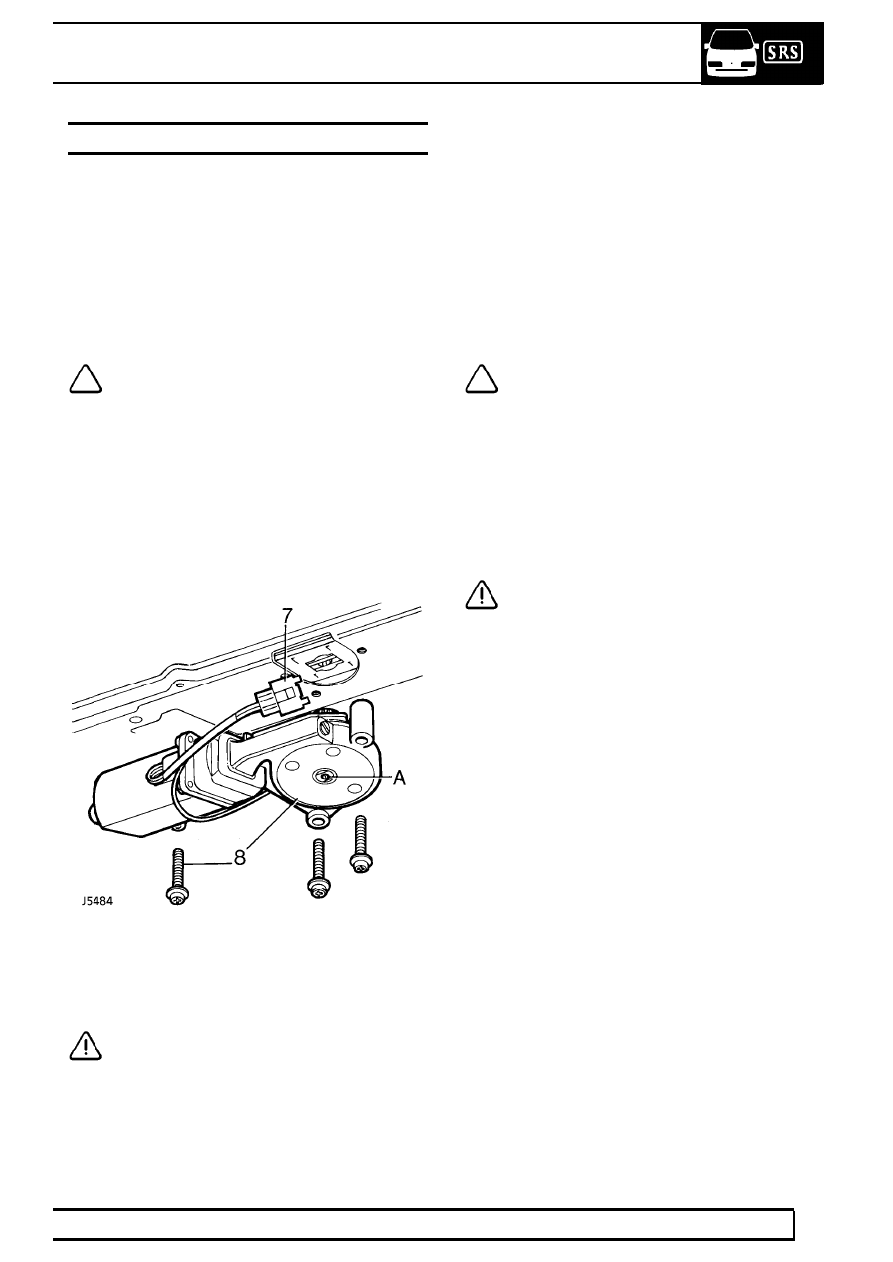

FRONT MOTOR

Remove

1. Disconnect battery negative lead.
2. Ensure sunroof is in normally closed position

NOTE: If the electric motor has failed the
sunroof can be closed manually using an
allen key to turn motor spindle A.

3. Remove switch panel from stowage pocket

panel

4. Remove interior lamp from stowage pocket

panel

5. Remove alarm ultrasonic unit.
6. Unscrew ten fixings and remove stowage pocket

from headlining.

7. Disconnect motor wiring multiplug.
8. Remove three screws and motor.

Refit

9. Reverse removal procedure.

CAUTION: Ensure the motor is aligned
with fixing holes and the sunroof is in the
normally closed position. DO NOT rotate

the motor drive spindle in the rack - this may
result in incorrect operation of the sunroof.

REAR MOTOR

Remove

1. Disconnect battery negative lead.
2. Ensure sunroof is in normally closed position

NOTE: If the electric motor has failed the
sunroof can be closed manually using an
allen key to turn motor spindle.

3. Remove headlining.

See this section.

4. Disconnect motor wiring multiplug.
5. Remove three screws and motor.

Refit

6. Reverse removal procedure.

CAUTION: Ensure the motor is aligned
with fixing holes and the sunroof is in the
normally closed position. DO NOT rotate

the motor drive spindle in the rack - this may
result in incorrect operation of the sunroof.

76

CHASSIS AND BODY

40

REPAIR

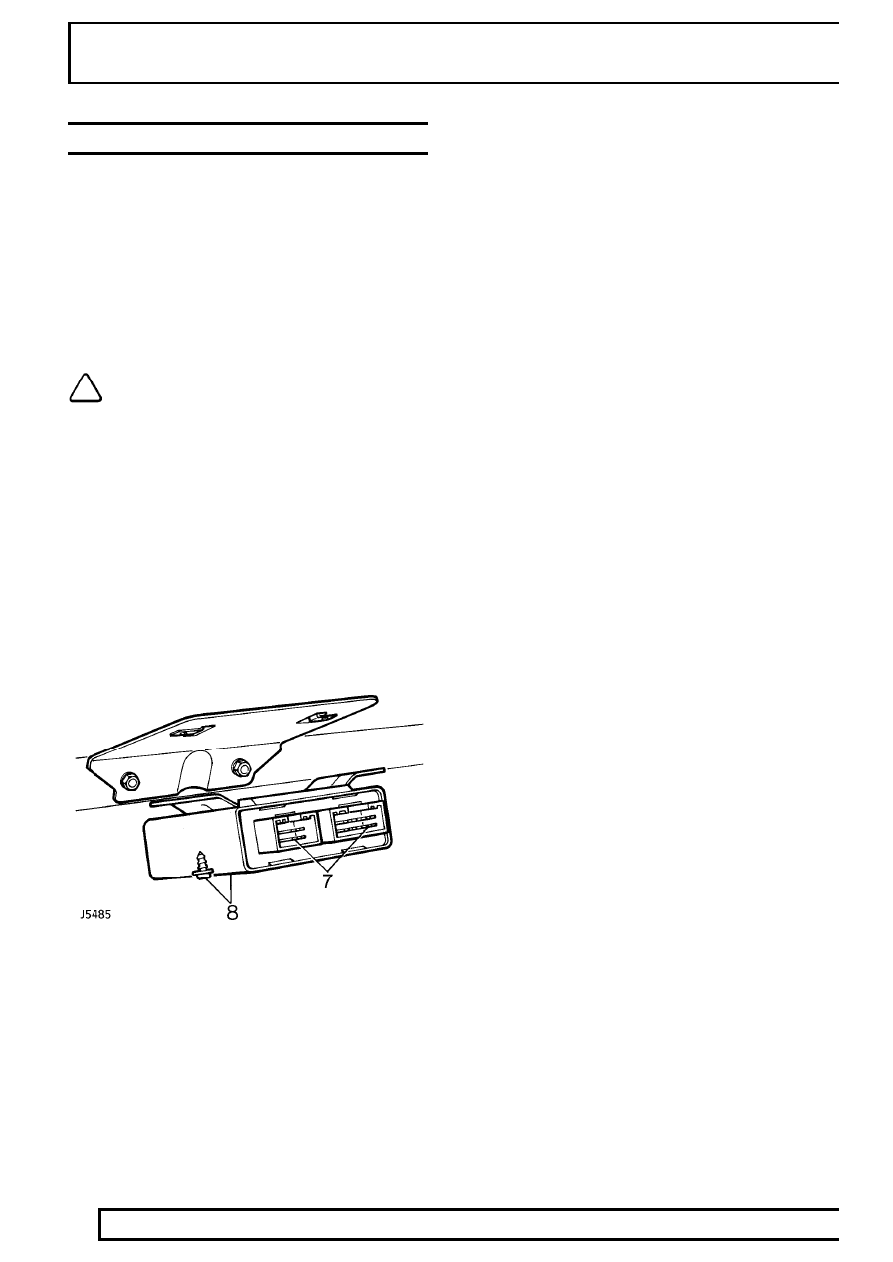

SUNROOF ELECTRIC CONTROL UNIT

Service repair no - 76.82.73

The control unit serves both front and rear sunroofs
and is sited above the front switches behind
headlining.

Remove

1. Disconnect battery negative lead.
2. Ensure sunroof is in normally closed position.

NOTE: If the electric motor has failed the
sunroof can be closed manually using an
allen key to turn motor spindle.

3. Remove switch panel from stowage pocket

panel

4. Remove interior lamp from stowage pocket

panel

5. Remove alarm ultrasonic unit.
6. Unscrew ten fixings and remove stowage pocket

from headlining.

7. Disconnect electric plugs from control unit.
8. Remove two retaining screws and control unit.

Refit

9. Reverse removal procedure.

CHASSIS AND BODY

41

REPAIR

SUNROOF ASSEMBLY - MANUAL, FRONT AND
REAR

Service repair no - 76.83.01

Remove

1. Close sunroof.
2. Remove headlining.

See this section.

3. Remove screws and manual regulator from

clamping frame.

See this section.

4. Disconnect drain tubes from each side of

clamping frame.

5. Remove 13 screws and clamping frame from

upper frame.

6. Remove upper frame assembly from roof

aperture.

Refit

7. Position upper frame assembly into roof

aperture.

8. Locate clamping frame and reconnect drain

tubes.

9. Loosely fit screws, centralise upper frame and

clamping frame assemblies and then tighten
screws.

10. Reverse removal procedure.

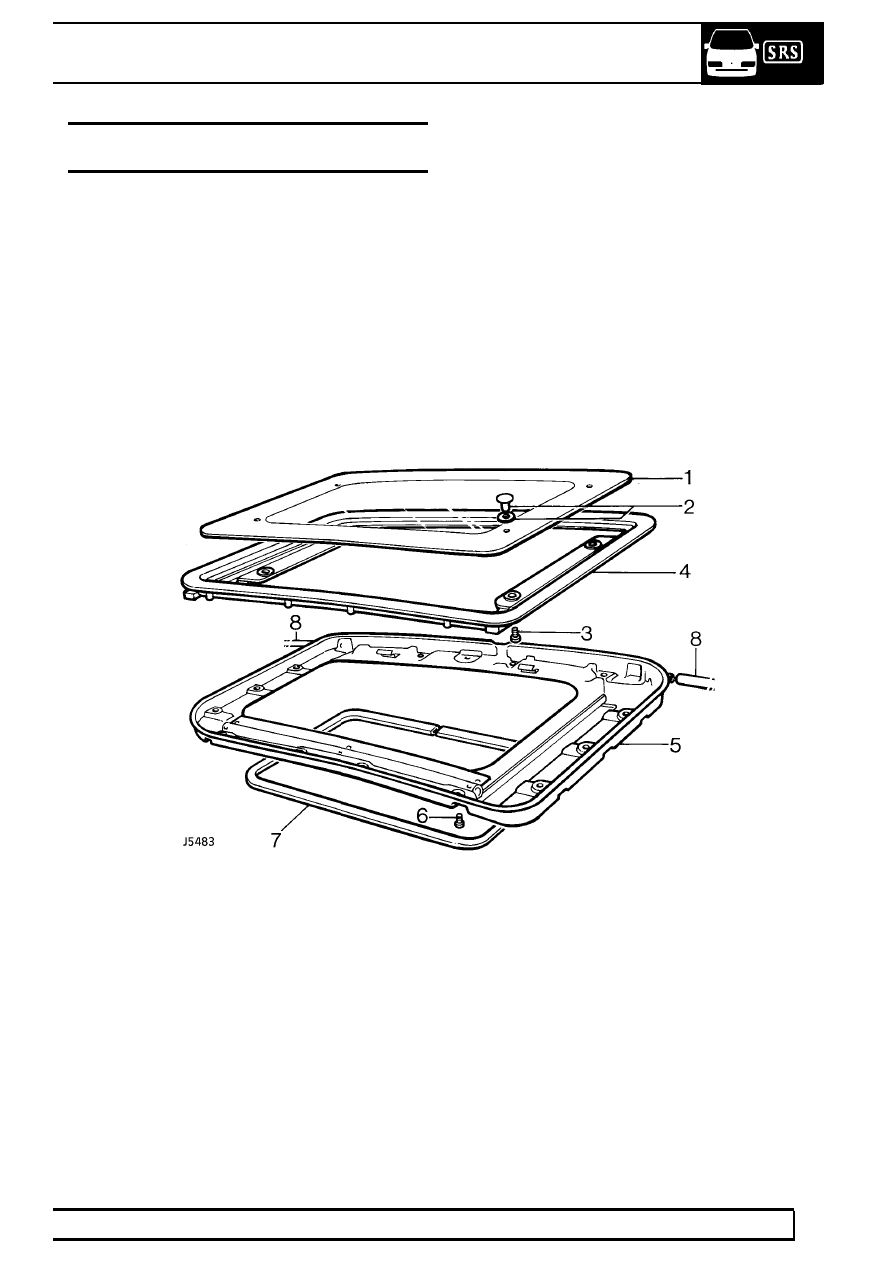

Sunroof components

1. Glass panel
2. Capnut and washer
3. Screw
4. Upper frame assembly

5. Clamping frame assembly
6. Screw
7. Edging trim
8. Drain tube
