ELECTRICAL

47

REPAIR

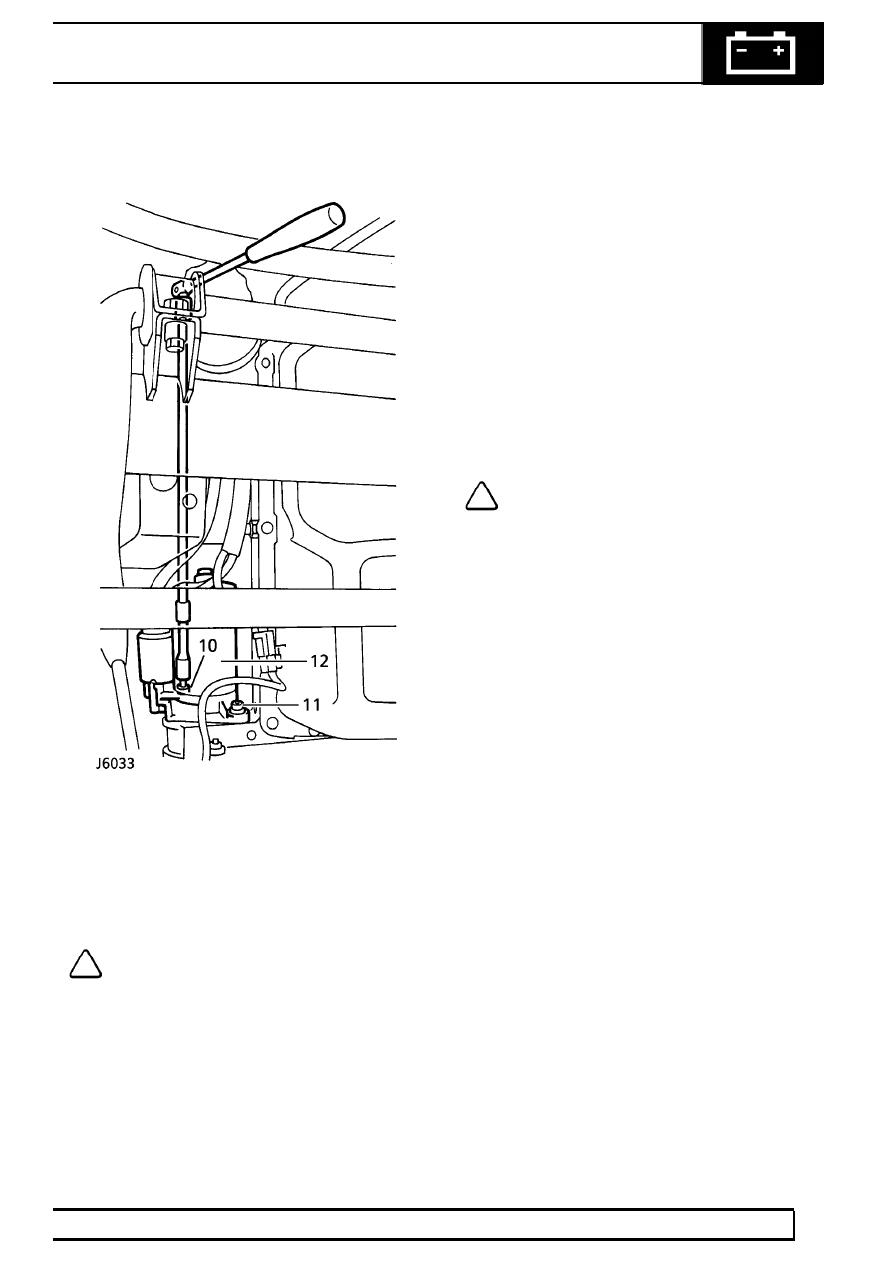

10. From above, remove top bolt securing starter

motor and position earth lead aside.

NOTE: To assist removal, use 230 mm
extension bar positioned between engine
mounting bracket and exhaust manifold.

11. Remove bottom bolt securing starter motor.
12. Remove starter motor.

Refit

13. Ensure mating faces are clean.
14. Locate starter motor in fitted position and fit

bottom bolt finger tight.

15. Fit top bolt. Tighten to

42 Nm.

16. Bottom bolt. Tighten to

42 Nm.

17. Connect feed wires to solenoid terminal. Secure

with nut.

18. Connect Lucar to starter solenoid.
19. Manoeuvre heat shield down and forward to

position bracket against engine mounting.
Engage clip on solenoid.

20. Align bracket to hole using suitable tool and fit

retaining bolt.

21. Clean flange mating surfaces, locate propeller

shaft and align reference marks.

22. Fit bolts and NEW nyloc nuts. Tighten to

48 Nm.

NOTE: Fit bolts with head towards transfer
box and away from differential.

23. Lower vehicle.
24. Reconnect battery negative lead.

86

ELECTRICAL

48

REPAIR

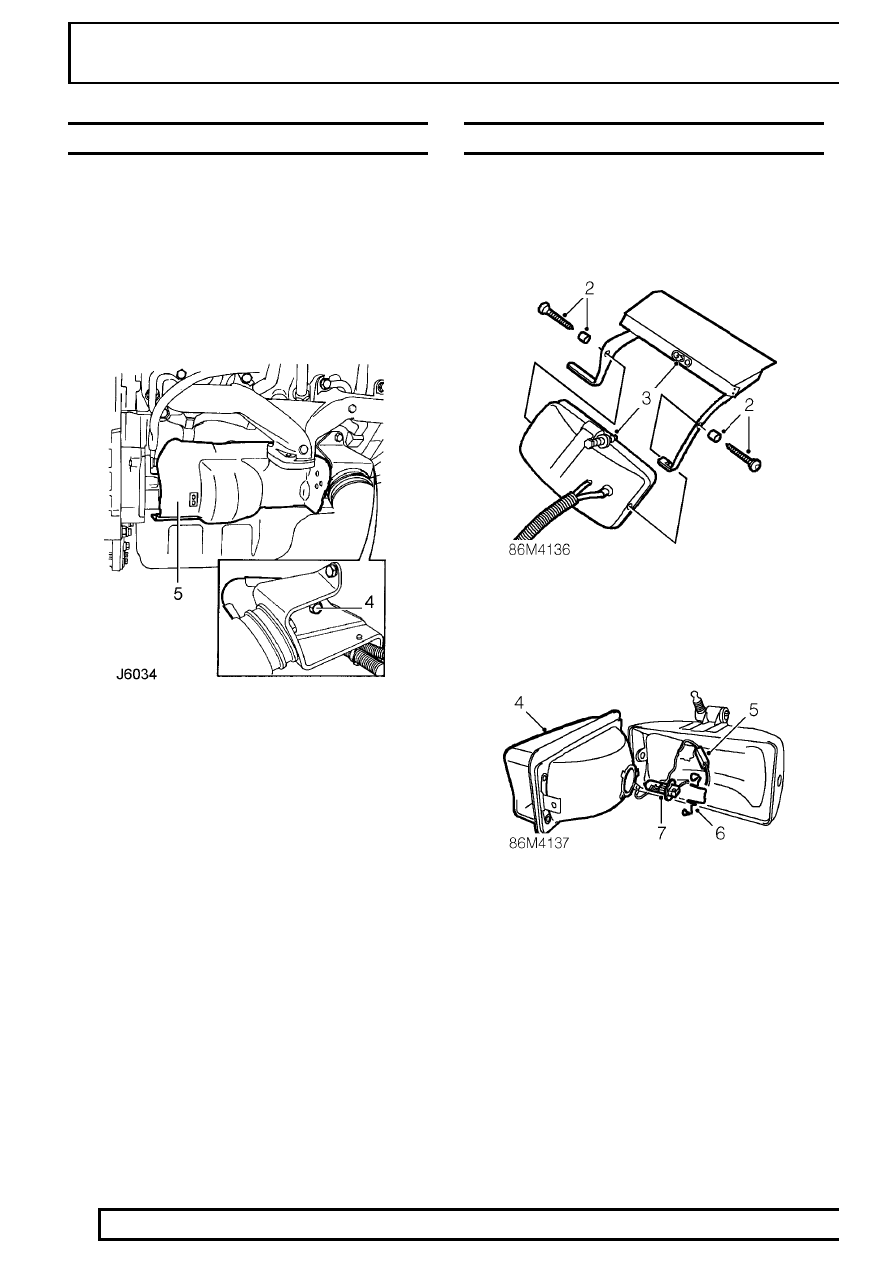

STARTER MOTOR HEAT SHIELD - 4.0 V8

Service repair no - 86.60.12

Remove

1. Disconnect battery negative lead.
2. Raise vehicle on ramp.
3. Remove heated oxygen sensor from RH exhaust

front pipe.

See EMISSION CONTROL, Repair,

Heated Oxygen Sensor (HO2S) - 4.0 V8

4. Remove bolt securing heat shield to RH engine

mounting bracket.

5. Release heat shield clip from starter solenoid.
6. Manoeuvre heat shield rearwards and around

starter motor.

Refit

7. Reverse removal procedure.

BULB - FRONT FOG LAMP

Service repair no - 86.40.94

Remove

1. Remove front fog lamp.

See fog lamp - front

2. Remove 2 Torx screws securing fog lamp to

bracket and collect 2 spacers.

3. Release fog lamp adjustment ball joint from

bracket and remove lamp.

4. Release lamp lens from shroud.
5. Disconnect 2 Lucars from bulb.
6. Release bulb retaining clip.
7. Remove bulb from lens.

ELECTRICAL

49

REPAIR

Refit

8. Fit bulb to lens.
9. Secure bulb retaining clip.

10. Connect 2 Lucars to bulb.
11. Position lamp lens to shroud.
12. Position lamp to bracket and secure fog lamp

adjustment ball joint to bracket.

13. Position spacers, align lamp to bracket and

secure with Torx screws.

14. Fit front fog lamp.

See fog lamp - front; Refit

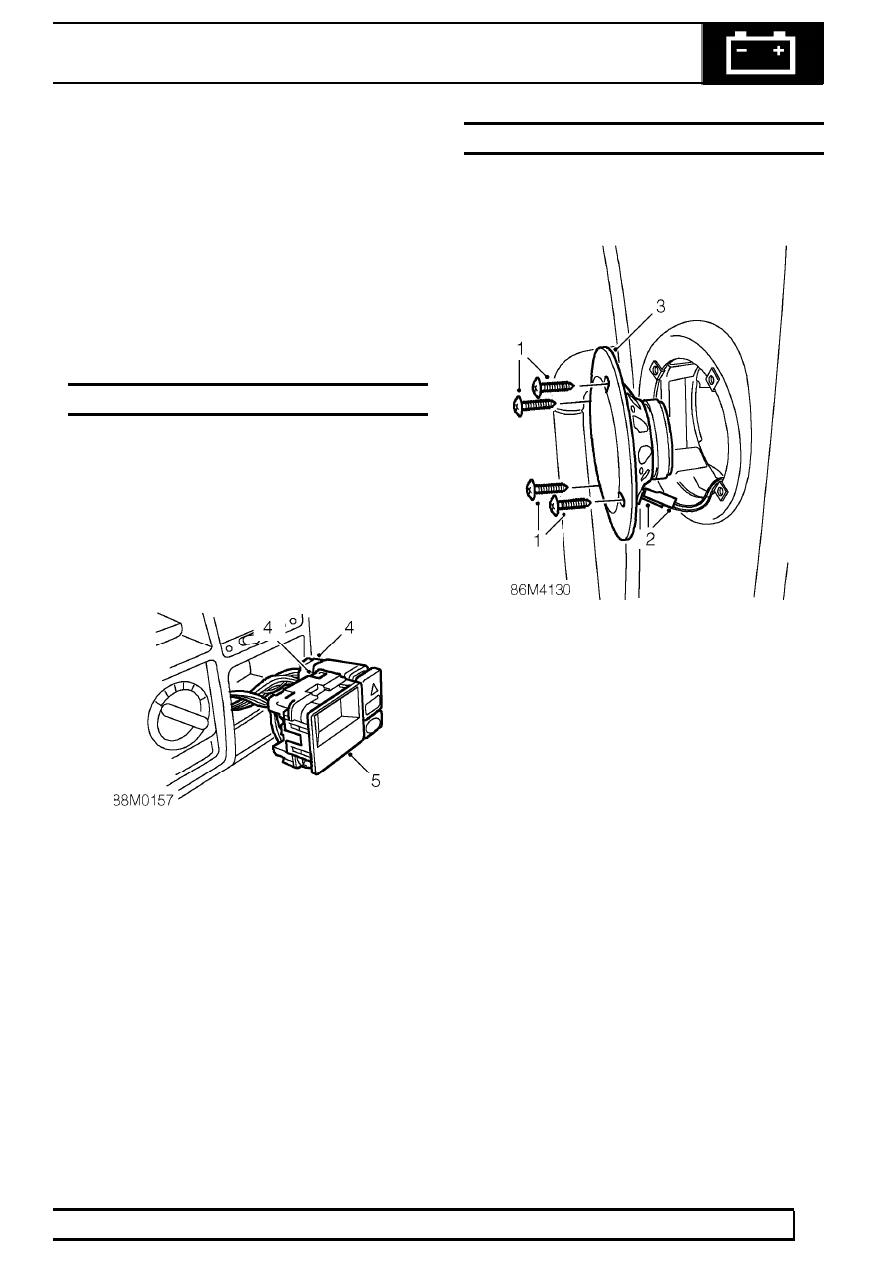

CLOCK

Service repair no - 88.15.07

Remove

1. Remove drinks tray.

See CHASSIS AND

BODY, Repair, drinks tray

2. Release 4 clock panel securing tags.
3. Release clock panel from louvre panel.

4. Disconnect 2 multiplugs from clock.
5. Remove clock.

Refit

6. Position clock.
7. Connect multiplugs to clock and secure clock to

louvre panel.

8. Fit drinks tray.

See CHASSIS AND BODY,

Repair, drinks tray; Refit

REAR SPEAKER

Service repair no - 88.15.12

Remove

1. Remove 4 screws securing speaker.
2. Release speaker and disconnect 2 Lucars.
3. Remove speaker.

Refit

4. Position speaker, connect Lucars and secure

with screws.

86

ELECTRICAL

50

REPAIR

DIGITAL DIESEL SHUT-OFF VALVE (DDS) - 97 MY

Service repair no - 86.77.00

Remove

1. Remove fuel injection pump.

See FUEL

SYSTEM, Repair, fuel injection pump and
timing

2. Drill into 2 break-off screws to a depth of

approximately 5 mm using a 3.2 mm drill.

CAUTION: Use a drill bushing to guide the
drill during the above.

3. Using an ’Easy-out’ remove 2 valve retaining

screws and discard.

4. Release DDS valve from fuel shut-off solenoid.
5. Remove protective cap from fuel shut-off

solenoid electrical connection.

6. Remove fuel shut-off solenoid terminal nut and

remove DDS valve.

Refit

7. Position DDS terminal lead to fuel shut-off

solenoid and secure with nut tightened to

2 Nm .

8. Position DDS valve to fuel shut-off solenoid .
9. Position clamping plate to DDS valve and tighten

shear bolts simultaneously until heads shear.

10. Fit fuel injection pump.

See FUEL SYSTEM,

Repair, fuel injection pump and timing; Refit

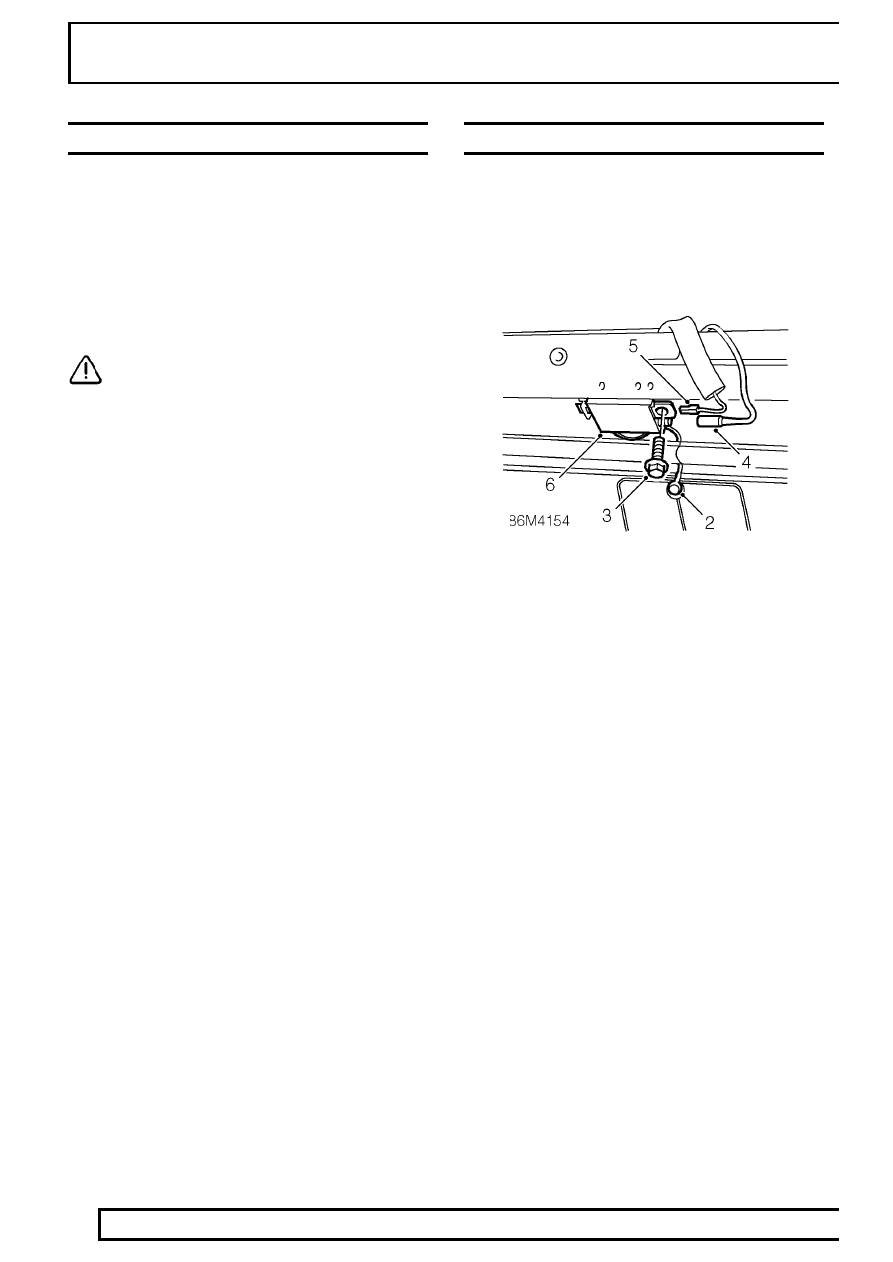

ANTENNA AMPLIFIER - 97 MY

Service repair no - 86.50.29

Remove

1. Remove RH alpine light trim casing.

See

CHASSIS AND BODY, Repair, alpine light
trim casing

2. Release amplifier to sixth light connector and

seal finisher.

3. Remove screw securing amplifier to body and

release from location.

4. Disconnect co-axial cable from amplifier.
5. Disconnect Lucar from amplifier.
6. Remove amplifier.

Refit

7. Fit amplifier, connect co-axial cable and Lucar to

amplifier.

8. Position amplifier to location and secure with

screw.

9. Secure amplifier lead through seal finisher and

connect to sixth light.

10. Fit RH alpine light trim casing.

See CHASSIS

AND BODY, Repair, alpine light trim casing;
Refit
