82

AIR CONDITIONING

14

REPAIR

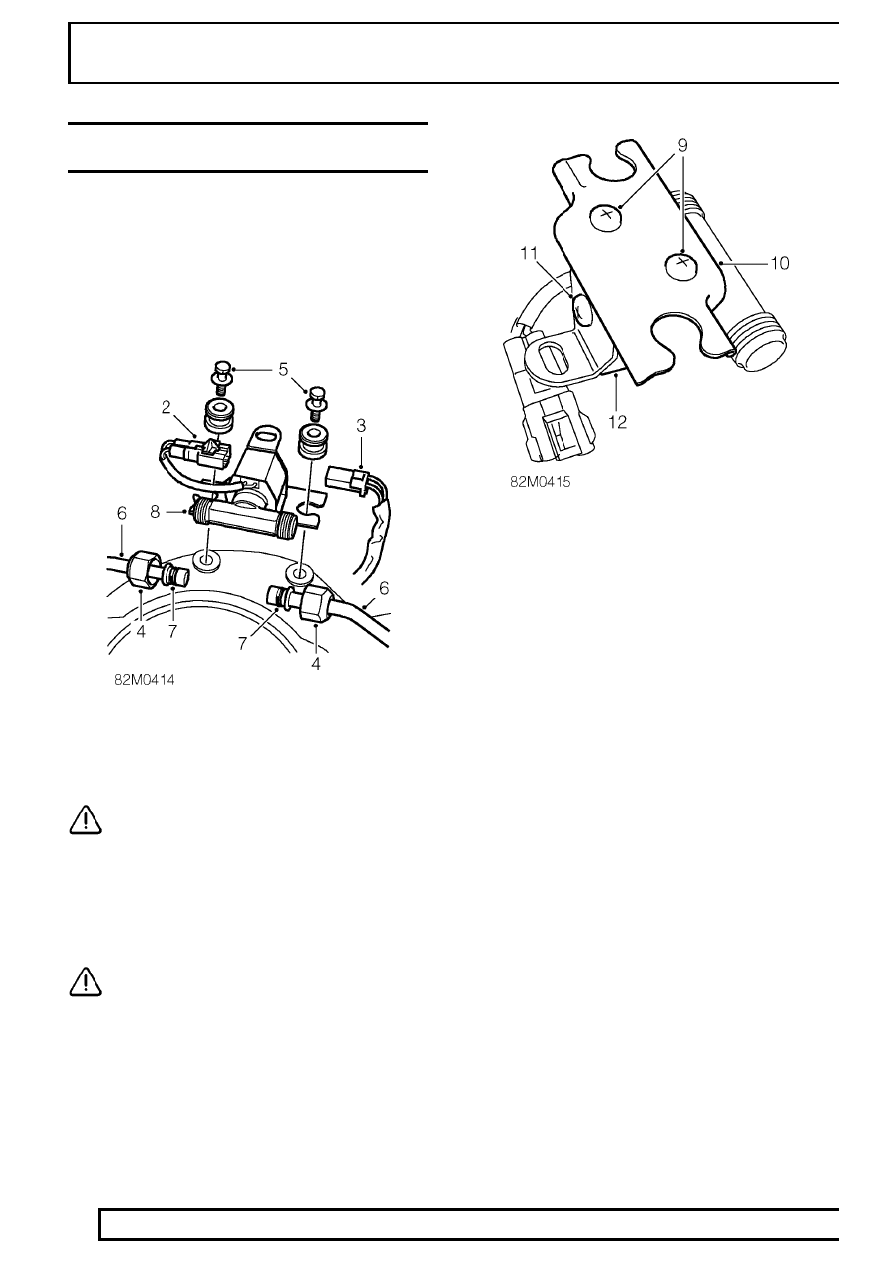

SOLENOID - HIGH PRESSURE PIPE CONTROL
VALVE - REAR

Service repair no - 82.26.05

Remove

1. Remove evaporator/blower motor assembly.

See evaporator/blower motor assembly -
rear

2. Release multiplug clip from solenoid bracket.
3. Disconnect solenoid multiplug.
4. Loosen 2 control valve unions.

CAUTION: Use 2 spanners when loosening
or tightening air conditioning pipe unions.

5. Remove 2 screws securing control valve to

blower motor housing.

6. Release unions from control valve.
7. Remove and discard 2 ’O’ ring seals from control

valve.

CAUTION: Immediately plug air
conditioning connections.

8. Remove control valve assembly.

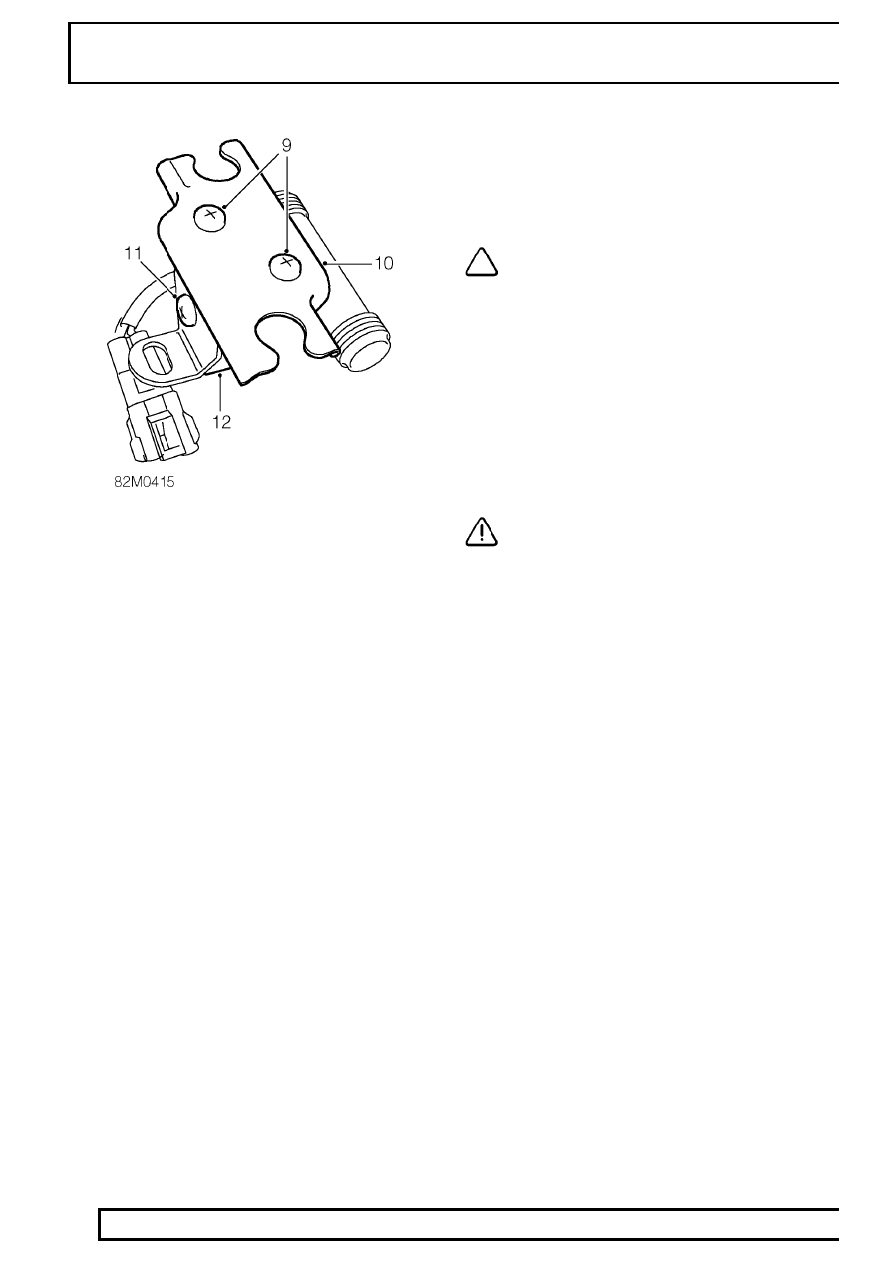

9. Remove 2 screws securing mounting bracket to

control valve.

10. Remove mounting bracket.
11. Noting the direction arrow on control valve,

remove screw securing solenoid to valve.

12. Remove solenoid from valve.

AIR CONDITIONING

15

REPAIR

Refit

13. Fit solenoid to valve.
14. Fit but do not tighten screw securing solenoid to

control valve.

NOTE: Ensure arrow on control valve is
pointing in the correct recorded direction.

15. Position mounting bracket to control valve

solenoid and secure with screws.

16. Remove plugs from unions and control valve

connections.

17. Lubricate NEW ’O’ rings with refrigerant oil and

fit to valve.

18. Fit control valve to pipes, connect unions, but do

not tighten.

19. Fit and tighten screws securing control valve

mounting bracket to blower motor housing.

20. Tighten control valve unions to

14 Nm .

CAUTION: Use 2 spanners when loosening
or tightening air conditioning pipe unions.

21. Tighten screw securing solenoid to control valve.
22. Connect solenoid multiplug and secure to

solenoid bracket.

23. Fit evaporator/blower motor assembly.

See

evaporator/blower motor assembly - rear;
Refit

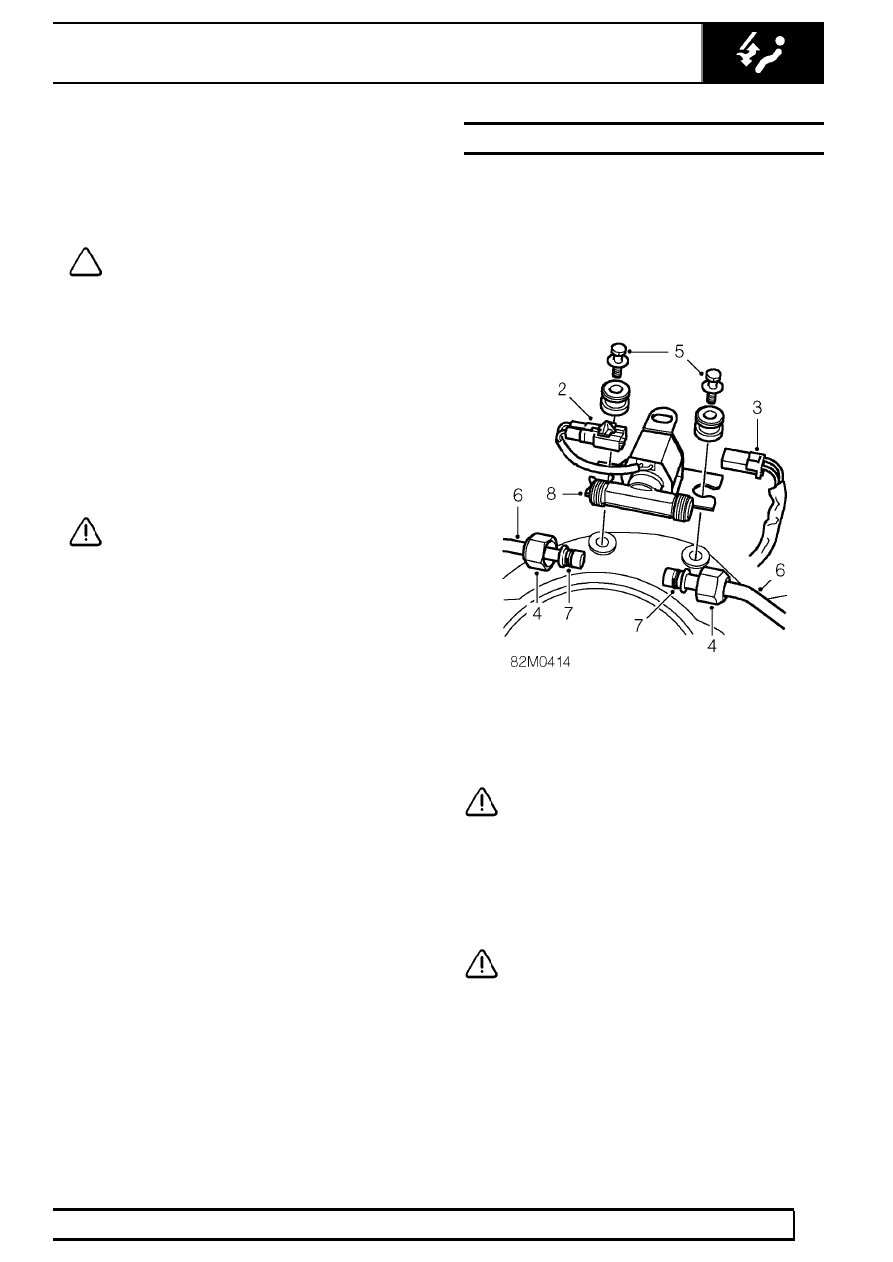

CONTROL VALVE - HIGH PRESSURE PIPE - REAR

Service repair no - 82.26.05

Remove

1. Remove evaporator/blower motor assembly.

See evaporator/blower motor assembly -
rear

2. Release multiplug clip from solenoid bracket.
3. Disconnect solenoid multiplug.
4. Loosen 2 control valve unions.

CAUTION: Use 2 spanners when loosening
or tightening air conditioning pipe unions.

5. Remove 2 screws securing control valve to

blower motor housing.

6. Release unions from control valve.
7. Remove and discard 2 ’O’ ring seals from control

valve.

CAUTION: Immediately plug air
conditioning connections.

8. Remove control valve assembly.

82

AIR CONDITIONING

16

REPAIR

9. Remove 2 screws securing mounting bracket to

control valve.

10. Remove mounting bracket.
11. Noting the direction arrow on control valve,

remove screw securing solenoid to valve.

12. Remove solenoid from valve.

Refit

13. Fit solenoid to valve.
14. Fit but do not tighten screw securing solenoid to

control valve.

NOTE: Ensure arrow on control valve is
pointing in the correct recorded direction.

15. Position mounting bracket to control valve

solenoid and secure with screws.

16. Remove plugs from unions and control valve

connections.

17. Lubricate NEW ’O’ rings with refrigerant oil and

fit to valve.

18. Fit control valve to pipes, connect unions, but do

not tighten.

19. Fit and tighten screws securing control valve

mounting bracket to blower motor housing.

20. Tighten control valve unions to

14 Nm .

CAUTION: Use 2 spanners when loosening
or tightening air conditioning pipe unions.

21. Tighten screw securing solenoid to control valve.
22. Connect solenoid multiplug and secure to

solenoid bracket .

23. Fit evaporator/blower motor assembly.

See

evaporator/blower motor assembly - rear;
Refit

AIR CONDITIONING

17

REPAIR

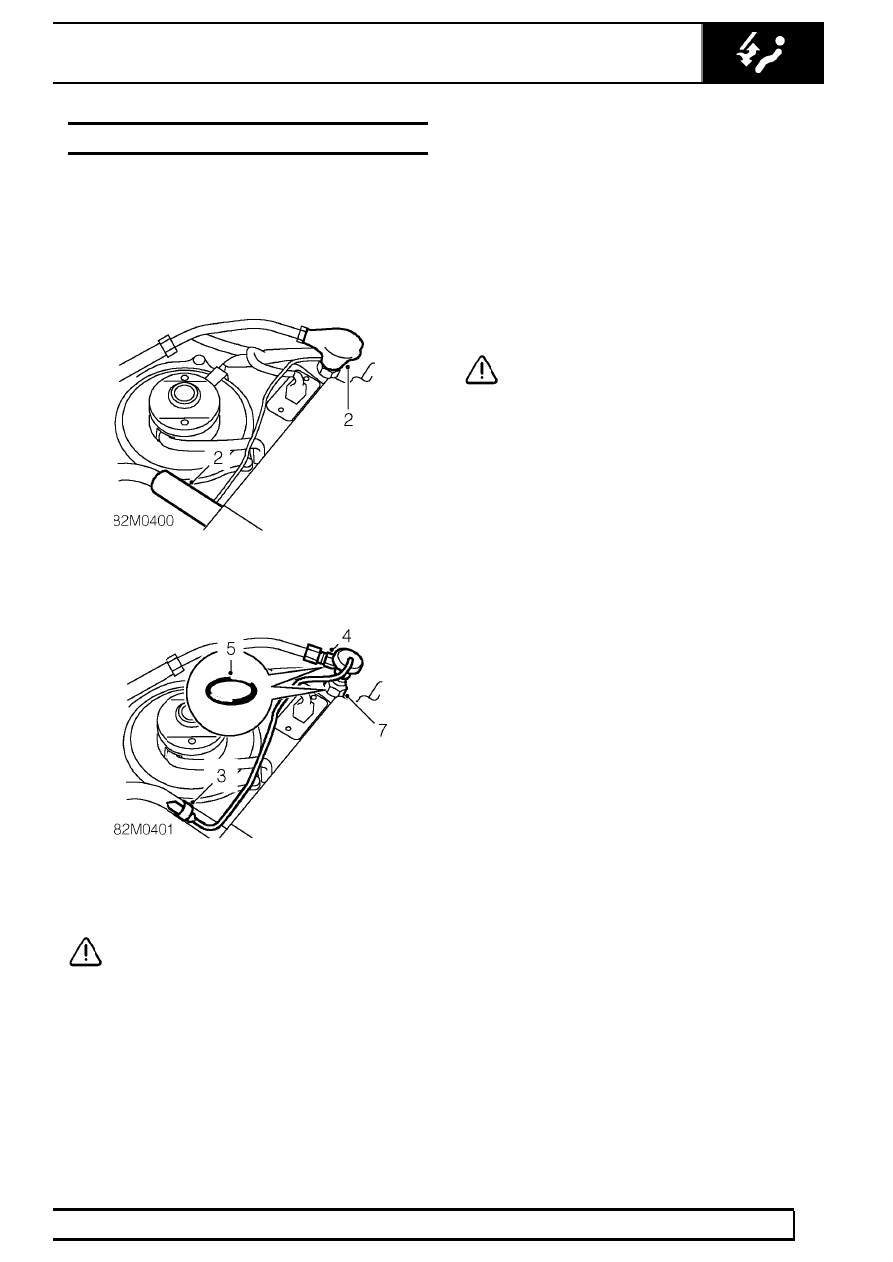

EXPANSION VALVE - REAR

Service repair no - 82.26.07

Remove

1. Remove evaporator/blower motor assembly.

See evaporator/blower motor assembly -
rear

2. Remove foam insulation from expansion valve

and expansion valve probe.

3. Remove expansion valve probe retaining clip.
4. Loosen expansion valve unions.

CAUTION: Use 2 spanners when loosening
or tightening air conditioning pipe unions.

5. Remove and discard ’O’ rings from evaporator

and air conditioning pipes.

6. Plug expansion valve and connections.
7. Remove expansion valve.

Refit

8. Position expansion valve probe to evaporator

pipe and secure with clip.

9. Remove plugs from expansion valve and

connections.

10. Lubricate NEW ’O’ rings and fit to pipes.
11. Position expansion valve to pressure pipe and

tighten union to

14 Nm .

12. Position expansion valve to evaporator pipe and

tighten union to

22 Nm .

CAUTION: Use 2 spanners when loosening
or tightening air conditioning pipe unions.

13. Remove backing paper from NEW foam

insulation.

14. Fit foam insulation to expansion valve and

expansion valve probe.

15. Fit evaporator/blower motor assembly.

See

evaporator/blower motor assembly - rear;
Refit
