FRONT AXLE AND FINAL DRIVE

5

OVERHAUL

Swivel pin housing

22. Remove bolts securing oil seal retaining plate

and joint washer. Release assembly from swivel
pin housing.

NOTE: Removal of oil seal and retaining
plate is achieved when swivel bearing
housing is removed.

23. Remove two bolts, retaining lower swivel pin to

housing.

24. Remove brake disc shield bracket.
25. tap lug to remove lower swivel pin and joint

washer.

26. Remove two bolts retainin brake hose bracket

and top swivel pin.

27. Remove bracket, top swivel pin and shims.
28. Remove swivel pin housing while retrieving

lower and upper bearings.

Swivel bearing housing

29. Remove lower bearing track from swivel bearing

housing.

NOTE: Use upper bearing opening to gain
access to lower bearing track.

30. Remove seven bolts retaining swivel bearing

housing to axle case.

31. Remove inner oil seal from back of housing.
32. Remove top bearing track from swivel bearing

housing.

NOTE: Use lower bearing opening to gain
access to upper bearing track.

33. If worn, pitted or damaged, renew housing.
34. Fit upper and lower bearing tracks into swivel

bearing housing.

CAUTION: Ensure bearing tracks are fitted
square or damage could occur.

35. With seal lips trailing, fit swivel housing inner oil

seal into rear of housing. Grease seal lips.

Fit swivel pin housing

36. Coat swivel bearing housing to axle casing bolts

with Loctite 270 or equivalent.

37. Coat both sides of joint washer with a sealing

compound. Position swivel bearing housing to
axle mating face.

38. Place retaining plate, joint washer and oil seal

over axle flange ready for assembly.

39. Fit swivel bearing housing to axle flange with

seven bolts. Tighten to

73 Nm.

40. Grease and fit upper and lower swivel pin taper

roller bearings.

41. Position swivel pin housing over swivel bearing

housing.

42. Coat joint washer both sides with sealing

compound and position on lower swivel pin.

43. Loosely fit brake shield bracket plus lower swivel

pin with lug outboard to swivel pin housing.

44. Loosely fit top swivel pin plus existing shims and

brake hose bracket to swivel pin housing.

45. Apply Loctite 270 or equivalent to lower swivel

pin bolts. Tighten to

78 Nm bend over lock

tabs.

46. Tighten top swivel pin bolts to

78 Nm.

54

FRONT AXLE AND FINAL DRIVE

6

OVERHAUL

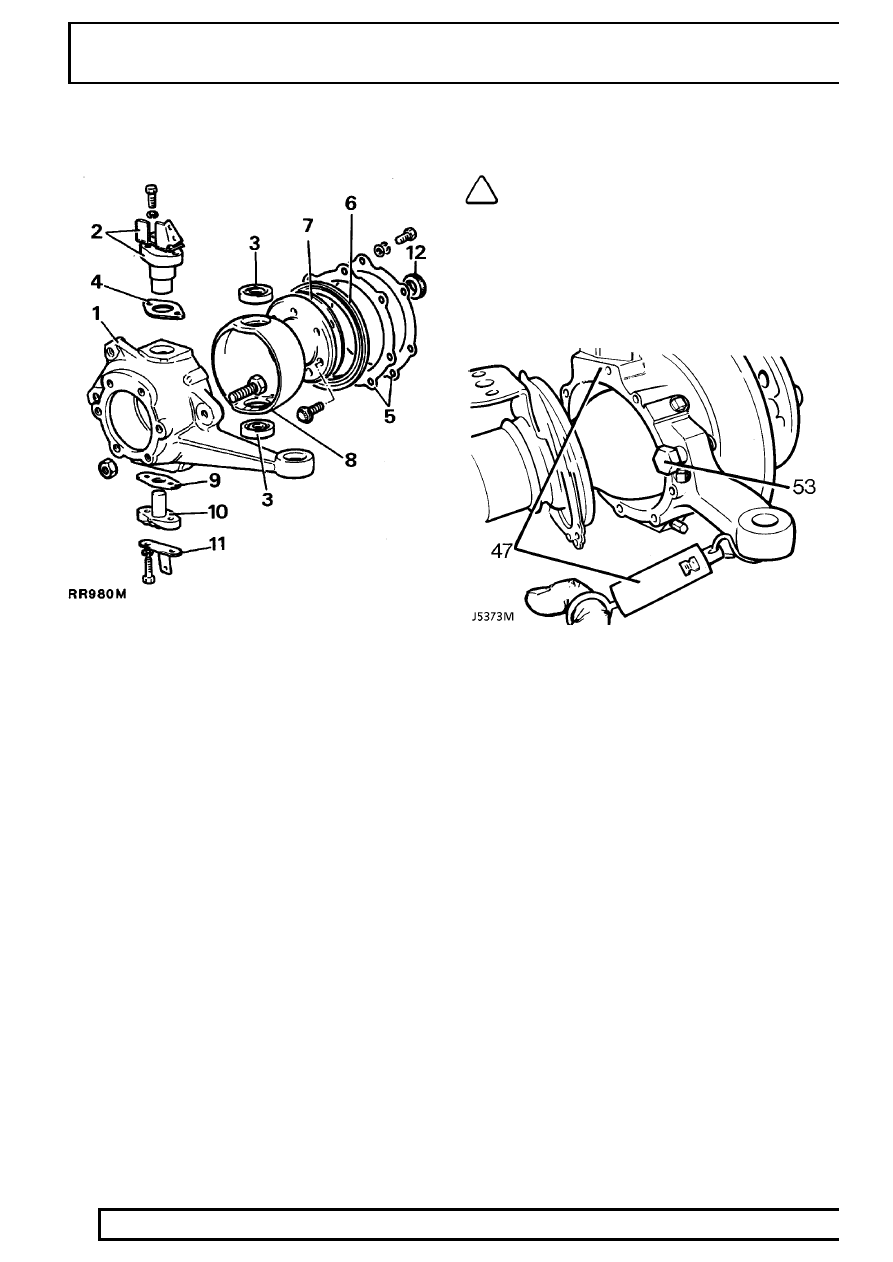

Swivel assembly components

1. Swivel pin housing
2. Top swivel pin and brake hose bracket
3. Upper and lower swivel pin bearings
4. Shim
5. Retaining plate and washer
6. Oil seal
7. Joint washer
8. Swivel bearing housing
9. Joint washer

10. Lower swivel pin
11. Mudshield bracket
12. Swivel housing inner oil seal

Check and adjust preload on bearings

NOTE: Swivel housing oil seal and axle
should not be fitted.

47. Attach a spring balance to ball joint bore and pull

balance to determine effort required to turn
swivel pin housing.
Resistance, once initial inertia has been
overcome, should be 1.16 to 1.46 kg. Adjust by
removing or adding shims to top swivel pin.

48. When setting is correct remove top swivel bolts,

apply Loctite 270 or equivalent. Refit to

78 Nm,

and bend over lock tabs.

49. Apply recommended grease between lips of

swivel oil seal.

50. Fit oil seal, joint washer and retaining plate with

seven bolts and spring washers to

11 Nm.

51. Fit tie rod and drag link and secure with new

cotter pins. Tighten to

40 Nm.

52. Fit brake disc shield.
53. Loosely fit lock stop bolt and nut.
54. Apply a recommended grease between lips of

swivel housing oil seal.

55. Secure oil seal with retaining plate and securing

bolts. Tighten to

11 Nm.

56. Fit track-rod and drag link and secure with new

cotter pins.

57. Loosely fit lock stop bolt for later adjustment.
58. Fit brake disc shield.

FRONT AXLE AND FINAL DRIVE

7

OVERHAUL

Fit driveshaft and stub axle

59. Insert axle shaft, and when differential splines

are engaged, push assembly in fully.

CAUTION: Take care not to damage axle
shaft oil seals.

60. Place a new joint washer in position on swivelpin

housing to stub axle mating face. Coat threads
of stub axle bolts with Loctite 270.

61. Fit stub axle with flat at 12 o’clock position.

CAUTION: Ensure that constant velocity
joint bearing journal is butted against
thrust ring on stub axle. Before stub axle

is secured.

62. Place mud shield in position and secure stub

axle to swivel pin housing with six bolts and
tighten evenly to

65 Nm.

63. Fit brake jump hoses to brake jump hose

bracket.

64. Fit front hub complete assembly.

See Repair,

Front Hub Assembly

65. Check swivel pin housing oil drain plug is fitted.
66. Fill swivel assembly to correct level, with new oil.

See SECTION 10, Maintenance, Under
Vehicle Maintenance

67. Set steering lock stop bolts to provide a

clearance of 20mm.

See STEERING,

Adjustment, Steering Lock Stops

FRONT STUB AXLE, CONSTANT VELOCITY JOINT
AND SWIVEL PIN HOUSING ABS

Service repair no - 60.15.43.

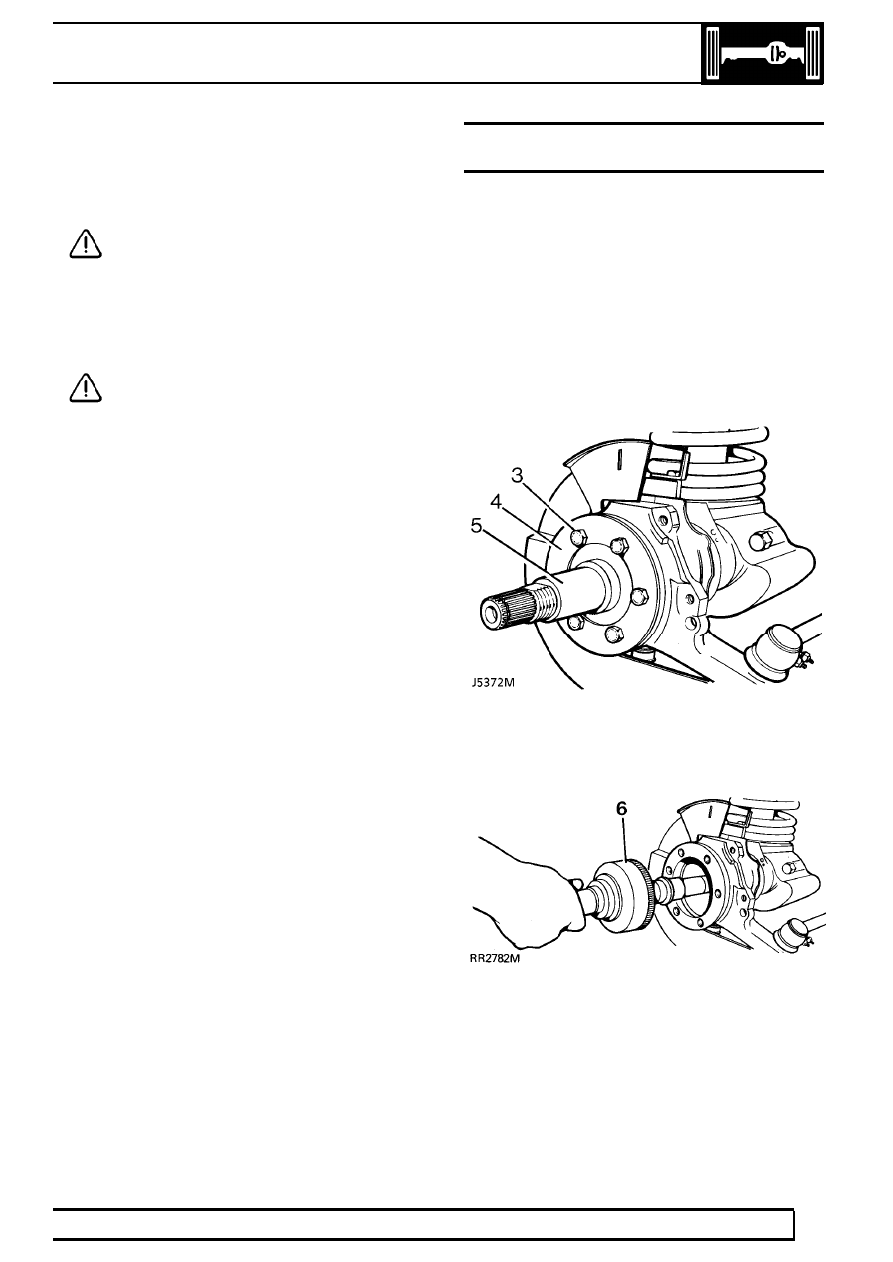

Remove stub axle, axle shaft and constant
velocity joint.

1. Remove front hub assembly.

See Repair,

Front Hub Assembly

2. Drain swivel pin housing and refit plug.
3. Remove six bolts retaining stub axle to swivel

housing.

4. Remove mud shield.
5. Remove stub axle and joint washer.

6. Pull out axle shaft and constant velocity joint

from axle casing.

54

FRONT AXLE AND FINAL DRIVE

8

OVERHAUL

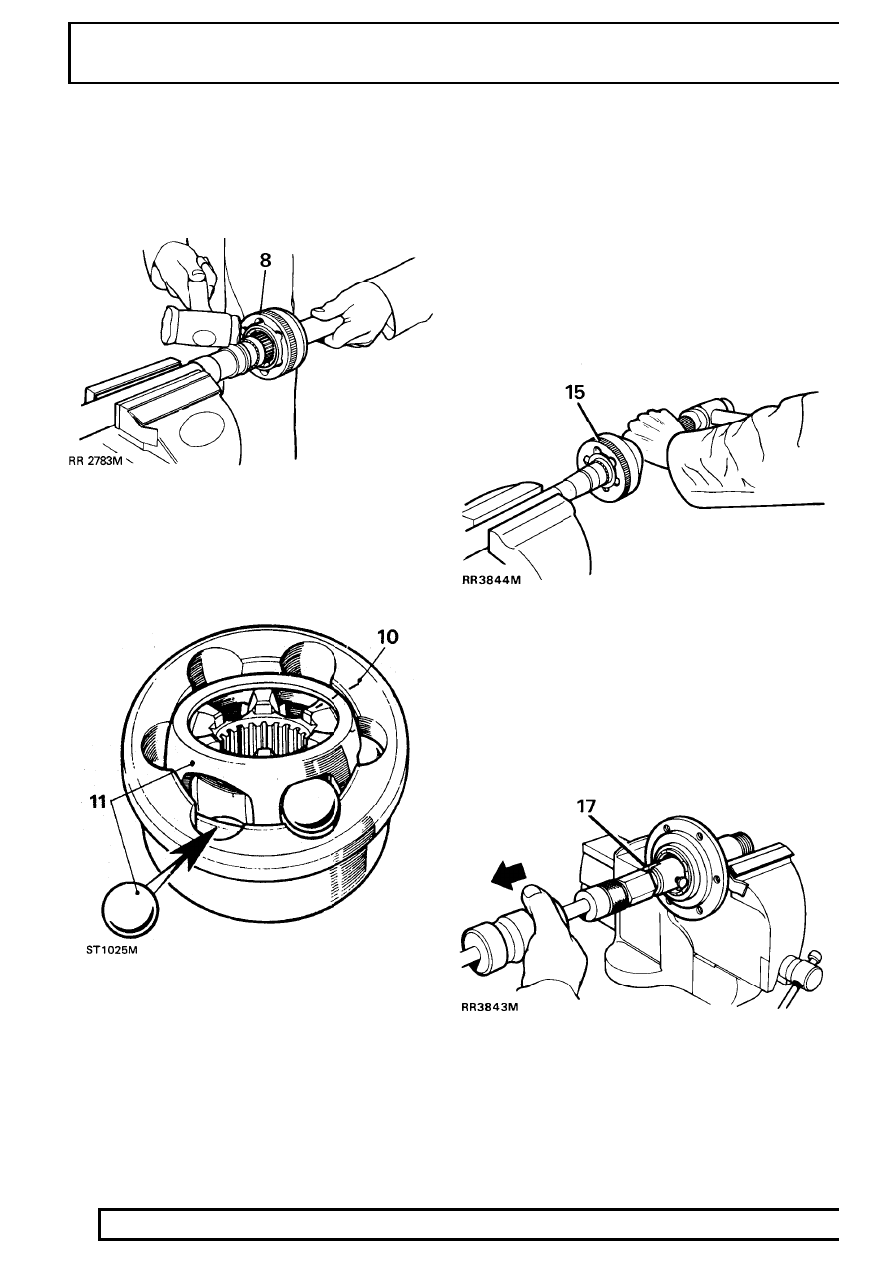

Remove constant velocity joint from axle shaft

7. Hold axle shaft firmly in a soft jawed vice.
8. Using a soft mallet drive constant velocity joint

from shaft.

9. Remove circlip and collar from axle shaft.

Constant velocity joint

10. Mark positions of constant velocity joint, inner

and outer race and cage for reassembly.

11. Swivel cage and inner race to remove balls.

12. Examine all components in particular inner and

outer track, cage balls and bearing surfaces for
damage and excessive wear.

13. Maximum acceptable end-float on assembled

joint 0,64mm. Renew if worn or damaged.
Lubricate with a recommended oil during
assembly.

Fit constant velocity joint to axle

14. Fit collar and a new circlip.
15. Engage constant velocity joint on axle shaft

splines and using a soft mallet, drive joint in fully.

Renew stub axle,thrust ring, oil seal and bearing

16. Drill and chisel off thrust ring taking care to avoid

damaging stub axle.

17. Remove bearing and oil seal using special tool

LRT-37-004 and slide hammer LRT-99-004.
Ensure lip of tool locates behind bearing to to
drive it out.

18. Repeat instruction for removal of oil seal.
