EMISSION CONTROL

5

DESCRIPTION AND OPERATION

REV: 09/95

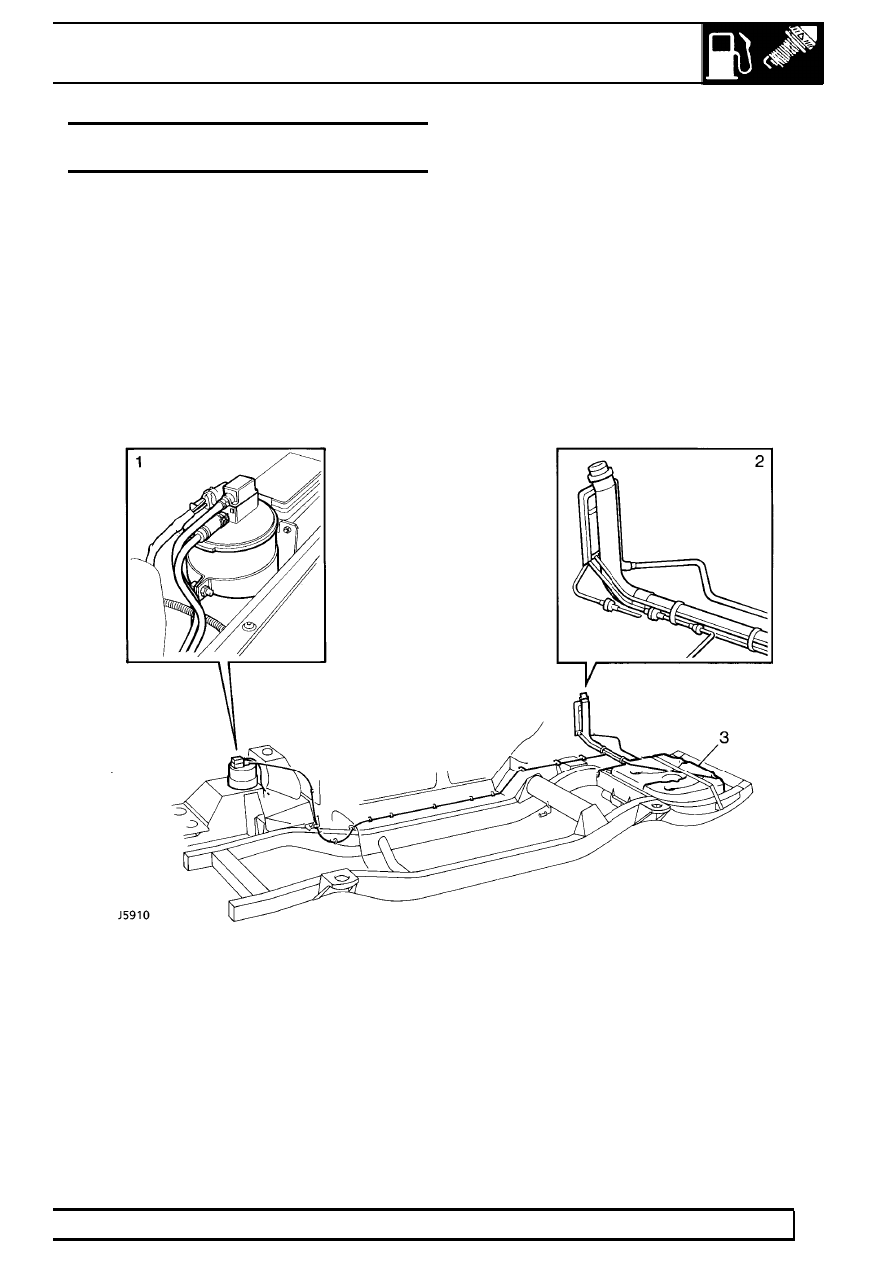

EVAPORATIVE CONTROL SYSTEM - PRE
ADVANCED EVAPS

1. Adsorption canister and purge valve.
2. Location of vapour separator and pipes.
3. Fuel tank.

17

EMISSION CONTROL

6

DESCRIPTION AND OPERATION

ADD: 09/95

EVAPORATIVE EMISSION CONTROL SYSTEM -
ADVANCED EVAPS

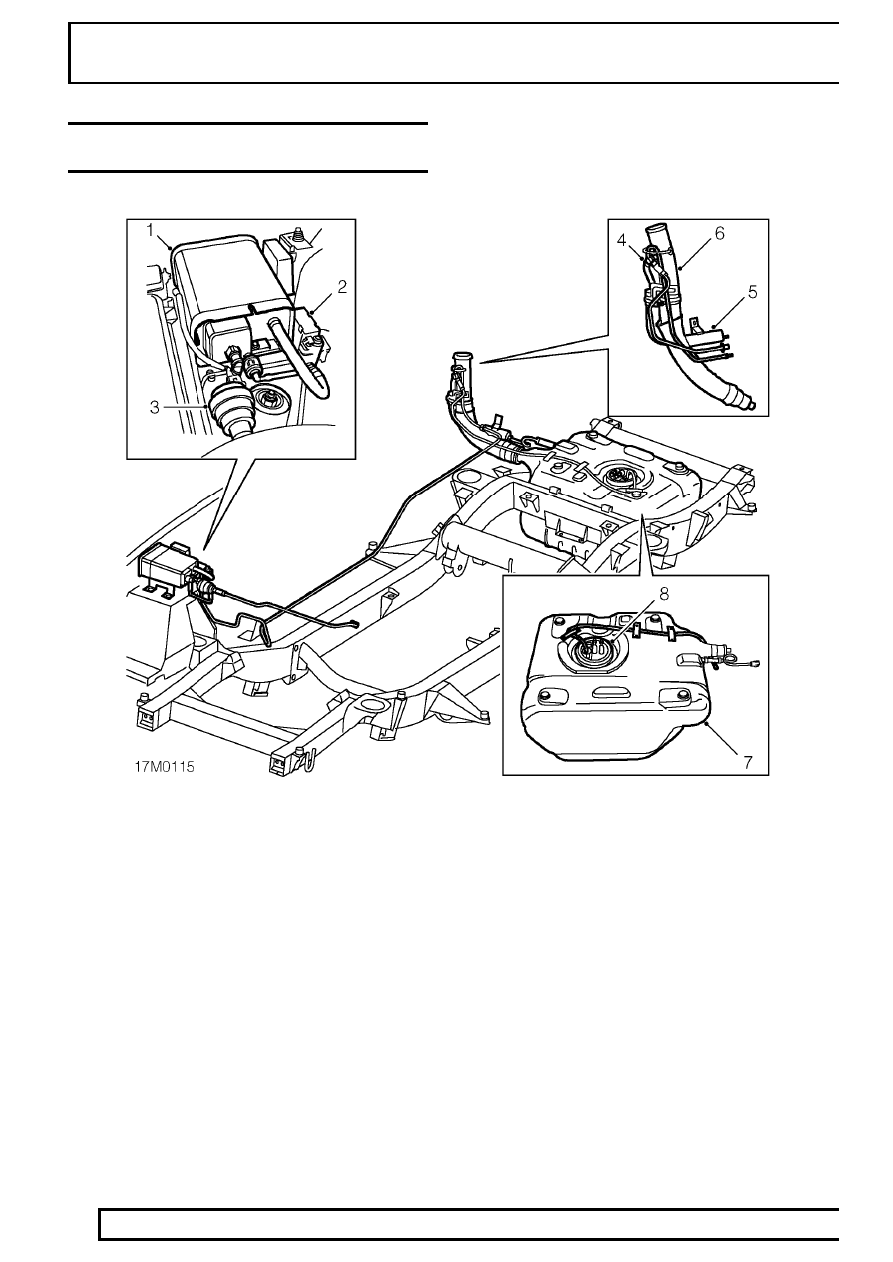

Component location

1. EVAP canister
2. EVAP canister vent solenoid (ECVS)
3. EVAP canister purge valve
4. Anti-trickle fill valve
5. Liquid/vapour separator
6. Fuel filler neck assembly
7. Fuel tank
8. Fuel pump and gauge sender unit

EMISSION CONTROL

7

DESCRIPTION AND OPERATION

ADD: 09/95

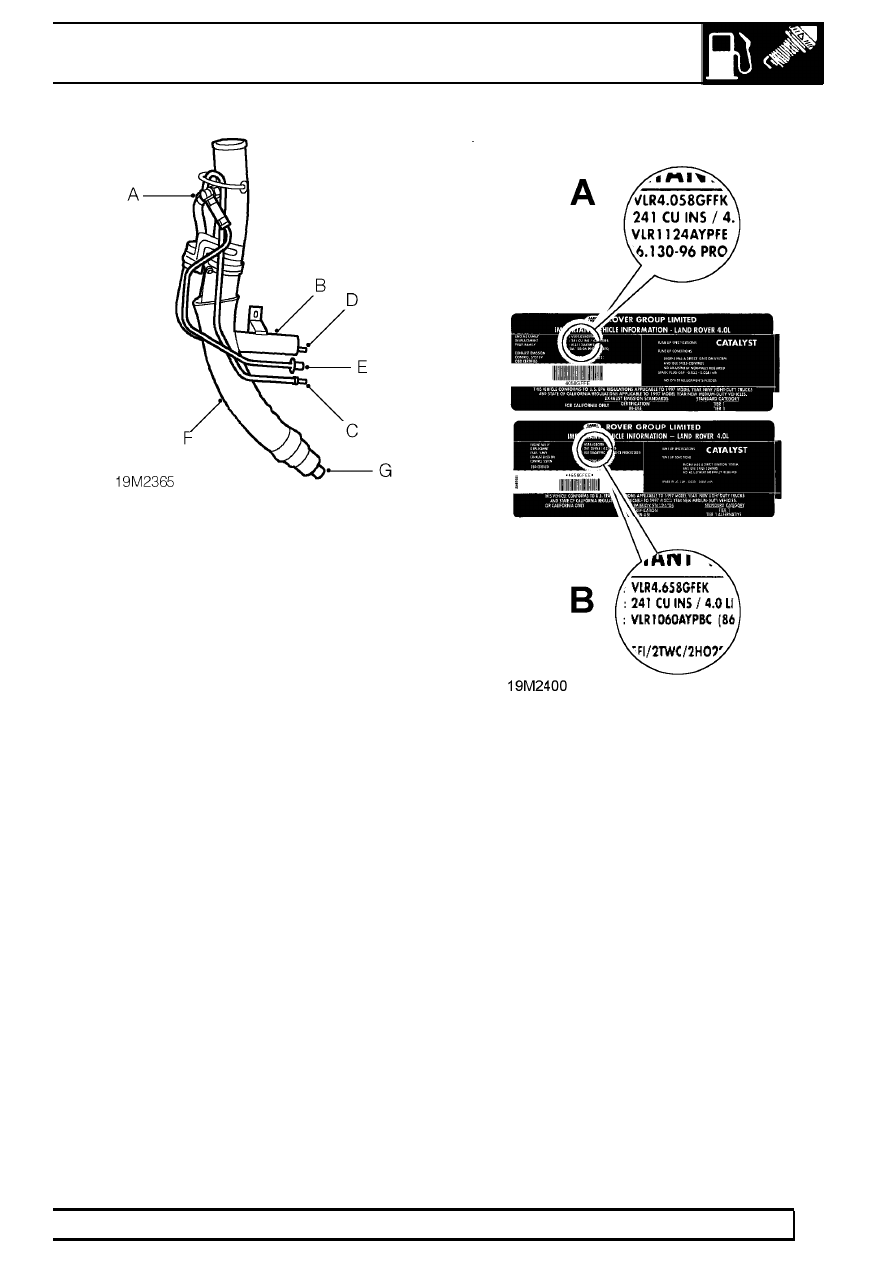

Fuel filler neck components

A Anti-trickle fill valve
B Liquid/Vapour Separator
C Vent line to pressure sensor
D From fuel tank to liquid/vapour separator
E From EVAP canister to anti-trickle fill valve
F Fuel filler hose, Dual layer, convolute nylon
G Fuel tank internal breather hose

Identification

The system was introduced on all North American
specification vehicles from October 1996 and the
vehicles can be recognised by the information
contained in the EVAP. FAMILY entry on the
underbonnet Emission label (mounted on the vertical
face of the bonnet lock platform).
A - Vehicles with advanced EVAPS
VLR1124AYPFE
B - Vehicles without advanced EVAPS
VLR1060AYPBC

17

EMISSION CONTROL

8

DESCRIPTION AND OPERATION

ADD: 09/95

System operation

The system is designed to prevent fuel vapour
escaping to atmosphere, and consists of four roll-over
valves fitted internally in the fuel tank, connected to
the liquid/vapour separator by a nylon line. The
separator is mounted to the side of the filler neck. An
EVAP canister is positioned in the engine
compartment mounted on the right front side valance.
The liquid/vapour separator and EVAP canister are
connected by a nylon line which runs the length of the
chassis.

Pressure/vacuum relief valves are incorporated into
the fuel filler cap and are designed to protect the fuel
tank from permanent deformation in the event of
system pressure or vacuum exceeding the system
operating parameters. There are no other relief or
one-way valves in the system.

A vent line flow restrictor known as an anti-trickle fill
valve is fitted to the filler pipe in the line between the
tank and EVAP canister. The function of this valve is
to prevent overfilling the tank by trickling fuel in,
thereby preserving the vapour space in the tank to
allow for fuel expansion during hot weather.

The valve achieves this by blocking the vent line
during the fuel filling process. The valve is operated
by the action of inserting the filler gun so that when
the fuel in the tank reaches the level of the filling
breather, flow cut off occurs due to fuel filling the filler
pipe.

During normal vehicle operation and when the engine
is switched off, the venting system between the fuel
tank and EVAP canister is open to allow the free
passage of vapour.

The EVAP canister, which is connected by a nylon
hose to the plenum chamber, absorbs and stores the
fuel vapour from the fuel tank when the engine is not
running. With the engine running, vapour is purged
from the EVAP canister by allowing outside air to be
drawn through the EVAP canister vent solenoid and
link pipe by the influence of manifold vacuum to the
EVAP canister purge connection on the canister.

Filter pads are fitted above and below the charcoal
and in the EVAP canister vent solenoid to prevent the
ingress of foreign matter into the purge line.

The EVAP canister purge valve, which is fitted in the
line from the EVAP canister to the plenum, is
controlled by the ECM which determines the most
emission acceptable time at which purging should
take place. This will normally be at engine speeds
above idle and when the vehicle is in motion.

The EVAP canister vent solenoid is mounted on the
side of the EVAP canister bracket and is connected to
the EVAP canister by a length of large bore hose. The
ECVS is controlled by the ECM and is normally open.
The function of the ECVS is to block the air intake
side of the EVAP canister. When the system receives
an ECM signal the valve closes; this allows the
system leak check to take place. The leak check only
occurs when pre-determined vehicle operating
conditions are met.
