Defender 300Tdi (1996+). Manual - part 110





86

ELECTRICAL

20

REPAIR

WINDSCREEN WIPER/WASHER SWITCH

Service repair no - 84.15.34

Remove

1. Remove steering column nacelle

See

STEERING, Repair, Steering column nacelle.

2. Disconnect switch multi-plug from main harness.
3. Remove 2 screws and star washer securing

switch to mounting bracket.

4. Remove switch complete with harness.

Refit

5. Fit new switch to mounting bracket.
6. Reconnect switch multi-plug.
7. Fit steering column nacelle

See STEERING,

Repair, Steering column nacelle.

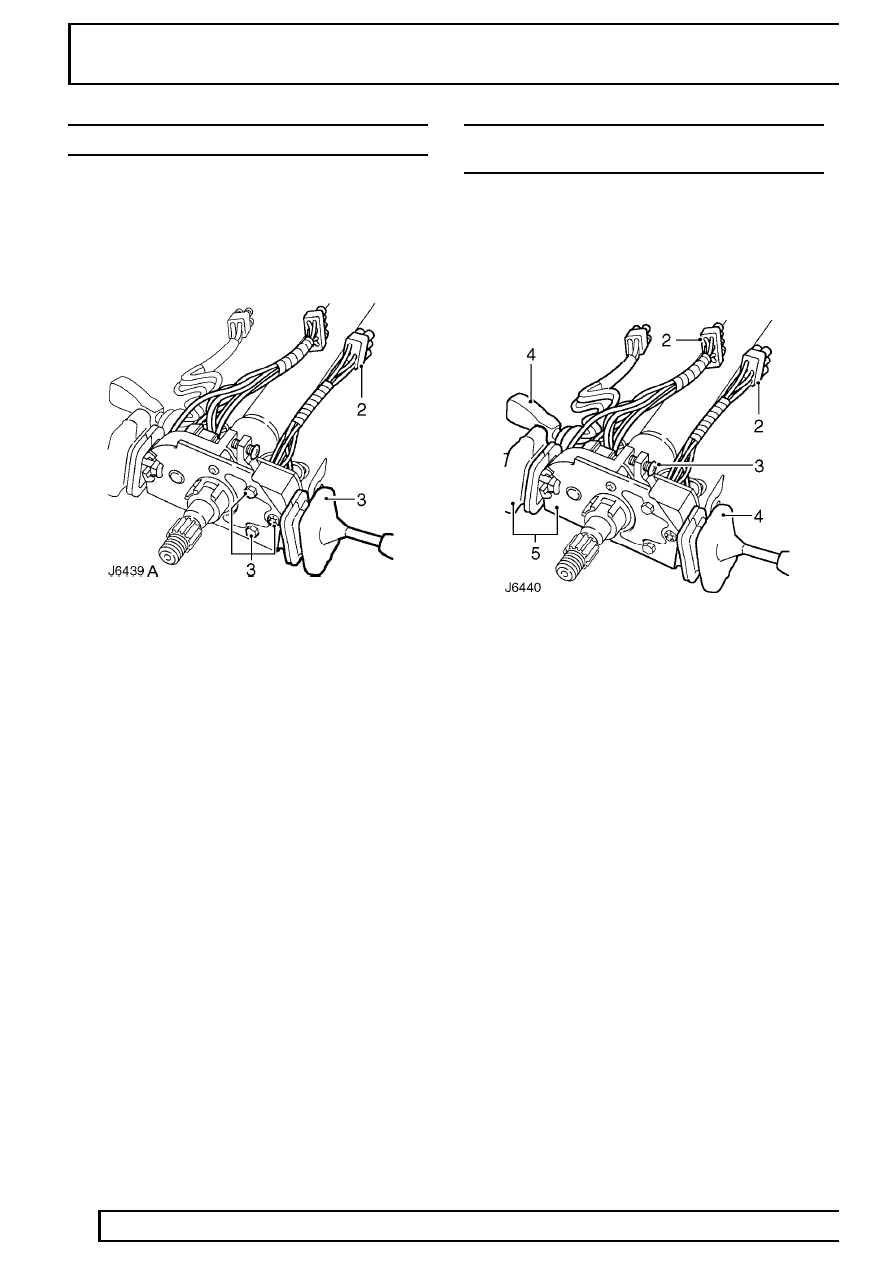

DIRECTION INDICATOR/HEADLAMP/HORN
SWITCH

Service repair no - 86.65.55

Remove

1. Remove steering column nacelle

See

STEERING, Repair, Steering column nacelle.

2. Disconnect 3 steering column switch multi-plugs

from main harness.

3. Slacken clamp screw and withdraw switch

assembly from steering column.

4. Remove fixings and detach windscreen

wiper/washer and main lighting switches from
mounting bracket.

5. Renew complete direction

indicator/headlamp/horn switch and switch
bracket assembly.

Refit

6. Fit main lighting and windscreen wiper/washer

switches to mounting bracket.

7. Position switch assembly on steering column

and fully tighten clamp.

8. Reconnect switch multi-plugs.
9. Fit steering column nacelle

See STEERING,

Repair, Steering column nacelle.

ELECTRICAL

21

REPAIR

MAIN LIGHT SWITCH

Service repair no - 86.65.10

Remove

1. Remove steering column nacelle

See

STEERING, Repair, Steering column nacelle.

2. Disconnect main light switch multi-plug from

main harness.

3. Slacken locknut and release light switch from

slot in mounting bracket.

Refit

4. Fit light switch in mounting bracket.
5. Reconnect switch multi-plug.
6. Fit steering column nacelle

See STEERING,

Repair, Steering column nacelle.

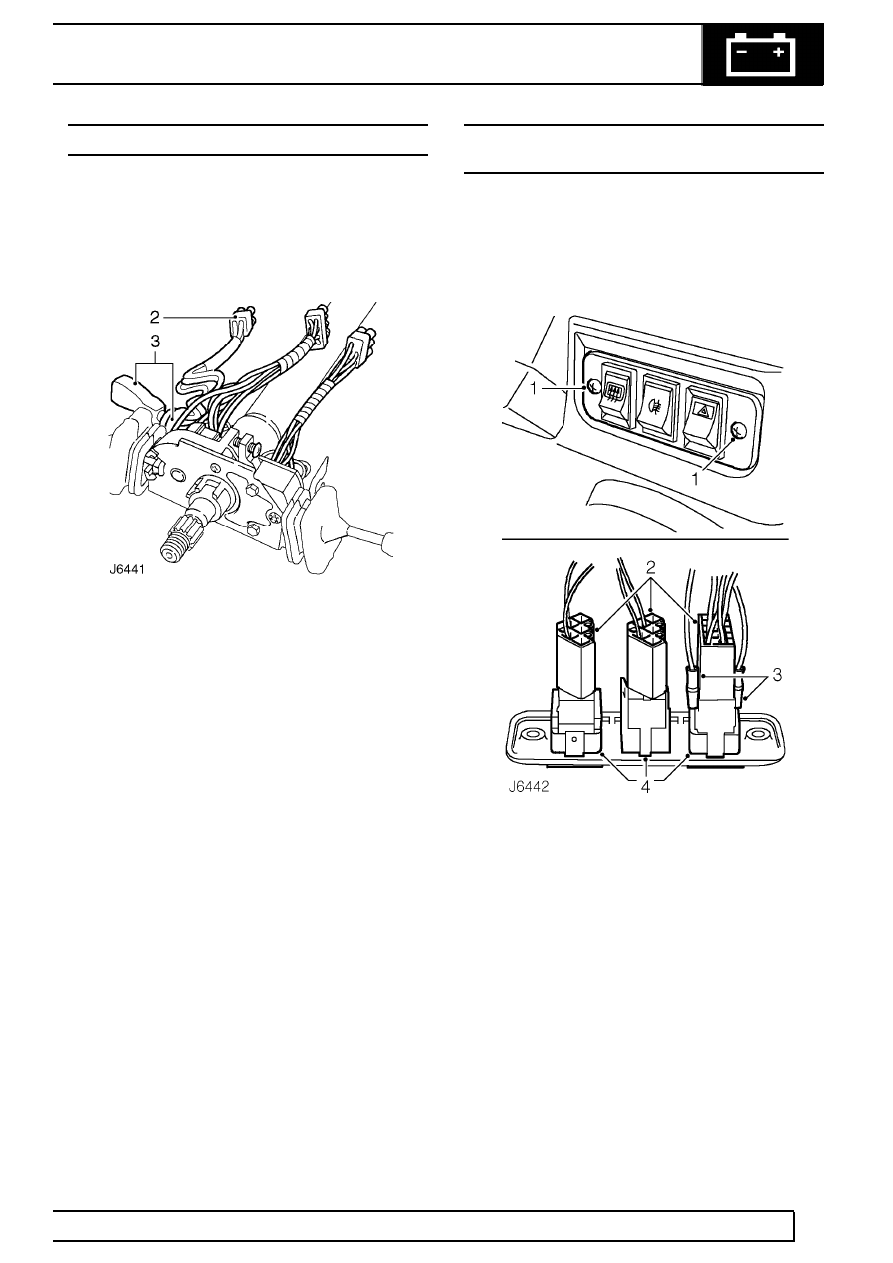

HEATED REAR SCREEN, REAR FOG LAMP AND
HAZARD WARNING SWITCHES

Service repair no - 86.65.36 - Heated rear screen
Service repair no - 86.65.65 - Rear fog lamp
Service repair no - 86.65.50 - Hazard warning

Remove

1. Remove 2 screws and withdraw switch panel

from lower fascia.

2. Disconnect multi-plug from rear of switch.
3. On hazard warning switch only, remove 2

separate leads.

4. Press in spring retainers and withdraw switch

from switch panel.

Refit

5. Fit new switch into switch panel.
6. Reconnect switch multi-plug, and leads if

applicable.

7. Fit switch panel to lower fascia.

86

ELECTRICAL

22

REPAIR

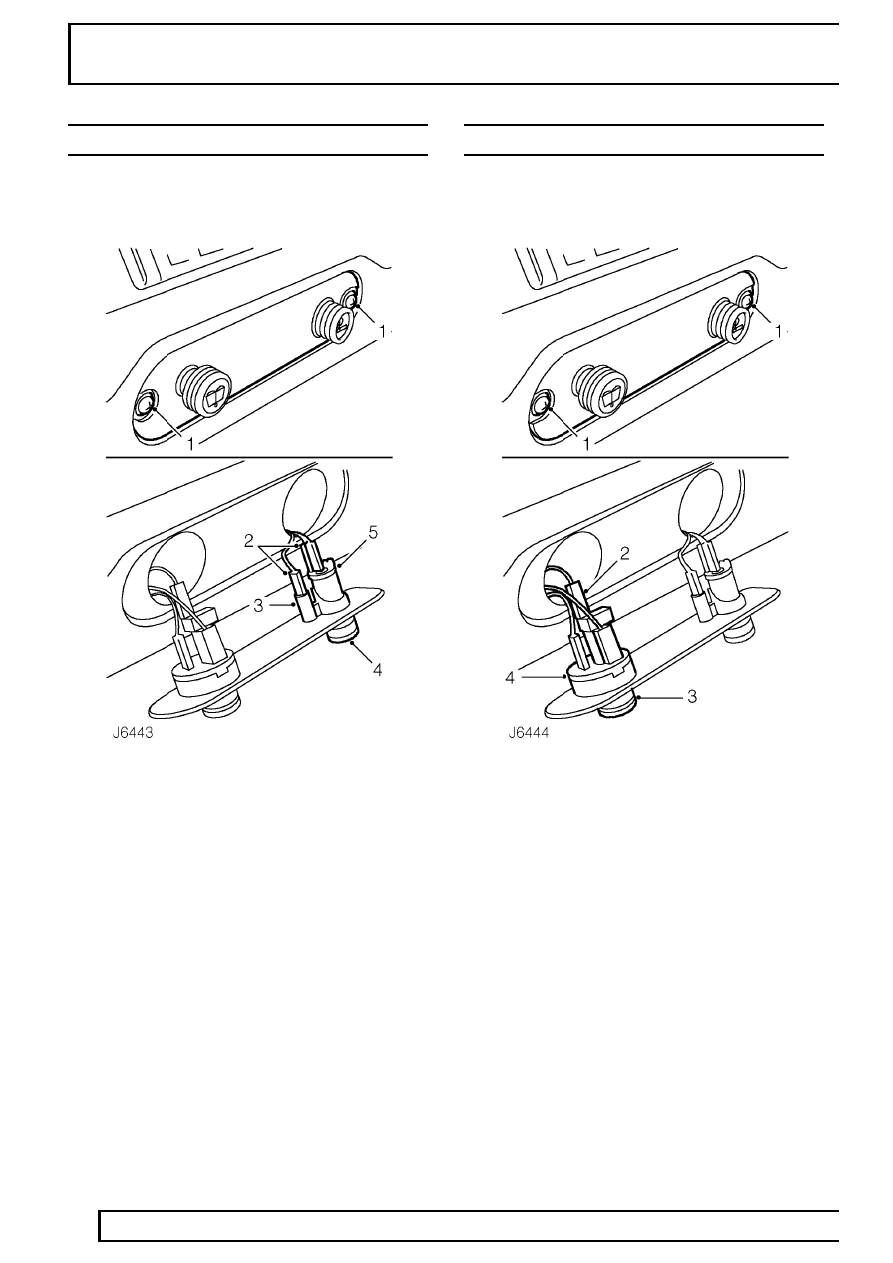

CIGAR LIGHTER

Service repair no - 86.65.60

Remove

1. Remove 2 screws and withdraw switch panel

from lower fascia.

2. Disconnect electrical leads from switch housing,

including illumination bulb.

3. Release 2 retaining tags and remove bulb holder

from switch housing.

4. Remove cigar lighter from switch housing.
5. Press in retaining tags and withdraw housing

from switch panel.

Refit

6. Fit housing to switch panel.
7. Fit bulb holder to switch housing.
8. Connect electrical leads and illumination bulb.
9. Insert cigar lighter into switch housing.

10. Fit switch panel to lower fascia.

REAR SCREEN WIPER/WASHER SWITCH

Service repair no - 84.35.34

Remove

1. Remove 2 screws and withdraw switch panel

from lower fascia.

2. Disconnect electrical leads from rear screen

wiper/washer switch.

3. Insert a small screwdriver in base of switch

knob, press in retaining lug, and remove knob
from switch spindle.

4. Unscrew locking ring, with wavy washer, and

withdraw wiper/washer switch from panel.

Refit

5. Fit switch to switch panel.
6. Press in retaining lug and fit knob onto switch

spindle.

7. Connect electrical leads to switch.
8. Fit switch panel.

ELECTRICAL

23

REPAIR

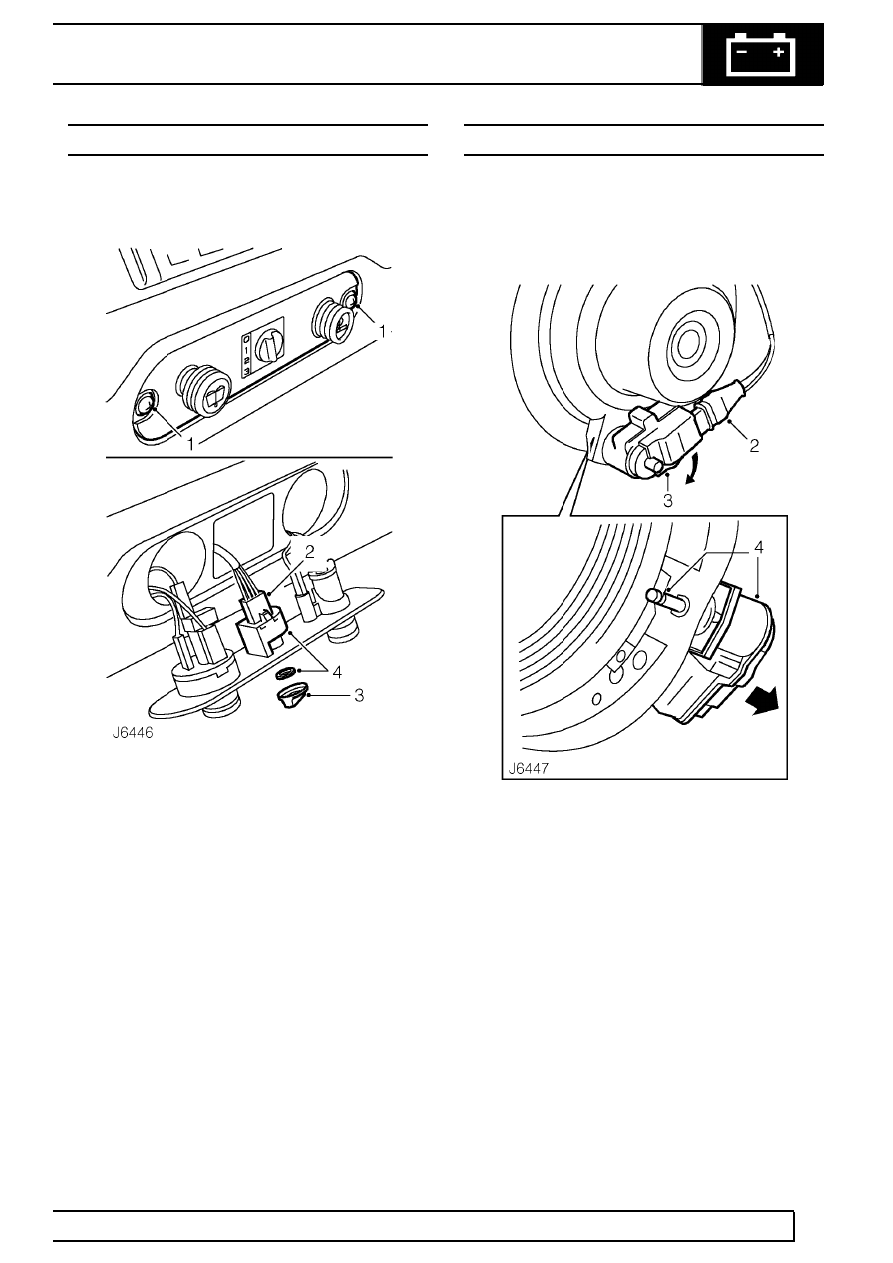

HEADLAMP LEVELLING SWITCH

Service repair no - 86.65.16

Remove

1. Remove 2 screws and withdraw switch panel

from lower fascia.

2. Disconnect multi-plug from rear of headlamp

levelling switch.

3. Remove knob from switch spindle.
4. Unscrew retaining nut and withdraw switch from

switch panel.

Refit

5. Fit switch into switch panel and secure with

retaining nut.

6. Fit switch knob.
7. Connect switch multi-plug.
8. Fit switch panel.

HEADLAMP LEVELLING UNIT

Service repair no - 86.41.16

Remove

1. Remove headlamp

See Headlamp.

2. Disconnect headlamp levelling unit harness

plug.

3. Rotate levelling unit anti-clockwise to release

retaining lugs from mounting bracket on
headlamp body.

4. Release levelling unit spindle from retaining slot

on headlamp bezel and withdraw unit from
mounting bracket.

Refit

5. Fit levelling unit into mounting bracket and locate

unit spindle into slot in headlamp bezel.

6. Press in unit and rotate clockwise to engage

retaining lugs behind mounting bracket.

7. Connect levelling unit harness plug.
8. Fit headlamp

See Headlamp.
