STEERING

10

FAULT DIAGNOSIS

VISUAL AND SAFETY CHECKS

WARNING: Before taking vehicle out on
the public highway for road test, it is
important that the following basic visual

checks are carried out to ensure that the vehicle
complies with legal requirements.

Tyres and wheel rims

1. Check and adjust tyre pressures

See WHEELS

AND TYRES, Repair, Tyre Pressures .
Note that this information refers to standard tyres
fitted as original equipment.

2. Check condition of tyres. Inspect for signs of

uneven wear, damage and feathering. Check
tread depth.

3. Ensure that the tyre make, type and general

condition are common across each axle.

4. Check wheel rims for signs of damage and

excessive run out.

5. Carry out road test

See Road Test Procedure

.

ROAD TEST PROCEDURE

General steering/handling problems can usually be
classified into one of the categories listed and ARE
GENERALLY RELATED TO THE AGE, CONDITION
AND USE OF THE VEHICLE.

WARNING: Ensure that all road tests are
conducted by suitably qualified drivers in
a safe and legal manner, and where local

traffic conditions allow.

1. Carry out visual and safety checks

See Visual

and Safety Checks .

Confirm general nature of complaint with customer,
simulating where possible the conditions under which
the problem occurs. Carry out following road test
procedure to establish the problem.

2. Steering load assessment - drive at 16 km/h (10

mph). Put 90

°

turn input into steering wheel,

check self centering. The self centering should
be equal on each lock but not necessarily return
to exactly straight ahead without assistance from
the driver.

3. Steering assessment - drive at 64 km/h (40 mph)

on a staight FLAT road (no camber), check for
steering veer. The vehicle should follow a
straight path with NO tendency to follow a
curved path. If vehicle veers towards the kerb,
vehicle may be ’camber sensitive’. A small
amount of veer in direction of camber is
acceptable.

4. Directional stability assessment - drive at 112

km/h (70 mph) or maximum legal speed on a
straight flat road. Carry out a normal lane
change. Vehicle should quickly settle into a new
straight path.

5. Braking assessment (medium effort) - drive at 96

km/h (60 mph) on a straight flat road. Apply
steady medium braking effort, noting any
tendency to veer. Carry out brake test three
times, if a veer is consistently noted carry out a
braking efficiency test on a rolling road.

6. Braking assessment (full effort) - drive at 96

km/h (60 mph) on a straight flat road. Apply full
braking effort, noting any tendency to veer. Carry
out brake test three times, if a veer is
consistently noted carry out a braking efficiency
test on a rolling road.

If the symptom described by the customer is stiff
steering or steering niggle, carry out stiff steering
procedure

See Stiff Steering Checklist .

If not, proceed with basic checks and adjustments
See Visual Check and Basic Adjustments .

STEERING

11

FAULT DIAGNOSIS

STIFF STEERING CHECKLIST

NOTE: Having completed visual checks
and steering assessment and confirmed
that vehicle steering load is incorrect carry

out the following procedure in order shown.

Steering wheel ’torque to turn’ loads

1. Raise vehicle so both front wheels free.

2. With engine off, centralise steering wheel, and

remove steering wheel decal. Using torque
wrench on column nut, check torque required to
turn the steering wheel one turn in each
direction.

3. Record readings obtained in each direction.

Reading should be

4.40 Nm (3.5 lbf/ft).

NOTE: If figures are in excess of that
specified carry out steering box tie bar
reset below. If figures are as specified

See

Visual Check and Basic Adjustments .

Steering box tie bar reset

1. Loosen the tie bar fixings one complete turn.

2. Drive vehicle carefully a short distance (within

the dealership) applying full lock in both
directions in order to settle steering components.
Drive vehicle over speed bumps and include
harsh braking if possible.

WARNING: Do not drive on public
highway.

3. Near end of operation 2. ensure vehicle is driven

in a straight line on level ground and halted.

4. Tighten panhard rod mounting arm nut to

110

Nm (81 lbf/ft).

5. Tighten the 2 fixings, tie bar to steering box, to

81 Nm (60 lbf/ft).

6. Recheck steering wheel torque to turn. If torque

reading is still greater than specified, carry out
steering shaft universal joint lubrication.

Lower steering shaft universal joint lubrication

1. Check lower steering shaft is correctly phased

See Repair, Lower Steering Shaft and
Universal Joints
.

2. Lubricate universal joints with an anti-seizure

type penetrating spray. Work the joints to ensure
full penetration of the spray by driving vehicle
and steering from lock to lock.

3. If steering stiffness still persists carry out swivel

pin preload setting.

Swivel pin preload setting

1. The swivel pin preload setting must be checked

and set

See FRONT AXLE AND FINAL DRIVE,

Overhaul, Front Stub Axle, Constant Velocity
Joint and Swivel Pin Housing
.
Note that a pull load of 1.16 - 1.46 kg is required
after the axle shaft and swivel housing seal have
been removed.

Steering box adjustment

1. Check steering box adjustment

See

Adjustment, Power Steering Box .

Steering damper check

1. Check condition of steering damper

See

Steering Damper .

57

STEERING

12

FAULT DIAGNOSIS

VISUAL CHECK AND BASIC ADJUSTMENTS

NOTE: It is important that the following
instructions are carried out in the
sequence shown and the results recorded.

1. Road springs - check that road springs are

correctly seated and are to correct specification
for vehicle. For spring specification

See

GENERAL SPECIFICATION DATA,
Information, Road Spring Data
.

2. Ride height - measure trim height from wheel

centre to wheelarch eyebrow. Record results on
data sheet.

3. Check/top up power steering fluid

See Repair,

Power Steering Fluid Reservoir .

4. Check tension and condition of drive belt

See

ELECTRICAL, Repair, Auxiliary drive belt .

5. Track rod/drag link - check condition of track rod,

drag link and ball joints

See Repair, Drag Link

and Drag Link Ends .
If either component is damaged, check operation
of steering damper and steering box for
smoothness. Replace all damaged or worn
components that impair the operation of the
steering system.

6. Suspension bushes - examine all steering and

suspension bushes for signs of wear and
deterioration. Also check all fixings for torque
relaxation. Tighten to correct torque value

See

FRONT SUSPENSION, Specifications, torque,

Torque Values .

7. Oil leaks - check front and rear axle hubs for

leak and repair as necessary.

8. Brake system - check brake system for leaks,

pipe condition, pad wear/contamination, disc
wear/condition.

9. Hub end float - check movement in the hubs by

rocking the wheels.

10. Check front wheel alignment. Vehicles displaying

a tendency to veer more than considered
allowable, it is permissible to set the front track
to parallel.

11. Having completed all the above checks and

adjustments, road test vehicle

See Road Test

Procedure .
Attempt to reproduce the symptoms established
earlier. If symptoms still exist refer to relevant
Diagnostic Chart.

STEERING LINKAGE INSPECT

NOTE: When inspecting steering linkages
and ball joints for wear the following items
must be checked.

Steering ball joints

1. Check ball joint rubber boots for security, signs

of cracking or deterioration.

2. Check ball joint assemblies for seizure i.e. no

movement on ball joint and associated
assemblies.

3. Check for excessive wear. This will be evident

as extreme movement on track rod and steering
linkages. Renew parts as necessary

See

Repair, Track Rod and Linkage See Repair,

Drag Link and Drag Link Ends .

Steering linkages

1. Check all linkages for wear, deterioration and

damage. Renew parts as necessary

See

Repair, Track Rod and Linkage See Repair,

Drag Link and Drag Link Ends .

STEERING

1

ADJUSTMENT

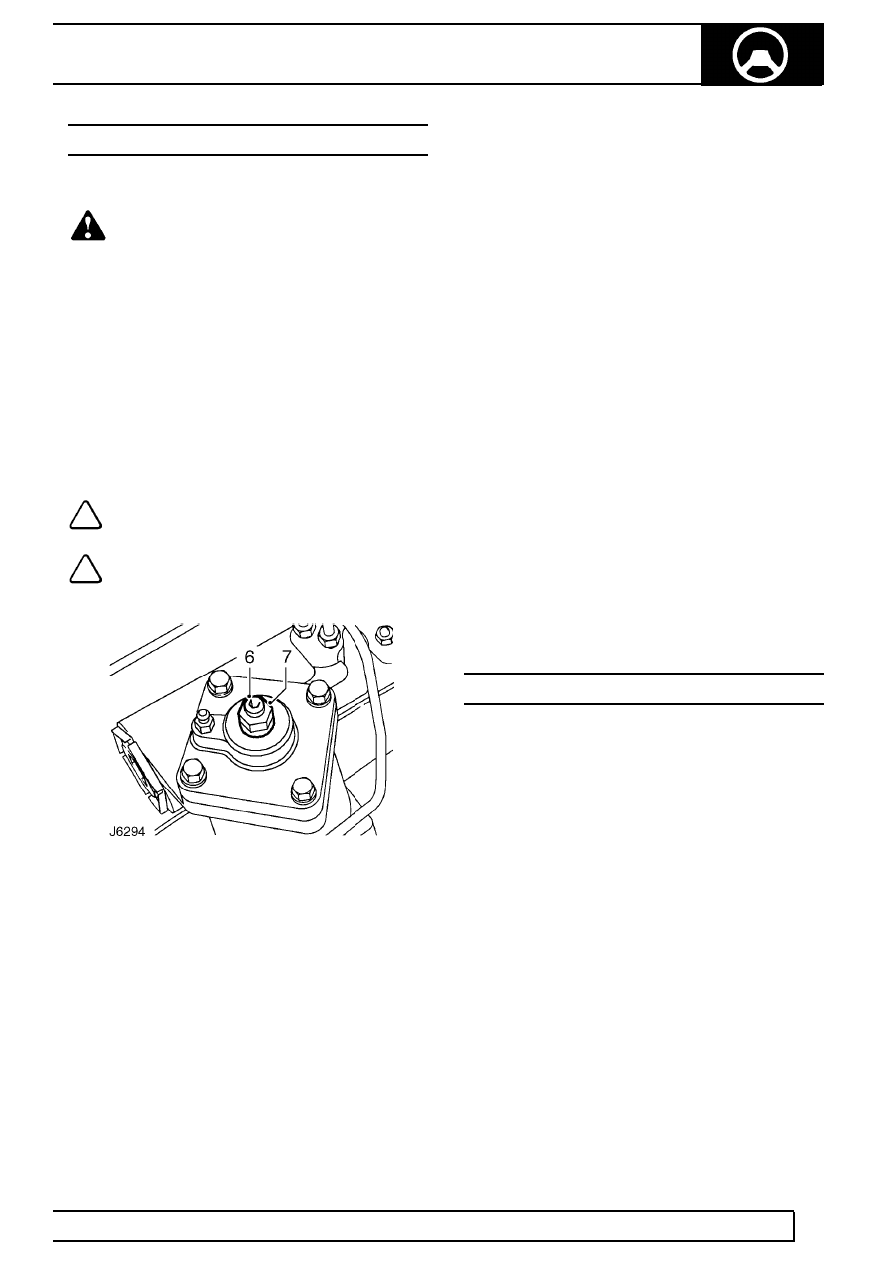

POWER STEERING BOX - ADJUST

Service repair no - 57.35.01

WARNING: Adjustments of steering box
should not be required while in warranty
period. If box is stiff or tight and within

warranty, it must be returned to manufacturer. No
attempt must be made to introduce backlash.

1. Apply park brake brake, chock wheels and Jack

up front of vehicle until wheels are clear of
ground.

2. Support chassis front on axle stands.
3. Disconnect drag link from steering drop arm.
4. Check torque to turn

See Fault diagnosis,

Stiff Steering Checklist .

5. Centralise steering box

See Centralise

Steering Box .

NOTE: Only check for no backlash when
steering box is in central position.

NOTE: If steering wheel is not straight, it
should be repositioned

See Repair,

Steering Wheel .

6. Adjustment is obtained by rocking the drop arm

about centre whilst an assistant slowly tightens
the steering box adjuster screw.

7. Tighten locknut when all backlash has been

removed.

8. Repeat the check for backlash. If backlash exists

loosen locknut and repeat adjustment
procedure.

9. Turn steering wheel lock to lock and check no

tightness exists.

10. Ensure front wheels are aligned and in straight

ahead position.

11. Adjust drag link 924 mm between ball joint

centres.

12. Connect drag link and tighten to

40 Nm (30

lbf/ft).

13. Lower vehicle to ground level and remove

chocks.

14. Road test vehicle

See Fault diagnosis, Road

Test Procedure .

Drag link adjust

1. RH drive vehicles - if steering wheel is to right,

drag link is too long. If steering wheel is to left
drag link is too short.
LH drive vehicles - if steering wheel is to right,
drag link is too short. If steering wheel is to left
drag link is too long.

2. Adjust drag link until steering wheel points

straight ahead when vehicle is travelling in a
straight line.

CENTRALISE STEERING BOX

Service repair no - 57.35.05

LH drive vehicle

1. Disconnect drag link from drop arm

See Repair,

Drag link and drag link ends .

2. Turn steering wheel on full RH lock.
3. Turn steering wheel back exactly two turns.
4. Fit drag link

See Repair, Drag link and drag

link ends .

RH drive vehicle

1. Repeat operation for LH drive vehicle but turn

steering wheel on full LH lock.
