REAR AXLE AND FINAL DRIVE

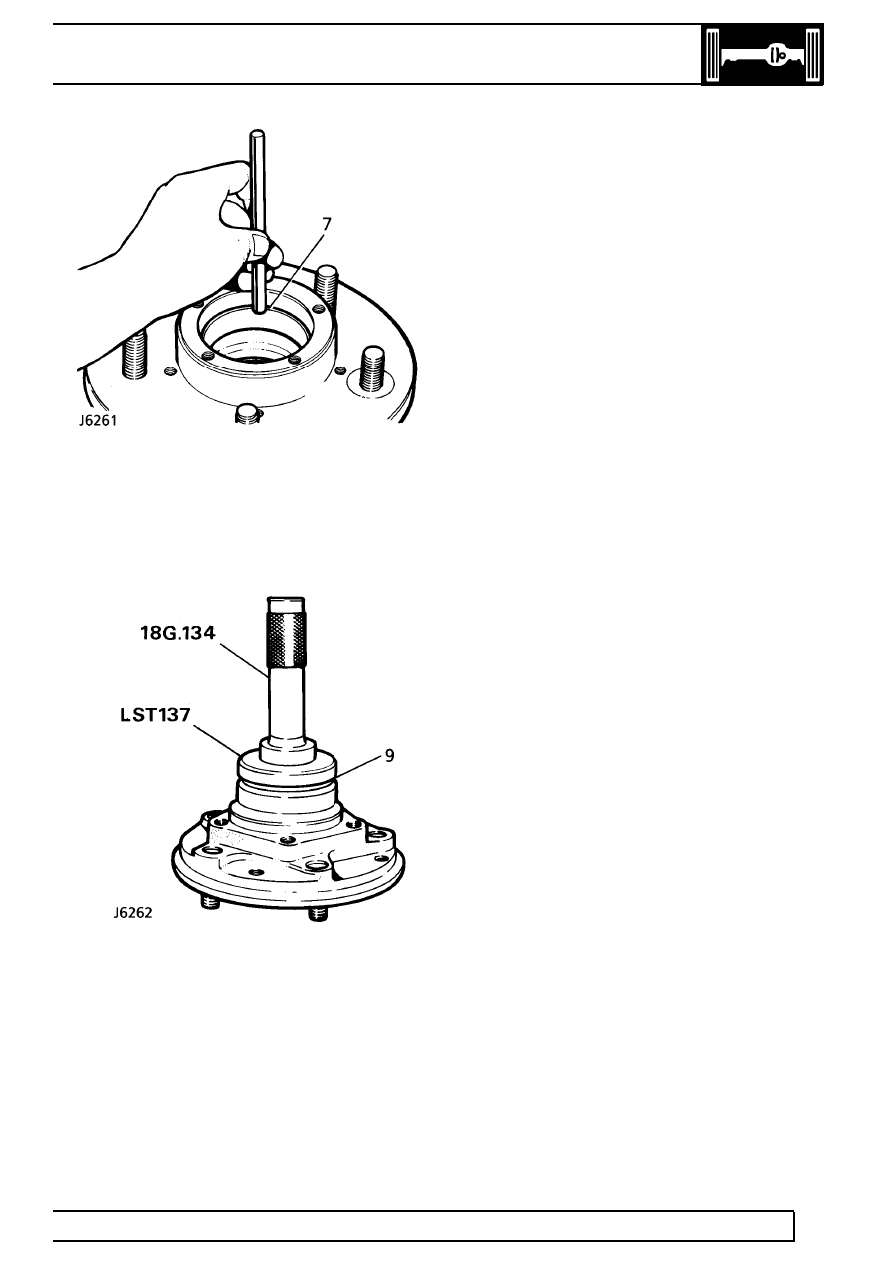

11

OVERHAUL

Refit

7. Clean hub and fit inner and outer bearing tracks.
8. Pack hub inner bearing with grease and fit to

hub.

9. With lip side leading, fit a new seal flush with

rear face of hub. Using service tool LRT-54-003
(LST137)
seal replacer and drift. Apply grease
between seal lips.

10. Assemble brake disc to hub, line up reassembly

marks. Applying Loctite 270, fit and tighten
retaining bolts to

73 Nm (54 lbf/ft).

11. Pack hub outer bearing with grease and fit to

hub.

12. Fit rear hub assembly

See Repair, Rear hub

assembly .

51

REAR AXLE AND FINAL DRIVE

12

OVERHAUL

REAR STUB AXLE - 90

Service repair no - 64.15.22.

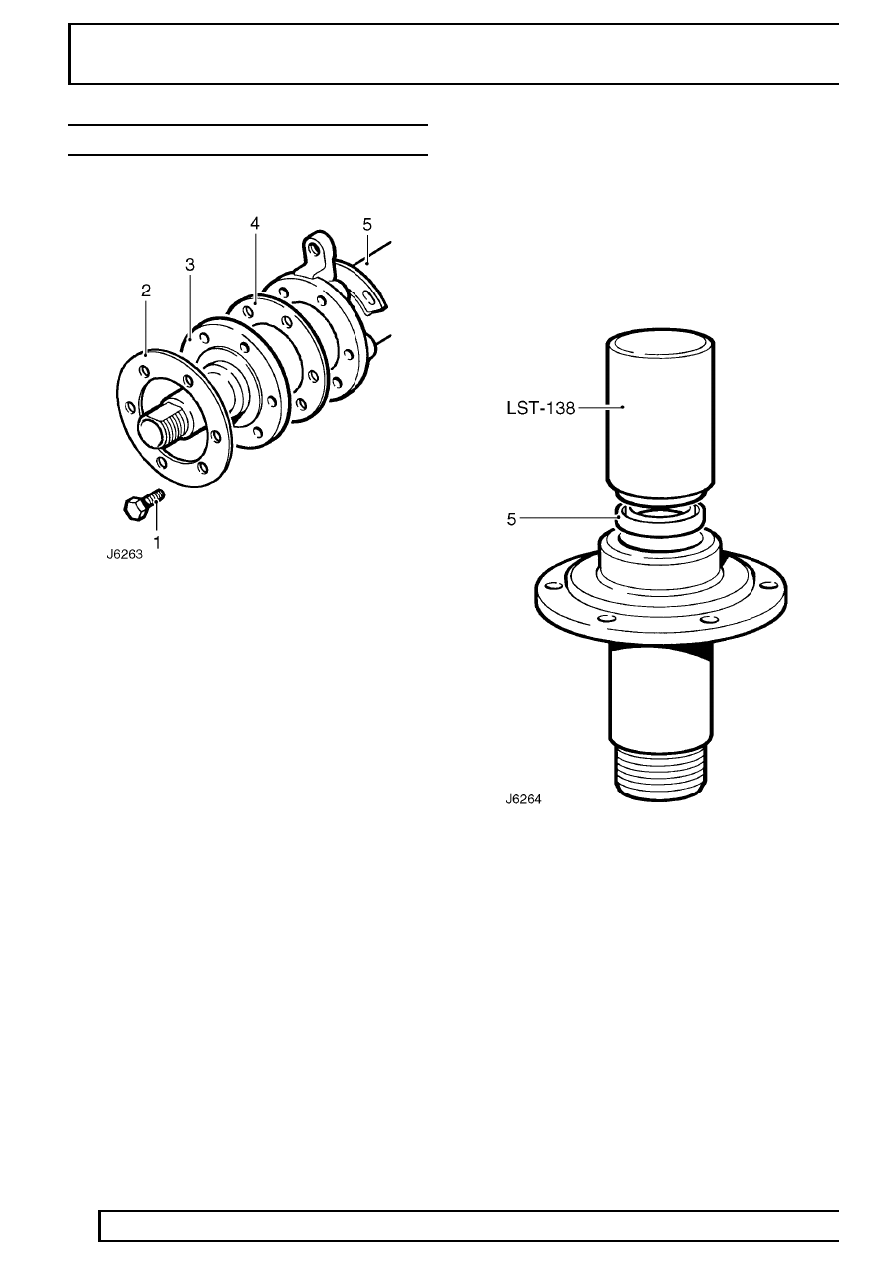

STUB AXLE COMPONENTS

1. Stub axle to axle casing bolt.
2. Mudshield.
3. Stub axle.
4. Stub axle joint washer.
5. Axle case.

Overhaul

1. Remove hub assembly

See Repair, Rear hub

assembly .

2. Remove 6 bolts from stub axle to axle casing.
3. Remove mudshield.
4. Remove stub axle and joint washer.

Renew rear stub axle oil seal

5. Remove and discard oil seal. Lubricate seal and

lip with EP90 oil. Using special tool LRT-51-004
(LST 138)
fit new oil seal lip side trailing so that
seal is flush with rear face of stub axle.

Refit

6. Fit new joint washer, stub axle and mudshield

bolts. Tighten bolts to

65 Nm (48 lbf/ft).

7. Refit hub assembly

See Repair, Rear Hub

Assembly .

REAR AXLE AND FINAL DRIVE

13

OVERHAUL

REAR HUB - 110/130

Service repair no - 64.15.14.

Overhaul

1. Remove rear hub assembly

See Repair, Rear

hub assembly.

2. Remove outer bearing.
3. Mark, for reassembly, relationship between hub

and brake disc, if original hub is to be refitted.

4. Remove 5 bolts and separate hub from brake

disc.

5. Drift out grease seal and inner bearing from hub

and discard seal.

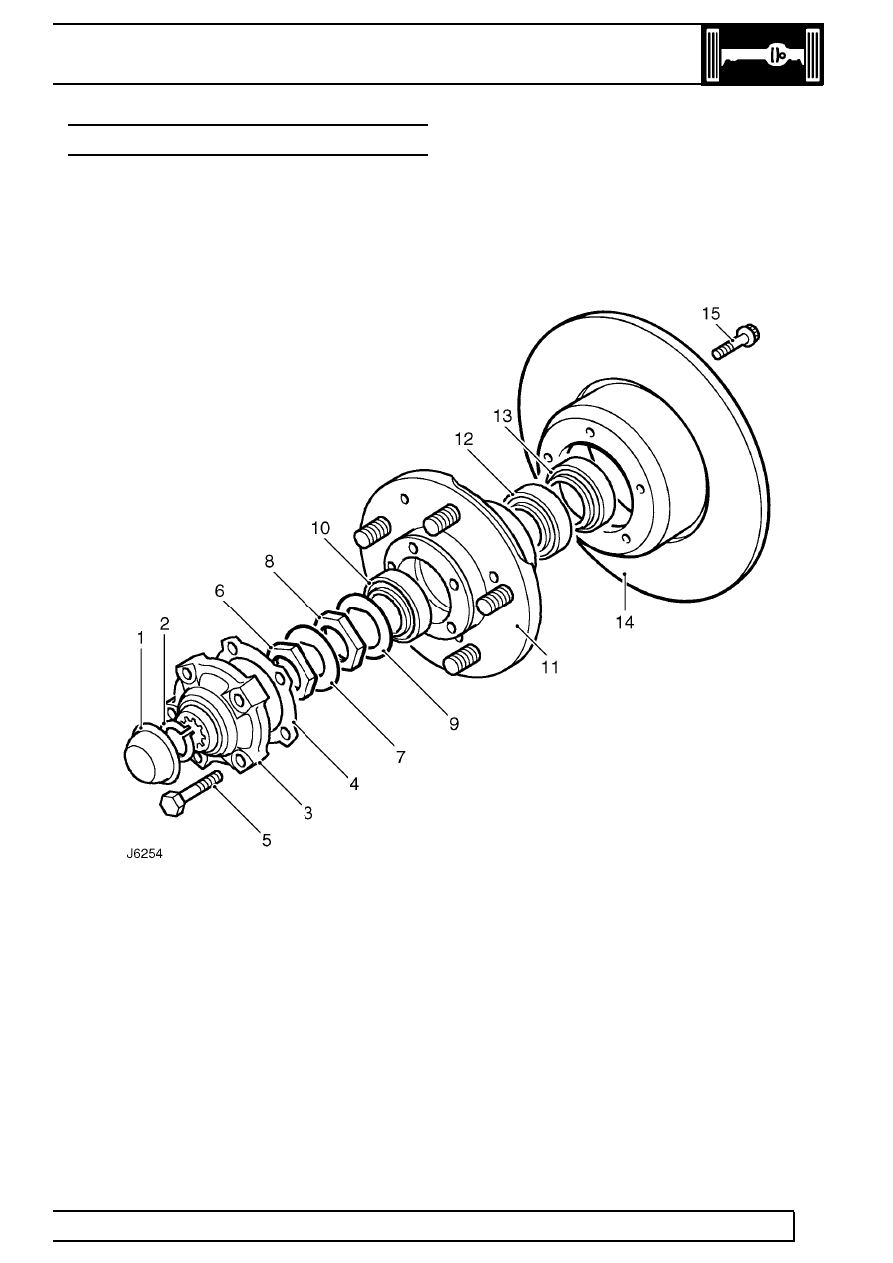

HUB COMPONENTS

1. Dust cap.
2. Drive shaft circlip.
3. Drive member.
4. Drive member joint washer.
5. Drive member retaining bolt.
6. Lock nut.
7. Lock washer.
8. Hub adjusting nut.

9. Spacing washer.

10. Outer bearing.
11. Hub.
12. Inner bearing.
13. Grease seal.
14. Brake disc.
15. Disc retaining bolt.

51

REAR AXLE AND FINAL DRIVE

14

OVERHAUL

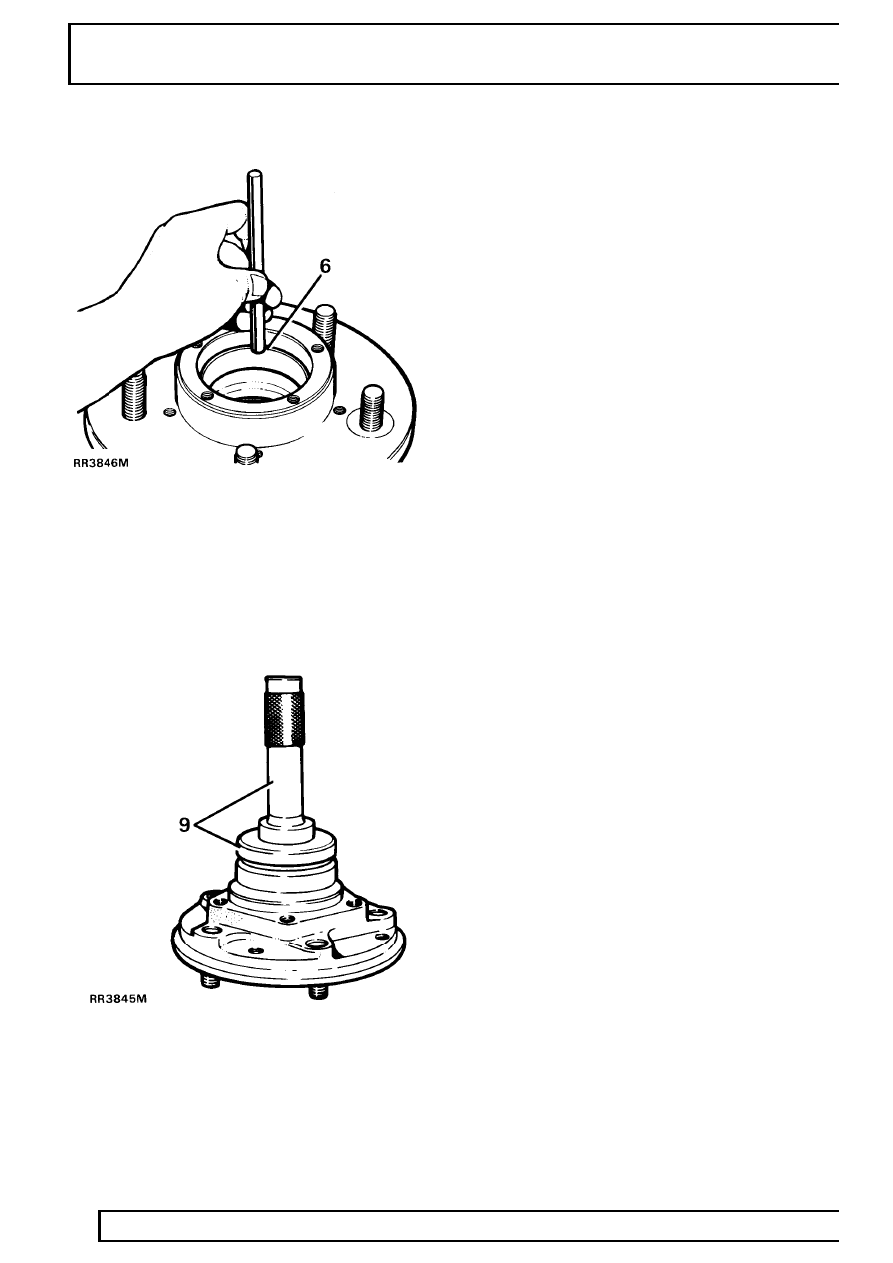

6. Drift out inner and outer bearing tracks.
7. Clean hub and drift in inner and outer bearing

tracks.

8. Pack hub inner bearing with recommended

grease and fit to hub.

9. With lip side leading, fit new seal to hub using

special tool LRT-54-003 (LST 137) seal replacer
and drift 18G 134. Drive in seal flush with rear
face of hub. Apply grease between seal lips.

10. Fit brake disc to hub, lining up to marks made

during dismantling. apllying Loctite 270, fit
retaining bolts. Tighten to

73 Nm (54 lbf/ft).

11. Grease and fit outer bearing to hub.
12. Fit hub assembly

See Repair, Rear hub

assembly .
