Defender 90 NAS. Manual - part 97





86

ELECTRICAL

4

REPAIR

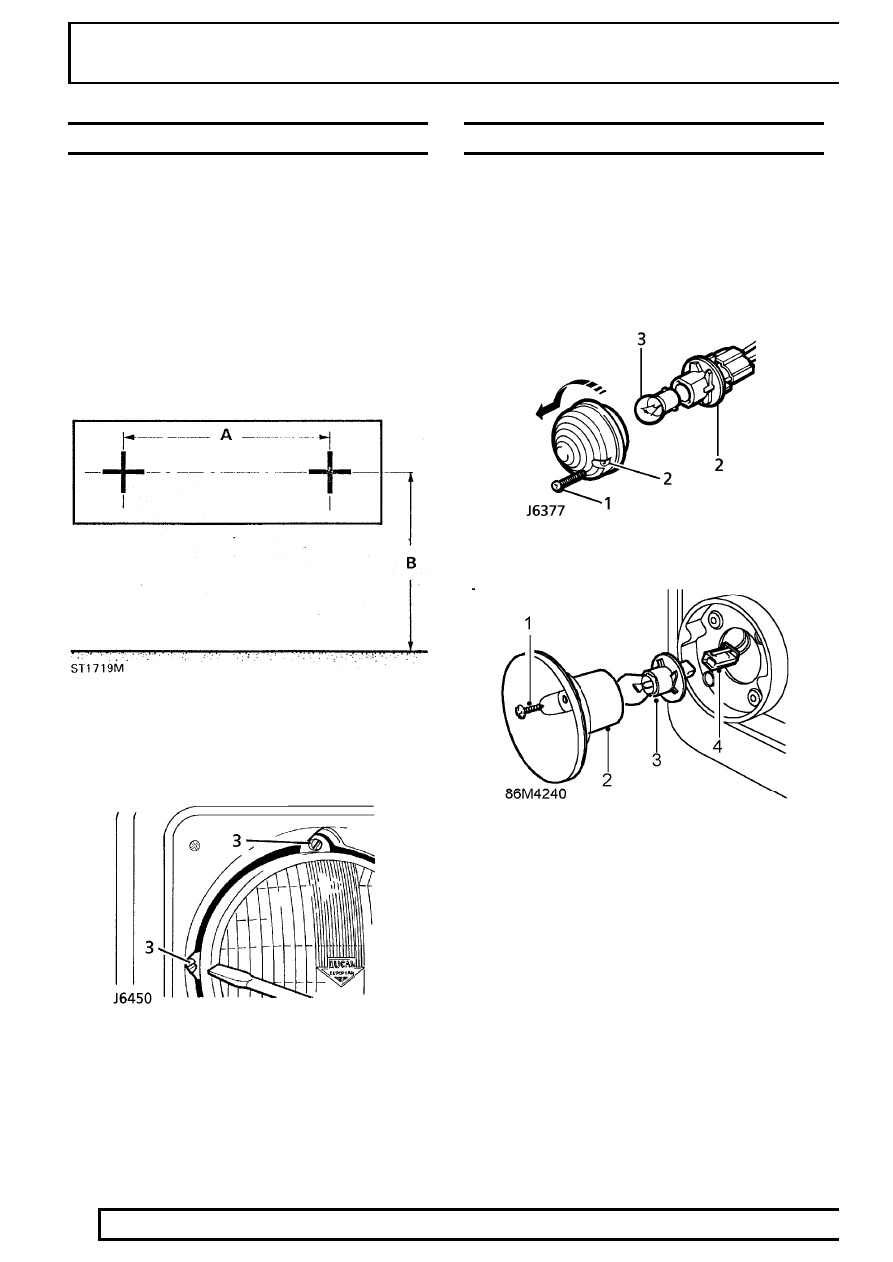

HEADLAMP BEAM ALIGNMENT

Service repair no - 86.40.17

Check

Check main beam alignment using beam setting
equipment. Should this not be available the beam can
be temporarily checked and adjusted as follows:-

1. Position vehicle, unladen, on level ground with

tyres correctly inflated, approximately 4 meters
from a wall or screen, marked as illustrated
below.

2. The beam centres ’A’ are measured horizontally

on the vehicle and headlamp centre dimension
’B’ vertically from the ground.

3. Switch on main beam and adjust setting, as

necessary, with trimmer screws.

SIDE, TAIL AND INDICATOR LAMPS

Service repair no - 86.40.34 Parking lamp
Service repair no - 86.40.42 Indicator lamp
Service repair no - 86.40.45 Tail lamp, indicator
lamp
Service repair no - 86.40.91 Reverse lamp

Remove

1. Release 2 screws and withdraw lens.
2. Twist counter-clockwise and withdraw bulb

holder.

3. Remove bulb, bayonet fixing.
4. Disconnect bulb holder from multiplug.
5. If necessary, remove 2 screws and withdraw

lamp boss.

Refit

6. Fit lamp boss, if applicable.
7. Connect bulb holder to multiplug.
8. Fit bulb of same wattage, if renewed.
9. Fit lens.

ELECTRICAL

5

REPAIR

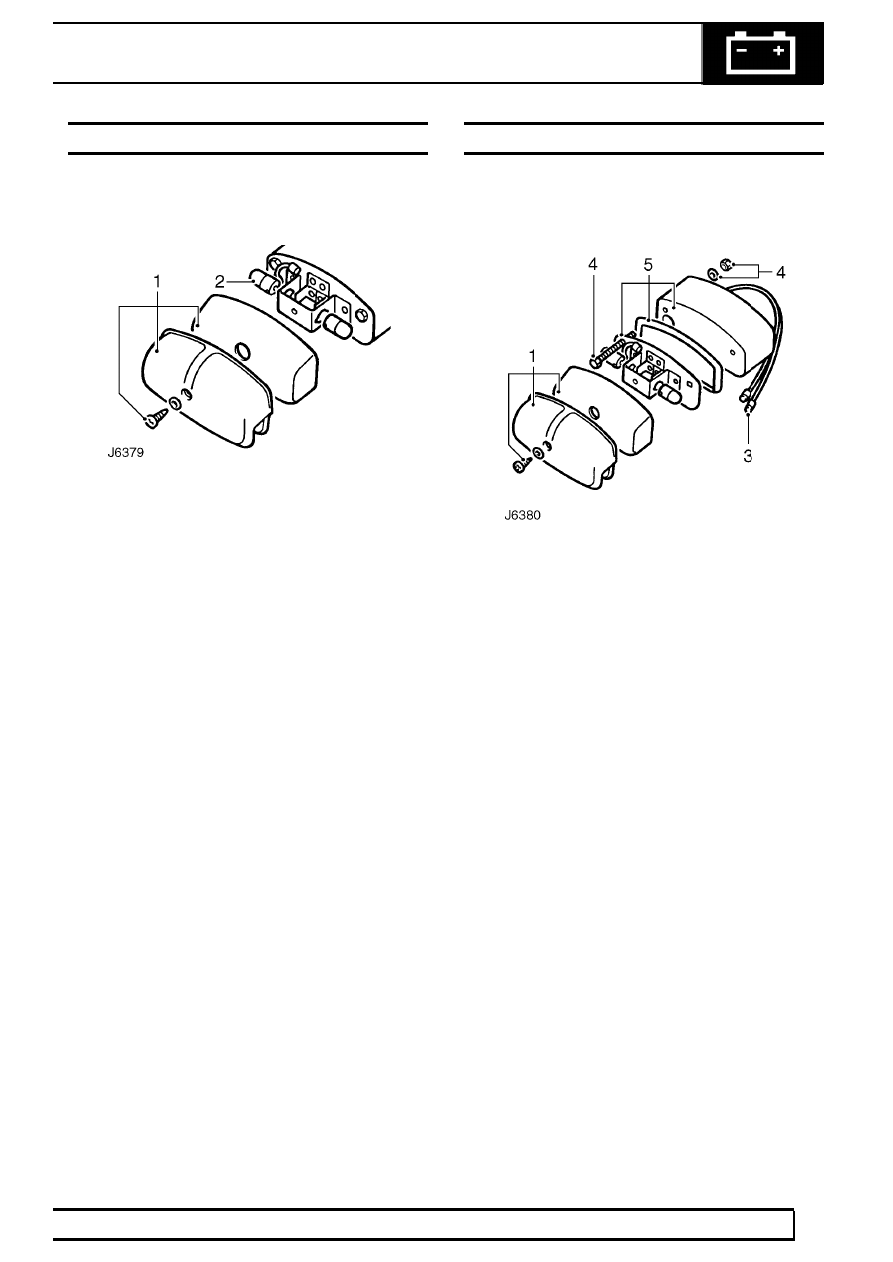

REAR NUMBER PLATE LAMP - BULB RENEWAL

Service repair no - 86.40.85

Remove

1. Remove single screw securing lamp cover and

lens to bulb holder.

2. Remove bulb/s from holder.

Refit

3. Fit new bulb/s.
4. Fit lamp lens and cover.

REAR NUMBER PLATE LAMP

Service repair no - 86.40.86

Remove

1. Remove single screw and remove lamp cover

and lens.

2. Remove rear speaker.

See CHASSIS AND

BODY, Repair, Radio speaker - rear

3. Through speaker aperture, disconnect lamps

leads from harness.

4. Remove 2 bolts, nuts and washers securing

lamp to vehicle body.

5. Remove bulb holder, complete with rubber seal

and mounting plinth.

Refit

6. Feed lamp unit leads through vehicle body and

secure bulb holder, seal and plinth.

7. Fit lamp leads to harness connectors.
8. Fit radio speaker.

See CHASSIS AND BODY,

Repair, Radio speaker - rear

9. Fit lens and lamp cover.

86

ELECTRICAL

6

REPAIR

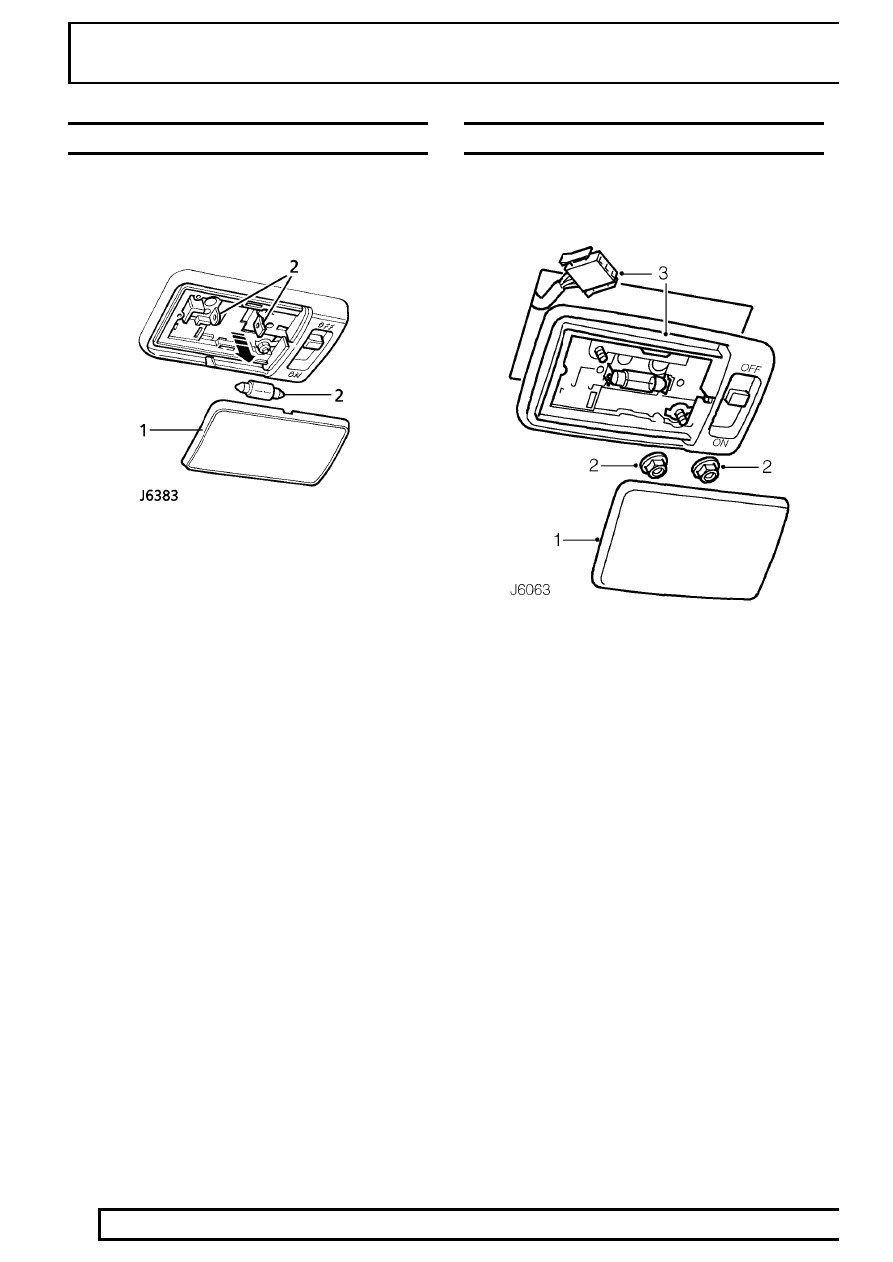

INTERIOR LAMP - BULB REMOVAL

Service repair no - 86.45.01

Remove

1. Prise lens from lamp unit.
2. Spread bulb holder contacts and release bulb.

Refit

3. Spread bulb holder contacts and fit new bulb.
4. Fit lamp lens.

INTERIOR LAMP

Service repair no - 86.45.02

Remove

1. Prise lens cover from lamp unit.
2. Remove 2 nuts securing lamp unit to headlining

and roof mounting bracket.

3. Remove lamp unit from mounting bracket studs

and disconnect harness plug.

4. Remove interior lamp.

Refit

5. Reconnect harness plug and locate lamp unit on

mounting bracket studs. Ensure lamp switch
eyelet is correctly seated on lamp unit base.

6. Secure lamp unit to mounting bracket and fit

lamp lens.

ELECTRICAL

7

REPAIR

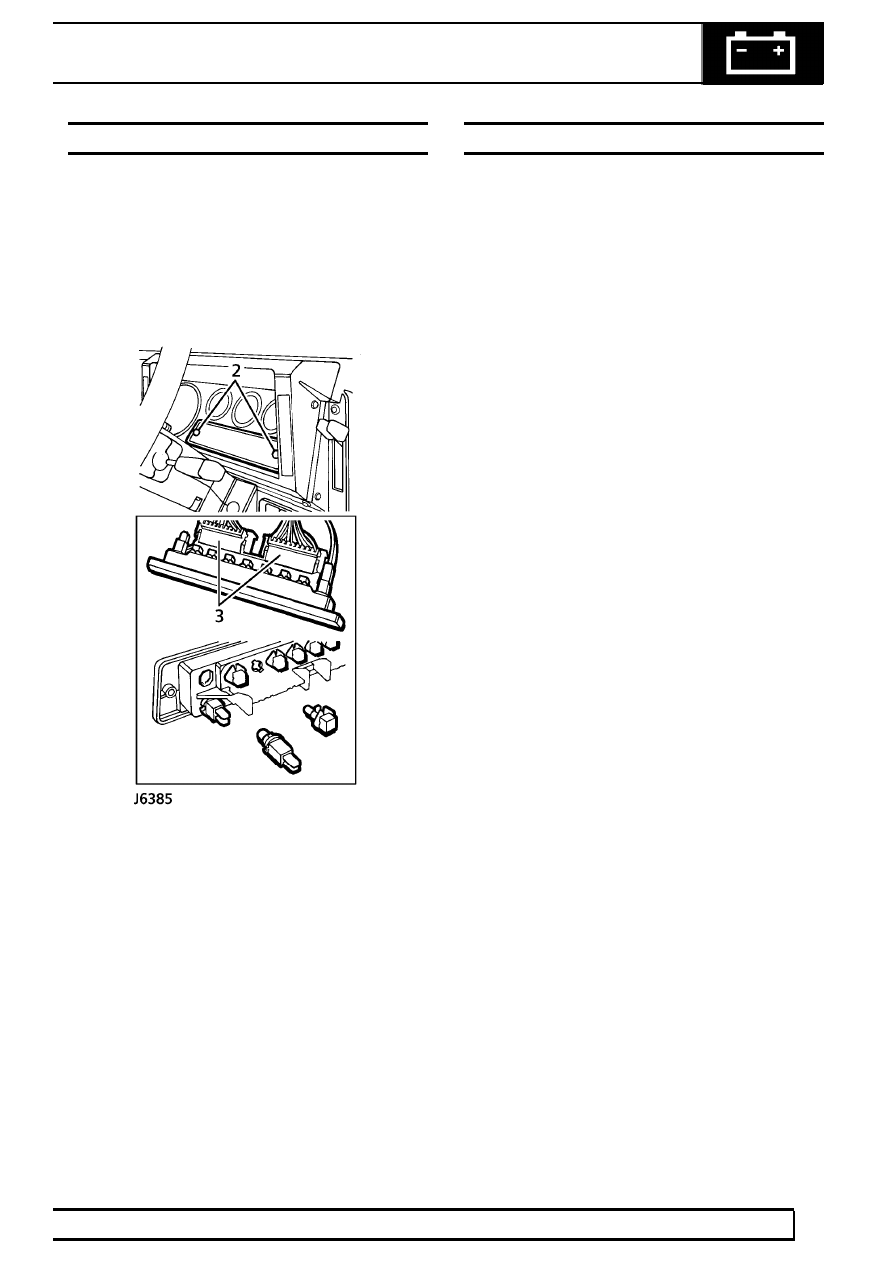

WARNING LAMP ASSEMBLY

Service repair no - 86.45.60 - Warning lamp
assembly
Service repair no - 86.45.61 - Warning lamp bulb
renewal

Remove

1. Disconnect battery.

2. Remove 2 screws and withdraw warning light

assembly from instrument panel.

3. Remove multi-plug to give access to warning

lamp bulbs.

4. Twist bulb holder and pull it from its socket.
5. Pull bulb from holder.

Refit

6. Fit new bulb and refit holder.
7. Fit multi-plug.
8. Fit warning lamp assembly to instrument panel
9. Reconnect battery.

INSTRUMENT ILLUMINATION - BULB

Service repair no - 86.45.48

Remove

1. Remove 4 screws retaining instrument panel.
2. Release panel from fitted position to gain access

to bulbs.

3. Pull bulb holder from gauge, twist bulb holder

and pull from socket.

4. Pull bulb from holder.

Refit

5. Fit new bulb and refit holder.
6. Position instrument panel and secure with

screws.
