Defender 90 NAS. Manual - part 3





INTRODUCTION

11

INFORMATION

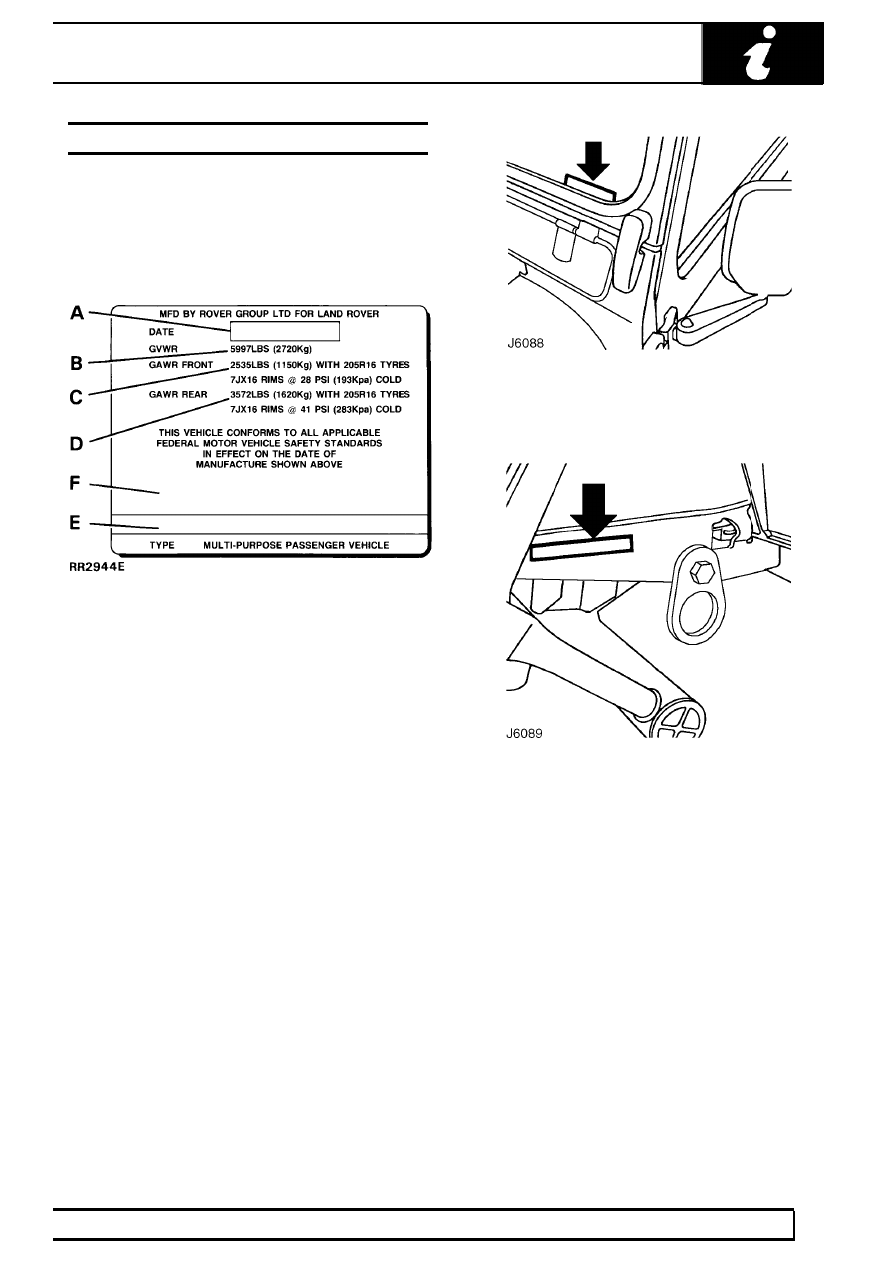

VEHICLE IDENTIFICATION NUMBER (VIN)

An adhesive label containing the Vehicle Identification
Number, date of manufacture and gross axle weight
ratings is positioned in a recess on the LH side of the
driver’s footwell. The information also includes wheel
and tyre sizes and tyre pressures at gross axle weight
ratings.

Key to vehicle identification label

A.

Month and year of manufacture

B.

Gross vehicle weight rating

C.

Gross axle weight rating for front axle

D.

Gross axle weight rating for rear axle

E.

Vehicle identification number (17 digits)

F.

Vehicle identification number - bar code

The VIN is also stamped on a plate visible through the
LH side of the windscreen.

The number is also stamped on the RH side of the
chassis to the rear of the front lashing eye.

01

INTRODUCTION

12

INFORMATION

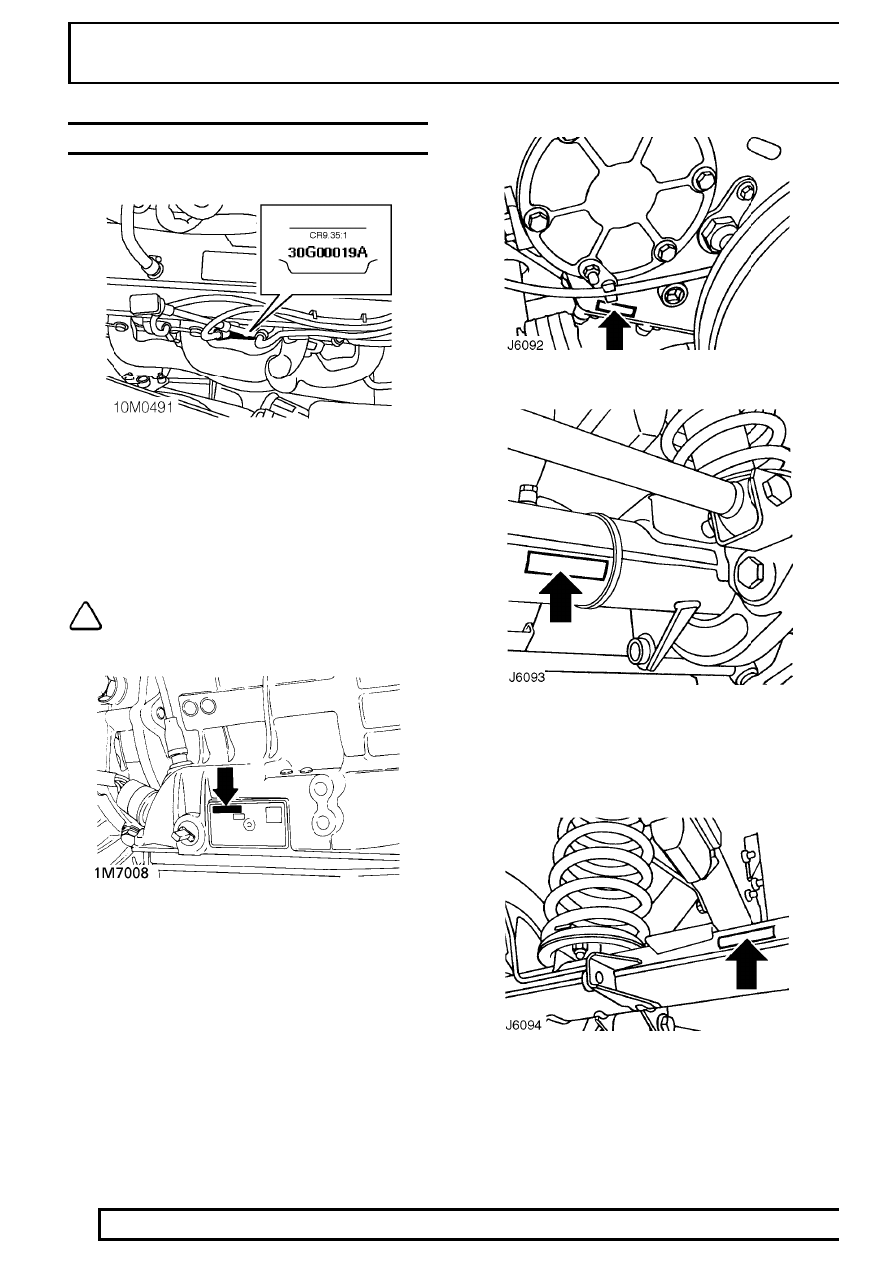

LOCATION OF IDENTIFICATION NUMBERS

Engine serial number - V8i engine

Stamped on a cast pad on the cylinder block, between
numbers 3 and 5 cylinders.

NOTE: The appropriate engine
compression ratio is stamped above the
serial number.

Automatic gearbox serial number

The serial number is stamped on a plate attached to
the LH side of the casing.

Transfer gearbox serial number

The serial number is stamped on the LH side of the
gearbox casing below the mainshaft rear bearing
housing adjacent to the bottom cover, see J6092

Front axle serial number

Serial number is stamped on the front of LH axle tube.

Rear axle serial number

Serial number is stamped on rear of LH axle tube.

INTRODUCTION

13

INFORMATION

FAULT DIAGNOSTIC EQUIPMENT

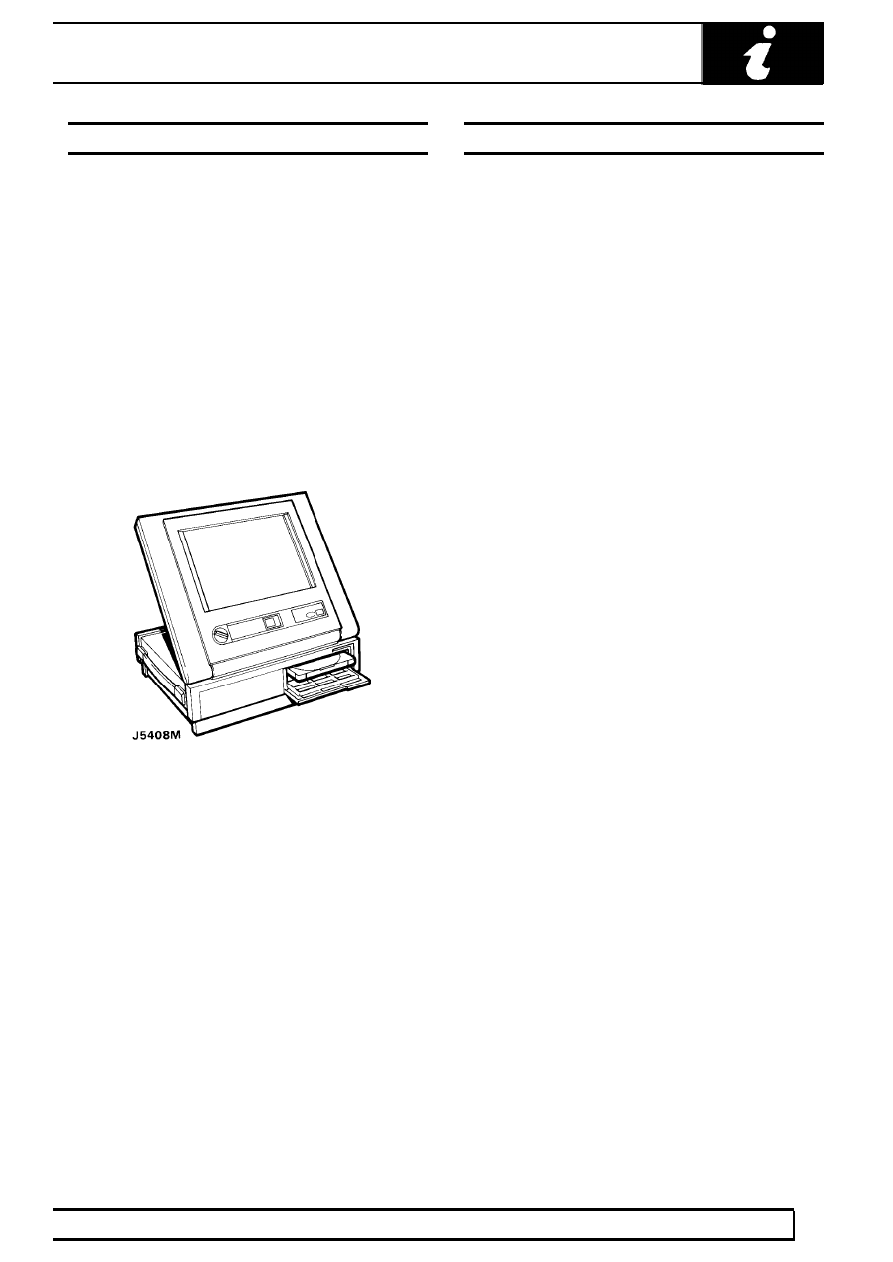

TestBook

Land Rover Vehicles are equipped with substantial
electronics to provide the best performance from the
vehicles systems.
Diagnostic equipment named TestBook is available to
expand the diagnostic abilities of the dealer workshop.
This repair manual is produced with TestBook in mind.
Features of TestBook include :-

Fully upgradable support for the technician.

Structured diagnostics to accommodate all skill
levels.

Touch screen operation.

Direct print out of screen information and test
results.

ELECTRICAL REFERENCE LIBRARY

The Electrical Reference Library is a separate
publication intended for use by trained Land Rover
technicians as an aid to diagnosing electrical faults.

READING THIS MANUAL

This manual is divided into sections shown on the
contents page, alongside a range of icons, familiar to
service technicians.

Relevant information is contained within each of these
sections. These are further divided into the following
sub-sections which appear at the foot of each page :-

Description and operation.
Fault diagnosis.
Adjustment.
Repair.
Overhaul.
Specifications, Torque.

To avoid repeating information through the sections,
where part of the repair operation impacts on another
section, a cross reference is given to direct the reader
to where the information is sited.

For example:
The maintenance section states the need to renew
auxiliary drive belt. A cross reference sites this
information in: Section: Electrical
- Sub-section: Repairs
- Heading: Auxiliary drive belt

American terminology.

A few words used in this manual differ to words used
in America. Where this occurs the American word is
placed inside square brackets. For example: bonnet
[hood], wing [fender], ramp [hoist].

GENERAL SPECIFICATION DATA

1

INFORMATION

ENGINE 4.0 V8i

Type

V8i

.................................................................................

Number of cylinders

Eight, two banks of four

.........................................................

Bore

94,00 mm

.................................................................................

3.70 in

Stroke

71,12 mm

...............................................................................

2.80 in

Capacity

3950 cm

3

...........................................................................

241 in

3

Compression ratio

9.35:1

............................................................

Valve operation

Overhead by push-rod

................................................................

Maximum power

140kW at 4750 rev/min

...............................................................

Crankshaft

Main journal diameter

63,500-63,487 mm

.......................................................

2.500-2.4995 in

Minimum regrind diameter

62,471-62,484 mm

............................................

2.459-2.260 in

Maximum out of round

0,040 mm

..................................................

0.0016 in

Crankpin journal diameter

55,513-55,500 mm

................................................

2.1855-2.1850 in

Minimum regrind diameter

54,484-54,497 mm

...............................................

2.1450-2.1455 in

Crankshaft end thrust - end float

Taken on thrust washers of centre main bearing

0,10-0,20 mm

..........

0.004-0.008 in

Maximum run-out

0,08 mm

.............................................................

0.003 in

Main bearings

Number and material

5, Lead-indium overlay

........................................................

Diametrical clearance

0,015-0,060 mm

.......................................................

0.0006-0.0024 in

Undersize bearing shells

0,254 mm, 0,508 mm

..................................................

0.010 in, 0.020 in

Connecting rods

Type

Horizontally split big-end, plain small-end

.................................................................................

Length between centres

155,12-155,22 mm

...................................................

6.107-6.111 in

Big-end bearings

Type and material

Lead-indium overlay

............................................................

Diametrical clearance

0,015-0,060 mm

.......................................................

0.0006-0.0024 in

End-float crankpin

0,15-0,36mm

............................................................

0.006-0.014 in

Undersize bearing shells

0,25 mm, 0,50 mm

..................................................

0.010, 0.020 in

Piston/gudgeon pins

Length

60.00-60,50 mm

..............................................................................

2.362-2.382 in

Diameter

23,995-24,000 mm

..........................................................................

0.9447-0.9449 in

Fit-in connecting rod

Press fit

.........................................................

Clearance in piston

0,006-0,015 mm

..........................................................

0.0002-0.0006 in
