Defender 90 / 110 / 130. Manual - part 14





MAINTENANCE

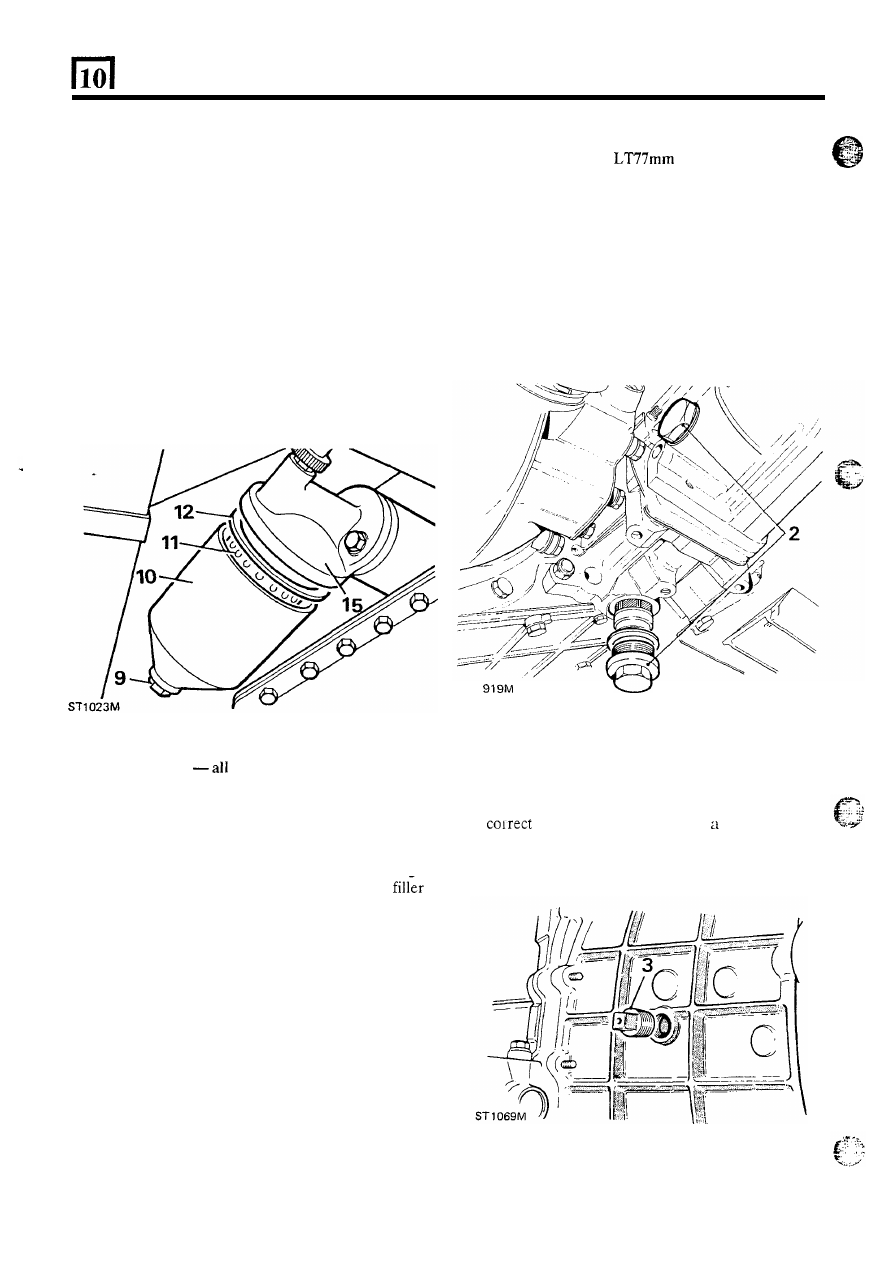

Renew oil filter

2.25 petrol and diesel engine

RENEW MAIN AND TRANSFER GEARBOX OILS

DRAIN

AND REFILL

MAIN GEARBOX

4-cylinder engines

8.

Place oil tray under engine.

9.  Unscrew filter retaining bolt.

10.  Remove the container.
11.  Remove the element.
12.  Discard  the  used  filter  element  and  large  rubber

washer.

13.

Wash the container in kerosene.

14.  Place  the  new  filter  element  in  the  container  and

reassemble  the  unit,  using  the  new  large  rubber

washer supplied with the element.

15.  Ensure that  all  the sealing washers  are in  position

and  intact,  and  that  the  container  is  correctly
located in the adaptor.

16.  Tighten  the  filter  retaining  bolt  to  the  correct

torque.

Do

not overtighten.

Refill sump with oil

models

1.  Drive  the  vehicle  to  level  ground  and  place  a

suitable  container  under  the gearbox to  catch  the
old oil.

2.  Remove  the  gearbox  and  extension  case  drain

plugs  and  allow  the  oil to drain completely.  Wash
the  extension  case  filter  in  kerosene  and  refit  the

plugs  using  new  washers,  if  necessary,  and tighten
to the correct torque.

ST

3 .

Remove  the

oil  filler-level  plug  and  inject  the

approximate  quantity

of  new  oil  of  the  correct

make  and  grade  until  it  begins  to  run  out  of  the
filler-level  hole.

Fit  the  plug  and  tighten  to  the

torque. Since the plug has  tapered thread

it  must  not  be  overtightened.  Wipe  away  any
surplus oil.

17.  Check that the drain plug is tight.
18.  Clean  the  outside  of  the  oil  filler  cap,  remove  it

from the rocker cover and clean the inside.

19.  Pour  in  the  correct  quantity  of  new  oil

of  the

correct  grade from  a  sealed  container  to  the  high
mark

on

the  dipstick  and  firmly  replace  the

cap.

20.

Run the engine and check for leaks from the filter.

Stop the engine, allow the oil to

run  back  into the

sump for  a  few  minutes,  then  check  the  oil  level
again and top

up if  necessary.

MAINTENANCE

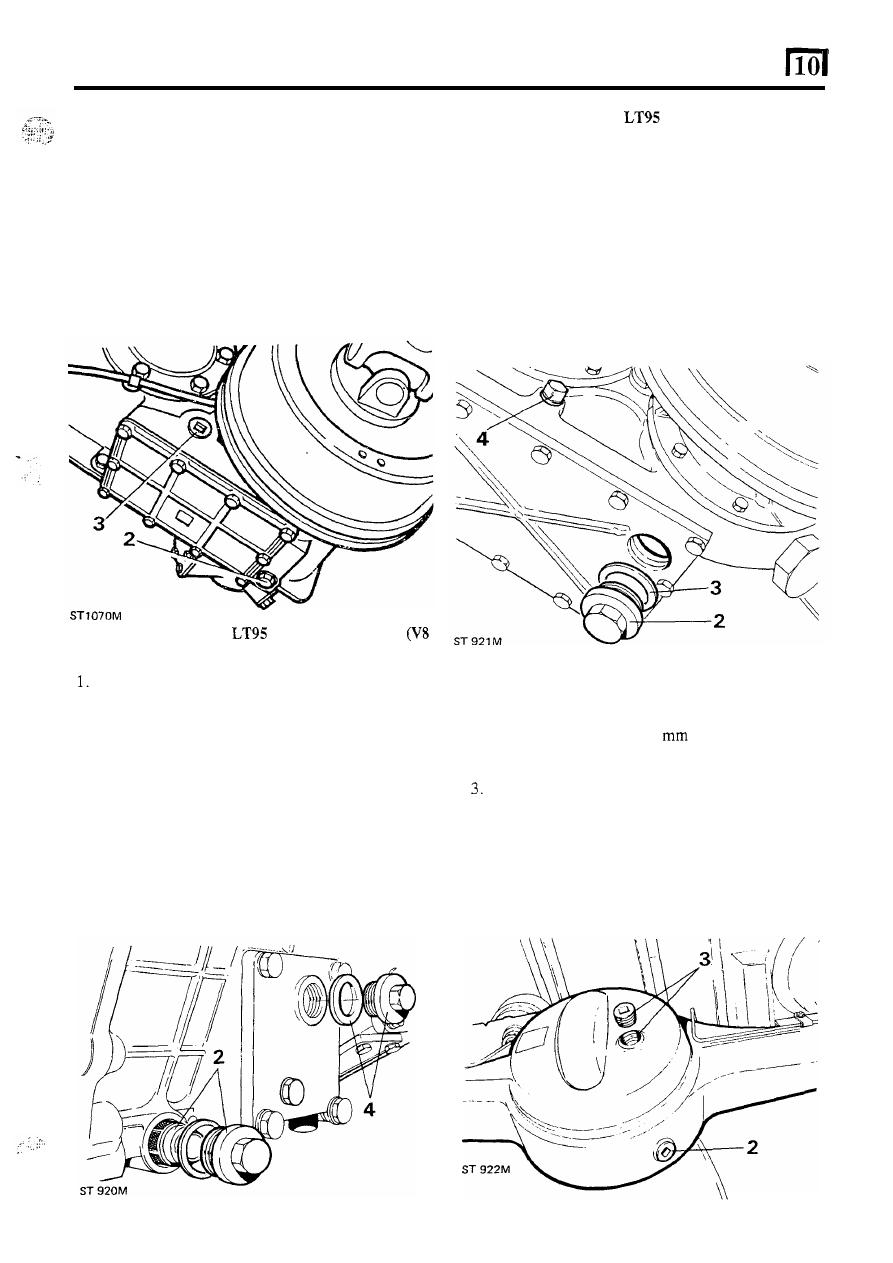

DRAIN  AND  RENEW  230R  AND  230T  TRANSFER

GEARBOX (4-cylinder engine)

1.  Drive  the  vehicle  to  level  ground  and  place  a

container under the gearbox to catch the old oil.

2.  Remove the  drain plug  and  allow the  oil  to drain.

Fit  the  plug  using  a  new  washer,

if

necessary,  and

tighten to the correct torque.

3.  Remove  the  filler-level  plug  and  inject  the

approximate quantity

of  the recommended oil until

it  begins  to  run  from  the  plug  hole.  Fit  the  level
plug  and  tighten only

to

the correct torque, do not

overtighten, wipe away

any

surplus oil.

DRAIN  AND  RENEW

MAIN

GEARBOX

engines)

Drive  the  vehicle  to  level  ground  and  place  a
container under the gearbox to catch the old

oil.

2.  Remove the drain plug, washer and filter from the

bottom  of  the  gearbox  casing  and  allow  the

oil  to

drain completely.

3.  Wash  the filter in petrol, allow to dry and fit

to

the

casing.  Using  a  new  washer,  if  necessary,  fit  the
plug and tighten to the correct torque.

4.  Remove the oil filler-level plug from the side of  the

gearbox and inject the approximate quantity

of  the

correct oil until it begins to run from the filler-level
hole.  Clean  and refit  the  plug  using

new  washer

and  tighten  to the  correct  torque.  Wipe  away  any

surplus oil.

DRAIN  AND  RENEW

TRANSFER  GEARBOX

OIL

1.  Drive vehicle to level ground and place a container

beneath the gearbox to catch the old oil.

2.  Remove the drain plug and allow time for the oil to

drain completely.

3.  Clean and refit the drain plug using  a new washer,

if  necessary and tighten to the correct torque.

4.  Remove  the  oil  filler-level  plug  and  inject  the

approximate quantity

of

a recommended

oil until it

begins to run from the hole. Clean and fit the plug
and  tighten  to  the  correct  torque.

Do

not

overtighten. Wipe away any surplus oil.

RENEW FRONT

AND REAR AXLE OIL

1.  Drive  the  vehicle  to  level  ground  and  place  a

container under the axle to be drained.

2.  Using a spanner with a

13

(0.5

in) square drive

remove  the  drain  plug  and  allow  the  oil  to  drain
completely. Clean and refit the drain plug.

Remove the  oil filler-level  plug  and inject  new  oil

of  a  recommended make  and  grade until it begins
to run  from  the  hole.  Clean  and  fit  the filler-level
plug and wipe away any

surplus oil.

NOTE:  Whilst  the  illustration shows  a  ‘90’ model
front  differential, the procedure is the same for all

axles.

MAINTENANCE

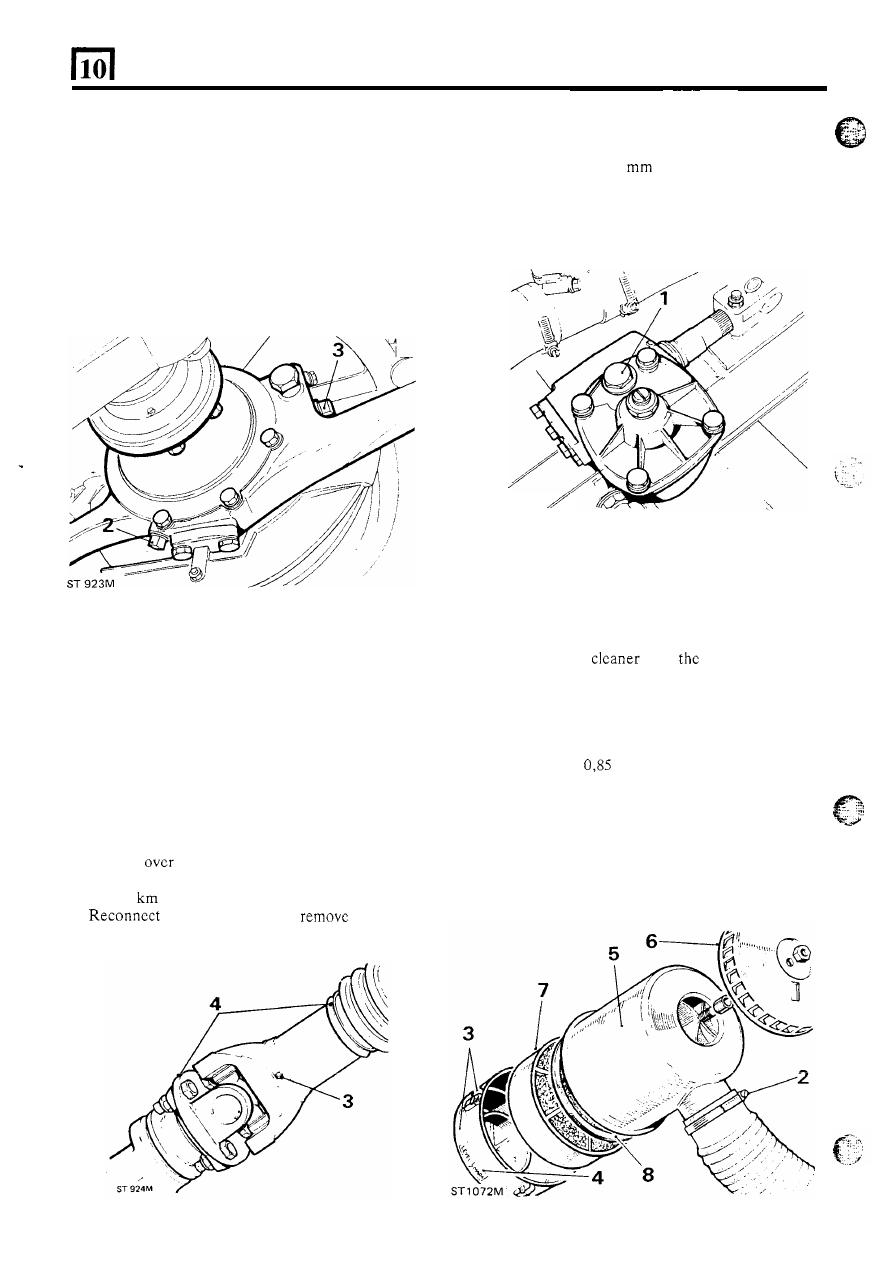

RENEW SWIVEL PIN HOUSING

OIL

1.  Drive  the  vehicle  to  level  ground  and  place  a

container  under  each  swivel  housing  to  catch  the
used

oil.

2.  Remove  the  drain  plug  and  allow  the oil  to drain

completely and clean and refit the plugs.

3.  Remove  the  oil  filler-level  plug  and  inject  the

recommended  make  and  grade

of  oil  until  oil

begins to run from  the level  hole. Clean and fit the
level plugs and wipe away any surplus oil.

LUBRICATE PROPELLER SHAFTS

1.  Clean  all  the  grease nipples on  the  front  and  rear

propshaft  universal  joints,  and  sliding  portion  of
the rear shaft.

2 .   Charge a low pressure hand grease gun with grease

of

a  recommended  make  and  grade  and  apply  to

the grease nipples.

3.  Remove the screwed plug from the front

shaft  and

fit

a suitable grease nipple.

4.  Disconnect one end of the front propeller shaft and

compress  the  sliding  portion  whilst  applying
grease.  It  is  necessary  to  compress  the  shaft  to

prevent

filling with  grease.

It

should  be noted

that  this sliding portion  must only be lubricated at
40.000

(24,000

mile) intervals.

5.

the  propeller  shaft,

the  grease

nipple and fit the screwed plug.

TOP-UP MANUAL STEERING

BOX

1.  Remove the oil filler plug and observe the oil level

which  should  be

25

(1.0

in)  below  the  top  of

the filler hole.

2.  If  necessary  top-up  to  the  correct  level  with  a

recommended  oil.  Clean  and  refit  the  plug  and
wipe away any surplus oil.

ST

925M

RENEW  AIR  CLEANER  OIL

2.25

litre

engines

(early models)

1.  Slacken  wing  nut  and  release  the  clamping  strap

securing the complete air cleaner.

2 .   Disconnect  the  outlet  elbow  from  the  intake  pipe

and remove the

from

vehicle.

3.  Remove  the  oil  bowl  from  the  bottom  of  the

cleaner by releasing the three securing clips.

4.  Clean  all  dirty  oil  and  sludge  from  the  bowl  and

refill  with  fresh  engine

oil to the level indicated by

a  ring  formed  in  the  pressing;  the  capacity  is
approximately

litre

(1.5 imperial pints).

5.

Clean the spiral in  the cleaner body  by swilling the

complete  body  in  paraffin  and  shake  off  the

6.  Remove and clean the air intake cap.

7.

Clean

the wire mesh filter.

8.  Reassemble filter using a new scaling ring.
9.  Refit the complete unit into the vehicle.

surplus.

MAINTENANCE

Diesel engine

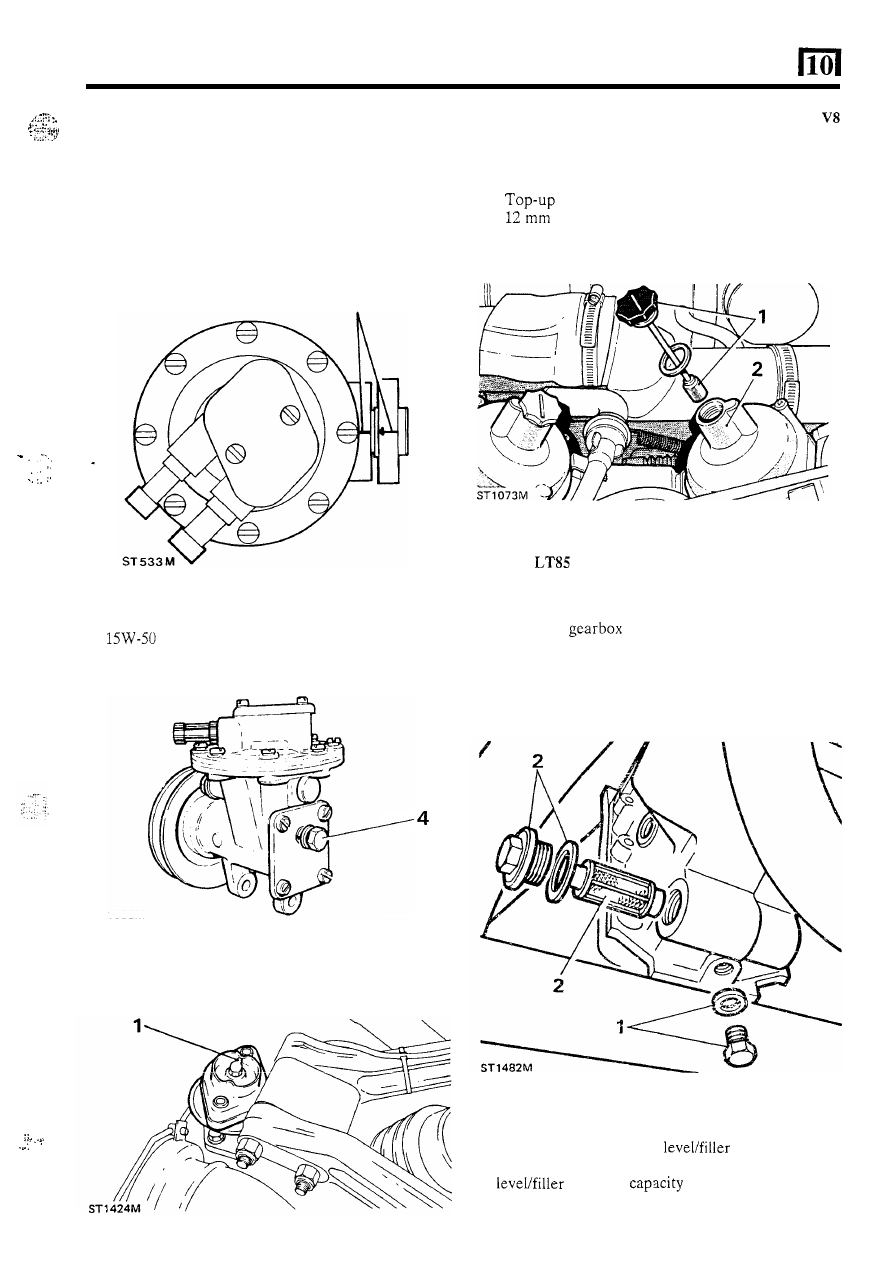

TOP-UP  BRAKE  VACUUM  PUMP

OIL

2.25  litre

TOP-UP  CARBURETTER  PISTON  DAMPER

only

1.  Slacken  the  drive  belt,  and  the  pump  pivot  bolts

1.  Unscrew  the  cap on top of  both  suction  chambers

and withdraw the damper.

2.  Move  the  pump  to  an  upright  position  and

2.

the  reservoir  with  engine  oil  to  within

(0.5

in)  from  the  top  of  the  hollow  piston

rod. Refit t h e  damper and secure the cap.

and nuts and slip the belt from the pulley.

temporarily  tighten  the  nuts  and  bolts  to  maintain
this position.

3.

Turn the pump pulley

so

that  the indicating marks

on the pulley hub and pump body line up.

...

4.  Remove the oil level plug  at  the  rear of  the pump

and  if  necessary  inject  a  recommended  SAE

oil

up to the level of  the hole.

5 .

Refit  the  level  plug,  and  fit  and  tension  the  drive

belt.

ST

1008M

REAR SUSPENSION BALL JOINT

1.  Apply  a  grease  gun  to  the  nipple  using  a

recommended grease.

RENEW

MAIN GEARBOX OIL

Drain  and  refill  monthly when  operating under severe

wading conditions.
T o  change the

oil proceed as follows:

1.

Immediately after a

run

when the oil is warm, drain

off  the  oil  into  a  container by  removing  the  drain
plug  and  washer  from  the  bottom  of  the  gearbox

casing.

2.  Remove the oil filter.

3.  Wash  the  filter  in  clean  fuel;  allow  to  dry  and

replace.

4.  Clean  and  refit  drain  plug  and  washer  and  refill

gearbox  through  the  oil

plug,  with  the

correct  grade  of  oil,  to  the  bottom

of  the  oil

hole.

For

see Data Section.
