INTRODUCTION

13

INFORMATION

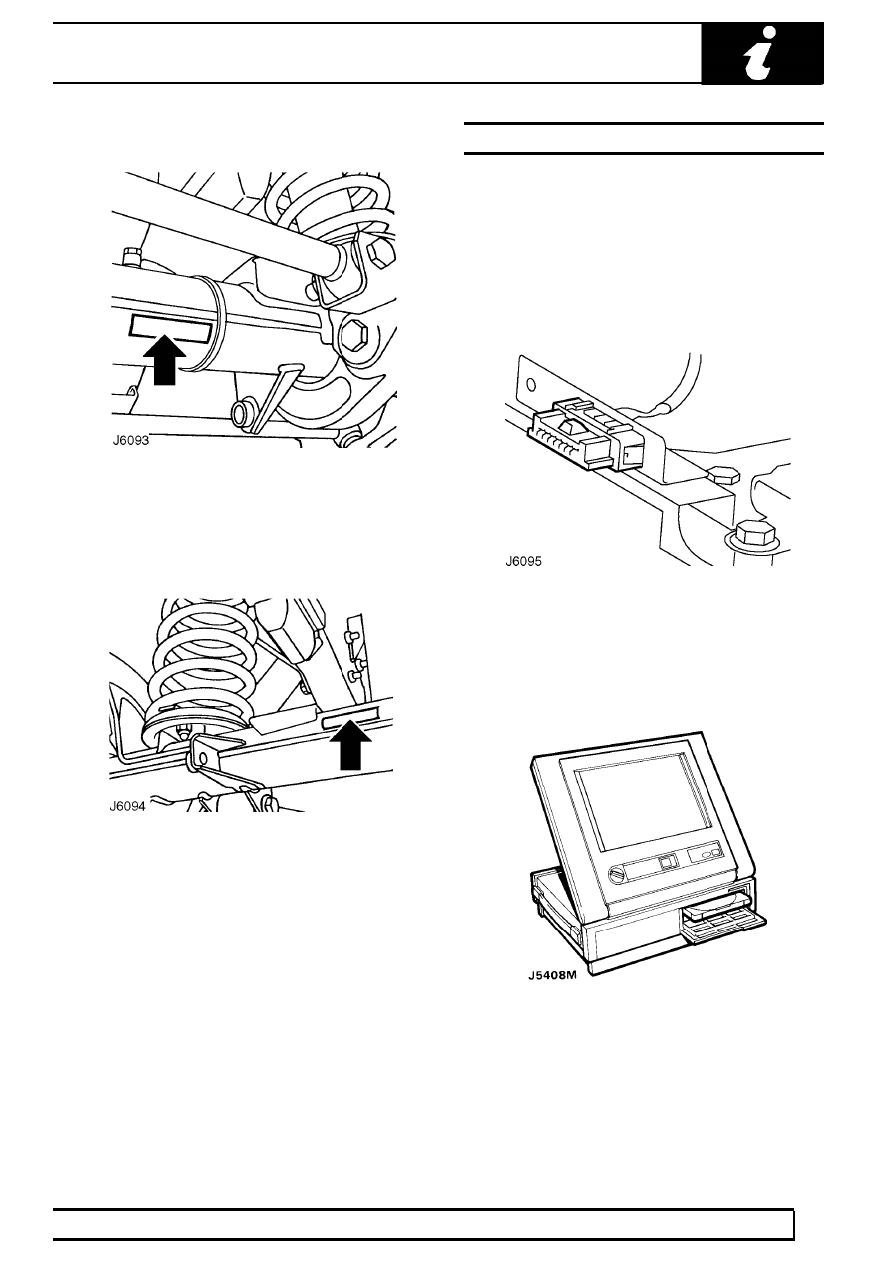

Front axle serial number

Stamped on the front of LH axle tube, inboard of
radius arm mounting bracket.

Rear axle serial number

Stamped on the rear of LH axle tube, inboard of
spring mounting.

FAULT DIAGNOSTIC EQUIPMENT

TESTBOOK

For Defender models fitted with the vehicle Anti-theft
Immobilisation and Alarm System, diagnostic
equipment, named TestBook, is available to assist in
the diagnostic and fault finding abilities of the Dealer
workshop. A diagnostic connector, located under the
front centre seat, or cubby box, as shown below, is
provided to facilitate the procedures.

If an exhaust gas recirculation (EGR) system is fitted,
this too can be checked using TestBook. A diagnostic
connector, also located under the front centre seat or
cubby box, is provided.

Features of Testbook include :-

Fully upgradable support for the technician.
Structured diagnostics to accommodate all skill levels.
Touch screen operation.
Direct print out of screen information and test results.

01

INTRODUCTION

14

INFORMATION

READING THIS SUPPLEMENT

This Supplement is divided into sections shown on the
contents page, alongside a range of icons, familiar to
service technicians.

Relevant information is contained within each of these
sections. These are further divided into the following
sub-sections which appear at the foot of each page :-

Description and operation.
Adjustment.
Repair.
Overhaul.

To avoid repeating information through the sections,
where part of the repair operation impacts on another
section, a cross reference is given to direct the reader
to where the information is sited.

For example:
The maintenance section states the need to renew
drive belt. A cross reference sites this information in:
Section 12 Engine
- Sub-section: Repair

GENERAL SPECIFICATION DATA

1

INFORMATION

ENGINE - Td5

Type

2.5 litre in-line direct injection Diesel, turbocharged

.................................................................................

and intercooled

Number of cylinders

5 in-line, No. 1 cylinder at front of engine

.........................................................

Bore

84.450 mm (3.3248 in)

.................................................................................

Stroke

88.950 mm (3.5020 in)

...............................................................................

Capacity

2498 cm

3

(152.5 in

3

)

...........................................................................

Firing order

1 - 2 - 4 - 5 - 3

.......................................................................

Compression ratio

19.5:1

............................................................

Direction of rotation

Clockwise viewed from the front of the engine.

..........................................................

Dimensions

Length

766 mm (30.1 in)

.....................................................................

Width

708 mm (27.8 in)

.......................................................................

Height

788 mm (31.0 in)

......................................................................

Emissions standard :-
Engine Serial No. Prefixes 10P to 14P - EU2 Model

ECD 2

........

Engine Serial No. Prefixes 15P to 19P - EU3 Model

ECD 3

........

Lubrication

Type

Wet sump, pressure fed

.................................................................................

Pump type

Eccentric rotor, crankshaft driven integral with stiffener

........................................................................

plate.

Filter type:

Primary

Centrifuge filter

....................................................................

Secondary

Disposable canister with full flow by-pass

...............................................................

Pressure at idle (cold)

3.0 bar (43.5 lbf.in

2

)

......................................................

Pressure at 3500 rev/min (hot)

1.5 - 3.0 bar (21.75 - 43.5 lbf.in

2

)

.........................................

Relief valve opening pressure

4.0 bar (58 lbf.in

2

)

..........................................

Low oil pressure switch opening pressure

0.2 - 0.6 bar (3.0 - 8.8 lbf.in

2

)

.......................

Crankshaft

Main bearing journal diameter

61.9875 - 62.0125 mm

..........................................

Crankpin journal diameter

53.99 - 54.01 mm

................................................

Crankshaft end float

0.020 - 0.250 mm

.........................................................

Main bearings

Number and type

6 half shells (5 main, 1 thrust)

..............................................................

Pistons

Type

Graphite compound skirt with combustion chamber in

.................................................................................

crown.

Clearance in cylinder bore

0.172 - 0.206 mm (measured at bottom of skirt, 90

°

to

...............................................

gudgeon pin)

Diameter

84.270 - 85.254 mm (measured 90

°

to gudgeon pin,

..........................................................................

and 40.00 mm from bottom of skirt.)

04

GENERAL SPECIFICATION DATA

2

INFORMATION

Gudgeon pins

Type

Fully floating, offset towards piston thrust side.

.................................................................................

Piston rings

Type

Upper compression

Barrel edge, chrome plated

.................................................

Lower compression

Taper faced

.................................................

Oil control

Bevelled ring with spring

................................................................

New ring to groove clearance

Upper compression

Not measured

.................................................

Lower compression

0.050 - 0.082 mm (0.002 - 0.003 in)

.................................................

Oil control

0.050 - 0.082 mm (0.002 - 0.003 in)

................................................................

Piston ring fitted gap in cylinder bore

Upper compression

0.30 - 0.45 mm (0.0118 - 0.0177 in)

.................................................

Lower compression

0.40 - 0.60 mm (0.0157 - 0.0236 in)

.................................................

Oil control

0.25 - 0.40 mm (0.0098 - 0.0157 in)

................................................................

Camshaft

Drive

Duplex chain

.................................................................................

End float

0.6 - 0.16 mm

...........................................................................

Number of bearings

6

..........................................................

Tappets

Type

Hydraulic lash adjusters with followers

.................................................................................

Valves

Stem diameter

Exhaust

6.905

±

0.008 mm (0.271

±

0.0003 in)

...................................................................

Inlet

6.915

±

0.008 mm (0.272

±

0.0003 in)

.........................................................................

Head diameter

Exhaust

31.7 mm (1.25 in)

...................................................................

Inlet

34.7 mm (1.37 in)

.........................................................................

Seat face angle

Exhaust

45

°

...................................................................

Inlet

30

°

.........................................................................

Valve face angle

Exhaust

44

°

48’

±

12’

...................................................................

Inlet

29

°

48’

±

12’

.........................................................................

Valve springs

Type

Parallel, single coil

.................................................................................
