Defender Electric Diagrams. Manual - part 263

413-01 - INSTRUMENT CLUSTER

DEFENDER  (LHD) - VIN: 751063 > -

(03 / 03)

22

YP,0.75D

(110)

YP,0.75D

(90)

YP,0.75D

(130)

GO,0.75D

(130)

GO,0.75D

(110)

GO,0.75D

(90)

YP,0.75D

GO,0.75D

B

Sheet1

C1759-11

C0376-11

C1763-11

A

Sheet1

C0390-10

C0376-10

C0390-11

C1763-10

C1759-10

Unit-Fuel Tank (D179)

Fuel level (J111)

Sensor-

Unit-Fuel Tank (D179)

Fuel level (J111)

Sensor-

C0114-1

C0115-2

C0115-1

C0114-2

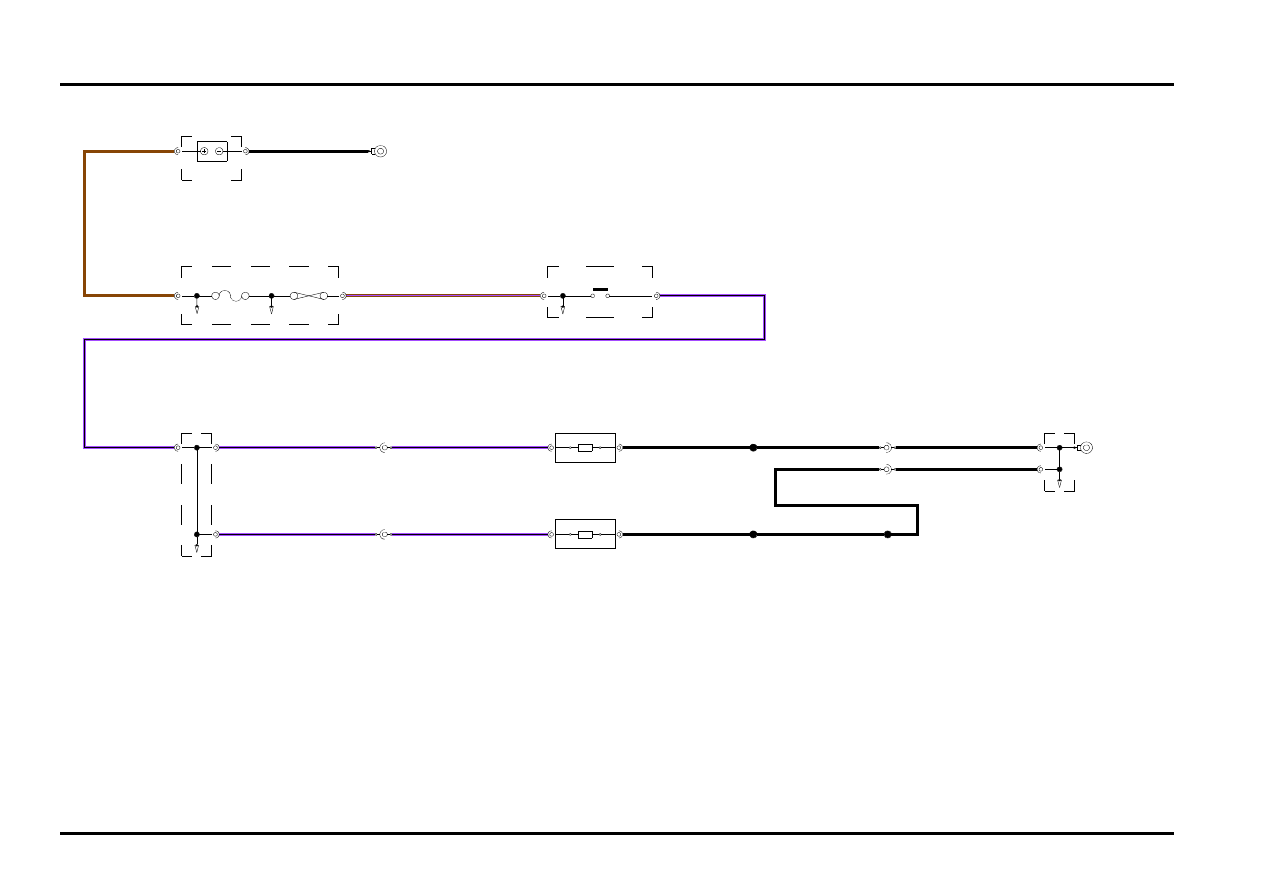

413-06 - HORN

DEFENDER  (LHD) - VIN: 751063 > -

(01 / 01)

23

413-06 - HORN

N,10.0D

PB,1.5D

NP,1.5D

PB,0.75D

PB,0.75D

B,1.5D

B,1.5D

B,1.5D

PB,0.75D

B,0.75D

PB,0.75D

B,0.75D

B,1.5D

B,1.5D

B,40.0D

C1264-6 C1265-6

C1266-6 C1267-6

Header (K109)

Junction box-Battery (P147)

LINK 1

100.0 Amps

FUSE 3

20.0 Amps

Horn-RH (L103)

Horn-LH (L102)

Switch-Horn (S104)

Switch-Column (S123)

C1265-3 C1264-3

Header-Earth (K108)

C1267-3 C1266-3

Battery (P100)

12.0 Volts

C0287-9

C0287-7

C0287-10

C0632-1

C0572-1

C0003-2

C0003-1

A126,A130

C0004-2

C1739-7

C0004-1

A203,A212

C1739-8

C0550-6

B130

C0550-7

C1661-1

C0045-1

C0192-1

413-07 - CLOCK

DEFENDER  (LHD) - VIN: 751063 > -

(01 / 01)

24

413-07 - CLOCK

N,10.0D

NK,4.0D

PN,0.5D

PN,0.5D

B,2.0D

B,0.5D

PN,0.5D

PN,0.5D

B,40.0D

Battery (P100)

Junction box-Central (P101)

FUSE 30

10.0 Amps

Junction box-Battery (P147)

LINK 1

100.0 Amps

LINK 2

60.0 Amps

Clock-Analogue (J107)

Header (K109)

Header-Earth (K108)

12.0 Volts

C0583L-1

C0583L-6

C0632-1

C0570-1

C0232-5

A79

C0232-6

SJ13

C0287-14

A724

C0287-11

C0550-8

C1661-1

C0045-1

C0192-1

414-01 - BATTERY, MOUNTING AND CABLES

Header joints

DEFENDER  (LHD) - VIN: 751063 > -

(01 / 05)

25

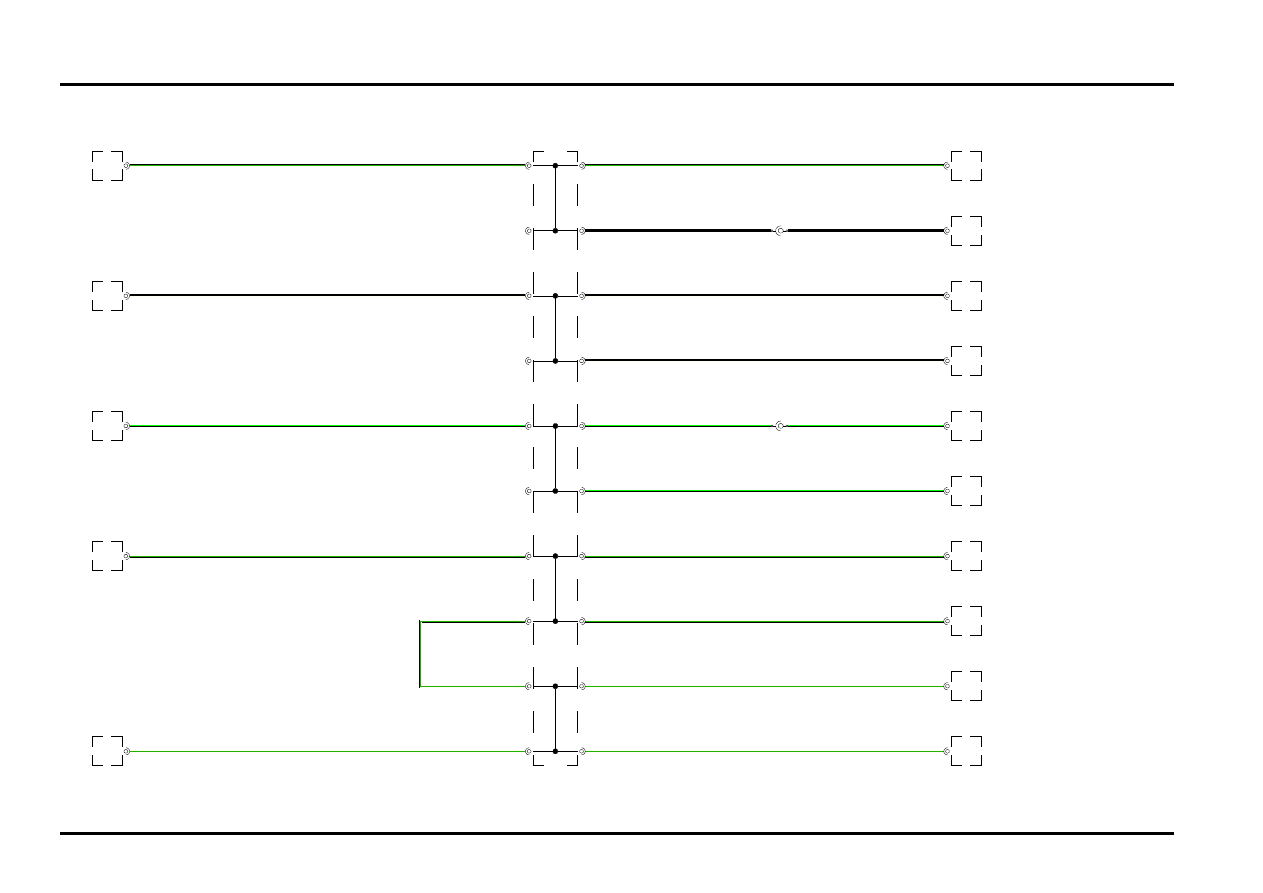

414-01 - BATTERY, MOUNTING AND CABLES

Header joints

LGB,0.5D,485

LGB,0.5D,720

WB,0.5D,675

WB,0.5D,490

B,0.5D,720

WG,0.5D,690

WG,0.5D,2420

WG,0.5D,530

WG,0.5D,830

WG,0.5D,675

WG,0.5D,0

WG,0.5D,455

LGB,0.5D,570

WG,0.5D,420

WB,0.5D,830

WG,0.5D,420

LGB,0.5D,1415

B,0.5D,1465

Header (K109)

lift (R143)

Relay-Window-

Junction box-Central (P101)

Windscreen (S117)

Switch-Wash/wipe-

Junction box-Central (P101)

Instrument cluster (J100)

front screen (D247)

Unit-Timer-Heated-

Relay-Headlamp (R123)

Windscreen (M153)

Pump-Washer-

wiper (D113)

ECU-Delay-Windscreen-

rear screen (S120)

Switch-Heated-

Instrument cluster (J100)

rear screen (S120)

Switch-Heated-

C1264-12 C1265-12

Sounder-Battery backed (D154)

rear screen (R138)

Relay-Heated-

ECU-Alarm (D111)

C1264-10 C1265-10

C0285-19

C0285-17

C0285-15

C0285-14

C0285-11

C0285-9

C3416L-85

C0285-6

C0285-8

C0285-5

C0285-7

C0580L-16

C1740-2

C0285-20

NOT USED (V101)

C0285-4

C0285-2

C0285-3

C0285-1

C0285-16

NOT USED (V101)

C0285-18

C1040L-19

C0580L-2

C0285-12

NOT USED (V101)

C0285-13

C0285-10

C0282L-86

C1624-4

C0303L-6

C0072-1

C1040L-2

C0008-2

C0072-4

C0666-1

C0044L-86

C0061L-10
