Defender Electric Diagrams. Manual - part 144

C0381

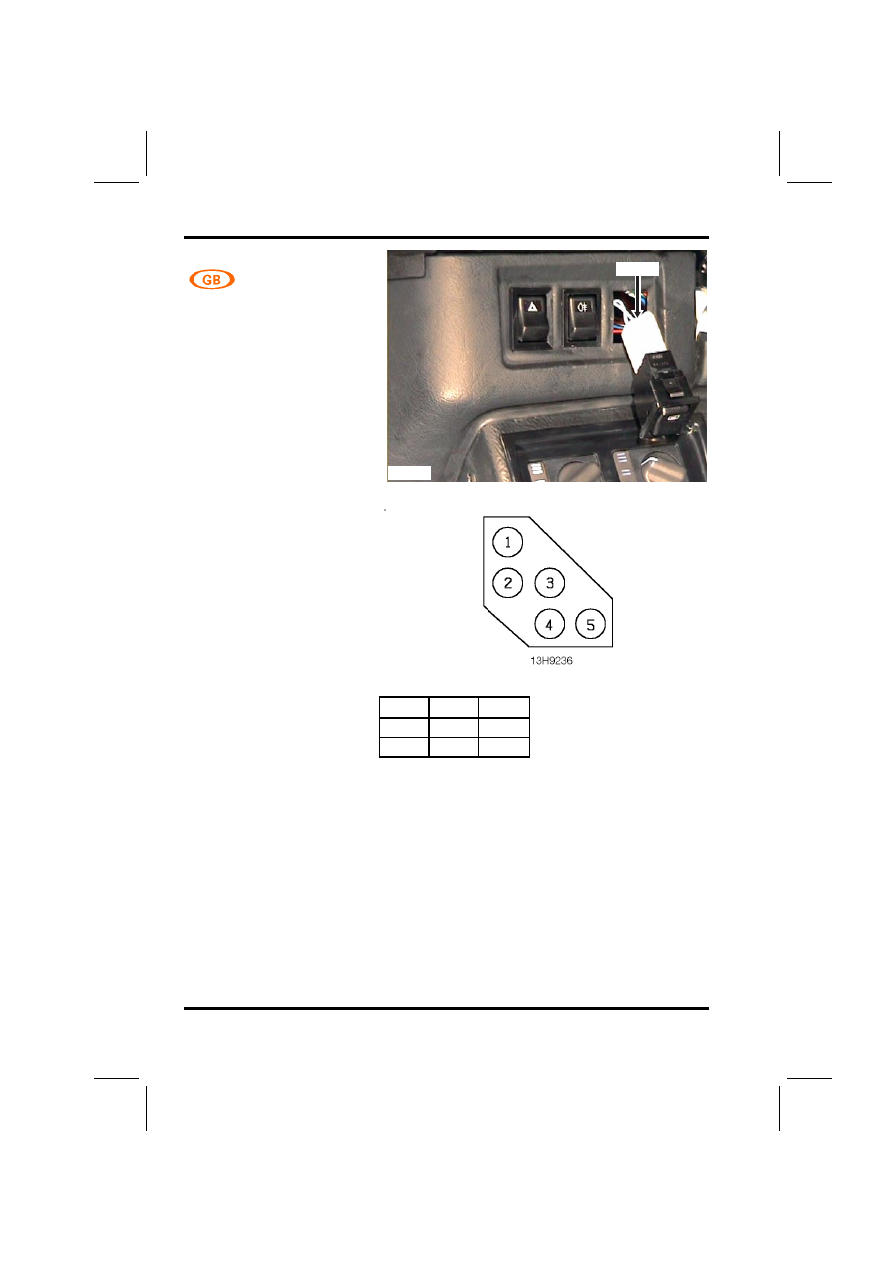

CONNECTOR

DEFENDER 1999 MY

Switch - Heated rear screen

Female
NATURAL

Adjacent steering column

P5664

C0381

Cav

Col

CCT

2

WG

ALL

4

WG

ALL

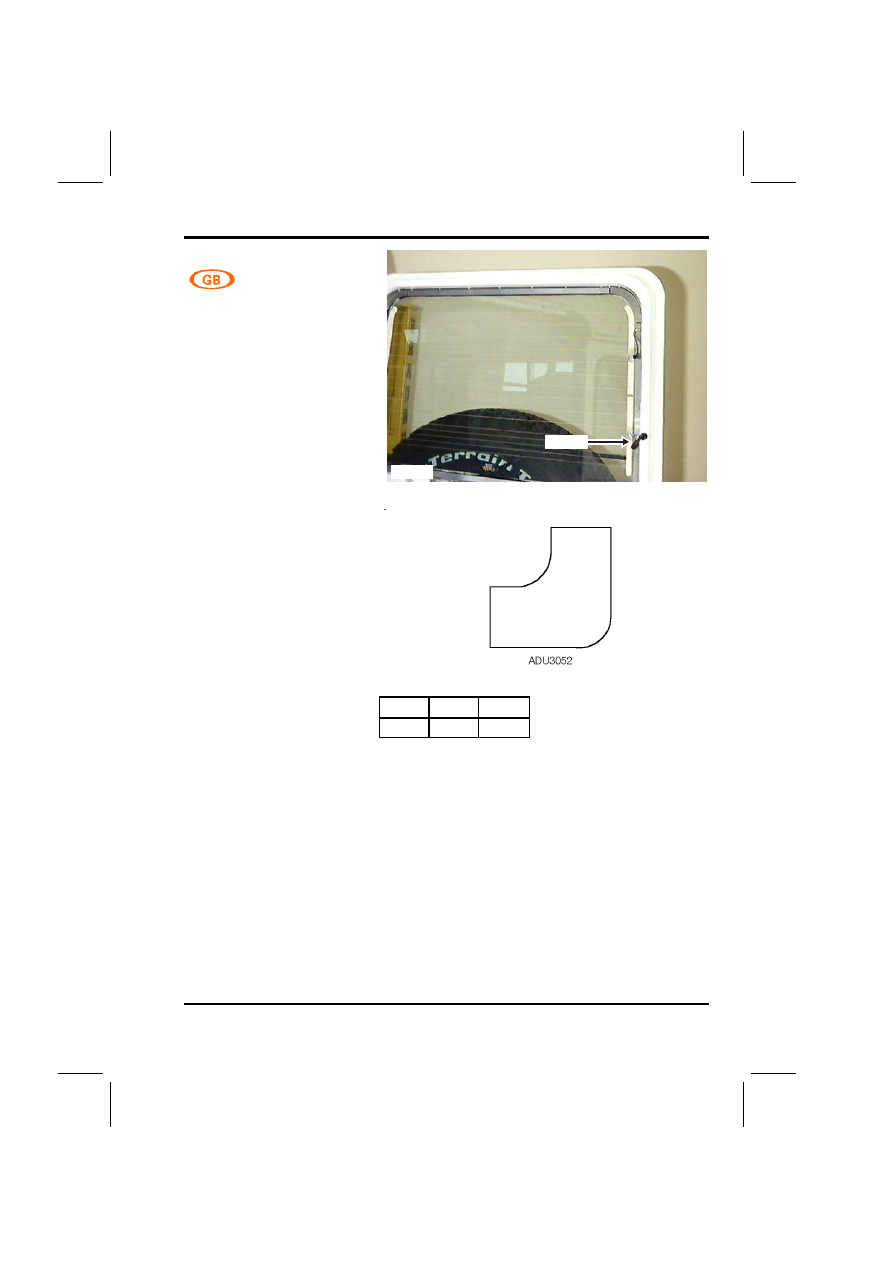

CONNECTOR

C0382

DEFENDER 1999 MY

Heater element - Rear
screen

Female
TIN-PLATE

LH side of tail door

P5815

C0382

Cav

Col

CCT

1

WB

ALL

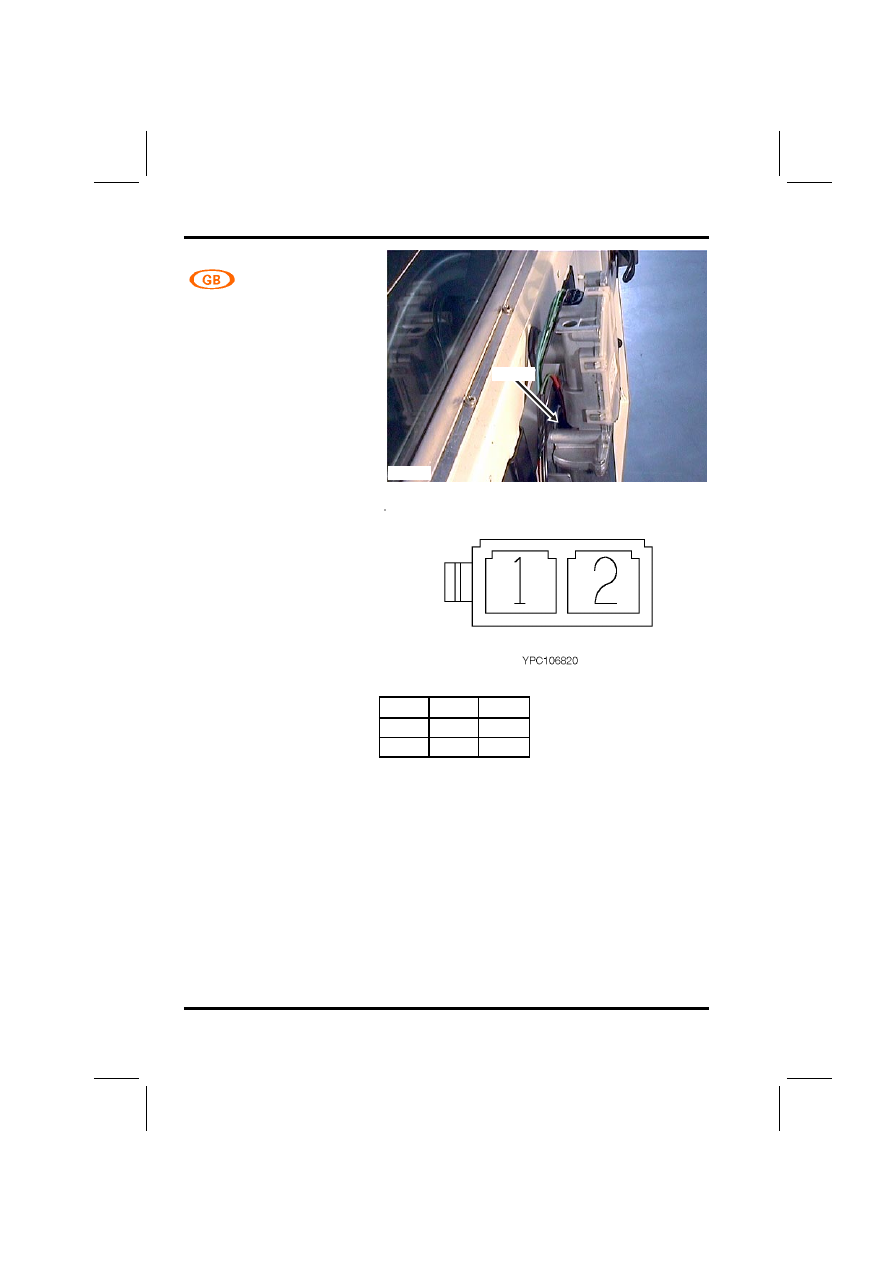

C0388

CONNECTOR

DEFENDER 1999 MY

Motor - Wiper - Rear screen

Female
BLACK

Behind rear door trim panel

P5651

C0388

Cav

Col

CCT

1

B

ALL

2

RLG

ALL

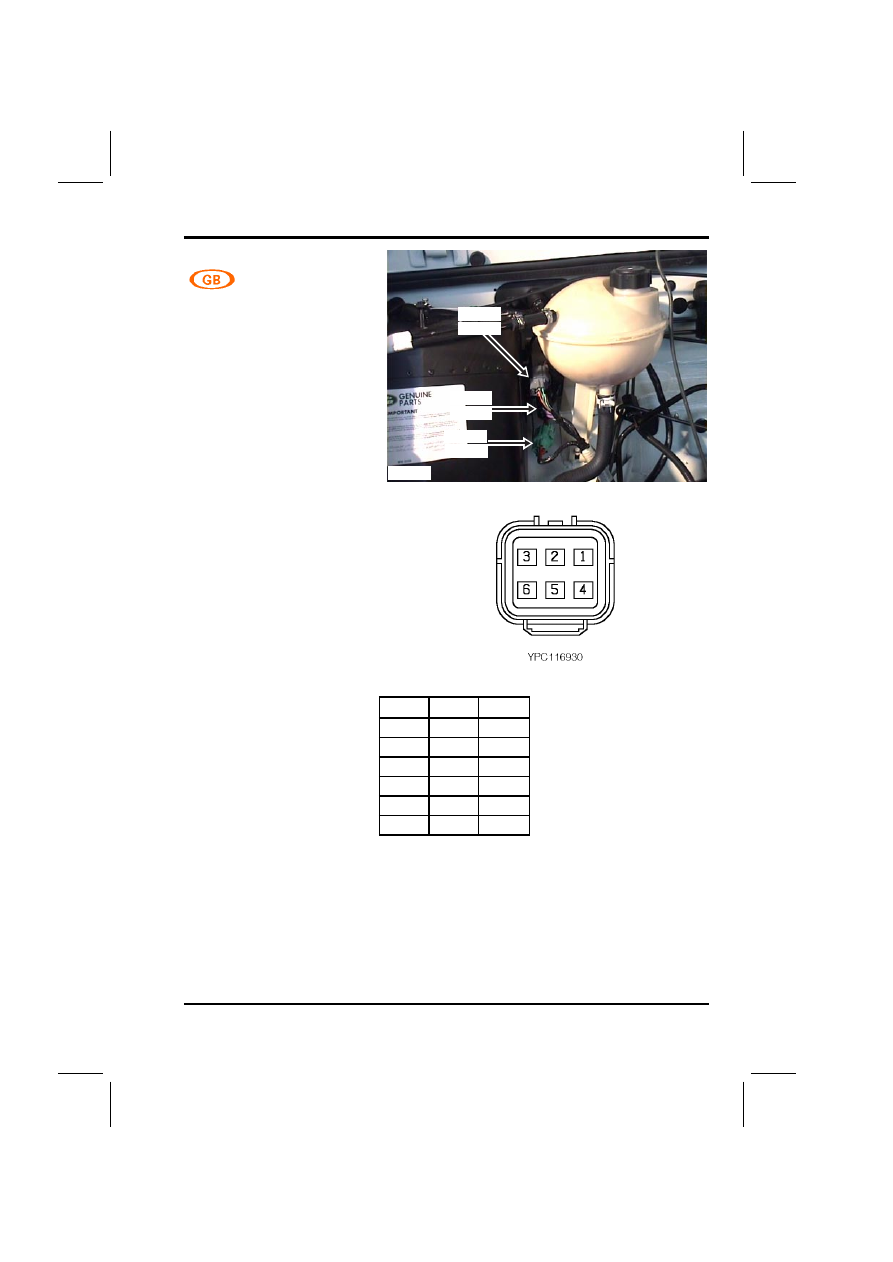

CONNECTOR

C0390

DEFENDER 1999 MY

Chassis harness to main
harness

Male
GREEN

Rear of engine
compartment

P5562

C0378

C0391

C0377

C0392

C0376

C0390

Cav

Col

CCT

1

RO

ALL

2

RB

ALL

3

RY

ALL

4

GR

ALL

5

GW

ALL

6

GP

ALL
