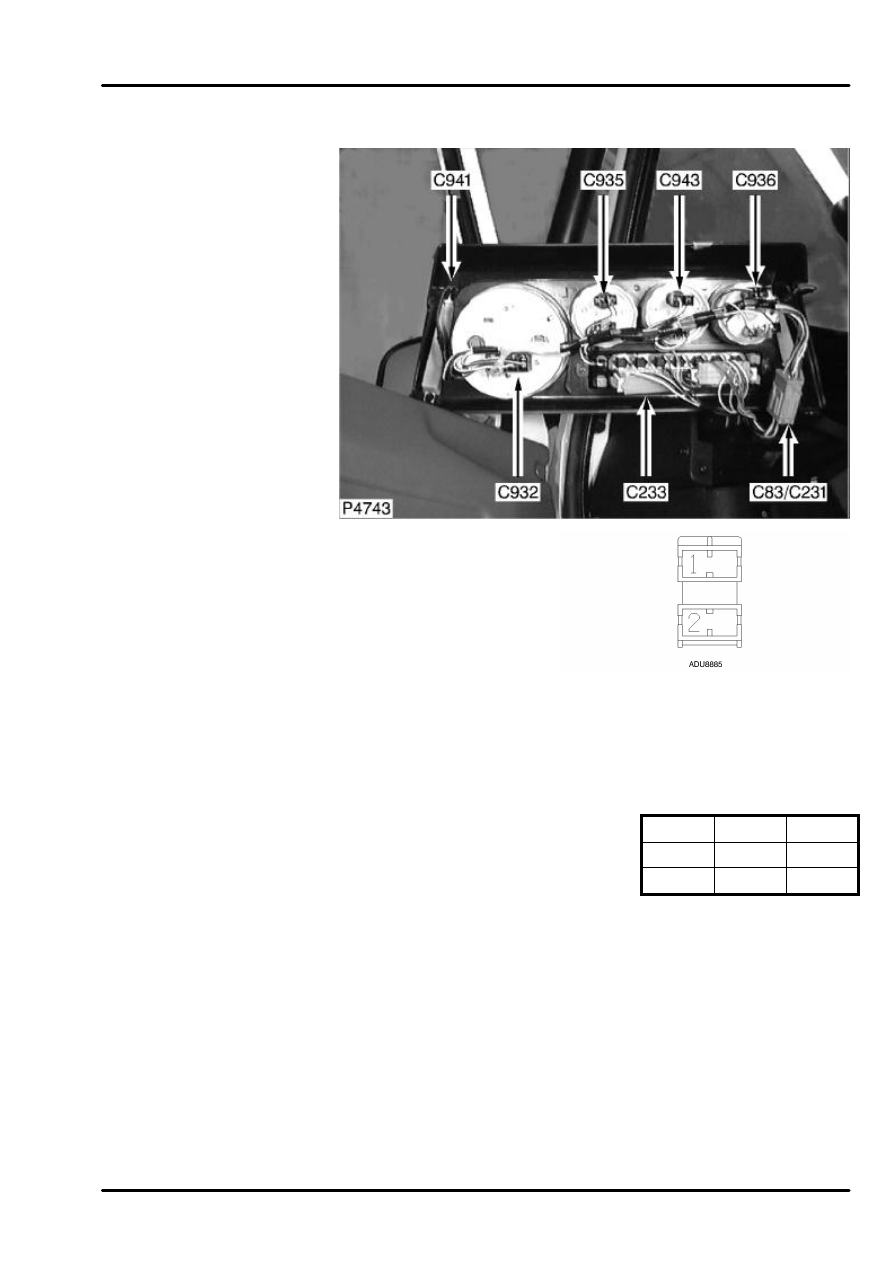

   CONNECTOR DETAILS

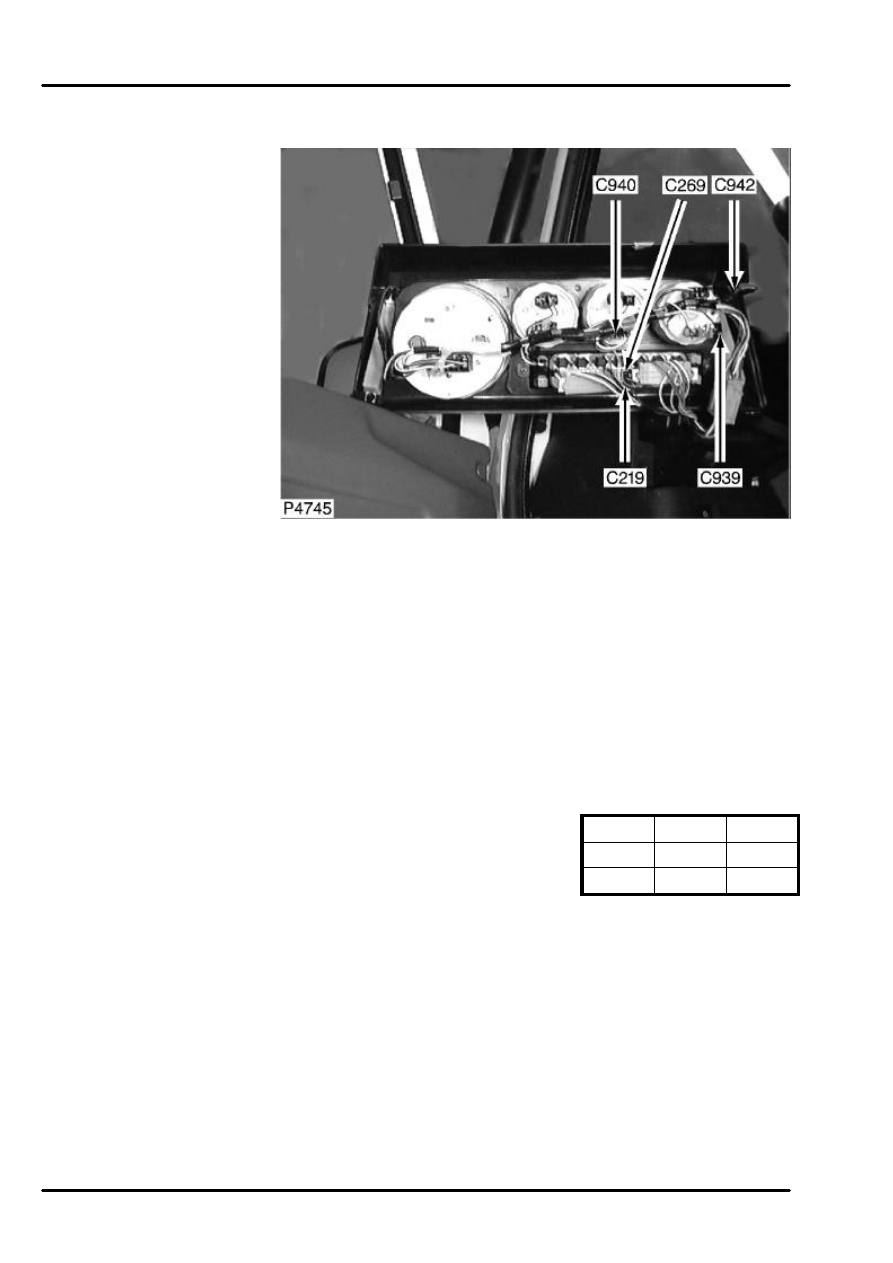

DEFENDER 90 NAS

C942

C942
HEATER
ILLUMINATION - LH

Behind instrument pack

t:\compuset\erl\faceview\51101215.tif

Cav

Color Cct

1

RW

ALL

2

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C943

C943
TEMPERATURE
GAUGE
ILLUMINATION
2 Way
Female
BLACK
Behind instrument pack

Cav

Color Cct

1

RW

ALL

2

B

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C944

C944
LINK CONNECTOR
3 Way
Male
NATURAL
Headlining - Front LH
side

Cav

Color Cct

1

B

ALL

2

PU

ALL

3

P

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C945

C945
LINK CONNECTOR
3 Way
Female
NATURAL
Headlining - Front LH
side

Cav

Color Cct

1

B

ALL

2

PU

ALL

3

P

ALL
