   CONNECTOR DETAILS

DEFENDER 90 NAS

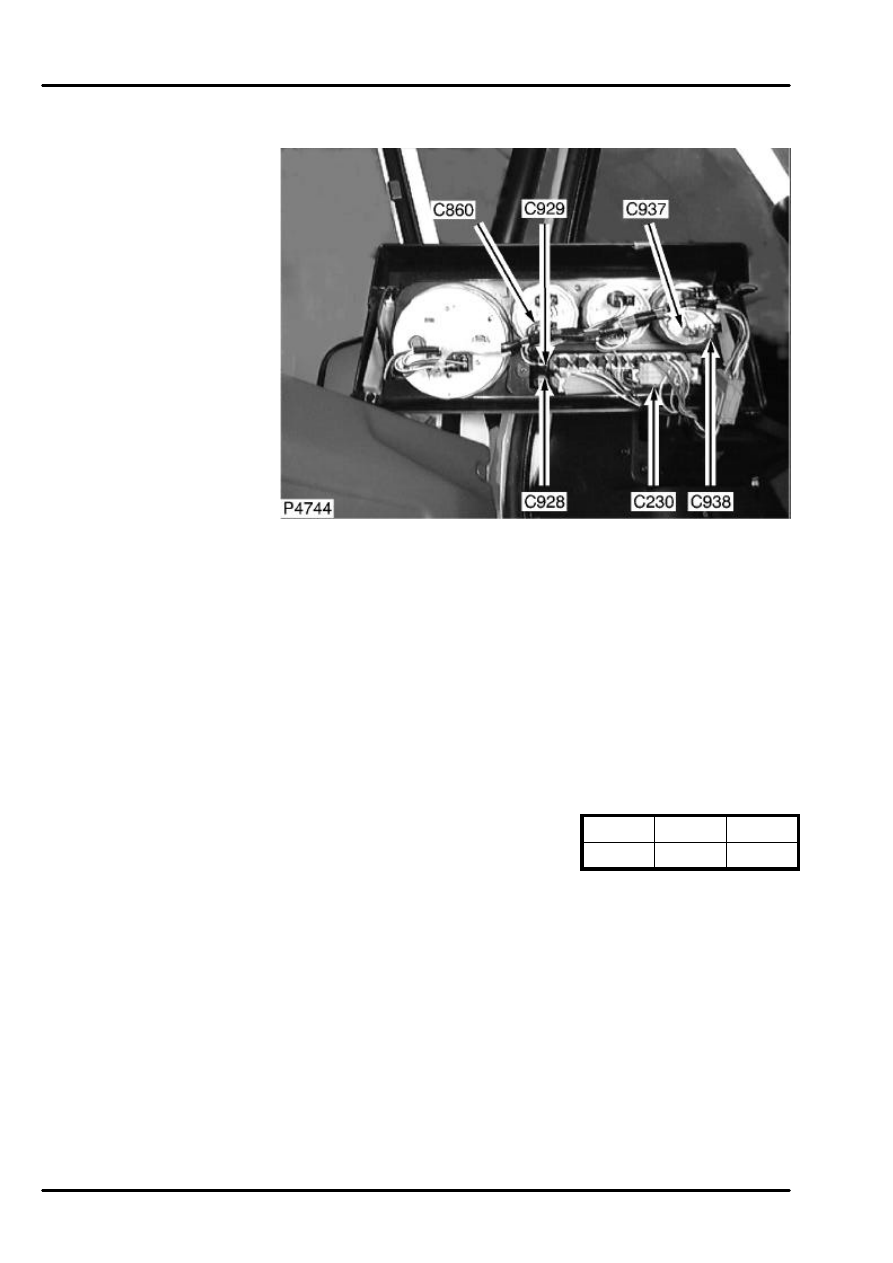

C928

C928
HEATER REAR
WINDOW

Behind instrument pack

t:\compuset\erl\faceview\51100465.tif

Cav

Color Cct

1

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

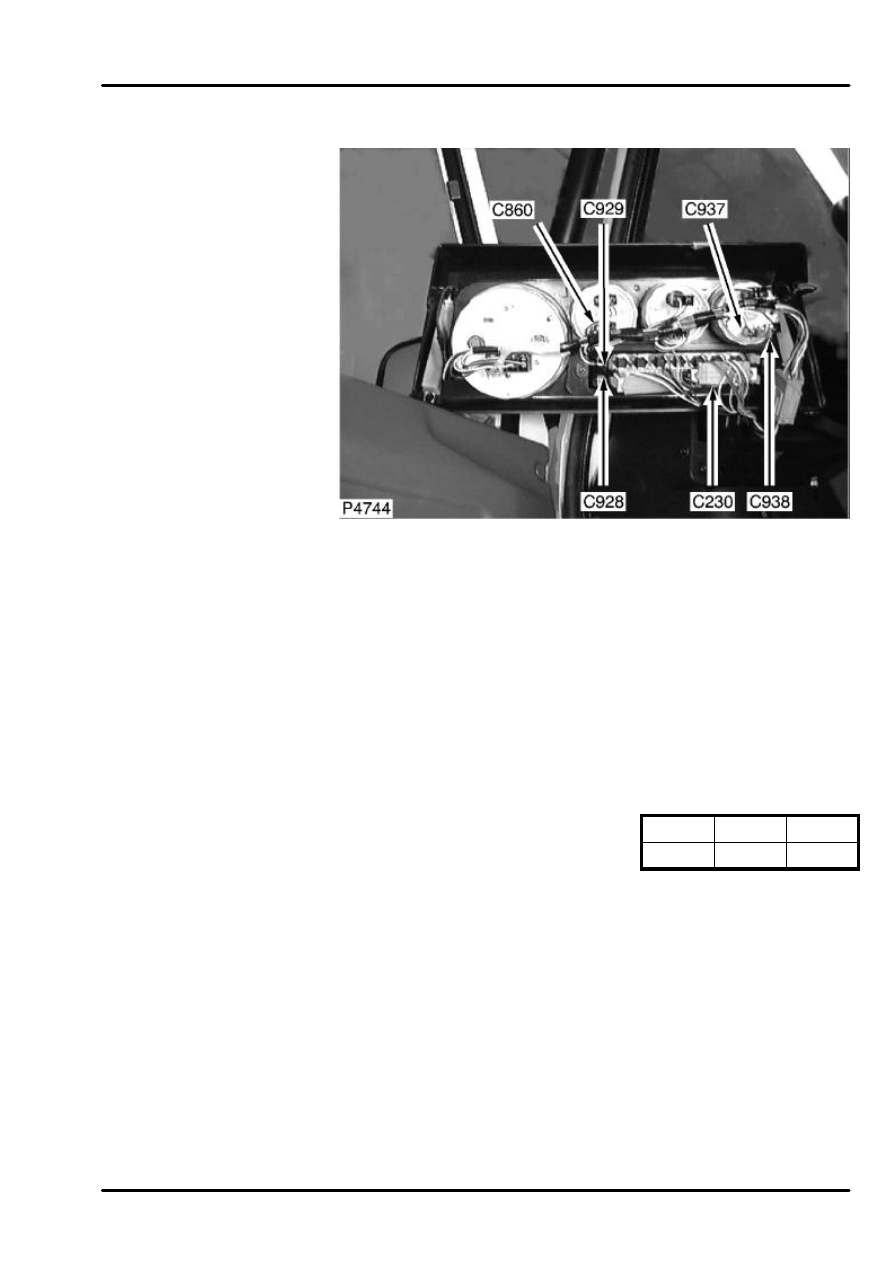

C929

C929
HEATER REAR
WINDOW

Behind instrument pack

t:\compuset\erl\faceview\51100465.tif

Cav

Color Cct

1

WB

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C930

C930
INTERIOR LIGHT
HARNESS TO CHASSIS
HARNESS
2 Way
Female
BLACK
Behind RH rear speaker

Cav

Color Cct

1

P

ALL

2

PU

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C931

C931
CHASSIS TO
INTERIOR LAMP
HARNESS
2 Way
Male
BLACK
Behind RH rear speaker

Cav

Color Cct

1

P

ALL

2

PU

ALL
