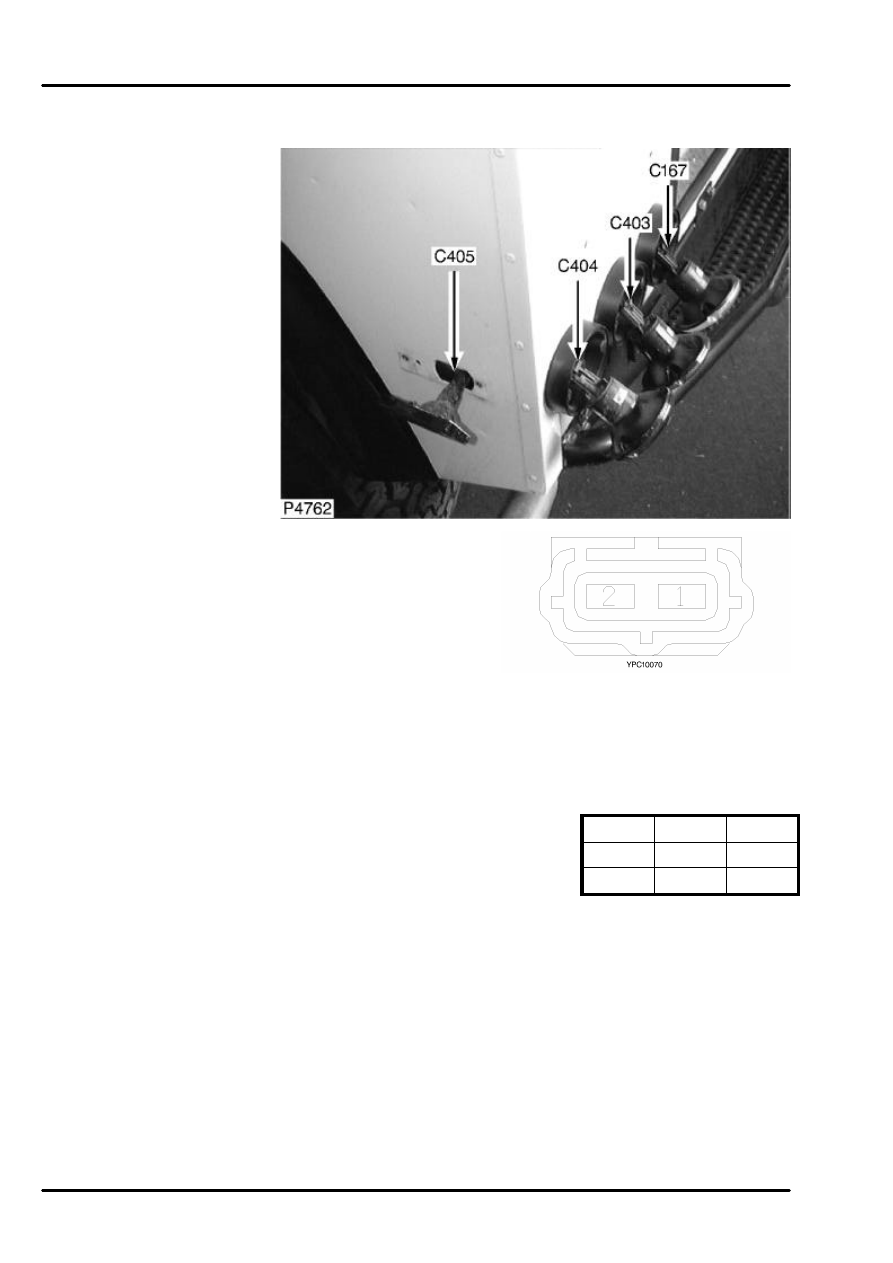

   CONNECTOR DETAILS

DEFENDER 90 NAS

C167

C167
REVERSE LAMP
2 Way
Female
BLACK
Behind lamp

Cav

Color Cct

1

B

ALL

2

GN

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C168

C168
CKP SENSOR
2 Way
Female
NATURAL
LH side of engine

Cav

Color Cct

SCR

SCR

ALL

1

G

ALL

2

N

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C175

C175
TP SENSOR
3 Way
Female
BLACK
Top of engine - LH side

Cav

Color Cct

1

R

ALL

2

YLG

ALL

3

RB

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C176

C176
CMP SENSOR
3 Way
Female
BLACK
Bottom of engine - RH
side

Cav

Color Cct

1

RB

ALL

2

SU

ALL

3

NO

ALL
