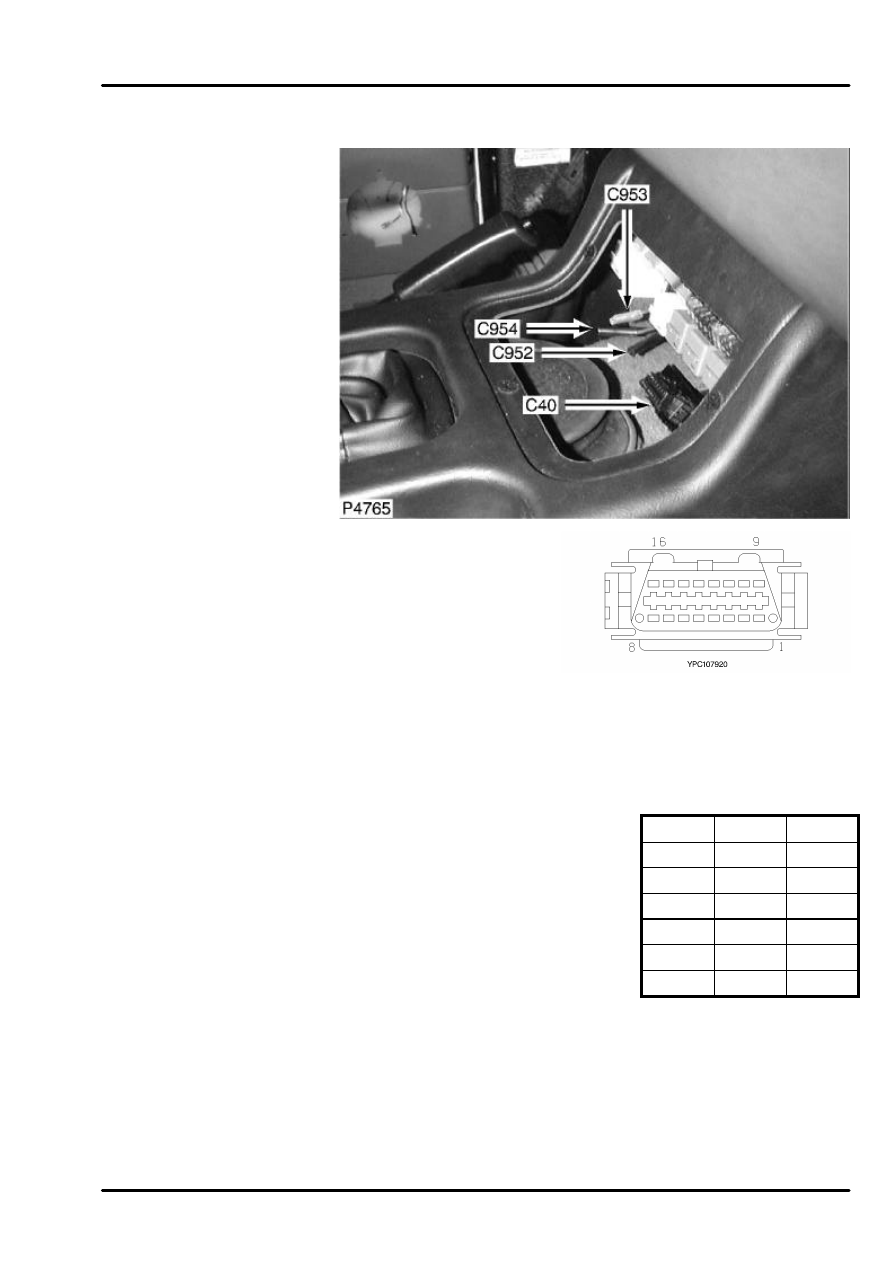

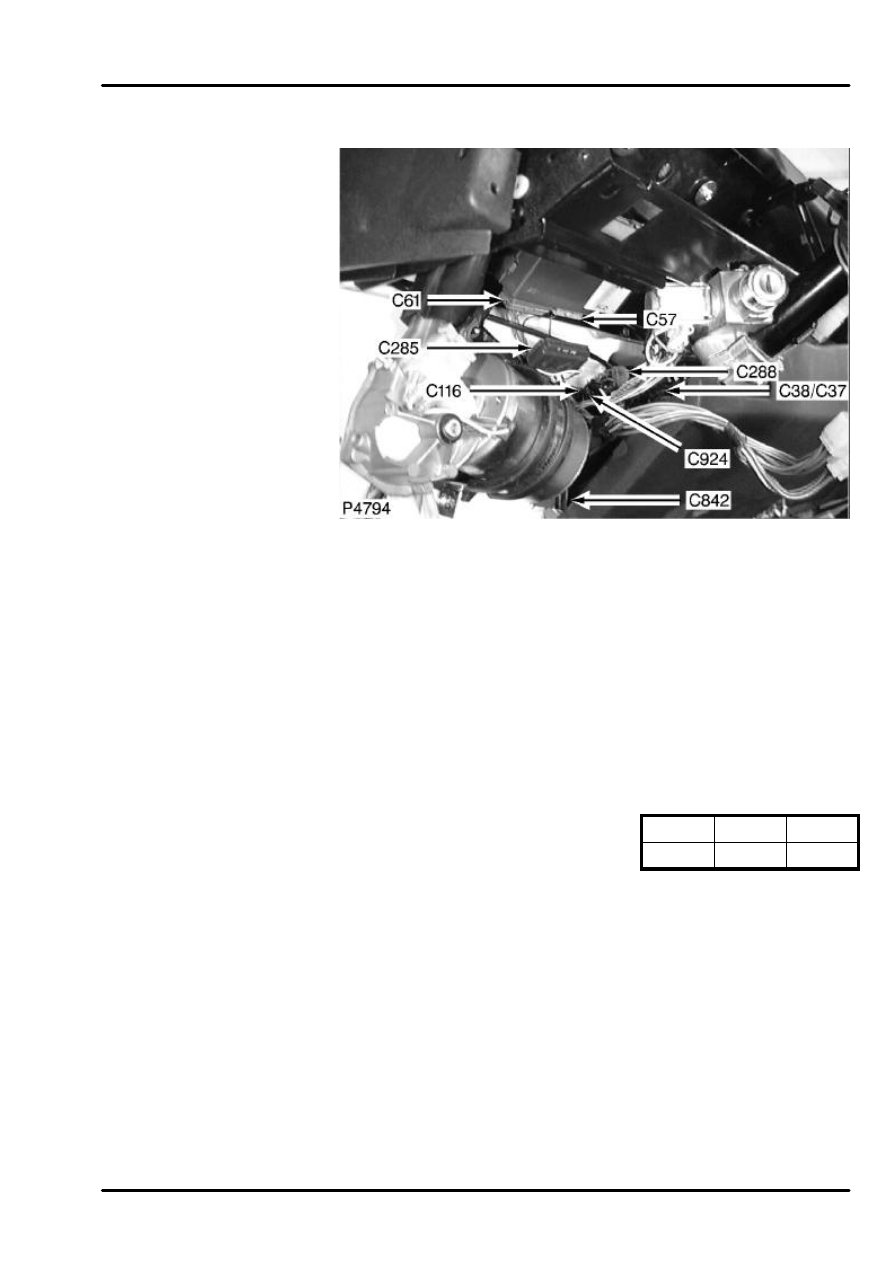

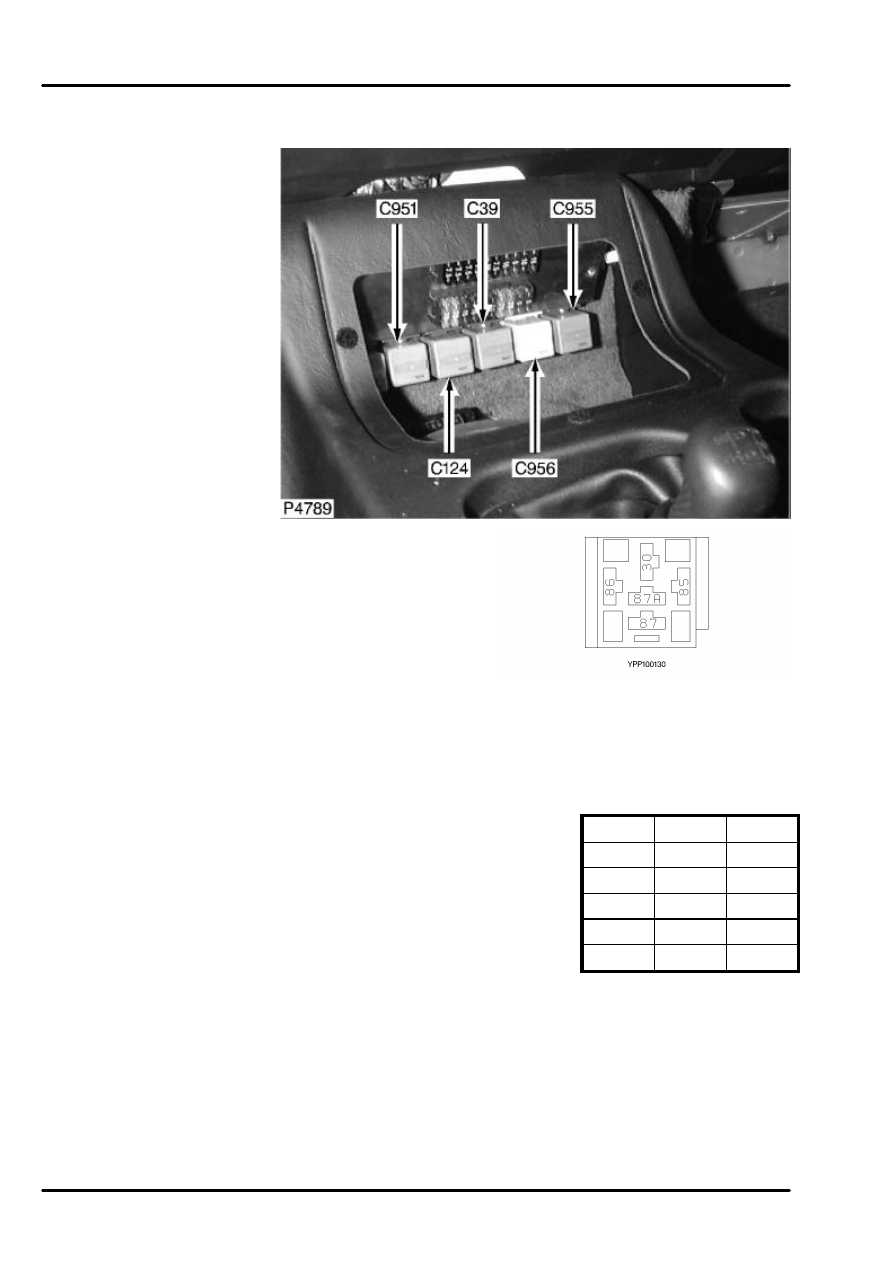

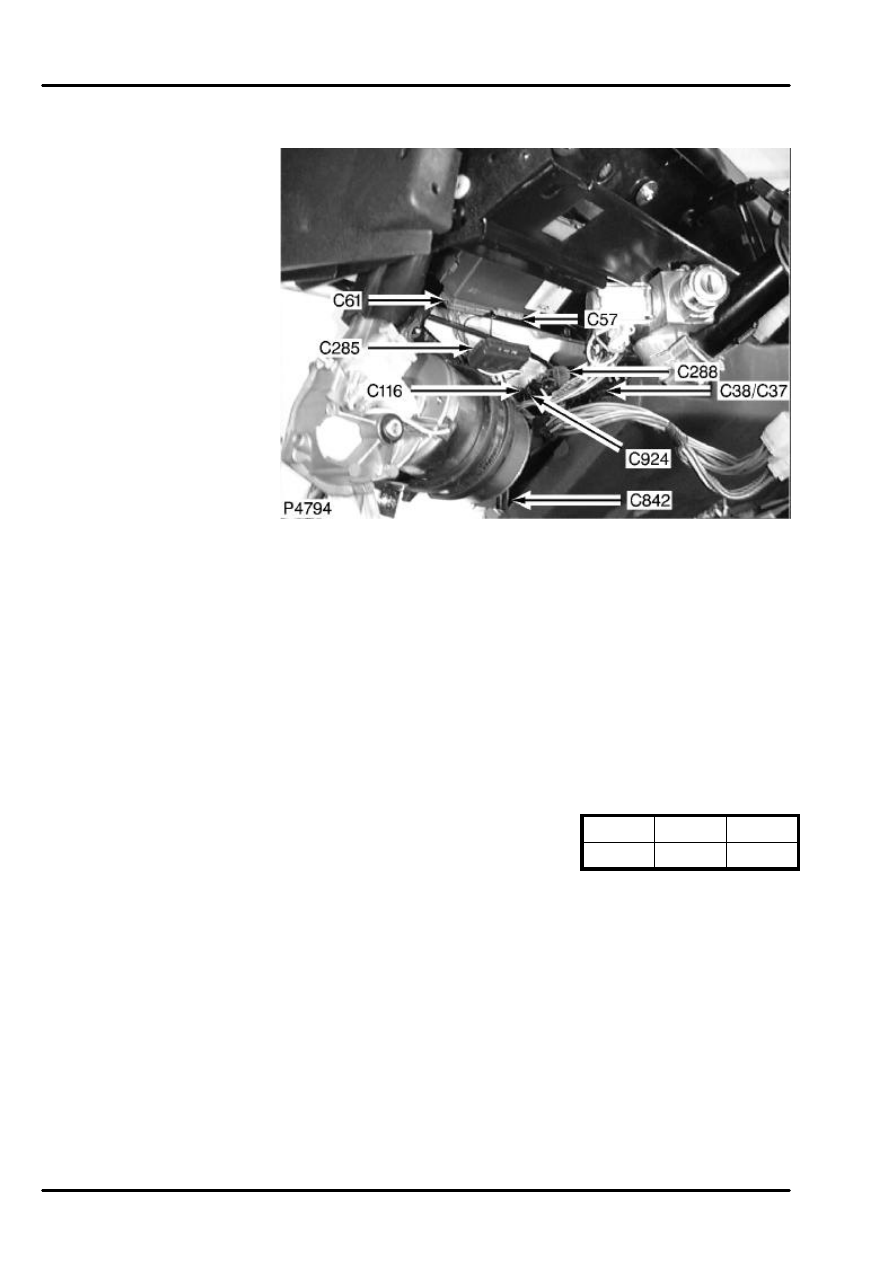

   CONNECTOR DETAILS

DEFENDER 90 NAS

C37

C37
RESISTOR

Female
BRASS,ANTI-RUST
TREATMENT
Behind dash trim panel

t:\compuset\erl\faceview\YPF10024.tif

Cav

Color Cct

2

YN

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C38

C38
RESISTOR

Female
BRASS,ANTI-RUST
TREATMENT
Behind dash trim panel

t:\compuset\erl\faceview\YRE10019.tif

Cav

Color Cct

1

W

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C39

C39
RELAY - FRONT
WIPERS
5 Way
Female
GREEN
Behind front of center
console

Cav

Color Cct

30

YLG

ALL

85

NS

ALL

86

G

ALL

87A

NLG

ALL

87

G

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C40

C40
DIAGNOSTIC
CONNECTOR
16 Way
Female
BLACK
Behind front of center
console

Cav

Color Cct

4

B

ALL

5

B

ALL

7

WLG

ALL

8

OLG

ALL

15

WK

ALL

16

P

ALL
