Defender. Manual - part 271





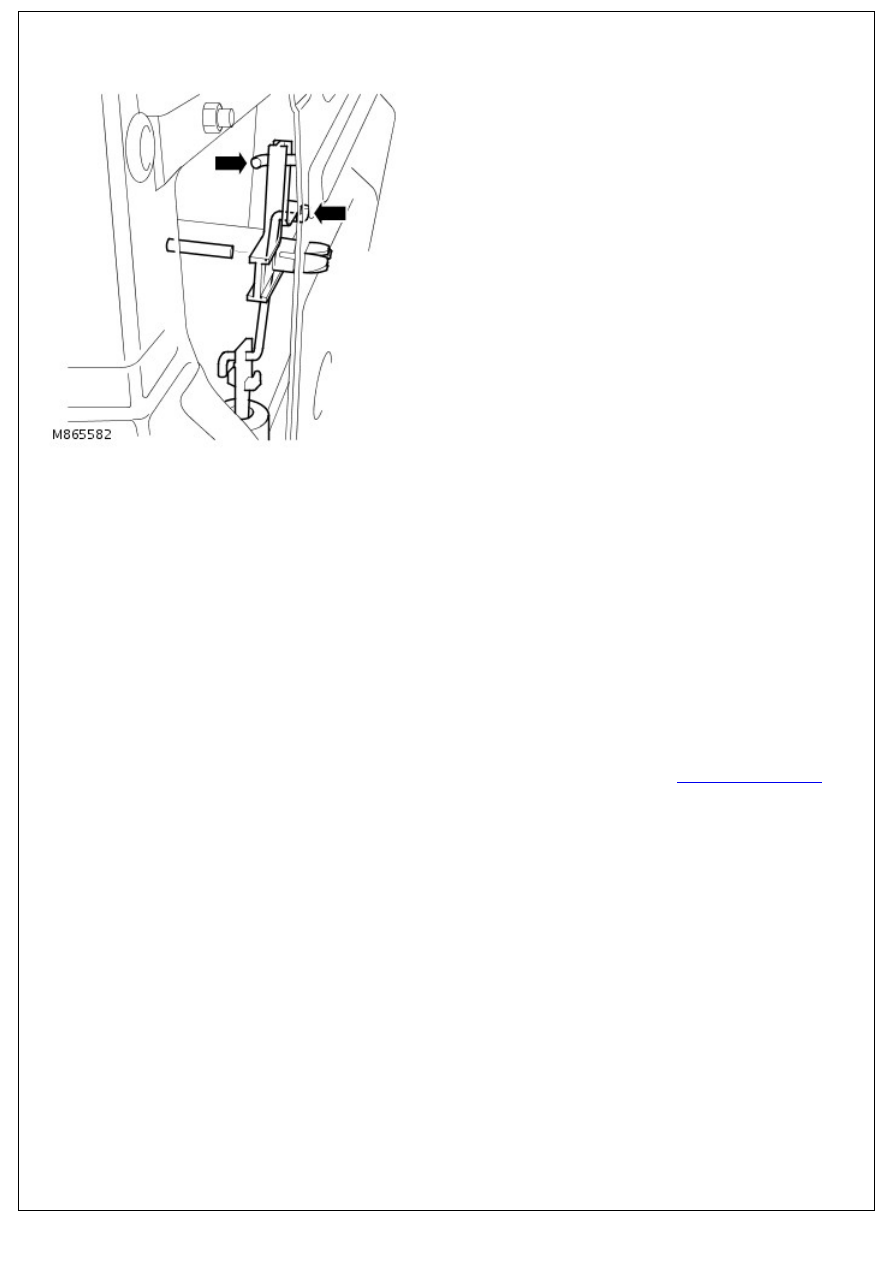

9. Remove centre pin from bellcrank pivot and release pivot

from mounting panel.

10. Release bellcrank from sill button link and remove from

lock solenoid link.

11. Remove door lock solenoid.
12. Remove link from solenoid.

Installation

1. Install link to solenoid, position solenoid, install bellcrank and

connect to sill button link.

2. Secure bellcrank to mounting panel and install centre pin.
3. Align solenoid and install and tighten screws.
4. Connect multiplug to solenoid.
5. Install mounting panel bolts and tighten all bolts and nut to

10 Nm (7 lbf.ft).

6. Connect interior handle link to latch and secure with clip.
7. Install and secure solenoid link.
8. Install plastic sheet.
9. Install door trim panel.

For additional information, refer to:

Rear Door Trim Panel

(501-05 Interior Trim and Ornamentation, Removal and

Installation).

Handles, Locks, Latches and Entry Systems - Rear Door Push Button Rod

and Linkage

Removal and Installation

Removal

1. Remove door trim panel.

For additional information, refer to:

Rear Door Trim Panel

(501-05 Interior Trim and Ornamentation, Removal and

Installation).

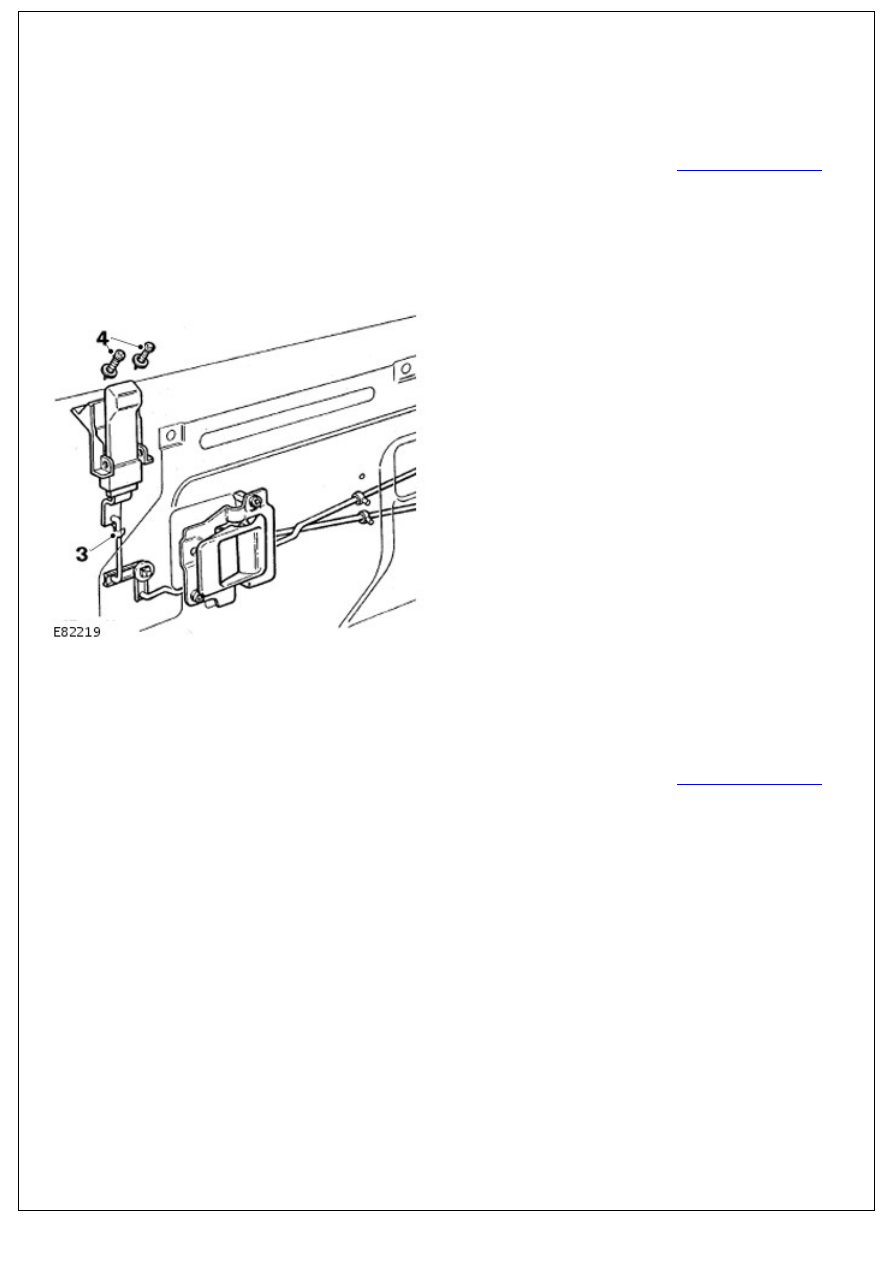

2. Peel back sufficient of plastic sheet to reveal mechanism.
3. Release spring clip securing button to operating rod and

withdraw rod from button.

4. Remove 2 screws securing button to door panel and

remove button.

Installation

1. Secure locking button assembly to door panel with 2 screws.
2. Install operating rod to button assembly and secure with

spring clip.

3. Re-seal plastic sheet and install door trim panel.

For additional information, refer to:

Rear Door Trim Panel

(501-05 Interior Trim and Ornamentation, Removal and

Installation).

Handles, Locks, Latches and Entry Systems - Taildoor Latch

Removal and Installation

Removal

1. Remove the taildoor trim panel.

For additional information, refer to:

Taildoor Trim Panel

 (501-

05 Interior Trim and Ornamentation, Removal and

Installation).

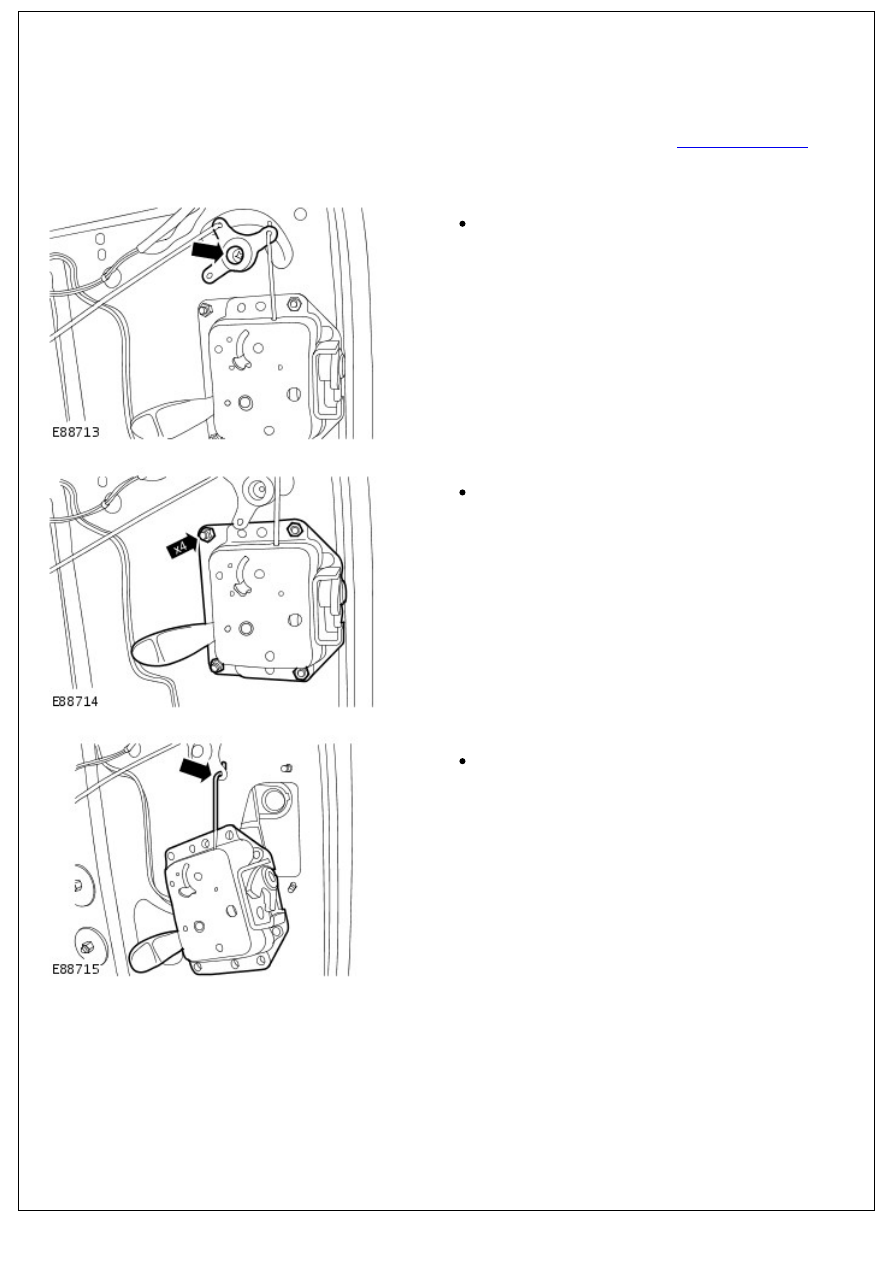

2. Release the central locking control rod pivot.

Remove the screw.

3. Release the taildoor latch.

Remove the 4 nuts.

4. Remove the taildoor latch.

Disconnect the taildoor latch from the control rod

pivot.

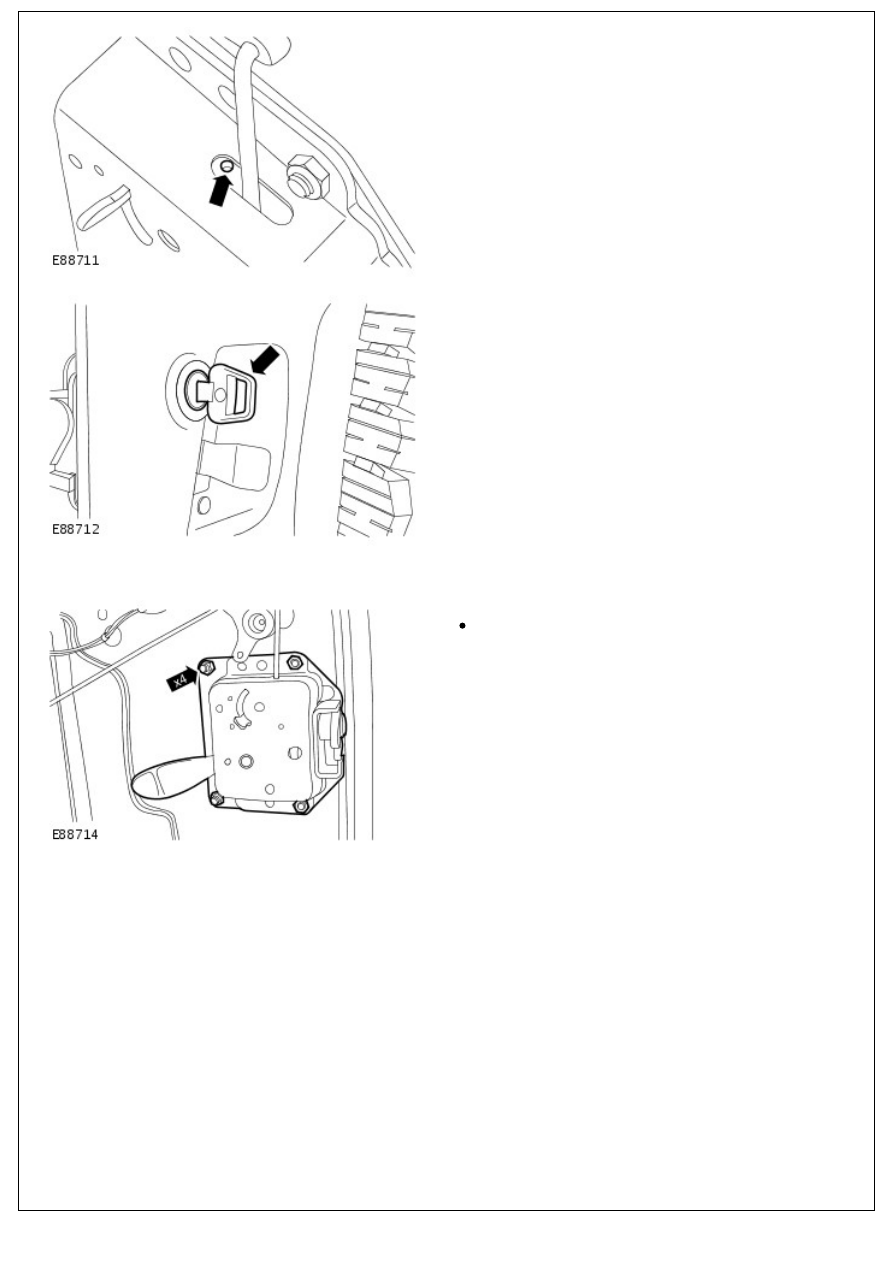

5. NOTE: Do not carry out further dismantling if component is

5. NOTE: Do not carry out further dismantling if component is

removed for access only.

• NOTE: Make sure the latch is in the locked position.

Using a suitable tool release the lock cylinder.

6. Insert the key and remove the lock cylinder.

Installation

1. To install, reverse the removal procedure.

Tighten to 10 Nm (7 lb.ft).
