Defender. Manual - part 265





Instrument Panel and Console - In-Vehicle Crossbeam

Removal and Installation

Removal

1. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and

Connect

 (414-01 Battery, Mounting and Cables, General

Procedures).

2. Remove the instrument panel.

For additional information, refer to:

Instrument Panel

 (501-12

Instrument Panel and Console, Removal and Installation).

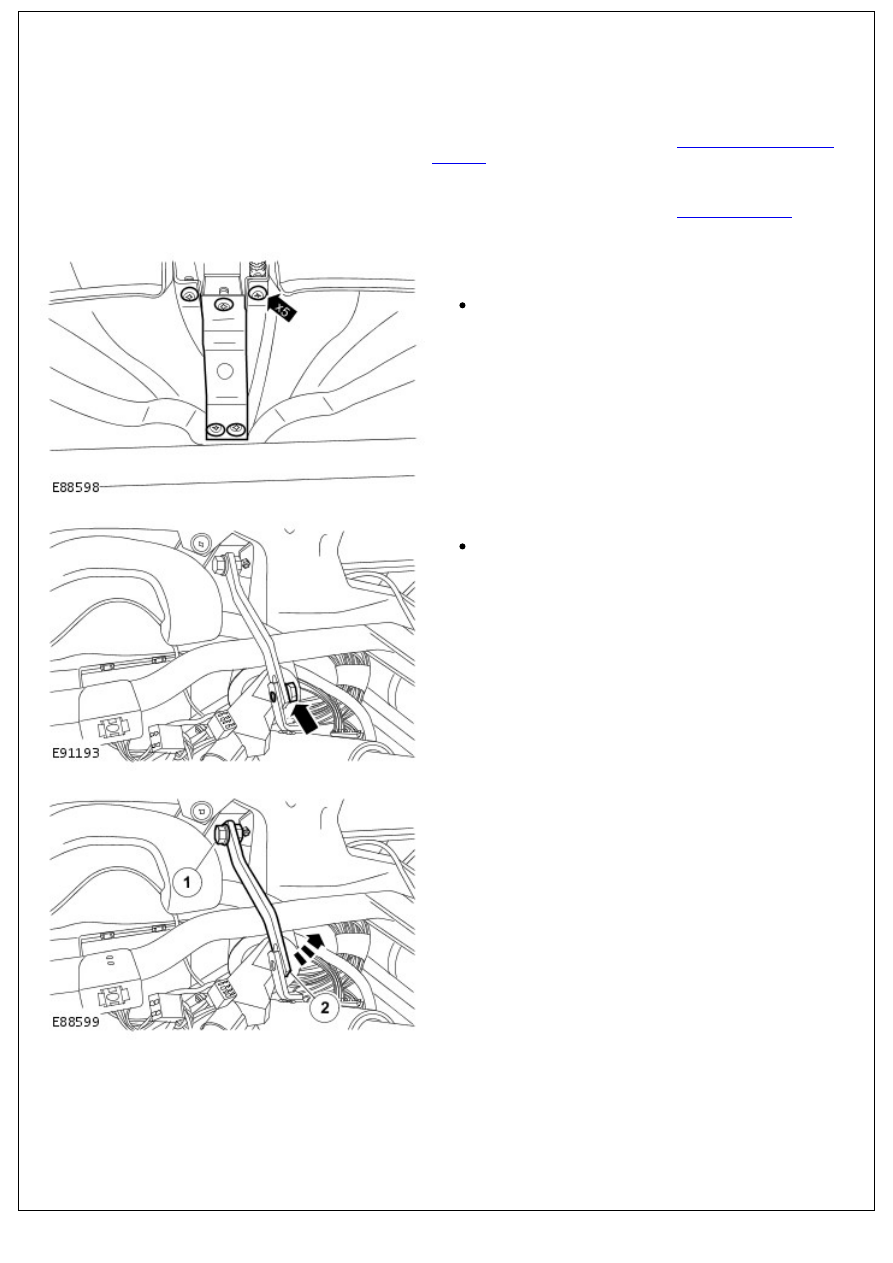

3. NOTE: Make sure the clips are discarded.

Remove the audio unit support bracket.

Remove and discard the 5 clips.

4. Release the steering column bracket.

Remove the bolt.

5. Reposition the steering column bracket.

1. Undo but do not remove the bolt.

2. Reposition the bracket.

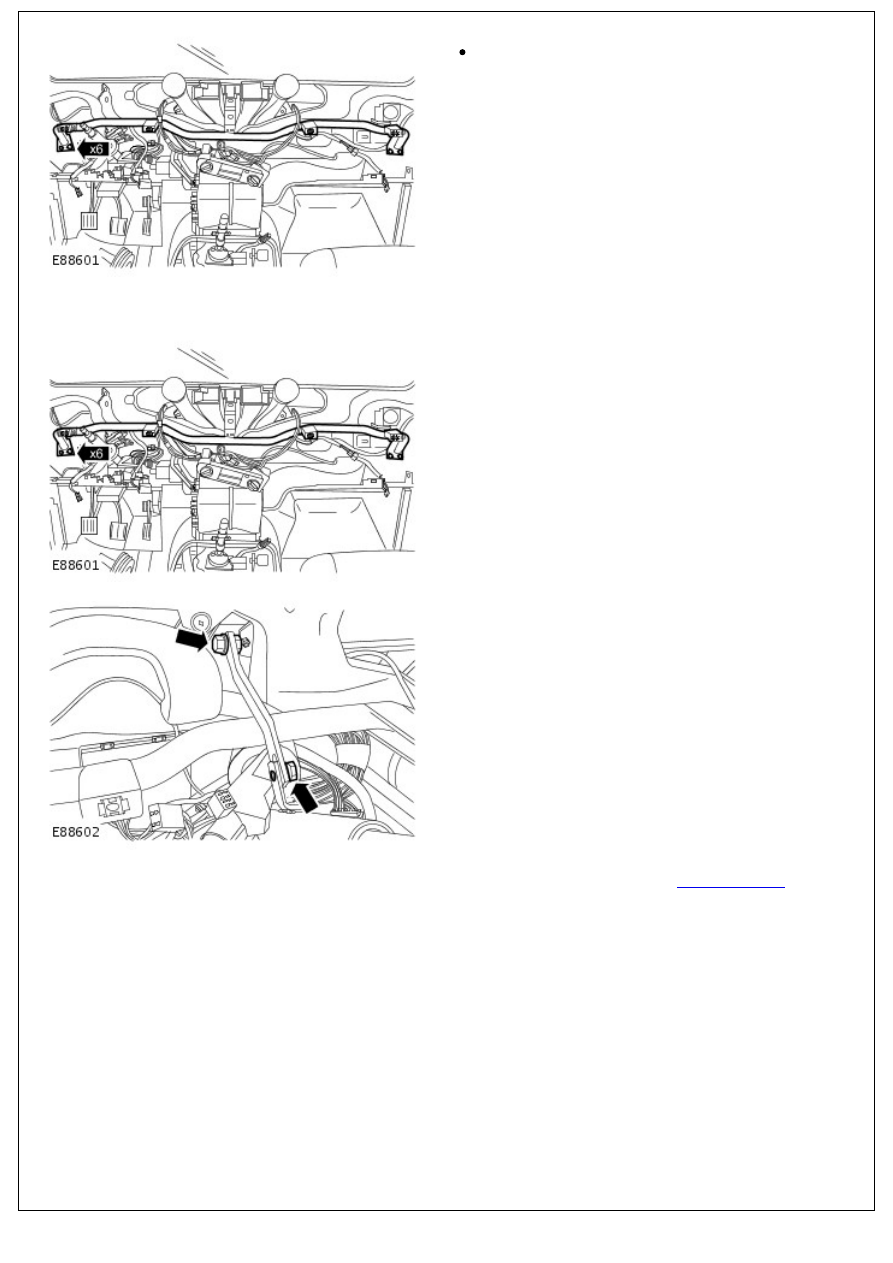

6. Remove the in-vehicle crossbeam.

6. Remove the in-vehicle crossbeam.

Remove and discard the 6 nuts.

Installation

1. To install, reverse the removal procedure.

1. Tighten to 23 Nm (17 lb.ft).

2. Tighten to 22 Nm (16 lb.ft).

3. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).

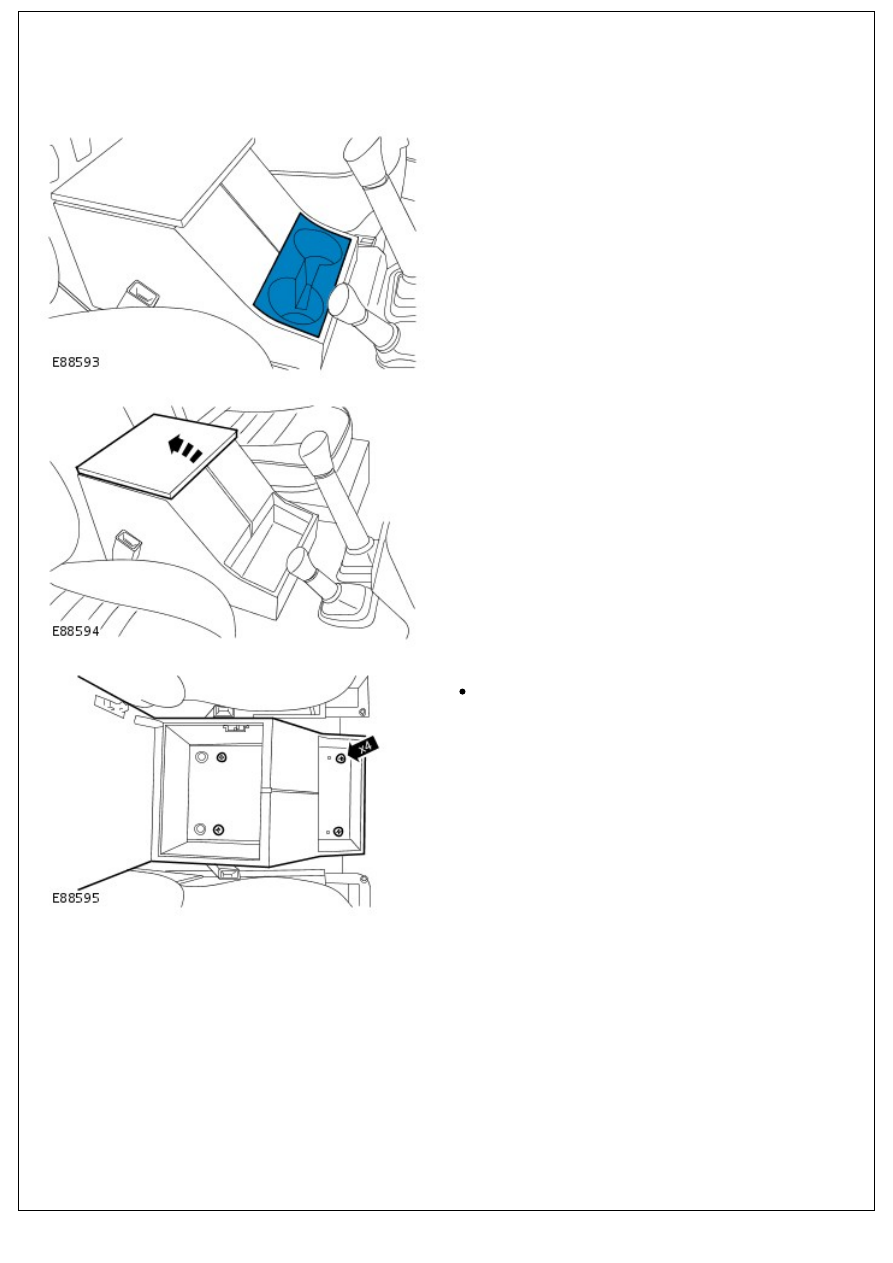

Instrument Panel and Console - Floor Console

Removal and Installation

Removal

1. Remove the cup holder.

2. Open the floor console lid.

3. Remove the floor console.

Remove the 4 screws.

Installation

1. To install, reverse the removal procedure.

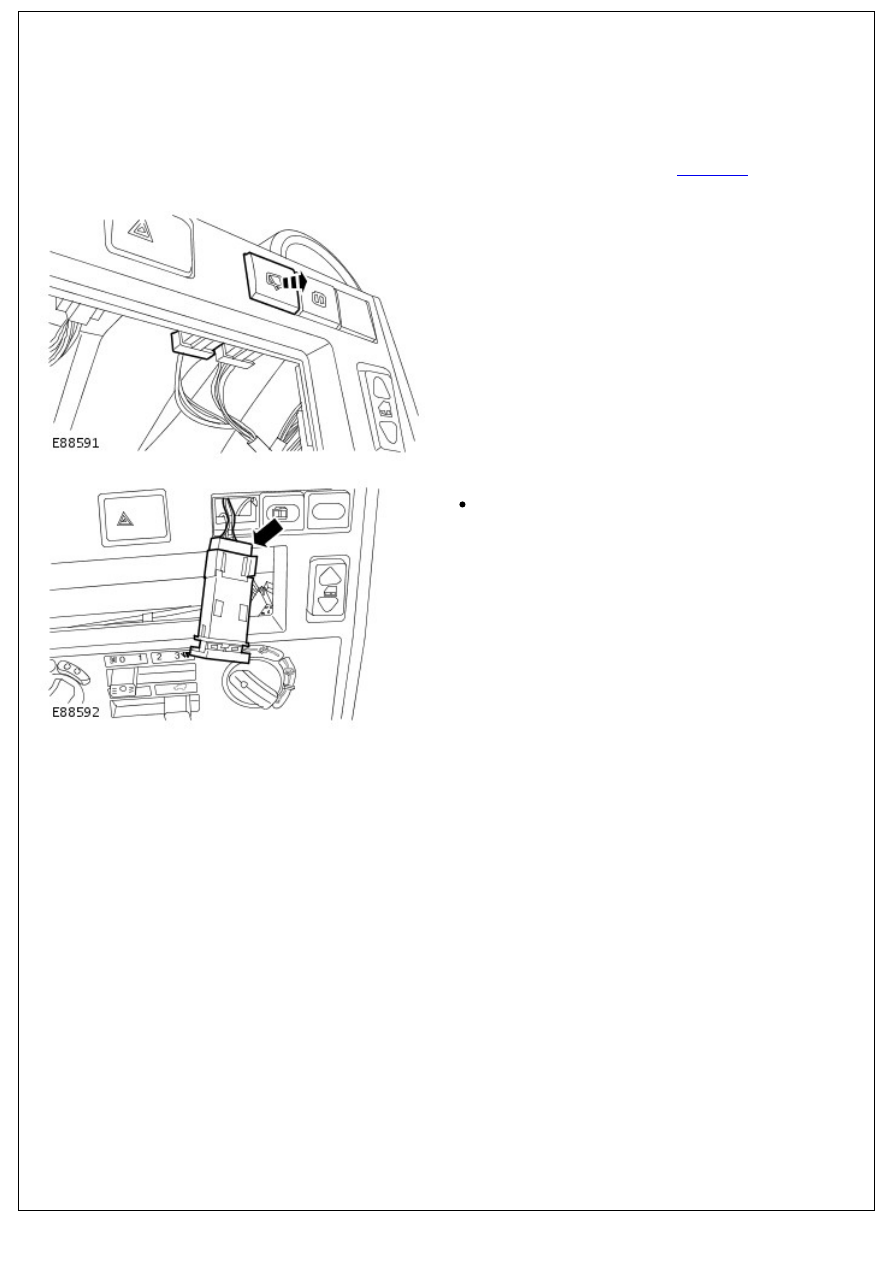

Instrument Panel and Console - Instrument Panel Switches

Removal and Installation

Removal

• NOTE: Rear window wiper switch shown, other instrument panel switches similar.

1. Remove the audio unit.

For additional information, refer to:

Audio Unit

 (415-01A

Audio Unit, Removal and Installation).

2. Release the instrument panel switch.

3. Remove the instrument panel switch.

Disconnect the electrical connector.

Installation

1. To install, reverse the removal procedure.
