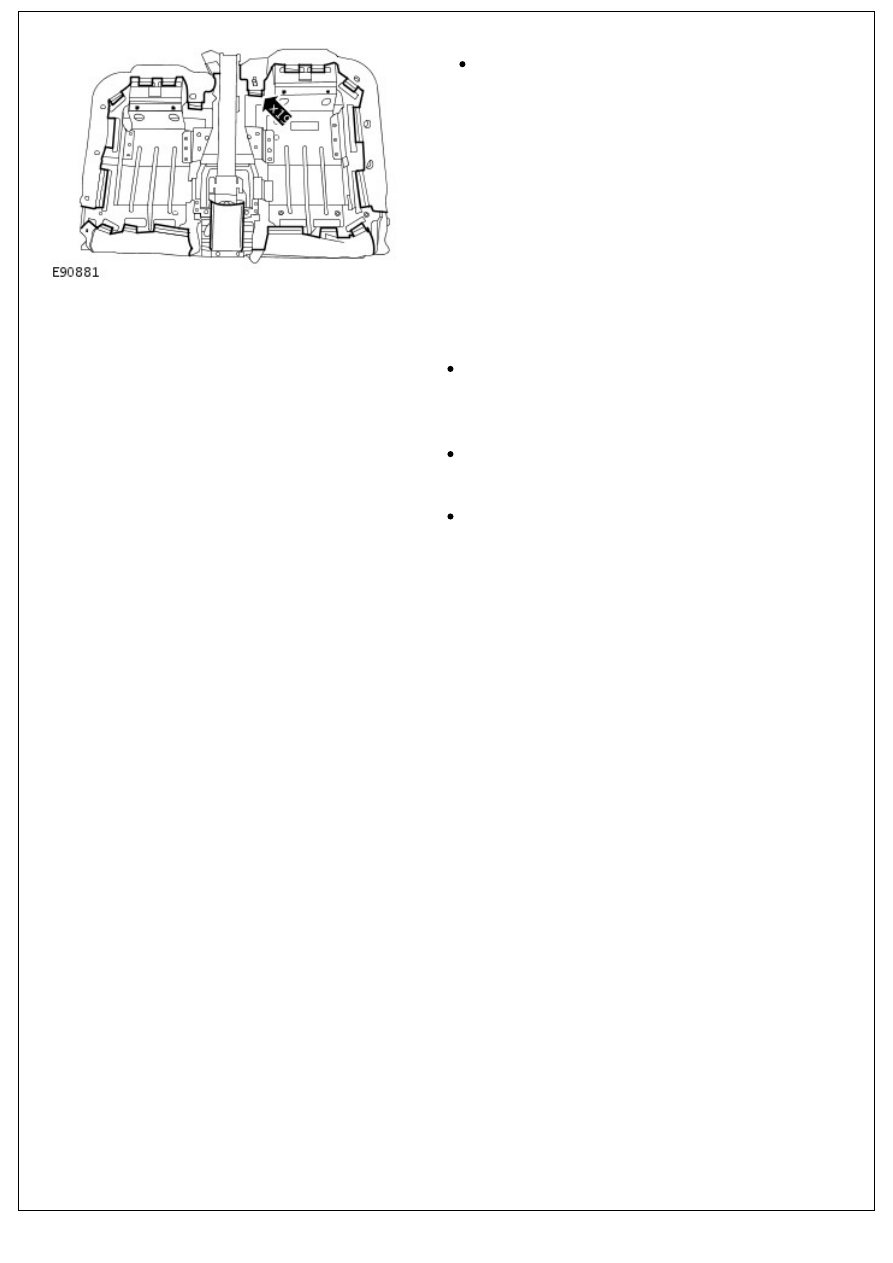

5. Remove the rear seat backrest.

Release the 19 clips.

Installation

1. Install the rear seat backrest.

Secure the 19 clips.

2. Install the rear seat head restraint guides.
3. Secure the rear center safety belt guide cover.

Tighten the screws.

4. Secure the rear seat backrest trim panel.

Secure with the clips.

5. Install the rear seat head restraints.

Seating - Rear Seat Backrest Cover

Removal and Installation

Removal

1. Remove the rear seat backrest.

For additional information, refer to:

Rear Seat Backrest

 (501-

10 Seating, Removal and Installation).

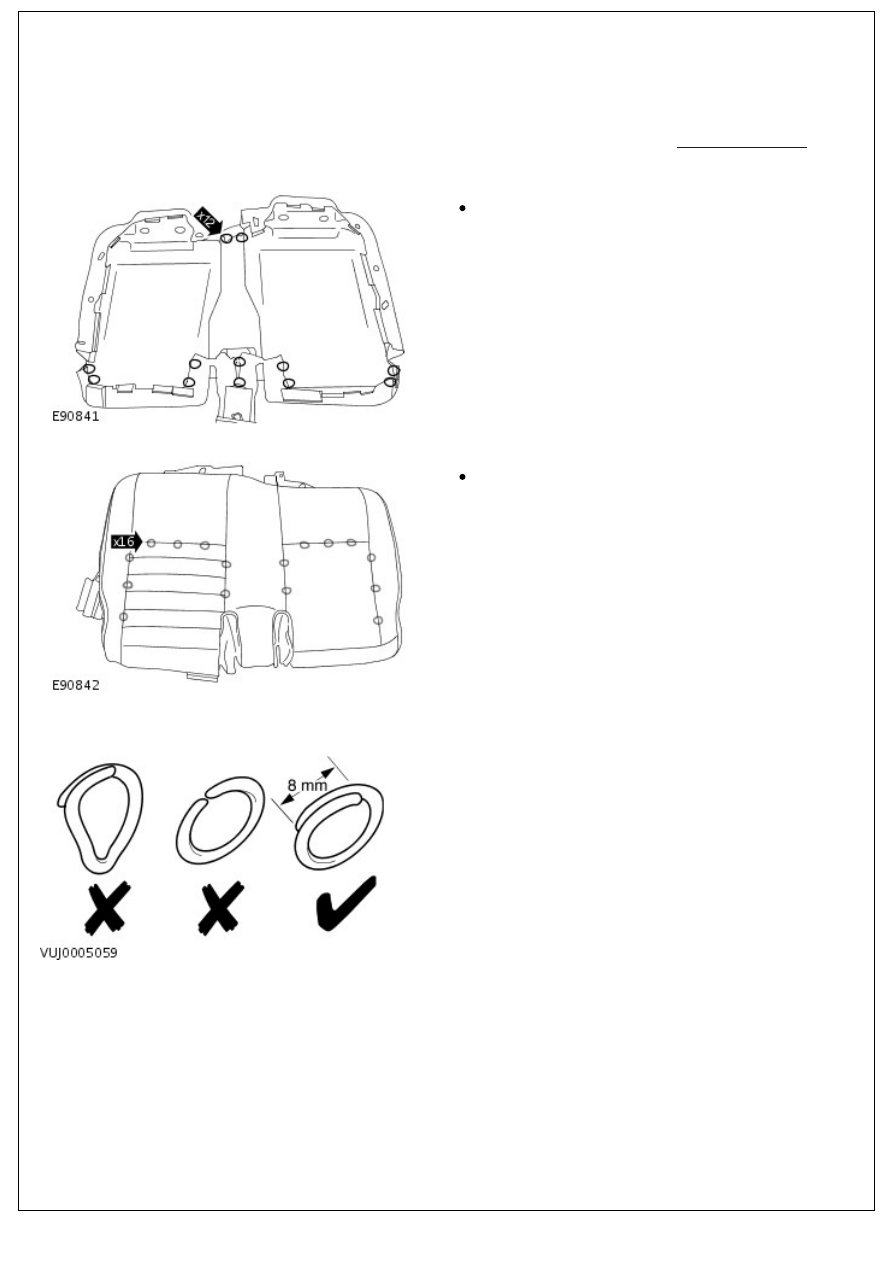

2. Release the rear seat backrest cover.

Remove and discard the 12 hog rings.

3. Remove the rear seat back rest cover.

Remove and discard the 20 hog rings.

Installation

1. NOTE: Use hog ring pliers to close the hog rings. Do not use

any other tool. The hog rings must be closed to overlap as

illustrated.

To install, reverse the removal procedure.

Seating - Rear Seat Cushion

Removal and Installation

Removal

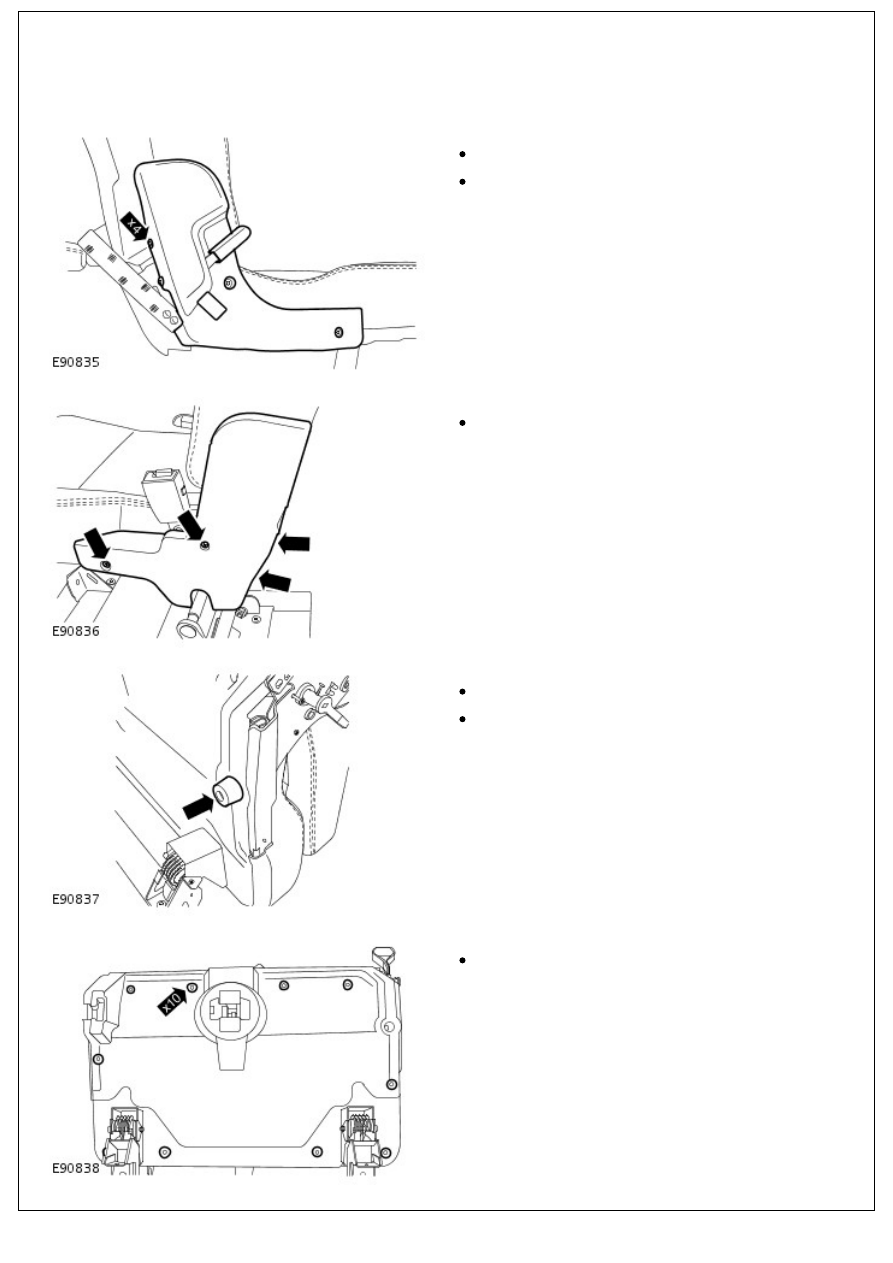

1. Remove the rear seat outer hinge trim panel.

Remove the rear seat recliner handle.

Remove the 4 screws.

2. Remove the rear seat inner hinge trim panel.

Remove the 4 screws.

3. Remove the rear seat base stop.

Remove the bolt.

Collect the plastic washer.

4. Remove the rear seat cushion trim panel.

Remove the 10 clips.

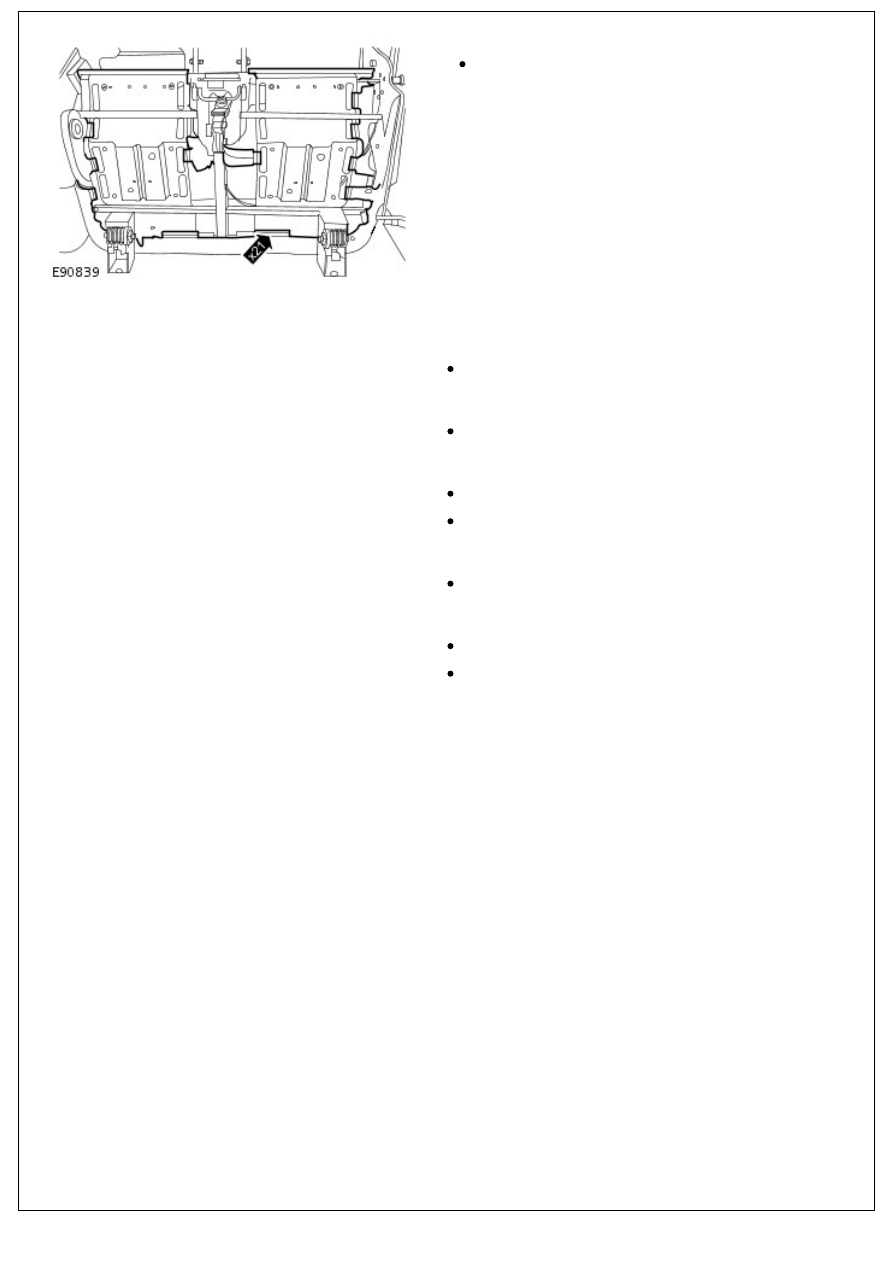

5. Remove the rear seat cushion.

Release the 21 clips.

Installation

1. Install the rear seat cushion.

Secure the clips.

2. Install the rear seat cushion trim panel.

Install the clips.

3. Install the rear seat base stop.

Install the plastic washer.

Tighten the bolt to 25 Nm (17 lb.ft).

4. Install the rear seat inner hinge trim panel.

Tighten the screws.

5. Install the rear seat outer hinge trim panel.

Tighten the screws.

Install the rear seat recliner handle.
