10. NOTE: Do not disassemble further if the component is

removed for access only.

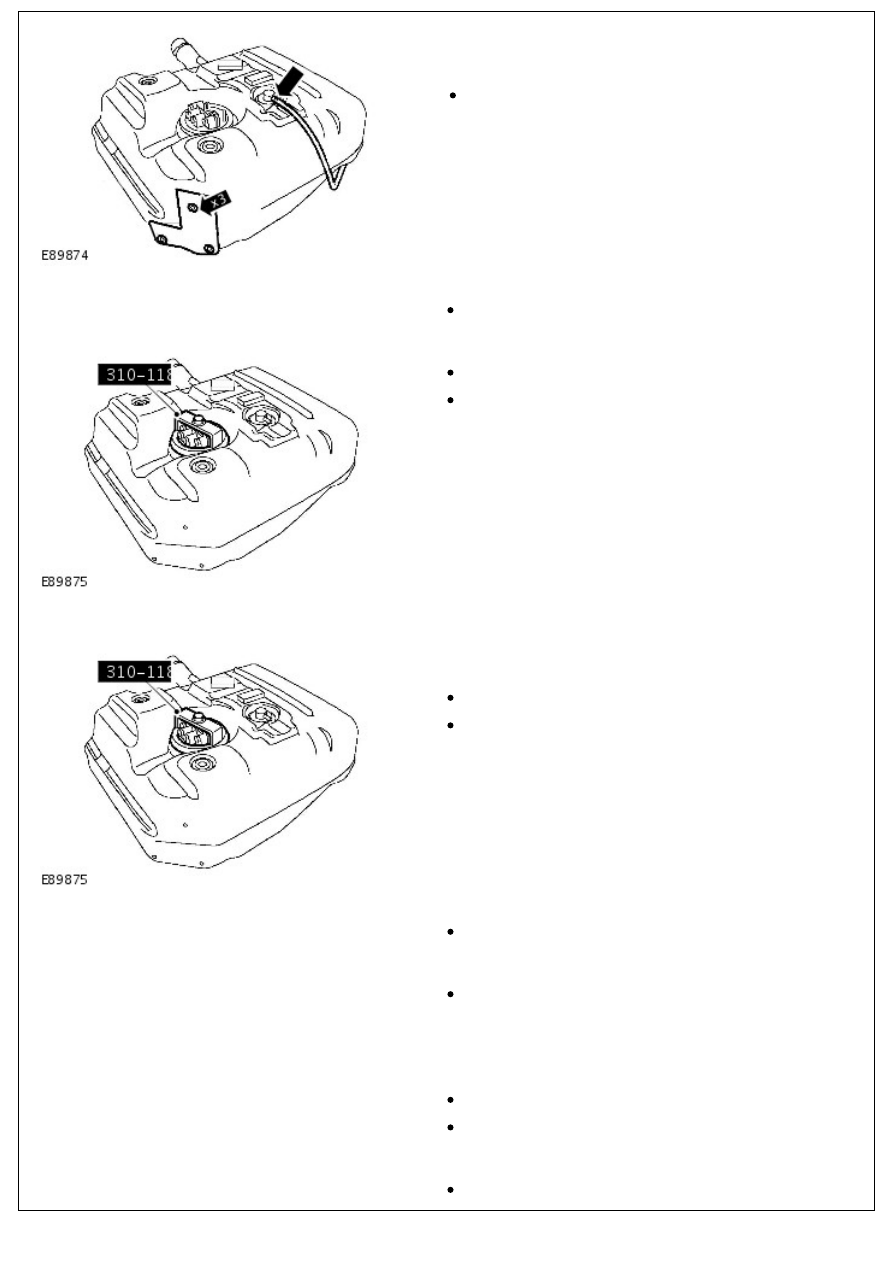

Remove the fuel tank heat shield.

Remove the 3 clips.

11. Remove the fuel tank vent line.

Release the clip.

12. Remove the fuel level sender.

Using the special tool, remove the locking ring.

Remove and discard the seal.

Installation

1. NOTE: Clean the component mating faces.

Install the fuel level sender.

Install a new seal.

Using the special tool, tighten the locking ring to 35 Nm

(26 lb.ft).

2. Install the fuel tank vent line.

Secure with the clip.

3. Install the fuel tank heat shield.

Install the 3 clips.

4. NOTE: Remove and discard the blanking caps.

Using the special tool, raise the fuel tank and the fuel tank

support bracket.

Connect the 2 fuel lines.

Connect the electrical connector.

5. Connect the fuel filler pipe breather hose.

Secure with the clip.

6. Using the special tool, install the fuel tank and the fuel tank

support bracket.

Tighten the bolts 45 Nm (33 lb.ft).

Tighten the nuts 25 Nm (18 lb.ft).

7. Secure the fuel tank vent line.

Secure in the clip.

Secure with a suitable cable tie .

8. Connect the fuel tank filler pipe.

Tighten the clip.

9.

WARNING: The spilling of fuel is unavoidable during

this operation. Make sure that all necessary precautions are

taken to prevent fire and explosion.

Refill the fuel tank.

10. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).

Fuel Tank and Lines - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

Fuel Tank Filler Pipe

Removal and Installation

Removal

1. Drain fuel tank.

For additional information, refer to:

Fuel Tank Draining

 (310-

00 Fuel System - General Information, General Procedures).

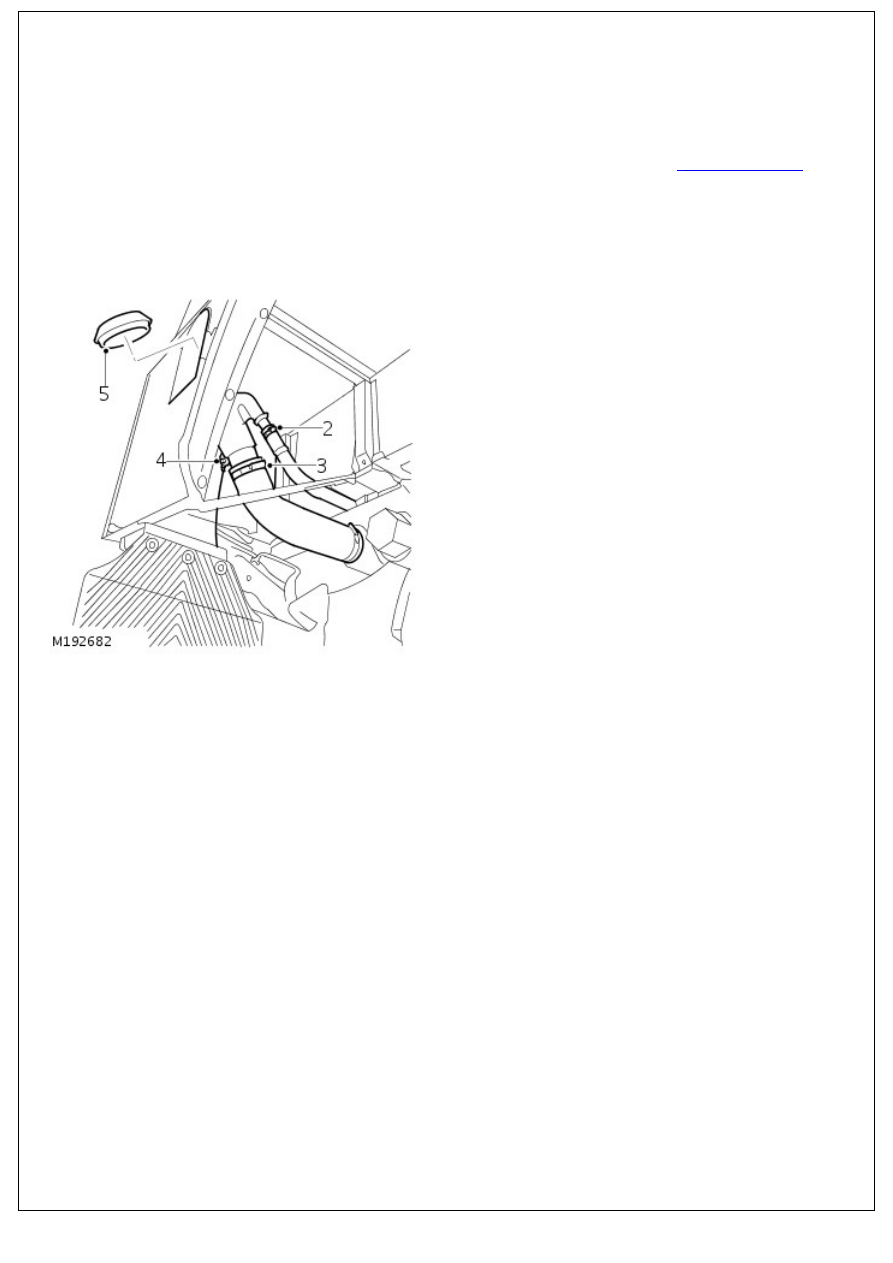

2. Loosen clip securing breather hose to fuel filler neck and

release hose.

3. Loosen clip securing fuel filler hose to neck and release hose.
4. Remove screw and release earth lead from filler neck.

5. Remove grommet securing filler neck to body.

6. Remove filler neck from body.

Installation

1. Fit filler neck to body.
2. Coat rubber grommet with soap solution.
3. Fit rubber grommet securing filler neck to body.
4. Connect earth lead and tighten screw.
5. Connect filler hose to neck and tighten clip.
6. Fit breather hose to filler neck and secure with clip.

!

"!
