Manual Transmission/Transaxle - Synchronizers

Disassembly and Assembly of Subassemblies

Disassembly

1. NOTE: Make a note of/mark the installed positions of the

components before removal.

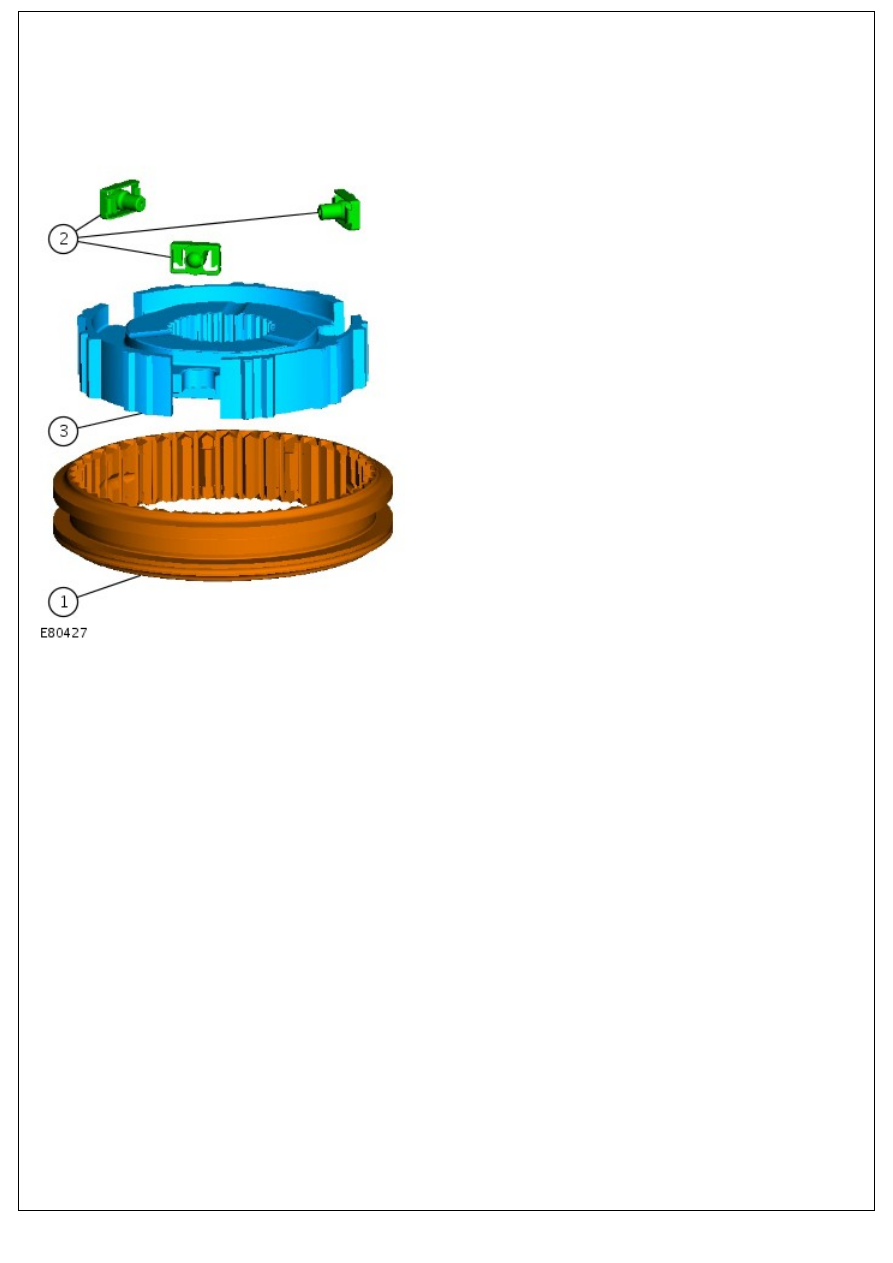

1. Sliding collar.

2. Sliding block assemblies.

3. Synchronizer hub.

Assembly

1. NOTE: Make sure that the components are installed in their

original positions.

To install, reverse the removal procedure.

Manual Transmission/Transaxle - Transmission

Assembly

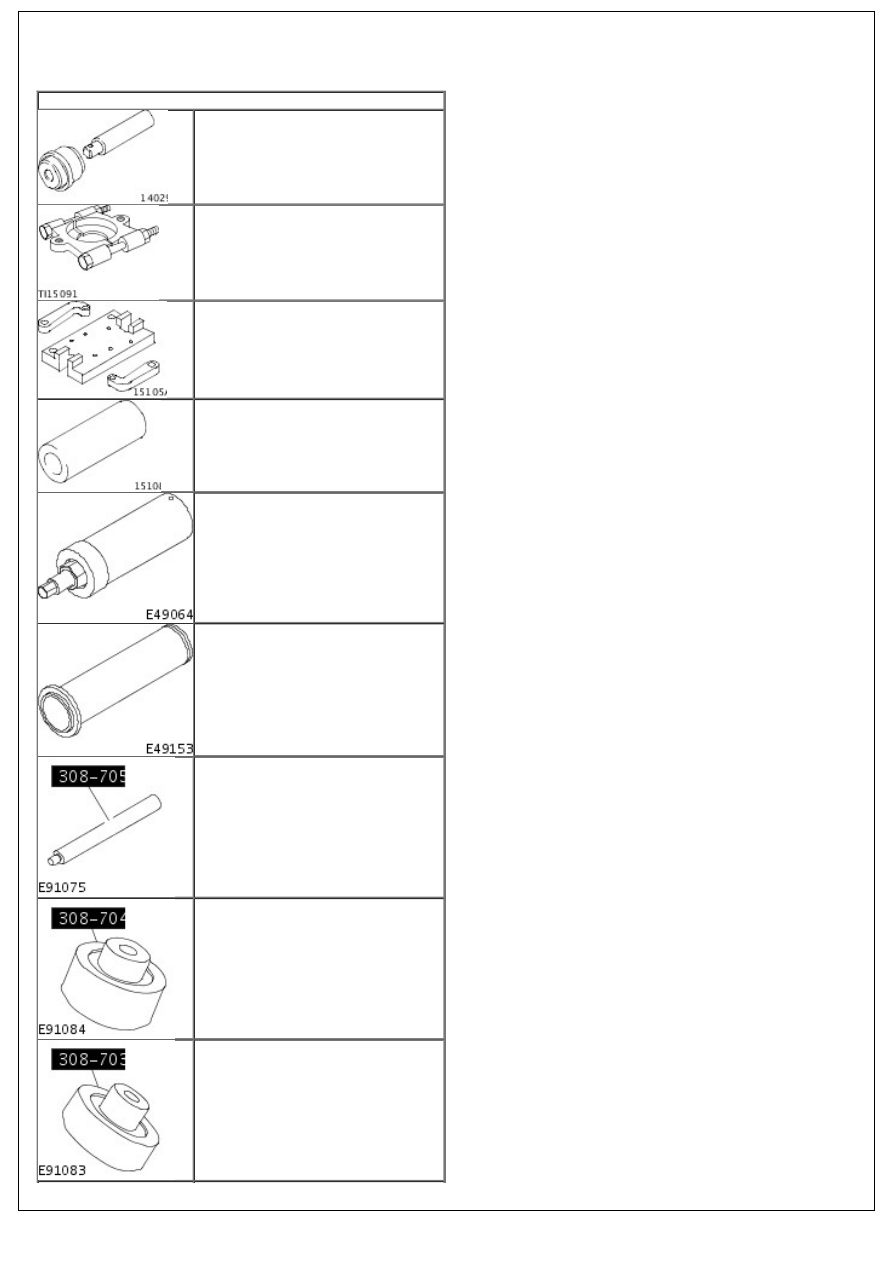

Special Tool(s)

Installer, Front Wheel Hub Bearing

Cup/Seal

204-087

Remover, Bearing/Gear

205-310

Mounting Bracket,

Engine/Differential

205-329

Protector, Axle Shaft

205-332

Installer, Output Drive Flange Seal

308-604

Installer, Input Shaft Seal

308-605

Handle, Bearing Installer

308-705

Installer, Countershaft Bearing

308-704

Installer, Input Shaft Bearing

308-703

Name
Transmission Fluid
High-Temperature Grease
Gasket Eliminator Sealant
Adhesive - Loctite 243

Installer, Output Shaft Bearing

308-702

Installer, Selector Shaft Seal

308-700

General Equipment

Tie Straps
Hot air gun
Hydraulic press

Materials

Specification
WSD-M2C200-C
ESD-M1C220-A
WSK-M2G348-A5
WSK-M2G349-A7

Assembly

1. NOTE: All synchronizer rings and needle bearings should be

lubricated with clean transmission fluid prior to assembly.

transmission fluid

2. Install the 4th gear and 3rd/4th gear synchronizer assembly

onto the countershaft.

3. Install the 3rd/4th gear synchronizer assembly snap ring

onto the countershaft.

Install a new snap ring.

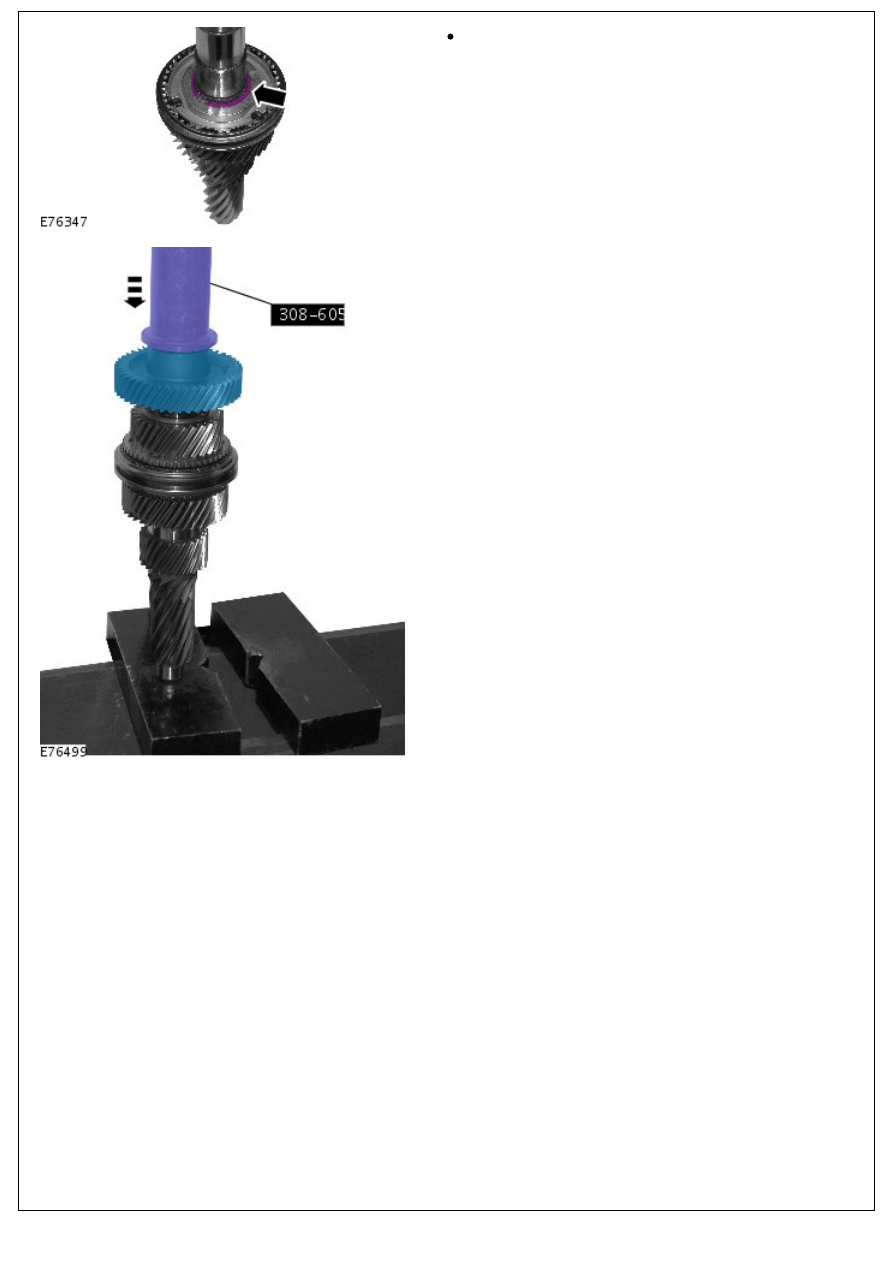

4. Using the special tool, install the 6th gear onto the

countershaft.

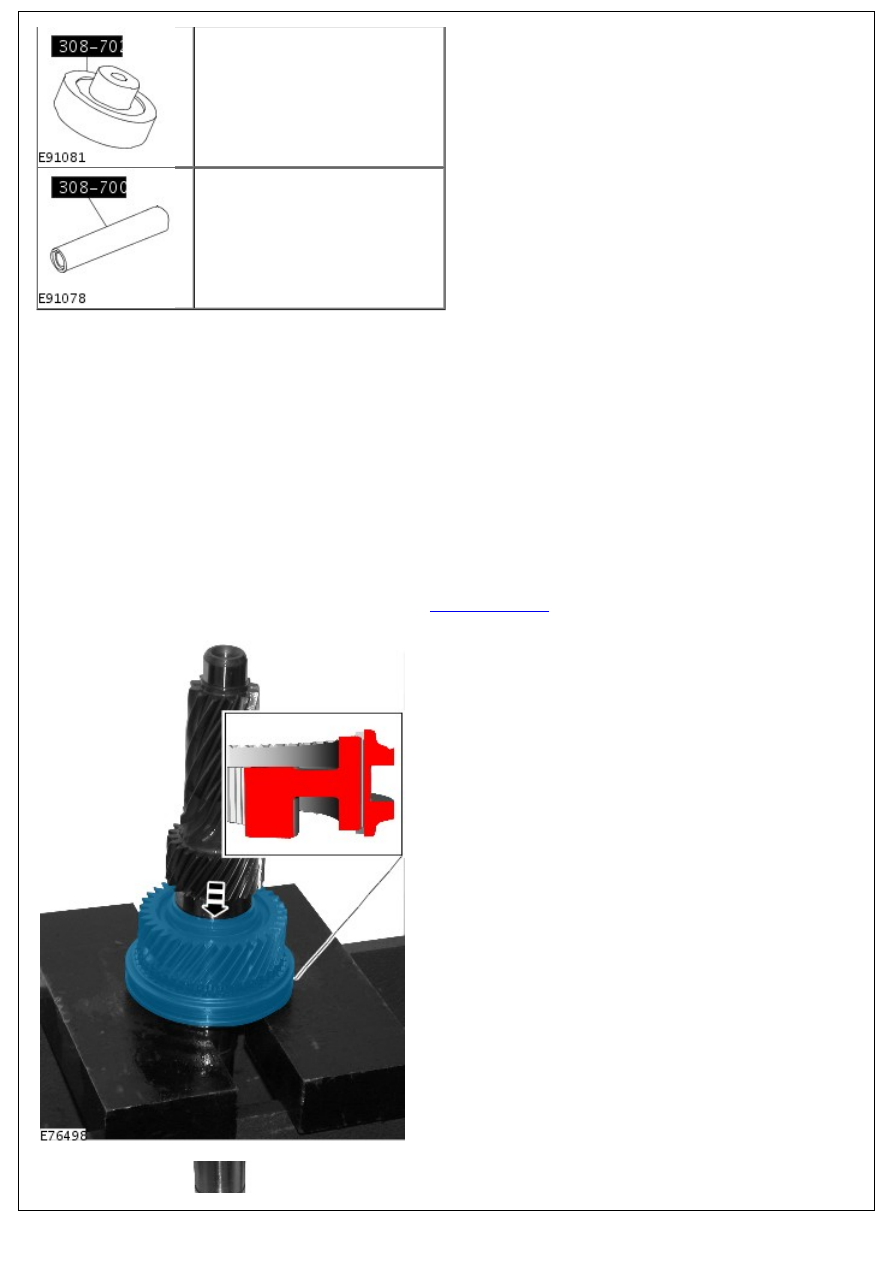

5. Using the special tool, install the 5th gear.
