Defender. Manual - part 140





P010064 Mass or volume air

flow A circuit - signal

plausibility failure

Mass air flow (MAF)

sensor circuit: short

circuit to ground

MAF sensor circuit:

short circuit to power

MAF sensor circuit:

open circuit

MAF sensor fault

Check the MAF sensor and circuit. Refer to the electrical

guides. Install a new MAF sensor if necessary.

REFER to:

Mass Air Flow (MAF) Sensor

 (303-14

Electronic Engine Controls - 2.4L Duratorq-TDCi HPCR

(103kW/140PS) - Puma, Removal and Installation).

Clear the DTCs and test for normal operation.

P01102F Intake air temperature

(IAT) sensor 1 circuit -

signal erratic

• NOTE: The IAT sensor 1 is

part of the mass air flow

(MAF) sensor

IAT sensor 1 circuit:

short circuit to power

IAT sensor 1 circuit:

short circuit to

ground

IAT sensor 1 circuit:

open circuit

IAT sensor 1 fault

Check the IAT sensor 1 and circuit. Refer to the electrical

guides. Install a new MAF sensor if necessary.

REFER to:

Mass Air Flow (MAF) Sensor

 (303-14

Electronic Engine Controls - 2.4L Duratorq-TDCi HPCR

(103kW/140PS) - Puma, Removal and Installation).

Clear the DTCs and test for normal operation.

P011011 Intake air temperature

(IAT) sensor 1 circuit -

circuit short to ground

• NOTE: The IAT sensor 1 is

part of the mass air flow

(MAF) sensor

IAT sensor 1 circuit:

short circuit to

ground

IAT sensor 1 fault

Check the IAT sensor 1 and circuit. Refer to the electrical

guides. Install a new MAF sensor if necessary.

REFER to:

Mass Air Flow (MAF) Sensor

 (303-14

Electronic Engine Controls - 2.4L Duratorq-TDCi HPCR

(103kW/140PS) - Puma, Removal and Installation).

Clear the DTCs and test for normal operation.

P011015 Intake air temperature

(IAT) sensor 1 circuit -

circuit short to battery

or open

• NOTE: The IAT sensor 1 is

part of the mass air flow

(MAF) sensor

IAT sensor 1 circuit:

short circuit to power

IAT sensor 1 circuit:

open circuit

IAT sensor 1 fault

Check the IAT sensor 1 and circuit. Refer to the electrical

guides. Install a new MAF sensor if necessary.

REFER to:

Mass Air Flow (MAF) Sensor

 (303-14

Electronic Engine Controls - 2.4L Duratorq-TDCi HPCR

(103kW/140PS) - Puma, Removal and Installation).

Clear the DTCs and test for normal operation.

P110200 Mass air flow (MAF)

sensor in range but

lower than expected

Intake air path fault

MAF sensor circuit:

short circuit to

ground

MAF sensor circuit:

short circuit to power

MAF sensor circuit:

open circuit

MAF sensor fault

Check the intake air system for leaks, restrictions, etc.

Check the MAF sensor and circuits. Refer to the electrical

guides. Install a new MAF sensor if necessary.

REFER to:

Mass Air Flow (MAF) Sensor

 (303-14

Electronic Engine Controls - 2.4L Duratorq-TDCi HPCR

(103kW/140PS) - Puma, Removal and Installation).

Clear the DTCs and test for normal operation.

P110300 Mass air flow (MAF)

sensor in range but

higher than expected

Intake air path fault

MAF sensor circuit:

open circuit

MAF sensor circuit:

short circuit to

ground

MAF sensor circuit:

short circuit to power

MAF sensor fault

Check the intake air system for leaks, restrictions, etc.

Check the MAF sensor and circuits. Refer to the electrical

guides. Install a new MAF sensor if necessary.

REFER to:

Mass Air Flow (MAF) Sensor

 (303-14

Electronic Engine Controls - 2.4L Duratorq-TDCi HPCR

(103kW/140PS) - Puma, Removal and Installation).

Clear the DTCs and test for normal operation.

Intake Air Distribution and Filtering - 2.4L Duratorq-TDCi HPCR

(103kW/140PS) - Puma - Air Cleaner

Removal and Installation

Removal

All vehicles

1. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and

Connect

 (414-01 Battery, Mounting and Cables, General

Procedures).

Vehicles with air conditioning

2. Recover the air conditioning (A/C) refrigerant.

For additional information, refer to:

Air Conditioning (A/C)

System Recovery, Evacuation and Charging

 (412-00 Climate

Control System - General Information, General Procedures).

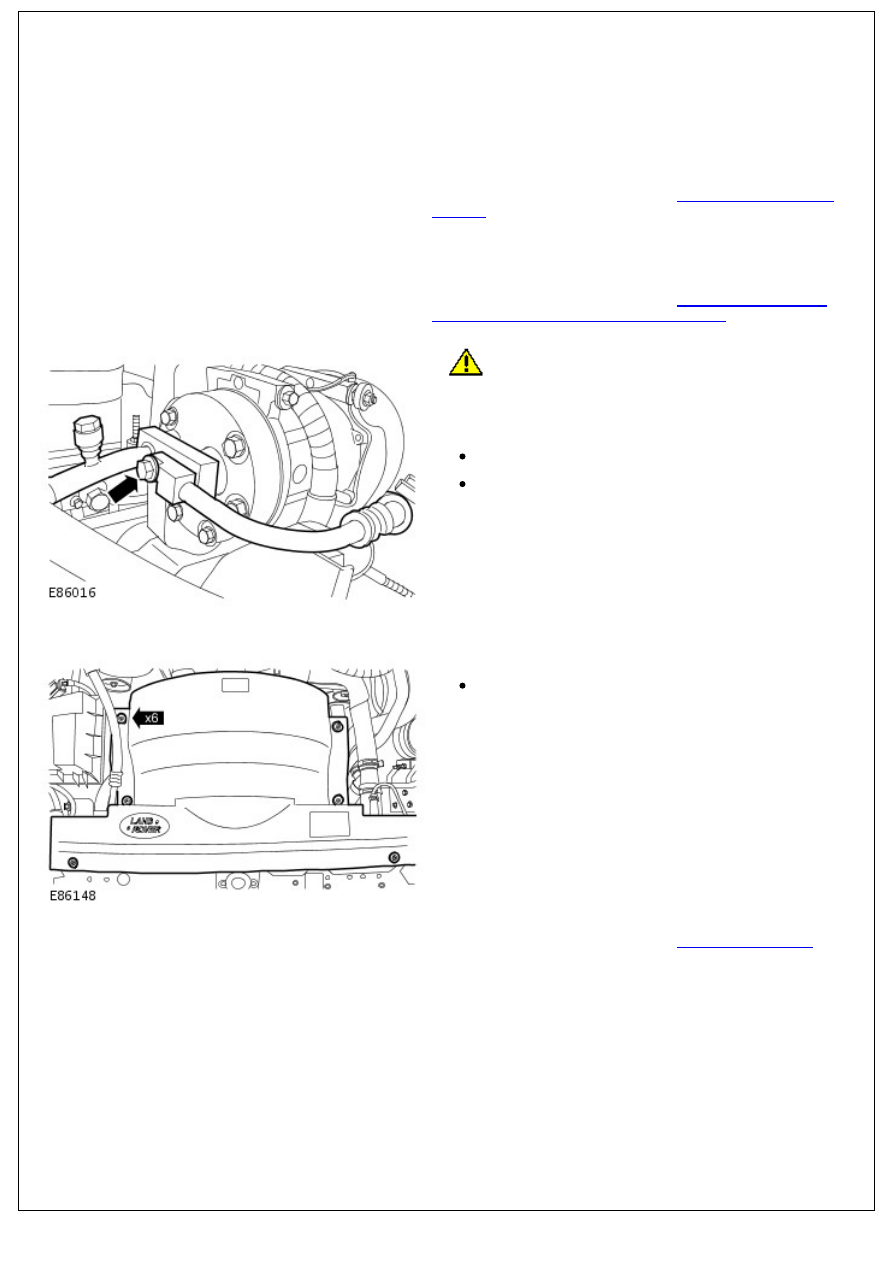

3.

CAUTION: Make sure that all openings are sealed. Use

new blanking caps.

Disconnect the A/C compressor low-pressure and high-

pressure refrigerant lines.

Remove the bolt.

Remove and discard the O-ring seal.

All vehicles

4. Remove the cooling fan upper shroud.

Release the 6 clips.

5. Remove the air cleaner element.

For additional information, refer to:

Air Cleaner Element

(303-12 Intake Air Distribution and Filtering - 2.4L Duratorq-

TDCi HPCR (103kW/140PS) - Puma, Removal and

Installation).

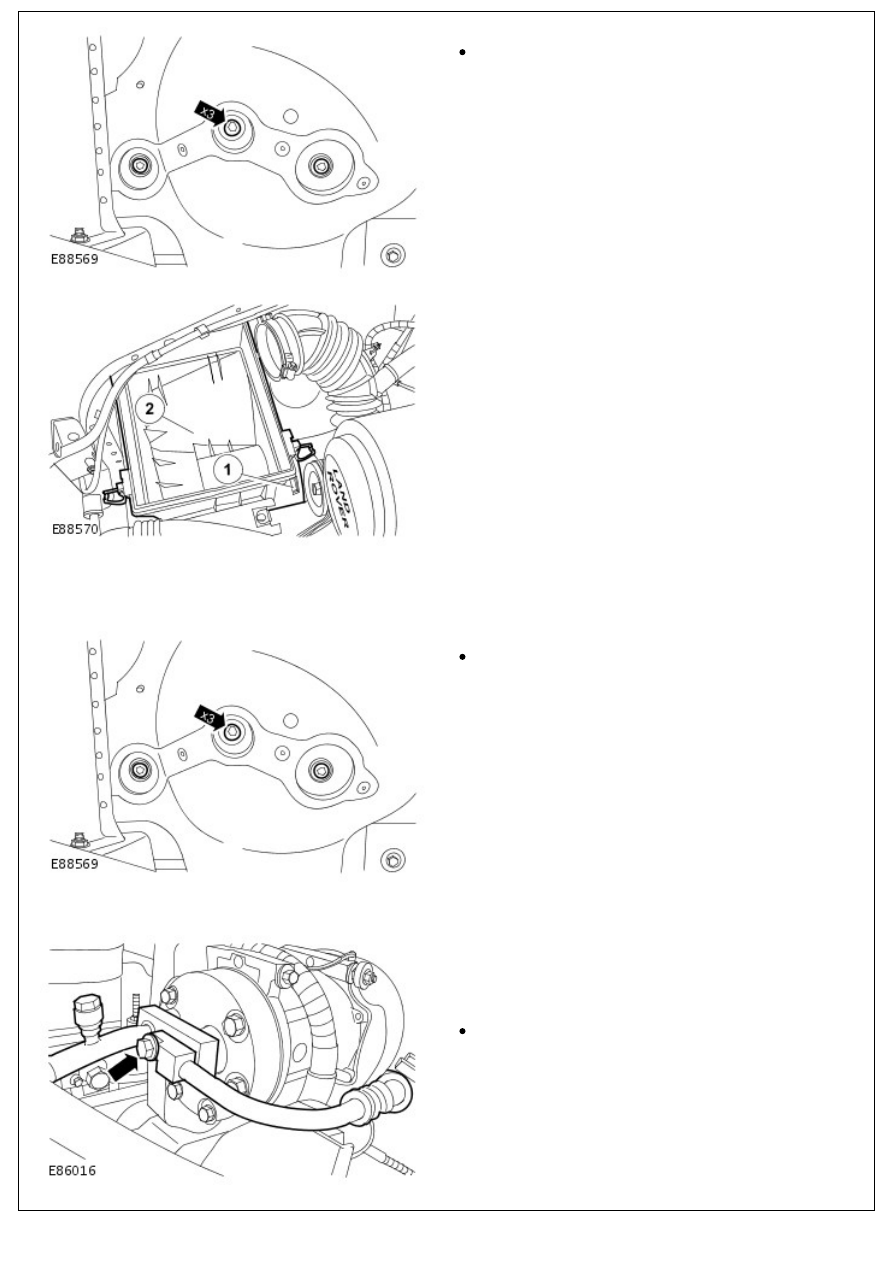

6. Release the air cleaner.

6. Release the air cleaner.

Remove the 3 bolts.

7. Remove the air cleaner.

1. Disconnect the air cleaner intake pipe.

2. Remove the air cleaner.

Installation

All vehicles

1. To install, reverse the removal procedure.

Tighten to 13 Nm (10 lb.ft).

Vehicles with air conditioning

2. NOTE: Coat the compressor O-ring seals in clean

refrigerant oil prior to installation.

• NOTE: Remove and discard the blanking caps.

Tighten to 30 Nm (22 lb.ft).

Install new O-ring seals.

All vehicles

3. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).
