Defender. Manual - part 96





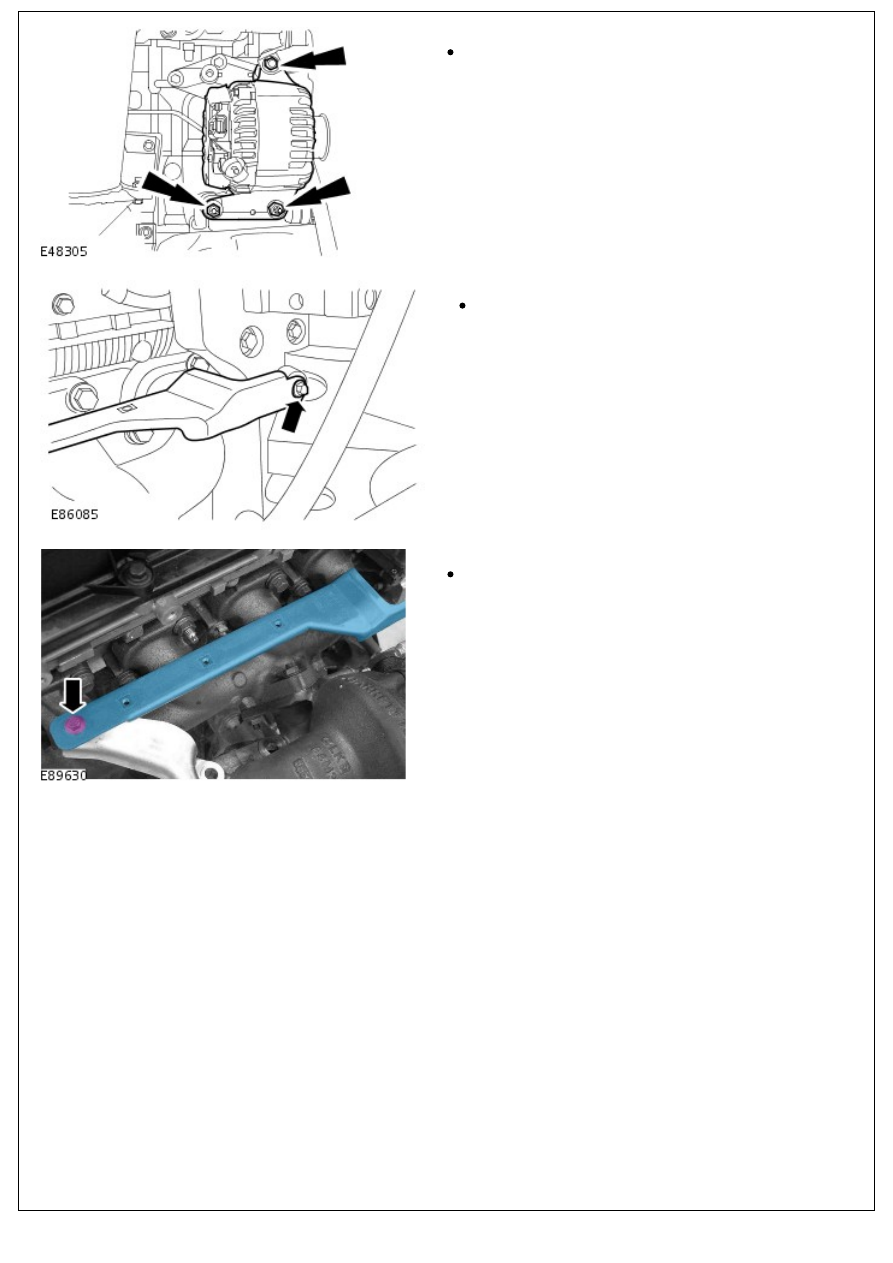

31. Remove the generator.

Remove the 3 bolts.

32. Release the turbocharger heat shield bracket.

Remove the bolt.

33. Remove the turbocharger heat shield bracket.

Remove the bolt.

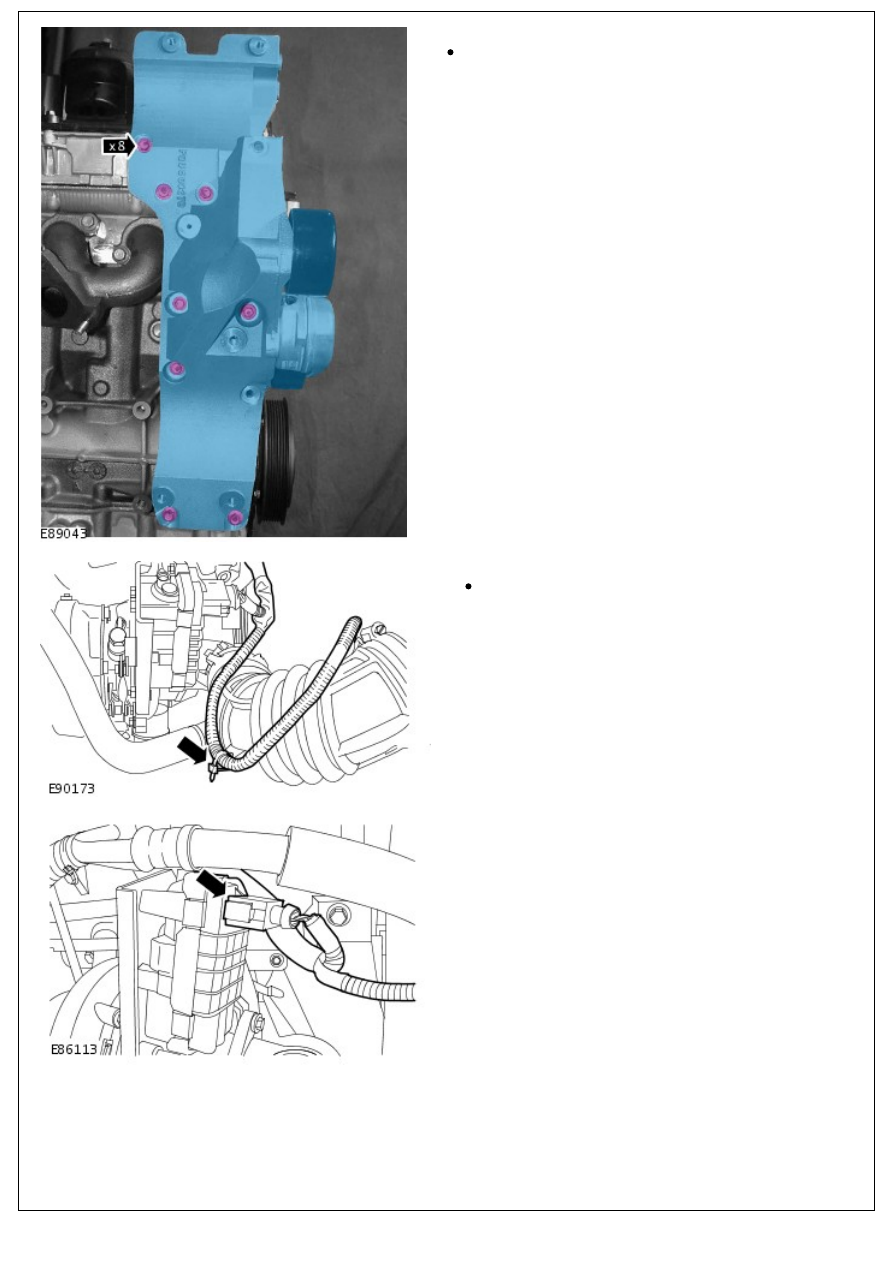

34. Remove the generator mounting bracket.

34. Remove the generator mounting bracket.

Remove the 8 bolts.

35. Release the mass air flow (MAF) sensor wiring harness.

Cut the tie strap.

36. Disconnect the turbocharger actuator electrical connector.

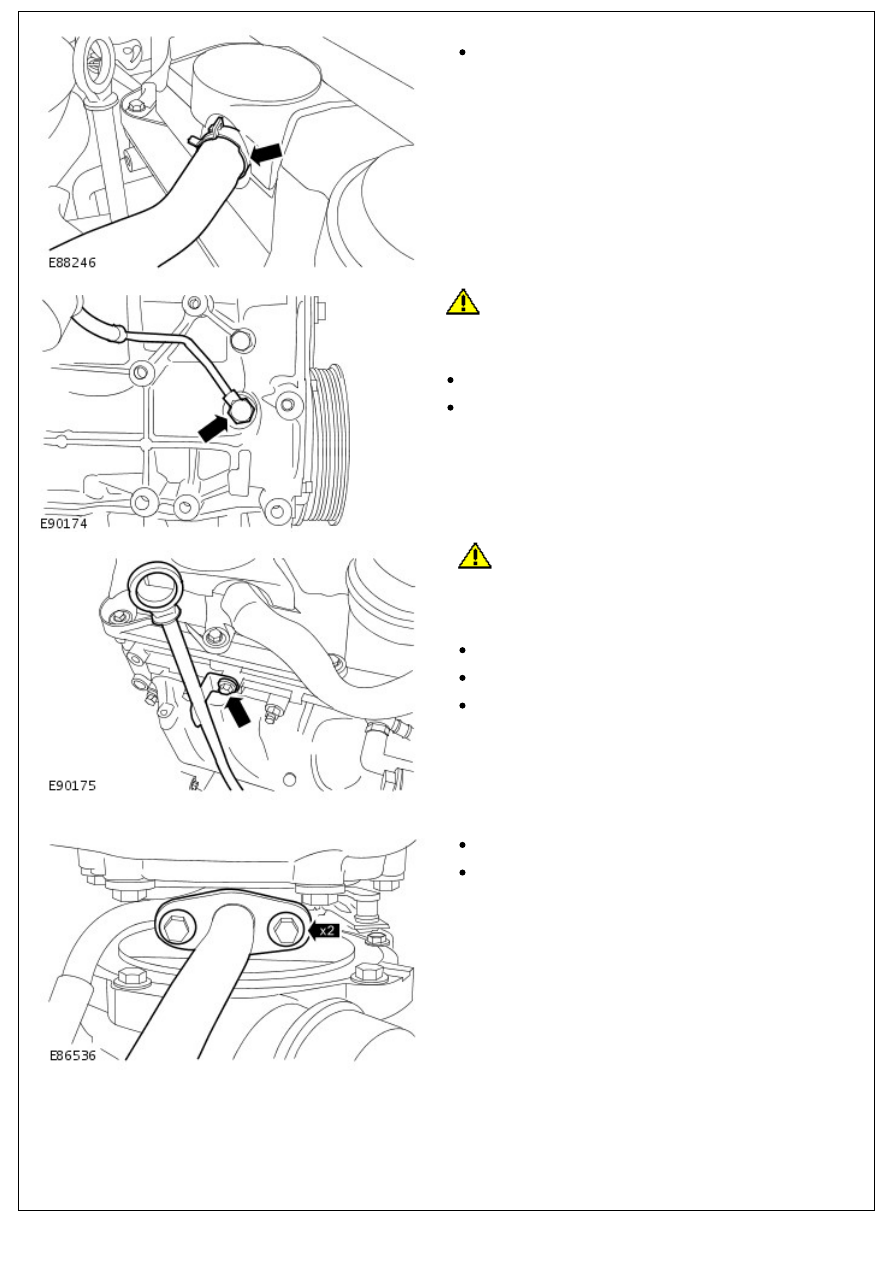

37. Disconnect the breather pipe.

37. Disconnect the breather pipe.

Release the clip.

38.

CAUTION: Make sure that all openings are sealed. Use

new blanking caps.

Disconnect the turbocharger oil feed pipe.

Remove the banjo bolt.

Remove and discard the sealing washers.

39.

CAUTION: Make sure that all openings are sealed.

Use new blanking caps.

Remove the oil level indicator and the oil level indicator

tube.

Remove the bolt.

Release the wiring harness.

Remove and discard the O-ring seal.

40. Release the turbocharger oil return pipe.

Remove the 2 bolts.

Remove and discard the gasket.

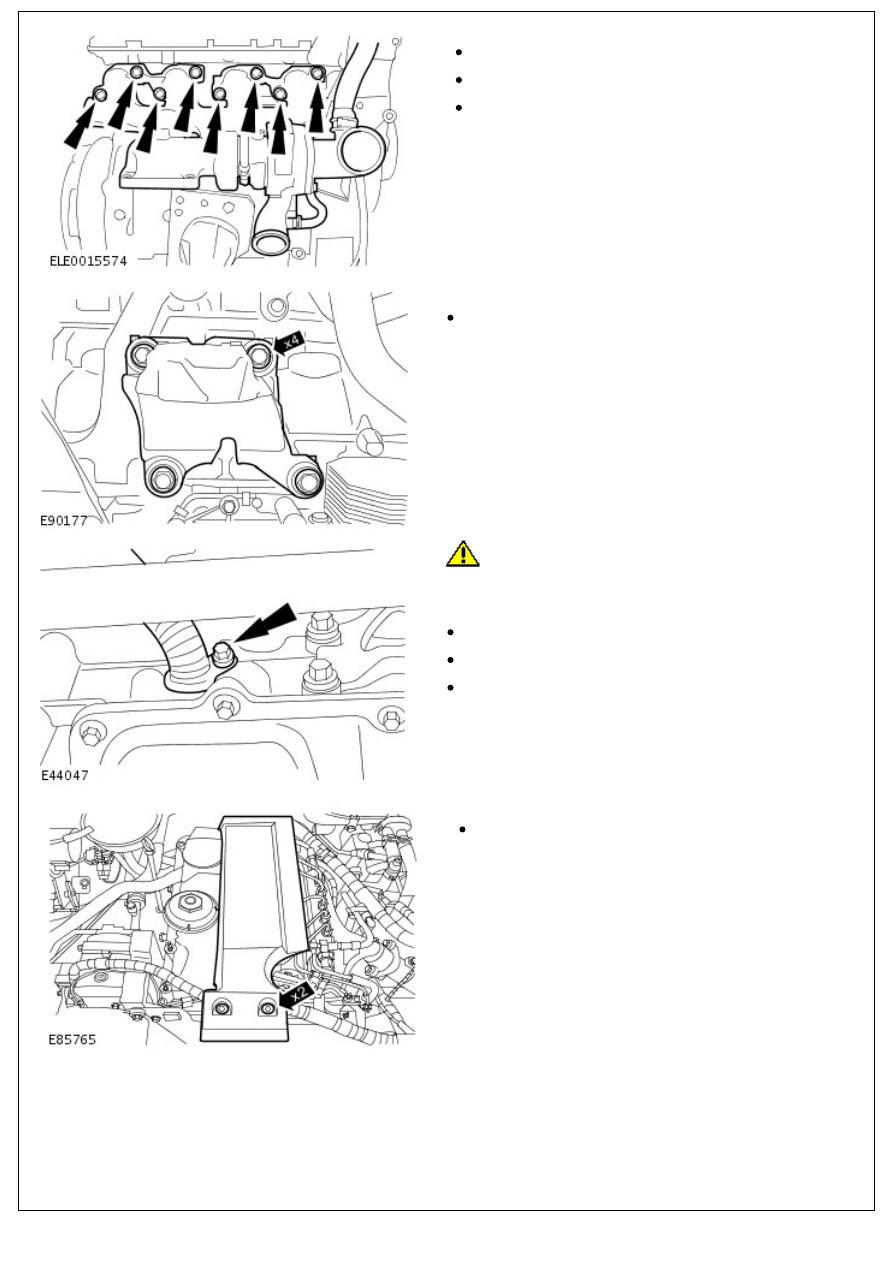

41. Remove the exhaust manifold and turbocharger assembly.

41. Remove the exhaust manifold and turbocharger assembly.

Remove and discard the 2 nuts.

Remove the 6 bolts.

Remove and discard the gasket.

42. Remove the RH engine mount bracket.

Remove the 4 bolts.

43.

CAUTION: Make sure that all openings are sealed. Use

new blanking caps.

Remove the turbocharger oil return tube.

Remove the bolt.

Remove the clamp.

Remove and discard the O-ring seal.

44. Remove the engine cover.

Remove the 2 bolts.

45. Disconnect the fuel rail pressure sensor (FRP) electrical
