Engine System - General Information - Connecting Rod Large End Bore

General Procedures

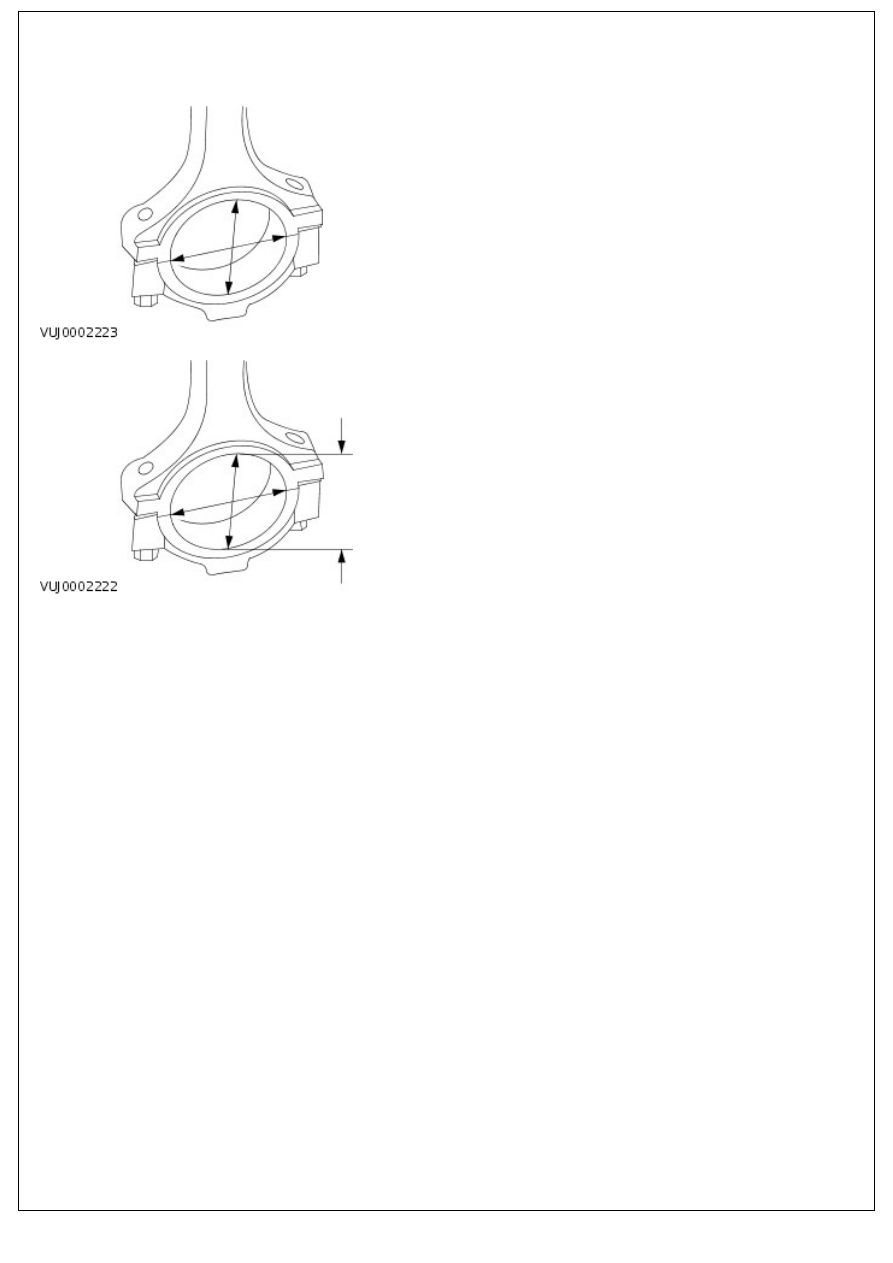

1. Measure the bearing bore in two directions. The difference is

the connecting rod bore out-of-round. Verify the out-of-round

is within specification.

2. Measure the bearing bore diameter in two directions. Verify

the bearing bore is within specification.

Engine System - General Information - Crankshaft End Play

General Procedures

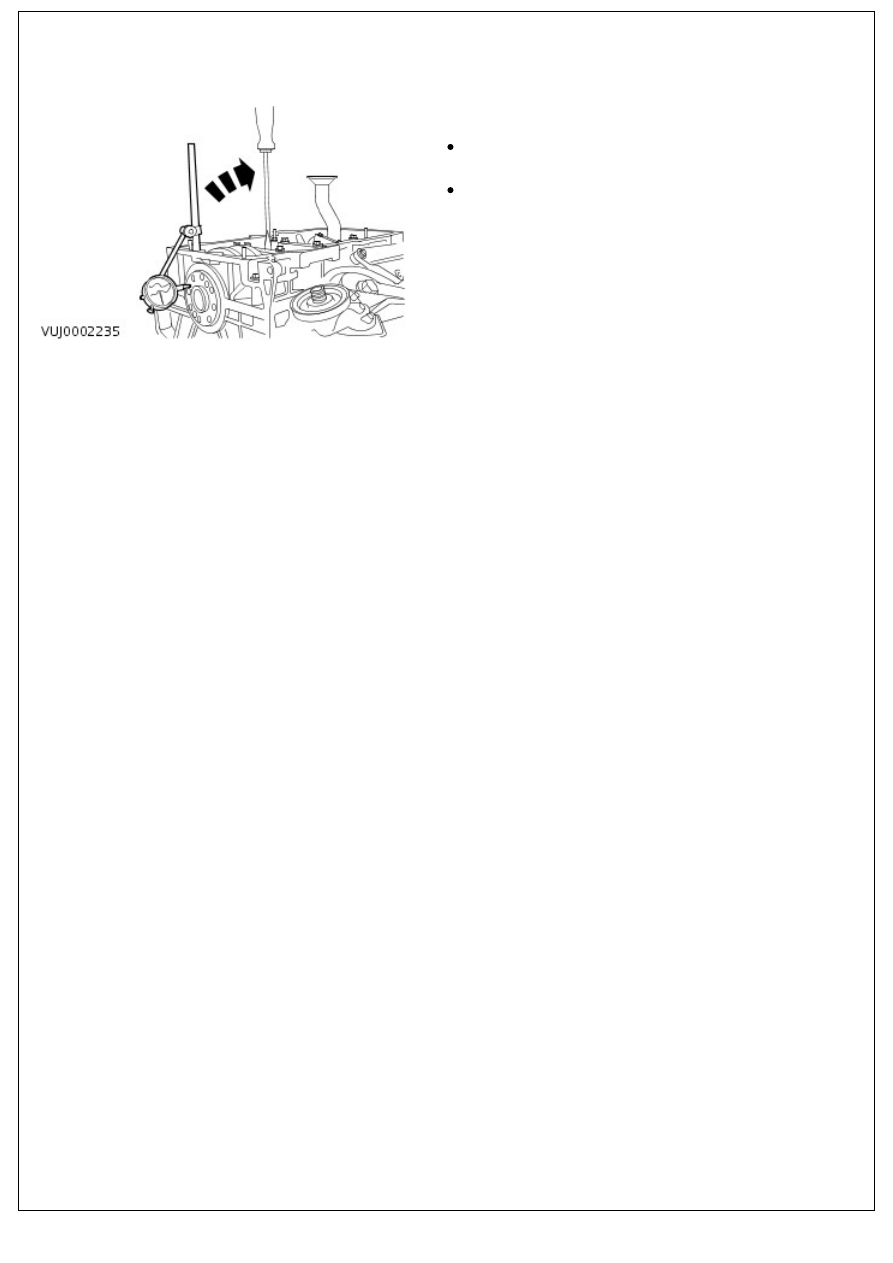

1. Using the Dial Indicator Gauge with Brackets, measure the

end play.

Measure the end play by lifting the crankshaft using a

lever.

If the value is out of the specification, install new thrust

half rings to take up the end float and repeat the

measurement.

Engine System - General Information - Cylinder Bore Out-of-Round

General Procedures

1. NOTE: The main bearing caps or lower crankcase must be in

place and tightened to the specified torque; however, the

bearing shells should not be installed.

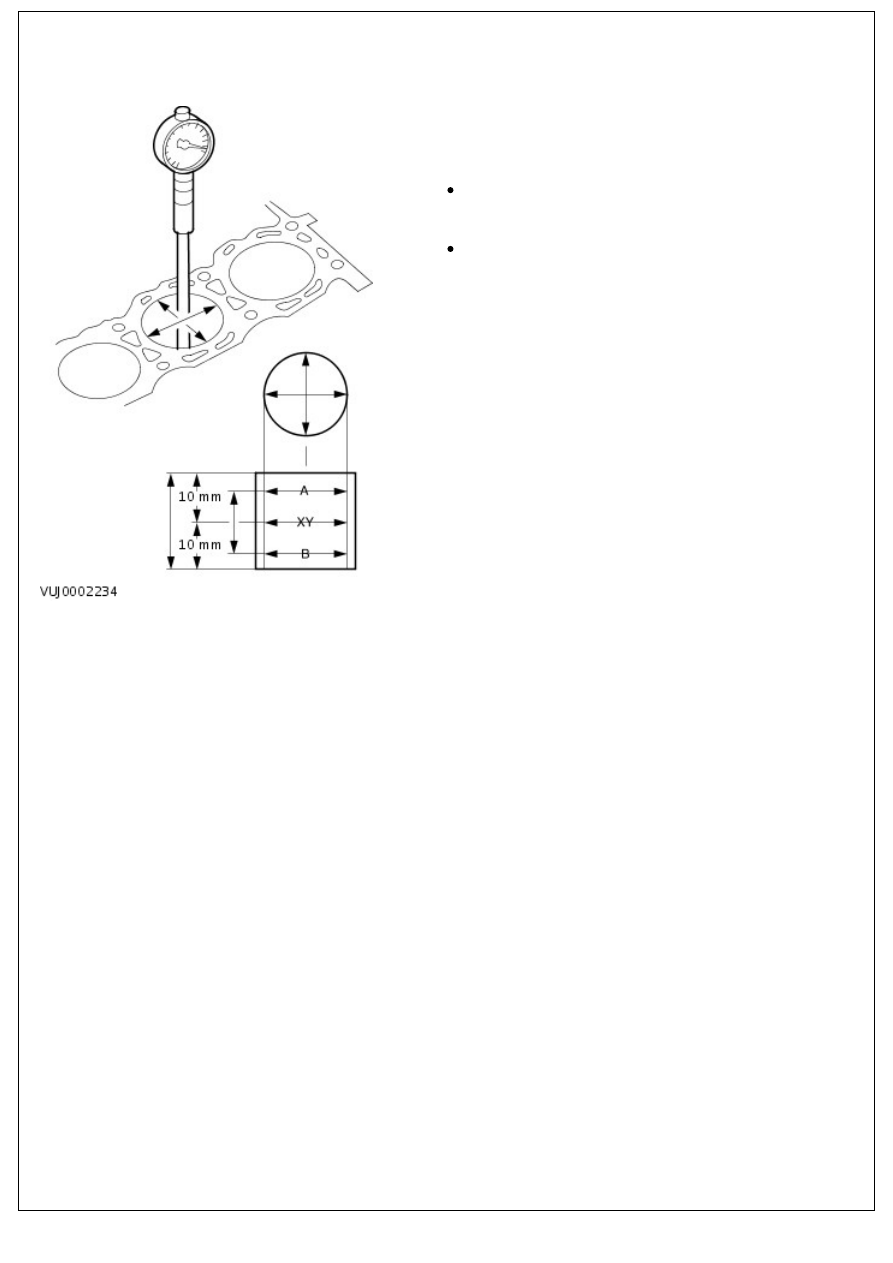

Measure the cylinder bore with an internal micrometer.

Carry out the measurements in different directions and

at different heights to determine if there is any out-of-

roundness or tapering.

If the measurement is out of the specified range, hone

out the cylinder block or install a new block.

Engine System - General Information - Cylinder Head Distortion

General Procedures

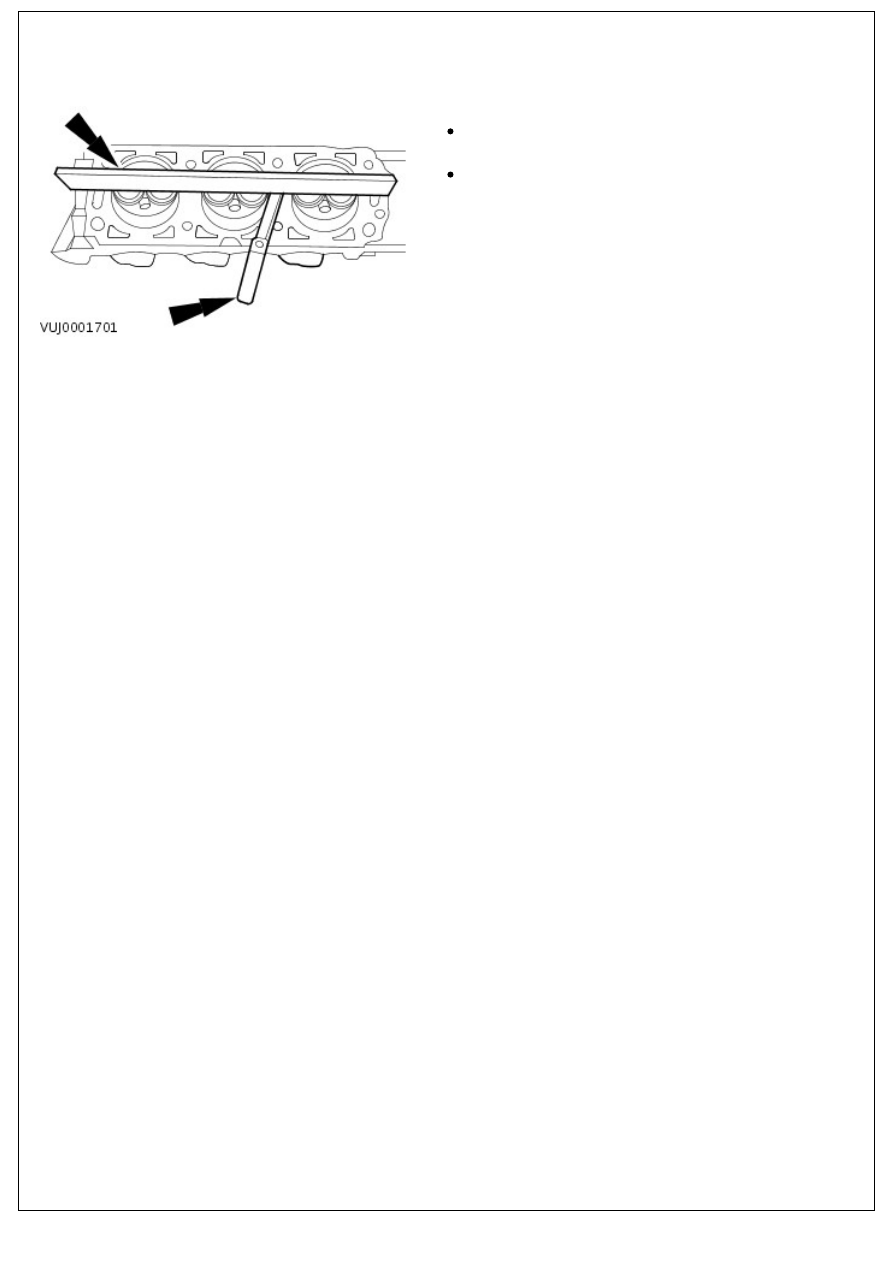

1. Measure the cylinder block/cylinder head distortion.

Using the special tool, measure the mating face

distortion.

If the value is not to specification rework the mating

face.
