Defender. Manual - part 21





Rear Suspension - Wheel Studs

Removal and Installation

Removal

1. Remove wheel.

For additional information, refer to:

Wheel and Tire

 (204-04

Wheels and Tires, Removal and Installation).

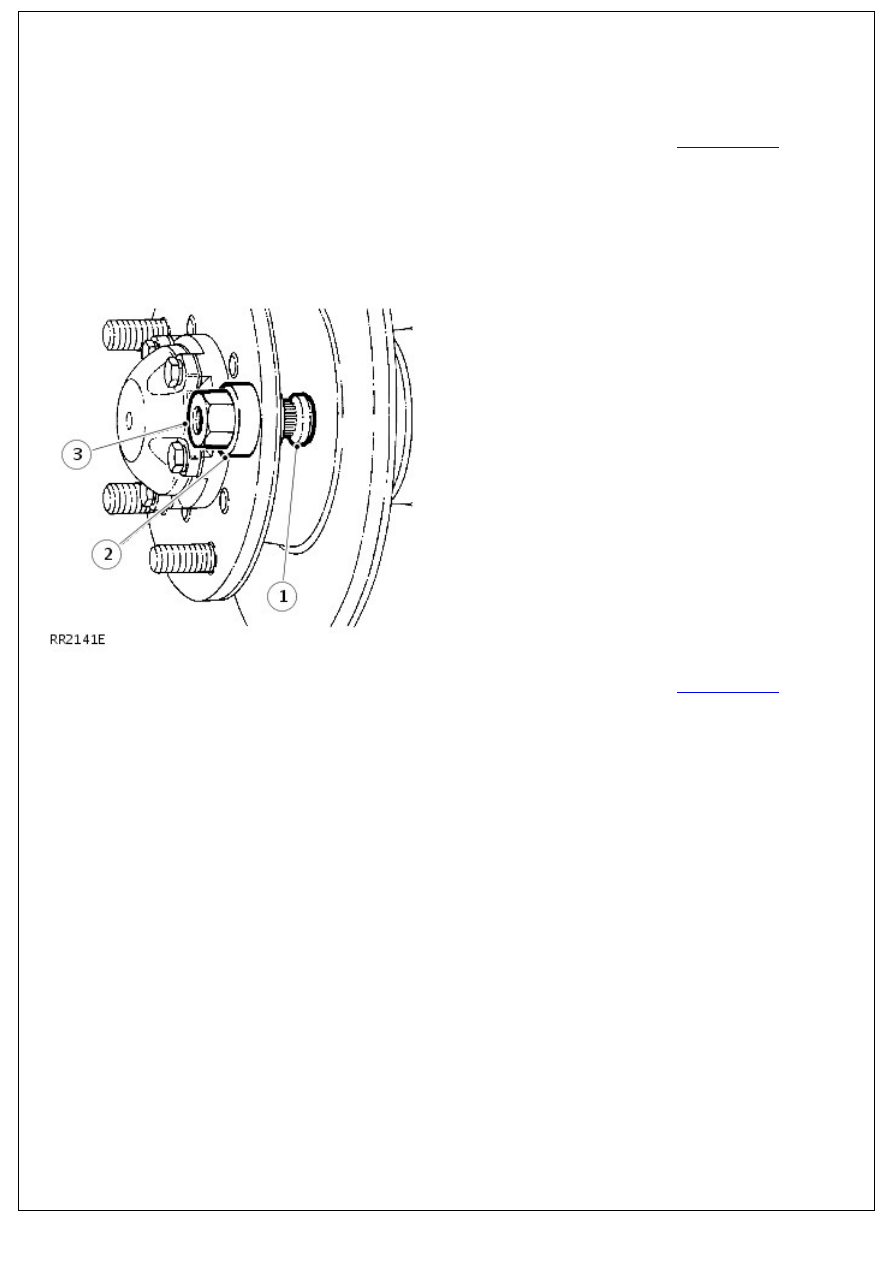

2. Drive stud out of driveshaft flange.

Installation

1. Position stud in flange.
2. Install a suitable spacer over stud.

3. Using a M16 x 1.5 nut, a slave wheel nut is suitable, pull

stud into flange until shoulder of stud abuts flange.

4. Refit wheel.

For additional information, refer to:

Wheel and Tire

 (204-04

Wheels and Tires, Removal and Installation).

Rear Suspension - Rear Stabilizer Bar

Removal and Installation

Removal

1. Note for reassembly, position of rubber bushes on stabilizer

bar.

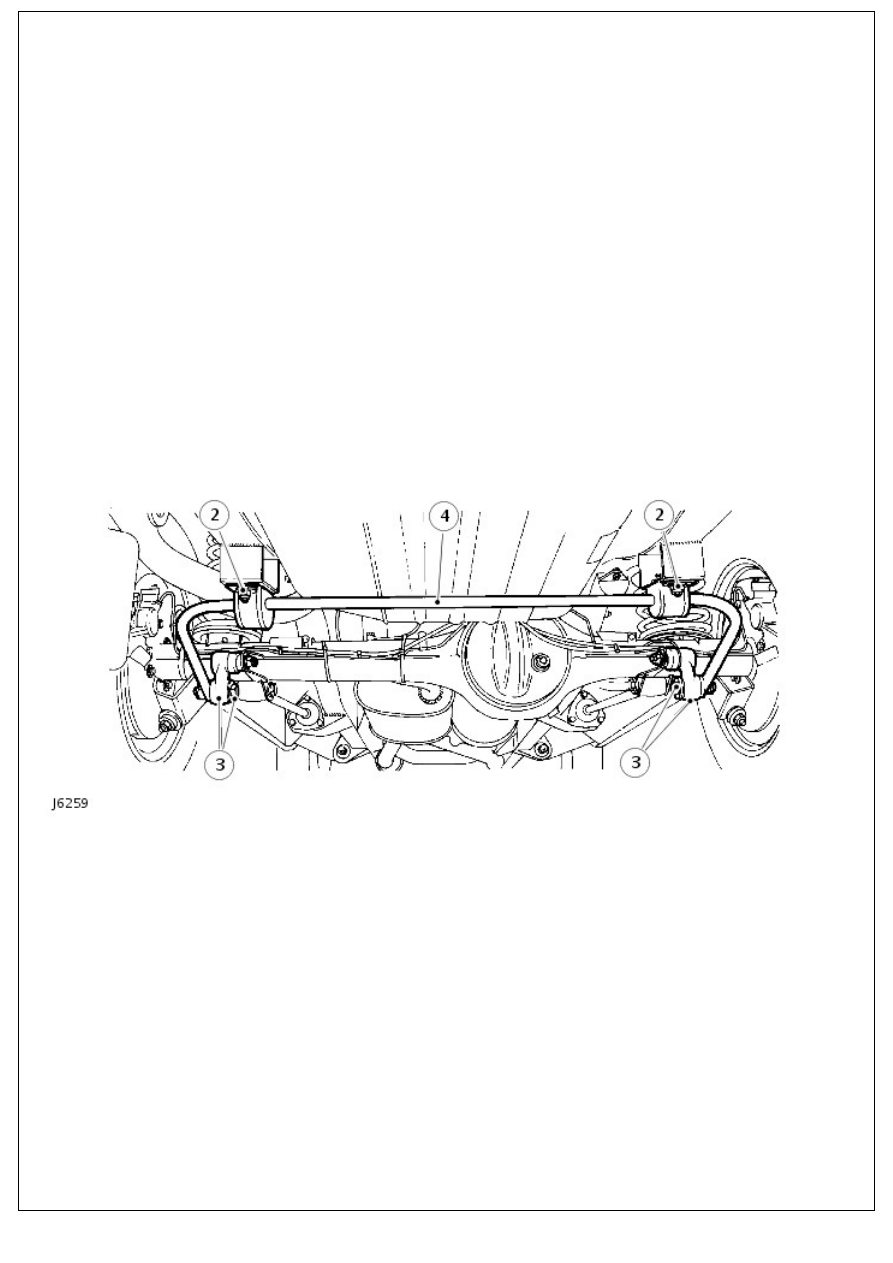

2. Remove 4 nuts, bolts and washers securing both stabilizer

bar bush straps to chassis mounting brackets.

3. Remove nuts, bolts, washers and rubber bushes securing

stabilizer bar to links.

4. Remove stabilizer bar.

Installation

1. Position rubber bushes on stabilizer bar. Instal joint towards

axle.

2. Instal stabilizer bar with two straps. Ensure link arms point

down as shown. Loosely instal, bolts, washers and new nyloc

nuts.

3. Instal bolt, washers and rubber bushes. Instal anti-roll bar to

links and tighten to 68Nm (50 lbf.ft).

4. Tighten nuts securing straps to 30Nm (22 lbf.ft).

Rear Suspension - Rear Shock Absorber

Removal and Installation

Removal

1. Loosen road wheel retaining nuts.
2. Support chassis on stands. Remove road wheel and support

rear axle weight with jack.

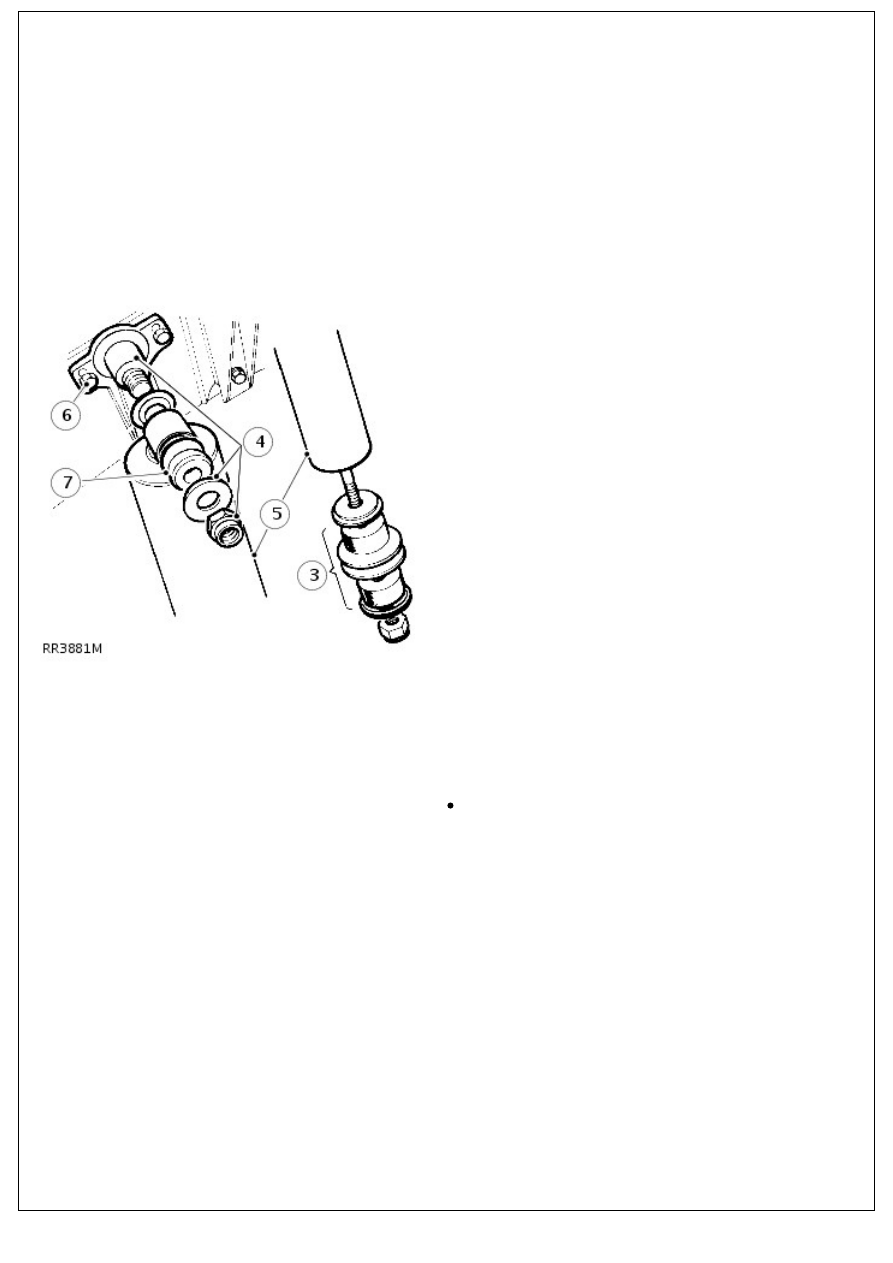

3. Remove fixings and withdraw shock absorber from axle

bracket.

4. Remove upper fixings.
5. Withdraw shock absorber.
6. If required, remove mounting bracket

7. If required, remove mounting rubbers.

Installation

1. Position shock absorber and install upper fixings.
2. Secure shock absorber with lower fixings to axle bracket.
3. Tighten upper fixing to 85 Nm (63 lbf.ft). Tighten lower fixing

to 28 Nm (21 lbf.ft).

Note: For vehicles built prior to VIN 737011, discard the

old fixings and tighten new fixing to the torque

specified.

4. Install road wheels, remove chassis stands and jack. Tighten

wheel nuts to correct torque:

1. Alloy wheels - 130 Nm (96 lbf.ft)

2. Steel wheels - 100 Nm (80 lbf.ft)

3. Heavy duty wheels - 170 Nm (125 lbf.ft)

Rear Suspension - Rear Stabilizer Bar Link

Removal and Installation

Removal

1. Remove 2 nuts, bolts, washers and rubber bushes from links

and lower stabilizer bar to clear links.

2. Remove cotter pin and loosen castellated nut a few turns.

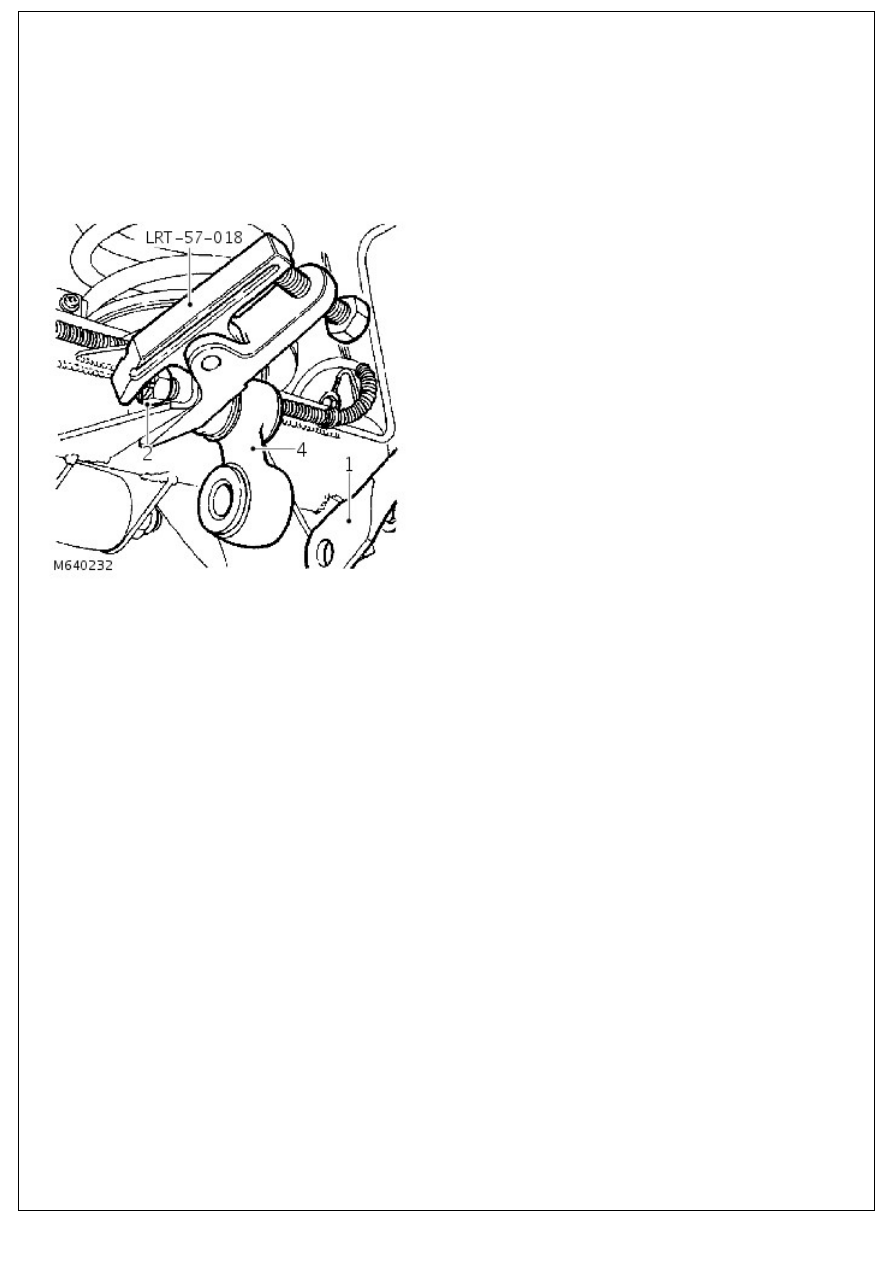

3. Release link using tool LRT-57-018 as shown.

4. Remove castellated nut and remove link.

Installation

1. Install stabilizer bar link arm and castellated nut. Point link

arm down as shown. Tighten fixing to 40 Nm (30 lbf.ft) and

fit new cotter pin.

2. Align stabilizer bar to links.
3. Install bolts, washers and rubber bushes using new self

locking nuts and secure stabilizer bar to links. Tighten to 6

8Nm (50 lbf.ft).
