Jeep Grand Cherokee WK (2022 year). Manual in english

282

SERVICING AND MAINTENANCE

F25

30 Amp Pink

–

Ft Wipers

F26

30 Amp Pink

–

ESP / ECU Valves

F27

–

Spare

F28

20 Amp Blue

–

TRLR Tow B/U *

F29

20 Amp Blue

–

TRLR Tow Park *

F30

30 Amp Pink

–

TRLR Tow Pwr *

F31

–

Spare

F32

30 Amp Pink

–

DTCM

F33

–

Spare

F34

30 Amp Pink

–

ELSD *

F35

30 Amp Pink

–

Sunroof *

F36

30 Amp Pink

–

EBL

F37

–

Spare

F38

30 Amp Pink

–

Power Inverter

F39

30 Amp Pink

–

PLG

F40

–

10 Amp Red

DRL / Headlamp LVL *

F41

–

Spare

F42

–

20 Amp Yellow

Horn

F43

–

Spare

F44

–

10 Amp Red

Diagnostic Port

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

SERVICING AND MAINTENANCE

283

F45

–

5 Amp Tan

Cyber Security Mod

F46

–

Spare

F47

–

Spare

F48

–

Spare

F49

–

10 Amp Red

ICS / HVAC

F50

–

20 Amp Yellow

Air Suspension MOD * / ELSD *

F51

–

15 Amp Blue

KIN / RF HUB / ESCL *

F52

–

Spare

F53

–

20 Amp Yellow

TRLR Tow LT Turn / Stop *

F54

–

Spare

F55

–

Spare

F56

–

Spare

F57

–

Spare

F58

–

15 Amp Blue

HID Headlamps LT *

F59

–

Spare

F60

–

15 Amp Blue

TCM

F61

–

Spare

F62

–

10 Amp Red

A/C Clutch

F63

–

20 Amp Yellow

Ignition Coils * / Ignition Coil Capacitors *

F64

–

25 Amp Clear

Fuel Injectors / LTR Control / ECM

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

284

SERVICING AND MAINTENANCE

F65

–

Spare

F66

–

10 Amp Red

Sunroof * / LRSM * / RVM / DSCR / USB Port / DTV *

F67

–

15 Amp Blue

CDM / UCI Port / USB Port

F68

–

20 Amp Yellow

RR Wiper Mtr

F69

–

Spare

F70

–

20 Amp Yellow

Fuel Pump Mtr

F71

–

30 Amp Green

Amplifier * / ANCM *

F72

–

10 Amp Red

ECM *

F73

–

15 Amp Blue

HID Headlamps RT *

F74

–

Spare

F75

–

10 Amp Red

Dual Batt CTRL *

F76

–

10 Amp Red

ESP

F77

–

10 Amp Red

DTCM / ELSD *

F78

–

10 Amp Red

ECM / EPS

F79

–

Spare

F80

–

10 Amp Red

UGDO / ITM / SIREN

F81

–

20 Amp Yellow

TRLR Tow RT Turn / Stop *

F82

–

10 Amp Red

SCCM / Cruise Control / DTV *

F83

–

10 Amp Red

Fuel Door

F84

–

15 Amp Blue

Cluster

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

SERVICING AND MAINTENANCE

285

F85

–

10 Amp Red

ORC (Airbag)

F86

–

10 Amp Red

ORC (Airbag)

F87

–

10 Amp Red

Air Susp Mod *

F88

–

15 Amp Blue

Cluster / CSG */ ITBM *

F89

–

Spare

F90

–

20 Amp Yellow

Power Outlet–Batt

F91

Power Outlet–ACC

F92

–

Spare

F93

–

20 Amp Yellow

Cigar Lighter

F94

–

10 Amp Red

SBW / TCASE SW

F95

–

10 Amp Red

RR Cam / Blind Spot Snsr *

F96

–

10 Amp Red

RR Seat Heater SW *

F97

–

20 Amp Yellow

RR HTD STS / HTD STR WHEEL *

F98

–

20 Amp Yellow

Front HTD STS / Vent STS *

F99

–

10 Amp Red

HVAC / DASM / HLFM / PRKTRONX

F100

–

Spare

F101

–

15 Amp Blue

IN-Car Temperature Sensor / Humidity Sensor

F102

–

15 Amp Blue

Spare

F103

–

Spare

F104

–

20 Amp Yellow

Pwr Out-IP / Console /TRNK

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

286

SERVICING AND MAINTENANCE

ULB

EPLACEMENT

Replacement Bulbs, Names, And Part Numbers

In the instance a bulb needs to be replaced, this section includes bulb description and replacement part numbers.

NOTE:

See an authorized dealer for LED bulb replacement.

Interior Bulbs

Bulb Name

Bulb Number

Glove Compartment Lamp

194

Grab Handle Lamp

L002825W5W

Overhead Console Reading Lamps

VT4976

Rear Cargo Lamp

214–2

Visor Vanity Lamp

V26377

Underpanel Courtesy Lamps

906

Instrument Cluster (General Illumination)

103

Telltale/Hazard Lamp

SERVICING AND MAINTENANCE

287

Exterior Bulbs

Bulb Name

Bulb Number

Headlamps (Low Beam) — If Equipped

H11

Premium Headlamps (Low/High Beam)

D3S (Serviced at an authorized dealer)

Headlamps (High Beam) — If Equipped

Premium Park/Turn Signal Lamp

LED

Premium Daytime Running Lamp (DRL)

LED

Front Fog Lamps

LED

Front Side Marker — If Equipped

W5W

Premium Front Side Marker — If Equipped

LED

Front Park/Turn Lamp — If Equipped

7444NA (WY28/8W)

Rear Body Side Backup Lamp

7440 (W21W)

Auxiliary Liftgate Tail Lamps

LED

Liftgate Backup Lamps

921 (W16W)

Rear License Lamps

LED

Rear Body Side Stop/Turn Lamps

3157KRD LCP (P27/7W)

Rear Body Side Tail Lamps

LED

Center High Mounted Stop Lamp (CHMSL)

LED

288

SERVICING AND MAINTENANCE

Bulb Replacement

HIGH INTENSITY DISCHARGE HEADLAMPS

(HID) — IF EQUIPPED

The headlamps are a type of high voltage

discharge tube. High voltage can remain in the

circuit even with the headlamp switched off and

the key removed. Because of this, you should not

attempt to service a headlamp bulb yourself. If a

headlamp bulb fails, take your vehicle to an

authorized dealer for service.

NOTE:

On vehicles equipped with HID headlamps, when

the headlamps are turned on, there is a blue hue

to the lamps. This diminishes and becomes more

white after approximately 10 seconds, as the

system charges.

HALOGEN HEADLAMPS — IF EQUIPPED

NOTE:

Lens fogging can occur under certain atmospheric

conditions. This will usually clear as atmospheric

conditions change to allow the condensation to

change back to vapor. Turning the lamps on will

usually accelerate the clearing process.
See the following steps to replace:
1. Open the hood.
2. Access the back of the headlamp.
3. The air filter housing must be removed.
4. The windshield washer reservoir may need to

be rotated out of the way by removing the

fastener.

5. Coolant reservoir (if equipped) will need to be

repositioned by removing the fasteners, and

moving the unit out of the way.

6. To access the low beam bulb you must remove

the rubber boot seal from backside of the lamp

housing.

Rubber Boot Seal

NOTE:

Ensure the rubber boot is properly reinstalled to

prevent water and moisture from entering the

lamp.

WARNING!

A transient high voltage occurs at the bulb

sockets of High Intensity Discharge HID

headlamps when the headlamp switch is turned

ON. It may cause serious electrical shock or

electrocution if not serviced properly. See an

authorized dealer for service.

CAUTION!



Do not contaminate the bulb glass by touching

it with your fingers or by allowing it to contact

other oily surfaces. Shortened bulb life will

result.



Always use the correct bulb size and type for

replacement. An incorrect bulb size or type

may overheat and cause damage to the lamp,

the bulb socket, or the lamp wiring.

SERVICING AND MAINTENANCE

289

7. Turn the low or high beam bulb a quarter turn

counterclockwise to remove from housing.

8. Disconnect the electrical connector and

replace the bulb.

FRONT TURN SIGNAL LAMP — IF EQUIPPED

See the following steps to replace:
1. Open the hood.
2. Access the back of the headlamp.
3. The air filter housing must be removed.
4. The windshield washer reservoir may need to

be rotated out of the way by removing the

fastener.

5. Coolant reservoir (if equipped) will need to be

repositioned by removing the fasteners, and

moving the unit out of the way.

6. Turn the turn signal bulb a quarter turn

counterclockwise to remove from housing.

7. Disconnect the electrical connector and

replace the bulb.

FRONT FOG LAMPS

Please see an authorized dealer for service on LED

and Halogen front fog lamps.

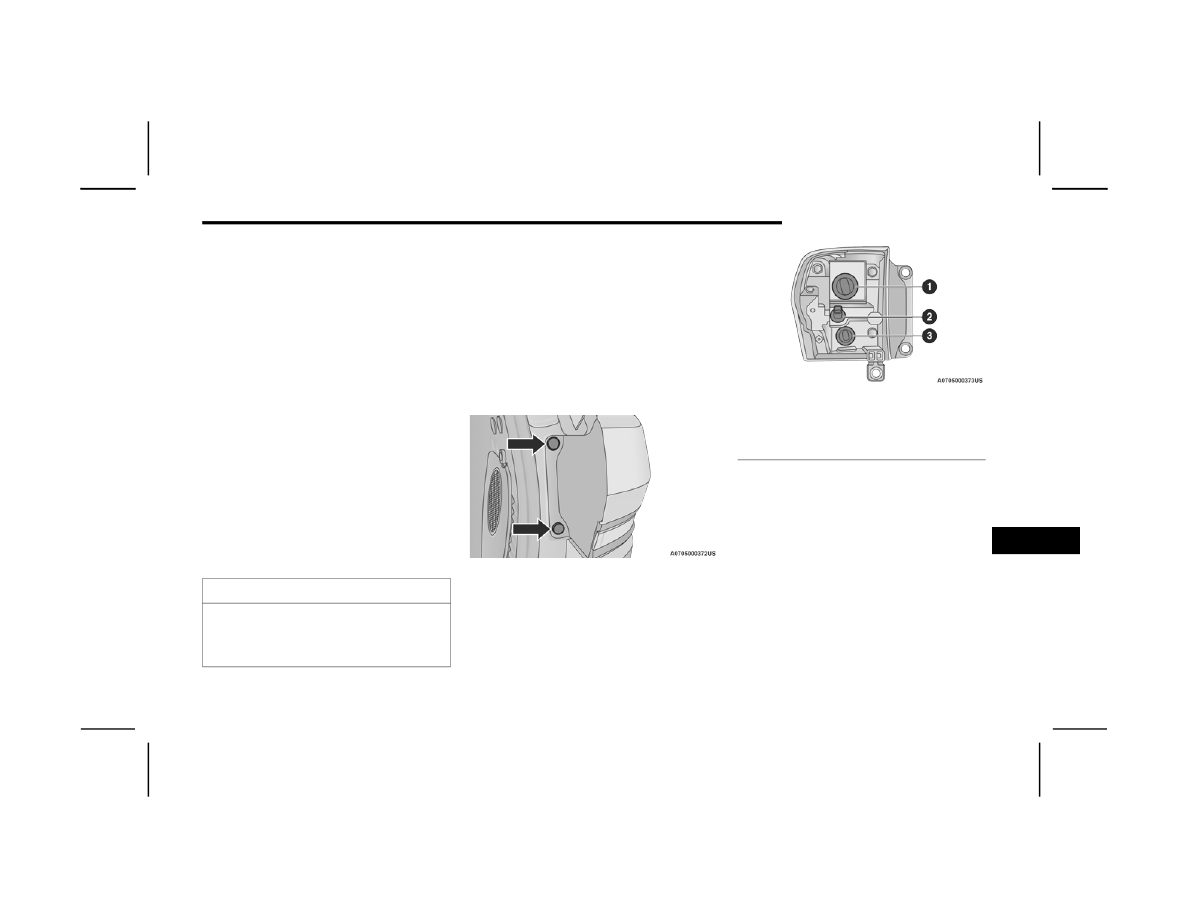

REAR TAIL, STOP, AND TURN SIGNAL LAMPS —

IF EQUIPPED

See the following steps to replace:
1. Raise the liftgate.
2. Remove the two push-pins from the tail lamp

housing.

Tail Lamp Push Pins

3. Grab the tail lamp and pull firmly rearward to

disengage the lamp from the aperture panel.

4. Twist socket counterclockwise and remove

from lamp.

Rear Of Tail Lamp

5. Pull the bulb to remove it from the socket.
6. Replace the bulb, reinstall the socket, and

reattach the lamp assembly.

CAUTION!

Do not touch the new bulb with your fingers. Oil

contamination will severely shorten bulb life. If

the bulb comes in contact with any oily surface,

clean the bulb with rubbing alcohol.

1 — Rear Turn/Stop Bulb Socket
2 — LED Tail Connector – Do Not Remove
3 — Backup Bulb Socket

290

SERVICING AND MAINTENANCE

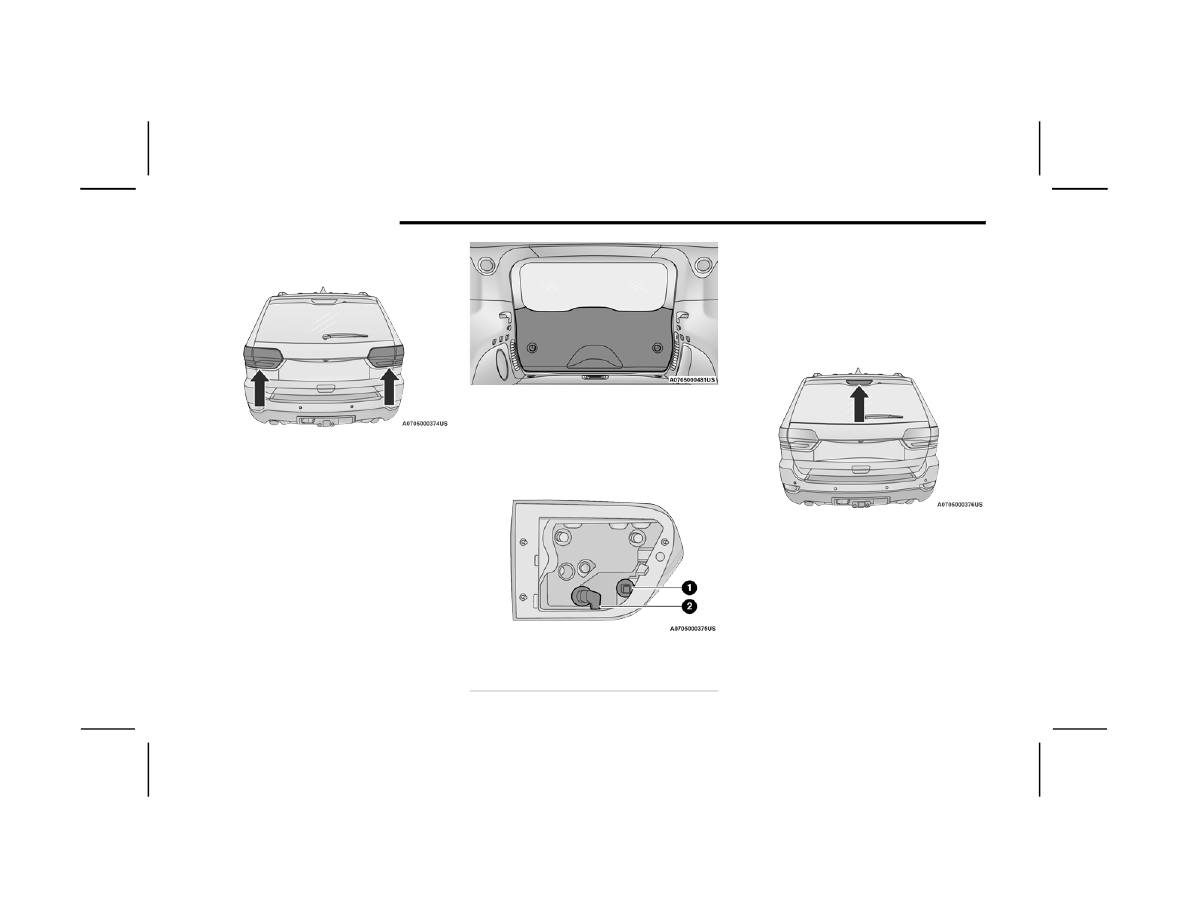

REAR LIFTGATE MOUNTED TAIL LAMP —

IF EQUIPPED

Rear Liftgate Tail Lamps

See the following steps to replace:
1. Raise the liftgate.
2. Use a suitable tool to pry the lower trim from

the liftgate.

Liftgate Lower Trim

3. Continue removing the trim.
4. Disconnect the two trim panel lights.
5. Tail lamps are now visible. Rotate socket(s)

counterclockwise.

Rear Of Liftgate Tail Lamp

6. Remove/replace bulb(s).
7. Reinstall the socket(s).
8. Reverse process to reinstall the liftgate trim.

CENTER HIGH MOUNTED STOP LAMP (CHMSL)

The CHMSL is an LED. Service at an authorized

dealer.

Center High Mounted Stop Lamp

REAR LICENSE LAMP

The rear license lamps are LEDs. See an

authorized dealer for service.

1 — Auxiliary LED Tail Connector – Do Not Remove
2 — Backup Bulb Socket

SERVICING AND MAINTENANCE

291

TIRES

IRE

AFETY

NFORMATION

Tire safety information will cover aspects of the

following information: Tire Markings, Tire

Identification Numbers, Tire Terminology and

Definitions, Tire Pressures, and Tire Loading.

Tire Markings

NOTE:



P (Passenger) — Metric tire sizing is based on US

design standards. P-Metric tires have the letter

“P” molded into the sidewall preceding the size

designation. Example: P215/65R15 95H.



European — Metric tire sizing is based on Euro

pean design standards. Tires designed to this

standard have the tire size molded into the side

wall beginning with the section width. The letter

"P" is absent from this tire size designation.

Example: 215/65R15 96H.



LT (Light Truck) — Metric tire sizing is based on

US design standards. The size designation for

LT-Metric tires is the same as for P-Metric tires

except for the letters “LT” that are molded into

the sidewall preceding the size designation.

Example: LT235/85R16.



Temporary spare tires are designed for tempo

rary emergency use only. Temporary high pres

sure compact spare tires have the letter “T” or

“S” molded into the sidewall preceding the size

designation. Example: T145/80D18 103M.



High flotation tire sizing is based on US design

standards and it begins with the tire diameter

molded into the sidewall.

Example: 31x10.5 R15 LT.

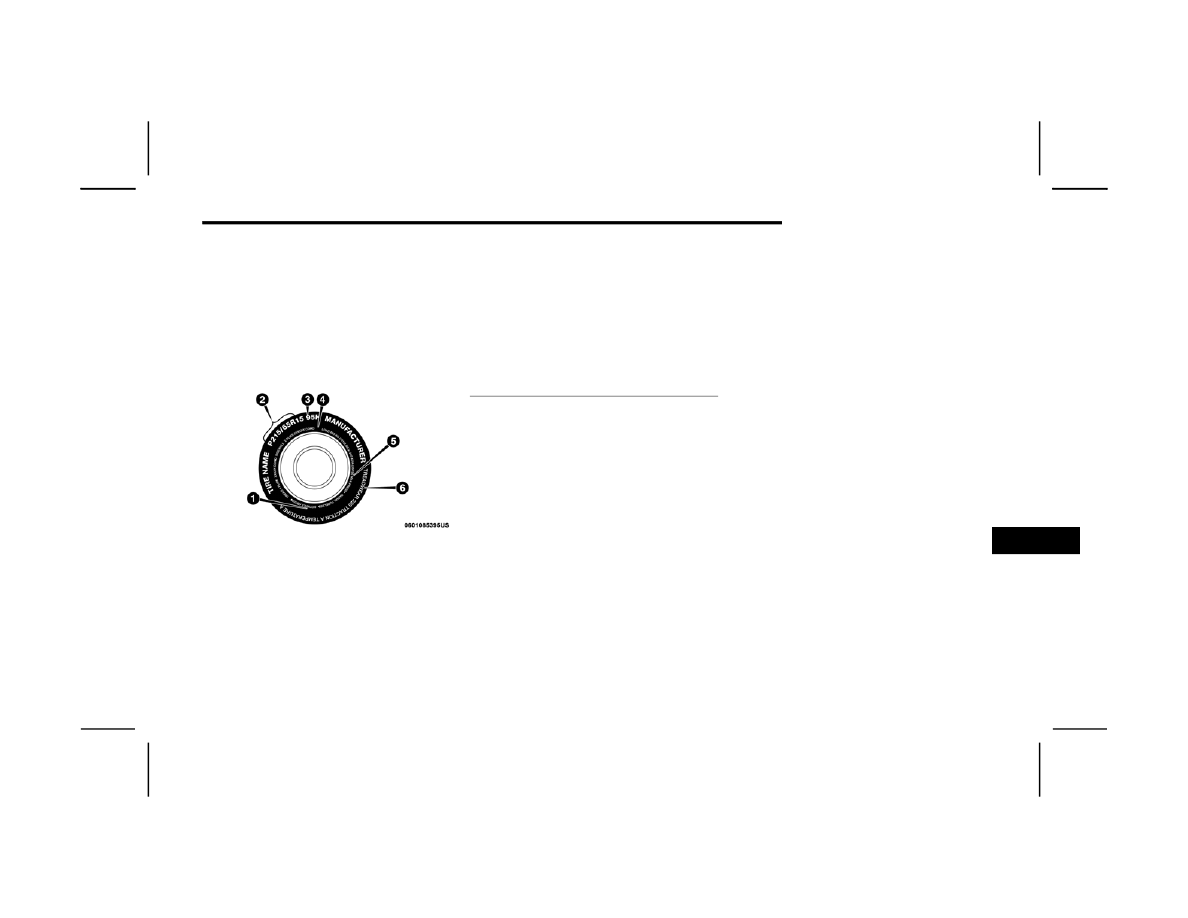

1 — US DOT Safety Standards

Code (TIN)
2 — Size Designation
3 — Service Description
4 — Maximum Load
5 — Maximum Pressure
6 — Treadwear, Traction and

Temperature Grades

292

SERVICING AND MAINTENANCE

TIRE SIZING CHART

EXAMPLE:

Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT
P = Passenger car tire size based on US design standards, or
"....blank...." = Passenger car tire based on European design standards, or
LT = Light truck tire based on US design standards, or
T or S = Temporary spare tire or
31 = Overall diameter in inches (in)
215, 235, 145 = Section width in millimeters (mm)
65, 85, 80 = Aspect ratio in percent (%)



Ratio of section height to section width of tire, or

10.5 = Section width in inches (in)
R = Construction code



"R" means radial construction, or



"D" means diagonal or bias construction

15, 16, 18 = Rim diameter in inches (in)

SERVICING AND MAINTENANCE

293

Service Description:
95 = Load Index



A numerical code associated with the maximum load a tire can carry

H = Speed Symbol



A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions



The maximum speed corresponding to the speed symbol should only be achieved under specified operating conditions (i.e., tire pressure, vehicle loading,

road conditions, and posted speed limits)

Load Identification:
Absence of the following load identification symbols on the sidewall of the tire indicates a Standard Load (SL) tire:



XL = Extra load (or reinforced) tire, or



LL = Light load tire or



C, D, E, F, G = Load range associated with the maximum load a tire can carry at a specified pressure

Maximum Load – Maximum load indicates the maximum load this tire is designed to carry
Maximum Pressure – Maximum pressure indicates the maximum permissible cold tire inflation pressure for this tire

EXAMPLE:

294

SERVICING AND MAINTENANCE

Tire Identification Number (TIN)

The TIN may be found on one or both sides of the tire; however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including

the date code, located on the white sidewall side of the tire. Look for the TIN on the outboard side of black sidewall tires as mounted on the vehicle. If the TIN is

not found on the outboard side, then you will find it on the inboard side of the tire.

EXAMPLE:

DOT MA L9 ABCD 0301
DOT = Department of Transportation



This symbol certifies that the tire is in compliance with the US Department of Transportation tire safety standards and is approved for highway use

MA = Code representing the tire manufacturing location (two digits)
L9 = Code representing the tire size (two digits)
ABCD = Code used by the tire manufacturer (one to four digits)
03 = Number representing the week in which the tire was manufactured (two digits)



03 means the 3rd week

01 = Number representing the year in which the tire was manufactured (two digits)



01 means the year 2001



Prior to July 2000, tire manufacturers were only required to have one number to represent the year in which the tire was manufactured.

Example: 031 could represent the 3rd week of 1981 or 1991

SERVICING AND MAINTENANCE

295

Tire Terminology And Definitions

Term

Definition

B-pillar

The vehicle B-pillar is the structural member of the body located behind the front door.

Cold Tire Inflation Pressure

Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been

driven for at least three hours, or driven less than 1 mile (1.6 km) after sitting for a

minimum of three hours. Inflation pressure is measured in units of PSI (pounds per

square inch) or kPa (kilopascals).

Maximum Inflation Pressure

The maximum inflation pressure is the maximum permissible cold tire inflation pressure for

this tire. The maximum inflation pressure is molded into the sidewall.

Recommended Cold Tire Inflation Pressure

The manufacturers’ recommended cold tire inflation pressure as shown on the tire placard.

Tire Placard

A label permanently attached to the vehicle describing the vehicle’s loading capacity, the

original equipment tire sizes and the recommended cold tire inflation pressures.

296

SERVICING AND MAINTENANCE

Tire Loading And Tire Pressure

NOTE:

The proper cold tire inflation pressure is listed on

the driver’s side B-pillar or the rear edge of the

driver's side door.
Check the inflation pressure of each tire, including

the spare tire (if equipped), at least monthly and

inflate to the recommended pressure for your

vehicle.

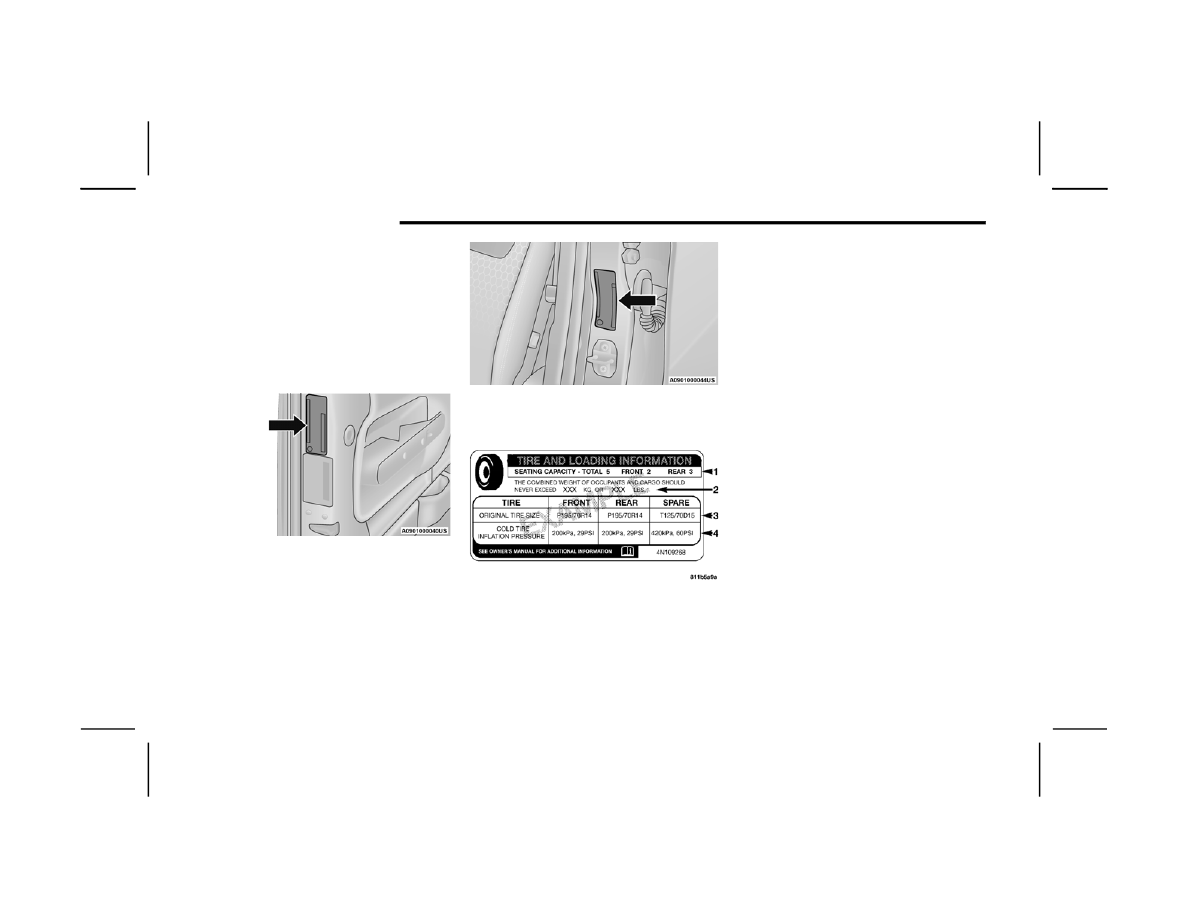

Example Tire Placard Location (Door)

Example Tire Placard Location (B-pillar)

Tire And Loading Information Placard

This placard tells you important information about

the:
1. Number of people that can be carried in the

vehicle.

2. Total weight your vehicle can carry.
3. Tire size designed for your vehicle.
4. Cold tire inflation pressures for the front, rear,

and spare tires.

The vehicle maximum load on the tire must not

exceed the load carrying capacity of the tire on your

vehicle. You will not exceed the tire's load carrying

capacity if you adhere to the loading conditions,

tire size, and cold tire inflation pressures specified

on the Tire and Loading Information placard

page 135.

NOTE:

Under a maximum loaded vehicle condition, Gross

Axle Weight Rating (GAWR) for the front and rear

axles must not be exceeded.
For further information on GAWR, vehicle loading,

and trailer towing

page 135.

SERVICING AND MAINTENANCE

297

To determine the maximum loading conditions of

your vehicle, locate the statement “The combined

weight of occupants and cargo should never

exceed XXX kg or XXX lbs” on the Tire and Loading

Information placard. The combined weight of

occupants, cargo/luggage and trailer tongue

weight (if applicable) should never exceed the

weight referenced here.

Steps For Determining Correct Load

Limit—
(1) Locate the statement “The combined

weight of occupants and cargo should

never exceed XXX kg or XXX lbs.” on your

vehicle's placard.
(2) Determine the combined weight of

the driver and passengers that will be

riding in your vehicle.
(3) Subtract the combined weight of the

driver and passengers from XXX kg or

XXX lbs.

(4) The resulting figure equals the

available amount of cargo and luggage

load capacity. For example, if “XXX”

amount equals 1400 lbs. and there will

be five 150 lb passengers in your

vehicle, the amount of available cargo

and luggage load capacity is 650 lbs.

(1400-750 (5x150) = 650 lbs.)
(5) Determine the combined weight of

luggage and cargo being loaded on the

vehicle. That weight may not safely

exceed the available cargo and luggage

load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer,

load from your trailer will be transferred

to your vehicle. Consult this manual to

determine how this reduces the

available cargo and luggage load

capacity of your vehicle.

Metric Example For Load Limit
For example, if “XXX” amount equals 635 kg and

there will be five 68 kg passengers in your vehicle,

the amount of available cargo and luggage load

capacity is 295 kg (635-340 (5x68) = 295 kg) as

shown in step 4.

NOTE:



If your vehicle will be towing a trailer, load from

your trailer will be transferred to your vehicle.

The following table shows examples on how to

calculate total load, cargo/luggage, and towing

capacities of your vehicle with varying seating

configurations and number and size of occu

pants. This table is for illustration purposes only

and may not be accurate for the seating and

load carry capacity of your vehicle.



For the following example, the combined weight

of occupants and cargo should never exceed

865 lbs (392 kg).

Jeep Grand Cherokee WK (2022 year). Manual in english - page 18
