Jeep Grand Cherokee WK (2022 year). Manual in english

234

SAFETY

SAFETY TIPS

RANSPORTING

ASSENGERS

NEVER TRANSPORT PASSENGERS IN THE CARGO

AREA.

RANSPORTING

ETS

Air Bags deploying in the front seat could harm

your pet. An unrestrained pet will be thrown about

and possibly injured, or injure a passenger during

panic braking or in a collision.
Pets should be restrained in the rear seat (if

equipped) in pet harnesses or pet carriers that are

secured by seat belts.

ONNECTED

EHICLES

Privacy of any wireless and wired communications

cannot be assured. Third parties may unlawfully

intercept information and private communications

without your consent. For further information, refer

to “Data Collection & Privacy” in your Uconnect

Owner’s Manual Supplement or “Onboard

Diagnostic System (OBD II) Cybersecurity”

page 88.

WARNING!



The top tether anchorages are not visible until

the gap panel is folded down. Do not use the

visible cargo tie down hooks, located on the

floor behind the seats, to attach a child

restraint tether anchor.



An incorrectly anchored tether strap could

lead to increased head motion and possible

injury to the child. Use only the anchorage

position directly behind the child seat to

secure a child restraint top tether strap.



If your vehicle is equipped with a split rear

seat, make sure the tether strap does not slip

into the opening between the seatbacks as

you remove slack in the strap.

WARNING!



Do not leave children or animals inside parked

vehicles in hot weather. Interior heat buildup

may cause serious injury or death.



It is extremely dangerous to ride in a cargo

area, inside or outside of a vehicle. In a colli

sion, people riding in these areas are more

likely to be seriously injured or killed.



Do not allow people to ride in any area of your

vehicle that is not equipped with seats and

seat belts.



Be sure everyone in your vehicle is in a seat

and using a seat belt properly.

WARNING!

It is not possible to know or to predict all of the

possible outcomes if your vehicle’s systems are

breached. It may be possible that vehicle

systems, including safety related systems, could

be impaired or a loss of vehicle control could

occur that may result in an accident involving

serious injury or death.

SAFETY

235

(Continued)

AFETY

HECKS

HOULD

AKE

NSIDE

EHICLE

Seat Belts

Inspect the seat belt system periodically, checking

for cuts, frays, and loose parts. Damaged parts

must be replaced immediately. Do not

disassemble or modify the system.
If your vehicle is involved in a collision, or if you

have ques90tions regarding the seat belt or

retractor conditions, take your vehicle to an

authorized FCA dealer or authorized FCA Certified

Collision Care Program facility for inspection.

Air Bag Warning Light

The Air Bag Warning Light will turn on for

four to eight seconds as a bulb check

when the ignition switch is first placed in

the ON/RUN mode. If the light is either

not on during starting, stays on, or turns on while

driving, have the system inspected at an

authorized dealer as soon as possible. After the

bulb check, this light will illuminate with a single

chime when a fault with the Air Bag System has

been detected. It will stay on until the fault is

removed. If the light comes on intermittently or

remains on while driving, have an authorized

dealer service the vehicle immediately

page 204.

Defroster

Check operation by selecting the defrost mode and

place the blower control on high speed. You should

be able to feel the air directed against the

windshield. See an authorized dealer for service if

your defroster is inoperable.

Floor Mat Safety Information

Always use floor mats designed to fit your vehicle.

Only use a floor mat that does not interfere with the

operation of the accelerator, brake or clutch

pedals. Only use a floor mat that is securely

attached using the floor mat fasteners so it cannot

slip out of position and interfere with the

accelerator, brake or clutch pedals or impair safe

operation of your vehicle in other ways.

WARNING!

An improperly attached, damaged, folded, or

stacked floor mat, or damaged floor mat

fasteners may cause your floor mat to interfere

with the accelerator, brake, or clutch pedals and

cause a loss of vehicle control. To prevent

SERIOUS INJURY or DEATH:



ALWAYS securely attach your floor

mat using the floor mat fasteners.

DO NOT install your floor mat upside

down or turn your floor mat over.

Lightly pull to confirm mat is secured using the

floor mat fasteners on a regular basis.



ALWAYS REMOVE THE EXISTING

FLOOR MAT FROM THE VEHICLE

before installing any other floor mat.

NEVER install or stack an additional

floor mat on top of an existing floor mat.



ONLY install floor mats designed to fit your

vehicle. NEVER install a floor mat that cannot

be properly attached and secured to your

vehicle. If a floor mat needs to be replaced,

only use a FCA approved floor mat for the

specific make, model, and year of your

vehicle.

236

SAFETY

(Continued)

ERIODIC

AFETY

HECKS

HOULD

AKE

UTSIDE

EHICLE

Tires

Examine tires for excessive tread wear and uneven

wear patterns. Check for stones, nails, glass, or

other objects lodged in the tread or sidewall.

Inspect the tread for cuts and cracks. Inspect

sidewalls for cuts, cracks, and bulges. Check the

lug nuts/bolt torque for tightness. Check the tires

(including spare) for proper cold inflation pressure.

Lights

Have someone observe the operation of brake

lights and exterior lights while you work the

controls. Check turn signal and high beam

indicator lights on the instrument panel.

Door Latches

Check for proper closing, latching, and locking.

Fluid Leaks

Check area under the vehicle after overnight

parking for fuel, coolant, oil, or other fluid leaks.

Also, if gasoline fumes are detected or if fuel or

brake fluid leaks are suspected, the cause should

be located and corrected immediately.



ONLY use the driver’s side floor mat on the

driver’s side floor area. To check for interfer

ence, with the vehicle properly parked with the

engine off, fully depress the accelerator, the

brake, and the clutch pedal (if present) to

check for interference. If your floor mat inter

feres with the operation of any pedal, or is not

secure to the floor, remove the floor mat from

the vehicle and place the floor mat in your

trunk.



ONLY use the passenger’s side floor mat on

the passenger’s side floor area.



ALWAYS make sure objects cannot fall or slide

into the driver’s side floor area when the

vehicle is moving. Objects can become

trapped under accelerator, brake, or clutch

pedals and could cause a loss of vehicle

control.

WARNING!



NEVER place any objects under the floor mat

(e.g., towels, keys, etc.). These objects could

change the position of the floor mat and may

cause interference with the accelerator,

brake, or clutch pedals.



If the vehicle carpet has been removed and

re-installed, always properly attach carpet to

the floor and check the floor mat fasteners are

secure to the vehicle carpet. Fully depress

each pedal to check for interference with the

accelerator, brake, or clutch pedals then

re-install the floor mats.



It is recommended to only use mild soap and

water to clean your floor mats. After cleaning,

always check your floor mat has been properly

installed and is secured to your vehicle using

the floor mat fasteners by lightly pulling mat.

WARNING!

SAFETY

237

XHAUST

The best protection against carbon monoxide entry

into the vehicle body is a properly maintained

engine exhaust system.
Whenever a change is noticed in the sound of the

exhaust system, when exhaust fumes can be

detected inside the vehicle, or when the underside

or rear of the vehicle is damaged, have an

authorized dealer inspect the complete exhaust

system and adjacent body areas for broken,

damaged, deteriorated, or mispositioned parts.

Open seams or loose connections could permit

exhaust fumes to seep into the passenger

compartment. In addition, inspect the exhaust

system each time the vehicle is raised for

lubrication or oil change. Replace as required.

ARBON

ONOXIDE

ARNINGS

WARNING!

Exhaust gases can injure or kill. They contain

carbon monoxide (CO), which is colorless and

odorless. Breathing it can make you

unconscious and can eventually poison you.

To avoid breathing (CO), follow these safety tips:



Do not run the engine in a closed garage or in

confined areas any longer than needed to

move your vehicle in or out of the area.



If you are required to drive with the trunk/lift

gate/rear doors open, make sure that all

windows are closed and the climate control

BLOWER switch is set at high speed.

DO NOT use the recirculation mode.



If it is necessary to sit in a parked vehicle with

the engine running, adjust your heating or

cooling controls to force outside air into the

vehicle. Set the blower at high speed.

WARNING!

Carbon monoxide (CO) in exhaust gases is

deadly. Follow the precautions below to prevent

carbon monoxide poisoning:



Do not inhale exhaust gases. They contain

carbon monoxide, a colorless and odorless

gas, which can kill. Never run the engine in a

closed area, such as a garage, and never sit in

a parked vehicle with the engine running for

an extended period. If the vehicle is stopped in

an open area with the engine running for more

than a short period, adjust the ventilation

system to force fresh, outside air into the

vehicle.



Guard against carbon monoxide with proper

maintenance. Have the exhaust system

inspected every time the vehicle is raised.

Have any abnormal conditions repaired

promptly. Until repaired, drive with all side

windows fully open.

238

IN CASE OF EMERGENCY

HAZARD WARNING FLASHERS

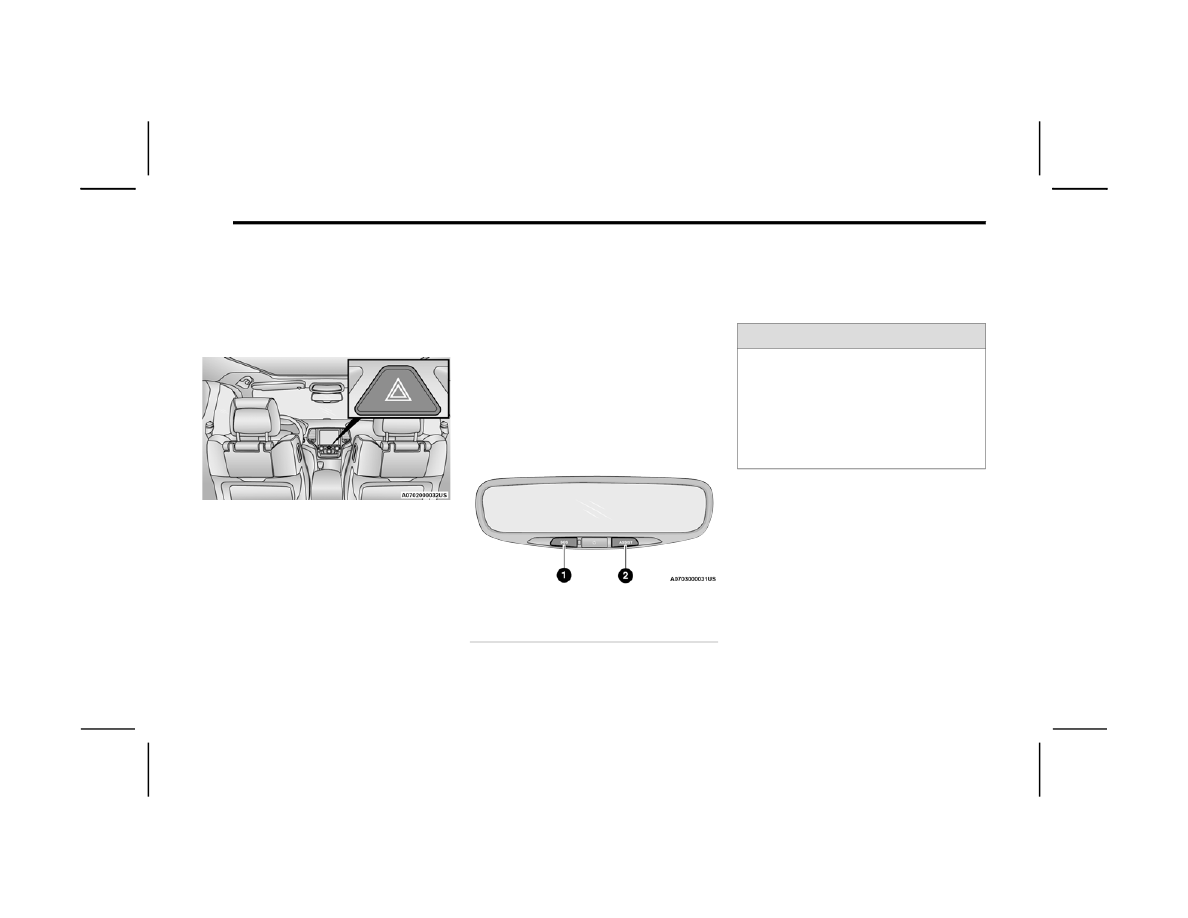

The Hazard Warning Flashers button is located on

the switch bank just above the climate controls.

Hazard Warning Flashers Button

Push the button to turn on the Hazard Warning

Flashers. When the button is activated, all

directional turn signals will flash on and off to warn

oncoming traffic of an emergency. Push the button

a second time to turn off the Hazard Warning

Flashers.
This is an emergency warning system and it should

not be used when the vehicle is in motion. Use it

when your vehicle is disabled and it is creating a

safety hazard for other motorists.

When you must leave the vehicle to seek

assistance, the Hazard Warning Flashers will

continue to operate even though the ignition is

placed in the OFF position.

NOTE:

With extended use, the Hazard Warning Flashers

may discharge the battery.

ASSIST AND SOS MIRROR — IF EQUIPPED

Assist And SOS Mirror

If equipped, the rearview mirror contains a SOS

and an ASSIST button.

NOTE:



Your vehicle may be transmitting data as autho

rized by the subscriber

page 321.



The SOS and ASSIST buttons will only function if

you are connected to an operable LTE (voice/

data) or 4G (data) network, which comes as a

built in function. Other Uconnect services will

only be operable if your SiriusXM Guardian™

service is active and you are connected to an

operable LTE (voice/data) or 4G (data) network.

1 — SOS Button
2 — ASSIST Button

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

IN CASE OF EMERGENCY

239

ASSIST Call
The ASSIST Button is used to automatically

connect you to any one of the following support

centers:



Roadside Assistance – If you get a flat tire, or

need a tow, just push the ASSIST button and you

will be connected to a representative for assis

tance. Roadside Assistance will know what

vehicle you’re driving and its location. Additional

fees may apply for roadside assistance.



SiriusXM Guardian™ Customer Care – In-vehicle

support for SiriusXM Guardian™.



Vehicle Customer Care – Total support for all

other vehicle issues.



Uconnect Customer Care - Total support for

Radio, Phone and NAV issues.

SOS Call
1. Push the SOS Call button on the rearview

Mirror.

NOTE:

In case the SOS Call button is pushed in error,

there will be a 10 second delay before the SOS Call

system initiates a call to a SOS operator. To cancel

the SOS Call connection, push the SOS call button

on the rearview Mirror or press the cancellation

button on the Device Screen. Termination of the

SOS Call will turn off the green LED light on the

rearview Mirror.

2. The LED light located between the ASSIST and

SOS buttons on the rearview Mirror will turn

green once a connection to a SOS operator has

been made.

3. Once a connection between the vehicle and a

SOS operator is made, the SOS Call system

may transmit the following important vehicle

information to a SOS operator:



Indication that the occupant placed a

SOS Call



The vehicle brand



The last known GPS coordinates of the

vehicle

4. You should be able to speak with the SOS

operator through the vehicle audio system to

determine if additional assistance is needed.

NOTE:



Your vehicle may be transmitting data as

authorized by the subscriber.



Once a connection is made between the

vehicle’s SOS Call system and the SOS oper

ator, the SOS operator may be able to open

a voice connection with the vehicle to deter

mine if additional assistance is needed.

Once the SOS operator opens a voice

connection with the vehicle’s SOS Call

system, the operator should be able to

speak with you or other vehicle occupants

and hear sounds occurring in the vehicle.

The vehicle’s SOS Call system will attempt

to remain connected with the SOS operator

until the SOS operator terminates the

connection.

5. The SOS operator may attempt to contact

appropriate emergency responders and

provide them with important vehicle

information and GPS coordinates.

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

240

IN CASE OF EMERGENCY

(Continued)

SOS Call System Limitations
Vehicles sold in Mexico DO NOT have SOS Call

system capabilities.
SOS or other emergency line operators in Mexico

may not answer or respond to SOS system calls.
If the SOS Call system detects a malfunction, any

of the following may occur at the time the

malfunction is detected, and at the beginning of

each ignition cycle:



The rearview Mirror light located between the

ASSIST and SOS buttons will continuously be

illuminated red.



The Device Screen will display the following

message “Vehicle device requires service.

Please contact an authorized dealer.”



An In-Vehicle Audio message will state

“Vehicle device requires service. Please contact

an authorized dealer.”

WARNING!



If anyone in the vehicle could be in danger

(e.g., fire or smoke is visible, dangerous road

conditions or location), do not wait for voice

contact from an Emergency Services Agent. All

occupants should exit the vehicle immediately

and move to a safe location.



Never place anything on or near the vehicle’s

operable network and GPS antennas. You

could prevent operable network and GPS

signal reception, which can prevent your

vehicle from placing an emergency call. An

operable network and GPS signal reception is

required for the SOS Call system to function

properly.



The SOS Call system is embedded into the

vehicle’s electrical system. Do not add after

market electrical equipment to the vehicle’s

electrical system. This may prevent your

vehicle from sending a signal to initiate an

emergency call. To avoid interference that can

cause the SOS Call system to fail, never add

aftermarket equipment (e.g., two-way mobile

radio, CB radio, data recorder, etc.) to your

vehicle’s electrical system or modify the

antennas on your vehicle. IF YOUR VEHICLE

LOSES BATTERY POWER FOR ANY REASON

(INCLUDING DURING OR AFTER AN ACCI

DENT), THE UCONNECT FEATURES, APPS AND

SERVICES, AMONG OTHERS, WILL NOT

OPERATE.



Modifications to any part of the SOS Call

system could cause the air bag system to fail

when you need it. You could be injured if the

air bag system is not there to help protect you.

WARNING!

IN CASE OF EMERGENCY

241

Even if the SOS Call system is fully functional,

factors beyond FCA US LLC’s control may prevent

or stop the SOS Call system operation. These

include, but are not limited to, the following

factors:



The ignition is in the OFF position



The vehicle’s electrical systems are not intact



The SOS Call system software and/or hardware

are damaged during a crash



The vehicle battery loses power or becomes

disconnected during a vehicle crash



LTE (voice/data) or 4G (data) network and/or

Global Positioning Satellite signals are unavail

able or obstructed



Equipment malfunction at the SOS operator

facility



Operator error by the SOS operator



LTE (voice/data) or 4G (data) network conges

tion



Weather



Buildings, structures, geographic terrain, or

tunnels

NOTE:



Your vehicle may be transmitting data

page 321 as authorized by the subscriber.



Never place anything on or near the vehicle’s

LTE (voice/data) or 4G (data) and GPS

antennas. You could prevent LTE (voice/data) or

4G (data) and GPS signal reception, which can

prevent your vehicle from placing an emergency

call. An operable LTE (voice/data) or 4G (data)

network connection and a GPS signal is

required for the SOS Call system to function

properly.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void

the user's authority to operate the equipment.

Automatic SOS — If Equipped
Automatic SOS is a hands-free safety service that

can immediately connect you with help in the event

that your vehicle’s airbags deploy. Please refer to

your provided radio supplement for complete

information.

WARNING!



Ignoring the Rearview Mirror light could mean

you will not have SOS Call services. If the Rear

view Mirror light is illuminated, have an autho

rized dealer service the SOS Call system

immediately.



The Occupant Restraint Control module turns

on the air bag Warning Light on the instrument

panel if a malfunction in any part of the

system is detected. If the Air Bag Warning

Light is illuminated, have an authorized dealer

service the Occupant Restraint Control system

immediately.

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

CAUTION!

To avoid damage to the mirror during cleaning,

never spray any cleaning solution directly onto

the mirror. Apply the solution onto a clean cloth

and wipe the mirror clean.

242

IN CASE OF EMERGENCY

JACKING AND TIRE CHANGING

REPARATIONS

ACKING

For vehicles equipped with Quadra-Lift, to disable

the automatic leveling feature

page 152.

1. Park the vehicle on a firm, level surface. Avoid

ice or slippery surfaces.

2. Turn on the Hazard Warning Flashers.
3. Apply the parking brake.
4. Place the gear selector into PARK (P).
5. Turn the ignition OFF.

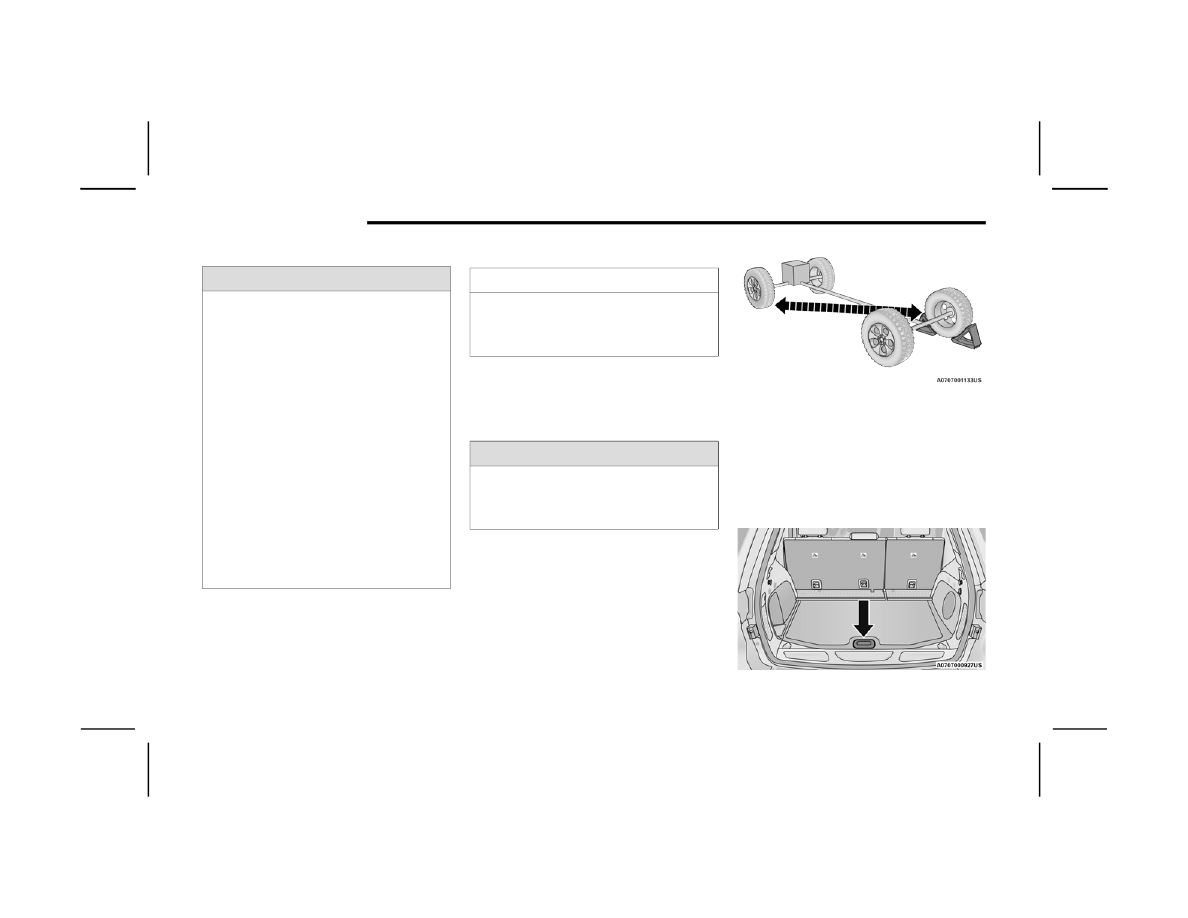

6. Block both front and rear of the wheel

diagonally opposite of the jacking position.

For example, if changing the driver’s front tire,

block the passenger’s rear wheel.

Wheel Blocked Example

NOTE:

Passengers should not remain in the vehicle when

the vehicle is being lifted or raised.

ACK

OCATION

The scissor-type jack and tire changing tools are

located in the rear cargo area, below the load floor.

Load Floor

WARNING!



Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid the danger of

being hit when operating the jack or changing

the wheel.



Being under a jacked-up vehicle is dangerous.

The vehicle could slip off the jack and fall on

you. You could be crushed. Never put any part

of your body under a vehicle that is on a jack.

If you need to get under a raised vehicle, take

it to a service center where it can be raised on

a lift.



Never start or run the engine while the vehicle

is on a jack.



The jack is designed to be used as a tool for

changing tires only. The jack should not be

used to lift the vehicle for service purposes.

The vehicle should be jacked on a firm level

surface only. Avoid ice or slippery areas.

CAUTION!

Always lift or jack the vehicle from the correct

jacking points. Failure to follow this information

could cause damage to the vehicle or underbody

components.

WARNING!

Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid being hit when

operating the jack or changing the wheel.

IN CASE OF EMERGENCY

243

(Continued)

Spare Tire/Jack And Tools

PARE

IRE

TOWAGE

— I

QUIPPED

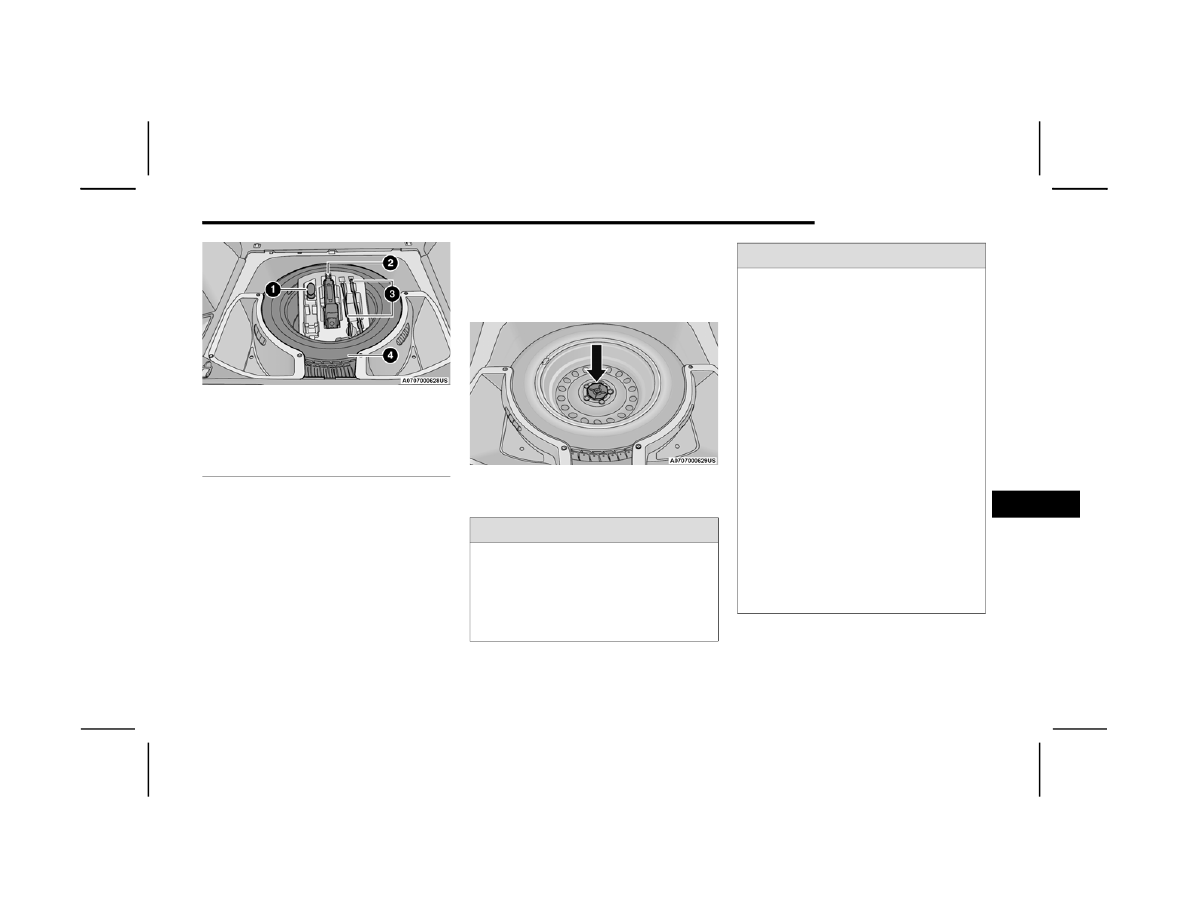

The spare tire is stowed under the load floor in the

rear cargo area and is secured to the body with a

special fastener.

Spare Tire Fastener

ACKING

NSTRUCTIONS

1 — Capless Fuel Fill Funnel
2 — Jack
3 — Tire Changing Tools
4 — Spare Tire

WARNING!

Carefully follow these tire changing warnings to

help prevent personal injury or damage to your

vehicle:



Always park on a firm, level surface as far from

the edge of the roadway as possible before

raising the vehicle.



Turn on the Hazard Warning Flashers.



Apply the parking brake firmly and set the

transmission in PARK.



Block the wheel diagonally opposite the wheel

to be raised.



Never start or run the engine with the vehicle

on a jack.



Do not let anyone sit in the vehicle when it is

on a jack.



Do not get under the vehicle when it is on a

jack. If you need to get under a raised vehicle,

take it to a service center where it can be

raised on a lift.



Only use the jack in the positions indicated

and for lifting this vehicle during a tire change.



If working on or near a roadway, be extremely

careful of motor traffic.



To assure that spare tires, flat or inflated, are

securely stowed, spares must be stowed with

the valve stem facing the ground.

WARNING!

244

IN CASE OF EMERGENCY

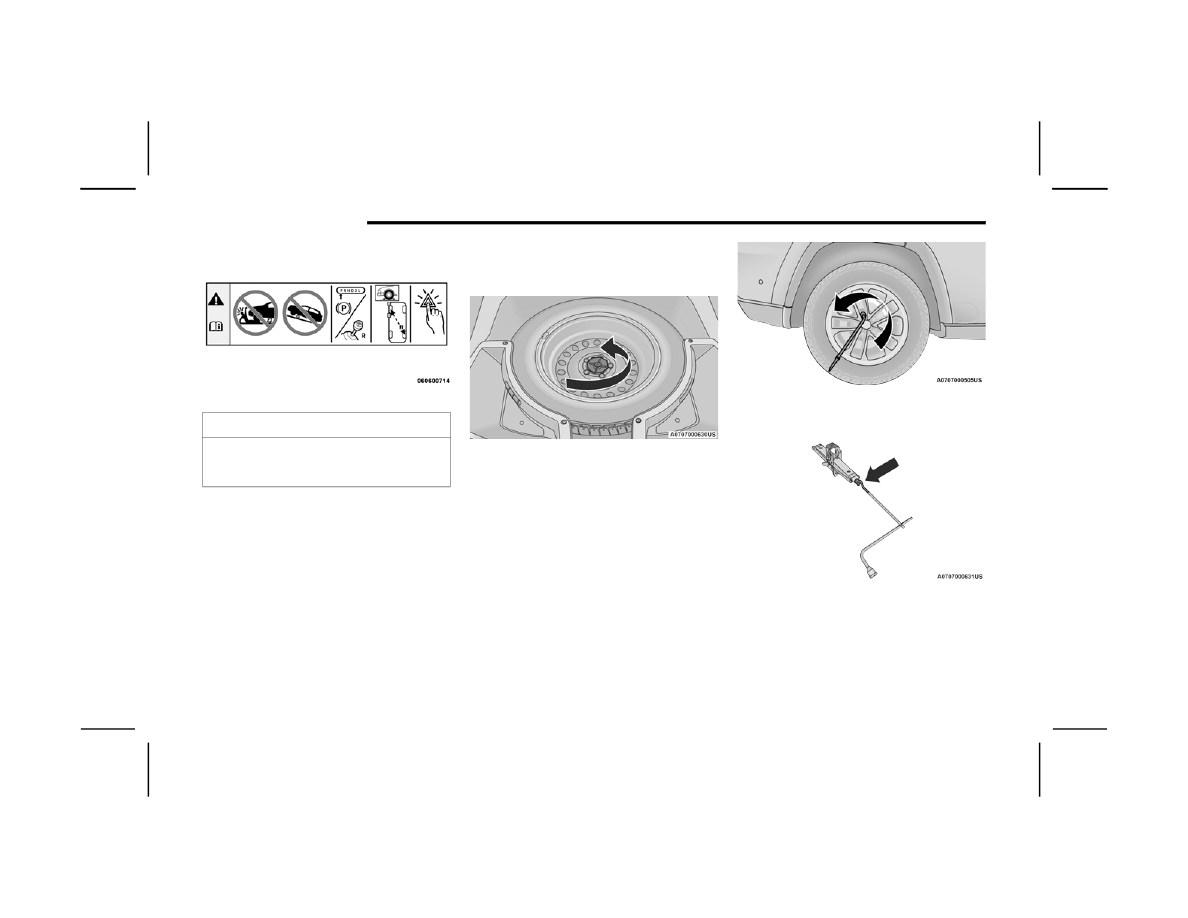

Jack Warning Label

1. Remove the spare tire, jack, and tools from

storage. Turn the fastener counterclockwise

to remove the spare tire.

Removing Spare Tire Fastener

2. Loosen (but do not remove) the wheel lug nuts,

using the lug wrench by turning them counter

clockwise, one turn, while the wheel is still on

the ground.

Loosen Lug Nuts

3. Assemble the jack and jacking tools.

Jack And Tool Assembly

CAUTION!

Do not attempt to raise the vehicle by jacking on

locations other than those indicated in the

Jacking Instructions for this vehicle.

IN CASE OF EMERGENCY

245

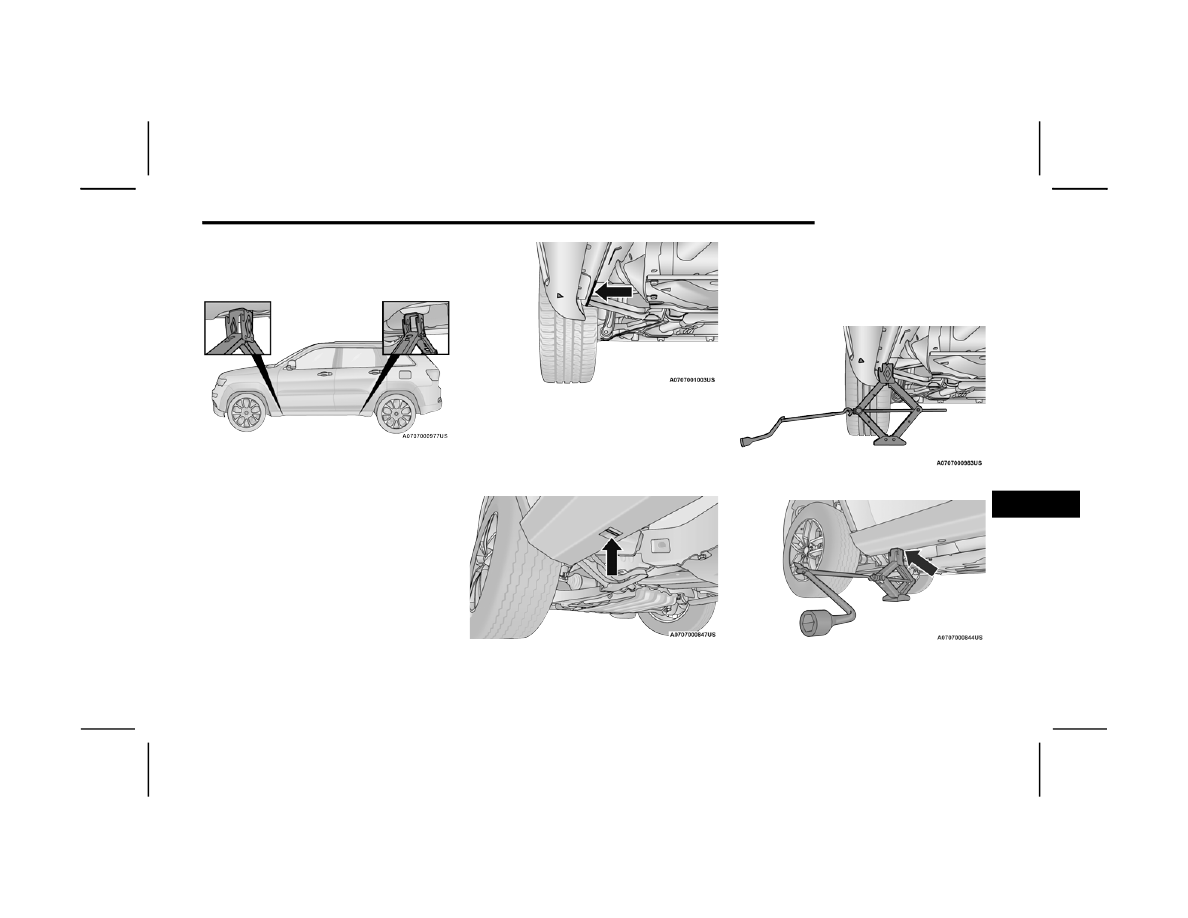

Placement for the front and rear jacking loca

tions are critical. See the following images for

proper jacking locations.

Jacking Locations

4. For the front axle, place the jack on the body

flange just behind the front tire as indicated by

the triangular lift point symbol on the sill

molding. Do not raise the vehicle until you are

sure the jack is fully engaged.

Front Lifting Point

NOTE:

Depending on vehicle trim level, certain models

come equipped with Rock Rails which have a

different front lifting point location. Also, the trian

gular symbols are not visible for this trim package.

Front Lifting Point - Rock Rail

NOTE:

The jack must be placed straight on with handle

facing outwards. See the following Front Jacking

Location images for reference. The position of the

front jack is the same for all trim levels.

Front Jacking Location

Front Jacking Location - Rock Rail

246

IN CASE OF EMERGENCY

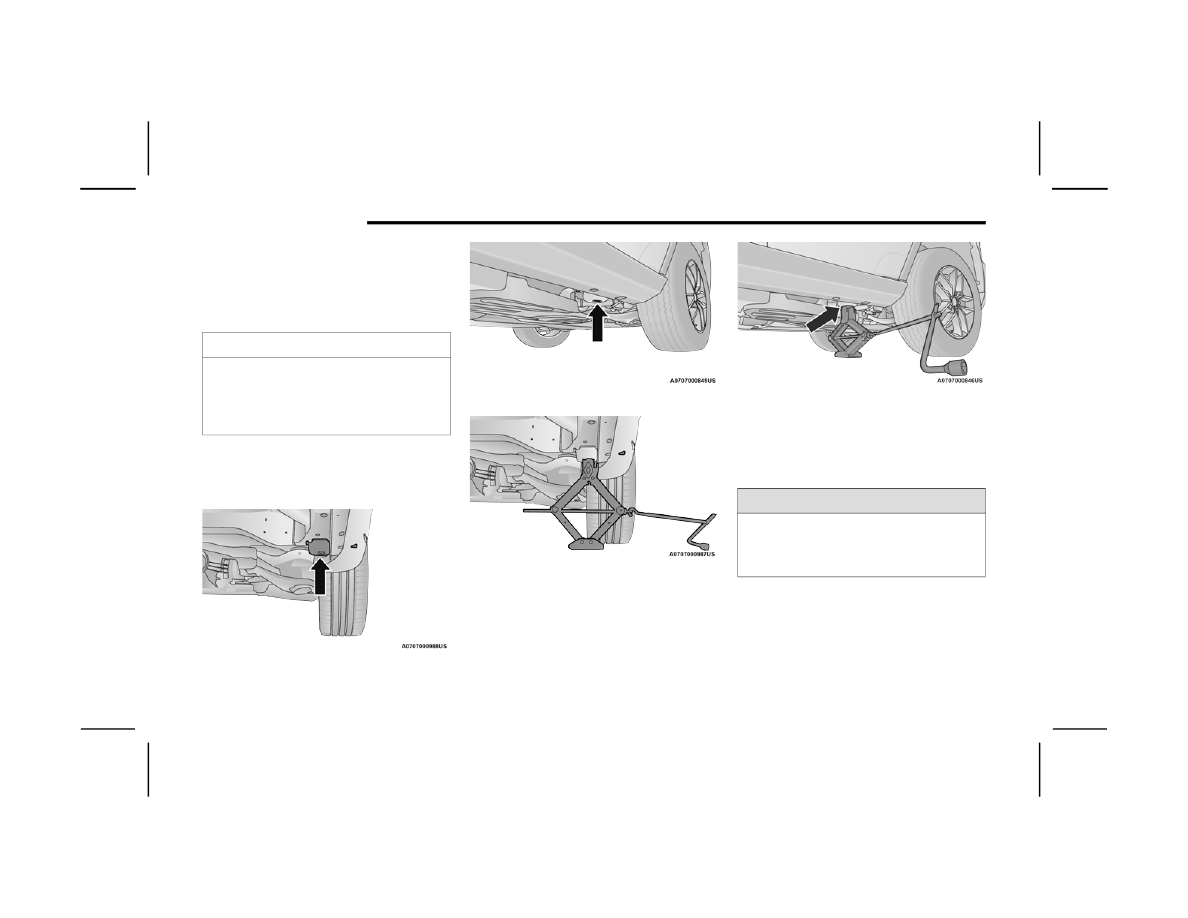

5. For a rear tire, place the jack in the slot on the

rear tie-down bracket, just forward of the rear

tire (as indicated by the triangular lift point

symbol on the sill molding). Do not raise the

vehicle until you are sure the jack is fully

engaged.

NOTE:

The rear lifting point location is the same for all

trim levels.

Rear Lifting Point

Rear Lifting Point - Rock Rail

Rear Jacking Location

Rear Jacking Location - Rock Rail

6. Raise the vehicle by turning the jack screw

clockwise. Raise the vehicle only until the tire

just clears the surface and enough clearance

is obtained to install the spare tire. Minimum

tire lift provides maximum stability.

7. Remove the lug nuts and wheel.
8. Position the spare wheel/tire on the vehicle

and install the lug nuts with the cone-shaped

end toward the wheel. Lightly tighten the nuts.

CAUTION!

Do NOT raise the vehicle by the body side sill

molding. Be sure the jack is placed in the proper

engagement location on the inside of the panel.

Damage of the vehicle may occur if the

procedure is not properly followed.

WARNING!

Raising the vehicle higher than necessary can

make the vehicle less stable. It could slip off the

jack and hurt someone near it. Raise the vehicle

only enough to remove the tire.

IN CASE OF EMERGENCY

247

Mounting Spare Tire

9. Lower the vehicle by turning the jack screw

counterclockwise, and remove the jack and

wheel blocks.

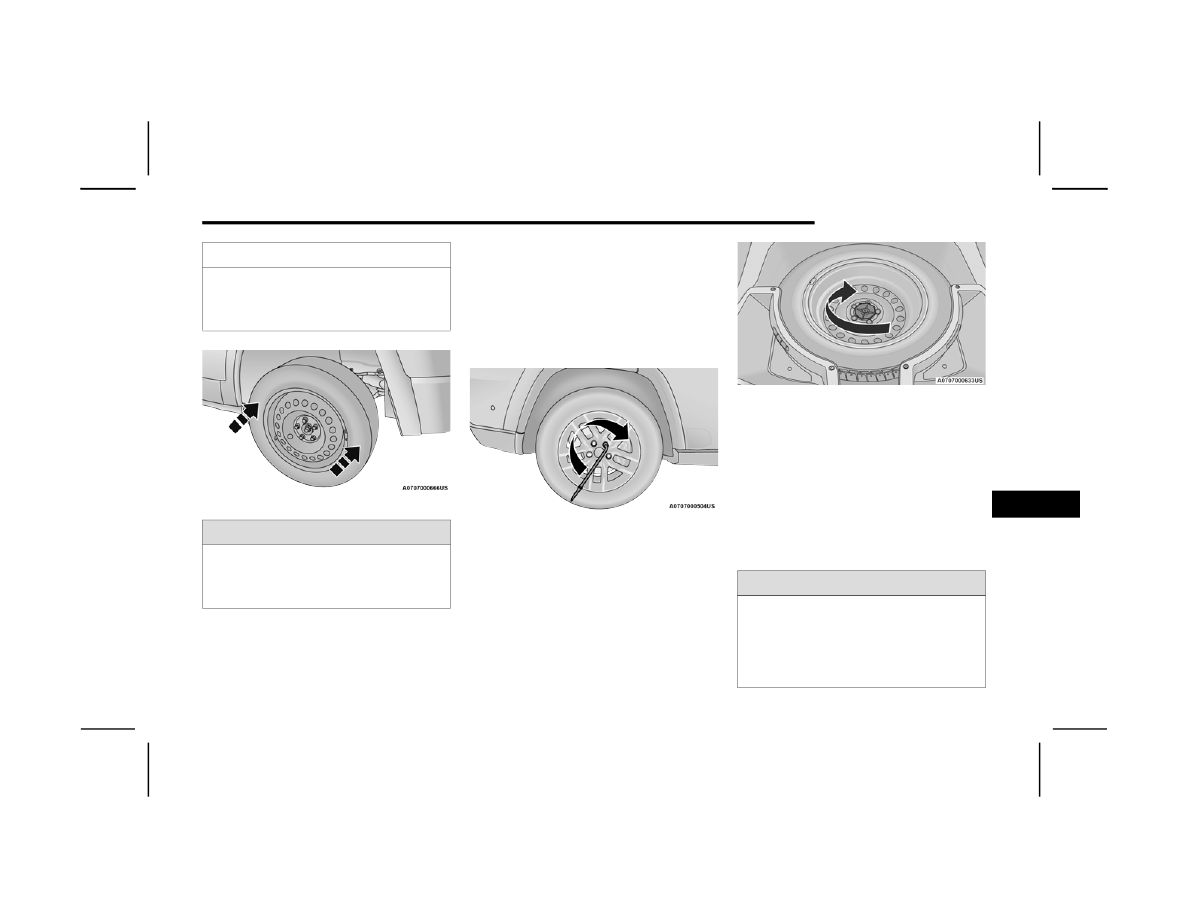

10. Finish tightening the lug nuts. Push down on

the wrench while at the end of the handle for

increased leverage. Tighten the lug nuts in a

star pattern until each nut has been tightened

twice. For correct lug nut torque

page 312.

If in doubt about the correct tightness, have

them checked with a torque wrench by an

authorized dealer or at a service station.

Tighten Lug Nuts

11. After 25 miles (40 km), check the lug nut

torque with a torque wrench to ensure that all

lug nuts are properly seated against the wheel.

12. Lower the jack to the fully closed position and

return it and the tools to the proper positions

in the foam tray.

13. Remove the small center cap and securely

store the road wheel in the cargo area. Turn

the fastener clockwise until secured.

Installing Fastener

14. Have the aluminum road wheel and tire

repaired as soon as possible, properly secure

the spare tire with the special wing nut torqued

to 3.7 ft-lbs (5 N·m), reinstall the jack and tool

kit foam tray, and latch the rear load floor

cover.

NOTE:

Do not drive with the spare tire installed for more

than 50 miles (80 km) at a max speed of 50 mph

(80 km/h).

CAUTION!

Be sure to mount the spare tire with the valve

stem facing outward. The vehicle could be

damaged if the inflatable spare tire is mounted

incorrectly.

WARNING!

To avoid the risk of forcing the vehicle off the

jack, do not tighten the wheel nuts fully until the

vehicle has been lowered. Failure to follow this

warning may result in serious injury.

WARNING!

A loose tire or jack thrown forward in a collision

or hard stop could endanger the occupants of

the vehicle. Always stow the jack parts and the

spare tire in the places provided. Have the

deflated (flat) tire repaired or replaced

immediately.

248

IN CASE OF EMERGENCY

JUMP STARTING

If your vehicle has a discharged battery, it can be

jump started using a set of jumper cables and a

battery in another vehicle, or by using a portable

battery booster pack. Jump starting can be

dangerous if done improperly, so please follow the

procedures in this section carefully.

NOTE:

When using a portable battery booster pack, follow

the manufacturer's operating instructions and

precautions.

REPARATIONS

UMP

TART

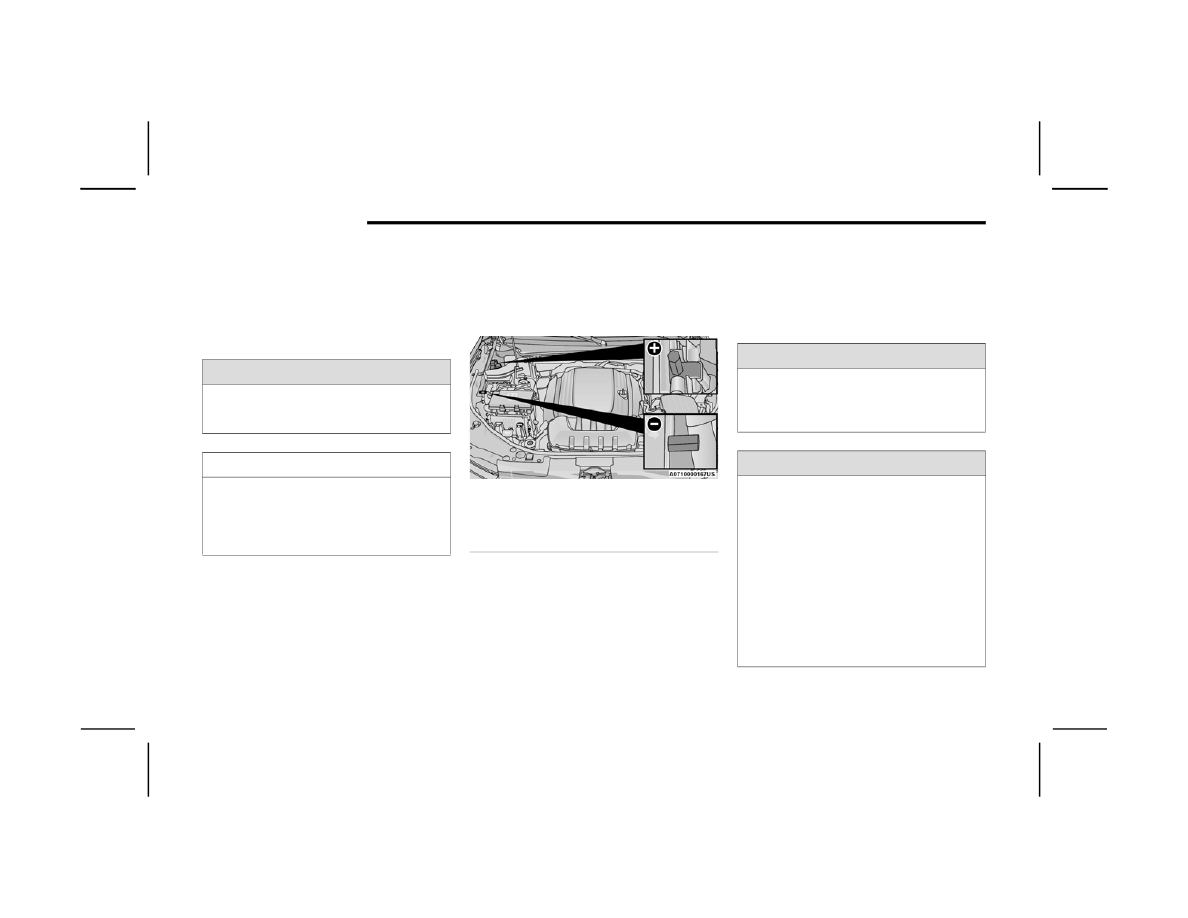

The battery in your vehicle is located under the

passenger's front seat. There are remote battery

posts located under the hood to assist in jump

starting.

Remote Jump Starting Post Locations

See the following steps to prepare for jump

starting:
1. Apply the parking brake, shift the automatic

transmission into PARK (P) and turn the

ignition OFF.

2. Turn off the heater, radio, and all electrical

accessories.

3. Pull upward and remove the protective cap

over the remote positive (+) battery post.

4. If using another vehicle to jump start the

battery, park the vehicle within the jumper

cable’s reach, apply the parking brake and

make sure the ignition is OFF.

WARNING!

Do not attempt jump starting if the battery is

frozen. It could rupture or explode and cause

personal injury.

CAUTION!

Do not use a portable battery booster pack or

any other booster source with a system voltage

greater than 12 Volts or damage to the battery,

starter motor, alternator or electrical system

may occur.

Remote Positive (+) Post

(Covered With Protective Cap)
Remote Negative (-) Post

WARNING!

Do not allow vehicles or disconnected cable

ends to touch each other as this could establish

a ground connection and personal injury could

result.

WARNING!



Take care to avoid the radiator cooling fan

whenever the hood is raised. It can start

anytime the ignition switch is ON. You can be

injured by moving fan blades.



Remove any metal jewelry such as rings,

watch bands and bracelets that could make

an inadvertent electrical contact. You could be

seriously injured.



Batteries contain sulfuric acid that can burn

your skin or eyes and generate hydrogen gas

which is flammable and explosive. Keep open

flames or sparks away from the battery.

IN CASE OF EMERGENCY

249

UMP

TARTING

ROCEDURE

NOTE:

Make sure at all times that unused ends of jumper

cables are not contacting each other or either

vehicle while making connections.
Connecting The Jumper Cables
1. Connect the positive (+) end of the jumper

cable to the remote positive (+) post of the

discharged vehicle.

2. Connect the opposite end of the positive (+)

jumper cable to the positive (+) post of the

booster battery.

3. Connect the negative (-) end of the jumper

cable to the negative (-) post of the booster

battery.

4. Connect the opposite end of the negative (-)

jumper cable to the remote negative (-) post

(exposed metallic/unpainted post of the

discharge vehicle) located on the right hand

side next to the under-hood fuse box.

5. Start the engine in the vehicle that has the

booster battery, let the engine idle a few

minutes, and then start the engine in the

vehicle with the discharged battery.

6. Once the engine is started, see the following

disconnecting procedure.

Disconnecting The Jumper Cables
1. Disconnect the negative (-) end of the jumper

cable from the remote negative (-) post of the

discharged vehicle.

2. Disconnect the opposite end of the negative (-)

jumper cable from the negative (-) post of the

booster battery.

3. Disconnect the positive (+) end of the jumper

cable from the positive (+) post of the booster

battery.

4. Disconnect the opposite end of the positive (+)

jumper cable from the remote positive (+) post

of the discharged vehicle.

5. Reinstall the protective cover over the remote

positive (+) post of the discharged vehicle.

If frequent jump starting is required to start your

vehicle have the battery and charging system

tested at an authorized dealer.

WARNING!

Failure to follow this jump starting procedure

could result in personal injury or property

damage due to battery explosion.

CAUTION!

Failure to follow these procedures could result in

damage to the charging system of the booster

vehicle or the discharged vehicle.

WARNING!

Do not connect the jumper cable to the negative

(-) post of the discharged battery. The resulting

electrical spark could cause the battery to

explode and could result in personal injury.

CAUTION!

Do not run the booster vehicle engine above

2,000 RPM since it provides no charging benefit,

wastes fuel, and can damage booster vehicle

engine.

CAUTION!

Accessories plugged into the vehicle power

outlets draw power from the vehicle’s battery,

even when not in use (i.e., cellular devices, etc.).

Eventually, if plugged in long enough without

engine operation, the vehicle’s battery will

discharge sufficiently to degrade battery life

and/or prevent the engine from starting.

Jeep Grand Cherokee WK (2022 year). Manual in english - page 15
