IN CASE OF EMERGENCY

363

(Continued)

SOS Call System Limitations
Vehicles sold in Mexico DO NOT have SOS Call

system capabilities.
SOS or other emergency line operators in Mexico

may not answer or respond to SOS system calls.
If the SOS Call system detects a malfunction, any

of the following may occur at the time the

malfunction is detected, and at the beginning of

each ignition cycle:



The light located within the ASSIST and SOS

buttons will continuously be illuminated red.



The Device Screen will display the following

message “Vehicle device requires service.

Please contact an authorized dealer.”



An In-Vehicle Audio message will state “Vehicle

device requires service. Please contact an

authorized dealer.”

WARNING!



If anyone in the vehicle could be in danger

(e.g., fire or smoke is visible, dangerous road

conditions or location), do not wait for voice

contact from an Emergency Services Agent. All

occupants should exit the vehicle immediately

and move to a safe location.



Never place anything on or near the vehicle’s

operable network and GPS antennas. You

could prevent operable network and GPS

signal reception, which can prevent your

vehicle from placing an emergency call. An

operable network and GPS signal reception is

required for the SOS Call system to function

properly.



The SOS Call system is embedded into the

vehicle’s electrical system. Do not add after

market electrical equipment to the vehicle’s

electrical system. This may prevent your

vehicle from sending a signal to initiate an

emergency call. To avoid interference that can

cause the SOS Call system to fail, never add

aftermarket equipment (e.g., two-way mobile

radio, CB radio, data recorder, etc.) to your

vehicle’s electrical system or modify the

antennas on your vehicle. IF YOUR VEHICLE

LOSES BATTERY POWER FOR ANY REASON

(INCLUDING DURING OR AFTER AN ACCI

DENT), THE UCONNECT FEATURES, APPS AND

SERVICES, AMONG OTHERS, WILL NOT

OPERATE.



Modifications to any part of the SOS Call

system could cause the air bag system to fail

when you need it. You could be injured if the

air bag system is not there to help protect you.

WARNING!

364

IN CASE OF EMERGENCY

Even if the SOS Call system is fully functional,

factors beyond FCA US LLC’s control may prevent

or stop the SOS Call system operation. These

include, but are not limited to, the following

factors:



The ignition is in the OFF position



The vehicle’s electrical systems are not intact



The SOS Call system software and/or hardware

are damaged during a crash



The vehicle battery loses power or becomes

disconnected during a vehicle crash



LTE (voice/data) or 4G (data) network and/or

Global Positioning Satellite signals are unavail

able or obstructed



Equipment malfunction at the SOS operator

facility



Operator error by the SOS operator



LTE (voice/data) or 4G (data) network conges

tion



Weather



Buildings, structures, geographic terrain, or

tunnels

NOTE:



Your vehicle may be transmitting data as autho

rized by the subscriber.



Never place anything on or near the vehicle’s

LTE (voice/data) or 4G (data) and GPS

antennas. You could prevent LTE (voice/data) or

4G (data) and GPS signal reception, which can

prevent your vehicle from placing an emergency

call. An operable LTE (voice/data) or 4G (data)

network connection and a GPS signal is

required for the SOS Call system to function

properly.



Changes or modifications not expressly

approved by the party responsible for compli

ance could void the user's authority to operate

the equipment.

WARNING!



Ignoring the Rearview Mirror light could mean

you will not have SOS Call services. If the Rear

view Mirror light is illuminated, have an autho

rized dealer service the SOS Call system

immediately.



The Occupant Restraint Control module turns

on the Air Bag Warning Light on the instru

ment panel if a malfunction in any part of the

system is detected. If the Air Bag Warning

Light is illuminated, have an authorized dealer

service the Occupant Restraint Control system

immediately.

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

CAUTION!

To avoid damage to the mirror during cleaning,

never spray any cleaning solution directly onto

the mirror. Apply the solution onto a clean cloth

and wipe the mirror clean.

IN CASE OF EMERGENCY

365

(Continued)

Automatic SOS — If Equipped
Automatic SOS is a hands-free safety service that

can immediately connect you with help in the event

that your vehicle’s airbags deploy. Please refer to

your provided radio supplement for complete

information.

JACKING AND TIRE CHANGING

REPARATIONS

ACKING

1. Park on a firm, level surface. Avoid ice or

slippery areas.

2. Turn on the Hazard Warning Flashers.
3. Apply the parking brake.
4. Shift the automatic transmission into PARK

(P), or a manual transmission into REVERSE.

5. Cycle the ignition to OFF.
6. Block both the front and rear of the wheel

diagonally opposite the jacking position. For

example, if the driver’s front wheel is being

changed, block the passenger’s rear wheel.

Wheel Blocked

NOTE:

Passengers should not remain in the vehicle when

the vehicle is being jacked in position.

WARNING!



Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid the danger of

being hit when operating the jack or changing

the wheel.



Being under a jacked-up vehicle is dangerous.

The vehicle could slip off the jack and fall on

you. You could be crushed. Never put any part

of your body under a vehicle that is on a jack.

If you need to get under a raised vehicle, take

the vehicle to a service center where it can be

raised on a lift.



Never start or run the engine while the vehicle

is on a jack.



The jack is designed to be used as a tool for

changing tires only. The jack should not be

used to lift the vehicle for service purposes.

The vehicle should be jacked on a firm level

surface only. Avoid ice or slippery areas.

WARNING!

Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid being hit when

operating the jack or changing the wheel.

WARNING!

366

IN CASE OF EMERGENCY

ACK

OCATION

The jack and tools are stored under the right rear

seat. To remove, proceed as follows:

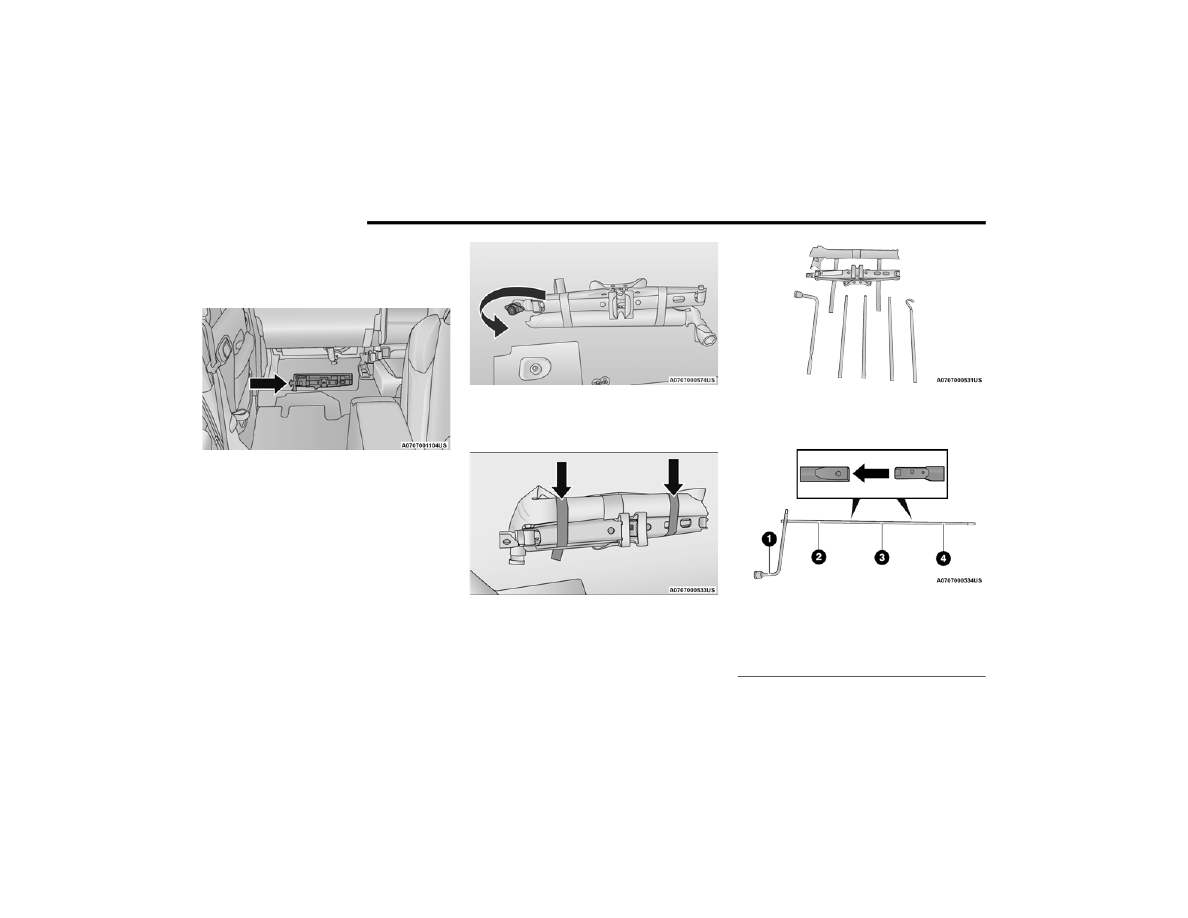

Jack And Tool Location

1. Fold up the right rear seat.

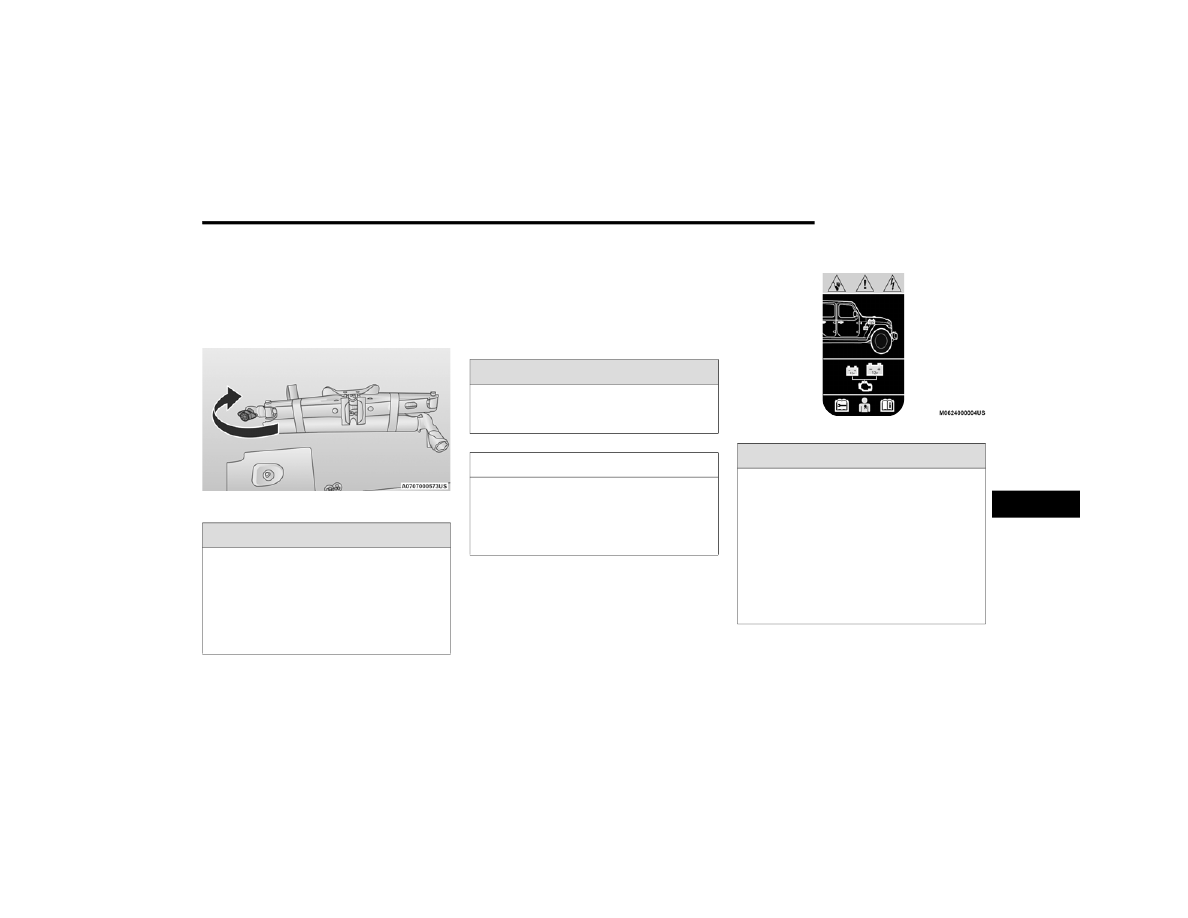

2. Remove the jack and tools by turning the wing

bolt counterclockwise, remove the wing bolt

and then lift the assembly out from under the

seat.

Jack And Tools

3. Release the tool bag straps from the jack and

remove tools from bag.

Jack And Tool Bag

4. Remove tool kit and assemble tools.

Jack And Tool Bag

There are two ways to assemble the tools:

Assembled For Spare Tire Lowering/Raising

1 — Lug Wrench
2 — Long Extension Without Spring Clip 2
3 — Long Extension With Spring Clip 3
4 — Long Extension With Spring Clip 4

IN CASE OF EMERGENCY

367

NOTE:

If the tailgate is lowered, the jack extension with

hook can be added to this assembly to enable

lowering of the spare tire without having to raise

the tailgate.

Assembled For Jack Operation

PARE

IRE

EMOVAL

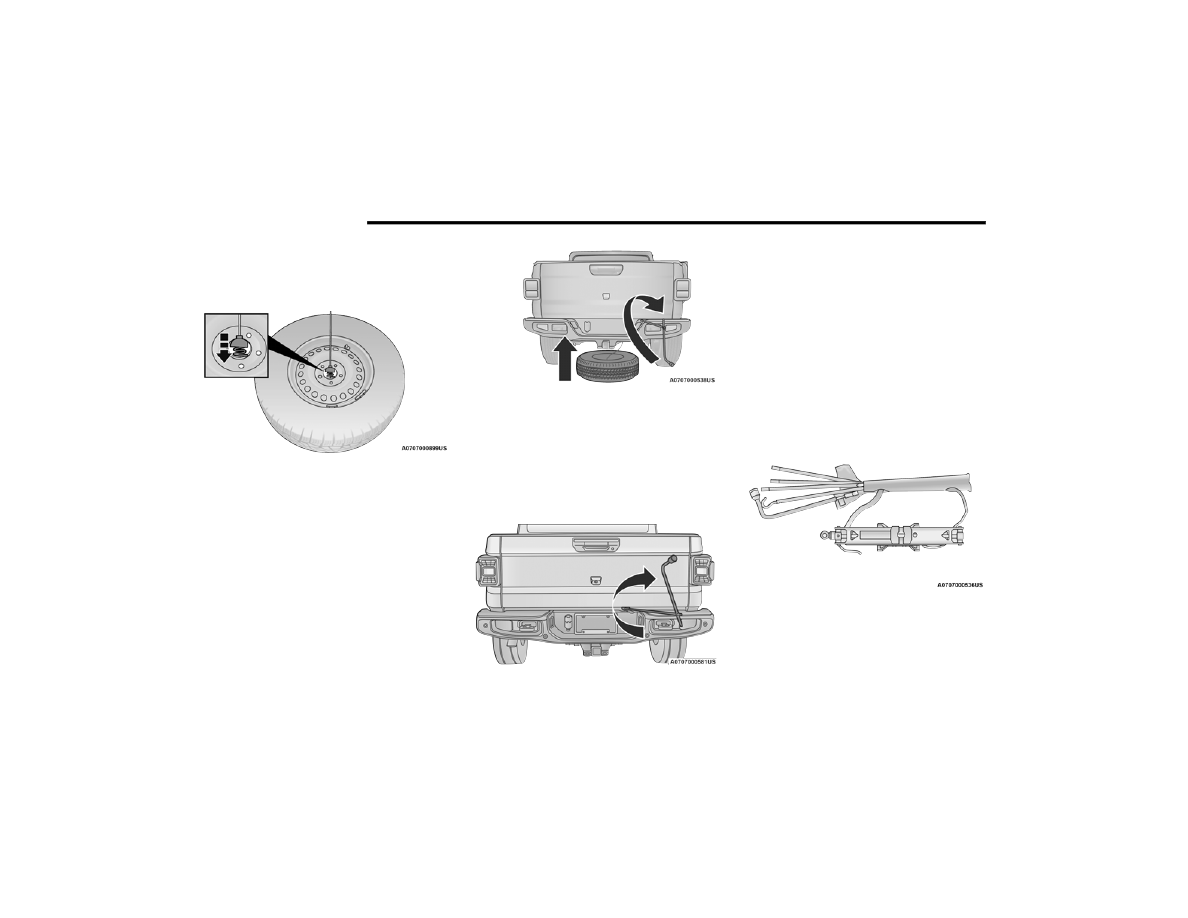

1. Remove the spare tire before attempting to

jack up the truck. Attach the lug wrench to the

extension tubes with the curved angle facing

away from the vehicle.

Access Hole Location

CAUTION!



The lug wrench can only be attached to

extension 2.



When attaching the tool to the winch mecha

nism be sure the large flared end opening on

extension 4 is positioned correctly over the

winch mechanism adjusting nut.



Damage to the lug wrench, extensions and

winch mechanism may occur from improper

tool assembly

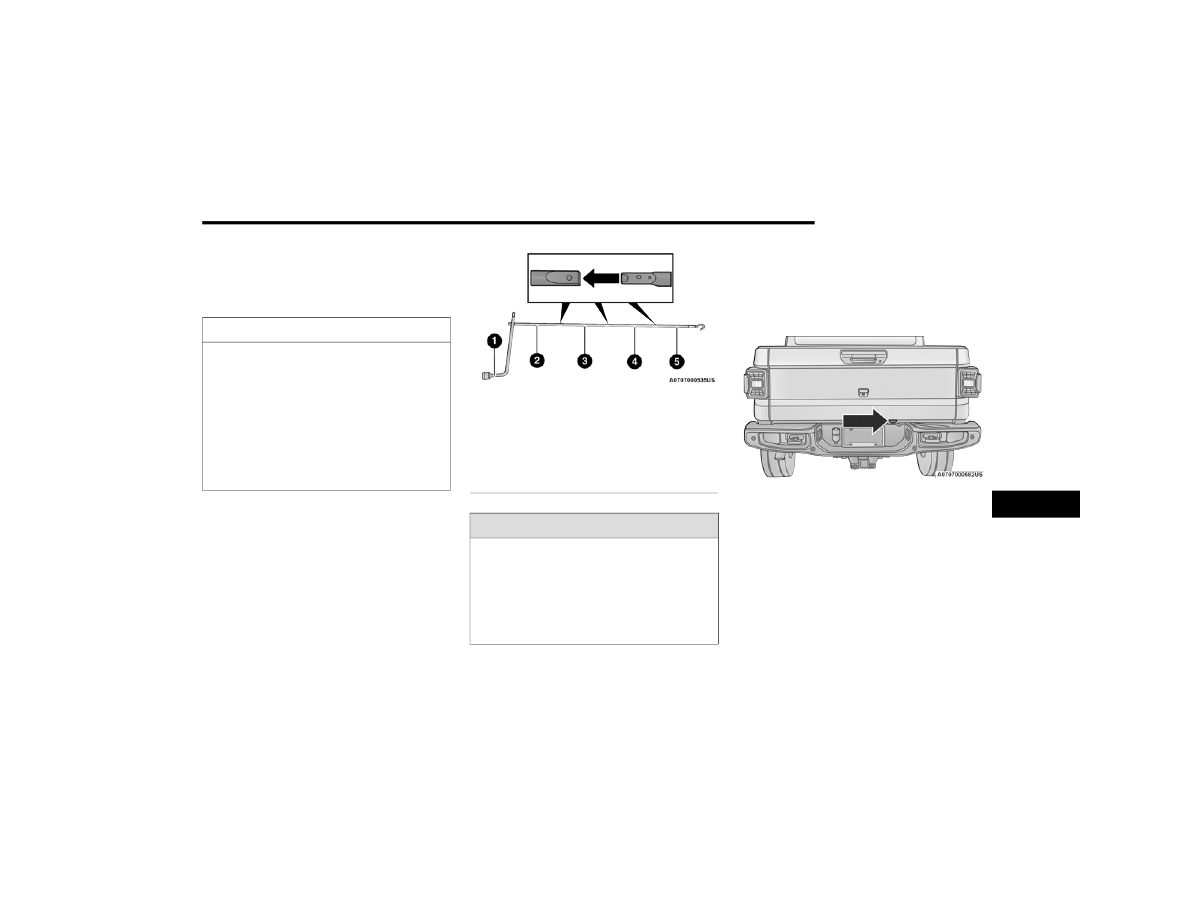

1 — Lug Wrench
2 — Long Extension 2
3 — Long Extension 3
4 — Long Extension 4
5 — Short Extension With Hook

WARNING!

After using the jack and tools, always reinstall

them in the original carrier and location. While

driving you may experience abrupt stopping,

rapid acceleration or sharp turns. A loose jack,

tools, bracket or other objects in the vehicle may

move around with force, resulting in serious

injury.

368

IN CASE OF EMERGENCY

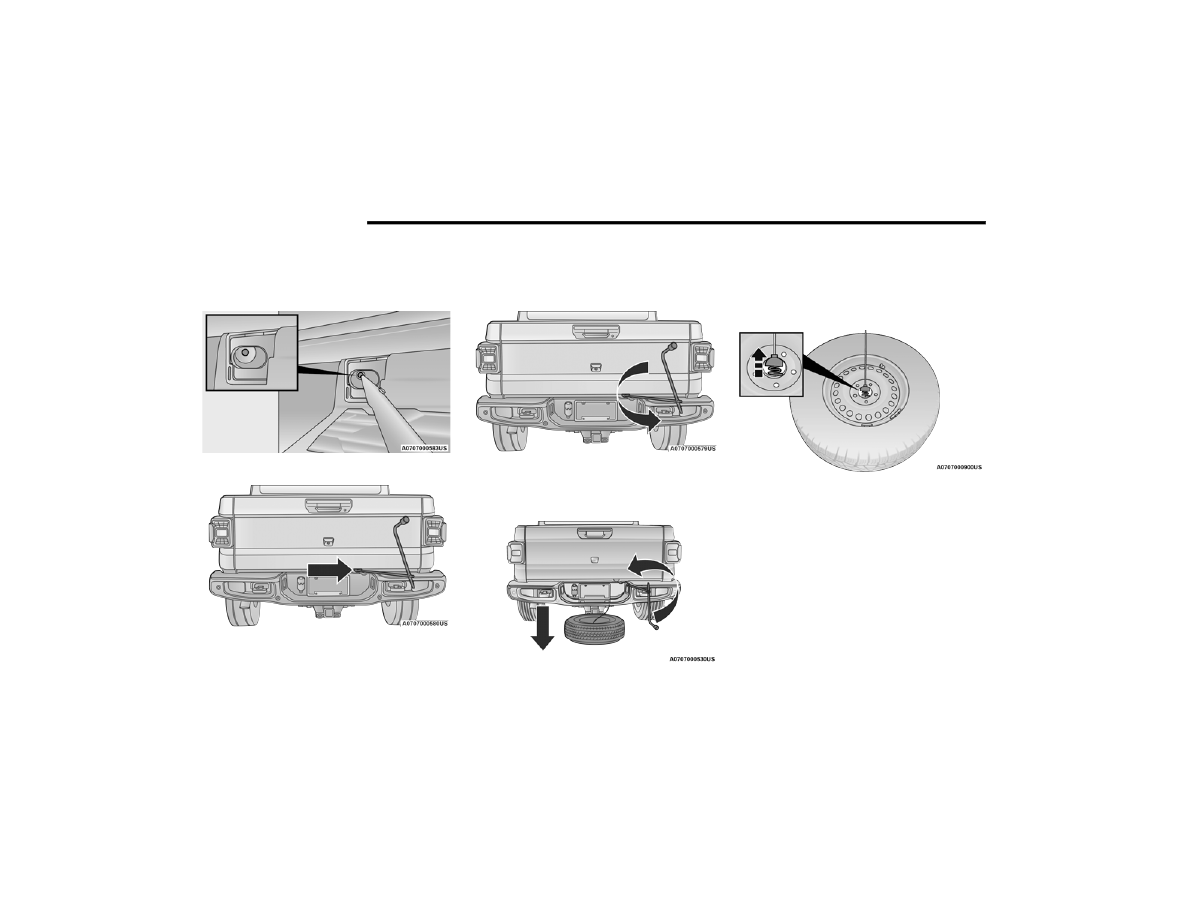

2. Insert the extension tube through the access

hole between the lower tailgate and the top of

the fascia/bumper and into the winch

mechanism tube.

Winch Mechanism Tube

Inserting The Extension Tubes Into The Access Hole

3. Rotate the lug wrench handle counter

clockwise until the spare tire is on the ground

with enough cable slack to allow you to pull it

out from under the vehicle.

Rotating The Lug Wrench Handle

4. Pull the spare tire out from under the vehicle to

gain access to the spare tire retainer.

Pulling The Spare Tire Out

5. Lift the spare tire with one hand to give

clearance to tilt the retainer at the end of the

cable.

6. Pull the retainer through the center of the

wheel.

Removing The Retainer

NOTE:

The winch mechanism is designed for use with the

extension tubes only. Use of an air wrench or other

power tools is not recommended and can damage

the winch.

IN CASE OF EMERGENCY

369

(Continued)

ACKING

NSTRUCTIONS

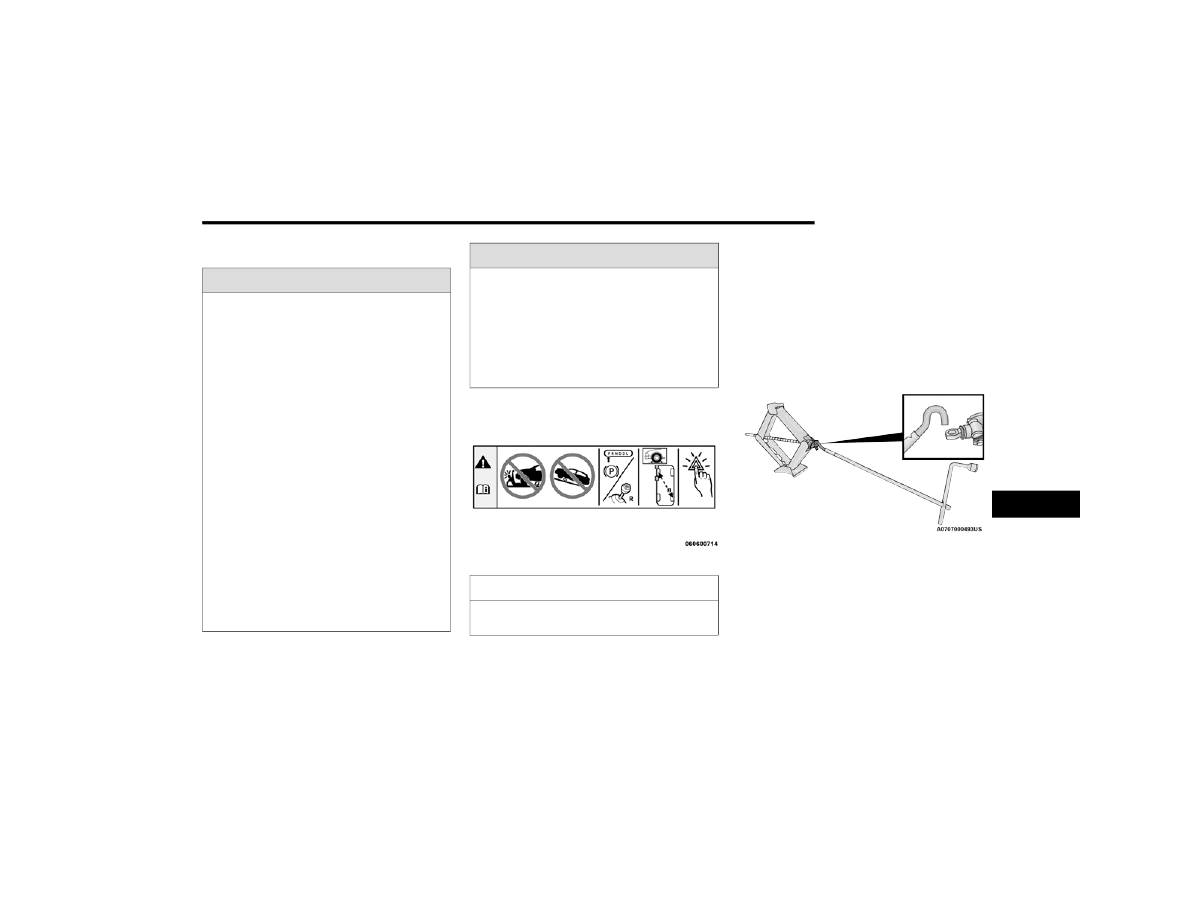

Warning Label

1. Remove the spare tire, jack and tools from

the stored location.

2. Using the lug wrench, loosen the wheel nuts

(but do not remove) by turning them counter

clockwise one turn while the wheel is still on

the ground.

3. Assemble the jack and jacking tools. Connect

the jack handle driver to the extension, then to

the lug wrench.

Assembled Jack And Tools

WARNING!

Carefully follow these tire changing warnings to

help prevent personal injury or damage to your

vehicle:



Always park on a firm, level surface as far from

the edge of the roadway as possible before

raising the vehicle.



Turn on the Hazard Warning Flashers.



Apply the parking brake firmly and shift an

automatic transmission in PARK; a manual

transmission to REVERSE.



Block the wheel diagonally opposite the wheel

to be raised.



Never start or run the engine with the vehicle

on a jack.



Do not let anyone sit in the vehicle when it is

on a jack.



Do not get under the vehicle when it is on a

jack. If you need to get under a raised vehicle,

take it to a service center where it can be

raised on a lift.



Only use the jack in the positions indicated

and for lifting this vehicle during a tire change.



If working on or near a roadway, be extremely

careful of motor traffic.



To assure that spare tires, flat or inflated, are

securely stowed, spares must be stowed with

the valve stem facing the ground.

CAUTION!

Do not attempt to raise the vehicle by jacking on

locations other than those indicated.

WARNING!

370

IN CASE OF EMERGENCY

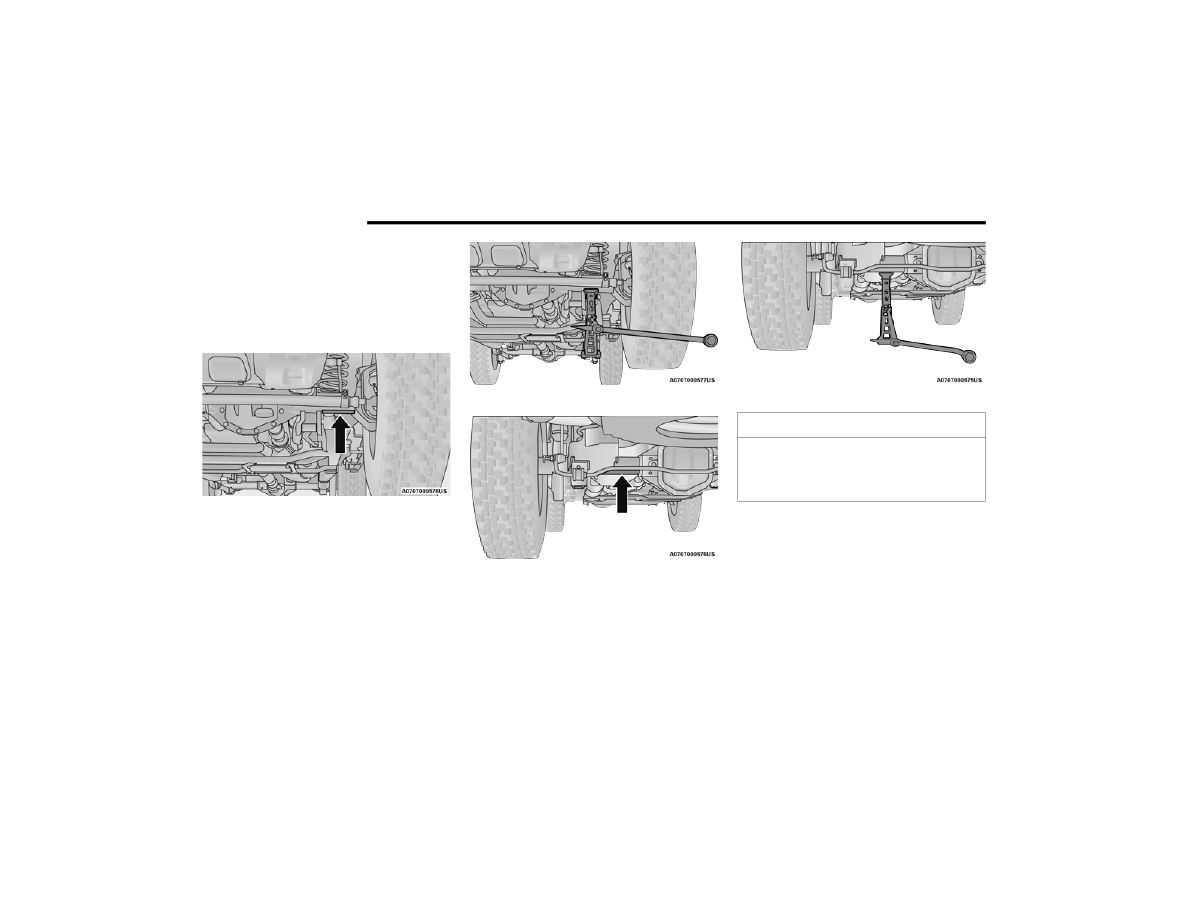

4. Operate the jack from the front or the rear of

the vehicle. Place the jack under the axle tube,

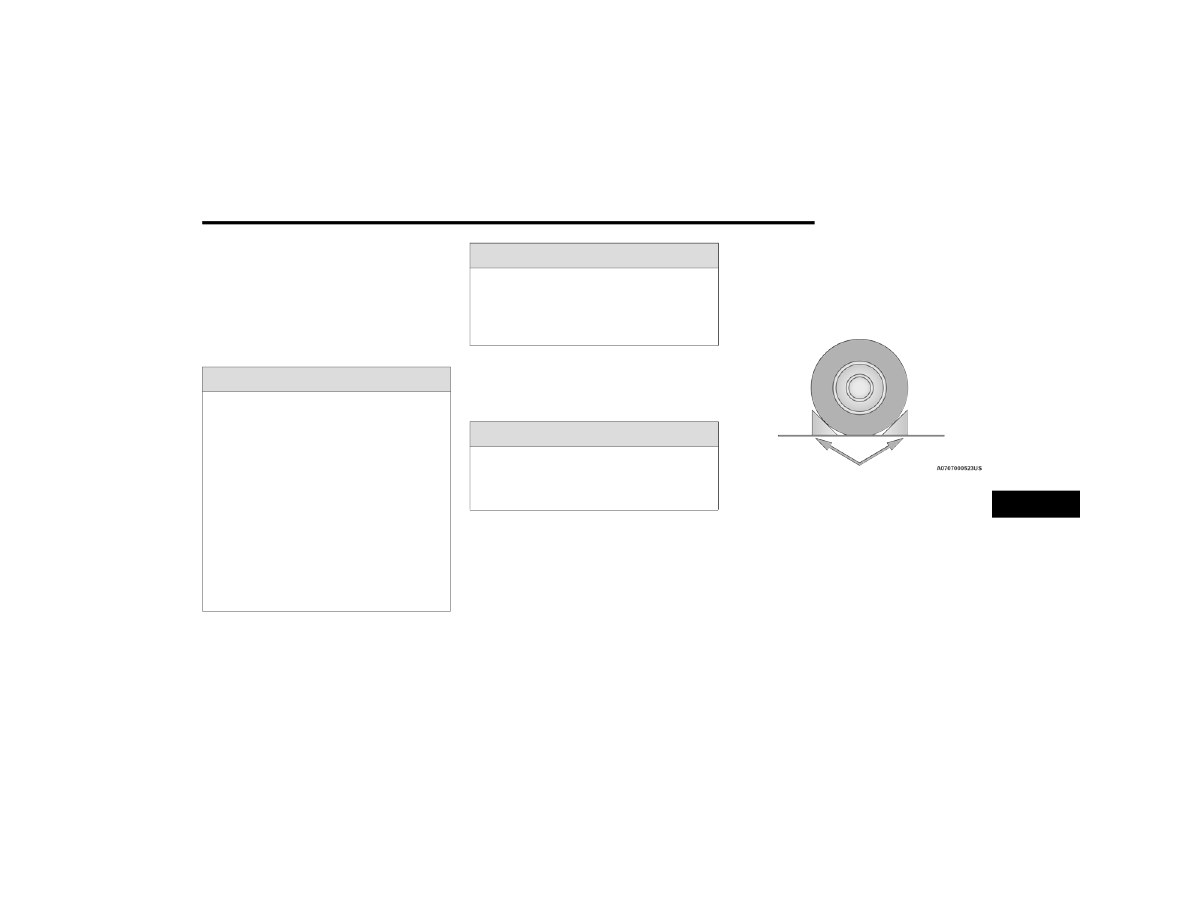

as shown. Placement for the front and rear

jacking locations are critical. See below

images for proper jacking locations. Do not

raise the vehicle until you are sure the jack is

fully engaged.

Front Jack Lifting Point

NOTE:

Keep the jack and tools aligned while raising the

vehicle to prevent tool damage.

Front Jacking Location

Rear Jack Lifting Point

Rear Jacking Location

CAUTION!

Before raising the wheel off the ground, make

sure that the jack will not damage surrounding

truck parts and adjust the jack position as

required.

IN CASE OF EMERGENCY

371

5. Raise the vehicle by turning the jack screw

clockwise. Raise the vehicle only until the tire

just clears the ground surface and enough

clearance is obtained to install the spare tire.

Minimum tire lift provides maximum stability.

6. Remove the lug nuts and wheel.
7. Mount the spare tire on the axle.
8. Install the lug nuts with the cone-shaped end

toward the wheel. Lightly tighten the lug nuts

clockwise.

9. Lower the vehicle by turning the jack screw

counterclockwise, and remove the jack.

10. Finish tightening the wheel bolts. Push down

on the wrench while at the end of the handle

for increased leverage. Tighten the wheel bolts

in a star pattern until each wheel bolt has been

tightened twice

page 451. If in doubt about

the correct tightness, have them checked with

a torque wrench by an authorized dealer or at

a service station.

11. After 25 miles (40 km), check the lug nut

torque with a torque wrench to ensure that all

lug nuts are properly seated against the wheel.

12. Remove the jack assembly and wheel blocks.
13. Secure the jack and tools in their proper

locations.

TOW

LAT

PARE

1. Turn the wheel so that the valve stem is

facing upward and toward the rear of the

vehicle for convenience in checking the spare

tire inflation. Slide the wheel retainer through

the center of the wheel.

WARNING!

Raising the vehicle higher than necessary can

make the vehicle less stable. It could slip off the

jack and hurt someone near it. Raise the vehicle

only enough to remove the tire.

WARNING!

To avoid the risk of forcing the vehicle off the

jack, do not tighten the wheel nuts fully until the

vehicle has been lowered. Failure to follow this

warning may result in serious injury.

WARNING!

A loose tire or jack thrown forward in a collision

or hard stop, could endanger the occupants of

the vehicle. Always stow the jack parts and the

spare tire in the places provided.

WARNING!

A loose tire or jack thrown forward in a collision

or hard stop could endanger the occupants of

the vehicle. Always stow the jack parts and the

spare tire in the places provided. Have the

deflated (flat) tire repaired or replaced

immediately.

372

IN CASE OF EMERGENCY

2. Lift the spare tire with one hand to give

clearance to tilt the retainer at the end of the

cable and position it properly across the wheel

opening.

Reinstalling The Retainer

3. Attach the lug wrench to the extension tubes

with the curved angle facing away from the

vehicle. Insert the extension tubes through the

access hole between the lower tailgate and

the top of the fascia/bumper and into the

winch mechanism tube.

Reinstalling The Flat Or Spare Tire

4. Rotate the lug wrench handle clockwise until

the wheel is drawn into place against the

underside of the vehicle. Continue to rotate

until you feel the winch mechanism slip, or

click three or four times. It cannot be

overtightened. Push against the tire several

times to ensure it is firmly in place.

Rotating The Lug Wrench Handle

NOTE:

The winch mechanism is designed for use with the

extension tube only. Use of an air wrench or other

power tools is not recommended and can damage

the winch.

EINSTALLING

ACK

OOLS

1. Tighten the jack all the way down by turning

the jack turn-screw counterclockwise until the

jack is snug.

2. Position the jack and tool bag. Make sure the

lug wrench is under the jack near the jack

turn-screw.

Jack And Tool Bag

IN CASE OF EMERGENCY

373

(Continued)

3. Secure the tool bag straps to the jack.
4. Place the jack and tools in the storage position

holding the jack by the jack turn-screw, place

the jack and tools under the rear seat.

5. Turn the wing bolt clockwise to secure to the

floor pan.

Jack Hold Down Wing Bolt

JUMP STARTING

If your vehicle has a discharged battery, it can be

jump started using a set of jumper cables and a

battery in another vehicle, or by using a portable

battery booster pack. Jump starting can be

dangerous if done improperly, so please follow the

procedures in this section carefully.

NOTE:

When using a portable battery booster pack, follow

the manufacturer's operating instructions and

precautions.

REPARATIONS

UMP

TART

Supplemental Battery — If Equipped

WARNING!

After using the jack and tools, always reinstall

them in the original carrier and location. While

driving you may experience abrupt stopping,

rapid acceleration or sharp turns. A loose jack,

tools or bracket or other objects in the vehicle

may move around with force, resulting in serious

injury.

WARNING!

Do not attempt jump starting if the battery is

frozen. It could rupture or explode and cause

personal injury.

CAUTION!

Do not use a portable battery booster pack or

any other booster source with a system voltage

greater than 12 Volts or damage to the battery,

starter motor, alternator or electrical system may

occur.

WARNING!



Only use the positive battery post on the main

battery to jump start your vehicle. Serious

injury or death could result if you attempt to

jump start using the supplemental battery.



Battery gas is flammable and explosive. Keep

flame or sparks away from the battery. Do not

use a booster battery or any other booster

source with an output greater than 12 Volts.

Do not allow cable clamps to touch each

other.

374

IN CASE OF EMERGENCY

The battery in your vehicle is located in the right

rear of the engine compartment.

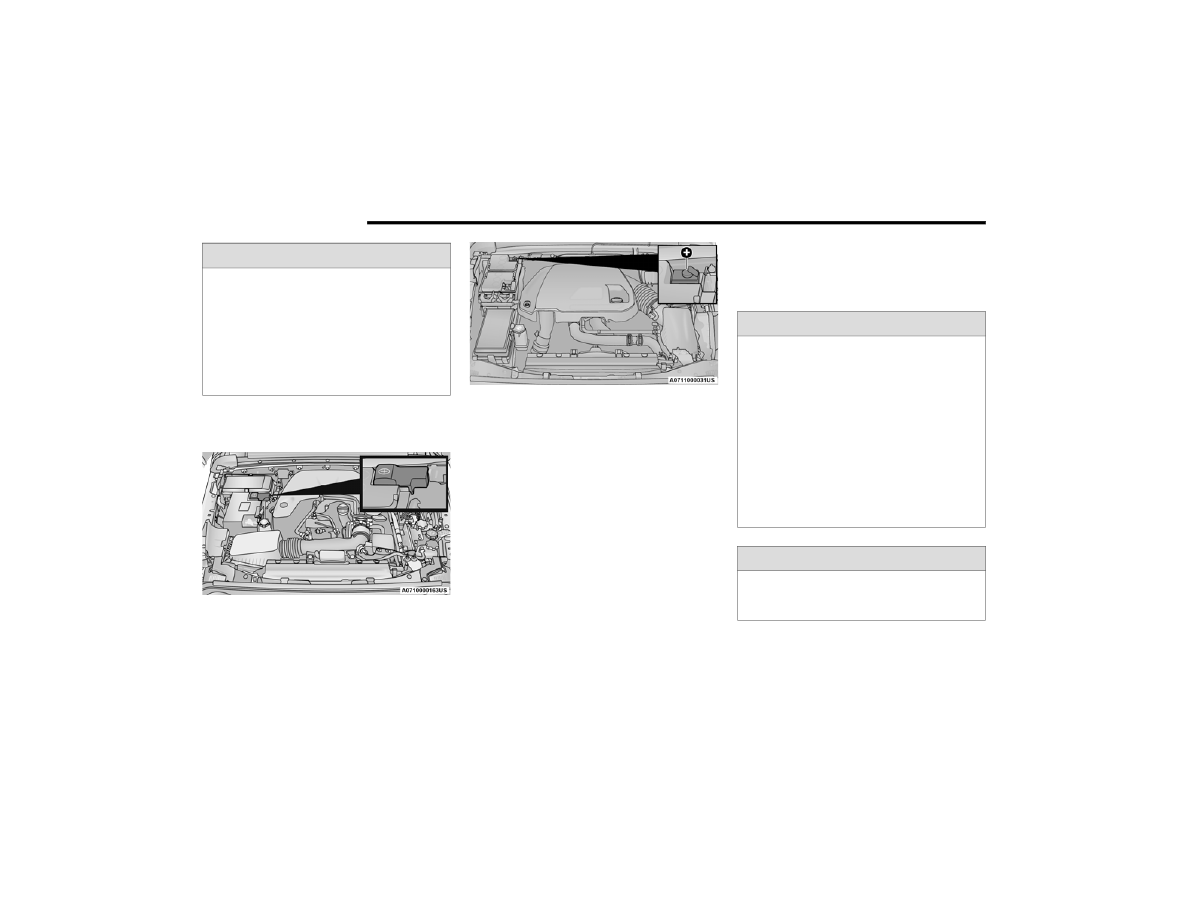

Positive (+) Battery Post – Gas Engine

Positive (+) Battery Post – Diesel Engine

NOTE:

The positive (+) battery post is covered with a

protective cap. Lift up on the cap to gain access to

the post.
If your vehicle is equipped with a Stop/Start

system, it will be equipped with two batteries

page 178.

See below steps to prepare for jump starting:
1. Apply the parking brake, shift the automatic

transmission into PARK (P) (manual

transmission in NEUTRAL) and place the

ignition in OFF mode.

2. Turn off the heater, radio, and all electrical

accessories.

3. If using another vehicle to jump start the

battery, park the vehicle within the jumper

cable’s reach, apply the parking brake and

make sure the ignition is OFF.



Battery posts, terminals, and related accesso

ries contain lead and lead compounds. Wash

hands after handling.



If a “fast charger” is used while the battery is

in the vehicle, disconnect both vehicle battery

cables before connecting the charger to the

battery. Do not use a “fast charger” to provide

starting.

WARNING!



Take care to avoid the radiator cooling fan

whenever the hood is raised. It can start

anytime the ignition switch is ON. You can be

injured by moving fan blades.



Remove any metal jewelry such as rings,

watch bands and bracelets that could make

an inadvertent electrical contact. You could be

seriously injured.



Batteries contain sulfuric acid that can burn

your skin or eyes and generate hydrogen gas

which is flammable and explosive. Keep open

flames or sparks away from the battery.

WARNING!

Do not allow vehicles to touch each other as this

could establish a ground connection and

personal injury could result.

IN CASE OF EMERGENCY

375

UMP

TARTING

ROCEDURE

NOTE:

Make sure at all times that unused ends of jumper

cables are not contacting each other or either

vehicle while making connections.
Connecting The Jumper Cables
1. Connect the positive (+) end of the jumper

cable to the positive (+) post of the discharged

vehicle.

2. Connect the opposite end of the positive (+)

jumper cable to the positive (+) post of the

booster battery.

3. Connect the negative (-) end of the jumper

cable to the negative (-) post of the booster

battery.

4. Connect the opposite end of the negative (-)

jumper cable to a good engine ground. A

“ground” is an exposed metallic/unpainted

part of the engine, frame or chassis, such as

an accessory bracket or large bolt. The ground

must be away from the battery and the fuel

injection system.

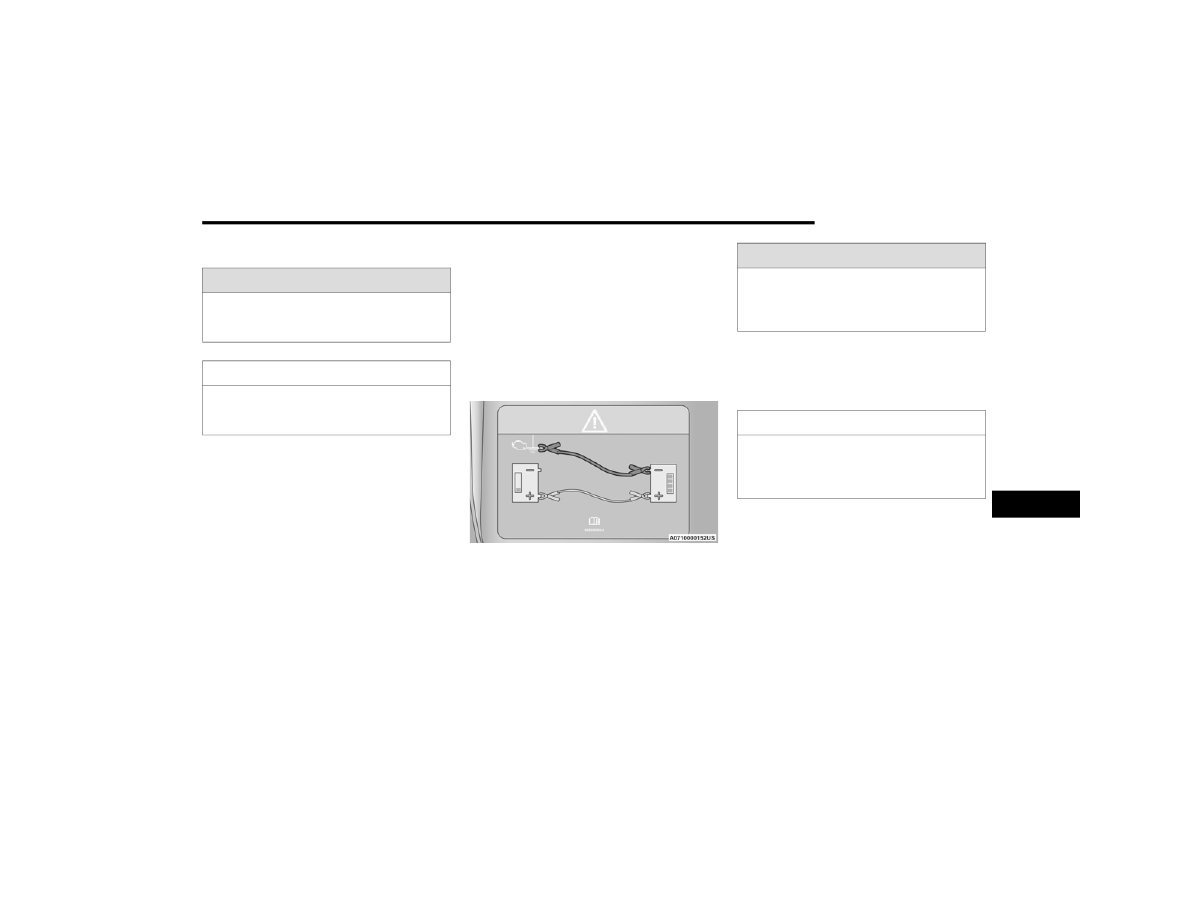

Jump Starting Label

5. Start the engine in the vehicle that has the

booster battery, let the engine idle a few

minutes, and then start the engine in the

vehicle with the discharged battery.

6. Once the engine is started, follow the discon

necting procedure below.

WARNING!

Failure to follow this jump starting procedure

could result in personal injury or property

damage due to battery explosion.

CAUTION!

Failure to follow these procedures could result in

damage to the charging system of the booster

vehicle or the discharged vehicle.

WARNING!

Do not connect the jumper cable to the negative

(-) post of the discharged battery. The resulting

electrical spark could cause the battery to

explode and could result in personal injury.

CAUTION!

Do not run the booster vehicle engine above

2,000 RPM since it provides no charging benefit,

wastes fuel, and can damage booster vehicle

engine.

376

IN CASE OF EMERGENCY

Disconnecting The Jumper Cables
1. Disconnect the negative (-) end of the jumper

cable from the engine ground of the vehicle

with the discharged battery.

2. Disconnect the opposite end of the negative (-)

jumper cable from the negative (-) post of the

booster battery.

3. Disconnect the positive (+) end of the jumper

cable from the positive (+) post of the booster

battery.

4. Disconnect the opposite end of the positive (+)

jumper cable from the positive (+) post of the

discharged vehicle.

5. Reinstall the protective cover over the positive

(+) post of the discharged vehicle.

If frequent jump starting is required to start your

vehicle you should have the battery and charging

system tested at an authorized dealer.

REFUELING IN EMERGENCY – IF EQUIPPED

The vehicle may be equipped with a refueling

funnel

page 366. Vehicles with diesel engines

will have a cap to remove to begin the refueling

process. If refueling is necessary, while using an

approved gas can, insert the refueling funnel into

the filler neck opening. Take care to open both

flappers with the funnel to avoid spills.

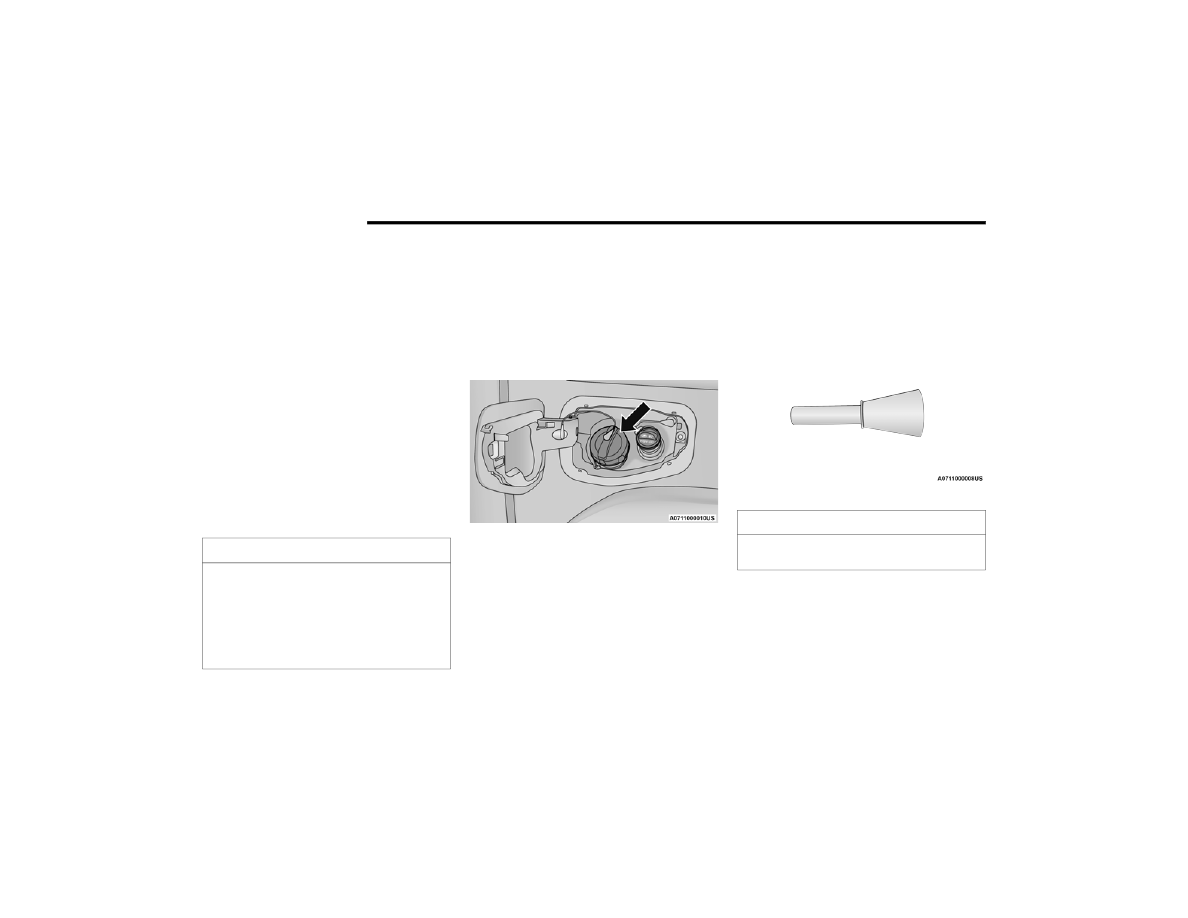

Diesel Fuel Cap

NOTE:

In certain cold conditions, ice may prevent the fuel

door from opening. If this occurs, lightly push on

the fuel door to break the ice buildup and

re-release the fuel door using the inside release

button. Do not pry on the door.

Refueling Funnel

CAUTION!

Accessories plugged into the vehicle power

outlets draw power from the vehicle’s battery,

even when not in use (i.e., cellular devices, etc.).

Eventually, if plugged in long enough without

engine operation, the vehicle’s battery will

discharge sufficiently to degrade battery life

and/or prevent the engine from starting.

CAUTION!

To avoid fuel spillage and overfilling, do not “top

off” the fuel tank after filling.

IN CASE OF EMERGENCY

377

(Continued)

Emergency Gas Can Refueling
Most gas cans will not open the flapper doors. A

funnel is provided to allow emergency refueling

with a gas can.
See below steps for refueling:
1. Retrieve funnel from under the right rear seat.

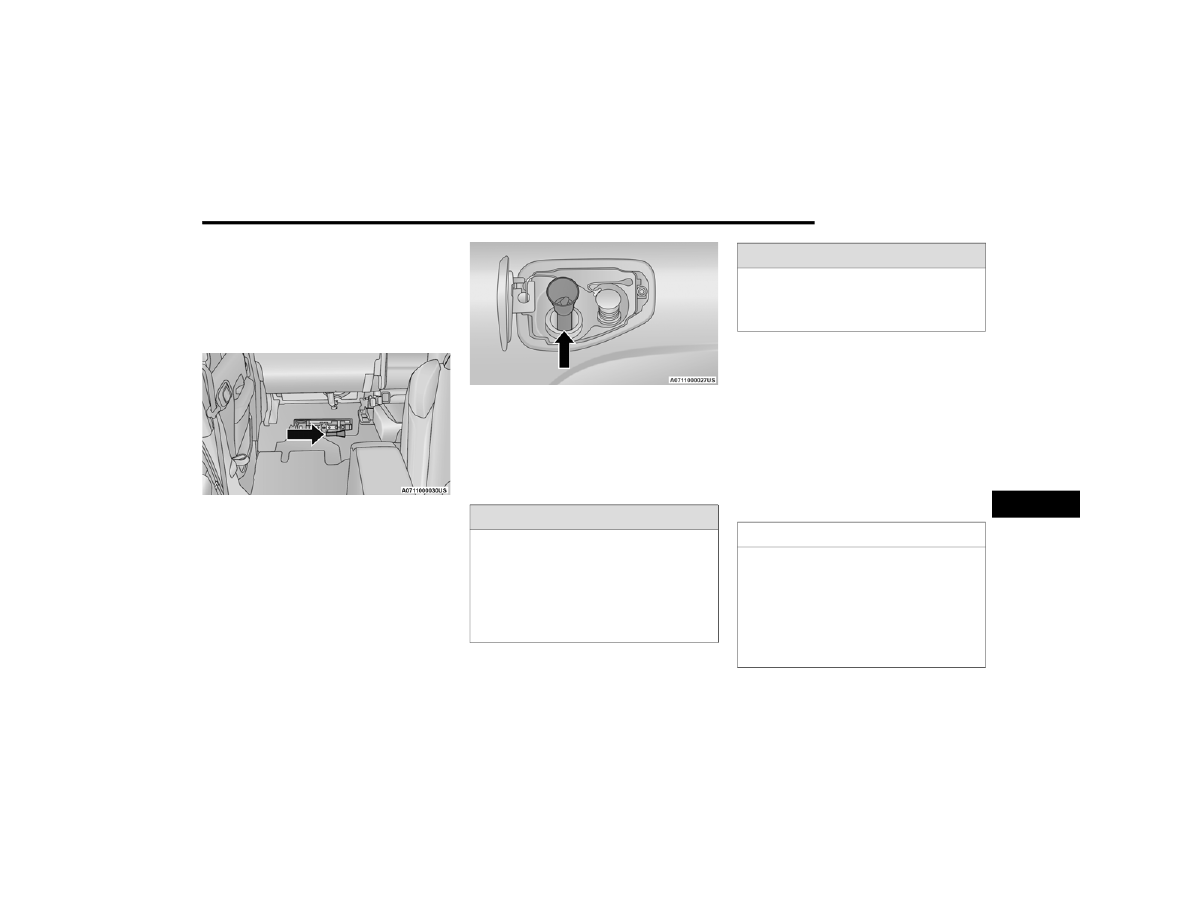

Fuel Funnel Location

2. Insert funnel into same filler pipe opening as the

fuel nozzle.

Inserting Funnel

3. Ensure funnel is inserted fully to hold flapper

doors open.

4. Pour fuel into funnel opening.
5. Remove funnel from filler pipe, clean off prior to

putting back in the spare tire storage area.

IF YOUR ENGINE OVERHEATS

If the vehicle is overheating, it will need to be

serviced by an authorized dealer.
In any of the following situations, you can reduce

the potential for overheating by taking the

appropriate action.



On the highways — slow down.



In city traffic — while stopped, shift transmission

into NEUTRAL (N) , but do not increase engine

idle speed.

WARNING!



Never have any smoking materials lit in or near

the vehicle when the fuel door is open or the

tank is being filled.



Never add fuel when the engine is running. This

is in violation of most state and federal fire regu

lations and may cause the Malfunction Indicator

Light to turn on.



A fire may result if fuel is pumped into a portable

container that is inside of a vehicle. You could be

burned. Always place fuel containers on the

ground while filling.

CAUTION!

Driving with a hot cooling system could damage

your vehicle. If the temperature gauge reads

HOT (H), pull over and stop the vehicle. Idle the

vehicle with the air conditioner turned off until

the pointer drops back into the normal range. If

the pointer remains on HOT (H), and you hear

continuous chimes, turn the engine off

immediately and call for service.

WARNING!

378

IN CASE OF EMERGENCY

NOTE:

There are steps that you can take to slow down an

impending overheat condition:



If your Air Conditioner (A/C) is on, turn it off. The

A/C system adds heat to the engine cooling

system and turning the A/C off can help remove

this heat.



You can also turn the temperature control to

maximum heat, the mode control to floor and

the blower control to high. This allows the heater

core to act as a supplement to the radiator and

aids in removing heat from the engine cooling

system.

MANUAL PARK RELEASE

In order to move the vehicle in cases where the

transmission will not shift out of Park (P) (such as

a depleted battery), a Manual Park Release is

available.

Follow these steps to use the Manual Park

Release:
1. Firmly apply the parking brake.
2. Using a small screwdriver or similar tool,

remove the manual park release cover located

in front of the gear selector, to access the

release tether strap.

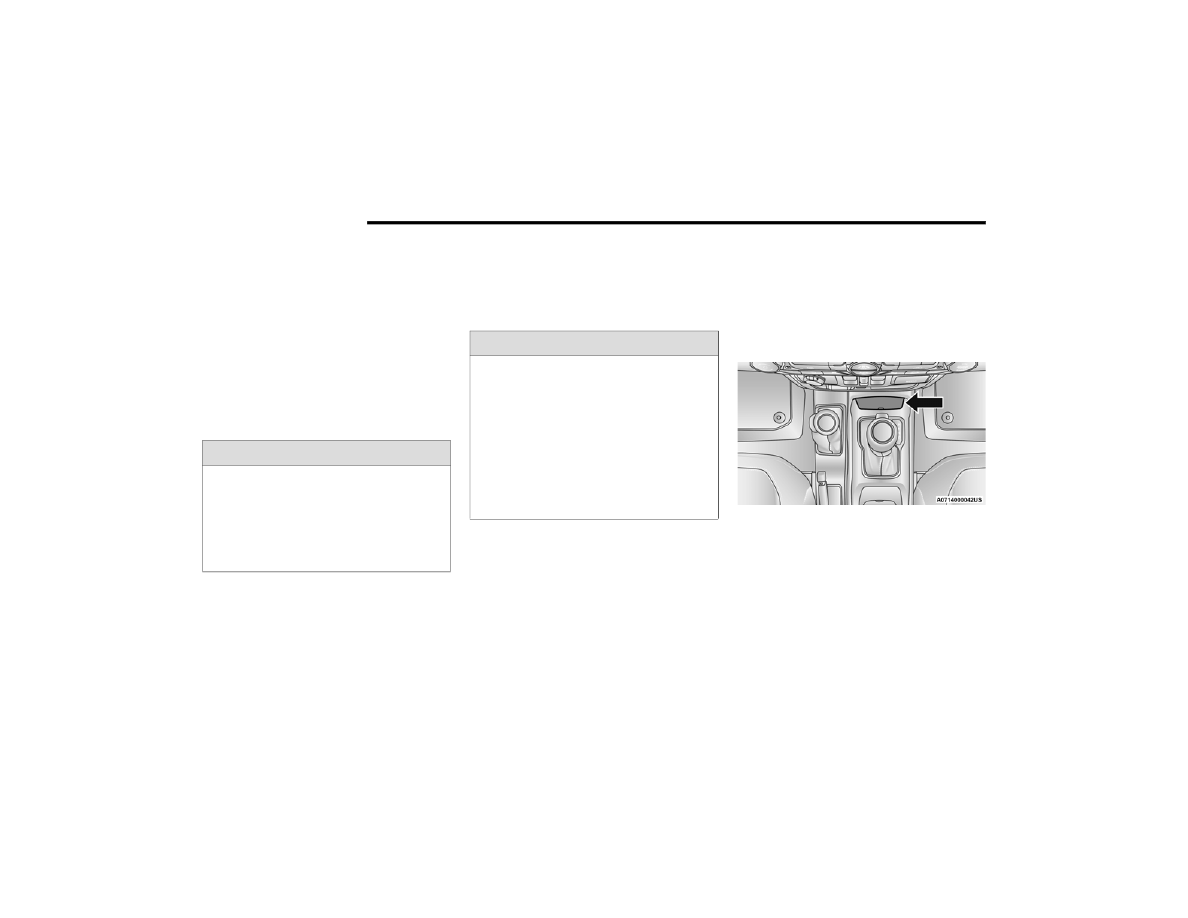

Manual Park Release Cover

WARNING!

You or others can be badly burned by hot engine

coolant (antifreeze) or steam from your radiator.

If you see or hear steam coming from under the

hood, do not open the hood until the radiator

has had time to cool. Never try to open a cooling

system pressure cap when the radiator or

coolant bottle is hot.

WARNING!

Always secure your vehicle by fully applying the

parking brake before activating the Manual Park

Release. In addition, you should be seated in the

driver’s seat with your foot firmly on the brake

pedal when activating the Manual Park Release.

Activating the Manual Park Release will allow

your vehicle to roll away if it is not secured by the

parking brake, or by proper connection to a tow

vehicle. Activating the Manual Park Release on

an unsecured vehicle could lead to serious

injury or death for those in or around the vehicle.

Jeep Gladiator (2022 year). Manual in english - page 23
