Tire Service Kit Components

Using The Mode Select Knob And Hoses

Your Tire Service Kit is equipped with the following

symbols to indicate the air or sealant mode.



Selecting Air Mode

Push in the Mode Select Knob and

turn to this position for air pump oper

ation only. Use the Black Air Pump

Hose when selecting this mode.



Selecting Sealant Mode

Push in the Mode Select Knob and

turn to this position to inject the Tire

Service Kit Sealant and to inflate the

tire. Use the Sealant Hose (clear hose)

when selecting this mode.



Using The Power Button

Push and release the Power Button

once to turn on the Tire Service Kit.

Push and release the Power Button

again to turn Off the Tire Service Kit.



Using The Deflation Button

Push the Deflation Button to reduce

the air pressure in the tire if it

becomes overinflated.

IRE

ERVICE

SAGE

RECAUTIONS



Replace the Tire Service Kit Sealant Bottle and

Sealant Hose prior to the expiration date

(printed at the upper left hand corner on the

bottle label) to assure optimum operation of the

system

page 237.

Tire Service Kit Sealant Expiration Date Location



The Sealant Bottle and Sealant Hose are a one

tire application use and need to be replaced

after each use. Always replace these compo

nents immediately at your original equipment

vehicle dealer.



When the Tire Service Kit sealant is in a liquid

form, clean water and a damp cloth will remove

the material from the vehicle or tire and wheel

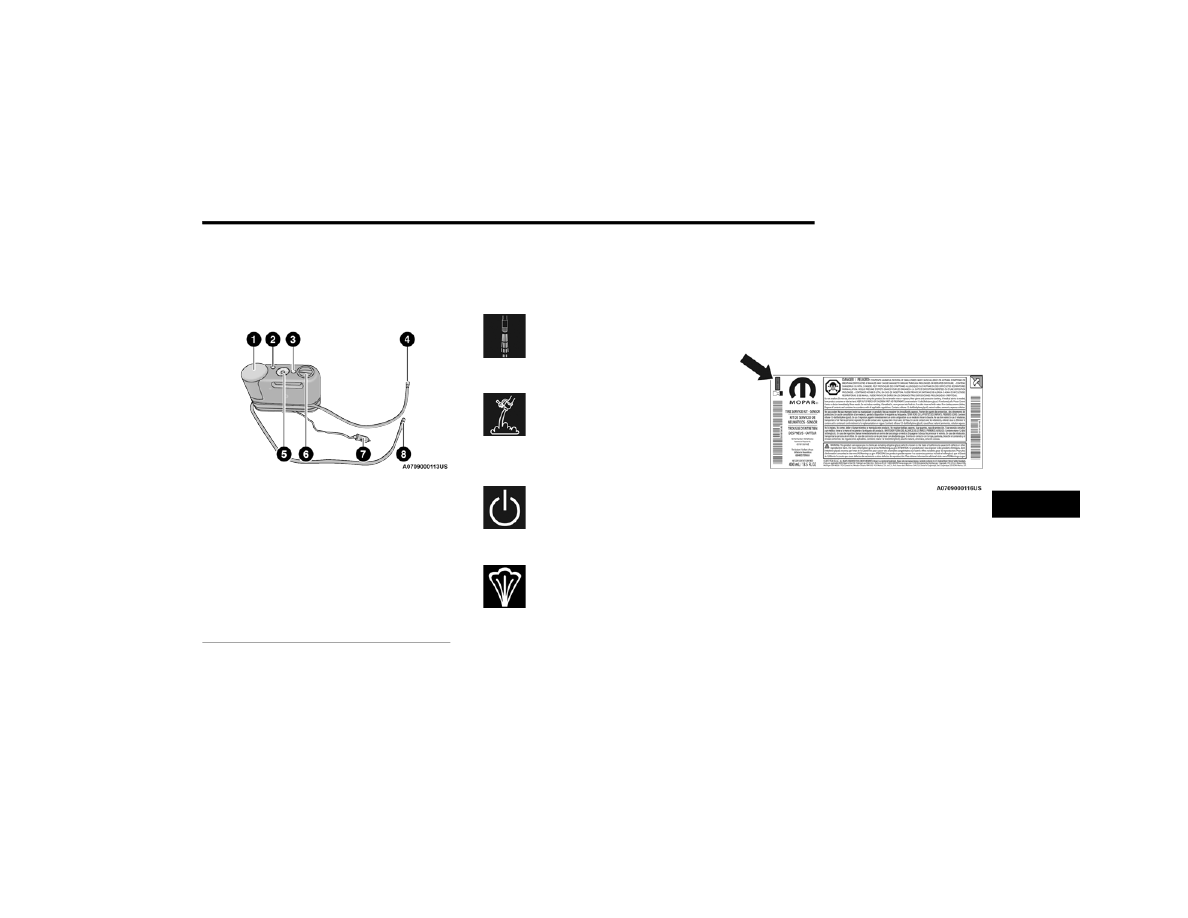

1 — Sealant Bottle
2 — Deflation Button
3 — Power Button
4 — Sealant Hose (Clear)
5 — Pressure Gauge
6 — Mode Select Knob
7 — Power Plug (located on the bottom side of the

Tire Service Kit)
8 — Air Pump Hose (Black)

234

IN CASE OF EMERGENCY

(Continued)

components. Once the sealant dries, it can

easily be peeled off and properly discarded.



For optimum performance, make sure the valve

stem on the wheel is free of debris before

connecting the Tire Service Kit.



You can use the Tire Service Kit air pump to

inflate bicycle tires. The kit also comes with two

needles, located in the Accessory Storage

Compartment (on the bottom of the air pump)

for inflating sport balls, rafts, or similar inflat

able items. However, use only the Air Pump

Hose and make sure the Mode Select Knob is in

the Air Mode when inflating such items to avoid

injecting sealant into them. The Tire Service Kit

Sealant is only intended to seal punctures less

than 1/4 inch (6 mm) diameter in the tread of

your tire.



Do not lift or carry the Tire Service Kit by the

hoses.

WARNING!



Do not attempt to seal a tire on the side of the

vehicle closest to traffic. Pull far enough off

the road to avoid the danger of being hit when

using the Tire Service Kit.



Do not use Tire Service Kit or drive the vehicle

under the following circumstances:



If the puncture in the tire tread is approxi

mately 1/4 inch (6 mm) or larger.



If the tire has any sidewall damage.



If the tire has any damage from driving

with extremely low tire pressure.



If the tire has any damage from driving on

a flat tire.



If the wheel has any damage.



If you are unsure of the condition of the

tire or the wheel.



Keep Tire Service Kit away from open flames

or heat source.



A loose Tire Service Kit thrown forward in a

collision or hard stop could endanger the

occupants of the vehicle. Always stow the Tire

Service Kit in the place provided. Failure to

follow these warnings can result in injuries

that are serious or fatal to you, your passen

gers, and others around you.

WARNING!



Take care not to allow the contents of Tire

Service Kit to come in contact with hair, eyes,

or clothing. Tire Service Kit sealant is harmful

if inhaled, swallowed, or absorbed through the

skin. It causes skin, eye, and respiratory irrita

tion. Flush immediately with plenty of water if

there is any contact with eyes or skin. Change

clothing as soon as possible, if there is any

contact with clothing.



Tire Service Kit Sealant solution contains

latex. In case of an allergic reaction or rash,

consult a physician immediately. Keep Tire

Service Kit out of reach of children. If swal

lowed, rinse mouth immediately with plenty of

water and drink plenty of water. Do not induce

vomiting! Consult a physician immediately.

WARNING!

IN CASE OF EMERGENCY

235

EALING

A T

IRE

ITH

IRE

ERVICE

(A) Whenever You Stop To Use Tire Service

Kit:

1. Pull over to a safe location and turn on the

vehicle’s Hazard Warning Flashers.

2. Verify that the valve stem (on the wheel with

the deflated tire) is in a position that is near to

the ground. This will allow the Tire Service Kit

Hoses and to reach the valve stem and keep

the Tire Service Kit flat on the ground. This will

provide the best positioning of the kit when

injecting the sealant into the deflated tire and

running the air pump. Move the vehicle as

necessary to place the valve stem in this

position before proceeding.

3. Place the transmission in PARK (P) (auto

transmission) or in Gear (manual

transmission) and place the ignition in the OFF

position.

4. Apply the parking brake.

(B) Setting Up To Use Tire Service Kit:

1. Push in the Mode Select Knob and turn to the

Sealant Mode position.

2. Uncoil the Sealant Hose and then remove the

cap from the fitting at the end of the hose.

3. Place the Tire Service Kit flat on the ground

next to the deflated tire.

4. Remove the cap from the valve stem and then

screw the fitting at the end of the Sealant Hose

onto the valve stem.

5. Uncoil the Power Plug and insert the plug into

the vehicle’s 12 Volt power outlet.

NOTE:

Do not remove foreign objects (e.g., screws or

nails) from the tire.

The Deflated Tire:



Always start the engine before turning ON the

Tire Service Kit.

NOTE:

Manual transmission vehicles must have the

parking brake engaged and the gear selector in

NEUTRAL.



After pushing the Power Button, the sealant

(white fluid) will flow from the Sealant Bottle

through the Sealant Hose and into the tire.

NOTE:

Sealant may leak out through the puncture in the

tire.

If the sealant (white fluid) does not flow within

0 – 10 seconds through the Sealant Hose:
1. Push the Power Button to turn Off the Tire

Service Kit. Disconnect the Sealant Hose

from the valve stem. Make sure the valve

stem is free of debris. Reconnect the Sealant

Hose to the valve stem. Check that the Mode

Select Knob is in the Sealant Mode position

and not Air Mode. Push the Power Button to

turn On the Tire Service Kit.

2. Connect the Power Plug to a different 12 Volt

power outlet in your vehicle or another vehicle,

if available. Make sure the engine is running

before turning ON the Tire Service Kit.

3. The Sealant Bottle may be empty due to

previous use. Call for assistance.

NOTE:

If the Mode Select Knob is on Air Mode and the

pump is operating, air will dispense from the Air

Pump Hose only, not the Sealant Hose.

236

IN CASE OF EMERGENCY

If the sealant (white fluid) does flow through the

Sealant Hose:
1. Continue to operate the pump until sealant is

no longer flowing through the hose (typically

takes 30 - 70 seconds). As the sealant flows

through the Sealant Hose, the Pressure

Gauge can read as high as 70 psi (4.8 Bar).

The Pressure Gauge will decrease quickly

from approximately 70 psi (4.8 Bar) to the

actual tire pressure when the Sealant Bottle

is empty.

2. The pump will start to inject air into the tire

immediately after the Sealant Bottle is empty.

Continue to operate the pump and inflate the

tire to the pressure indicated on the tire

pressure label on the driver-side latch pillar

(recommended pressure). Check the tire

pressure by looking at the Pressure Gauge.

If the tire does not inflate to at least 26 psi

(1.8 Bar) pressure within 15 minutes:

NOTE:

Never operate the compressor for longer than

20 minutes. Risk of Overheating.



The tire is too badly damaged. Do not attempt to

drive the vehicle further. Call for assistance.

NOTE:

If the tire becomes overinflated, push the Deflation

Button to reduce the tire pressure to the recom

mended inflation pressure before continuing.

If the tire inflates to the recommended pressure or

is at least 26 psi (1.8 Bar) pressure within

15 minutes:
1. Push the Power Button to turn off the Tire

Service Kit.

2. Remove the Speed Limit sticker from the top of

the Sealant Bottle and place the sticker on the

instrument panel.

3. Immediately disconnect the Sealant Hose

from the valve stem, reinstall the cap on the

fitting at the end of the hose, and place the Tire

Service Kit in the vehicle storage location.

(D) Drive Vehicle:

Immediately after injecting sealant and inflating

the tire, drive the vehicle 5 miles (8 km) or

10 minutes to ensure distribution of the Tire

Service Kit Sealant within the tire. Do not exceed

50 mph (80 km/h).

(E) After Driving:

Pull over to a safe location

page 235.

1. Push in the Mode Select Knob and turn to the

Air Mode position.

2. Uncoil the power plug and insert the plug into

the vehicle's 12 Volt power outlet.

3. Uncoil the Air Pump Hose (black in color) and

screw the fitting at the end of hose onto the

valve stem.

4. Check the pressure in the tire by reading the

Pressure Gauge.

CAUTION!



The metal end fitting from Power Plug may get

hot after use, so it should be handled care

fully.



Failure to reinstall the cap on the fitting at the

end of the Sealant Hose can result in sealant

contacting your skin, clothing, and the

vehicle’s interior. It can also result in sealant

contacting internal Tire Service Kit compo

nents which may cause permanent damage to

the kit.

WARNING!

Tire Service Kit is not a permanent flat tire

repair. Have the tire inspected and repaired or

replaced after using Tire Service Kit. Do not

exceed 50 mph (80 km/h) until the tire is

repaired or replaced. Failure to follow this

warning can result in injuries that are serious or

fatal to you, your passengers, and others around

you.

IN CASE OF EMERGENCY

237

If tire pressure is less than 19 psi (1.3 Bar):
The tire is too badly damaged. Do not attempt to

drive the vehicle further. Call for assistance.
If the tire pressure is 19 psi (1.3 Bar) or higher:
1. Push the Power Button to turn on Tire Service

Kit and inflate the tire to the pressure

indicated on the tire and loading information

label on the driver-side door opening.

NOTE:

If the tire becomes overinflated, push the Deflation

Button to reduce the tire pressure to the recom

mended inflation pressure before continuing.
2. Disconnect the Tire Service Kit from the valve

stem, reinstall the cap on the valve stem and

unplug from 12 Volt outlet.

3. Place the Tire Service Kit in its proper storage

area in the vehicle.

4. Have the tire inspected and repaired or

replaced at the earliest opportunity at an

authorized dealer or tire service center.

5. Remove the Speed Limit sticker from the

instrument panel after the tire has been

repaired.

6. Replace the Sealant Bottle and Sealant Hose

assembly at an authorized dealer as soon as

possible

page 237.

NOTE:

When having the tire serviced, advise the autho

rized dealer or service center that the tire has been

sealed using the Tire Service Kit.

(F) Sealant Bottle And Hose Replacement:

1. Uncoil the Sealant Hose (clear in color).
2. Locate the red colored round Sealant Bottle

release button at the lower right hand corner

of the kit.

3. Push and hold the Sealant Bottle release

button, then pull out the bottle holding the

button.

4. Clean any remaining sealant from the Tire

Service Kit housing.

5. Position the new Sealant Bottle in the housing

so that the Sealant Hose aligns with the hose

slot in the front of the housing. Push and hold

the Sealant Bottle release button, then push

the bottle into the housing by holding the

button. An audible click will be heard indicating

the bottle is locked into place. Release the

button.

6. Verify that the cap is installed on the fitting at

the end of the Sealant Hose and return the

hose to its storage area (located on top of the

housing).

7. Return the Tire Service Kit to its storage

location in the vehicle.

JUMP STARTING

If your vehicle has a discharged battery, it can be

jump started using a set of jumper cables and a

battery in another vehicle or by using a portable

battery booster pack. Jump starting can be

dangerous if done improperly, so please follow the

procedures in this section carefully.

NOTE:

When using a portable battery booster pack, follow

the manufacturer’s operating instructions and

precautions.

WARNING!

Do not attempt jump starting if the battery is

frozen. It could rupture or explode and cause

personal injury.

CAUTION!

Do not use a portable battery booster pack or

any other booster source with a system voltage

greater than 12 Volts or damage to the battery,

starter motor, alternator or electrical system may

occur.

238

IN CASE OF EMERGENCY

REPARATIONS

UMP

TART

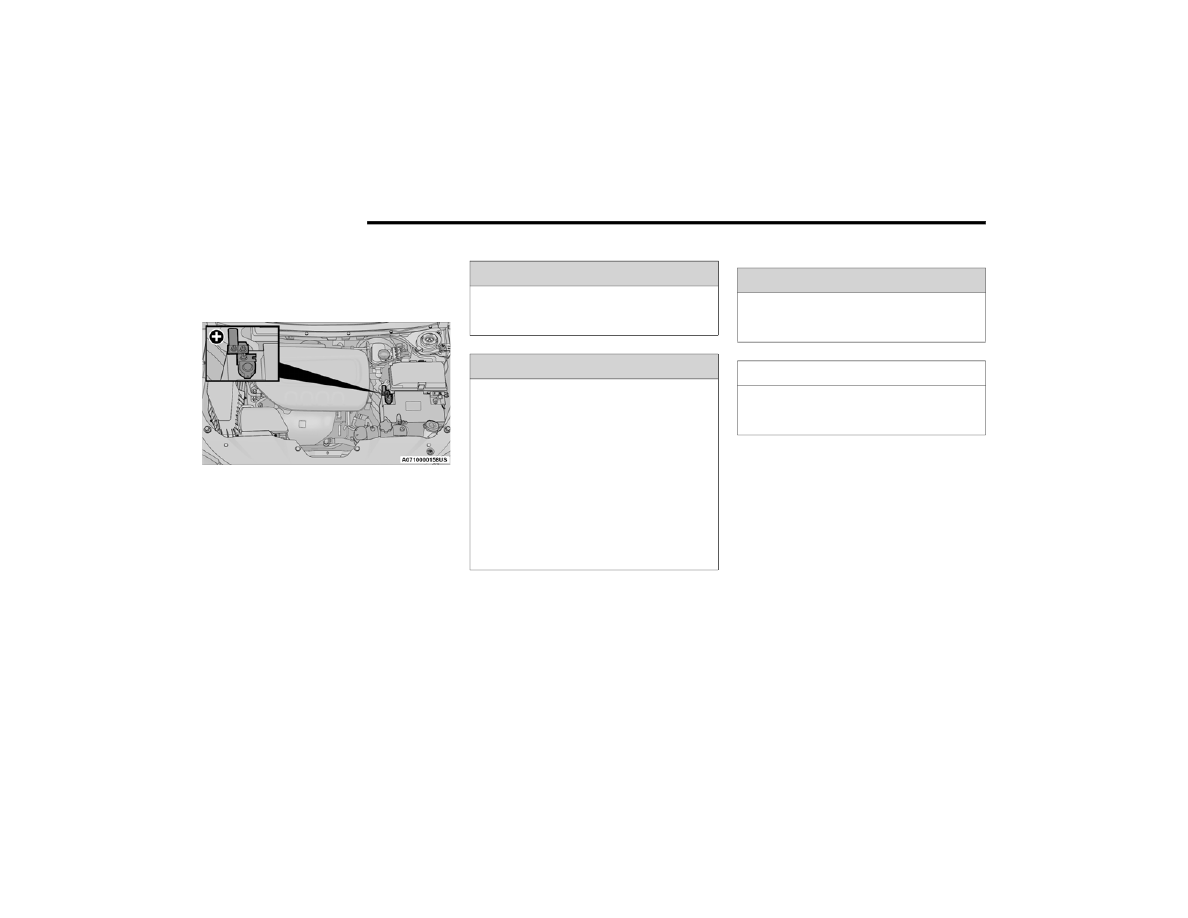

The battery in your vehicle is located in the front of

the engine compartment, behind the left headlight

assembly.

Positive (+) Battery Post

See below steps to prepare for jump starting:
1. Apply the parking brake, shift the automatic

transmission into PARK (P) and turn the

ignition OFF.

2. Turn off the heater, radio, and all electrical

accessories.

3. If using another vehicle to jump start the

battery, park the vehicle within the jumper

cable’s reach, apply the parking brake and

make sure the ignition is OFF.

UMP

TARTING

ROCEDURE

Connecting The Jumper Cables
1. Connect the positive (+) end of the jumper

cable to the positive (+) post of the discharged

vehicle.

2. Connect the opposite end of the positive (+)

jumper cable to the positive (+) post of the

booster battery.

3. Connect the negative (-) end of the jumper

cable to the negative (-) post of the booster

battery.

WARNING!

Do not allow vehicles to touch each other as this

could establish a ground connection and

personal injury could result.

WARNING!



Take care to avoid the radiator cooling fan

whenever the hood is raised. It can start

anytime the ignition switch is ON. You can be

injured by moving fan blades.



Remove any metal jewelry such as rings,

watch bands and bracelets that could make

an inadvertent electrical contact. You could be

seriously injured.



Batteries contain sulfuric acid that can burn

your skin or eyes and generate hydrogen gas

which is flammable and explosive. Keep open

flames or sparks away from the battery.

WARNING!

Failure to follow this jump starting procedure

could result in personal injury or property

damage due to battery explosion.

CAUTION!

Failure to follow these procedures could result in

damage to the charging system of the booster

vehicle or the discharged vehicle.

IN CASE OF EMERGENCY

239

4. Connect the opposite end of the negative (-)

jumper cable to a good engine ground. A

“ground” is an exposed metallic/unpainted

part of the engine, frame or chassis, such as

an accessory bracket or large bolt. The ground

must be away from the battery and the fuel

injection system.

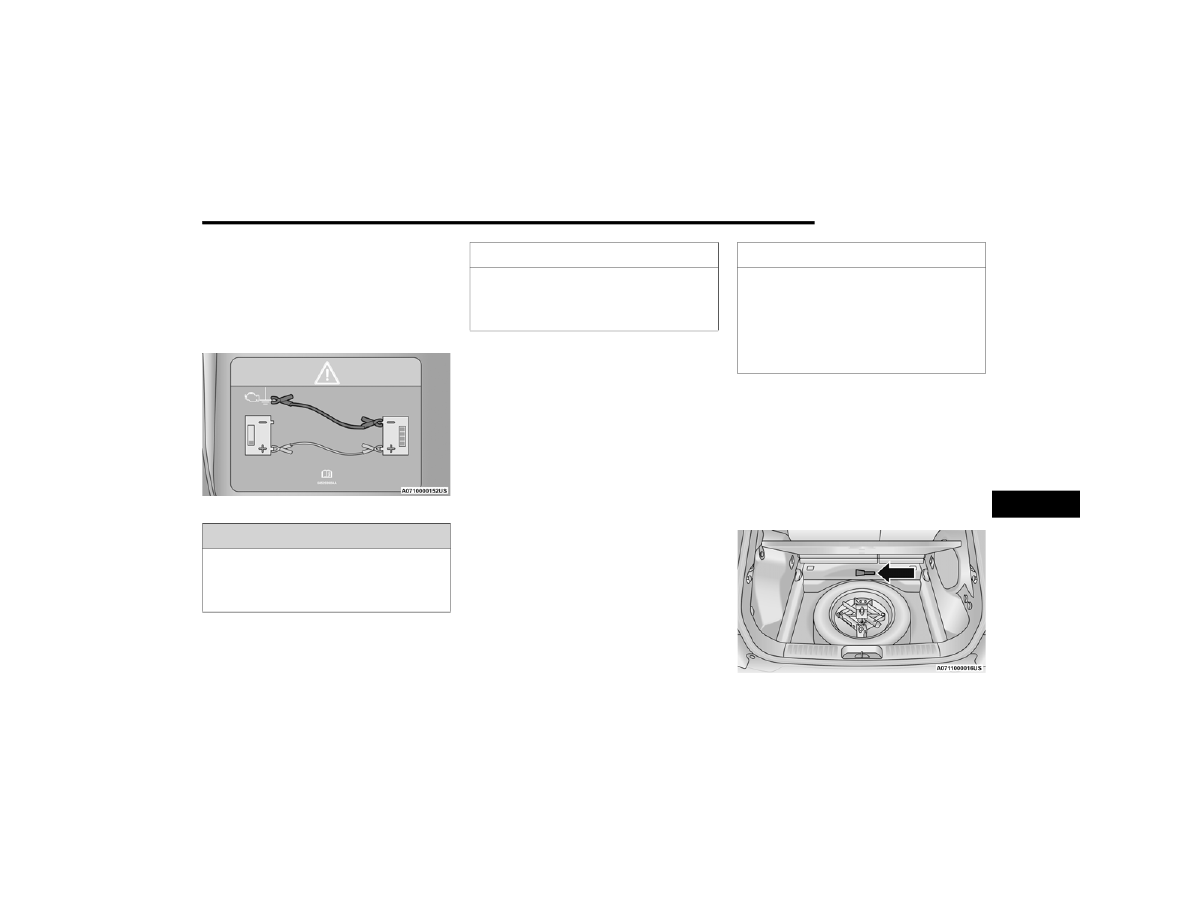

Jump Starting Label

5. Start the engine in the vehicle that has the

booster battery, let the engine idle for a few

minutes, and then start the engine in the

vehicle with the discharged battery.

6. Once the engine is started, follow the discon

necting procedure below.

Disconnecting The Jumper Cables
1. Disconnect the negative (-) end of the jumper

cable from the engine ground of the vehicle

with the discharged battery.

2. Disconnect the opposite end of the negative (-)

jumper cable from the negative (-) post of the

booster battery.

3. Disconnect the positive (+) end of the jumper

cable from the positive (+) post of the booster

battery.

4. Disconnect the opposite end of the positive (+)

jumper cable from the positive (+) post of the

vehicle with the discharged battery.

If frequent jump starting is required to start your

vehicle, you should have the battery and charging

system inspected at an authorized dealer.

REFUELING IN EMERGENCY – IF EQUIPPED

The vehicle is equipped with a refueling funnel for

a Cap-Less Fuel System, which can be found under

the load floor in the rear cargo area. If refueling is

necessary, while using an approved gas can, insert

the refueling funnel into the filler neck opening.

Take care to open both flappers with the funnel to

avoid spills.

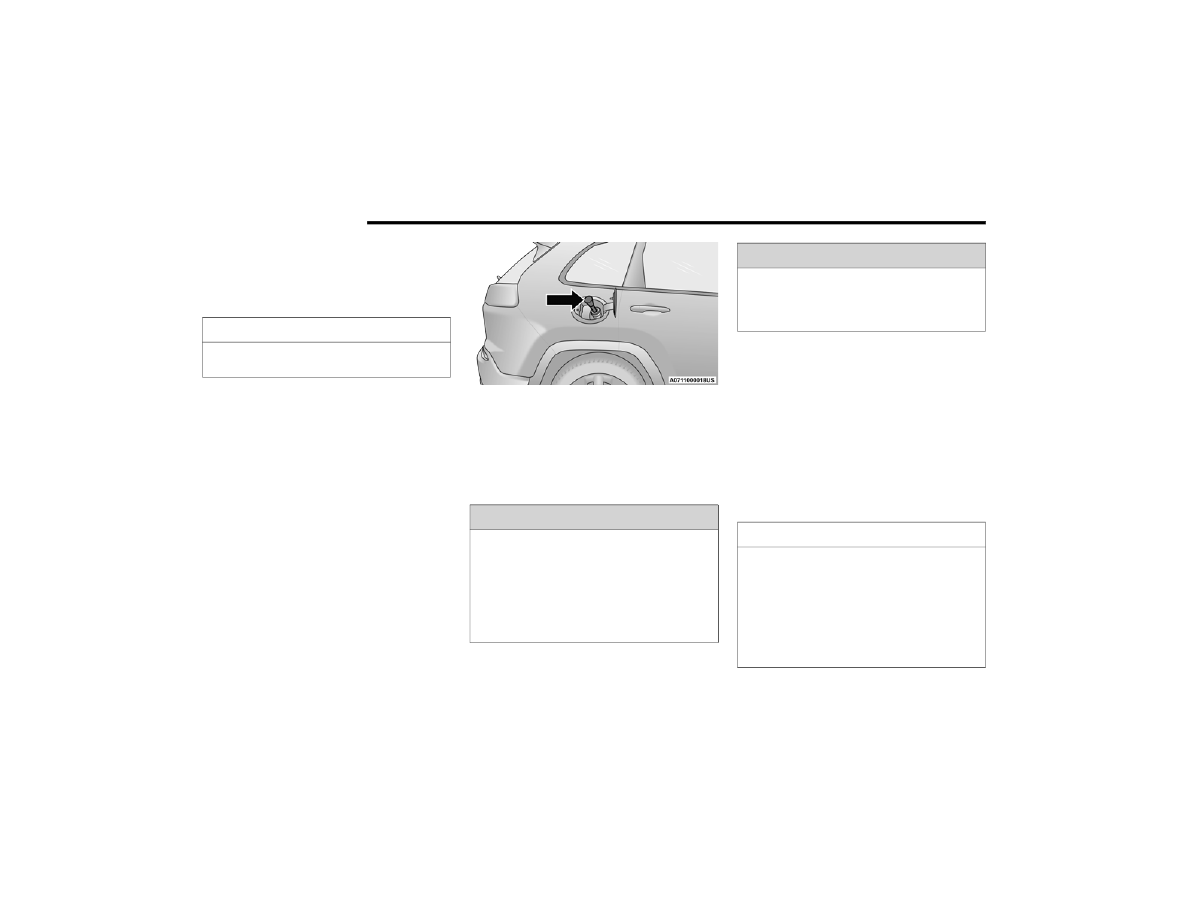

Fuel Funnel Location

WARNING!

Do not connect the jumper cable to the negative

(-) post of the discharged battery. The resulting

electrical spark could cause the battery to

explode and could result in personal injury.

CAUTION!

Do not run the booster vehicle engine above

2,000 RPM since it provides no charging benefit,

wastes fuel, and can damage booster vehicle

engine.

CAUTION!

Accessories plugged into the vehicle power

outlets draw power from the vehicle’s battery,

even when not in use (i.e., cellular devices, etc.).

Eventually, if plugged in long enough without

engine operation, the vehicle’s battery will

discharge sufficiently to degrade battery life

and/or prevent the engine from starting.

240

IN CASE OF EMERGENCY

(Continued)

NOTE:

In certain cold conditions, ice may prevent the fuel

door from opening. If this occurs, lightly push on

the fuel door to break the ice buildup and

re-release the fuel door. Do not pry on the door.

Emergency Gas Can Refueling
Most gas cans will not open the flapper doors. A

funnel is provided to allow emergency refueling

with a gas can.
See below steps for refueling:
1. Retrieve funnel from the spare tire storage

area.

2. Insert funnel into same filler pipe opening as

the fuel nozzle.

Inserting Funnel

3. Ensure funnel is inserted fully to hold flapper

doors open.

4. Pour fuel into funnel opening.
5. Remove funnel from filler pipe, clean off prior

to putting back in the spare tire storage area.

IF YOUR ENGINE OVERHEATS

If the vehicle is overheating, it will need to be

serviced by an authorized dealer.
In any of the following situations, you can reduce

the potential for overheating your engine by taking

the appropriate action.



On the highways — slow down.



In city traffic — while stopped, place the trans

mission in NEUTRAL (N), but do not increase

engine idle speed.

CAUTION!

To avoid fuel spillage and overfilling, do not “top

off” the fuel tank after filling.

WARNING!



Never have any smoking materials lit in or

near the vehicle when the fuel door is open or

the tank is being filled.



Never add fuel when the engine is running.

This is in violation of most state and federal

fire regulations and may cause the Malfunc

tion Indicator Light to turn on.



A fire may result if fuel is pumped into a

portable container that is inside of a vehicle.

You could be burned. Always place fuel

containers on the ground while filling.

CAUTION!

Driving with a hot cooling system could damage

your vehicle. If the temperature gauge reads

“H”, pull over and stop the vehicle. Idle the

vehicle with the air conditioner turned off until

the pointer drops back into the normal range. If

the pointer remains on the “H” and you hear

continuous chimes, turn the engine off

immediately and call for service.

WARNING!

IN CASE OF EMERGENCY

241

NOTE:

There are steps that you can take to slow down an

impending overheat condition:



If your Air Conditioner (A/C) is on, turn it off. The

A/C system adds heat to the engine cooling

system and turning the A/C off can help remove

this heat.



You can also turn the temperature control to

maximum heat, the mode control to floor and

the blower control to high. This allows the heater

core to act as a supplement to the radiator and

aids in removing heat from the engine cooling

system.

GEAR SELECTOR OVERRIDE

If a malfunction occurs and the gear selector

cannot be moved out of the PARK (P) position, you

can use the following procedure to temporarily

move the gear selector:
1. Turn the engine OFF.
2. Apply the parking brake.
3. Using a screwdriver or similar tool, carefully

separate the shifter bezel and boot assembly

from the center console, and raise it up to

access the gear selector mechanism.

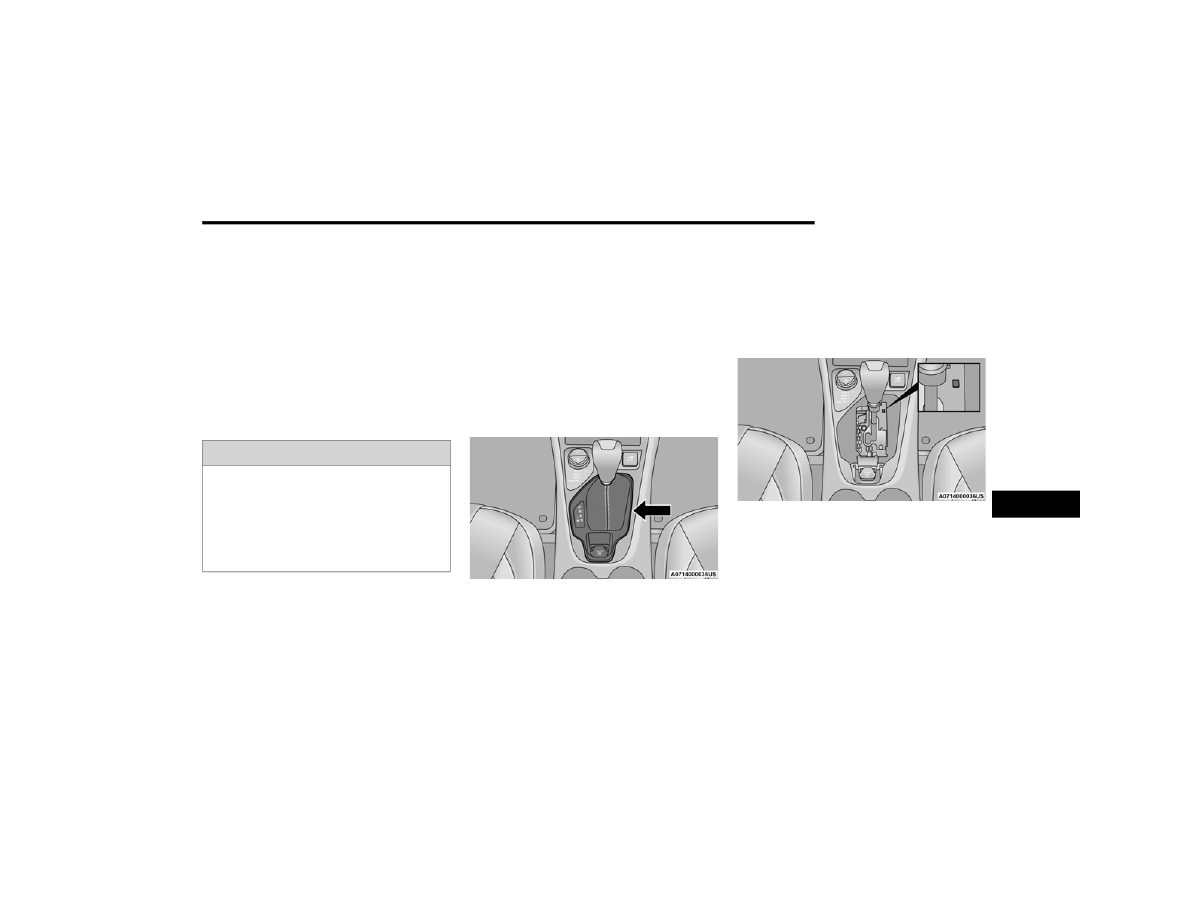

Shifter Bezel/Boot

4. Press and maintain firm pressure on the brake

pedal.

5. Insert a small screwdriver or similar tool down

into the gear selector override access hole (at

the right front corner of the gear selector

assembly), and push and hold the override

release lever down.

Override Access Hole

6. Move the gear selector to the NEUTRAL (N)

position.

7. The vehicle may then be started in NEUTRAL

(N).

8. Reinstall the gear selector boot.

WARNING!

You or others can be badly burned by hot engine

coolant (antifreeze) or steam from your radiator.

If you see or hear steam coming from under the

hood, do not open the hood until the radiator

has had time to cool. Never try to open a cooling

system pressure cap when the radiator or

coolant bottle is hot.

242

IN CASE OF EMERGENCY

FREEING A STUCK VEHICLE

If your vehicle becomes stuck in mud, sand or snow,

it can often be moved using a rocking motion. Turn

the steering wheel right and left to clear the area

around the front wheels. Push and hold the lock

button on the gear selector. Then shift back and

forth between DRIVE (D) and REVERSE (R), while

gently pressing the accelerator.

NOTE:

Shifts between DRIVE (D) and REVERSE (R) can only

be achieved at wheel speeds of 5 mph (8 km/h) or

less. Whenever the transmission remains in

NEUTRAL (N) for more than two seconds, you must

press the brake pedal to engage DRIVE (D) or

REVERSE (R).
Use the least amount of accelerator pedal

pressure that will maintain the rocking motion

without spinning the wheels or racing the engine.

NOTE:

Push the ESC OFF button (if necessary), to place

the Electronic Stability Control (ESC) system in

“Partial Off” mode, before rocking the vehicle

page 171. Once the vehicle has been freed,

push the ESC OFF button again to restore “ESC On”

mode.

WARNING!

Fast spinning tires can be dangerous. Forces

generated by excessive wheel speeds may cause

damage, or even failure, of the axle and tires. A

tire could explode and injure someone. Do not

spin your vehicle's wheels faster than 30 mph

(48 km/h) or for longer than 30 seconds

continuously without stopping when you are

stuck and do not let anyone near a spinning

wheel, no matter what the speed.

CAUTION!



Racing the engine or spinning the wheels may

lead to transmission overheating and failure.

Allow the engine to idle with the transmission

in NEUTRAL for at least one minute after every

five rocking-motion cycles. This will minimize

overheating and reduce the risk of clutch or

transmission failure during prolonged efforts

to free a stuck vehicle.



When “rocking” a stuck vehicle by shifting

between DRIVE and REVERSE, do not spin the

wheels faster than 15 mph (24 km/h), or

drivetrain damage may result.



Revving the engine or spinning the wheels too

fast may lead to transmission overheating and

failure. It can also damage the tires. Do not

spin the wheels above 30 mph (48 km/h)

while in gear (no transmission shifting occur

ring).

IN CASE OF EMERGENCY

243

TOWING A DISABLED VEHICLE

This section describes procedures for towing a disabled vehicle using a commercial towing service.
If the transmission and drivetrain are operable, disabled 4x4 vehicles may also be towed

page 142.

Proper towing or lifting equipment is required to prevent damage to your vehicle. Use only tow bars and other equipment designed for this purpose, following

equipment manufacturer’s instructions. Use of safety chains is mandatory. Attach a tow bar or other towing device to main structural members of the vehicle,

not to fascia/bumper or associated brackets. State and local laws regarding vehicles under tow must be observed.

NOTE:



You must ensure that the Auto Park Brake feature is disabled before towing this vehicle, to avoid inadvertent Electric Park Brake engagement. The Auto Park

Brake feature is enabled or disabled via the customer programmable features in the Uconnect Settings.



Vehicles with a discharged battery or total electrical failure when the Electric Park Brake (EPB) is engaged, will need a wheel dolly or jack to raise the rear

wheels off the ground when moving the vehicle onto a flatbed.

If you must use the accessories (wipers, defrosters, etc.) while being towed, the ignition must be in the ON/RUN mode, not the ACC mode.

Towing Condition

Wheels OFF The Ground

FWD MODELS

4X4 MODELS

1–SPEED

POWER TRANSFER UNIT

2–SPEED

POWER TRANSFER UNIT

Flat Tow

NONE

NOT ALLOWED

Detailed instructions

page 142



Transmission in PARK



Power Transfer Unit in NEUTRAL



Tow in forward direction

Wheel Lift Or Dolly Tow

Rear

NOT ALLOWED

Front

NOT ALLOWED

Flatbed

ALL

BEST METHOD

244

IN CASE OF EMERGENCY

NOTE:

The Safehold feature will engage the Electric Park

Brake whenever the driver's door is opened (if the

ignition is ON, transmission is not in PARK, and

brake pedal is released). If you are towing this

vehicle with the ignition in the ON/RUN mode, you

must manually disable the Electric Park Brake

each time the driver's door is opened, by pressing

the brake pedal and then releasing the EPB.
If the ignition key is unavailable, or the vehicle's

battery is discharged, for instructions on shifting

the transmission out of PARK (P) for towing

page 241.

RONT

-W

HEEL

RIVE

(FWD) M

ODELS

The FCA US LLC recommends towing your vehicle

with all four wheels OFF of the ground using a

flatbed.
If flatbed equipment is not available, this vehicle

must be towed with the front wheels OFF of the

ground (using a towing dolly, or wheel lift

equipment with the front wheels raised).
Ensure that the Electric Park Brake is released,

and remains released, while being towed. The

Electric Park Brake does not need to be released,

if all four wheels are OFF the ground.

4 M

ODELS

ITH

1–S

PEED

OWER

RANSFER

NIT

The FCA US LLC requires towing with all four

wheels OFF the ground.
Acceptable methods are to tow the vehicle on a

flatbed, or with one end of vehicle raised and the

opposite end on a towing dolly.

4 M

ODELS

ITH

2–S

PEED

OWER

RANSFER

NIT

The FCA US LLC recommends towing with all four

wheels OFF the ground.
Acceptable methods are to tow the vehicle on a

flatbed or with one end of the vehicle raised and

the opposite end on a towing dolly.

CAUTION!



Do not use sling type equipment when towing.

Vehicle damage may occur.



When securing the vehicle to a flat bed truck,

do not attach to front or rear suspension

components. Damage to your vehicle may

result from improper towing.



Ensure that the Electric Park Brake is

released, and remains released, while being

towed.

CAUTION!

Towing this vehicle in violation of the above

requirements can cause severe transmission

damage. Damage from improper towing is not

covered under the New Vehicle Limited

Warranty.

CAUTION!



DO NOT tow this vehicle with ANY of its wheels

on the ground. Damage to the drivetrain will

result.



Front or rear wheel lifts must not be used (if

the remaining wheels are on the ground).

Internal damage to the transmission or power

transfer unit will occur if a front or rear wheel

lift is used when towing.



Towing this vehicle in violation of the above

requirements can cause severe transmission

and/or power transfer unit damage. Damage

from improper towing is not covered under the

New Vehicle Limited Warranty.

IN CASE OF EMERGENCY

245

If flatbed equipment is not available and the Power

Transfer Unit is operable, vehicles with a 2–speed

Power Transfer Unit may be towed (in the forward

direction, with ALL wheels on the ground), under

the following conditions:



The Power Transfer Unit must be in NEUTRAL

(N).



The transmission must be in PARK (P).



Ensure that the Electric Park Brake is released,

and remains released, while being towed

page 142.

MERGENCY

OOKS

—

QUIPPED

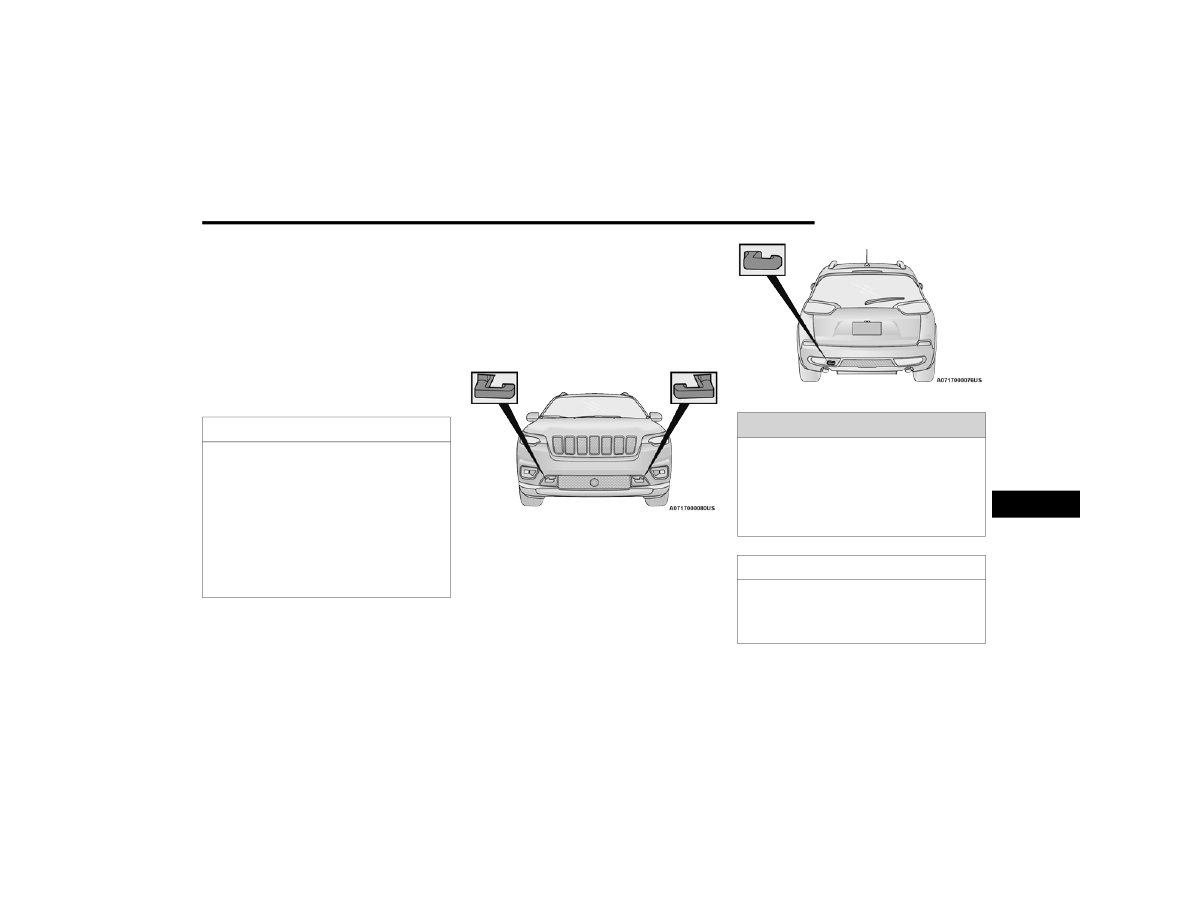

If your vehicle is equipped with tow hooks, there

will be two mounted in the front fascia/bumper

and one in the rear fascia/bumper. The rear tow

hook will be located on the driver's side of the

vehicle.

Front Tow Hooks

NOTE:

For off-road recovery, it is recommended to use

both of the front tow hooks to minimize the risk of

damage to the vehicle.

Rear Tow Hook

CAUTION!



Front or rear wheel lifts must not be used (if

the remaining wheels are on the ground).

Internal damage to the transmission or power

transfer unit will occur if a front or rear wheel

lift is used when towing.



Towing this vehicle in violation of the above

requirements can cause severe transmission

and/or power transfer unit damage. Damage

from improper towing is not covered under the

New Vehicle Limited Warranty.

WARNING!



Do not use a chain for freeing a stuck vehicle.

Chains may break, causing serious injury or

death.



Stand clear of vehicles when pulling with tow

hooks. Tow straps may become disengaged,

causing serious injury.

CAUTION!

Tow hooks are for emergency use only, to rescue

a vehicle stranded off road. Do not use tow

hooks for tow truck hookup or highway towing.

You could damage your vehicle.

246

IN CASE OF EMERGENCY

ECOVERY

TRAP

— I

QUIPPED

Your vehicle may be included with a recovery strap.

Recovery straps do not act like traditional tow

straps, chains, or winch cables.

Using Recovery Strap
1. Review all warnings and instructions first.
2. Position the recovery vehicle.
3. Connect the recovery strap.
4. Add a recovery damper or blanket.
5. Clear the danger zone.
6. Safely and slowly start pulling.
7. Disconnect the recovery strap after both

vehicles are secure and parked.

ENHANCED ACCIDENT RESPONSE SYSTEM

(EARS)

This vehicle is equipped with an Enhanced

Accident Response System.
This feature is a communication network that

takes effect in the event of an impact. Detailed

information can be found on

page 208.

EVENT DATA RECORDER (EDR)

This vehicle is equipped with an event data

recorder (EDR). The main purpose of an EDR is to

record data that will assist in understanding how a

vehicle’s systems performed under certain crash

or near crash-like situations, such as an air bag

deployment or hitting a road obstacle. Detailed

information can be found on

page 209.

WARNING!

Recovery straps should only be used in

emergencies to rescue stranded vehicles. Only

use Recovery straps on vehicles that fit within

the recommended Gross Vehicle Weight (GVW)

of your recovery strap. Only attach recovery

straps to OE recommended anchor points or

emergency towing anchor points. Never attach

to tow ball or vehicle tie down point, these are

not designed for this purpose. Never attach to

vehicle steering, drive train, or any other

suspension components. NEVER pull a strap

over sharp edges or abrasive surfaces that can

damage the recovery strap. NEVER use a

damaged strap, it has reduced strength. DO NOT

attempt to repair straps. ONLY persons involved

in the recovery should be in either vehicle. No

passengers. Anyone inside the vehicles can be

struck by strap recoil, causing serious injury.

MOVE bystanders at least 40 ft (12.2 m) from

the recovery area when using the recovery strap.

247

SERVICING AND MAINTENANCE

SCHEDULED SERVICING

Your vehicle is equipped with an automatic oil

change indicator system. The oil change indicator

system will remind you that it is time to take your

vehicle in for scheduled maintenance.
Based on engine operation conditions, the oil

change indicator message will illuminate. This

means that service is required for your vehicle.

Operating conditions such as frequent short-trips,

trailer tow, or extremely hot or cold ambient

temperatures will influence when the “Oil Change

Required” message is displayed. Have your vehicle

serviced as soon as possible, within the next

500 miles (805 km).

An authorized dealer will reset the oil change

indicator message after completing the scheduled

oil change. If a scheduled oil change is performed

by someone other than an authorized dealer, the

message can be reset by referring to the steps

described under Instrument Cluster Display

page 75.

NOTE:

Under no circumstances should oil change

intervals exceed 10,000 miles (16,000 km),

12 months or 350 hours of engine run time,

whichever comes first. The 350 hours of engine

run or idle time is generally only a concern for fleet

customers.

At Every Fuel Stop:



Check engine oil level.



Check windshield washer fluid level.



Check tire pressure and look for unusual wear

or damage. Rotate tires at the first sign of irreg

ular wear, even if it occurs before the oil indi

cator system turns on.



Check the fluid levels of the coolant reservoir

and brake master cylinder; fill as needed.



Check function of all interior and exterior lights.

248

SERVICING AND MAINTENANCE

AINTENANCE

LAN

Refer to the following required maintenance intervals.

NOTE:

Using white lithium grease, lubricate the door hinge roller pivot joints twice a year to prevent premature wear.

At Every Oil Change Interval As Indicated By Oil Change Indicator System:



Change oil and filter.



Rotate the tires at the first sign of irregular wear, even if it occurs before the oil indicator system turns on.



Inspect battery and clean and tighten terminals as required.



Inspect the CV/Universal joints.



Inspect brake pads, shoes, rotors, drums, hoses and parking brake.



Inspect engine cooling system protection and hoses.



Inspect exhaust system.



Inspect engine air cleaner filter if using in dusty or off-road conditions.

Jeep Cherokee (2022 year). Manual in english - page 15
