Jeep Wrangler (2018 year). Instruction - part 34

Lights

After pressing the “Lights” button on the touchscreen, the

following settings will be available:

Setting Name

Selectable Options

Headlight Off Delay

0 sec

30 sec

60 sec

90 sec

NOTE:
When this feature is selected, it allows the adjustment of the amount of time the headlights remain on after the en-

gine is shut off.

Daytime Running Lights

Yes

Flash Lights With Lock — If

Equipped

Off

Interior Ambient Lights

NOTE:
The “Interior Ambient Lights” setting can also be adjusted by selecting any point on the scale between the “+” and

“-” buttons on the touchscreen.

Auto Dim High Beams — If

Equipped

Off

NOTE:
When the “Auto Dim High Beams” feature is selected, the high beam headlights will activate/deactivate automati-

cally under certain conditions.

534

MULTIMEDIA

Doors & Locks
After pressing the “Doors & Locks” button on the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Auto Unlock On Exit

Off

NOTE:
When the “Auto Unlock On Exit” feature is selected, all doors will unlock when the vehicle is stopped, the transmis-

sion is in the PARK or NEUTRAL position, and the driver’s door is opened.

Flash Lights With Lock

Off

Sound Horn With Lock — If Equipped

Off

1st Press

2nd Press

Sound Horn With Remote Start — If

Equipped

Off

1st Press Of Key Fob Unlocks

Driver Door

All Doors

NOTE:
When

⬙Driver Door⬙ is selected with 1st Press Of Key Fob Unlocks, only the driver’s door will unlock with the first

press of the key fob unlock button. You must press the key fob unlock button twice to unlock the passenger’s doors.

When

⬙All Doors⬙ is selected for 1st Press Of Key Fob Unlocks, all doors will unlock on the first press of the key fob

unlock button. If the vehicle is programmed 1st Press Of Key Fob Unlocks “All Doors,” all doors will unlock, no mat-

ter which Passive Entry equipped door handle is grasped. If 1st Press Of Key Fob Unlocks “Driver Door” is pro-

grammed, only the driver’s door will unlock when the driver’s door is grasped. With Passive Entry, if 1st Press Of

Key Fob Unlocks “Driver Door” is programmed, touching the handle more than once will result in only the driver’s

door opening. If “Driver Door” is selected, once the driver door is opened, the interior door lock/unlock switch can

be used to unlock all doors (or use key fob).

MULTIMEDIA

535

Setting Name

Selectable Options

Passive Entry — If Equipped

Off

NOTE:
The “Passive Entry” feature allows you to lock and unlock the vehicles door(s) without having to push the key fob

lock or unlock buttons. To make your selection, press the “Passive Entry” button on the touchscreen, until a check-

mark appears next to the setting, showing that the setting has been selected.

Personal Settings Linked to Key Fob — If

Equipped

Off

NOTE:
The “Personal Settings Linked To Key Fob” feature provides automatic recall of all settings stored to a memory loca-

tion (driver’s seat, exterior mirrors, steering column position and radio station pre-sets) to enhance driver mobility

when entering and exiting the vehicle.

536

MULTIMEDIA

Auto Comfort Systems — If Equipped

After pressing the “Auto-On Comfort Systems” button on

the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Auto-On Driver Heated/Ventilated Seat & Steering Wheel

With Vehicle Start — If Equipped

Off

Remote Start

All Starts

NOTE:
When this feature is selected the driver’s heated seat and heated steering wheel will automatically turn on when tem-

peratures are below 40° F (4.4° C). When temperatures are above 80° F (26.7° C) the driver vented seat will turn on.

Aux Switches — If Equipped

After pressing the “Aux Switches” button on the touch-

screen, the following settings will be available:

Setting Name

Selectable Options

Aux 1-4

Type

Latching

Momentary

Power Source

Battery

Ignition

Recalled Last State

NOTE:

Holding last state conditions are met when switch type is set to latching and power source is set to ignition.

MULTIMEDIA

537

Engine Off Options

After pressing the “Engine Off Options” button on the

touchscreen, the following settings will be available:

Setting Name

Selectable Options

Doors On Engine Off Power Delay

Doors Off Engine Off Power Delay

Headlight Off Delay

Audio

After pressing the “Audio” button on the touchscreen, the

following settings will be available:

Setting Name

Selectable Options

Balance/Fade

Speaker Icon

NOTE:
When in this display you may adjust the “Balance/Fade” of the audio by pressing and dragging the “Speaker Icon”

toward any location in the box.

Equalizer

Bass

Mid

Treble

NOTE:
When in this display you may adjust the “Bass”, “Mid”, and “Treble” settings. Adjust the settings with the “+” and

“–” setting buttons on the touchscreen or by selecting any point on the scale between the “+” and “–” buttons on the

touchscreen. Bass/Mid/Treble also allow you to simply slide your finger up or down to change the setting as well as

press directly on the desired setting.

538

MULTIMEDIA

Setting Name

Selectable Options

Speed Adjusted Volume

Off

Surround Sound — If Equipped

Off

AUX Volume Offset — If Equipped

NOTE:
This feature provides the ability to tune the audio level for portable devices connected through the AUX input.

Phone/Bluetooth

After pressing the “Phone/Bluetooth” button on the touch-

screen, the following settings will be available:

Setting Name

Selectable Options

Paired Phones

List Of Paired Phones

NOTE:
This feature shows which phones are paired to the Phone/Bluetooth system. For further information, refer to the

Uconnect Owner’s Manual Supplement.

Paired Audio Sources

List Of Paired Audio Sources

NOTE:
This feature shows which Audio Sources are paired to the Phone/Bluetooth system. For further information, refer to

the Uconnect Owner’s Manual Supplement.

MULTIMEDIA

539

SiriusXM Setup — If Equipped

After pressing the “SiriusXM Setup” button on the touch-

screen, the following settings will be available:

Setting Name

Selectable Options

Channel Skip

List Of Channels

NOTE:
SiriusXM can be programmed to designate a group of channels that are the most desirable to listen to or to exclude

undesirable channels while scanning. This feature allows you to select the channels you would like to skip.

Subscription Info

Sirius ID

NOTE:
New vehicle purchasers or lessees will receive a free limited time subscription to SiriusXM Satellite Radio with your

radio. Following the expiration of the free services, it will be necessary to access the information on the Subscription

Information screen to re-subscribe.
1. Press the “Subscription Info” button on the touchscreen to access the Subscription Information screen.
2. Write down the Sirius ID numbers for your receiver. To reactivate your service, either call the number listed on the

screen or visit the provider online.

SiriusXM Travel Link is a separate subscription.

540

MULTIMEDIA

Restore Settings

After pressing the “Restore Settings” button on the touch-

screen, the following settings will be available:

Setting Name

Selectable Options

Restore Settings

Cancel

NOTE:
When this feature is selected it will reset all settings to their default settings.

Clear Personal Data

After pressing the “Clear Personal Data” button on the

touchscreen, the following settings will be available:

Setting Name

Selectable Options

Clear Personal Data

Cancel

NOTE:
When this feature is selected it will remove all personal data including Bluetooth devices and presets.

MULTIMEDIA

541

System Information

After pressing the “System Information” button on the

touchscreen, the following settings will be available:

Setting Name

Selectable Options

Software Licenses

Software Information Screen

NOTE:
When this feature is selected, a “Licensing Information” screen will appear, displaying a licensing information website

for the radio.

Map Update

Download System Information To

USB

Generate Request Code

NOTE:
The “Download System Information To USB” will create a special USB required for Map updates of the radio.

Whereas the “Generate Request Code” will display a code for the user to input online when downloading the maps.

542

MULTIMEDIA

OFF ROAD PAGES — IF EQUIPPED

Your vehicle is equipped with Off Road Pages, which

provides the vehicle status while operating on off road

conditions. It supplies information relating to the vehicle

ride height, the status of the transfer case, the pitch and roll

of the vehicle (if equipped).
To access Off Road Pages, press the “Apps” button on the

touchscreen, and then select “Off Road Pages”.

Off Road Pages has the following selectable pages:
• Drivetrain
• Pitch and Roll
• Accessory Gauge

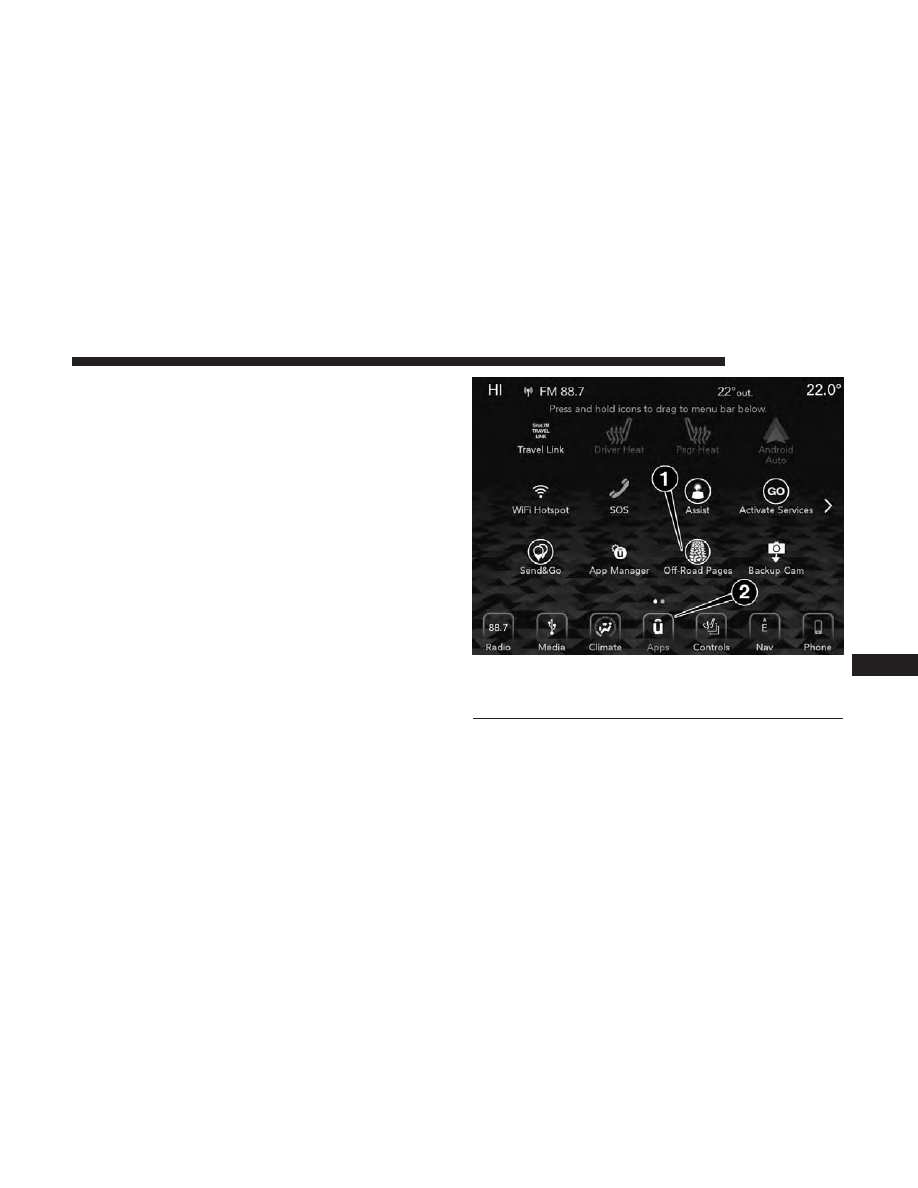

Main Menu

1 — Off Road Pages App
2 — Uconnect Apps Button

MULTIMEDIA

543

Off Road Pages Status Bar

The Off Road Pages Status Bar is located along the bottom

of Off Road Pages and is present in each of the three

selectable page options. It provides continually updating

information for the following items:
• Current Transfer Case Status
• Current Latitude/Longitude
• Current Altitude of the vehicle
• Status of Hill Descent/Selec-Speed Control and Selected

Speed in MPH (km/h)

Status Bar 2WD/4WD

1 — Transfer Case Status
2 — Current Latitude/Longitude
3 — Current Altitude
4 — Hill Decent Control

544

MULTIMEDIA

Drivetrain

The Drivetrain page displays information concerning the

vehicle’s drivetrain.
The following information is displayed:
• Steering angle in degrees
• Status of Transfer Case
• Status of the Rear Axles — If Equipped

Drivetrain Menu 2WD/4WD

1 — Steering Angle
2 — Sway Bar
3 — Front Axle Locker Status
4 — Rear Axle Locker Status

MULTIMEDIA

545

Pitch And Roll

The Pitch And Roll page displays the vehicle’s current

pitch (angle up and down) and roll (angle side to side) in

degrees. The pitch and roll gauges provide a visualization

of the current vehicle angle.

Accessory Gauges

The Accessory Gauges page displays the current status of

the vehicle’s Coolant Temperature, Oil Temperature, Oil

Pressure (Gas Vehicles Only), Transmission Temperature,

and Battery Voltage.

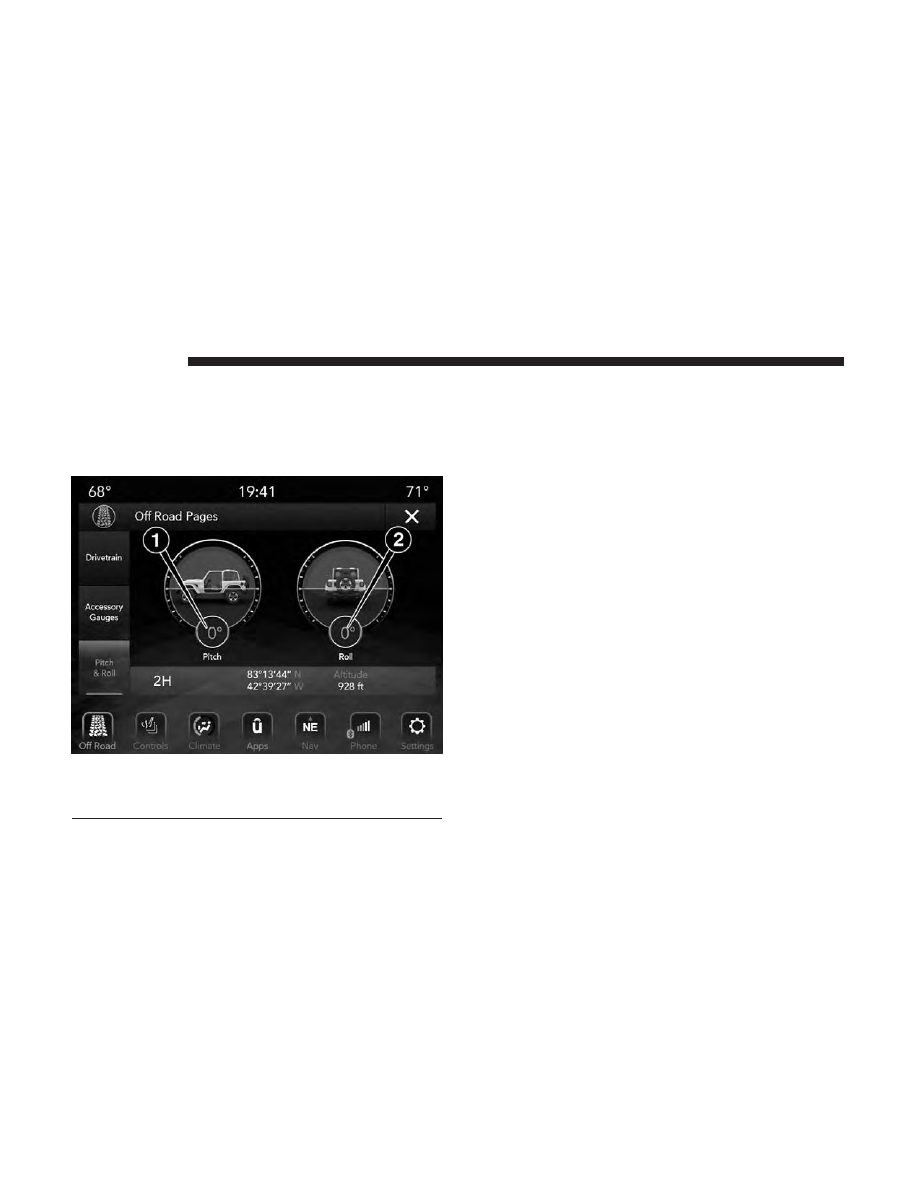

Pitch And Roll Menu 2WD/4WD

1 — Current Pitch
2 — Current Roll

546

MULTIMEDIA

STEERING WHEEL AUDIO CONTROLS

The remote sound system controls are located on the rear

surface of the steering wheel. Reach behind the wheel to

access the switches.

The right-hand control is a rocker-type switch with a

push-button in the center and controls the volume and

mode of the sound system. Pushing the top of the rocker

switch increases the volume, and pushing the bottom of the

rocker switch decreases the volume.

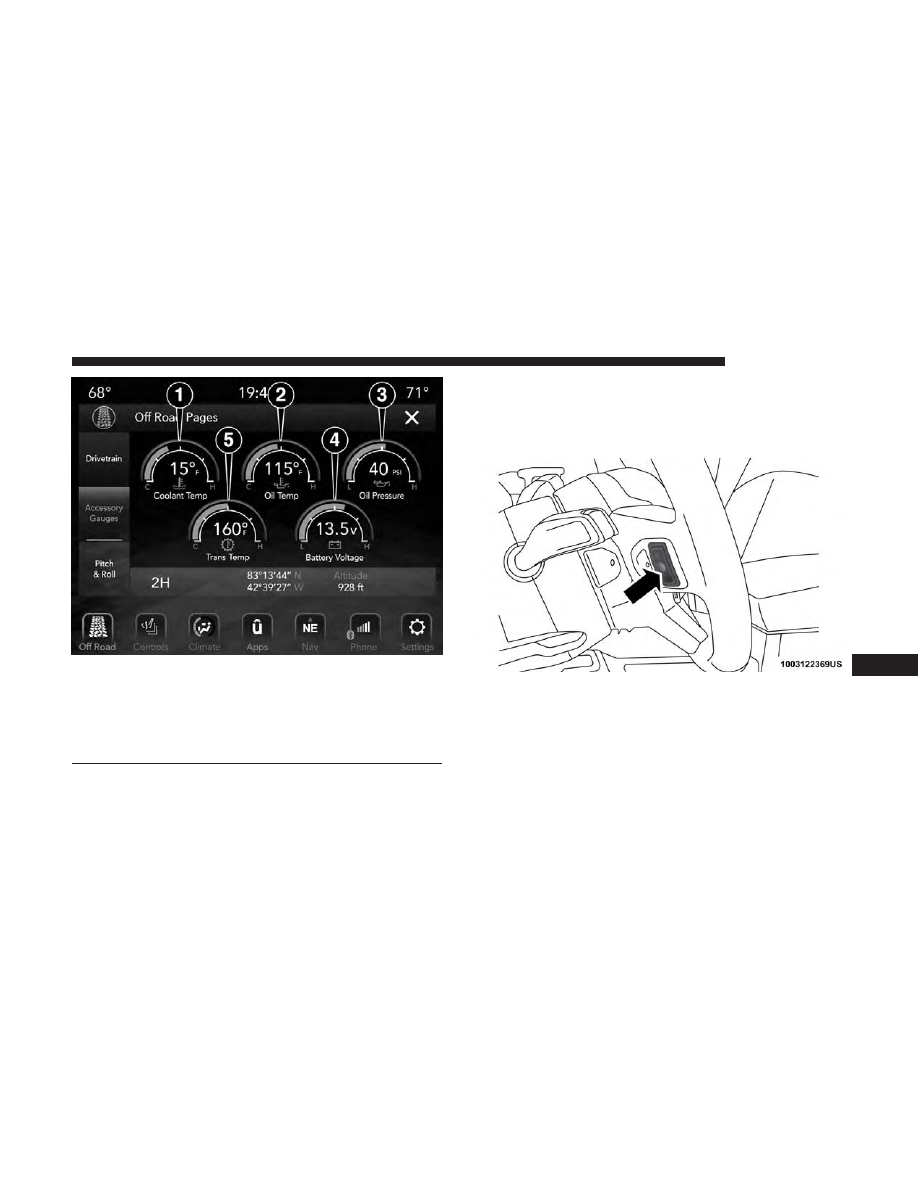

Accessory Gauges Menu 2WD/4WD

1 — Coolant Temperature
2 — Oil Temperature
3 — Oil Pressure (Gas Vehicles Only)
4 — Battery Voltage
5 — Transmission Temperature (Automatic Transmissions Only)

Audio Controls (Back View Of Steering Wheel)

MULTIMEDIA

547

Pushing the center button will make the radio switch

between the various modes available (AM/FM/SAT/CD/

USB/AUX, etc.).
The left-hand control is a rocker-type switch with a push-

button in the center. The function of the left-hand control is

different depending on which mode you are in.
The following describes the left-hand control operation in

each mode.

Radio Operation

Pushing the top of the switch will “Seek” up for the next

listenable station and pushing the bottom of the switch will

“Seek” down for the next listenable station.
The button located in the center of the left-hand control

will tune to the next preset station that you have pro-

grammed in the radio preset button.

Media Mode

Pushing the top of the switch once goes to the next track on

the selected media (AUX/USB/Bluetooth). Pushing the

bottom of the switch once goes to the beginning of the

current track, or to the beginning of the previous track if it

is within eight seconds after the current track begins to

play.

If you push the switch up or down twice, it plays the

second track; three times, it plays the third, etc.

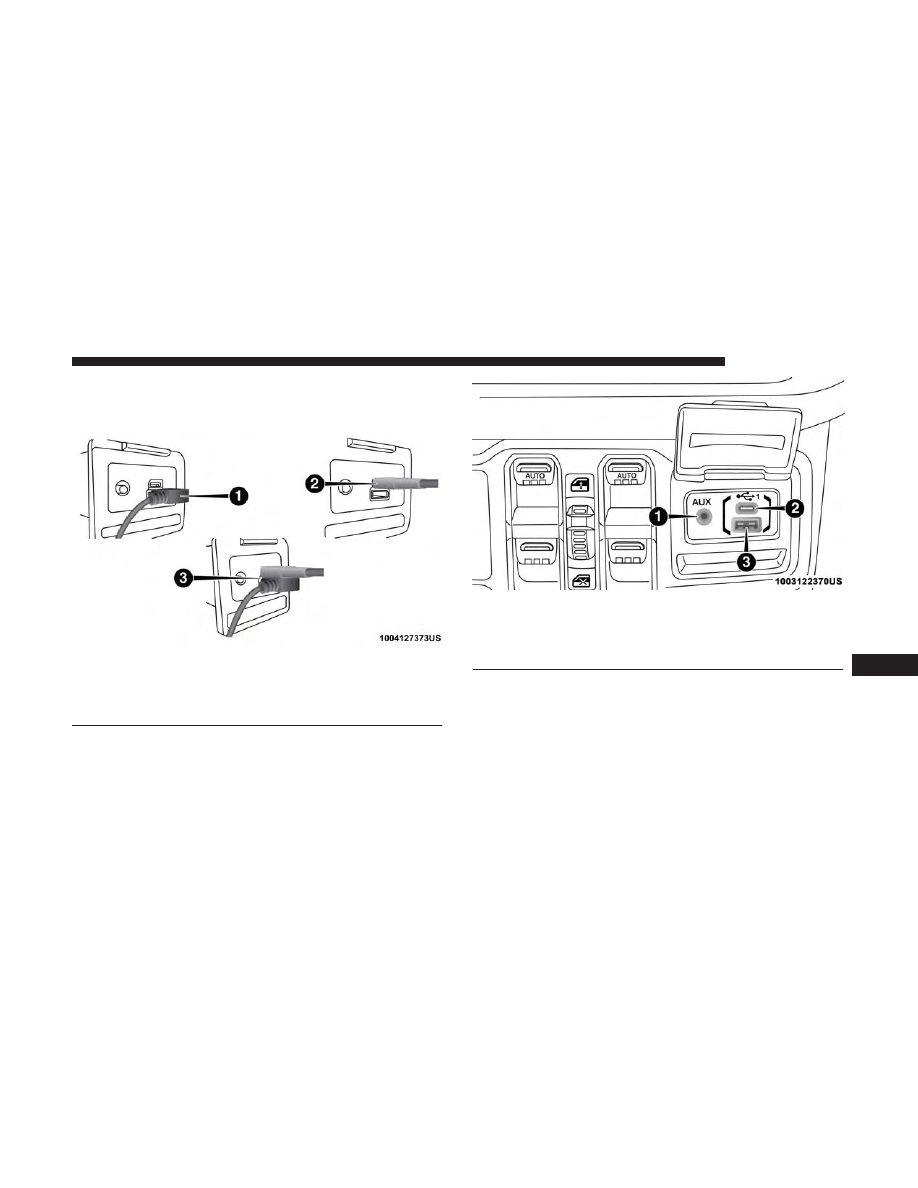

AUX/USB/MP3 CONTROL — IF EQUIPPED

The Media Hub is located on the Instrument Panel, below

the Climate Controls. Behind the Media Hub access door

contains one AUX port, a Type C USB Port and one

standard USB Port. Both USB Ports allow you to play

music from iPod/MP3 players or USB devices through

your vehicle’s sound system.
The Smart Charging USB ports provide power to your

device up to an hour after the vehicle is turned off.

NOTE:
• The Type C USB port is the primary media port for the

radio. Two devices can be plugged in at the same time

and both ports provide charging capabilities, but only

one port can transfer data to the head unit at a time.

• Both ports share a single data connection. However, the

user cannot switch between Type A or Type C.

For example, if a device is plugged into the Type A USB

port and another device is plugged into the Type C port,

connection to the Type A port will be lost. Alternatively, if

548

MULTIMEDIA

a device is plugged into the Type C port and another device

is plugged into the Type A port, the Type C device

maintains primary connection.

Located inside the center console, a second USB Port

allows you to play music from iPod/MP3 players or USB

devices through your vehicle’s sound system.

USB Connection

1 — Type A Plugged In
2 — Type C Plugged In
3 — Type A And Type C Plugged In

Media Hub

1 — AUX Port
2 — Type C USB Port
3 — Type A USB Port

MULTIMEDIA

549

Content .. 32 33 34 35 ..
