Jeep Wrangler Unlimited (2012 year). Instruction

Wheel And Wheel Trim Care

• All wheels and wheel trim, especially aluminum and

chrome plated wheels, should be cleaned regularly
with a mild soap and water to prevent corrosion.

• To remove heavy soil and/or excessive brake dust, use

MOPAR

威 Wheel Cleaner or equivalent or select a

non-abrasive, non-acidic cleaner.

CAUTION!

Do not use scouring pads, steel wool, a bristle brush,
or metal polishes. Do not use oven cleaner. These
products may damage the wheel’s protective finish.
Avoid automatic car washes that use acidic solutions
or harsh brushes that may damage the wheel’s pro-
tective finish. Only MOPAR

威 Wheel Cleaner or

equivalent is recommended.

Interior Care
Use MOPAR

威 Total Clean or equivalent to clean fabric

upholstery and carpeting.

Interior Trim should be cleaned starting with a damp
cloth, a damp cloth with MOPAR

威 Total Clean or equiva-

lent, then MOPAR

威 Spot & Stain Remover or equivalent

if absolutely necessary. Do not use harsh cleaners or
Armor All

威. Use MOPAR威 Total Clean or equivalent to

clean vinyl upholstery.

WARNING!

Do not use volatile solvents for cleaning purposes.
Many are potentially flammable and, if used in
closed areas, they may cause respiratory harm.

544

MAINTAINING YOUR VEHICLE

CAUTION!

When installing hanging air fresheners in your ve-
hicle, read the installation instructions carefully.
Some air fresheners will damage the finish of
painted or decorated parts if allowed to directly
contact any surface.

Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR

威 Glass Cleaner or any commercial

household-type glass cleaner. Never use an abrasive-type
cleaner. Use caution when cleaning inside rear windows
equipped with electric defrosters. Do not use scrapers or
other sharp instruments which may scratch the elements.

When cleaning the rearview mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.

Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.

1. Clean with a wet, soft rag. A mild soap solution may
be used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.

2. Dry with a soft cloth.

Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage will also weaken the fabric.

If the belts need cleaning, use MOPAR

威 Total Clean or

equivalent, a mild soap solution, or lukewarm water. Do
not remove the belts from the vehicle to wash them. Dry
with a soft cloth.

MAINTAINING YOUR VEHICLE

545

Replace the belts if they appear frayed or worn or if the
buckles do not work properly.

Appearance Care For Fabric Top Models

CAUTION!

To maintain the appearance of your vehicle’s interior
trim and top, follow these precautions:

• Avoid leaving your vehicle unattended with the top

down, as exposure to sun or rain may damage interior
trim.

• Do not use harsh cleaners or bleaching agents on top

material, as damage may result.

• Do not allow any vinyl cleaner to run down and dry

on the paint, leaving a streak.

• After cleaning your vehicle’s fabric top, always make

sure it is completely dry before lowering.

• Be especially careful when washing the windows by

following the directions for “Care of Fabric Top
Windows.”

WASHING —

Use MOPAR

威 Car Wash or equivalent, or

mild soap suds, lukewarm water, and a brush with soft
bristles. If extra cleaning is required, use MOPAR

威 Con-

vertible Cloth Top Cleaner or equivalent, or a mild
foaming cleaner on the entire top, but support the top
from underneath.

RINSING —

Be sure to remove all traces of cleaner by

rinsing the top thoroughly with clean water. Remember
to allow the top to dry before lowering it.

CAUTION!

Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:

(Continued)

546

MAINTAINING YOUR VEHICLE

CAUTION! (Continued)

• Avoid high-pressure car washes, as they can dam-

age the top material. Also, increased water pres-
sure may force past the weather strips.

• It is recommended that the top be free of water

prior to opening it. Operating the top, opening a
door or lowering a window while the top is wet
may allow water to drip into the vehicle’s interior.

• Use care when washing the vehicle, water pressure

directed at the weather strip seals may cause water
to leak into the vehicle’s interior.

• Careless handling and storage of the removable

roof panels may damage the seals, causing water to
leak into the vehicle’s interior.

• The front panel(s) must be positioned properly to

ensure sealing. Improper installation can cause
water to leak into the vehicle’s interior.

Care Of Fabric Top Windows

CAUTION!

Your vehicle’s fabric top has pliable plastic windows
which can be scratched unless special care is taken by
following these directions:

1. Never use a dry cloth to remove dust. Instead, use a
microfiber towel or soft cotton cloth moistened with
cold or warm, clean water, and wipe across the window,
not up and down.

MOPAR

威 Jeep Soft Glass Window

Cleaner or equivalent will safely clean all plastic win-
dows without scratching. It removes fine scratches to
improve visibility and provides UV protection to help
prevent yellowing.

2. When washing, never use hot water or anything
stronger than a mild soap. Never use solvents such as
alcohol or harsh cleaning agents.

MAINTAINING YOUR VEHICLE

547

3. Always rinse thoroughly with cold water, then wipe
with a soft and slightly moist, clean cloth.

4. When removing frost, snow or ice, never use a scraper
or de-icing chemicals.

Use warm water only if you must

clean the window quickly.

5. Debris (sand, mud/dirt, dust, or salt) from off-road
driving will have a major impact on zipper operation.
Even normal on-road driving and vehicle washing will
eventually impact window zipper operation. To maintain
ease of use of the window zippers, each window zipper
should be cleaned and lubricated regularly. Use
MOPAR

威 Soft Top Zipper Cleaner and Lubricant or

equivalent to ease zipper operation. Before applying,

make sure the zipper teeth are clear of sand, mud, and
other materials. Clean both sides of the zipper, not just
one side. Rinse both zipper halves with fresh water and
allow to dry. Aggressively work the MOPAR

威 Soft Top

Zipper Cleaner and Lubricant or equivalent into the
zipper teeth. If a stuck zipper slide is experienced, work
the MOPAR

威 Soft Top Zipper Cleaner and Lubricant or

equivalent into the zipper slide. Several applications may
be required before the zipper comes free.

6. Never paste stickers, gummed labels or any tape to the
windows. Adhesives are hard to remove and may dam-
age the windows.

548

MAINTAINING YOUR VEHICLE

FUSES

Totally Integrated Power Module
The Totally Integrated Power Module is located in the
engine compartment near the battery. This center contains
cartridge fuses, mini fuses and relays. A label that identi-
fies each component is printed on the inside of the cover.

Cavity Cartridge

Fuse

Mini

Fuse

Description

—

30 Amp

Pink

Transfer Case Module

—

25 Amp

Natural

Driver Door Node

25 Amp

Natural

Passenger Door Node

40 Amp

Green

Anti-Lock Brake
System (ABS) Pump/
Stability Control
System

30 Amp

Pink

Anti-Lock Brake
System (ABS) Valve/
Stability Control
System

—

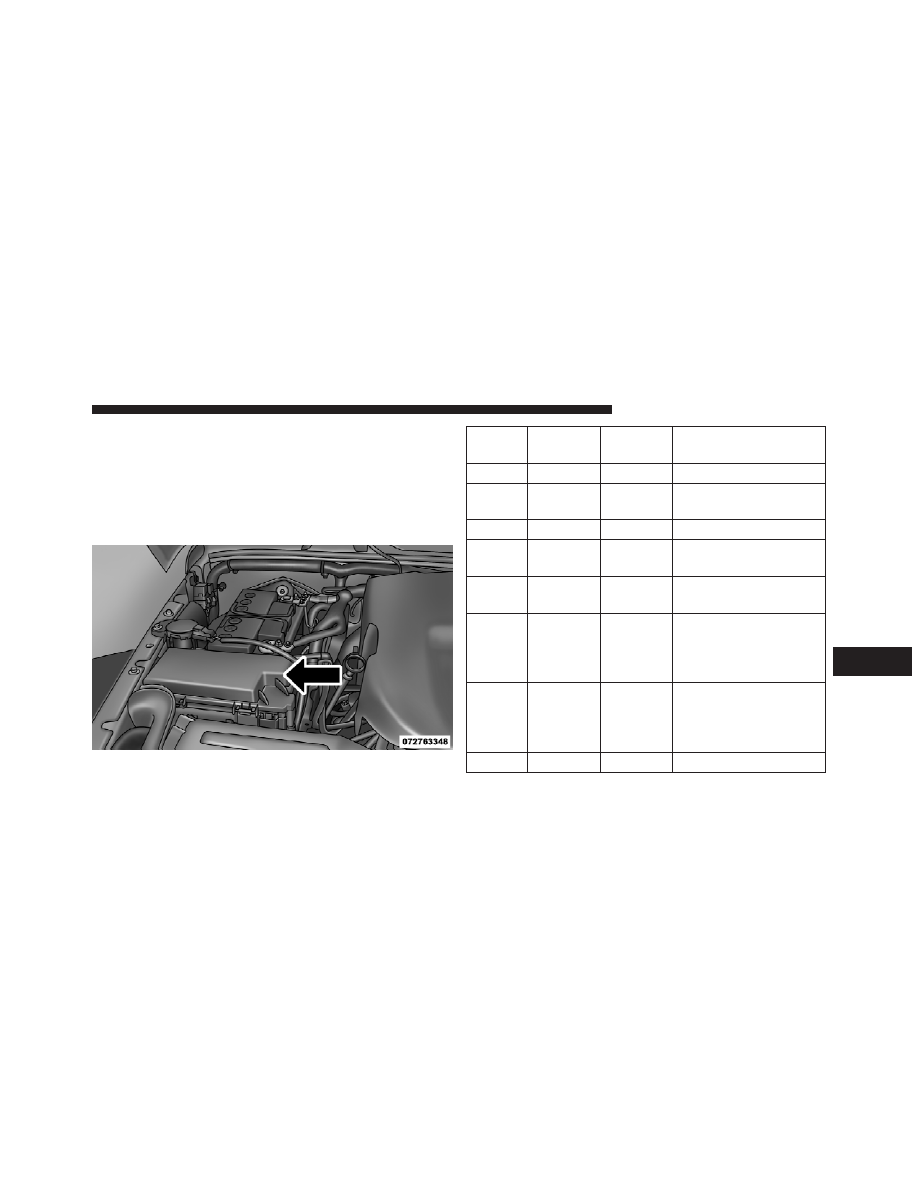

Totally Integrated Power Module

MAINTAINING YOUR VEHICLE

549

Cavity Cartridge

Fuse

Mini

Fuse

Description

40 Amp

Green

PZEV Sec Motor/Flex
Fuel

J10

30 Amp

Pink

Headlamp Wash
Relay/Manifold
Tuning Valve

J11

30 Amp

Pink

Sway Bar

J12

30 Amp

Pink

Rear Blower Motor/
Radiator Fan

J13

60 Amp

Yellow

Ignition Off Draw
(IOD) – Main

J14

40 Amp

Green

Rear Defroster

J15

40 Amp

Green

Front Blower

J17

40 Amp

Green

Starter Solenoid

Cavity Cartridge

Fuse

Mini

Fuse

Description

J18

20 Amp

Blue

Powertrain Control
Module (PCM) Trans
Range

J19

60 Amp

Yellow

Radiator Fan

J20

30 Amp

Pink

Front Wiper LO/HI

J21

20 Amp

Blue

Front/Rear Washer

J22

—

Spare

15 Amp

Blue

Center High-Mounted
Stop Light (CHMSL)/
Switch Stop Lamp
Feed

20 Amp

Yellow

Relay Trailer Lighting
(Stoplamp)

550

MAINTAINING YOUR VEHICLE

Cavity Cartridge

Fuse

Mini

Fuse

Description

20 Amp

Yellow

Frt/Rear Axle Locker
Relay

—

25 Amp

Natural

Power Inverter – If
Equipped

20 Amp

Yellow

Power Outlet #1/Rain
Sensor

20 Amp

Yellow

Power Outlet #2
(BATT/ACC SELECT)

20 Amp

Yellow

Front Heated Seat

20 Amp

Yellow

Rear Heated Seat – If
Equipped

Cavity Cartridge

Fuse

Mini

Fuse

Description

M10

15 Amp

Blue

Ignition Off Draw –
Vehicle Entertainment
System, Satellite Digi-
tal Audio Receiver
(SDARS), DVD,
Hands-Free Module,
RADIO, Antenna,
Universal Garage
Door Opener, Vanity
Lamp

M11

10 Amp

Red

(Ignition Off Draw)
Climate Control Sys-
tem, Underhood
Lamp

M12

30 Amp

Green

Amplifier

MAINTAINING YOUR VEHICLE

551

Cavity Cartridge

Fuse

Mini

Fuse

Description

M13

20 Amp

Yellow

Ignition Off Draw –
Cabin Compartment
Node, Wireless Con-
trol Module, SIREN,
Multifunction Control
Switch

M14

20 Amp

Yellow

Trailer Tow (Export
Only)

M15

20 Amp

Yellow

Climate Control Sys-
tem, Rear View Mir-
ror, Cabin Compart-
ment Node, Transfer
Case Switch, Multi-
Function Control
Switch, Tire Pressure
Monitor, Glow Plug
Module – Export Die-
sel Only

Cavity Cartridge

Fuse

Mini

Fuse

Description

M16

10 Amp

Red

Airbag Module

M17

15 Amp

Blue

Left Tail/License/
Park Lamp

M18

15 Amp

Blue

Right Tail/Park/Run
Lamp

M19

25 Amp

Natural

Auto Shut Down
(ASD #1 and #2)

M20

15 Amp

Blue

Cabin Compartment
Node Interior Light,
Switch Bank

M21

20 Amp

Yellow

Auto Shut Down
(ASD #3)

M22

10 Amp

Red

Right Horn (HI/
LOW)

M23

10 Amp

Red

Left Horn (HI/LOW)

552

MAINTAINING YOUR VEHICLE

Cavity Cartridge

Fuse

Mini

Fuse

Description

M24

25 Amp

Natural

Rear Wiper

M25

20 Amp

Yellow

Fuel Pump, Diesel
Lift Pump – Export
Only

M26

10 Amp

Red

Power Window
Switch, Driver Win-
dow Switch

M27

10 Amp

Red

Ignition Switch Feed,
Wireless Module

M28

10 Amp

Red

Powertrain Control
Module

M29

10 Amp

Red

Powertrain

M30

15 Amp

Blue

Wiper Motor Frt,
J1962 Diagnostic Feed

Cavity Cartridge

Fuse

Mini

Fuse

Description

M31

20 Amp

Yellow

Backup Lamps

M32

10 Amp

Red

Airbag Controller, TT
EUROPE

M33

10 Amp

Red

Powertrain Controller

M34

10 Amp

Red

Park Assist, Climate
Control System,
Headlamp Wash,
Compass

M35

10 Amp

Red

Heated Mirrors

M36

20 Amp

Yellow

Power Outlet

MAINTAINING YOUR VEHICLE

553

Cavity Cartridge

Fuse

Mini

Fuse

Description

M37

10 Amp

Red

Anti-Lock Brake Sys-
tem, Electronic Stabil-
ity Control, Stop
Lamp Switch, Fuel
Pump Relay

M38

25 Amp

Natural

Lock/Unlock Motors

CAUTION!

• When installing the Integrated Power Module

cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Integrated Power
Module, and possibly result in an electrical system
failure.

(Continued)

CAUTION! (Continued)

• When replacing a blown fuse, it is important to

use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take steps to protect your
battery. You may:

• Remove Cartridge fuse #J13 in the Power Distribution

Center (PDC) labeled Ignition-Off Draw (IOD) and
store it in a safe location within the PDC.

• Or, disconnect the negative cable from the battery.

554

MAINTAINING YOUR VEHICLE

• Anytime you store your vehicle, or keep it out of

service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.

REPLACEMENT BULBS

Interior Lights

Bulb Type

Auto. Trans. Indicator Lamp . . . . . . . . . . . . . . . . . 658
Heater Control Lamps (2). . . . . . . . . . . . . . . . . . . 194
Rocker Switch Indicator Lamp
(Rear Window Defogger, and Rear Wash/Wipe) . . . . **
Soundbar Dome Lamp . . . . . . . . . . . . . . . . . . . . . 912

** Bulbs only available from authorized dealer.

Exterior Lights

Bulb Type

Backup Lamps (2) . . . . . . . . . . . . . . . . . . . . . . . 3157
Center High-Mounted Stop Lamp (1). . . . . . . . . L.E.D.
Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . PSX24W
Front Park/Turn Signal Lamps (2) . . . . . . . . . . . . 3157
Front Side Marker Lamps (2) . . . . . . . . . . . . . . . . 168
Headlamps (2) . . . . . . . . . . . . . . . . . . . . . . . . . . H13
Rear Stop/Tail/Turn Lamps (2) . . . . . . . . . . . . . . 3157
License Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

NOTE:

Numbers refer to commercial bulb types that

can be purchased from your local authorized dealer.

If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.

MAINTAINING YOUR VEHICLE

555

BULB REPLACEMENT

NOTE:

Lens fogging can occur under certain atmo-

spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.

Headlamp

1. Open hood and support using prop rod.

2. Remove the front grille. Turn the retainers along the
top 1/4 turn counterclockwise and remove.

3. Pull the bottom of the grille away starting at one side
and working toward the other.

4. Turn both park and turn signal socket assemblies 1/4
turn counterclockwise and remove.

5. Remove the four screws holding the metal retaining
ring.

6. Remove the lamp from the collar.

7. Grasp the bulb and turn 1/4 turn counterclockwise.

8. Pull the bulb from the housing.

9. Push connector locking tab to the unlock position.

10. Remove connector from bulb.

11. Push connector onto new bulb base, and push the
connector locking tab to the lock position.

CAUTION!

Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.

12. Reinstall bulb housing. Rotate the bulb 1/4 turn
clockwise.

556

MAINTAINING YOUR VEHICLE

Front Park/Turn Signal

1. Remove the front grille. Turn the retainers along the
top 1/4 turn counterclockwise and remove.

2. Pull the bottom of the grille away starting at one side
and working toward the other.

3. Turn the socket assembly 1/4 turn counterclockwise
and remove from housing. Pull the bulb straight from the
socket to replace.

Front Side Marker

1. Reach under the front fender flare and locate the front
side marker socket.

2. Turn the socket assembly counterclockwise 1/3 turn
and remove it from the housing. Pull the bulb straight
from the socket to replace.

Front Fog Lamp

1. Reach under the vehicle to access the back of the front
fog lamp.

2. Disconnect the wire harness connector from the front
fog lamp connector receptacle.

3. Firmly grasp the bulb by the two latch features and
squeeze them together to unlock the bulb from the back
of the front fog lamp housing.

4. Pull the bulb straight out from the keyed opening in
the housing and then connect the replacement bulb.

CAUTION!

Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.

MAINTAINING YOUR VEHICLE

557

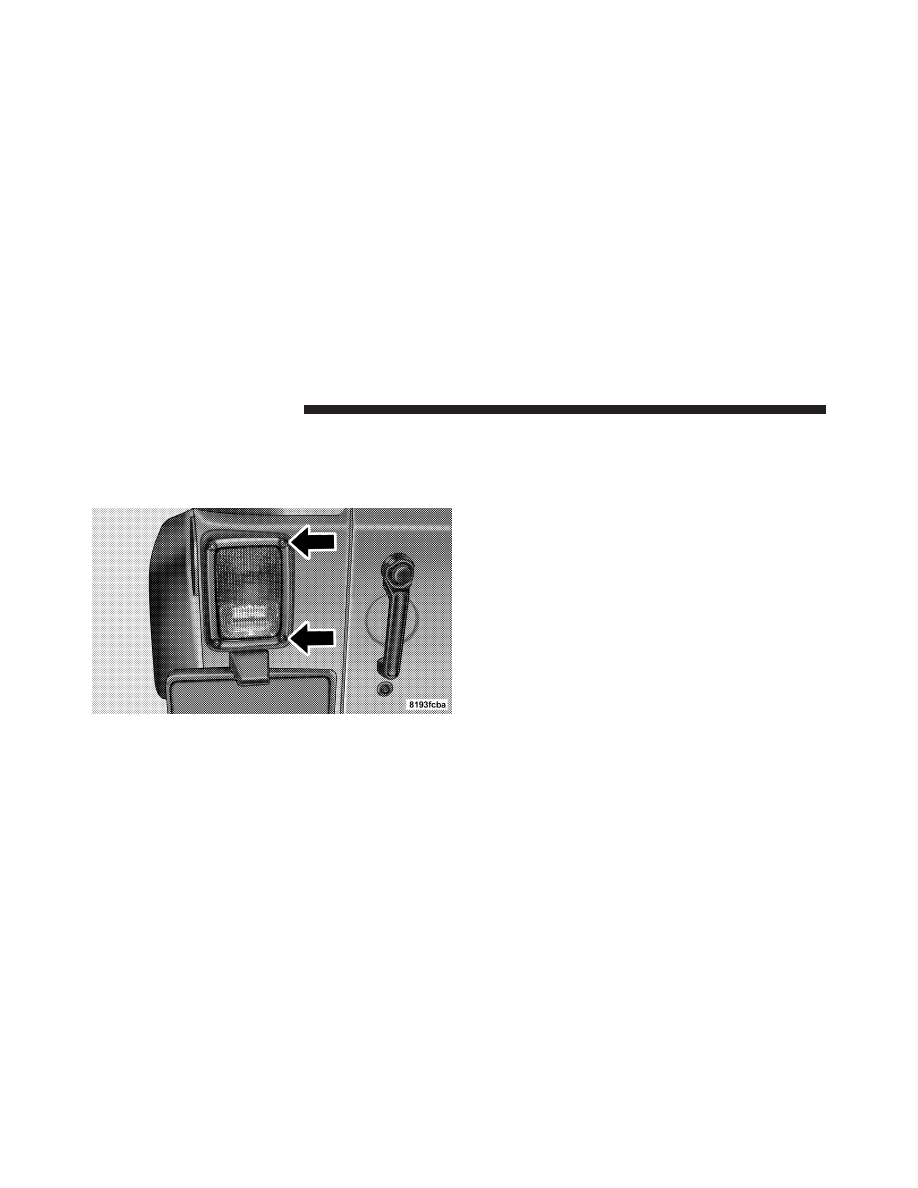

Rear Tail, Stop, Turn Signal, and Backup Lamp

1. Remove the two inboard screws attaching the tail light
housing to the body. DO NOT REMOVE THE OUTER
SCREWS AT ANY TIME.

2. Separate the housing from the body by pushing the
lamp inboard while pulling the lamp away from the
body.

3. Rotate the appropriate socket 1/4 turn counterclock-
wise, then remove it from the housing.

4. Pull the bulb straight from the socket to replace.

Center High-Mounted Stop Lamp (CHMSL)
The stop lamp is mounted on a bracket that extends
upward from the tailgate behind the spare tire. If service
is needed, obtain the LED/Cover Assembly from your
local authorized dealer.

1. Remove the spare tire.

2. Remove the four screws holding the lens/cover in
place on the spare tire carrier.

3. Disconnect the wire harness from the back of the LED
cover.

558

MAINTAINING YOUR VEHICLE

FLUID CAPACITIES

U.S.

Metric

Fuel (Approximate) — Two Door Models

18.6 Gallons

70 Liters

Fuel (Approximate) — Four Door Models

22.5 Gallons

85 Liters

Engine Oil with Filter
3.6 Liter Engine

6 Quarts

5.6 Liters

Cooling System *
3.6 Liter Engine (MOPAR

威 Antifreeze/Engine Coolant

5 Year/100,000 Mile Formula or equivalent)

10.5 Quarts

9.9 Liters

* Includes coolant recovery bottle filled to MAX level.

MAINTAINING YOUR VEHICLE

559

Jeep Wrangler Unlimited (2012 year). Instruction - part 35
