Jeep Wrangler Unlimited (2012 year). Instruction

MIRRORS

Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical adjustment of the mirror. The mirror should be
adjusted to center on the view through the rear window.

Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).

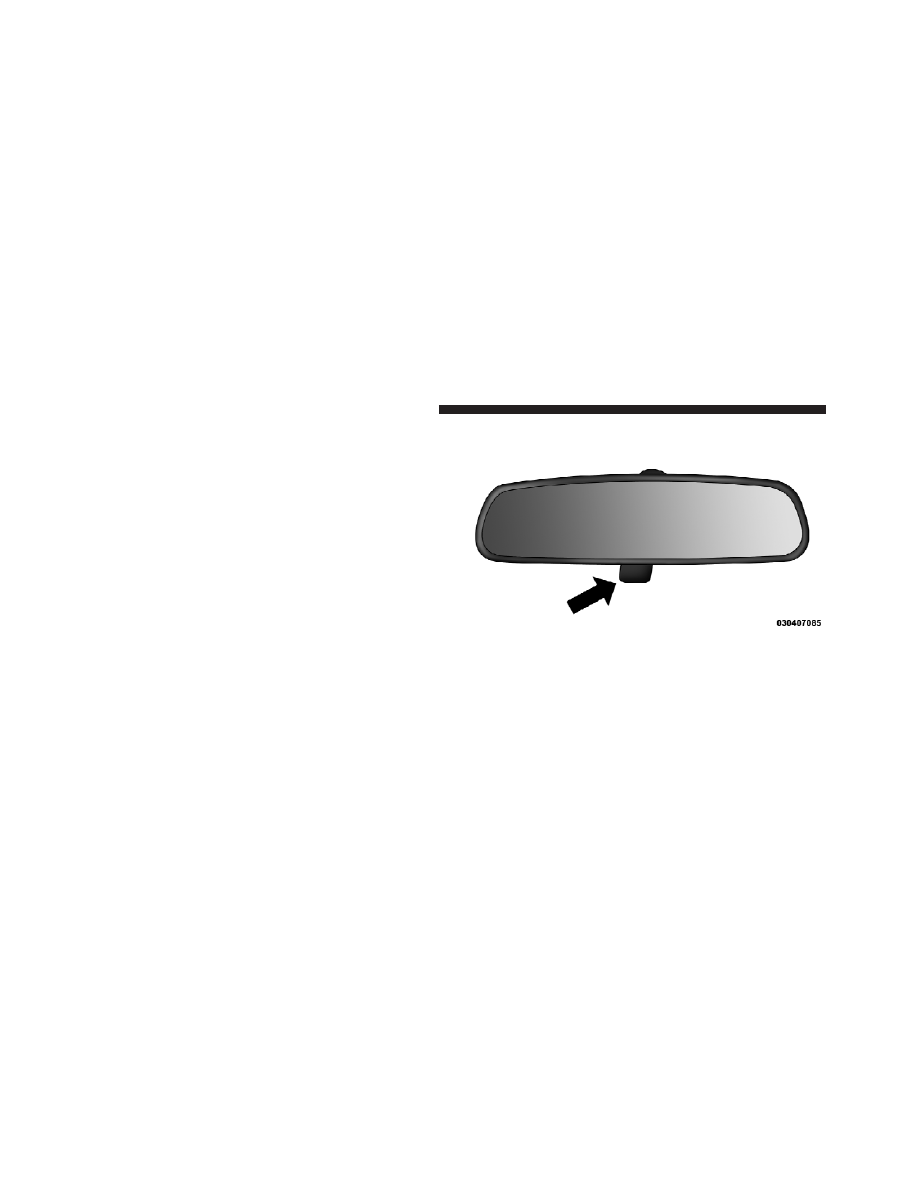

Adjusting Rearview Mirror

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.

WARNING!

Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger side mirror.

Outside Rearview Mirror

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Power Mirrors — If Equipped
The power mirror switch is located on the center of the
instrument panel, below the climate controls. A rotary
knob selects the left mirror, right mirror or off position.

After selecting a mirror, move the knob in the same
direction you want the mirror to move. Use the center off
position to guard against accidentally moving a mirror
position.

Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This feature
is activated whenever you turn on the rear window
defroster. Refer to “Rear Window Features” in “Under-
standing The Features Of Your Vehicle” for further
information.

Vanity Mirrors
Vanity mirrors are located on the sun visors. To use the
mirrors, rotate the sun visor down and swing the mirror
cover upward.

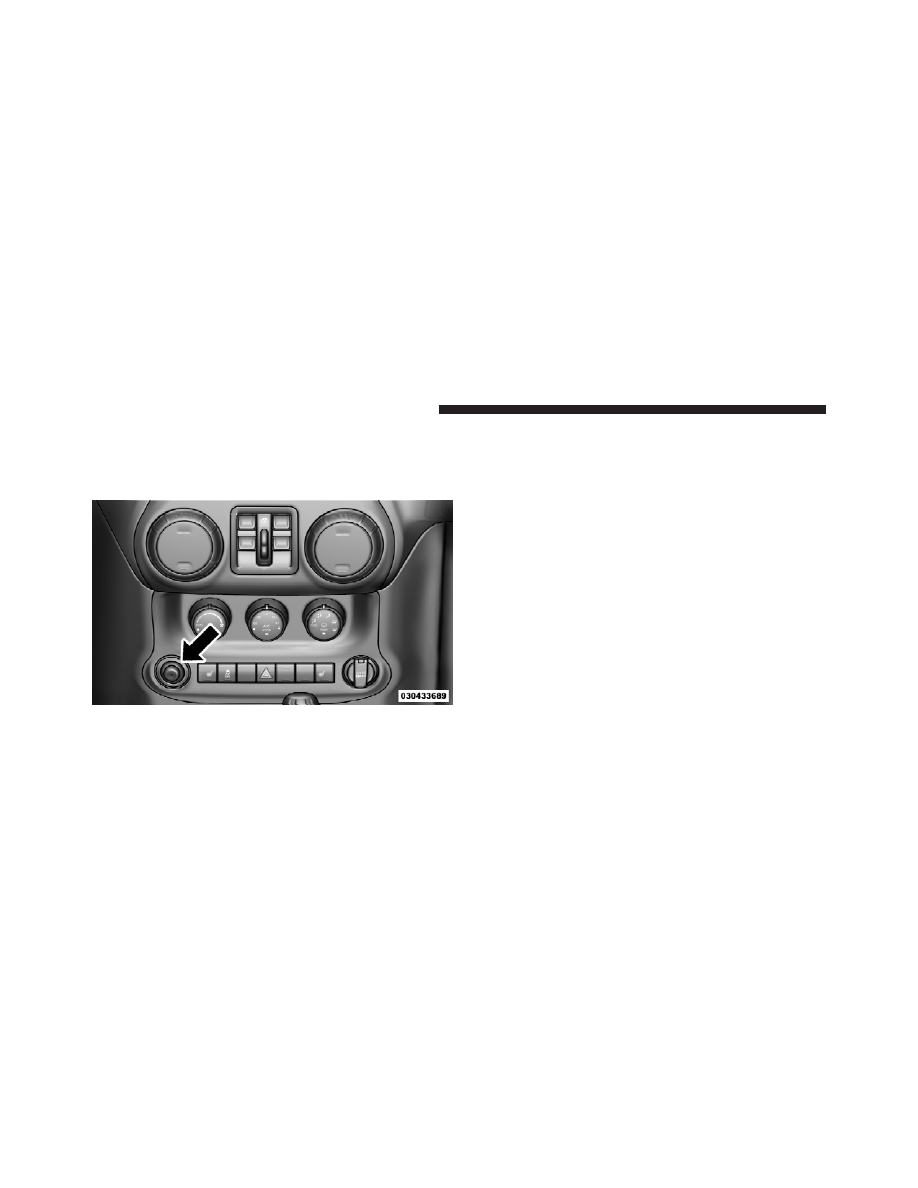

Power Mirror Switch

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Uconnect™ Phone — IF EQUIPPED
Uconnect™ Phone is a voice-activated, hands-free, in-
vehicle communications system. Uconnect™ Phone al-
lows you to dial a phone number with your mobile
phone using simple voice commands (e.g., “Call”

“Mike”

ѧ “Work” or “Dial” ѧ “248-555-1212”). Your

mobile phone’s audio is transmitted through your vehi-
cle’s audio system; the system will automatically mute
your radio when using the Uconnect™ Phone.

NOTE:

The Uconnect™ Phone requires a mobile phone

equipped with the Bluetooth

威 “Hands-Free Profile”, Ver-

sion 0.96 or higher. See the Uconnect™ website for
supported phones.

For Uconnect™ customer support, visit the following
websites:

• www.chrysler.com/uconnect
• www.dodge.com/uconnect
• www.jeep.com/uconnect
• or call 1–877–855–8400

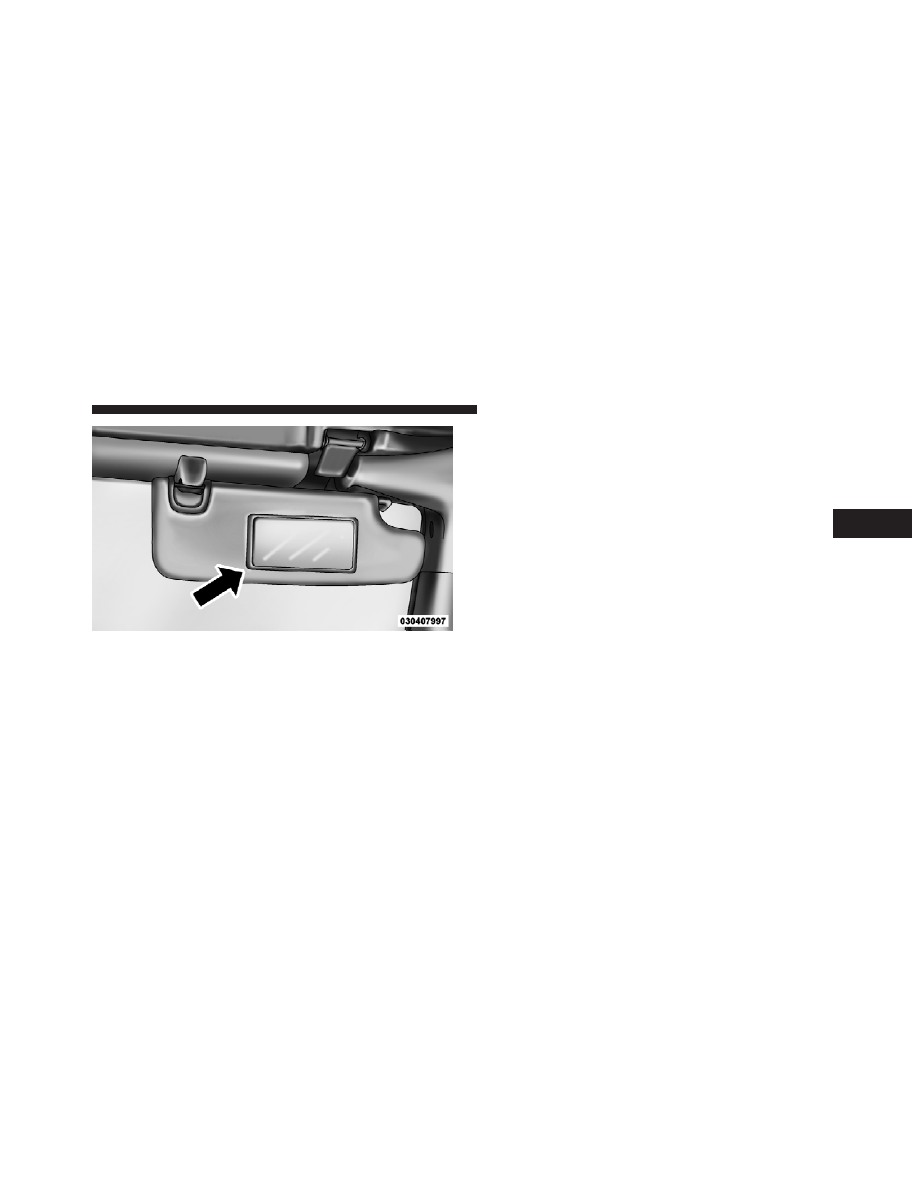

Vanity Mirror

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Uconnect™ Phone allows you to transfer calls between
the system and your mobile phone as you enter or exit
your vehicle and enables you to mute the system’s
microphone for private conversation.

The Uconnect™ Phone is driven through your
Bluetooth

威 “Hands-Free Profile” mobile phone.

Uconnect™ features Bluetooth

威 technology - the global

standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
Uconnect™ Phone works no matter where you stow your
mobile phone (be it your purse, pocket, or briefcase), as
long as your phone is turned on and has been paired to
the vehicle’s Uconnect™ Phone. The Uconnect™ Phone
allows up to seven mobile phones to be linked to the
system. Only one linked (or paired) mobile phone can be
used with the system at a time. The system is available in
English, Spanish, or French languages.

WARNING!

Any voice commanded system should be used only
in safe driving conditions following local laws and
phone use. All attention should be kept on the
roadway ahead. Failure to do so may result in a
collision causing serious injury or death.

Uconnect™ Phone Button

The radio or steering wheel controls (if
equipped) will contain the two control buttons
(Uconnect™ Phone

button and Voice Com-

mand

button) that will enable you to

access the system. When you press the button you will
hear the word Uconnect™ followed by a BEEP. The beep
is your signal to give a command.

NOTE:

The driver side upper windshield trim contains

the microphone for the Uconnect™ Phone.

100

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Voice Command Button

Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section.

The Uconnect™ Phone can be used with any Hands-Free
Profile certified Bluetooth

威 mobile phone. See the

Uconnect™ website for supported phones. Refer to your
mobile service provider or the phone manufacturer for
details.

The Uconnect™ Phone is fully integrated with the vehi-
cle’s audio system. The volume of the Uconnect™ Phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.

The radio display will be used for visual prompts from
the Uconnect™ Phone such as “CELL” or caller ID on
certain radios.

Operation
Voice commands can be used to operate the Uconnect™
Phone and to navigate through the Uconnect™ Phone
menu structure. Voice commands are required after most
Uconnect™ Phone prompts. You will be prompted for a
specific command and then guided through the available
options.

• Prior to giving a voice command, one must wait for

the beep, which follows the “Ready” prompt or an-
other prompt.

• For certain operations, compound commands can be

used. For example, instead of saying “Setup” and then
“Phone Pairing”, the following compound command
can be said: “Setup Phone Pairing”.

• For each feature explanation in this section, only the

compound form of the voice command is given. You
can also break the commands into parts and say each
part of the command when you are asked for it. For

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

101

example, you can use the compound form voice
command “Phonebook New Entry”, or you can break
the compound form command into two voice com-
mands: “Phonebook” and “New Entry”. Please re-
member, the Uconnect™ Phone works best when you
talk in a normal conversational tone, as if speaking to
someone sitting a few feet/meters away from you.

Voice Command Tree
Refer to “Voice Tree” in this section.

Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, say “Help” following
the beep. The Uconnect™ Phone will play all the options
at any prompt if you ask for help.

To activate the Uconnect™ Phone from idle, simply press
the

button and follow the audible prompts for

directions. All Uconnect™ Phone sessions begin with a
press of the

button on the radio control head.

Cancel Command
At any prompt, after the beep, you can say “Cancel” and
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.

Pair (Link) Uconnect™ Phone to a Mobile Phone
To begin using your Uconnect™ Phone, you must pair
your compatible Bluetooth

威 enabled mobile phone.

To complete the pairing process, you will need to refer-
ence your mobile phone Owner’s Manual. The
Uconnect™ website may also provide detailed instruc-
tions for pairing.

The following are general phone to Uconnect™ Phone
pairing instructions:

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Setup Phone Pairing”.

102

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• When prompted, after the beep, say “Pair a Phone”

and follow the audible prompts.

• You will be asked to say a four-digit Personal Identi-

fication Number (PIN), which you will later need to
enter into your mobile phone. You can enter any
four-digit PIN. You will not need to remember this PIN
after the initial pairing process.

• For identification purposes, you will be prompted to

give the Uconnect™ Phone a name for your mobile
phone. Each mobile phone that is paired should be
given a unique phone name.

• You will then be asked to give your mobile phone a

priority level between one and seven, with one being
the highest priority. You can pair up to seven mobile
phones to your Uconnect™ Phone. However, at any
given time, only one mobile phone can be in use,
connected to your Uconnect™ System. The priority
allows the Uconnect™ Phone to know which mobile

phone to use if multiple mobile phones are in the
vehicle at the same time. For example, if priority three
and priority five phones are present in the vehicle, the
Uconnect™ Phone will use the priority three mobile
phone when you make a call. You can select to use a
lower priority mobile phone at any time (refer to
“Advanced Phone Connectivity” in this section).

Dial by Saying a Number

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Dial”.

• The system will prompt you to say the number you

want to call.

• For example, you can say “234-567-8901”.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

103

• The Uconnect™ Phone will confirm the phone number

and then dial. The number will appear in the display
of certain radios.

Call by Saying a Name

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Call”.

• The system will prompt you to say the name of the

person you want to call.

• After the “Ready” prompt and the following beep, say

the name of the person you want to call. For example,
you can say “John Doe”, where John Doe is a previ-
ously stored name entry in the Uconnect™ phonebook
or downloaded phonebook. To learn how to store a
name in the phonebook, refer to “Add Names to Your
Uconnect™ Phonebook”, in the phonebook.

• The Uconnect™ system will confirm the name and

then dial the corresponding phone number, which
may appear in the display of certain radios.

Add Names to Your Uconnect™ Phonebook

NOTE:

Adding names to the Uconnect™ Phonebook is

recommended when the vehicle is not in motion.

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Phonebook New Entry”.

• When prompted, say the name of the new entry. Use of

long names helps the Voice Command and it is recom-
mended. For example, say “Robert Smith” or “Robert”
instead of “Bob”.

104

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• When prompted, enter the number designation (e.g.,

“Home”, “Work”, “Mobile”, or “Other”). This will
allow you to store multiple numbers for each phone-
book entry, if desired.

• When prompted, recite the phone number for the

phonebook entry that you are adding.

After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.

The Uconnect™ Phone will allow you to enter up to 32
names in the phonebook with each name having up to
four associated phone numbers and designations. Each
language has a separate 32-name phonebook accessible
only in that language. In addition, if equipped and
supported by your phone, Uconnect™ Phone automati-
cally downloads your mobile phone’s phonebook.

Phonebook Download – Automatic Phonebook
Transfer From Mobile Phone
If equipped and specifically supported by your phone,
Uconnect™ Phone automatically downloads names (text
names) and number entries from your mobile phone’s
phonebook. Specific Bluetooth

威 Phones with Phone Book

Access Profile may support this feature. See Uconnect™
website for supported phones.

• To call a name from downloaded (or Uconnect™)

Phonebook, follow the procedure in “Call by Saying a
Name” section.

• Automatic download and update, if supported, begins

as soon as the Bluetooth

威 wireless phone connection is

made to the Uconnect™ Phone, for example, after you
start the vehicle.

• A maximum of 1000 entries per phone will be down-

loaded and updated every time a phone is connected
to the Uconnect™ Phone.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

105

• Depending on the maximum number of entries down-

loaded, there may be a short delay before the latest
downloaded names can be used. Until then, if avail-
able, the previous downloaded phonebook is available
for use.

• Only the phonebook of the currently connected mobile

phone is accessible.

• Only the mobile phone’s phonebook is downloaded.

SIM card phonebook is not part of the Mobile phone-
book.

• This downloaded phonebook cannot be edited or

deleted on the Uconnect™ Phone. These can only be
edited on the mobile phone. The changes are trans-
ferred and updated to Uconnect™ Phone on the next
phone connection.

Phonebook Download — Single Entry
If equipped and supported by your phone, Uconnect™
Phone also allows the user to download entries one at a
time from their phone via Bluetooth

威. To use this feature,

press the

button and say “Phonebook Download”.

The system prompts, “Ready to accept “V” card entry via
Bluetooth

威…” The system is now ready to accept a single

phonebook entry from your phone using the Bluetooth

威

Object Exchange Profile (OBEX). Please see your phone
Owner’s Manual for specific instructions on how to send
these entries from your phone.

NOTE:

• The phone handset must support Bluetooth威 OBEX

transfers of phonebook entries to use this feature.

• Some phones cannot send phonebook entries if they

are already connected to any system via Bluetooth

威,

and you may see a message on the phone display that
the Bluetooth

威 link is busy. In this case, the user must

106

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

first disconnect or drop the Bluetooth

威 connection to

the Uconnect™ phone, and then send the address
book entry via Bluetooth

威. Please see your phone

Owner’s Manual for specific instructions on how to
drop the Bluetooth

威 connection.

• If the phonebook entry is longer than 24 characters, it

will only use the first 24 characters.

Edit Uconnect™ Phonebook Entries

NOTE:

• Editing names in the phonebook is recommended

when the vehicle is not in motion.

• Automatic downloaded phonebook entries cannot be

deleted or edited.

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Phonebook Edit”.

• You will then be asked for the name of the phonebook

entry that you wish to edit.

• Next, choose the number designation (home, work,

mobile, or other) that you wish to edit.

• When prompted, recite the new phone number for the

phonebook entry that you are editing.

After you are finished editing an entry in the phonebook,
you will be given the opportunity to edit another entry in
the phonebook, call the number you just edited, or return
to the main menu.

“Phonebook Edit” can be used to add another phone
number to a name entry that already exists in the
phonebook. For example, the entry John Doe may have a
mobile and a home number, but you can add “John
Doe’s” work number later using the “Phonebook Edit”
feature.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

107

Delete Uconnect™ Phonebook Entry

NOTE:

Editing phonebook entries is recommended

when the vehicle is not in motion.

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Phonebook Delete”.

• After you enter the Phonebook Delete menu, you will

then be asked for the name of the entry that you wish
to delete. You can either say the name of a phonebook
entry that you wish to delete or you can say “List
Names” to hear a list of the entries in the phonebook
from which you choose. To select one of the entries
from the list, press the

button while the

Uconnect™ Phone is playing the desired entry and say
“Delete”.

• After you enter the name, the Uconnect™ Phone will

ask you which designation you wish to delete: home,
work, mobile, other, or all. Say the designation you
wish to delete.

• Note that only the phonebook entry in the current

language is deleted.

• Automatic downloaded phonebook entries cannot be

deleted or edited.

Delete/Erase “All” Uconnect™ Phonebook Entries

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Phonebook Erase All”.

• The Uconnect™ Phone will ask you to verify that you

wish to delete all the entries from the phonebook.

• After confirmation, the phonebook entries will be

deleted.

108

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• Note that only the phonebook in the current language

is deleted.

• Automatic downloaded phonebook entries cannot be

deleted or edited.

List All Names in the Uconnect™ Phonebook

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Phonebook List Names”.

• The Uconnect™ Phone will play the names of all the

phonebook entries, including the downloaded phone-
book entries, if available.

• To call one of the names in the list, press the

button during the playing of the desired name, and
say “Call”.

NOTE:

The user can also exercise “Edit” or “Delete”

operations at this point.

• The Uconnect™ Phone will then prompt you as to the

number designation you wish to call.

• The selected number will be dialed.

Phone Call Features
The following features can be accessed through the
Uconnect™ Phone if the feature(s) are available on your
mobile service plan. For example, if your mobile service
plan provides three-way calling, this feature can be
accessed through the Uconnect™ Phone. Check with
your mobile service provider for the features that you
have.

Answer or Reject an Incoming Call - No Call
Currently in Progress
When you receive a call on your mobile phone, the
Uconnect™ Phone will interrupt the vehicle audio sys-
tem, if on, and will ask if you would like to answer the
call. Press the

button to accept the call. To reject the

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

109

call, press and hold the

button until you hear a single

beep, indicating that the incoming call was rejected.

Answer or Reject an Incoming Call - Call
Currently in Progress
If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your
mobile phone. Press the

button to place the current

call on hold and answer the incoming call.

NOTE:

The Uconnect™ Phone compatible phones in the

market today do not support rejecting an incoming call
when another call is in progress. Therefore, the user can
only answer an incoming call or ignore it.

Making a Second Call While Current Call is in
Progress
To make a second call while you are currently on a call,
press the

button and say “Dial” or “Call” followed

by the phone number or phonebook entry you wish to

call. The first call will be on hold while the second call is
in progress. To go back to the first call, refer to “Toggling
Between Calls” in this section. To combine two calls, refer
to “Conference Call” in this section.

Place/Retrieve a Call From Hold
To put a call on hold, press the

button until you hear

a single beep. This indicates that the call is on hold. To
bring the call back from hold, press and hold the
button until you hear a single beep.

Toggling Between Calls
If two calls are in progress (one active and one on hold),
press the

button until you hear a single beep,

indicating that the active and hold status of the two calls
have switched. Only one call can be placed on hold at a
time.

110

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Conference Call
When two calls are in progress (one active and one on
hold), press and hold the

button until you hear a

double beep indicating that the two calls have been
joined into one conference call.

Three-Way Calling
To initiate three-way calling, press the

button while

a call is in progress, and make a second phone call, as
described under “Making a Second Call While Current
Call is in Progress”. After the second call has established,
press and hold the

button until you hear a double

beep, indicating that the two calls have been joined into
one conference call.

Call Termination
To end a call in progress, momentarily press the
button. Only the active call(s) will be terminated and if
there is a call on hold, it will become the new active call.
If the active call is terminated by the phone far end, a call
on hold may not become active automatically. This is cell
phone-dependent. To bring the call back from hold, press
and hold the

button until you hear a single beep.

Redial

• Press the

button to begin.

• After the “Ready” prompt and the following beep, say

“Redial”.

• The Uconnect™ Phone will call the last number that

was dialed from your mobile phone.

NOTE:

This may not be the last number dialed from the

Uconnect™ Phone.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

111

Jeep Wrangler Unlimited (2012 year). Instruction - part 7
