Troubleshooting Tips

If you are having trouble programming HomeLink

威, here

are some of the most common solutions:

• Replace the battery in the original hand-held transmit-

ter.

• Press the LEARN button on the Garage Door Opener

to complete the training for a Rolling Code.

• Did you unplug the device for programming and

remember to plug it back in?

If you have any problems, or require assistance, please
call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com for information or assistance.

WARNING!

• Your motorized door or gate will open and close

while you are programming the universal trans-
ceiver. Do not program the transceiver if people,
pets or other objects are in the path of the door or
gate. Only use this transceiver with a garage door
opener that has a “stop and reverse” feature as
required by Federal safety standards. This includes
most garage door opener models manufactured
after 1982. Do not use a garage door opener without
these safety features. Call toll-free 1–800–355–3515
or, on the Internet at www.HomeLink.com for
safety information or assistance.

• Vehicle exhaust contains carbon monoxide, a dan-

gerous gas. Do not run your vehicle in the garage
while programming the transceiver. Exhaust gas
can cause serious injury or death.

192

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

General Information

This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following
two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference that may be
received including interference that may cause undesired
operation.

NOTE:

• The transmitter has been tested and it complies with

FCC and IC rules. Changes or modifications not
expressly approved by the party responsible for com-
pliance could void the user’s authority to operate the
device.

• The term IC before the certification/registration num-

ber only signifies that Industry Canada technical
specifications were met.

POWER SUNROOF — IF EQUIPPED

The power sunroof switch is located between the sun
visors on the overhead console.

Power Sunroof Switch

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

193

WARNING!

• Never leave unattended children in a vehicle with

the key in the ignition switch. Occupants, particu-
larly unattended children, can become entrapped
by the power sunroof while operating the power
sunroof switch. Such entrapment may result in
serious injury or death.

• In a collision, there is a greater risk of being

thrown from a vehicle with an open sunroof. You
could also be seriously injured or killed. Always
fasten your seat belt properly and make sure all
passengers are properly secured too.

• Do not allow small children to operate the sun-

roof. Never allow your fingers, other body parts, or
any object to project through the sunroof opening.
Injury may result.

Opening Sunroof — Express

Press the switch rearward and release it within one-half
second and the sunroof will open automatically from any
position. The sunroof will open fully and stop automati-
cally. This is called “Express Open”. During Express
Open operation, any movement of the sunroof switch
will stop the sunroof.

Opening Sunroof — Manual Mode

To open the sunroof, press and hold the switch rearward
to full open. Any release of the switch will stop the
movement and the sunroof will remain in a partially
opened condition until the switch is pushed and held
rearward again.

Closing Sunroof — Express

Press the switch forward and release it within one-half
second and the sunroof will close automatically from any

194

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

position. The sunroof will close fully and stop automati-
cally. This is called “Express Close”. During Express
Close operation, any movement of the switch will stop
the sunroof.

Closing Sunroof — Manual Mode

To close the sunroof, press and hold the switch in the
forward position. Any release of the switch will stop the
movement and the sunroof will remain in a partially
closed condition until the switch is pushed and held
forward again.

Pinch Protect Feature

This feature will detect an obstruction in the opening of
the sunroof during Express Close operation. If an ob-
struction in the path of the sunroof is detected, the
sunroof will automatically retract. Remove the obstruc-
tion if this occurs. Next, press the switch forward and
release to Express Close.

Pinch Protect Override

If a known obstruction (ice, debris, etc.) prevents closing
and moves the sunroof in the opposite direction, press
the switch forward and hold. This allows the sunroof to
move towards the closed position.

NOTE:

Pinch protection is disabled while the switch is

pressed.

Venting Sunroof — Express

Press and release the

⬙Vent⬙ button within one-half sec-

ond and the sunroof will open to the vent position. This
is called “Express Vent”, and it will occur regardless of
sunroof position. During Express Vent operation, any
movement of the switch will stop the sunroof.

Sunshade Operation

The sunshade can be opened manually. However, the
sunshade will open automatically as the sunroof opens.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

195

NOTE:

The sunshade cannot be closed if the sunroof is

open.

Wind Buffeting

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) is in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, then open the front and rear
windows together to minimize the buffeting. If the
buffeting occurs with the sunroof open, adjust the sun-
roof opening to minimize the buffeting or open any
window.

Sunroof Maintenance

Use only a non-abrasive cleaner and a soft cloth to clean
the glass panel.

Ignition Off Operation

For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power sunroof switch
will remain active for 45 seconds after the ignition switch
is turned to the LOCK position. Opening either front
door will cancel this feature.

For vehicles equipped with the EVIC, the power sunroof
switch will remain active for up to approximately ten
minutes after the ignition switch is turned to the LOCK
position. Opening either front door will cancel this
feature. The time is programmable. Refer to “Electronic
Vehicle Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understanding
Your Instrument Panel” for further information.

SKY SLIDER™ FULL LENGTH OPEN ROOF — IF
EQUIPPED

The Sky Slider™ is a full-length, soft-top, power roof that
opens front to rear or rear to front.

196

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Sky Slider™ Usage Precautions

NOTE:

• The system will not operate when ambient tempera-

ture is at –4°F (–20°C) or lower.

• The system will not operate at vehicle speeds of

86 mph (138 km/h) or above.

• Opening and closing the Sky Slider™ repeatedly with-

out the engine running may run the battery down.

CAUTION!

Failure to follow these cautions can cause damage to
the Sky Slider™ vehicle contents, and the vehicle
interior:
• Never attempt to open or close the Sky Slider™

when it is frozen. Wait until the Sky Slider™ is
thawed before operating.

(Continued)

CAUTION! (Continued)

• Opening the Sky Slider™ when damp, wet, or

dirty can cause stains, mildew, and damage to the
soft-top material and the inside of your vehicle.
Make sure the Sky Slider™ is dry before opening.

• Always close the Sky Slider™ when leaving your

vehicle, damage to the vehicle interior can occur.

• Do not leave the Sky Slider™ open for several

weeks at a time. Close it occasionally to prevent
discoloration in the folds of the fabric and to allow
the creases to smooth out. This is especially im-
portant if the Sky Slider™ was opened when not
completely dry.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

197

WARNING!

Failure to follow these warnings can result in injuries
that are serious or fatal to you, your passengers, and
others around you:
• In an accident, there is a greater risk of being

thrown from a vehicle with the Sky Slider™ open.
Always fasten your seat belt properly and make
sure all passengers are properly secured too.

• Before operating the Sky Slider™ make sure that

no moving parts of the Sky Slider™ can injure a
person or animal.

• Never place any extremities (hands, feet, etc.) near

the Sky Slider™ components or the roof area
while operating the Sky Slider™.

(Continued)

WARNING! (Continued)

• If potential danger exists while opening or closing

the Sky Slider™ in Automatic Mode, press and
release the switch immediately to interrupt the
operation.

• If potential danger exists while opening or closing

the Sky Slider™ in Operator Mode, release the
switch immediately to interrupt the operation.

• Do not allow small children to operate the Sky

Slider™.

• Never leave children in a vehicle, with the key in

the ignition switch. Occupants, particularly unat-
tended children, can become entrapped by the Sky
Slider™ while operating the Sky Slider™ switch.
Such entrapment may result in serious injury or
death.

198

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Sky Slider™ Control

The Sky Slider™ switch is located between the sun visors
on the overhead console.

NOTE:

The Sky Slider™ switch will operate when the

ignition switch is turned to the ON or ACC position.

Opening The Sky Slider™

Using Automatic Mode
Press the switch rearward and release it within one-half
second and the Sky Slider™ will open from the front and
move automatically toward the rear of the vehicle.

Press the switch forward and release it within one-half
second and the Sky Slider™ will open from the rear and
move automatically toward the front of the vehicle.

NOTE:

• During operation, any movement of the Sky Slider™

switch will stop the Sky Slider™ roof.

• To resume the operation from a partially open posi-

tion, press and release the switch a second time.

• The Sky Slider™ will not open from the front and the

rear at the same time. The Sky Slider™ must close fully
before opening it from the opposite end.

Sky Slider™ Switch

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

199

Using Operator Mode
Press the switch rearward and hold it, the Sky Slider™
will open from the front and move toward the rear of the
vehicle.

Press the switch forward and hold it, the Sky Slider™
will open from the rear and move toward the front of the
vehicle.

NOTE:

During operation, any movement of the Sky

Slider™ switch will stop the Sky Slider™ roof.

Closing The Sky Slider™

Using Automatic Mode
Press and release the button in the center of the switch
and the Sky Slider™ will close automatically from any
position.

Using Operator Mode
If the Sky Slider™ is open from the front, press the switch
forward and hold it, the Sky Slider™ will move forward.
Release the switch to stop the Sky Slider™ travel at any
point.

If the Sky Slider™ is open from the rear, press the switch
rearward and hold it and the Sky Slider™ will move
rearward. Release the switch to stop the Sky Slider™
travel at any point.

Manual Override
The Sky Slider™ drive motors are mounted to the roof
above the cargo lamp. In the event that your vehicle
losses battery power, you can close the Sky Slider™ by
turning the drive gears in the appropriate motor with a
6 mm Allen wrench. To do so, you must first remove the
cargo lamp from the headliner. Then, insert the wrench
into the “Allen” shaped hole in the appropriate motor
and turn the wrench clockwise until the top closes

200

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

completely. The left motor facing forward will close the
top when it is open from the rear of the vehicle. The right
motor will close the top when it is open from the front of
the vehicle.

Anti-Pinch Protect Feature

The Sky Slider™ will retract automatically if it detects an
obstruction while closing. If this occurs, remove the
obstruction and use the switch again to close the Sky
Slider™.

WARNING!

There is no anti-pinch protection when the Sky
Slider™ is almost closed. Be sure to clear all objects
from the Sky Slider™ before closing.

Wind Buffeting

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the Sky Slider™ in certain open or
partially open positions. This is a normal occurrence and
can be minimized. If the buffeting occurs with the rear
windows open, then open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the Sky Slider™ open, adjust the Sky Slider™
opening to minimize the buffeting or open any window.

Sky Slider™ Maintenance

Refer to “Sky Slider™ Top Care” in “Maintaining Your
Vehicle” for further information.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

201

ELECTRICAL POWER OUTLET

Your vehicle is equipped with a fused 12 Volt (13 Amp)
power outlet. This power outlet is located on the instru-
ment panel, below the climate controls. It has power
available when the ignition switch is in the ON or ACC
position.

Insert the cigar lighter or accessory plug into the outlet
for use to ensure proper operation.

NOTE:

To ensure proper operation a MOPAR

威 knob

and element must be used.

CAUTION!

• Do not exceed the maximum power of 160 Watts

(13 Amps) at 12 Volts. If the 160 Watt (13 Amp)
power rating is exceeded the fuse protecting the
system will need to be replaced.

• Power outlets are designed for accessory plugs

only. Do not insert any other object in the power
outlets as this will damage the outlet and blow the
fuse. Improper use of the power outlet can cause
damage not covered by your New Vehicle Limited
Warranty.

Front Power Outlet

202

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!

To avoid serious injury or death:
• Only devices designed for use in this type of

outlet should be inserted into any 12 Volt outlet.

• Do not touch with wet hands.
• Close the lid when not in use and while driving

the vehicle.

• If this outlet is mishandled, it may cause an

electric shock and failure.

Power Outlet Fuse Location

M6 Fuse 20 A Yellow Cigar Lighter Instrument Panel

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

203

CAUTION!

• Many accessories that can be plugged in draw

power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.

• Accessories that draw higher power (i.e., coolers,

vacuum cleaners, lights, etc.) will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.

(Continued)

CAUTION! (Continued)

• After the use of high power draw accessories, or

long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
alternator to recharge the vehicle’s battery.

• Power outlets are designed for accessory plugs

only. Do not hang any type of accessory or acces-
sory bracket from the plug.

204

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

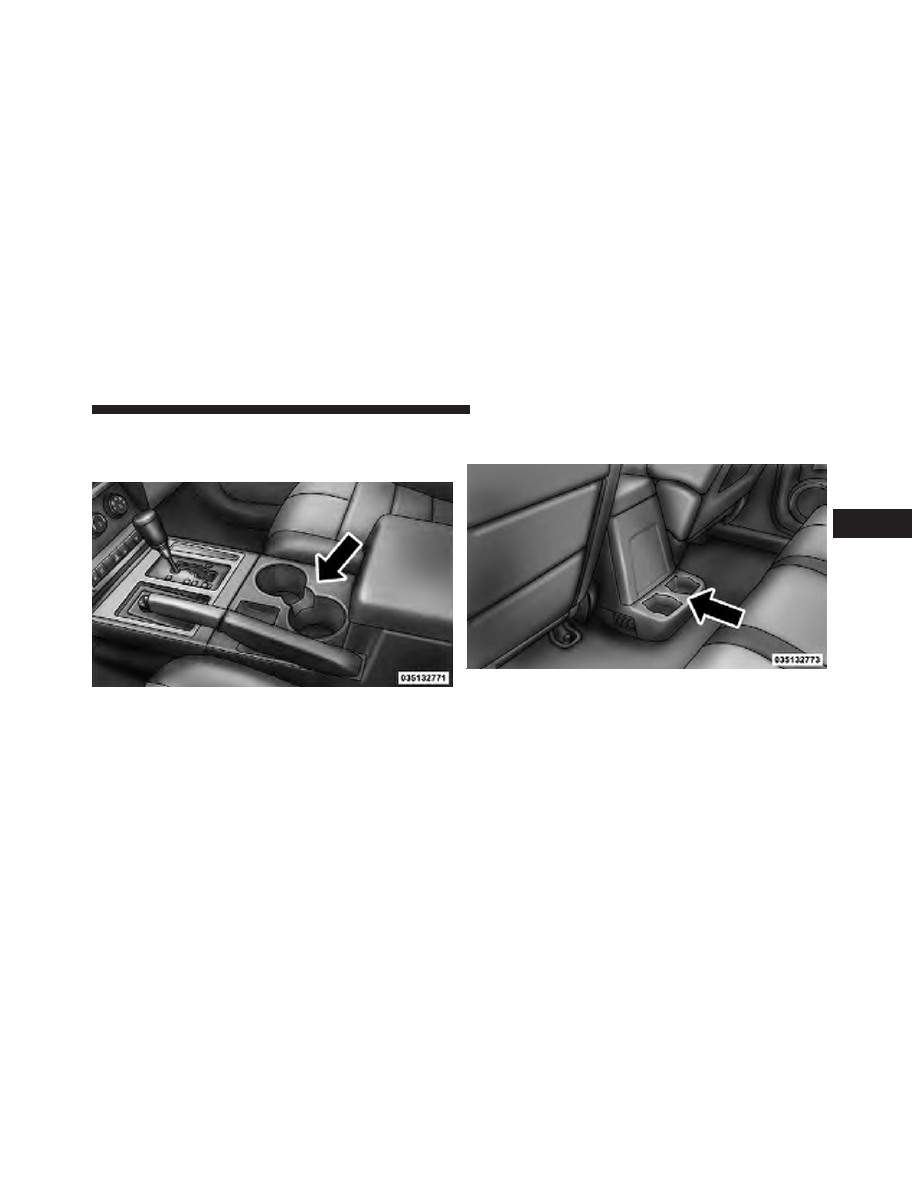

CUPHOLDERS

There are two cupholders for the front seat passengers,
located in the center console.

The rear passengers have cupholders at the rear of the
center console.

Front Cupholders

Rear Cupholders

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

205

STORAGE

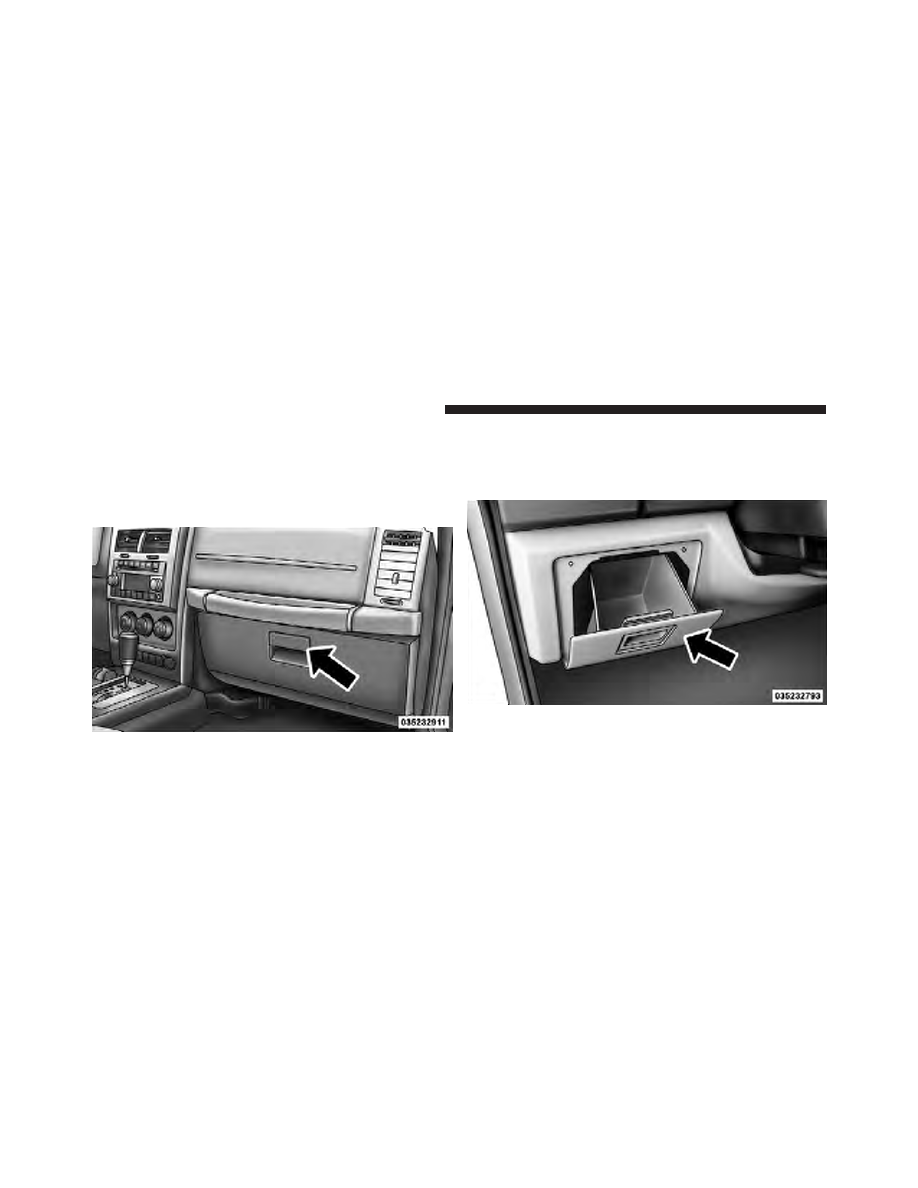

Glove Box Storage Compartment

The glove box storage compartment is located on the
right side of the instrument panel. Pull outward on the
latch to open the storage compartment.

Front Storage Compartment

The front storage compartment (located on the left side of
the instrument panel) can hold cell phones, PDAs, and
other small items.

Glove Box Storage Compartment

Front Storage Compartment

206

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

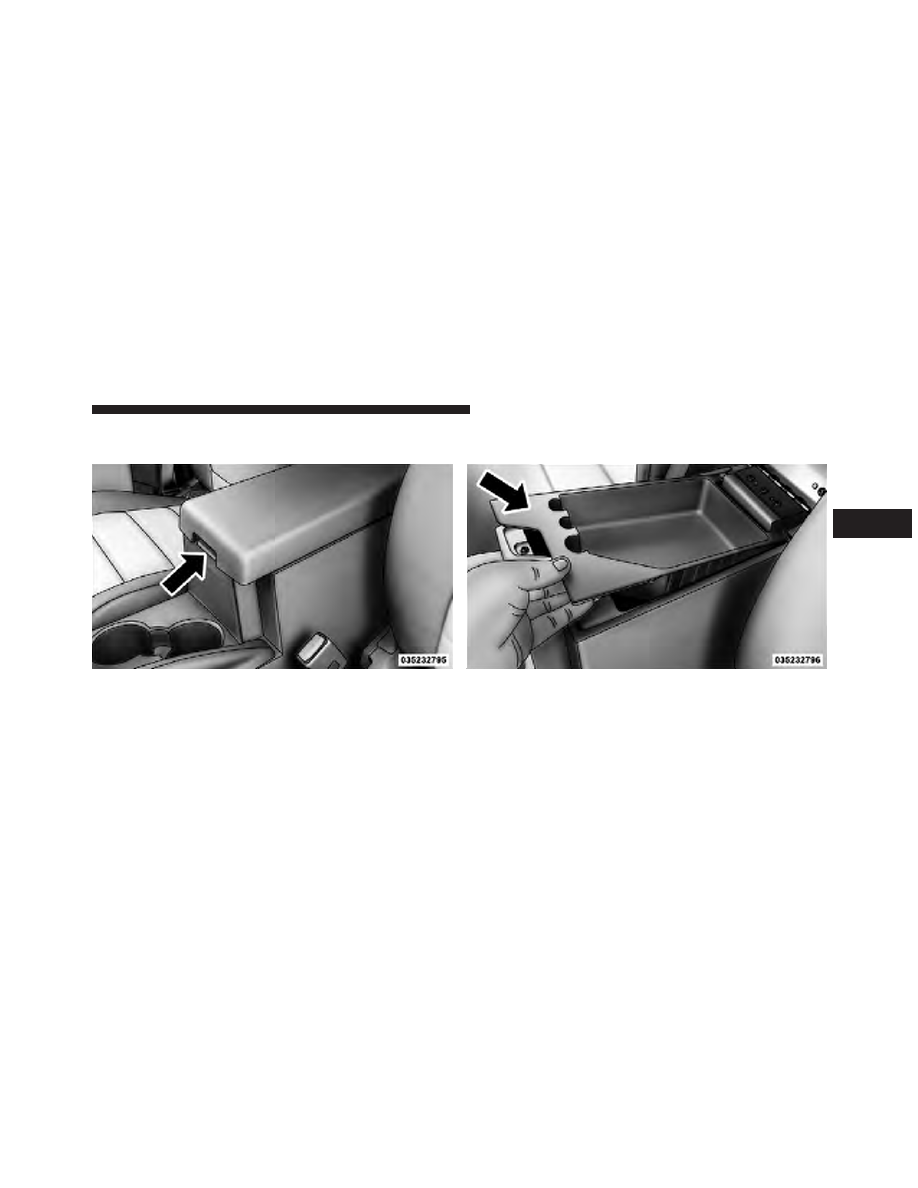

Console Storage Compartment

To open, press the latch and lift the cover.

The center console has a removable storage tray which
can hold cell phones, PDAs, and other small items.

Center Console

Removable Storage Tray

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

207

Jeep Liberty (2012 year). Instruction - part 13
