UCONNECT SYSTEMS

For detailed information about your Uconnect system or
pairing a phone to your Uconnect system, refer to your
Uconnect Owner’s Manual Supplement.

NOTE:

Uconnect screen images are for illustration pur-

poses only and may not reflect exact software for your
vehicle.

DRAG & DROP MENU BAR

The Uconnect features and services in the main menu bar
are easily changed for your convenience. Simply follow
these steps:

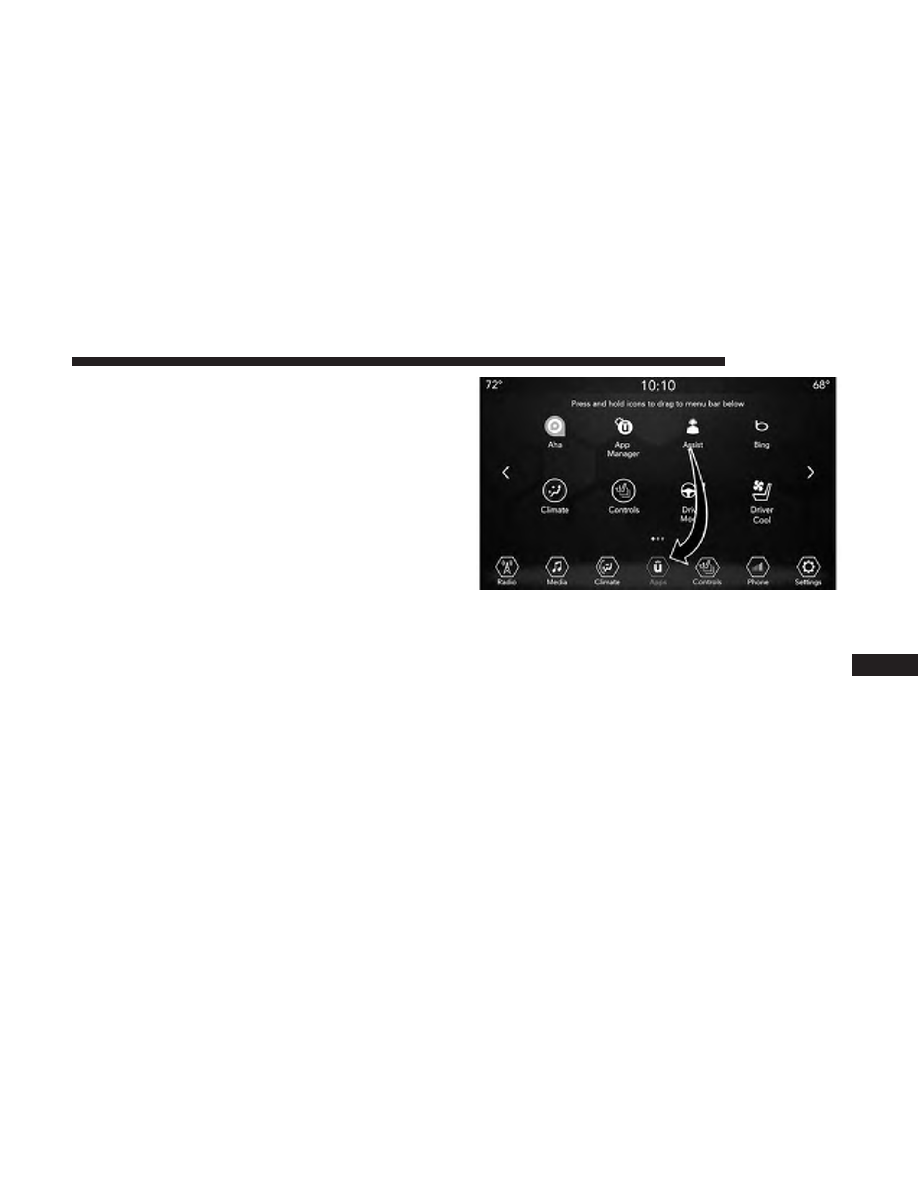

Uconnect 4 Apps Menu

MULTIMEDIA

453

1. Press the “Apps

” button to open the App screen.

2. Press and hold, then drag the selected App to replace an

existing shortcut in the main menu bar.

The new shortcut will now be an active App/shortcut on
the main menu bar.

CYBERSECURITY

Your vehicle may be a connected vehicle and may be
equipped with both wired and wireless networks. These
networks allow your vehicle to send and receive informa-
tion. This information allows systems and features in your
vehicle to function properly.

Your vehicle may be equipped with certain security fea-
tures to reduce the risk of unauthorized and unlawful
access to vehicle systems and wireless communications.
Vehicle software technology continues to evolve over time
and FCA US LLC, working with its suppliers, evaluates
and takes appropriate steps as needed. Similar to a com-
puter or other devices, your vehicle may require software
updates to improve the usability and performance of your
systems or to reduce the potential risk of unauthorized and
unlawful access to your vehicle systems.

The risk of unauthorized and unlawful access to your
vehicle systems may still exist, even if the most recent
version of vehicle software (such as Uconnect software) is
installed.

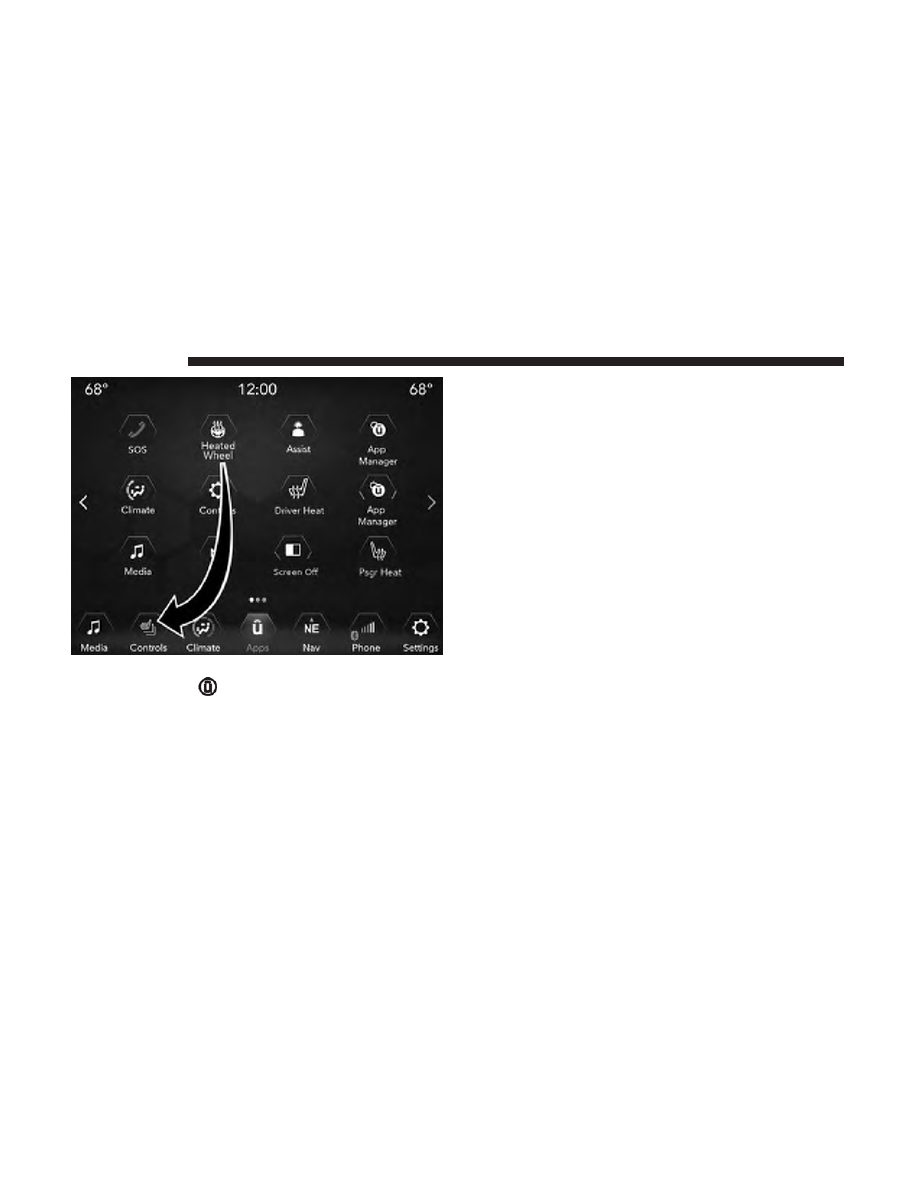

Uconnect 4C/4C NAV Apps Menu

454

MULTIMEDIA

WARNING!

• It is not possible to know or to predict all of the

possible outcomes if your vehicle’s systems are
breached. It may be possible that vehicle systems,
including safety related systems, could be impaired
or a loss of vehicle control could occur that may
result in an accident involving serious injury or
death.

• ONLY insert media (e.g., USB, SD card, or CD) into

your vehicle if it came from a trusted source. Media
of unknown origin could possibly contain malicious
software, and if installed in your vehicle, it may
increase the possibility for vehicle systems to be
breached.

• As always, if you experience unusual vehicle behav-

ior, take your vehicle to your nearest authorized
dealer immediately.

NOTE:
• FCA US LLC or your dealer may contact you directly

regarding software updates.

• To help further improve vehicle security and minimize

the potential risk of a security breach, vehicle owners
should:

• Routinely check www.driveuconnect.com (U.S. Resi-

dents) or www.driveuconnect.ca (Canadian Residents)
to learn about available Uconnect software updates.

• Only connect and use trusted media devices (e.g.

personal mobile phones, USBs, CDs).

Privacy of any wireless and wired communications cannot
be assured. Third parties may unlawfully intercept infor-
mation and private communications without your consent.
For further information, refer to “Data Collection & Pri-
vacy” in your Uconnect Owner’s Manual Supplement or
“Onboard Diagnostic System (OBD II) Cybersecurity” in
“Getting To Know Your Instrument Panel”.

MULTIMEDIA

455

UCONNECT SETTINGS

The Uconnect system uses a combination of buttons on the
touchscreen and buttons on the faceplate located on the
center of the instrument panel that allow you to access and
change the customer programmable features. Many fea-
tures can vary by vehicle.

Buttons on the touchscreen are accessible on the Uconnect
touchscreen.

Buttons on the faceplate are located below, and beside the
Uconnect system in the center of the instrument panel. In
addition, there is a BROWSE/ENTER control knob located
on the right side. Turn the control knob to scroll through
menus and change settings (i.e., 30, 60, 90), push the center
of the control knob one or more times to select or change a
setting (i.e., ON, OFF).

Your Uconnect system may also have Screen Off on the
faceplate.

Push the Screen Off button on the faceplate to turn off the
Uconnect screen. Push the Screen Off button on the face-
plate a second time to turn the screen on.

Press the “X” icon on the touchscreen to exit out of a Menu
or certain option on the Uconnect system.

Customer Programmable Features — Uconnect 3
Settings

Push the “Settings” button on the touchscreen to display
the settings menu screen. In this mode the Uconnect
system allows you to access all of the available program-
mable features.

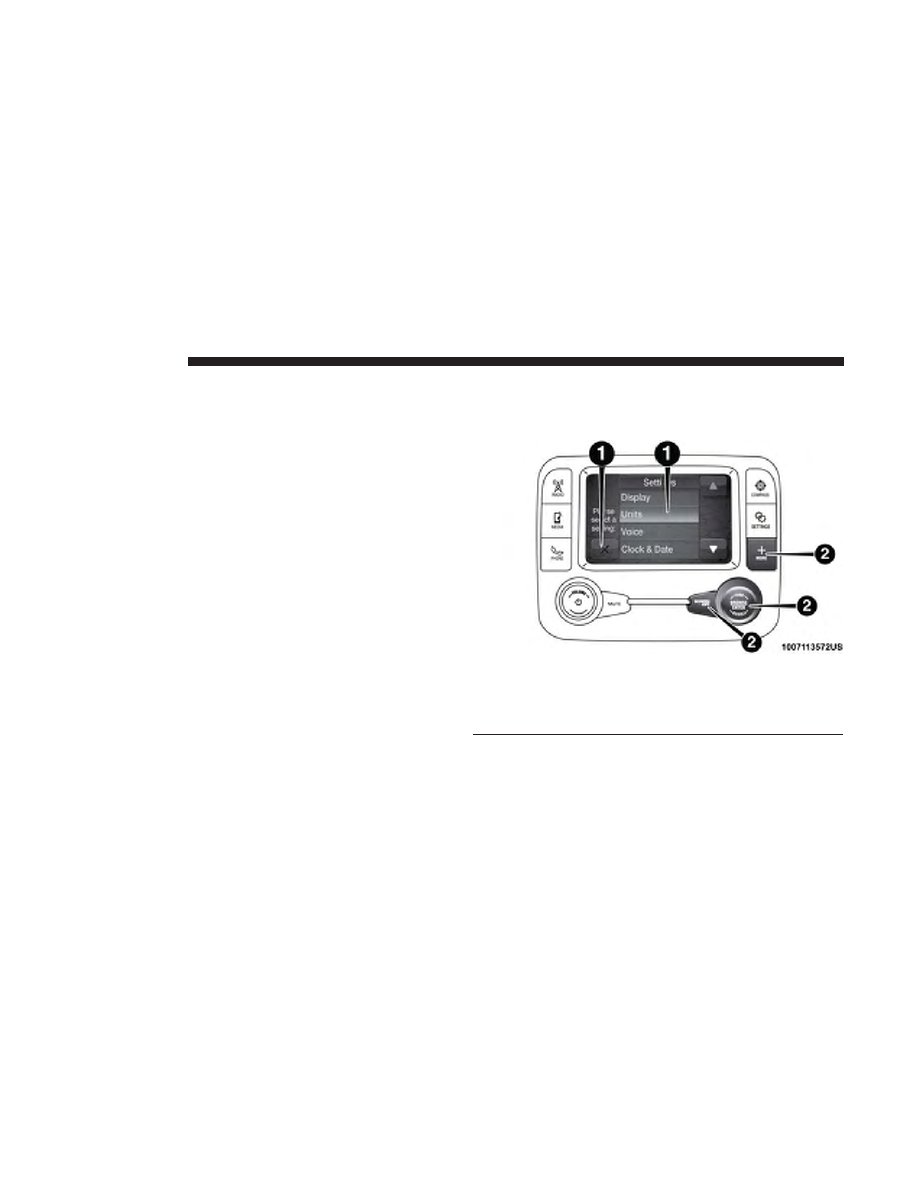

Uconnect 3 With 5–inch Display Buttons On The

Touchscreen And Buttons On The Faceplate

1 — Uconnect Buttons On The Touchscreen
2 — Uconnect Buttons On The Faceplate

456

MULTIMEDIA

NOTE:

Only one touchscreen area may be selected at a

time.

When making a selection, press the button on the touch-
screen to enter the desired mode. Once in the desired
mode, press and release the preferred setting and make
your selection. Once the setting is complete, press the
“X/Done” icon on the touchscreen to return to the previ-
ous menu. Pressing the Up or Down Arrow buttons on the
right side of the screen will allow you to toggle up or down
through the available settings.

NOTE:

All settings should be changed with the ignition in

the ON/RUN position.

The following tables list the settings that may be found
within the Uconnect 3 radio, along with the selectable
options pertaining to each setting.

Display

After pressing the “Display” button on the touchscreen, the
following settings will be available:

Setting Name

Selectable Options

Display Mode

Auto

Manual

Brightness

NOTE:
The “Brightness” setting can also be adjusted by selecting any point on the scale between the “+” and “-” buttons on
the touchscreen.

Language

English

Español

Français

NOTE:
Selecting any option within the “Language” setting will change the language for all displayed nomenclature.

Touchscreen Beep

Yes

Voice Settings

Voice Response Length

Show Command List

MULTIMEDIA

457

Units

After pressing the “Units” button on the touchscreen, the
following settings will be available:

Setting Name

Selectable Options

Units

Metric

Custom

NOTE:

• The “Metric” option changes the instrument cluster display to metric units of measure.

• The “Custom” option allows setting the “Fuel Consumption” (L/100km, or km/L) and “Pressure” (kPa, or bar)

units of measure independently.

Clock & Date

After pressing the “Clock & Date” button on the touch-
screen, the following settings will be available:

Setting Name

Selectable Options

Set Time and Format

12 hour

24 hour

NOTE:
Within the “Set Time and Format” setting, press the corresponding arrow buttons on the touchscreen to adjust to the
correct time.

Set Time Hours

–

Set Time Minutes

–

458

MULTIMEDIA

Setting Name

Selectable Options

Set Date

Up Arrow

Down Arrow

NOTE:
Within the “Set Date” setting, press the corresponding arrow buttons on the touchscreen to adjust to the correct date.

Show Time Status — If

Equipped

Off

Sync Time — If Equipped

Off

Safety/Assistance

After pressing the “Safety/Assistance” button on the
touchscreen, the following settings will be available:

Setting Name

Selectable Options

ParkView Backup Camera

Delay

Off

NOTE:
The “ParkView Backup Camera Delay” setting determines whether or not the screen will display the rear view image
with dynamic grid lines for up to ten seconds after the vehicle is shifted out of REVERSE. This delay will be canceled
if the vehicle’s speed exceeds 8 mph (13 km/h), the transmission is shifted into PARK, or the ignition is switched to
the OFF position.

MULTIMEDIA

459

Setting Name

Selectable Options

ParkView Backup Camera

Active Guide Lines

Off

NOTE:
The “ParkView Backup Camera Active Guide Lines” setting overlays the Rear Backup Camera image with active, or
dynamic, grid lines to help illustrate the width of the vehicle and its project back up path, based on the steering
wheel position when the option is checked. A dashed center line overlay indicates the center of the vehicle to assist
with parking or aligning to a hitch/receiver.

Forward Collision Warning

Plus (FCW+) Sensitivity — If

Equipped

Far

Med

Near

NOTE:
The “Forward Collision Warning Plus (FCW+) Sensitivity” setting determines at what relative distance the vehicle
directly in front of you needs to be at, before the system will warn you of a possible collision with the vehicle directly
in front of you, based on the option is selected. “Far” will give you the most amount of reaction time, whereas
“Near” will give you the least amount of reaction time, based on the distance between the two vehicles.

460

MULTIMEDIA

Setting Name

Selectable Options

Forward Collision Warning

Plus (FCW+) — If Equipped

Off

Sound Only

Sound and Brake

NOTE:
The “Forward Collision Warning Plus (FCW+)” setting includes Advanced Brake Assist (ABA). The ABA applies ad-
ditional brake pressure when the driver requests insufficient brake pressure to avoid a potential frontal collision.
When the “Sound Only” option is selected a chime will sound alerting you of a possible collision with the vehicle in
front of you and more brake pressure is needed. When the “Sound and Brake” option is selected, it will apply the
brakes to slow your vehicle in case of potential forward collision and sound an audible chime to alert you.

ParkSense — If Equipped

Sound Only

Sound and Display

Rear ParkSense Volume — If

Equipped

Low

Medium

High

LaneSense Warning — If

Equipped

Early

Medium

Late

NOTE:
The “LaneSense Warning” setting determines at what distance the LaneSense system will warn you, through steering
wheel feedback, of a possible lane departure.

MULTIMEDIA

461

Setting Name

Selectable Options

LaneSense Strength — If

Equipped

Low

Medium

High

Blind Spot Alert — If

Equipped

Off

Lights

Lights and Chime

NOTE:
If your vehicle has experienced any damage in the area where the sensor is located, even if the fascia is not damaged,
the sensor may have become misaligned. Take your vehicle to an authorized dealer to verify sensor alignment. A sen-
sor that is misaligned will result in the Blind Spot Monitor (BSM) not operating to specification.
Rain Sensing Auto Wipers —

If Equipped

Off

Electric Park Brake Service

Mode

Yes

NOTE:
The “Electric Park Brake Service Mode” feature provides a means for a technician or vehicle owner to utilize a vehicle
integrated, menu driven system, to command the electric park brake retraction, to service the rear foundation brakes
(brake pads, calipers, rotors, etc.).

462

MULTIMEDIA

Brakes — If Equipped

After pressing the “Brakes” button on the touchscreen the
following setting will be available:

Setting Name

Selectable Options

Auto Park Brake

Off

Lights

After pressing the “Lights” button on the touchscreen, the
following settings will be available:

Setting Name

Selectable Options

Headlight Sensitivity — If

Equipped

Level 1: minimum

sensitivity

Level 2: medium sen-

sitivity

Level 3: maximum sensitivity

NOTE:
The greater the sensitivity set, the less the external light variation required to turn on the lights (e.g. with a setting on
level 3 at sunset the headlights turn on earlier than in levels 1 and 2).

Headlight Off Delay

0 sec

30 sec

60 sec

90 sec

NOTE:
When the “Headlight Off Delay” feature is selected, it allows the adjustment of the amount of time the headlights
remain on after the engine is shut off.

MULTIMEDIA

463

Setting Name

Selectable Options

Greeting Lights

Off

Automatic High Beam Head-

lamps — If Equipped

Off

Daytime Running Lights

Off

Cornering Lights

Off

NOTE:
When the “Cornering Lights” feature is selected, if the steering wheel rotation angle is large or the turn signal indica-
tors are on, a light (incorporated in the fog light) will turn on, on the relevant side to improve visibility at night.

Flash Lights With Lock — If

Equipped

Off

Interior Ambient Lights

NOTE:
The “Interior Ambient Lights” setting can also be adjusted by selecting any point on the scale between the “+” and
“-” buttons on the touchscreen.

464

MULTIMEDIA

Doors & Locks

After pressing the “Doors & Locks” button on the touch-
screen, the following settings will be available:

Setting Name

Selectable Options

Auto Unlock On Exit

Off

NOTE:
When this feature is selected, all doors will unlock when the vehicle is stopped and the transmission is in the PARK
or NEUTRAL position and the driver’s door is opened.

Flash Lights With Lock

Off

Horn With Lock

Off

Horn With Remote Start — If Equipped

Off

Remote Door Unlock/Door Unlock

Driver

All

NOTE:
When “Driver” is selected, only the driver’s door will unlock on the first push of the key fob unlock button, you
must push the key fob unlock button twice to unlock the passenger’s doors. When “All” is selected, all of the doors
will unlock on the first press of the key fob unlock button. If “All” is programmed, all doors will unlock no matter
which Passive Entry equipped door handle is grasped. If “Driver” is programmed, only the driver’s door will unlock
when the driver’s door is grasped. Touching the handle more than once will only result in the driver’s door opening
once. If the driver’s door is opened, the interior door lock/unlock switch can be used to unlock all doors (or use key
fob).

MULTIMEDIA

465

Setting Name

Selectable Options

Auto Door Locks — If Equipped

Off

NOTE:
When this feature is selected, all doors will lock automatically when the vehicle reaches a speed of 12 mph
(20 km/h).

Auto Comfort Systems — If Equipped

After pressing the “Auto-On Comfort Systems” button on
the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Auto-On Driver Heated/Ventilated Seat & Steering

Wheel With Vehicle Start — If Equipped

Off

Remote Start

All Starts

NOTE:
When this feature is selected, the driver’s heated seat and heated steering wheel will automatically turn on when
temperatures are below 40° F (4.4° C). When temperatures are above 80° F (26.7° C), the driver vented seat will turn
on.

466

MULTIMEDIA

Engine Off Options

After pressing the “Engine Off Options” button on the
touchscreen, the following settings will be available:

Setting Name

Selectable Options

Headlight Off Delay

0 sec

30 sec

60 sec

90 sec

NOTE:
When this feature is selected, it allows the adjustment of the amount of time the headlights remain on after the en-
gine is shut off.

Radio Off Delay

0 min

20 min

NOTE:
When this feature is selected, the radio will stay on for a preset time after the ignition key is turned to STOP/OFF.

MULTIMEDIA

467

Jeep Compass (2019 year). Instruction - part 29
