NOTE:

If equipped, the rear cargo area power outlet can be

switched from “ignition” only to constant “battery” pow-
ered all the time. See an authorized dealer for details.

WARNING!

To avoid serious injury or death:
• Only devices designed for use in this type of outlet

should be inserted into any 12 Volt outlet.

• Do not touch with wet hands.

(Continued)

WARNING! (Continued)

• Close the lid when not in use and while driving the

vehicle.

• If this outlet is mishandled, it may cause an electric

shock and failure.

CAUTION!

• Many accessories that can be plugged in draw power

from the vehicle’s battery, even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent the
engine from starting.

• Accessories that draw higher power (i.e., coolers,

vacuum cleaners, lights, etc.) will degrade the battery
even more quickly. Only use these intermittently and
with greater caution.

• After the use of high power draw accessories, or long

periods of the vehicle not being started (with acces-
sories still plugged in), the vehicle must be driven a
sufficient length of time to allow the generator to
recharge the vehicle’s battery.

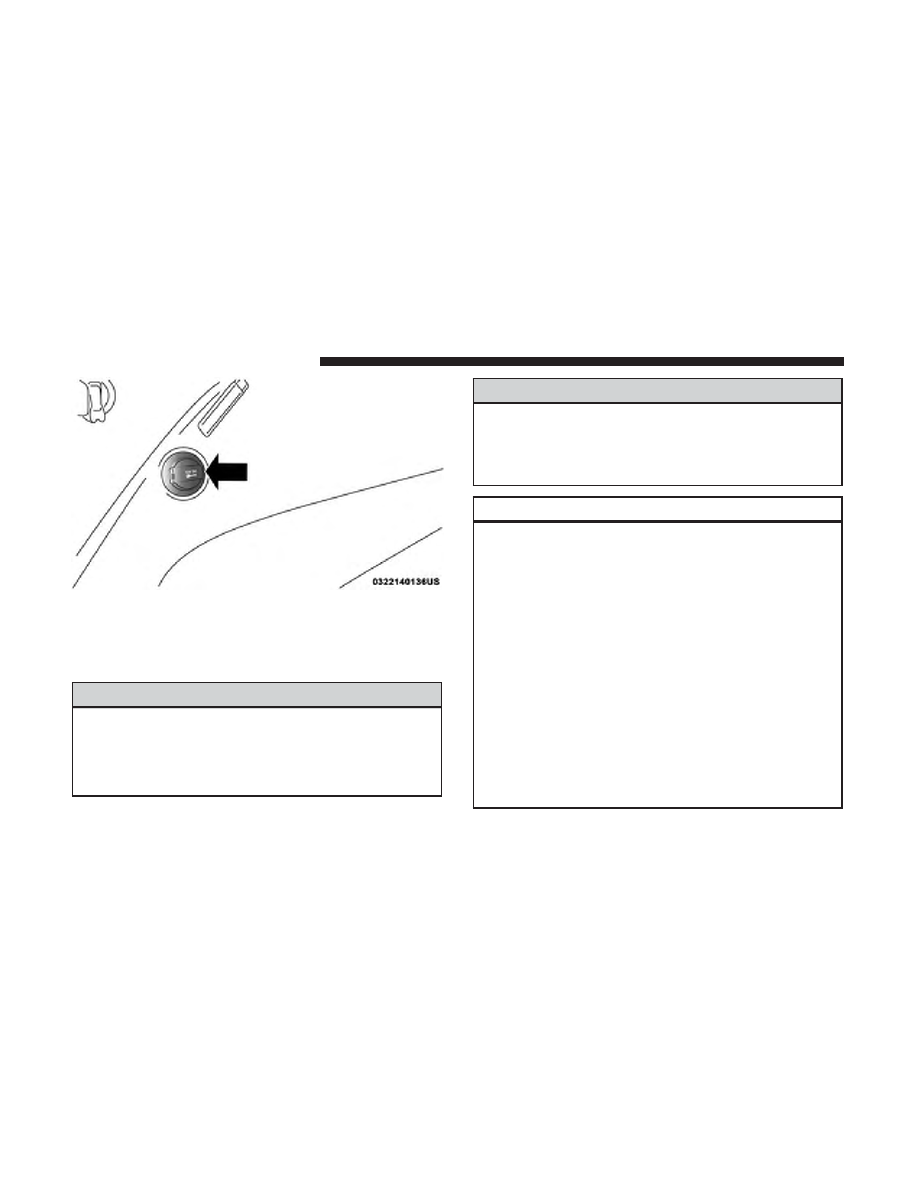

Rear Cargo Area Power Outlet — If Equipped

100

GETTING TO KNOW YOUR VEHICLE

Power Inverter — If Equipped

There is a 115 Volt, 150 Watt inverter outlet located on the
back of the center console to convert DC current to AC
current. This outlet can power cellular phones, electronics
and other low power devices requiring power up to 150
Watts. Certain high-end game consoles will exceed this
power limit, as will most power tools.

To turn on the power inverter outlet, simply plug in the
device. The outlet automatically turns off when the device
is unplugged.

The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded, the
power inverter will automatically shut down. Once the
electrical device has been removed from the outlet the
inverter should automatically reset. To avoid overloading
the circuit, check the power ratings on electrical devices
prior to using the inverter.

WARNING!

To avoid serious injury or death:
• Do not insert any objects into the receptacles.

• Do not touch with wet hands.

• Close the lid when not in use.

• If this outlet is mishandled, it may cause an electric

shock and failure.

ROOF LUGGAGE RACK — IF EQUIPPED

The load carried on the roof, when equipped with a
luggage rack, must not exceed 150 lbs (68 kg), and it should
be uniformly distributed over the cargo area.

Crossbars should always be used whenever cargo is placed
on the roof rack. Check the straps frequently to be sure that
the load remains securely attached.

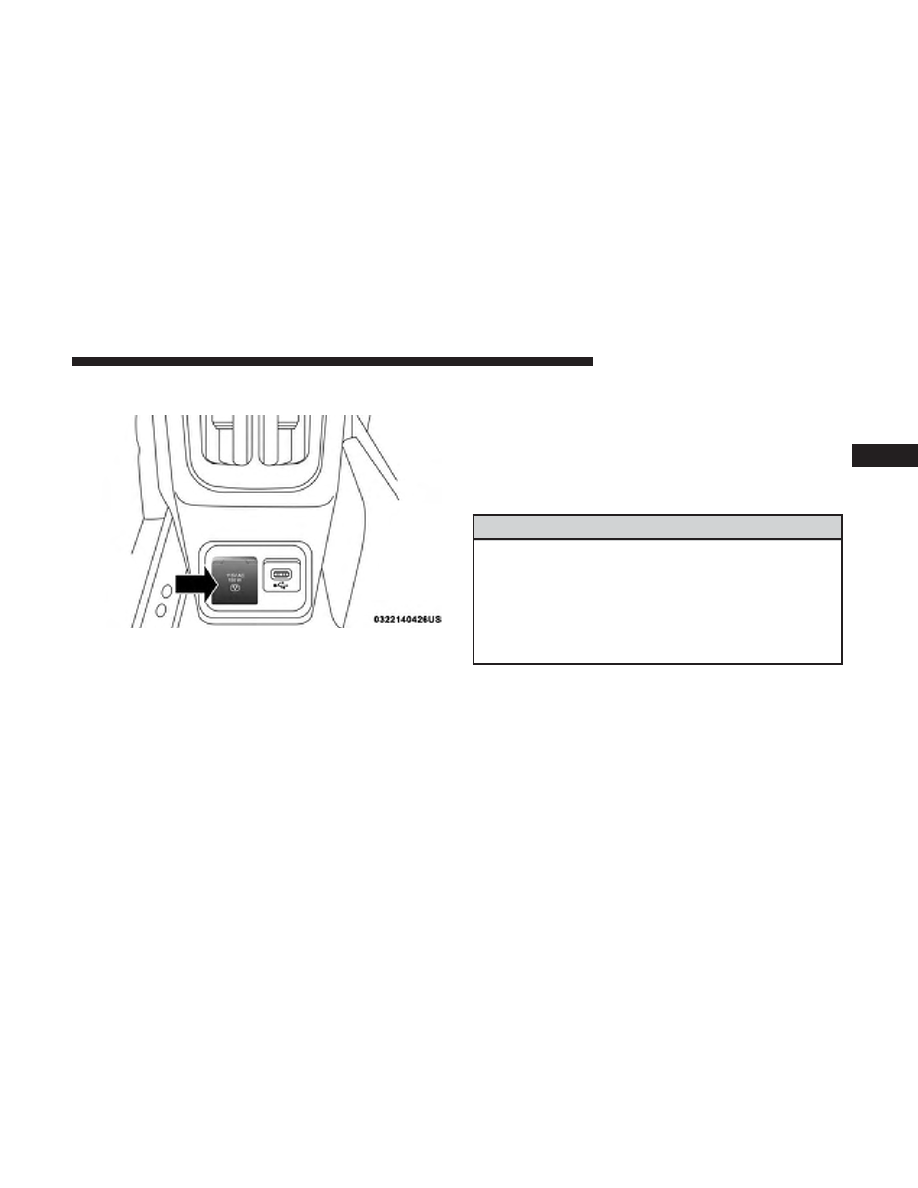

Power Inverter Location

GETTING TO KNOW YOUR VEHICLE

101

NOTE:

Crossbars can be purchased at your authorized

dealer through Mopar parts.

External racks do not increase the total load carrying
capacity of the vehicle. Be sure that the total occupant and
luggage load inside the vehicle, plus the load on the
luggage rack, do not exceed the maximum vehicle load
capacity.

WARNING!

Cargo must be securely tied down before driving your
vehicle. Improperly secured loads can fly off the ve-
hicle, particularly at high speeds, resulting in personal
injury or property damage. Follow the roof rack cau-
tions when carrying cargo on your roof rack.

CAUTION!

• To avoid damage to the roof rack and vehicle, do not

exceed the maximum roof rack load capacity. Always
distribute heavy loads as evenly as possible and
secure the load appropriately.

(Continued)

CAUTION! (Continued)

• Long loads, which extend over the windshield,

should be secured to both the front and rear of the
vehicle.

• Place a blanket or other protection between the

surface of the roof and the load.

• Travel at reduced speeds and turn corners carefully

when carrying large or heavy loads on the roof rack.
Wind forces, due to natural causes or nearby truck
traffic, can add sudden upward loads. It is recom-
mended to not carry large flat loads, such as wood
panels or surfboards, which may result in damage to
the cargo or your vehicle.

• Load should always be secured to cross bars first,

with tie down loops used as additional securing
points if needed. Tie loops are intended as supple-
mentary tie down points only. Do not use ratcheting
mechanisms with the tie loops. Check the straps
frequently to be sure that the load remains securely
attached.

102

GETTING TO KNOW YOUR VEHICLE

Instrument Cluster Descriptions

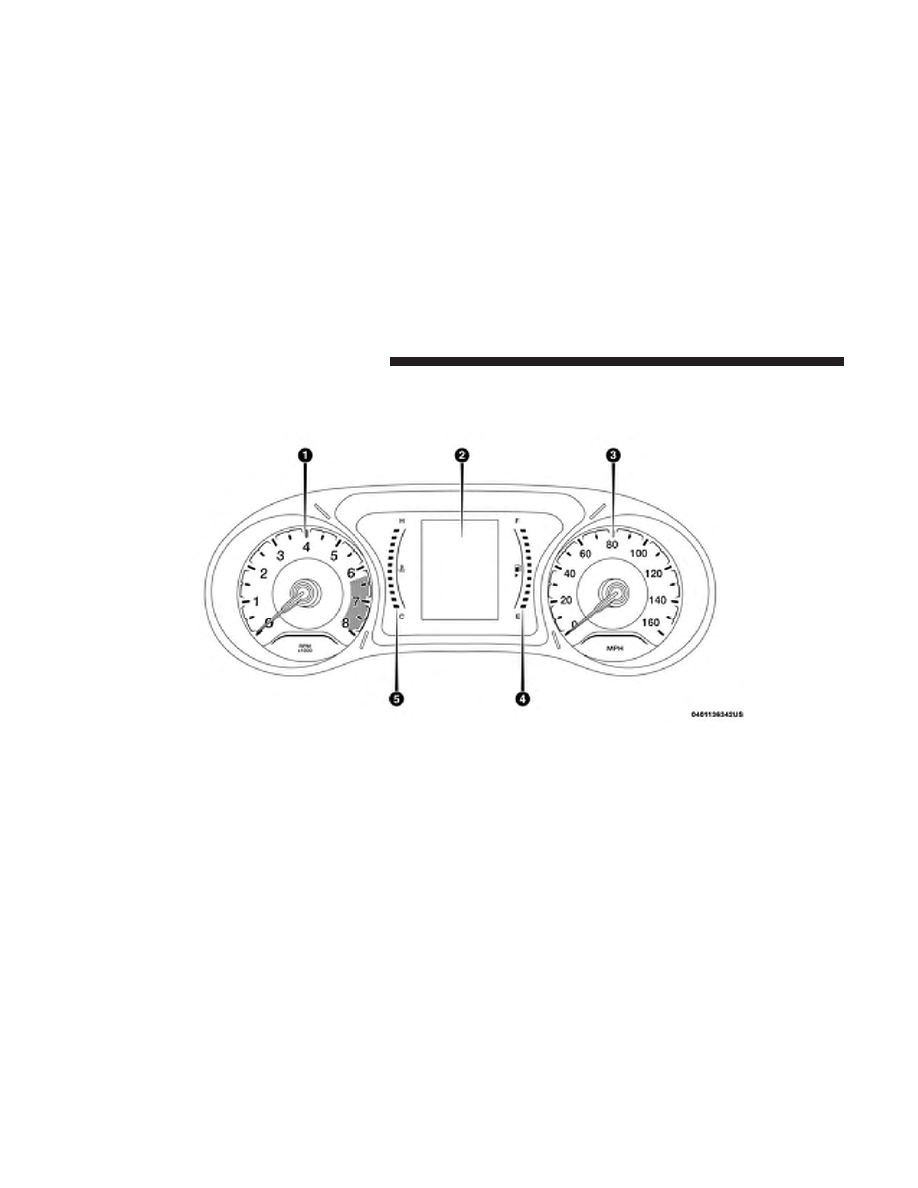

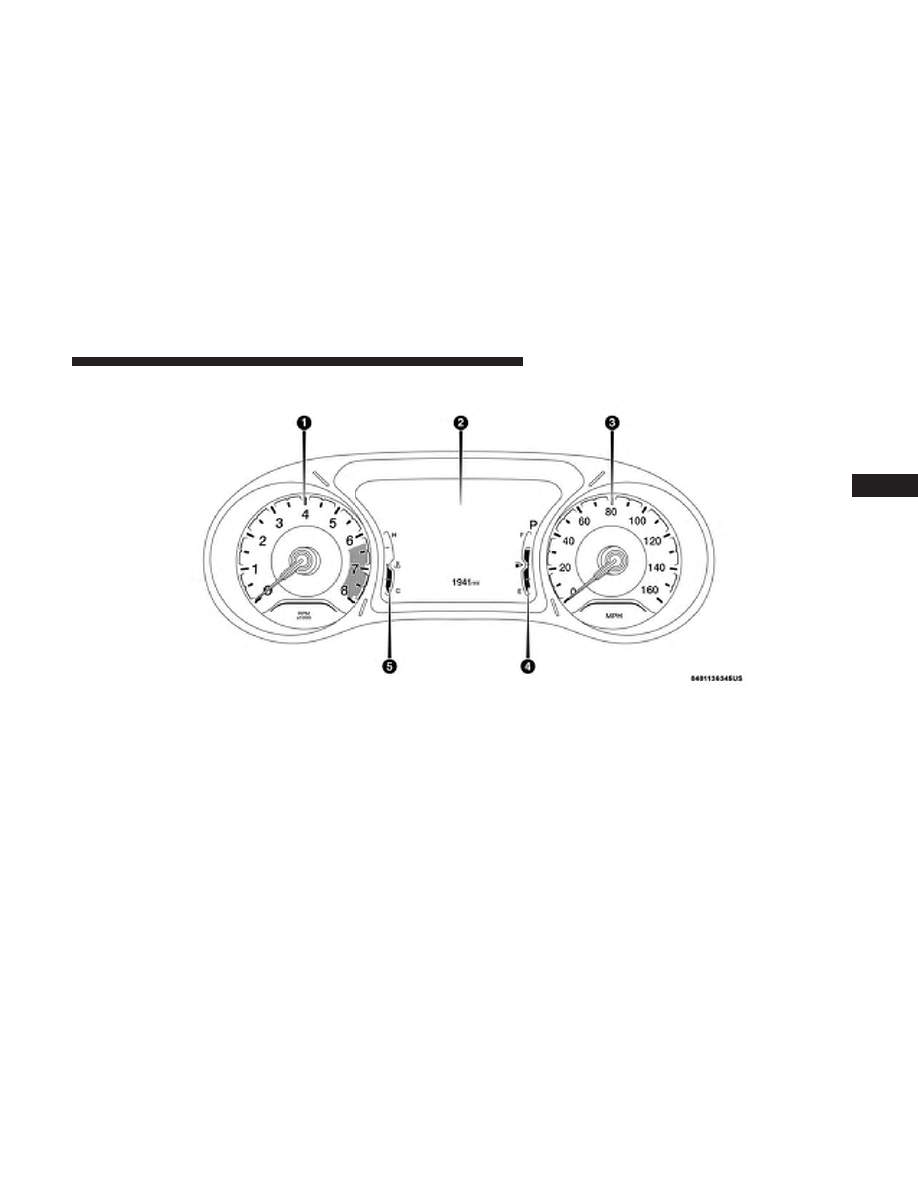

1. Tachometer

• Indicates the engine speed in revolutions per minute

(RPM x 1000).

2. Instrument Cluster Display

• The instrument cluster display features a driver-

interactive display. Refer to “Instrument Cluster Dis-
play” in “Getting To Know Your Instrument Panel” for
further information.

Premium Instrument Cluster

GETTING TO KNOW YOUR INSTRUMENT PANEL

105

3. Speedometer

• Indicates vehicle speed.

4. Fuel Gauge

• The gauge shows the level of fuel in the fuel tank when

the ignition switch is in the ON/RUN position.

•

The fuel pump symbol points to the side of the

vehicle where the fuel door is located.

5. Temperature Gauge

• The temperature gauge shows engine coolant tem-

perature. Any reading within the normal range indi-
cates that the engine cooling system is operating
satisfactorily.

• The gauge pointer will likely indicate a higher tem-

perature when driving in hot weather or up mountain
grades. It should not be allowed to exceed the upper
limits of the normal operating range.

WARNING!

A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer for
service if your vehicle overheats.

CAUTION!

Driving with a hot engine cooling system could dam-
age your vehicle. If the temperature gauge reads “H”
pull over and stop the vehicle. Idle the vehicle with the
air conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on the
“H”, turn the engine off immediately and call an
authorized dealer for service.

NOTE:

The hard telltales will illuminate for a bulb check

when the ignition is first cycled.

INSTRUMENT CLUSTER DISPLAY

Your vehicle may be equipped with an instrument cluster
display, which offers useful information to the driver. With
the ignition in the STOP/OFF mode, opening/closing of a
door will activate the display for viewing, and display the
total miles, or kilometers, in the odometer. Your instrument
cluster display is designed to display important informa-
tion about your vehicle’s systems and features. Using a
driver interactive display located on the instrument panel,
your instrument cluster display can show you how sys-
tems are working and give you warnings when they aren’t.

106

GETTING TO KNOW YOUR INSTRUMENT PANEL

The steering wheel mounted controls allow you to scroll
through and enter the main menus and submenus. You can
access the specific information you want and make selec-
tions and adjustments.

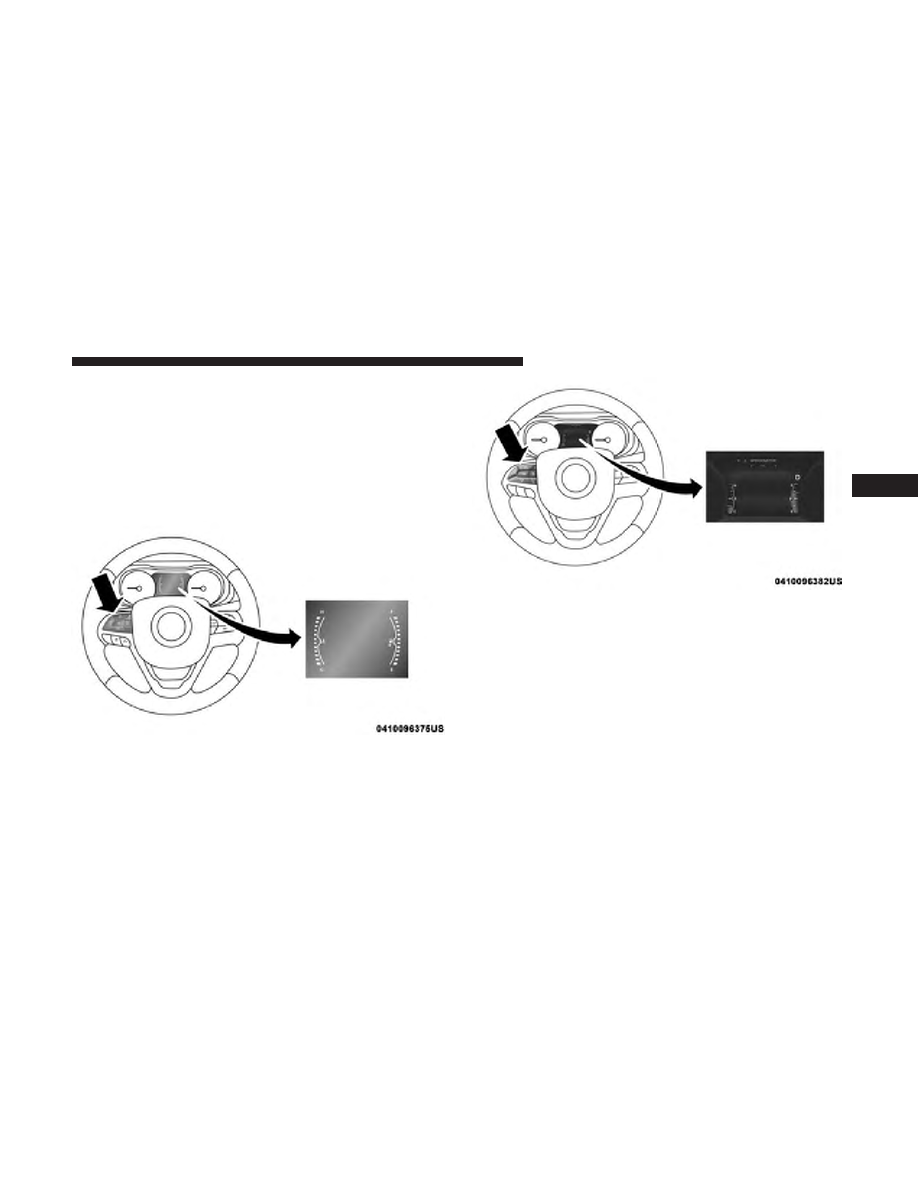

Instrument Cluster Display Location And Controls

The instrument cluster display features a driver-interactive
display that is located in the instrument cluster.

The instrument cluster display menu items consist of the
following as equipped:
• Speedometer
• Vehicle Info
• Driver Assist
• Fuel Economy
• Trip
• Stop/Start (If Equipped)

Base Instrument Cluster Display Location And Controls

Premium Instrument Cluster Display Location And

Controls

GETTING TO KNOW YOUR INSTRUMENT PANEL

107

• Audio
• Messages
• Screen Setup
• Vehicle Settings
The systems allow the driver to select information by
pushing the following buttons mounted on the steering
wheel:

• Up Arrow Button

Push and release the up arrow button to scroll
upward through the main menu and submenus.

• Down Arrow Button

Push and release the down arrow button to scroll
downward through the main menu and
submenus.

• Right Arrow Button

Push and release the right arrow button to access
the information screens or submenu screens of a
main menu item.

• Left Arrow Button

Push and release the left arrow button to access
the information screens or submenu screens of a
main menu item.

• OK Button
Push the OK button to access/select the information
screens or submenu screens of a main menu item. Push and
hold the OK button for one second to reset displayed/
selected features that can be reset.

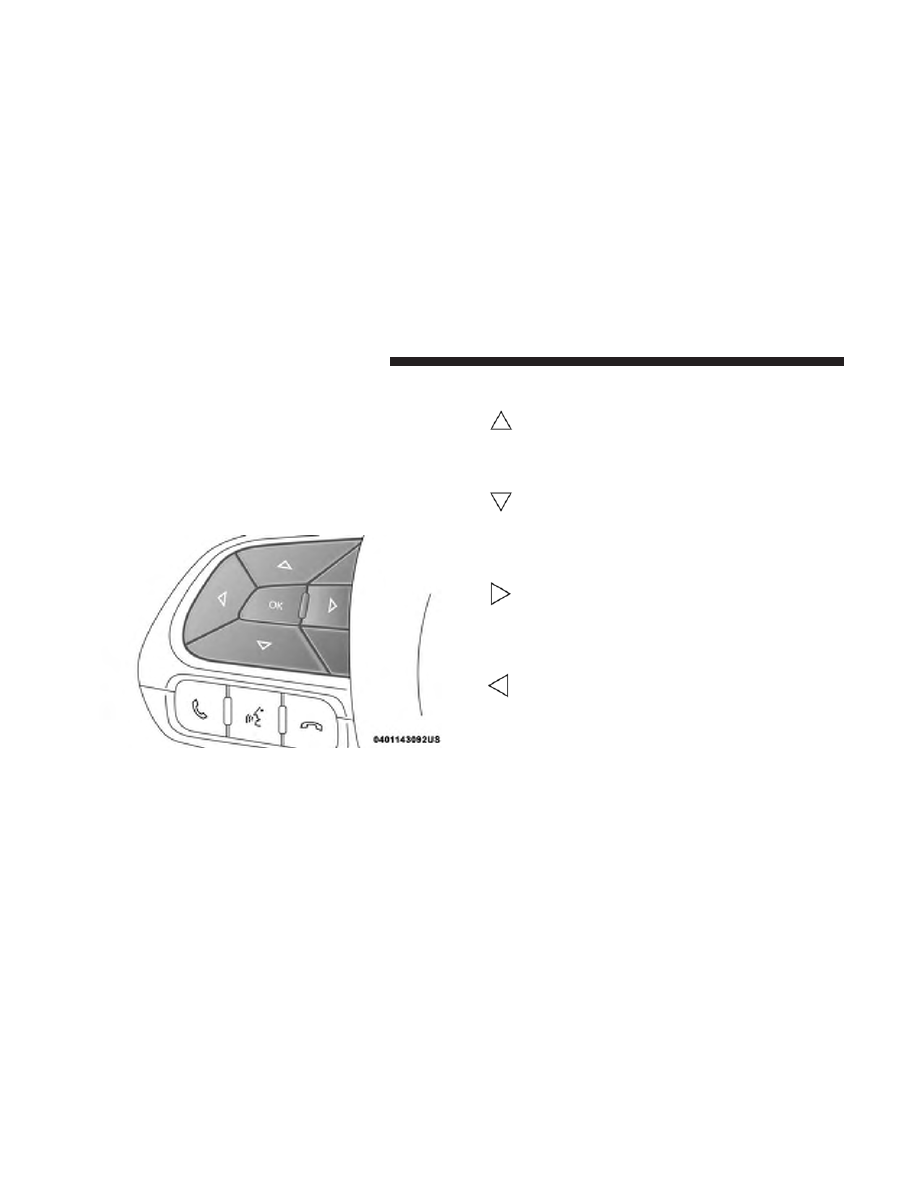

Instrument Cluster Display Control Buttons

108

GETTING TO KNOW YOUR INSTRUMENT PANEL

Oil Change Reset
• Your vehicle is equipped with an engine oil change

indicator system. The “Oil Change Due” message will
display in the instrument cluster display for five seconds
after a single chime has sounded, to indicate the next
scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate, dependent
upon your personal driving style.

• Unless reset, this message will continue to display each

time the ignition is cycled to the ON/RUN position.

To reset the oil change indicator after performing the
scheduled maintenance, refer to the following procedure:

1. Without pressing the brake pedal, push the ENGINE

START/STOP button and cycle the ignition to the ON/
RUN position (do not start the engine).

2. Fully press the accelerator pedal, slowly, three times

within ten seconds.

3. Cycle the ignition to the OFF/LOCK position.

NOTE:

If the indicator message illuminates when you

start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.

Instrument Cluster Display Menu Items

NOTE:

The instrument cluster display menu items display

in the center of the instrument cluster. Menu items may
vary depending on your vehicle features.

Speedometer

Push and release the up or down arrow button until the
Speedometer Menu item is displayed in the instrument
cluster display. Push and release the OK button to change
the speedometer scale from MPH to km/h (or vice versa).

Vehicle Info (Customer Information Features)

Push and release the up or down arrow button until the
Vehicle Info Menu item is displayed in the instrument
cluster display. Push and release the left or right arrow
button to cycle through the Vehicle Info submenus and
follow the prompts on each screen as needed.

1. Tire Pressure

• If tire pressure is OK for all tires a vehicle ICON is

displayed with tire pressure values in each corner of
the ICON.

GETTING TO KNOW YOUR INSTRUMENT PANEL

109

• If one or more tires have low pressure, “Inflate Tire To

XX” is displayed with the vehicle ICON and the tire
pressure values in each corner of the ICON with the
pressure value of the low tire displayed in a different
color than the other tire pressure value.

• If the Tire Pressure system requires service, “Service

Tire Pressure System” is displayed.

• Tire PSI is an information only function and cannot be

reset.

• Refer to “Tire Pressure Monitoring System (TPMS)”

under “Safety” for further information.

2. Coolant Temperature

Displays the actual coolant temperature.

3. Transmission Temperature — Automatic Transmission

Only

Displays the actual transmission temperature.

4. Oil Temperature

Displays the level of oil temperature.

5. Battery Voltage

Displays the actual battery voltage

Fuel Economy

Push and release the up or down arrow button until the
Fuel Economy menu title is displayed in the instrument
cluster display. Push and hold the OK button to reset
average fuel economy feature.
• Range – The display shows the estimated distance (mi

or km) that can be traveled with the fuel remaining in
the tank. When the Range value is less than 30 miles
(48 km) estimated driving distance, the Range display
will change to a “LOW FUEL” message. Adding a
significant amount of fuel to the vehicle will turn off the
“LOW FUEL” message and a new Range value will
display. Range cannot be reset through the OK button.

NOTE:

Significant changes in driving style or vehicle

loading will greatly affect the actual drivable distance of
the vehicle, regardless of the Range displayed value.
• Average – This display shows the average fuel economy

(MPG, or L/100 km, or km/L) since the last reset.

• Current – This display shows the current fuel economy

(MPG, or L/100 km, or km/L) while driving.

110

GETTING TO KNOW YOUR INSTRUMENT PANEL

Driver Assist

Push and release the up or down arrow button until the
Driver Assist menu title is displayed and highlighted in the
instrument cluster display.

LaneSense — If Equipped

The instrument cluster display displays the current Lane-
Sense system settings. The information displayed depends
on LaneSense system status and the conditions that need to
be met. Refer to “LaneSense — If Equipped” in “Starting
And Operating” for further information.

Trip Info

Push and release the up or down arrow button until the
Trip menu title is displayed in the instrument cluster
display. Toggle the left or right arrow button to select Trip
A or Trip B. The Trip information will display the follow-
ing:
• Distance – Shows the total distance (mi or km) traveled

for Trip A or Trip B since the last reset.

• Average Fuel Economy – Shows the average fuel

economy (MPG or L/100 km or km/L) of Trip A or Trip
B since the last reset.

• Elapsed Time – Shows the total elapsed time of travel

since Trip A or Trip B has been reset.

Hold the OK button to reset feature information.

Stop/Start – If Equipped

Push and release the up or down arrow button until the
Stop/Start menu title is displayed in the instrument cluster
display.

Audio

Push and release the up or down arrow button until the
Audio menu title is displayed in the instrument cluster
display.

Stored Messages

Push and release the up or down arrow button until the
Messages Menu Icon is highlighted in the instrument
cluster display. This feature shows the number of stored
warning messages. Pushing the left or right arrow button
will allow you to scroll through the stored messages.

GETTING TO KNOW YOUR INSTRUMENT PANEL

111

Screen Setup

Push and release the up or down arrow button until the
Screen Setup Menu Icon/Title is highlighted in the instru-
ment cluster display. Push and release the OK button to
enter the sub-menus and follow the prompts on the screen
as needed. The Screen Setup feature allows you to change
what information is displayed in the instrument cluster as
well as the location that information is displayed.

Screen Setup Driver Selectable Items

Upper Left
• None
• Compass (default setting)
• Outside Temp
• Date
• Time
• Ignition State
• Range
• Fuel Economy Average — Premium Cluster
• Fuel Economy Current — Premium Cluster

Upper Right
• None
• Compass
• Outside Temp
• Date
• Time
• Ignition State (default setting)
• Range
• Fuel Economy Average — Premium Cluster
• Fuel Economy Current — Premium Cluster

Restore Defaults (Restores All Settings To Default Set-
tings)
• Yes
• No

Current Gear — If Equipped
• On
• Off (default setting)

112

GETTING TO KNOW YOUR INSTRUMENT PANEL

Center
• None
• Compass
• Menu Title (default setting)
• Date
• Outside Temp
• Time
• Range
• Fuel Economy Average
• Fuel Economy Current
• Audio Info
• Trip A Distance
• Trip B Distance
• Speedometer

Vehicle Settings — If Equipped

Push and release the up or down arrow button until the
Vehicle Setup Menu item is displayed in the instrument
cluster display. This menu item allows you to change the
settings for the following:
• Display
• Units
• Clock and Date
• Security
• Safety and Assistance
• Lights
• Doors and Locks
• Compass — If Equipped

NOTE:

Most vehicle settings will be moved into the radio

if a touchscreen radio is present, please refer to “Uconnect
Settings” in “Multimedia” for further information.

GETTING TO KNOW YOUR INSTRUMENT PANEL

113

Display

By selecting Display, the following settings can be selected:
• Language: select the language in which to display the

information/warnings.

• Nav. Repetition: displays information relating to the

navigation mode.

Units

By selecting Units, the unit of measurement to use for
displaying various values can be set. Possible options are:
• US
• Metric
• Custom: allows individual changes of units for tempera-

ture, distance, consumption, and tire pressure.

Clock And Date

By selecting Clock and Date, the time and date can be set.
Possible options are:
• Set Time: adjust hours/minutes
• Set Format: adjust the time format “12h” (12 hours) or

“24h” (24 hours)

• Set Date: adjust day/month/year

Security

Passenger Air Bag Disable (PAD): a selection of Passenger
Air Bag Disable (ON/OFF) may be made if a child restraint
must be installed in the front seat.

Safety And Assistance

By selecting the item Safety and Assistance, the following
adjustments can be made:
• ParkSense (If Equipped): a selection of the type of

information provided by ParkSense

• Front ParkSense Volume (If Equipped): selection of the

volume of the beeps provided by the front ParkSense

• Rear ParkSense Volume (If Equipped): selection of the

volume of the beeps provided by the rear ParkSense

• FCW Warning (If Equipped): a selection of operating

modes of the system Forward Collision Warning Plus

• FCW Sensitivity (If Equipped): a selection of the “readi-

ness” of intervention of the Forward Collision Warning
Plus system, based on the distance to the obstacle

• Rain Sensing Wipers (If Equipped): enabling/disabling

the automatic operation of wipers in the event of rain

114

GETTING TO KNOW YOUR INSTRUMENT PANEL

• LaneSense Force (If Equipped): selection of the force to

be applied to the steering wheel to put the car in the
roadway through the system of electrical drive, in case
of operation of the system LaneSense

• LaneSense Warning (If Equipped): a selection of the

“readiness” of intervention of LaneSense

• Buzzer Volume: There are 4 options: Off, Low, Medium,

Loud

• Brake Service (If Equipped): activation of the procedure

to carry out braking system maintenance

• Auto Park Brake (If Equipped): enable/disable auto

insertion of the Electric Parking Brake

• Speed Warning: Set the vehicle speed limit, which the

driver is notified through a visual and acoustic signaling
(display of a message and a symbol on the display).
When the speed warning is set, the icon (a circle with the
set speed inside of it) should remain visualized until the
driver turns the Speed Warning off. If the driver ex-
ceeded the set speed, a single chime will sound along
with a pop up message of “Speed Warning Exceeded.”
Driver may also turn the Speed Warning “OFF” in the
Instrument Cluster Display should you choose not to
use this feature. To turn the feature off, the driver must

use the Instrument Cluster Display buttons to navigate
to the Speed Warning, and then press the up or down
arrow until you reach “OFF” rather than a speed.

• Hill Start Assist: Activation/Deactivation of the Hill

Start Assist system

Lights

By selecting Lights, the following adjustments can be made:
• Ambient Lights (If Equipped): adjust the sensitivity of

lighting in the doors and overhead console

• Lights Off Delay: set the delay for headlight shutoff after

engine shutoff

• Headlight Sensitivity: adjust the sensitivity of headlight

brightness

• Greeting Lights: activate the direction indicators when

unlocking the doors

• Daytime Lights (If Equipped): activate/deactivate the

daytime running lights

• Cornering Lights (If Equipped): activate/deactivate the

cornering lights

• Auto High Beam (If Equipped): activate/deactivate the

automatic high beam headlights

GETTING TO KNOW YOUR INSTRUMENT PANEL

115

Jeep Compass (2019 year). Instruction - part 7
