Traction Control System (TCS)

This system monitors the amount of wheel spin of each of
the driven wheels. If wheel spin is detected, brake
pressure is applied to the slipping wheel(s) and engine
power is reduced to provide enhanced acceleration and
stability. A feature of the TCS system functions similar to
a limited-slip differential and controls the wheel spin
across a driven axle. If one wheel on a driven axle is
spinning faster than the other, the system will apply the
brake of the spinning wheel. This will allow more engine
torque to be applied to the wheel that is not spinning.
This feature remains active even if TCS and ESP are in
either the “Partial Off” or “Full Off” modes. Refer to
“Electronic Stability Program (ESP)” in this section for
more information.

Brake Assist System (BAS)

The BAS is designed to optimize the vehicle’s braking
capability during emergency braking maneuvers. The
system detects an emergency braking situation by sens-
ing the rate and amount of brake application and then
applies optimum pressure to the brakes. This can help
reduce braking distances. The BAS complements the
anti-lock brake system (ABS). Applying the brakes very
quickly results in the best BAS assistance. To receive the
benefit of the system, you must apply continuous brak-
ing pressure during the stopping sequence (do not
“pump” the brakes). Do not reduce brake pedal pressure
unless braking is no longer desired. Once the brake pedal
is released, the BAS is deactivated.

STARTING AND OPERATING

273

WARNING!

The BAS cannot prevent the natural laws of physics
from acting on the vehicle, nor can it increase the
traction afforded by prevailing road conditions. The
BAS cannot prevent accidents, including those re-
sulting from excessive speed in turns, driving on
very slippery surfaces, or hydroplaning. Only a safe,
attentive, and skillful driver can prevent accidents.
The capabilities of a BAS-equipped vehicle must
never be exploited in a reckless or dangerous manner
which could jeopardize the user’s safety or the safety
of others.

Electronic Roll Mitigation (ERM)

This system anticipates the potential for wheel lift by
monitoring the driver’s steering wheel input and the
speed of the vehicle. When ERM determines that the rate
of change of the steering wheel angle and vehicle speed

are sufficient to potentially cause wheel lift, it then
applies the brake of the appropriate wheel and may also
reduce engine power to lessen the chance that wheel lift
will occur. ERM will only intervene during very severe or
evasive driving maneuvers.

ERM can only reduce the chance of wheel lift occurring
during severe or evasive driving maneuvers. It cannot
prevent wheel lift due to other factors such as road
conditions, leaving the roadway or striking objects or
other vehicles.

NOTE:

Anytime the ESP system is in the “Full Off”

mode, ERM is disabled. Refer to “Electronic Stability
Program (ESP)” for a complete explanation of the avail-
able ESP modes.

274

STARTING AND OPERATING

WARNING!

Many factors, such as vehicle loading, road condi-
tions and driving conditions, influence the chance
that wheel lift or rollover may occur. ERM cannot
prevent all wheel lift or rollovers, especially those
that involve leaving the roadway or striking objects
or other vehicles. Only a safe, attentive, and skillful
driver can prevent accidents. The capabilities of an
ERM-equipped vehicle must never be exploited in a
reckless or dangerous manner which could jeopar-
dize the user’s safety or the safety of others.

Electronic Stability Program (ESP)

This system enhances directional control and stability of
the vehicle under various driving conditions. ESP cor-
rects for oversteering or understeering of the vehicle by
applying the brake of the appropriate wheel to assist in

counteracting the oversteer or understeer condition. En-
gine power may also be reduced to help the vehicle
maintain the desired path.

ESP uses sensors in the vehicle to determine the vehicle
path intended by the driver and compares it to the actual
path of the vehicle. When the actual path does not match
the intended path, ESP applies the brake of the appropri-
ate wheel to assist in counteracting the oversteer or
understeer condition.

• Oversteer - when the vehicle is turning more than

appropriate for the steering wheel position.

• Understeer - when the vehicle is turning less than

appropriate for the steering wheel position.

The “ESP/TCS Indicator Light” located in the instrument
cluster will start to flash as soon as the tires lose traction
and the ESP system becomes active. The “ESP/TCS
Indicator Light” also flashes when the TCS is active. If the

STARTING AND OPERATING

275

“ESP/TCS Indicator Light” begins to flash during accel-
eration, ease up on the accelerator and apply as little
throttle as possible. Be sure to adapt your speed and
driving to the prevailing road conditions.

WARNING!

The Electronic Stability Program (ESP) cannot pre-
vent the natural laws of physics from acting on the
vehicle, nor can it increase the traction afforded by
prevailing road conditions. ESP cannot prevent acci-
dents, including those resulting from excessive speed
in turns, driving on very slippery surfaces, or hydro-
planing. Only a safe, attentive, and skillful driver can
prevent accidents. The capabilities of an ESP-
equipped vehicle must never be exploited in a reck-
less or dangerous manner which could jeopardize the
user’s safety or the safety of others.

The ESP system has three available operating modes in
4WD HIGH range, two available operating modes on
two-wheel drive vehicles, and one operating mode in
4WD LOW range.

High Range (Four-Wheel Drive Models) or
Two-Wheel Drive Models

On
This is the normal operating mode for ESP in 4WD HIGH
range and in two-wheel drive vehicles. Whenever the
vehicle is started or the transfer case (if equipped) is
shifted from 4WD LOW range or NEUTRAL back to
4WD HIGH range, the ESP system will be in this “On”
mode. This mode should be used for most driving
situations. ESP should only be turned to “Partial Off” or
“Full Off” mode for specific reasons as noted below.

276

STARTING AND OPERATING

Partial Off
This mode is entered by momentarily pressing the “ESP
OFF” switch. When in “Partial Off” mode, the TCS
portion of ESP, except for the “limited slip” feature
described in the TCS section, has been disabled and the
“ESP/TCS Indicator Light” will be illuminated. All other
stability features of ESP function normally. This mode is
intended to be used if the vehicle is in deep snow, sand,
or gravel conditions and more wheel spin than ESP
would normally allow is required to gain traction. To
turn ESP on again, momentarily press the “ESP OFF”
switch. This will restore the normal “ESP On” mode of
operation.

NOTE:

To improve the vehicle’s traction when driving

with snow chains, or starting off in deep snow, sand, or
gravel, it may be desirable to switch to the “Partial Off”
mode by pressing the “ESP OFF” switch. Once the
situation requiring ESP to be switched to the “Partial Off”

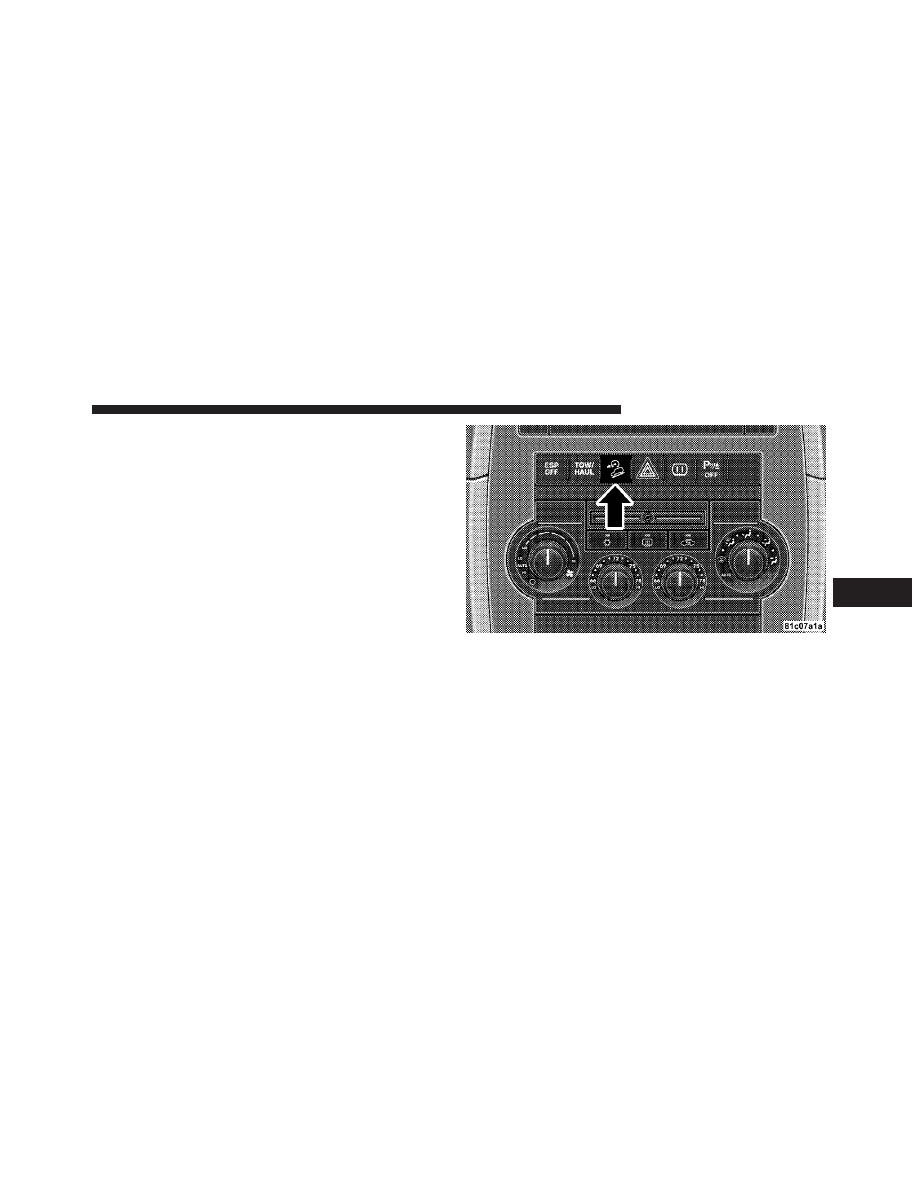

ESP OFF Switch

STARTING AND OPERATING

277

mode is overcome, turn ESP back on by momentarily
pressing the “ESP OFF” switch. This may be done while
the vehicle is in motion.

Full Off (Four-Wheel Drive Models Only)
This mode is intended for off-highway or off-road use
when ESP stability features could inhibit vehicle maneu-
verability due to trail conditions. This mode is entered by
pressing and holding the “ESP OFF” switch for five
seconds when the vehicle is stopped and the engine is
running. After five seconds, the “ESP/TCS Indicator
Light” will illuminate, and the “ESP OFF” message will
appear in the Electronic Vehicle Information Center
(EVIC). Refer to “Electronic Vehicle Information Center
(EVIC)” in Section 4 of this manual for more information.

In this mode, ESP and TCS, except for the “limited slip”
feature described in the TCS section, are turned off until
the vehicle reaches a speed of 40 mph (64 km/h). At
40 mph (64 km/h), the system returns to “Partial Off”

mode, described above. When the vehicle speed drops
below 35 mph (56 km/h), the ESP system shuts off. ESP
is deactivated at low vehicle speeds so that it will not
interfere with off-road driving, but ESP function returns
to provide the stability feature at speeds above 40 mph
(64 km/h). The “ESP/TCS Indicator Light” will always
be illuminated when ESP is off. To turn ESP on again,
momentarily press the “ESP OFF” switch. This will
restore the normal “ESP On” mode of operation.

NOTE:

The “ESP OFF” message will display, and the

audible chime will sound, when the shift lever is placed
in the PARK position from any other position, and then
moved out of the PARK position. This will occur even if
the message was previously cleared.

278

STARTING AND OPERATING

WARNING!

With the ESP switched off, the enhanced vehicle
stability offered by ESP and ERM are unavailable. In
an emergency evasive maneuver, the ESP and ERM
systems will not engage to assist in maintaining
stability. The “Full Off” ESP mode is intended for
off-road use only.

4WD Low Range

Full Off
This is the normal operating mode for ESP in 4WD LOW
range. Whenever the vehicle is started in 4WD LOW
range, or the transfer case (if equipped) is shifted from
4WD HIGH range or NEUTRAL to 4WD LOW range, the
ESP system will be in this “Full Off” mode. In 4WD LOW
range, ESP and TCS, except for the “limited slip” feature
described in the TCS section, are turned off until the
vehicle reaches a speed of 40 mph (64 km/h). At 40 mph

(64 km/h), the normal ESP stability function returns, but
TCS remains off. When the vehicle speed drops below
35 mph (56 km/h), the ESP system shuts off. ESP is
deactivated at low vehicle speeds in 4WD LOW range so
that it will not interfere with off-road driving, but ESP
function returns to provide the stability feature at speeds
above 40 mph (64 km/h). The “ESP/TCS Indicator
Light” will always be illuminated in 4WD LOW range
when ESP is off.

NOTE:

The “ESP OFF” message will display, and the

STARTING AND OPERATING

279

WARNING!

Trailer Sway Control (TSC)

TSC uses sensors in the vehicle to recognize an exces-
sively swaying trailer and will take the appropriate
actions to attempt to stop the sway. The system may
reduce engine power and apply the brake of the appro-
priate wheel(s) to counteract the sway of the trailer. TSC
will become active automatically once an excessively
swaying trailer is recognized. No driver action is re-
quired. Note that TSC cannot stop all trailers from
swaying. Always use caution when towing a trailer and

follow the trailer tongue weight recommendations. Refer
to “Trailer Towing” in Section 5 of this manual. When
TSC is functioning, the “ESP/TCS Indicator Light” will
flash, the engine power may be reduced and you may
feel the brakes being applied to individual wheels to
attempt to stop the trailer from swaying. TSC is disabled
when the ESP system is in the “Partial Off” or “Full Off”
modes.

WARNING!

If TSC activates while driving, slow the vehicle
down, stop at the nearest safe location, and adjust the
trailer load to eliminate trailer sway.

Hill Start Assist (HSA) – Four-Wheel Drive Models
With NV245 Two–Speed Transfer Case Only

The HSA system is designed to assist the driver when
starting a vehicle from a stop on a hill. HSA will maintain
the level of brake pressure the driver applied for a short

280

STARTING AND OPERATING

period of time after the driver takes their foot off of the
brake pedal. If the driver does not apply the throttle
during this short period of time, the system will release
brake pressure and the vehicle will roll down the hill. The
system will release brake pressure in proportion to the
amount of throttle applied as the vehicle starts to move in
the intended direction of travel.

HSA Activation Criteria
The following criteria must be met in order for HSA to
activate:

• Vehicle must be stopped.
• Vehicle must be on a 8% grade or greater hill.
• Gear selection matches vehicle uphill direction (i.e.,

vehicle facing uphill is in forward gear; vehicle back-
ing uphill is in REVERSE gear).

HSA will work in REVERSE and all forward gears when
the activation criteria have been met. The system will not
activate if the vehicle is placed in NEUTRAL or PARK.

WARNING!

There may be situations on minor hills (i.e., less than
8%), with a loaded vehicle, or while pulling a trailer,
when the system will not activate and slight rolling
may occur. This could cause a collision with another
vehicle or object. Always remember the driver is
responsible for braking the vehicle.

Towing with HSA
HSA will provide assistance when starting on a grade
when pulling a trailer.

STARTING AND OPERATING

281

WARNING!

• If you use a trailer brake controller with your

trailer, your trailer brakes may be activated and
deactivated with the brake switch. If so, when the
brake pedal is released, there may not be enough
brake pressure to hold the vehicle and trailer on a
hill and this could cause a collision with another
vehicle or object behind you. In order to avoid
rolling down the hill while resuming acceleration,
manually activate the trailer brake prior to releas-
ing the brake pedal. Always remember the driver
is responsible for braking the vehicle.

(Continued)

WARNING! (Continued)

• HSA is not a parking brake. If you stop the vehicle

on a hill without putting the transmission in
PARK and using the parking brake, it will roll
down the hill and could cause a collision with
another vehicle or object. Always remember to use
the parking brake while parking on a hill, and that
the driver is responsible for braking the vehicle.

HSA Off
If you wish to turn off the HSA system, it can be done
using the Customer Programmable Features in the Elec-
tronic Vehicle Information Center (EVIC). Refer to “Elec-
tronic Vehicle Information Center (EVIC)” in Section 4 of
this manual.

282

STARTING AND OPERATING

Hill Descent Control (HDC) – Four-Wheel Drive
Models With NV245 Two–Speed Transfer Case
Only

HDC maintains vehicle speed while descending hills
during off-road driving situations and is available in
4WD LOW range only. To enable HDC (transfer case
must be in 4WD LOW range), press the HDC switch. If
the HDC switch is pressed when the vehicle is not in
4WD LOW range, the light in the switch will flash for five
seconds and HDC will not be enabled.

When HDC is properly enabled, the message “HILL
DESCENT CONTROL” will appear in the EVIC and the
light in the switch will be illuminated. HDC will auto-
matically apply the brakes to control downhill speed
when necessary. HDC has the capability to sense terrain

Hill Descent Switch

STARTING AND OPERATING

283

and will only activate when the vehicle is descending a
hill. It will usually not activate on level ground.

The HDC speed may be adjusted by the driver to suit the
driving conditions. The speed corresponds to the trans-
mission gear selected.

• 1st = 1 mph (1.6 km/h)
• 2nd = 2.5 mph (4 km/h)
• 3rd = 4 mph (6 km/h)
• 4th = 5.5 mph (9 km/h)
• 5th = 7.5 mph (12 km/h)
• REVERSE = 1 mph (1.6 km/h)
• NEUTRAL = 2.5 mph (4 km/h)
• PARK = HDC will not function

HDC also has the capability to sense rough terrain, and
will automatically adjust to a slightly slower set speed
[about 0.3 mph (0.5 km/h) than normal.]

HDC operation can be overridden with brake application
to slow the vehicle down below the HDC control speed.
Conversely, if more speed is desired during HDC control,
the accelerator pedal will increase vehicle speed in the
usual manner. When either the brake or the accelerator is
released, HDC will control the vehicle back to the origi-
nal set speed.

HDC is intended for low speed off-road driving only.
At vehicle speeds above 30 mph (48 km/h), HDC will no
longer function. When the vehicle speed drops below
30 mph (48 km/h), HDC function will automatically
resume and the vehicle speed will return to the chosen set
speed.

284

STARTING AND OPERATING

WARNING!

HDC is only intended to assist the driver in control-
ling vehicle speed when descending hills. The driver
must remain attentive to the driving conditions and
is responsible for maintaining a safe vehicle speed.

ESP/BAS Warning Light and ESP/TCS Indicator
Light

The malfunction indicator light for the ESP is
combined with the BAS indicator. The “ESP/
BAS Warning Light” and the “ESP/TCS Indi-
cator Light” in the instrument cluster both

come on when the ignition switch is turned to the ON
position. They should both go out with the engine
running.

If the “ESP/BAS Warning Light” comes on
continuously with the engine running, a mal-
function has been detected in either the ESP or
the BAS system, or both. If this light remains on

after several ignition cycles, and the vehicle has been
driven several miles at speeds greater than 30 mph
(48 km/h), see your authorized dealer as soon as possible
to have the problem diagnosed and corrected.

NOTE:

• The “ESP/TCS Indicator Light” and the “ESP/BAS

Warning Light” come on momentarily each time the
ignition switch is turned ON.

• Each time the ignition is turned ON, the ESP System

will be ON even if it was previously turned off.

• The ESP Control System will make buzzing or clicking

sounds when it is active. This is normal; the sounds
will stop when the ESP becomes inactive following the
maneuver that caused the ESP activation.

STARTING AND OPERATING

285

TIRE SAFETY INFORMATION

Tire Markings

NOTE:

• P (Passenger) - Metric tire sizing is based on U.S.

design standards. P-Metric tires have the letter “P”
molded into the sidewall preceding the size designa-
tion. Example: P215/65R15 95H.

• European-Metric tire sizing is based on European

design standards. Tires designed to this standard have
the tire size molded into the sidewall beginning with
the section width. The letter

⬙P⬙ is absent from this tire

size designation. Example: 215/65R15 96H.

• LT (Light Truck) - Metric tire sizing is based on U.S.

design standards. The size designation for LT-Metric
tires is the same as for P-Metric tires except for the
letters “LT” that are molded into the sidewall preced-
ing the size designation. Example: LT235/85R16.

• Temporary spare tires are high-pressure compact

spares designed for temporary emergency use only.

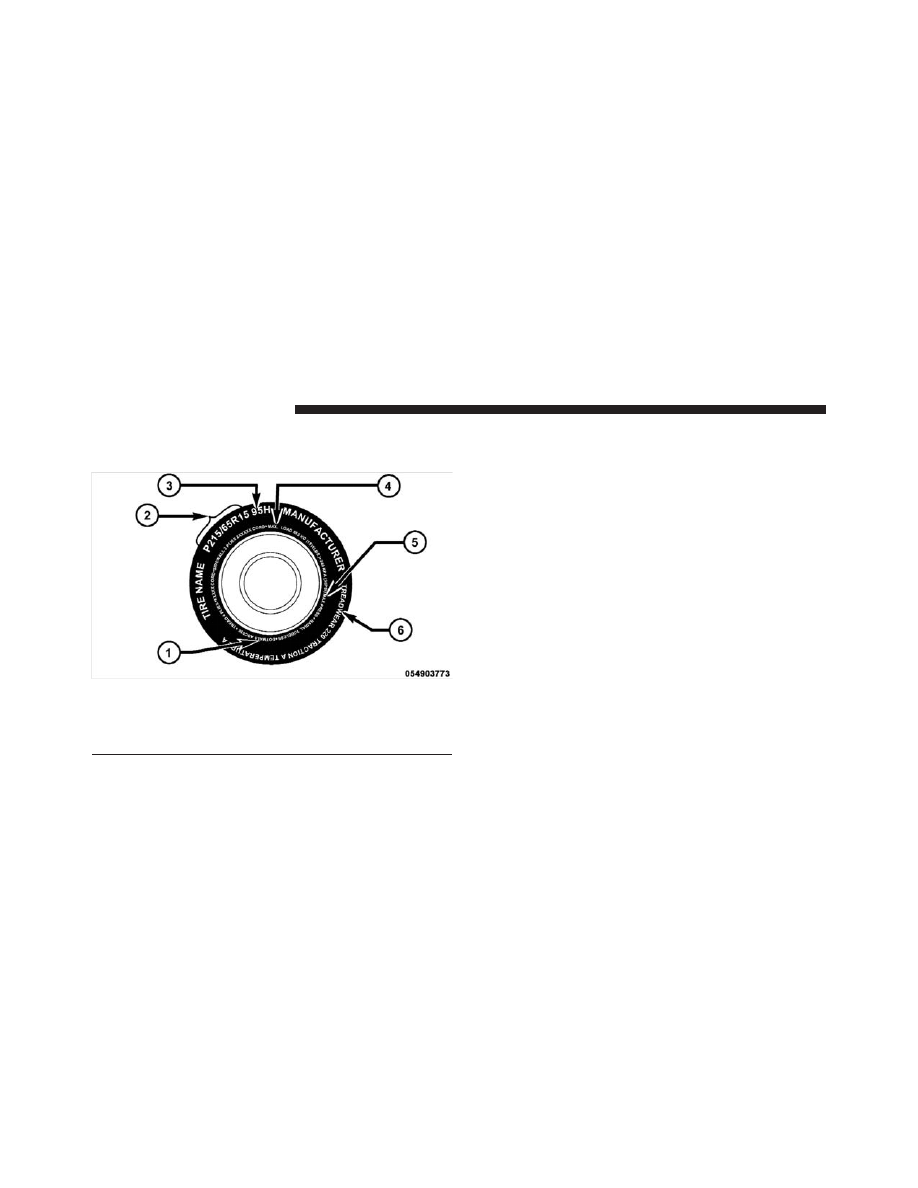

1 — U.S. DOT Safety Stan-

dards Code (TIN)

4 — Maximum Load

2 — Size Designation

5 — Maximum Pressure

3 — Service Description

6 — Treadwear, Traction and

Temperature Grades

286

STARTING AND OPERATING

Tires designed to this standard have the letter “T”
molded into the sidewall preceding the size designa-
tion. Example: T145/80D18 103M.

• High flotation tire sizing is based on U.S. design

standards and it begins with the tire diameter molded
into the sidewall. Example: 31x10.5 R15 LT.

Tire Sizing Chart

EXAMPLE:

Size Designation:

= Passenger car tire size based on U.S. design standards

ⴖ....blank....ⴖ = Passenger car tire based on European design standards
LT

= Light truck tire based on U.S. design standards

= Temporary spare tire

= Overall diameter in inches (in)

215

= Section width in millimeters (mm)

= Aspect ratio in percent (%)

— Ratio of section height to section width of tire

10.5

= Section width in inches (in)

= Construction code

—

⬙R⬙ means radial construction

—

⬙D⬙ means diagonal or bias construction

STARTING AND OPERATING

287

EXAMPLE:

= Rim diameter in inches (in)

Service Description:

= Load Index

— A numerical code associated with the maximum load a tire can carry

= Speed Symbol

— A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load
index under certain operating conditions
— The maximum speed corresponding to the speed symbol should only be achieved under specified
operating conditions (i.e., tire pressure, vehicle loading, road conditions, and posted speed limits)

Load Identification:

ⴖ....blank....ⴖ = Absence of any text on the sidewall of the tire indicates a Standard Load (SL) tire
Extra Load (XL)

= Extra load (or reinforced) tire

Light Load

= Light load tire

C, D, E

= Load range associated with the maximum load a tire can carry at a specified pressure

Maximum Load

— Maximum load indicates the maximum load this tire is designed to carry

Maximum Pressure

— Maximum pressure indicates the maximum permissible cold tire inflation pressure for

this tire

288

STARTING AND OPERATING

Jeep Commander (2010 year). Instruction - part 18
