Jeep Commander (2010 year). Instruction

Key-In-Ignition Reminder

If you open the driver’s door with the integrated ignition
key in the ignition, a chime will sound to remind you to
remove the key.

NOTE:

The Key-In-Ignition reminder only sounds

when the integrated ignition key is placed in the LOCK
or ACC position.

SENTRY KEY

姞

The Sentry Key

威 Immobilizer system prevents unautho-

rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.

The system uses the factory-mated Remote Keyless Entry
(RKE) transmitter with integrated key and Wireless Igni-
tion Node (WIN) to prevent unauthorized vehicle opera-
tion. Therefore, only RKE transmitters that are pro-
grammed to the vehicle can be used to start and operate

the vehicle. The system will shut the engine off in two
seconds if an invalid RKE transmitter is used to start the
engine.

After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In
addition, if the light begins to flash after the bulb check,
it indicates that someone used an invalid RKE transmitter
to start the engine. Either of these conditions will result in
the engine being shut off after two seconds.

If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

The Sentry Key

威 Immobilizer system is not

compatible with aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.

All of the RKE transmitters provided with your new
vehicle have been programmed to the vehicle electronics.

Replacement Keys

NOTE:

Only RKE transmitters that are programmed to

the vehicle electronics can be used to start and operate
the vehicle. Once an RKE transmitter is programmed to a
vehicle, it cannot be programmed to any other vehicle.

CAUTION!

Always remove the keys from the vehicle and lock all
doors when leaving the vehicle unattended.

At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of RKE trans-
mitters. Duplication of RKE transmitters may be per-
formed at an authorized dealer, this procedure consists of
programming a blank transmitter to the vehicle electron-
ics. A blank transmitter is one that has never been
programmed.

NOTE:

When having the Sentry Key

威 Immobilizer

system serviced, bring all vehicle RKE transmitters with
you to the authorized dealer.

Customer Key Programming

Programming of RKE transmitters may be performed at
an authorized dealer.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

General Information

The Sentry Key

威 system complies with FCC rules Part 15

and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:

• This device may not cause harmful interference.
• This device must accept any interference that may be

received, including interference that may cause undes-
ired operation.

VEHICLE SECURITY ALARM

This Vehicle Security Alarm monitors the vehicle doors,
liftgate, liftgate flipper glass, and ignition for unautho-
rized operation. When the alarm is activated, the Vehicle
Security Alarm provides both audio and visual signals.
The horn will sound, the headlights, park lamps and/or
turn signals will flash repeatedly for three minutes. If
disturbance is still present (driver’s door, passenger door,
other doors, ignition) after three minutes, the headlights,

park lamps and/or turn signals will flash for an addi-
tional 15 minutes.

NOTE:

The Panic and Security alarms are quite differ-

ent. Please take a moment to activate the Panic and the
Security modes to hear the differences in the horn. In case
one should go off in the future, you will need to know
which mode has been activated in order to deactivate it.

Rearming The System

If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.

To Set the Alarm

The alarm will set when you use the Remote Keyless
Entry (RKE) transmitter to lock the doors and liftgate, or
when you use the power door lock switch while the door
is open. After all the doors are locked and closed, the

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Vehicle Security Light (located in the instrument cluster)
will flash rapidly for about 16 seconds to signal that the
Vehicle Security Alarm is arming. During this 16 second
arming period, opening any door or the liftgate will
cancel the arming. If the Vehicle Security Alarm success-
fully arms, the Vehicle Security Light will flash at a
slower rate to indicate the alarm is set.

To Disarm the System

To disarm the Vehicle Security Alarm, you will need to
press the UNLOCK button on the RKE transmitter or
turn the ignition key to the ON position. If something has
triggered the Vehicle Security Alarm in your absence, the
horn will sound three times when you unlock the doors.
Check the vehicle for tampering.

The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will arm unexpectedly. If you
remain in the vehicle and lock the doors with the RKE

transmitter, once the Vehicle Security Alarm is armed
(after 16 seconds), when you pull the door handle to exit,
the alarm will sound. If this occurs, press the UNLOCK
button on the RKE transmitter to disarm the Vehicle
Security Alarm. You may also accidentally disarm the
Vehicle Security Alarm by unlocking the driver’s door
with the key and then locking it. The door will be locked
but the Vehicle Security Alarm will not arm.

ILLUMINATED ENTRY

The interior lights come on when you open any door or
use the Remote Keyless Entry (RKE) transmitter to un-
lock any door. They will remain on for approximately
30 seconds after all doors are closed then fade to off.

The lights also will fade to off if you turn on the ignition
after you close all the doors.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

REMOTE KEYLESS ENTRY (RKE)

This system allows you to lock or unlock the doors and
liftgate, or activate the panic alarm, from distances up to
approximately 66 ft (20 m) using a hand-held Remote
Keyless Entry (RKE) transmitter. The RKE transmitter
does not need to be pointed at the vehicle to activate the
system.

NOTE:

Inserting the RKE transmitter into the ignition

switch disables all buttons on that RKE transmitter;
however, the buttons on the remaining RKE transmitters
will continue to work. Driving the vehicle over 5 mph
disables all RKE transmitter buttons, for all RKE trans-
mitters, until the ignition is turned back to OFF/LOCK.

To Unlock the Doors

Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door or twice to
unlock all doors. The turn signal lamps will flash to
acknowledge the unlock signal. The illuminated entry
system will also turn on.

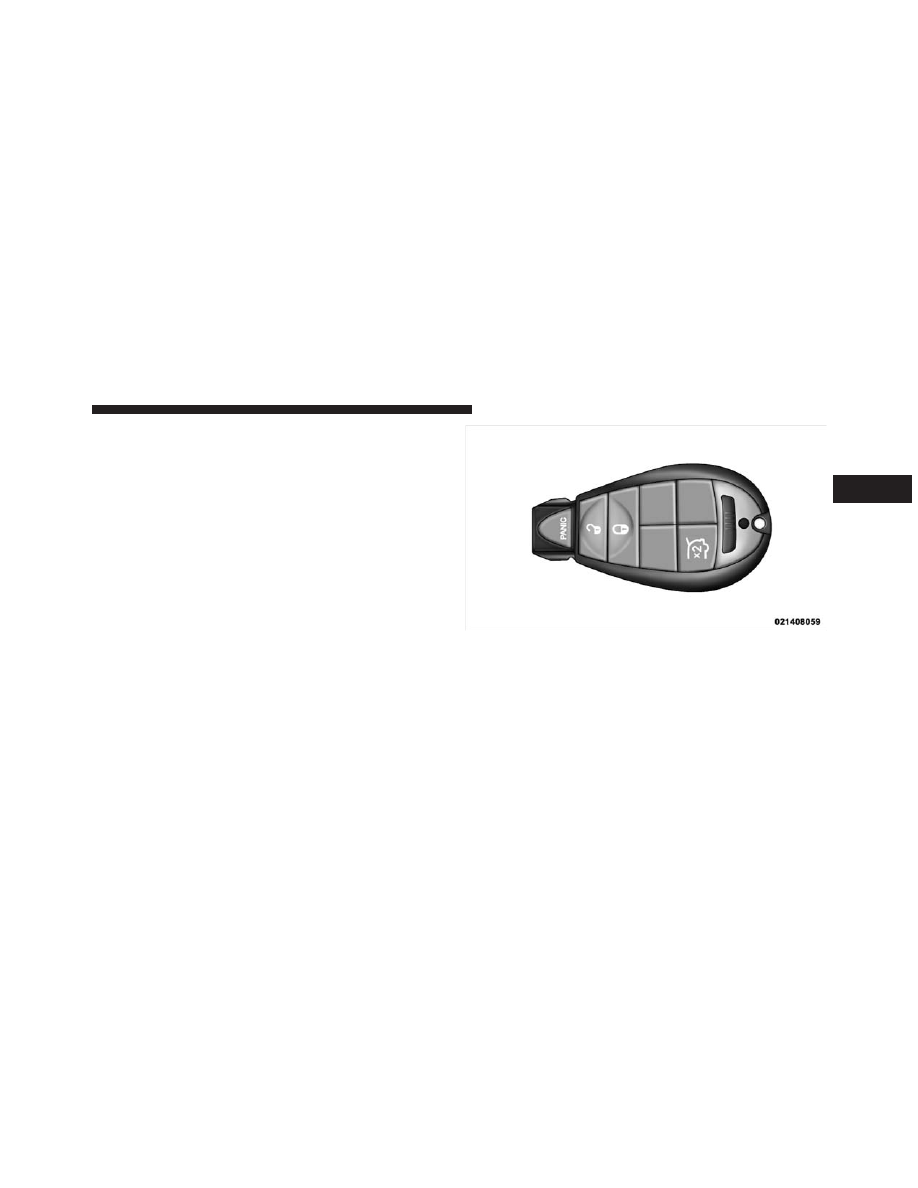

Three-Button RKE Transmitter

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Remote Key Unlock, Driver Door/All Doors First
Press
This feature lets you program the system to unlock either
the driver’s door or all doors, on the first press of the
UNLOCK button on the RKE transmitter. To change the
current setting, proceed as follows:

• For vehicles equipped with the Electronic Vehicle

Information Center (EVIC), refer to “Remote Key
Unlock,”

under

“Personal

Settings

(Customer-

Programmable Features)” in the “Electronic Vehicle
Information Center (EVIC),” in Section 4 of this
manual.

Flash Lamps with Remote Key Lock
This feature will cause the turn signal lamps to flash
when the doors are locked or unlocked with the RKE
transmitter. This feature can be turned on or off. To
change the current setting, proceed as follows:

• For vehicles equipped with the Electronic Vehicle

Information Center (EVIC), refer to “Flash Lamps with
Lock,”

under

“Personal

Settings

(Customer-

Programmable Features)” in the

⬙Electronic Vehicle

Information Center (EVIC),” in Section 4 of this
manual.

Turn Headlights On with Remote Key Unlock
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the RKE transmitter.
The time for this feature is programmable on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC). For details, refer to “Headlamp Off Delay,” under
“Personal Settings (Customer-Programmable Features)”
in the “Electronic Vehicle Information Center (EVIC),” in
Section 4 of this manual.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Lock the Doors

Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signal lamps will flash and
the horn will chirp to acknowledge the signal.

Sound Horn with Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or off. To change the current setting, proceed as
follows:

• For vehicles equipped with the Electronic Vehicle

Information Center (EVIC), refer to “Sound Horn with
Lock,”

under

“Personal

Settings

(Customer-

Programmable Features)” in the “Electronic Vehicle
Information Center (EVIC),” in Section 4 of this
manual.

To Release the Liftgate Flipper Glass

Press the FLIPPER GLASS/LIFTGATE RELEASE button
two times (the second press within five seconds of the
first press) to open liftgate flipper glass.

WARNING!

Driving with the flipper glass open can allow poi-
sonous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the flipper glass closed when you are operating the
vehicle.

Remote Open Window Feature — If Equipped

This feature allows you to remotely lower both front door
windows at the same time. To use this feature, press and
release the UNLOCK button on the RKE transmitter and
then immediately press and hold the UNLOCK button
until the windows lower to the level desired or until they
lower completely.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Using the Panic Alarm

To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights and park lamps will flash, the horn will pulse
on and off, and the interior lights will turn on.

The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time, or drive the vehicle at a speed of 15 mph
(24 km/h) or greater.

NOTE:

• The interior lights will turn off if you turn the ignition

switch to the ACC or ON position while the Panic
Alarm is activated. However, the exterior lamps and
horn will remain on.

Programming Additional Transmitters

If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.

Transmitter Battery Service

The recommended replacement battery is one CR2032
battery.

NOTE:

• Perchlorate Material — special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

• Do not touch the battery terminals that are on the back

housing or the printed circuit board.

1. Battery access is through a door located on the rear of
the fob. Insert a small, flat blade screwdriver into the slot
and gently pry open the access door.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.

3. Reposition the access door panel over the battery
opening and snap into place.

General Information

This device complies with part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:

• This device may not cause harmful interference.
• This device must accept any interference received,

including interference that may cause undesired
operation.

NOTE:

Changes or modifications not expressly ap-

proved by the party responsible for compliance could
void the user’s authority to operate the equipment.

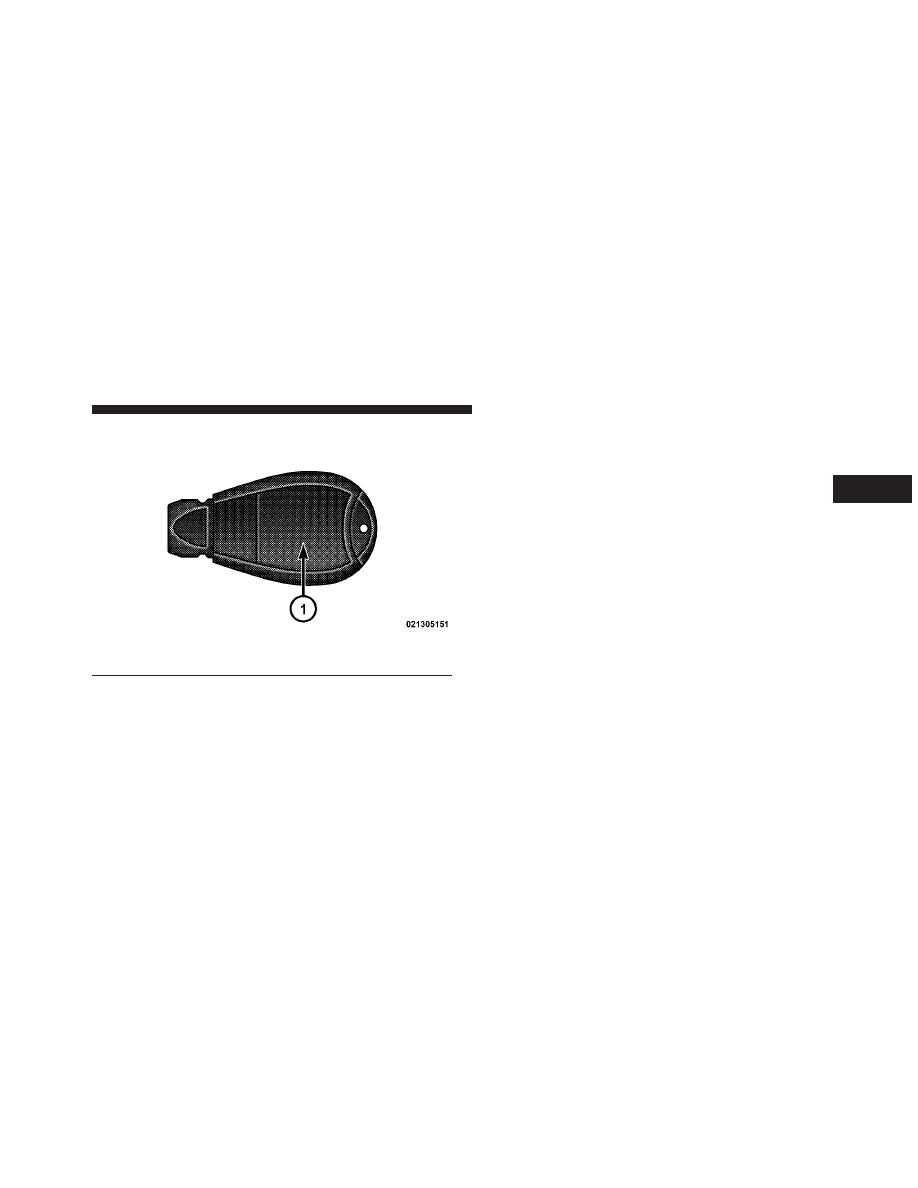

Battery Replacement

1— Battery Access Door

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:

1. A weak battery in the RKE transmitter. The expected
life of the battery is a minimum of three years.

2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.

REMOTE STARTING SYSTEM — IF EQUIPPED

This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a range of

approximately 328 ft (100 m).

NOTE:

The vehicle must be equipped with an auto-

matic transmission to be equipped with Remote Start.

How to Use Remote Start

All of the following conditions must be met before the
engine will remote start:

• Shift lever in PARK
• Doors closed
• Hood closed
• Liftgate closed
• Hazard switch off
• Brake switch inactive (brake pedal not pressed)
• Ignition key removed from ignition switch
• Battery at an acceptable charge level
• RKE PANIC button not pressed

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

• Do not start or run an engine in a closed garage or

confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon monoxide is poisonous and can cause serious
injury or death when inhaled.

• Keep Remote Keyless Entry (RKE) transmitters

away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.

To Enter Remote Start Mode

Press and release the REMOTE START button
on the RKE transmitter twice, within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the

engine will start and the vehicle will remain in the
Remote Start mode for a 15 minute cycle.

NOTE:

• If an engine fault is present the vehicle will start and

then shut down 10 seconds later.

• The park lamps will turn on and remain on during

Remote Start mode.

• For security, power window and power sunroof op-

eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.

• The engine can be started two consecutive times (two

15 minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.

To Exit Remote Start Mode Without Driving the
Vehicle
Press and release the REMOTE START button one time or
allow the engine to run for the entire 15 minute cycle.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

To avoid unintentional shutdowns, the system

will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.

To Exit Remote Start Mode and Drive the Vehicle
Before the end of 15 minute cycle, press and release the
UNLOCK button on the RKE transmitter to unlock the
doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15 minute cycle,
insert the key into the ignition switch and turn the switch
to the ON position.

• The ignition switch must be in the ON position in

order to drive the vehicle.

• For vehicles equipped with the Electronic Vehicle

Information Center (EVIC), the message “Insert Key/
Turn To Run” will flash in the EVIC until you insert
the key. Once inserted, the message “Turn To Run”
will flash in the EVIC until you turn the key to run.

DOOR LOCKS

Manual Door Locks

Use the manual door lock plunger to lock the doors from
inside the vehicle. If the plunger is down when the door
is closed, the door will lock. Therefore, make sure the key
is not inside the vehicle before closing the door.

WARNING!

• For personal security and safety in the event of an

accident, lock the vehicle doors when you drive, as
well as when you park and leave the vehicle.

• When leaving the vehicle, always remove the key

from the ignition and lock your vehicle. Do not
leave unattended children in the vehicle, or with
access to an unlocked vehicle. Unsupervised use of
vehicle equipment may cause severe personal in-
juries and death.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Power Door Locks

The power door lock switch is located on each front door
panel. Press the switch to lock or unlock the doors.

If the plunger is down when the door is closed, the door
will lock. Therefore, make sure the key is not inside the
vehicle before closing the door.

If you press the door lock switch while the keys are in the
ignition switch and the driver’s door is open, the doors
will not lock.

The rear doors cannot be opened from inside the vehicle
until you pull up the lock plungers.

Automatic Unlock On Exit Feature — If Equipped
If Auto Unlock is enabled, this feature will unlock all the
doors when the driver’s door is opened if the vehicle is
stopped and in PARK or NEUTRAL. Refer to “Auto
Unlock on Exit” under the “Electronic Vehicle Informa-
tion Center (EVIC),” in section 4 of this manual, or see
your authorized dealer.

Automatic Door Locks
If this feature is selected, your door locks will lock
automatically when the vehicle speed is above 15 mph
(24 km/h) and all doors are closed. It will reset whenever
a door is opened.

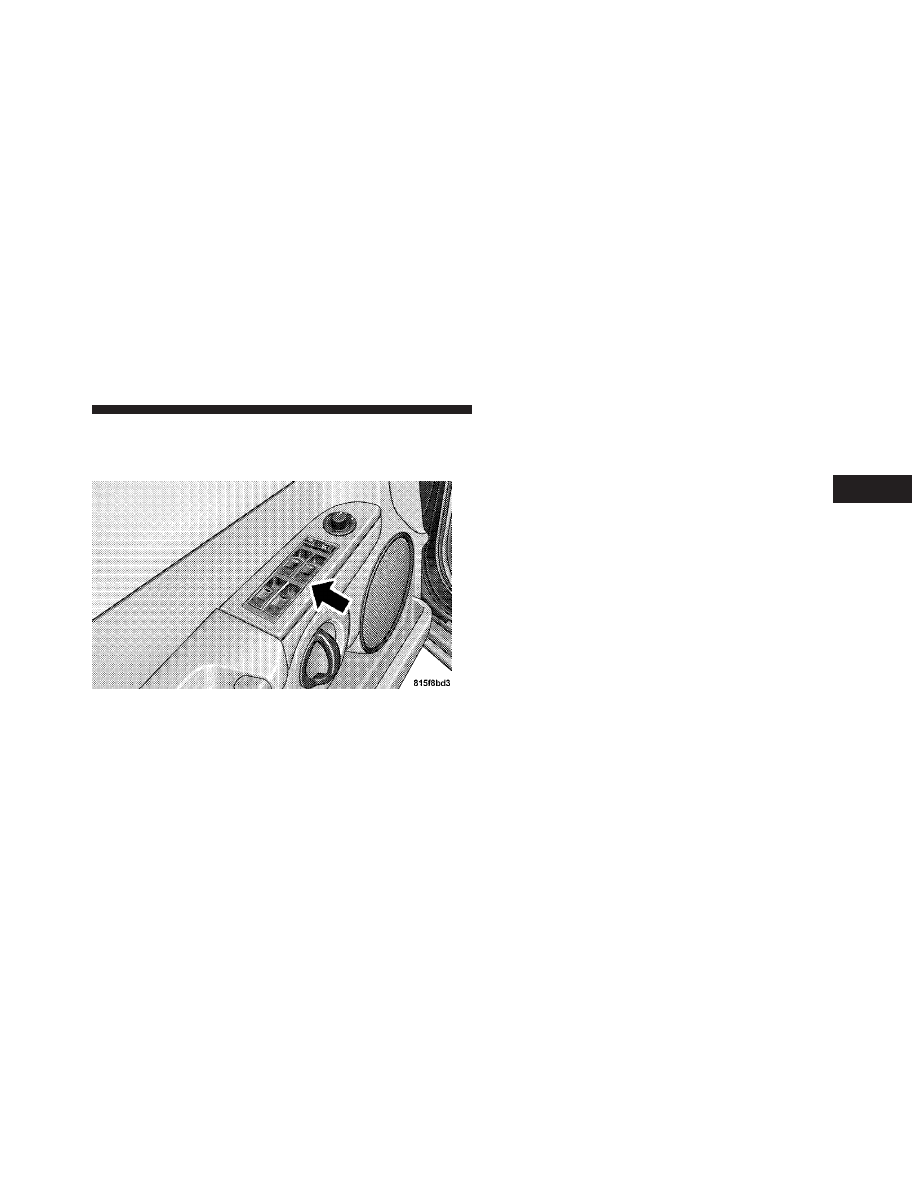

Power Door Lock Switch

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

This feature is selectable and can be turned on or off.
Refer to “Auto Door Locks” under “Customer-
Programmable Features” in the “Electronic Vehicle Infor-
mation Center (EVIC),” in Section 4 of this manual, or see
your authorized dealer.

Child Protection Door Lock

The rear doors of your vehicle are equipped with Child
Protection Door Locks. If you push up on the lever on the
open edge of the door it cannot be opened from the inside
of the vehicle. Push the lever down to disengage the
Child Protection Door Locks.

WARNING!

Avoid trapping anyone in the vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the Child Protection Door
Locks are engaged.

WINDOWS

Power Windows

The power window controls are located on the driver’s
door trim panel. There is a single switch on the front
passenger door/rear doors which operate the front

Child Protection Door Lock

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

passenger/rear passenger door windows. The window
controls will operate only when the ignition switch is in
the ON or ACC position.

The power window switches remain active for up to
10 minutes after the ignition switch has been turned OFF.
Opening a vehicle front door will cancel this feature.

Auto-Down
Both the driver and front passenger window switch have
an Auto-Down feature. Press the window switch past the
first detent, release, and the window will go down
automatically. To cancel the Auto-Down movement, op-
erate the switch in either the up or down direction and
release the switch.

To stop the window from going all the way down during
the Auto-Down operation, pull up on the switch briefly.

To open the window part way, press to the first detent
and release it when you want the window to stop.

The power window switches remain active for 10 min-
utes after the ignition has been turned off. Opening either
front door will cancel this feature.

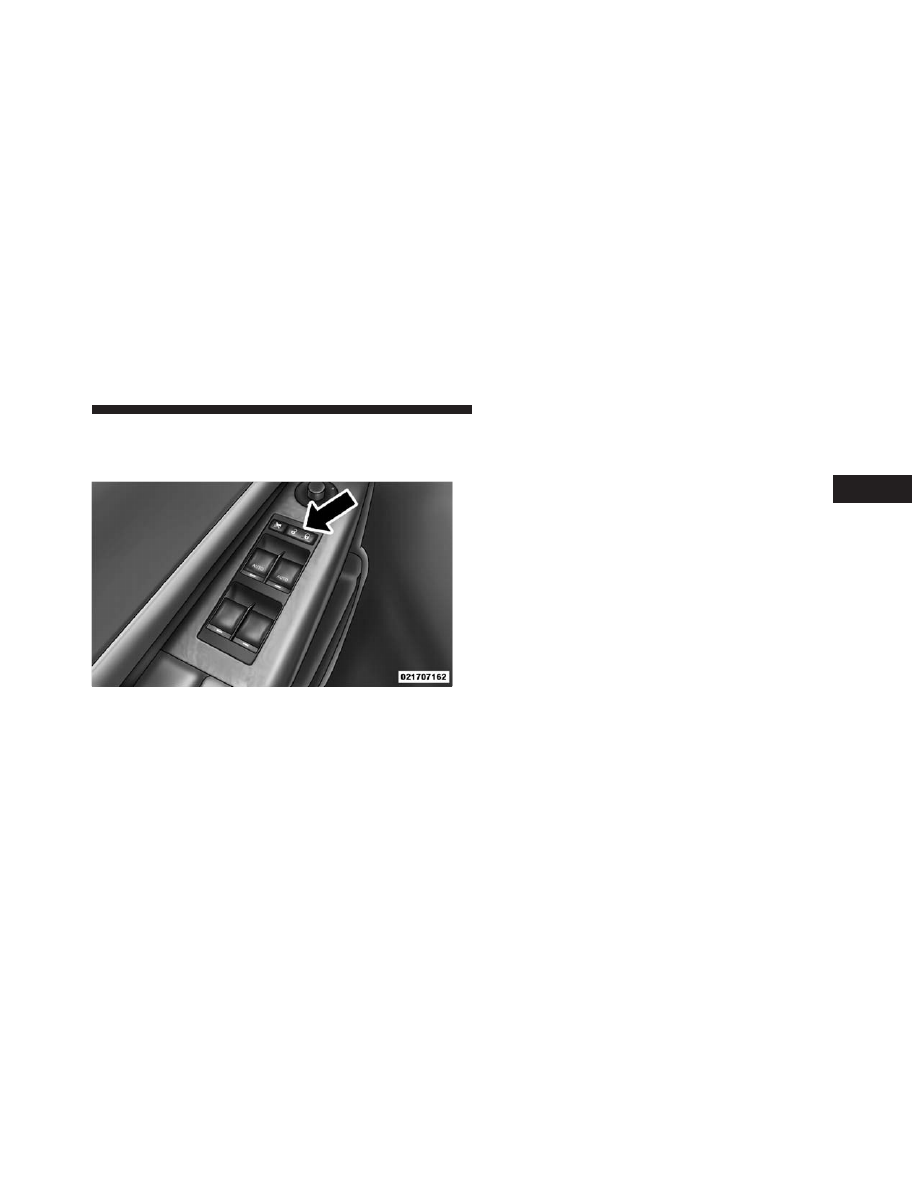

Power Window Switches

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Auto Up Feature with Anti-Pinch Protection —
Driver’s and Front Passenger Door Only
Lift the window switch to the second detent, release, and
the window will go up automatically.

To stop the window from going all the way up during the
Auto Up operation, push down on the switch briefly.

To close the window part way, lift the window switch to
the first detent and release when you want the window to
stop.

NOTE:

If the window runs into any obstacle during the

auto-closure, it will reverse direction and then go back
down. Remove the obstacle and use the window switch
again to close the window. Any impact due to rough road
conditions may trigger the auto reverse function unex-
pectedly during auto closure. If this happens, pull the
switch lightly to the first detent and hold to close the
window manually.

WARNING!

There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.

Resetting the Auto Up Feature
Should the Auto Up feature stop working, the window
probably needs to be reset. To reset Auto Up, pull the
window switch up and close the window completely,
then pull and hold the switch for one second.

Window Lockout Button
The Window Lockout button on the driver’s door allows
you to disable the window control on the other doors. To
disable the window controls on the other doors, press the
Window Lockout button. To enable the window controls,
press the Window Lockout button again.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Jeep Commander (2010 year). Instruction - part 2
