Jeep Liberty KJ. Manual - part 1405

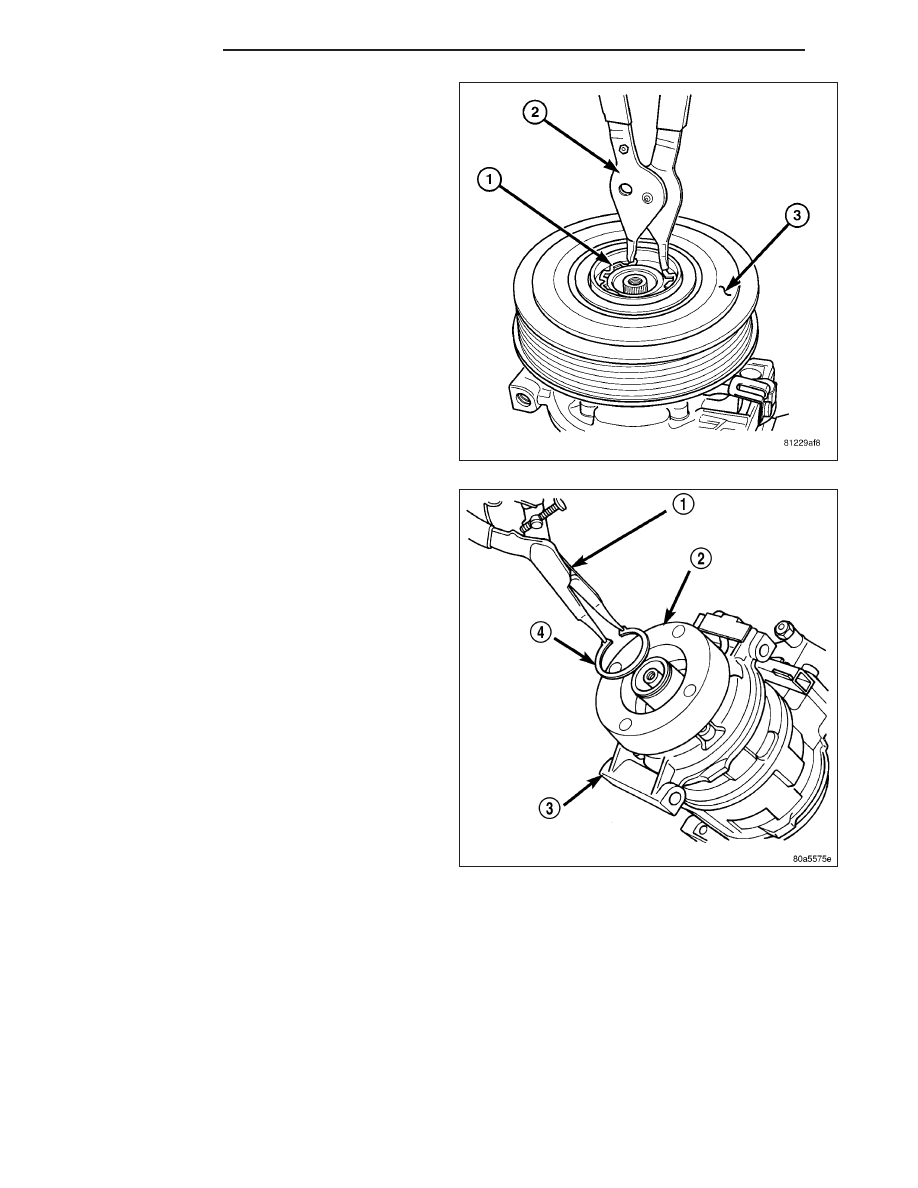

9. Using snap ring pliers (2), remove the snap ring (1)

that secures the pulley and bearing assembly (3) to
the front of the A/C compressor and remove the
pulley and bearing assembly.

10. Using snap ring pliers (1), remove the snap ring

(4) that secures the compressor clutch field coil
(2) to the front of the A/C compressor (3) and
remove the field coil.

VISTEON A/C COMPRESSOR

NOTE: The A/C compressor clutch can be serviced in the vehicle. The refrigerant system can remain fully-
charged during compressor clutch, pulley and bearing assembly or field coil replacement.

24 - 22

CONTROLS

KJ

1. Disconnect and isolate negative battery cable.

2. Remove the accessory drive belt (Refer to 7 -

COOLING/ACCESSORY

DRIVE/BELTS-DRIVE

-

REMOVAL).

3. Disconnect the engine wire harness from the clutch

field coil connector (4).

4. Remove the bolts that secure the A/C compressor

(4) to the mounting bracket (Refer to 24 - HEAT-
ING

&

AIR

CONDITIONING/PLUMBING/COM-

PRESSOR-A/C - 3.7L ENGINE - REMOVAL).

5. Remove the A/C compressor from the mounting

bracket and support the compressor while servicing
the clutch.

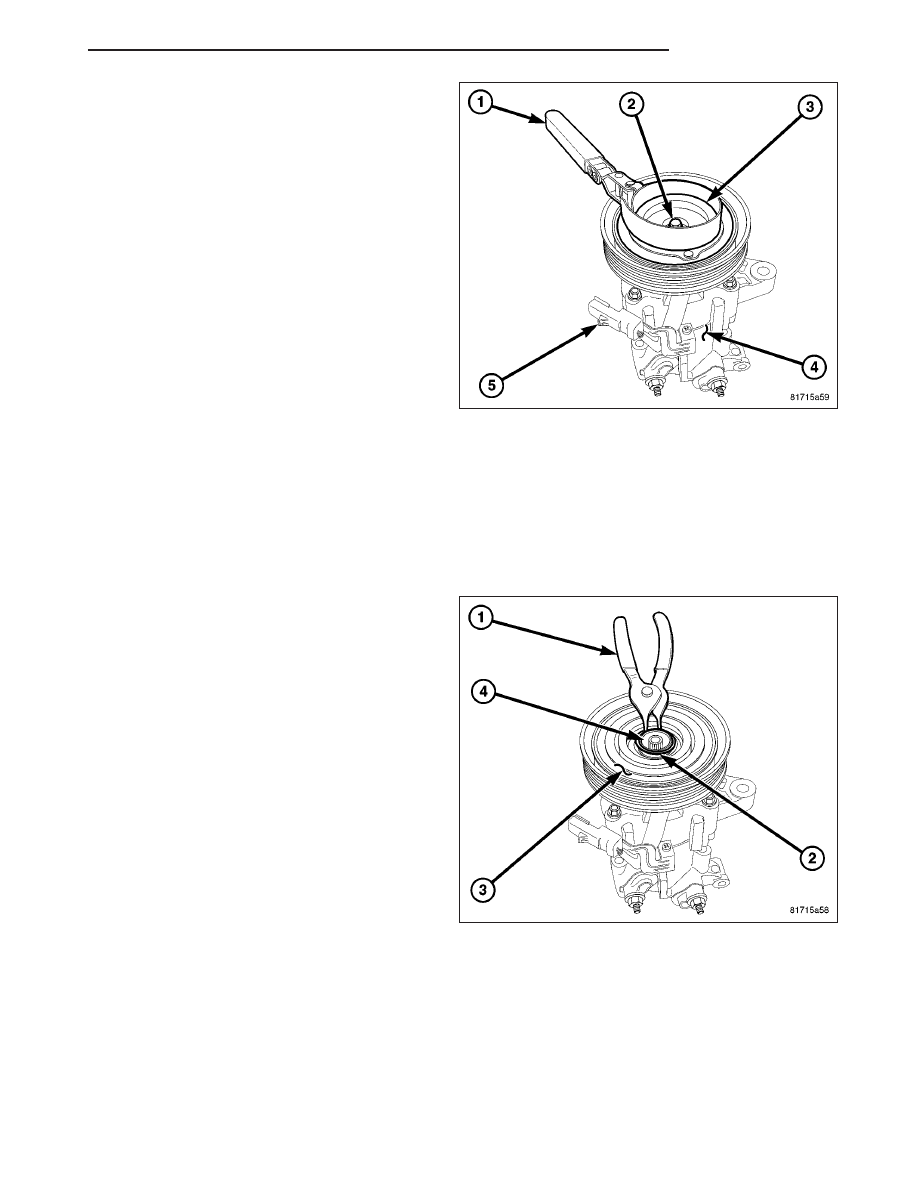

6. Using a strap wrench (1), remove the bolt (2) that

secures the clutch plate (3) to the compressor
shaft.

NOTE: The clutch plate can be removed from the
compressor shaft by hand or, if required, pressed off with an 8 x 1.25 mm bolt.

NOTE: Clutch plate shim(s) may remain inside the hub of the clutch plate. Be sure to remove all of the
shims from inside the hub or from the end of the compressor shaft.

7. Remove the clutch plate and shim(s) from the A/C compressor. If required, install a 8 x 1.25 mm bolt into the

center of the clutch plate and turn the bolt clockwise until the clutch plate is completely removed from the A/C
compressor.

8. Using snap ring pliers (1), remove the snap ring (2)

that secures the pulley and bearing assembly (3) to
the front of the A/C compressor (4).

KJ

CONTROLS

24 - 23

NOTE: The pulley and bearing assembly can be
removed from the compressor by hand or, if
required, with a two jaw puller.

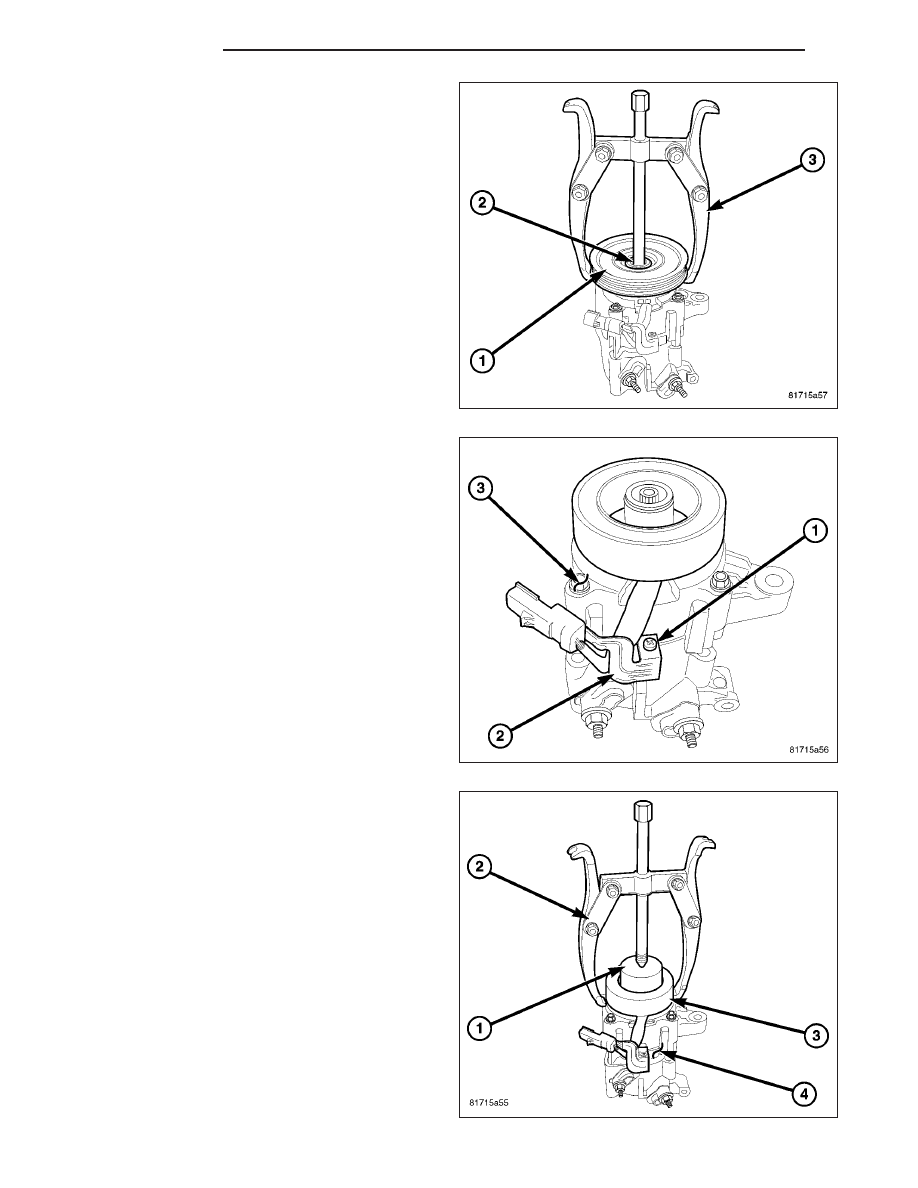

9. Remove the pulley and bearing assembly (1) from

the front of the A/C compressor (2). If required,
install a two jaw puller (3) and turn the puller cen-
ter-bolt clockwise until the pulley and bearing
assembly is completely removed.

10. Remove the screw (1) that secures the clutch field

coil wire lead bracket (2) to the A/C compressor
(3).

11. Using compressor field coil remover (Special Tool

9354 in Kit 9349) (1) and a two jaw puller (2),
remove the clutch field coil (3) from the front of
the A/C compressor (4).

24 - 24

CONTROLS

KJ

INSTALLATION

DENSO A/C COMPRESSOR

NOTE: Typical A/C compressor shown in illustrations.

1. Align the dowel pin on the back of the compressor

clutch field coil (2) with the hole in the front of the
A/C compressor (3) and position the field coil onto
the compressor. Be certain that the compressor
clutch field coil wire lead is properly routed so that
it is not pinched between the A/C compressor and
the field coil.

CAUTION: The snap ring must be fully and prop-
erly seated in the groove or it will vibrate out,
resulting in a clutch failure and severe damage to
the A/C compressor.

NOTE: A new snap ring must be used to secure
the compressor clutch field coil to the A/C com-
pressor. The bevel side of the snap ring must face
outward and both snap ring eyelets must be ori-
ented to the right or to the left of the field coil
dowel pin location on the A/C compressor.

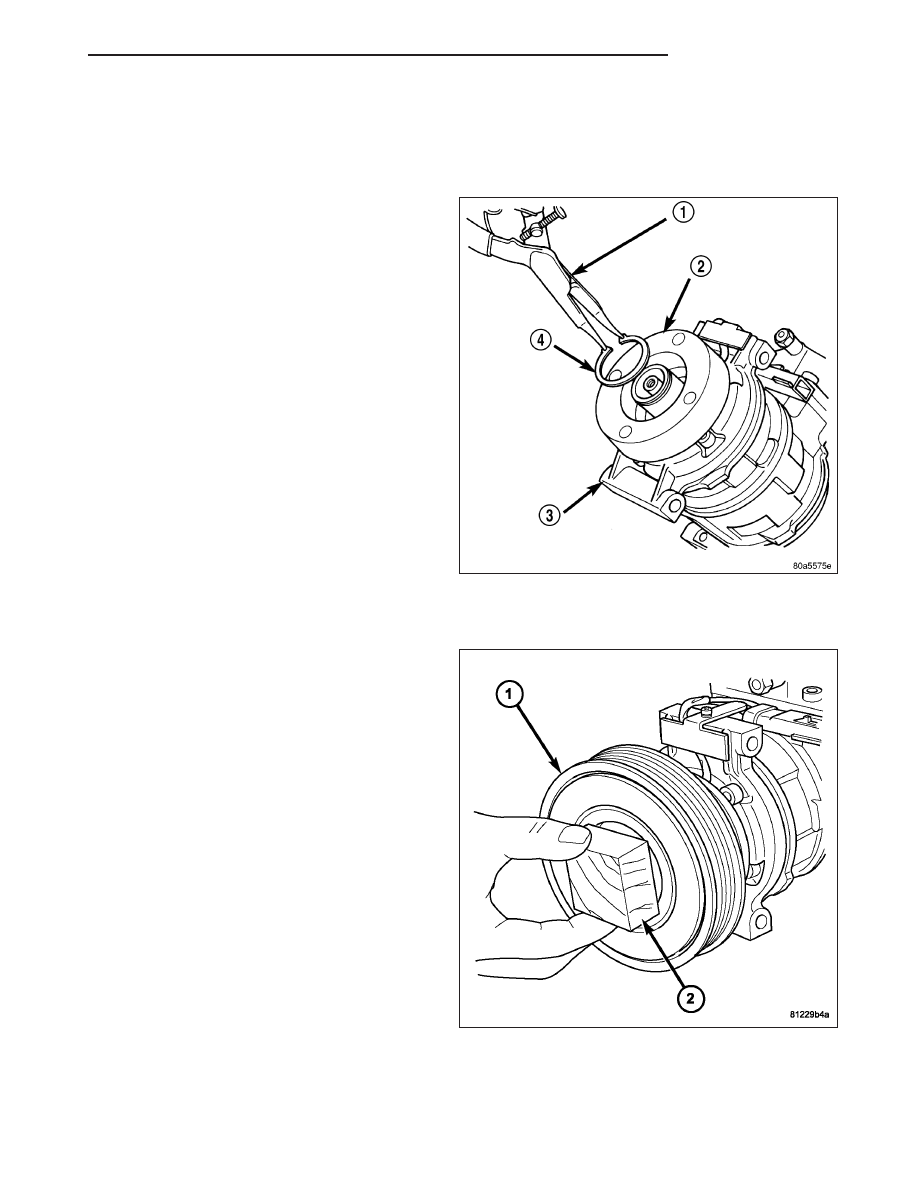

2. Using snap ring pliers (1), install the snap ring (4)

that secures the compressor clutch field coil to the
front of the A/C compressor. Be certain that the snap ring is fully and properly seated in the groove and oriented
correctly.

CAUTION: Be certain to position the compressor
clutch field coil wire lead so that it is not damaged
during A/C compressor pulley and bearing instal-
lation.

CAUTION: When installing the pulley and bearing
assembly, DO NOT mar the friction surfaces of the
pulley or premature failure of the clutch will result.

3. Install the pulley and bearing assembly (1) onto the

front of the A/C compressor. If necessary, tap the
pulley gently with a block of wood (2) placed on the
pulley friction surface.

KJ

CONTROLS

24 - 25
