INSTALLATION

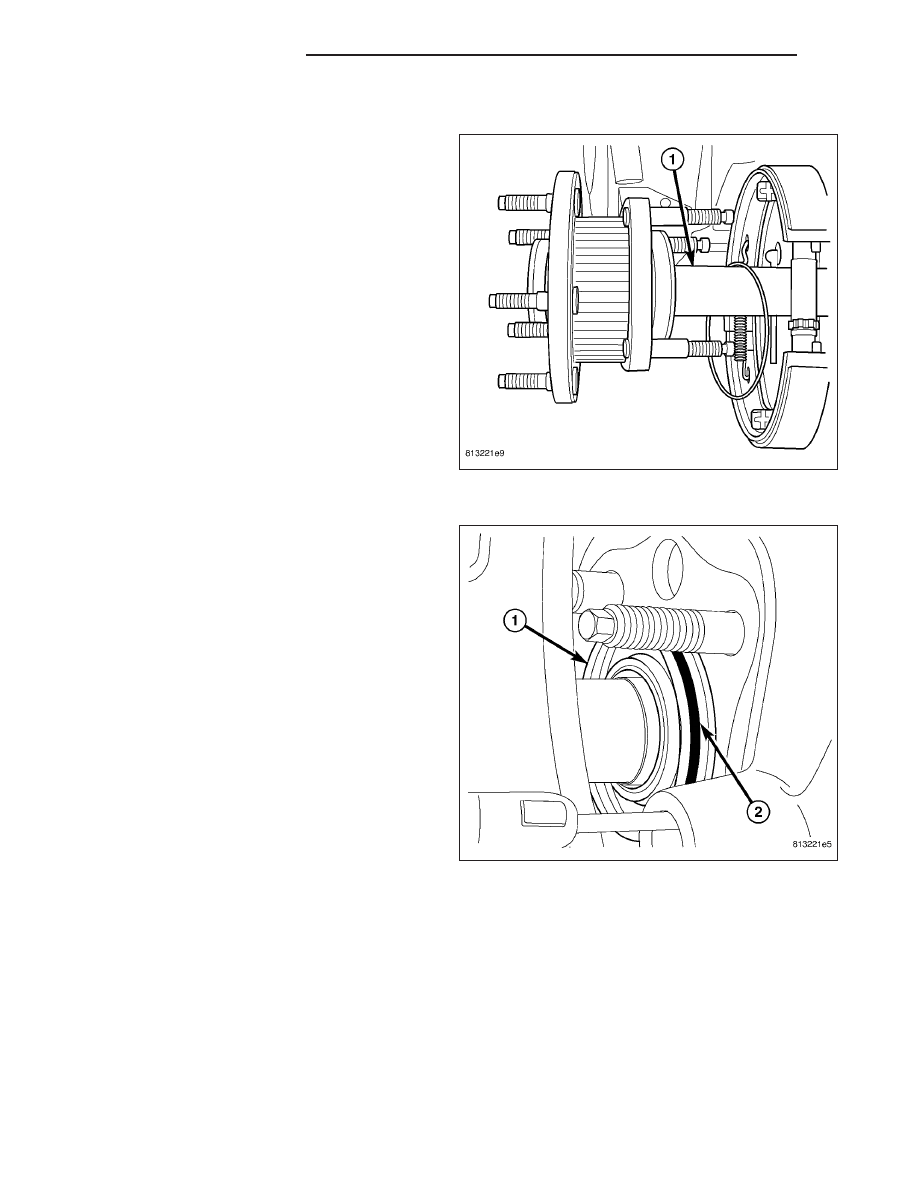

1. Install axle shaft (1) into axle tube and backing

plate with new o-ring on axle.

2. Slip O-ring (2) through backing plate, then push

axle through backing plate until bearing (1) is
exposed.

3. Install new O-ring (2) on axle bearing (1).

3 - 254

REAR AXLE - C213RE

WK

4. Push axle into axle tube.

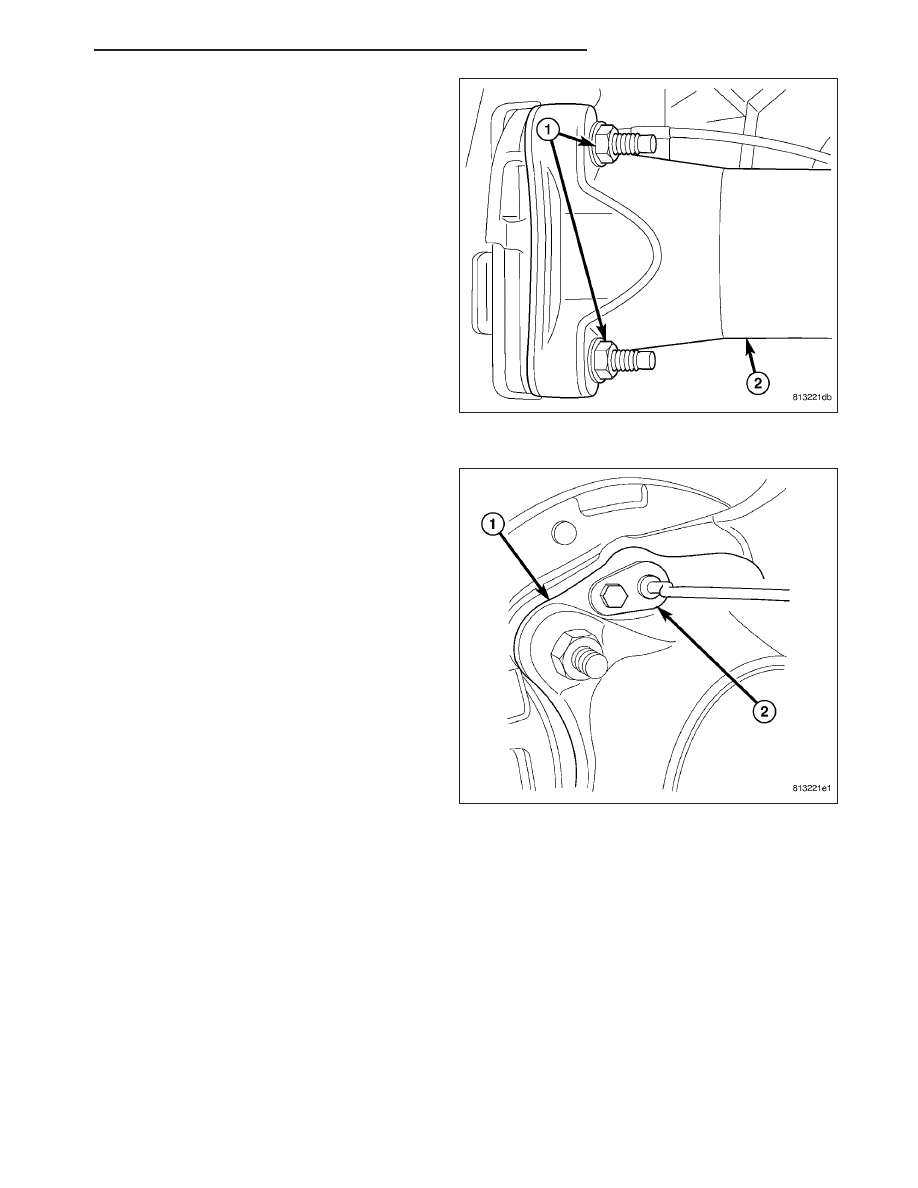

5. Install axle (2) flange nuts (1) and tighten to 119

N·m (88 ft. lbs.).

6. Install speed sensors (2) in axle tube (1) flange.

7. Install calipers and rotors.

WK

REAR AXLE - C213RE

3 - 255

PINION SEAL

REMOVAL

1. With vehicle in neutral, position vehicle on hoist.

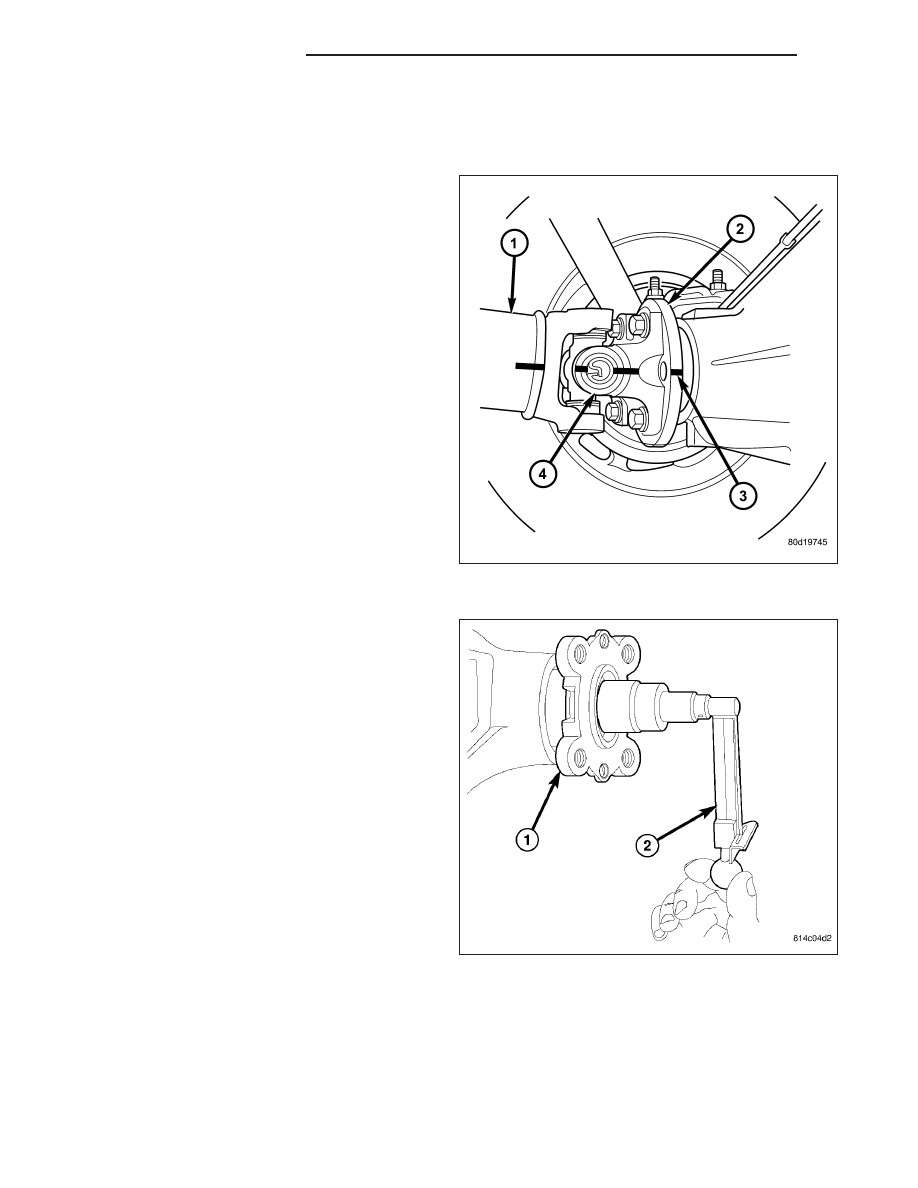

2. Mark a reference line across the axle flange (3)

and propeller shaft flange (4).

3. Remove propeller shaft

4. Remove brake calipers and rotors to prevent any

drag.

5. Rotate flange three or four times and verify flange

rotates smoothly.

6. Measure torque to rotating pinion flange (1) with a

inch pound torque wrench (2). Record reading for
installation reference.

7. Hold

pinion

flange

with

Wrench

C-3281

and

remove pinion nut and washer.

8. Remove flange with two jaw puller.

9. Remove pinion seal with a seal pick or slide-ham-

mer mounted screw.

3 - 256

REAR AXLE - C213RE

WK

INSTALLATION

1. Apply a light coating of gear lubricant on the lip of

pinion seal.

2. Install new pinion seal with Installer C-3972A (1)

and Handle C-4171 (2).

3. Install flange on the end of the shaft with the refer-

ence marks aligned.

4. Install flange on pinion shaft with Installer C-3718

and Wrench C-3281.

5. Install pinion washer and a new pinion nut. The

convex side of the washer must face outward.

CAUTION: Do not exceed the minimum tightening
torque

when

installing

the

companion

flange

retaining nut at this point. Failure to follow these
instructions can damage the collapsible spacer or
bearings.

6. Hold flange with Wrench C-3281and tighten pinion

nut to 285 N·m (210 ft. lbs.). Rotate pinion several
revolutions to ensure bearing rollers are seated.

7. Rotate pinion flange (1) with an inch pound torque

wrench (2). Rotating torque should be equal to the
reading recorded during removal plus an additional
0.56 N·m (5 in. lbs.).

CAUTION: Never loosen pinion nut to decrease
pinion bearing rotating torque and never exceed
specified preload torque. If rotating torque is
exceeded, a new collapsible spacer must be
installed. Failure to follow these instructions can
damage the collapsible spacer or bearings.

8. If rotating torque is low use Holder 6719, to hold

flange and tighten pinion nut in 6.8 N·m (5 ft. lbs.)
increments until proper rotating torque is achieved.

NOTE: The seal replacement is unacceptable if
final pinion nut torque is less than 285 N·m (210 ft.
lbs.).

NOTE: The bearing rotating torque should be constant during a complete revolution of the pinion. If the
rotating torque varies, this indicates a binding condition.

9. Install propeller shaft.

10. Install rear brake components.

WK

REAR AXLE - C213RE

3 - 257
