(41) Install the input clutch assembly into the

transmission case (Fig. 38). Make sure that the input
clutch assembly is fully installed by performing a
visual inspection through the input speed sensor
hole. If the tone wheel teeth on the input clutch
assembly are visible, the assembly is fully installed.

(42) Install the number 1 bearing with the flat

side up in the pocket of the input clutch assembly
(Fig. 38).

Fig. 35 Thrust Plate Alignment

1 - LOCATING LUG (3)
2 - THRUST PLATE

Fig. 36 Install 4C Clutch Retainer/Bulkhead

1 - SNAP-RING
2 - 4C CLUTCH RETAINER/BULKHEAD

Fig. 37 Measure Output Shaft End Play

1 - TOOL 8261
2 - TOOL 8266
3 - TOOL C-3339

Fig. 38 Install Input Clutch Assembly

1 - BEARING NUMBER 5
2 - THRUST PLATE (SELECT)
3 - INPUT CLUTCH ASSEMBLY
4 - BEARING NUMBER 1

WG

AUTOMATIC-545RFE

21s - 223

AUTOMATIC-545RFE (Continued)

2001 JEEP GRAND CHEROKEE

(43) Install the oil pump into the transmission

case (Fig. 39).

(44) Install the bolts to hold the oil pump into the

transmission case. Tighten the oil pump bolts to 28
N·m (250 in.lbs.).

(45) Using Adapter 8266-1 from End-Play Tool Set

8266 and Dial Indicator C-3339, measure and record
the input shaft end-play (Fig. 40). The correct end-
play is 0.46-0.89 mm (0.018-0.035 in.). Adjust as nec-
essary. Install the chosen thrust plater on the
number 5 bearing and re-measure end-play to verify
selection.

NOTE: When measuring the input shaft end-play,
two

(

stops

(

will be felt. When the input shaft is

pushed inward and the dial indicator zeroed, the
first

(

stop

(

felt when the input shaft is pulled out-

ward is the movement of the input shaft in the input
clutch housing hub. This value should not be
included in the end-play measured value and there-
fore must be recorded and subtracted from the dial
indicator reading.

(46) Install the transmission front cover into the

transmission case (Fig. 41).

(47) Install the outer snap-ring to hold the trans-

mission front cover into the transmission case (Fig.
41).

(48) Partially install the inner transmission front

cover snap-ring onto the oil pump (Fig. 41).

(49) Using Installer 8255, install the inner trans-

mission front cover snap-ring the remainder of the
way onto the oil pump (Fig. 42).

Fig. 39 Install Oil Pump

1 - OIL PUMP TO CASE BOLT (6)
2 - OIL PUMP

Fig. 40 Measure Input Shaft End Play

1 - TOOL 8266
2 - TOOL C-3339

Fig. 41 Install the Transmission Front Cover

1 - INNER SNAP-RING
2 - TRANSMISSION COVER
3 - OUTER SNAP-RING

21s - 224

AUTOMATIC-545RFE

WG

AUTOMATIC-545RFE (Continued)

2001 JEEP GRAND CHEROKEE

(50) Install the valve body (Fig. 43). Verify that

the pin on the manual lever has properly engaged
the TRS selector plate. Tighten the valve body to
transmission case bolts to 12 N·m (105 in.lbs.).

(51) Verify that the primary oil filter seal is prop-

erly installed in the oil pump inlet bore.

(52) Install the primary oil filter and the oil cooler

return filter (Fig. 44). Tighten the screw to hold the
primary oil filter to the valve body to 4.5 N·m (40
in.lbs.). Using Oil Filter Wrench 8321, tighten the

cooler return oil filter to the transmission case to 14
N·m (125 in.lbs.).

(53) Apply RTV silicone to the oil pan and install

the transmission oil pan. Tighten the bolts to 12 N·m
(105 in.lbs.).

(54) Install the input, output, and line pressure

sensors (Fig. 45). Tighten the bolts to 12 N·m (105
in.lbs.).

(55) Install the manual shift lever from the trans-

mission. Torque the retaining cross-bolt to 16 N·m
(140 in.lbs.).

Fig. 42 Seat Snap-Ring Using Tool 8255

1 - TOOL 8255
2 - SNAP-RING

Fig. 43 Install Valve Body Assembly

1 - VALVE BODY TO CASE BOLT (6)

Fig. 44 Install Primary Oil and Cooler Filters

1 - PRIMARY OIL FILTER
2 - COOLER FILTER
3 - FILTER BYPASS VALVE
4 - VALVE BODY

Fig. 45 Install Input, Output,

and Line Pressure Sensors

1 - OUTPUT SPEED SENSOR
2 - LINE PRESSURE SENSOR
3 - INPUT SPEED SENSOR

WG

AUTOMATIC-545RFE

21s - 225

AUTOMATIC-545RFE (Continued)

2001 JEEP GRAND CHEROKEE

SCHEMATICS AND DIAGRAMS

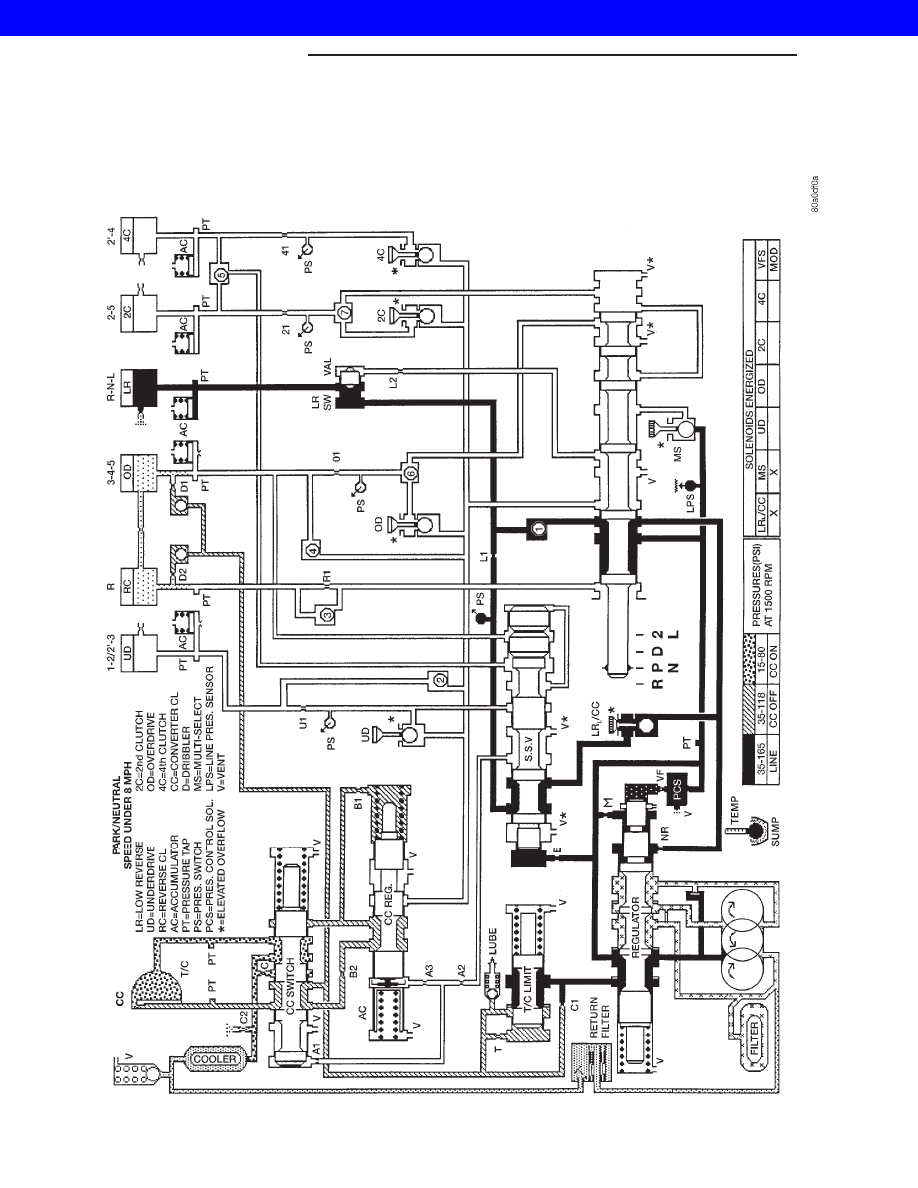

HYDRAULIC SCHEMATICS

545RFE

HYDRAULIC

SCHEMA

TIC

21s - 226

AUTOMATIC-545RFE

WG

AUTOMATIC-545RFE (Continued)

2001 JEEP GRAND CHEROKEE
