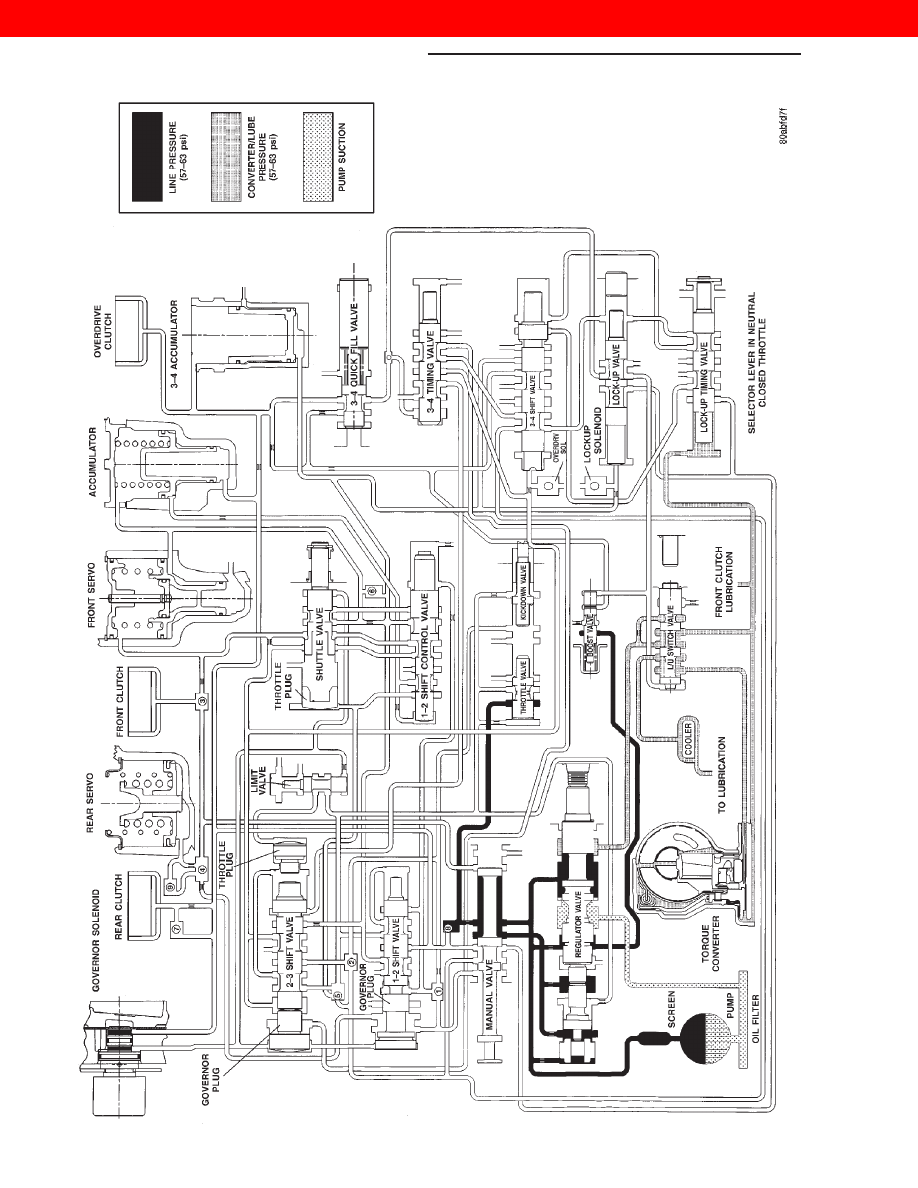

result, both adjustments must be performed properly LINE PRESSURE ADJUSTMENT Measure distance from the valve body to the inner edge of the adjusting screw with an accurate steel Distance should be 33.4 mm (1-5/16 in.). in, or out, to obtain required distance setting. NOTE: The 33.4 mm (1-5/16 in.) setting is an One complete turn of the adjusting screw changes line pressure approximately 1-2/3 psi (9 kPa). Turning the adjusting screw counterclockwise increases pressure while turning the screw clockwise THROTTLE PRESSURE ADJUSTMENT Insert Gauge Tool C-3763 between the throttle lever cam and the kickdown valve stem (Fig. 281). Push the gauge tool inward to compress the kick- down valve against the spring and bottom the throt- Maintain pressure against kickdown valve spring. Turn throttle lever stop screw until the screw head touches throttle lever tang and the throttle lever cam NOTE: The kickdown valve spring must be fully SCHEMATICS AND DIAGRAMS HYDRAULIC SCHEMATICS Fig. 279 Rear Band Adjusting Screw Location 1 – ADJUSTING SCREW Fig. 280 Line Pressure Adjustment 1 – WRENCH Fig. 281 Throttle Pressure Adjustment 1 – HEX WRENCH (IN THROTTLE LEVER ADJUSTING SCREW) LEVER AND KICKDOWN VALVE) 21 - 122 TRANSMISSION AND TRANSFER CASE WJ ADJUSTMENTS (Continued) 2000 JEEP GRAND CHEROKEE |
